专业工具

适用于保时捷 911 的火花塞孔修理套件

#斯托姆斯基#

911 头部的火花塞螺纹脱落通常意味着两种情况之一 - 维修不善或发动机故障无法正常维修。

到目前为止。

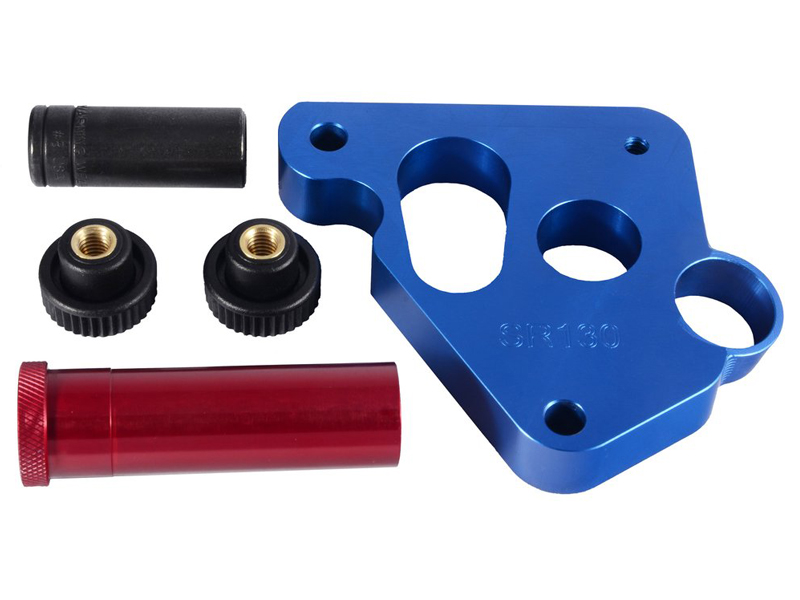

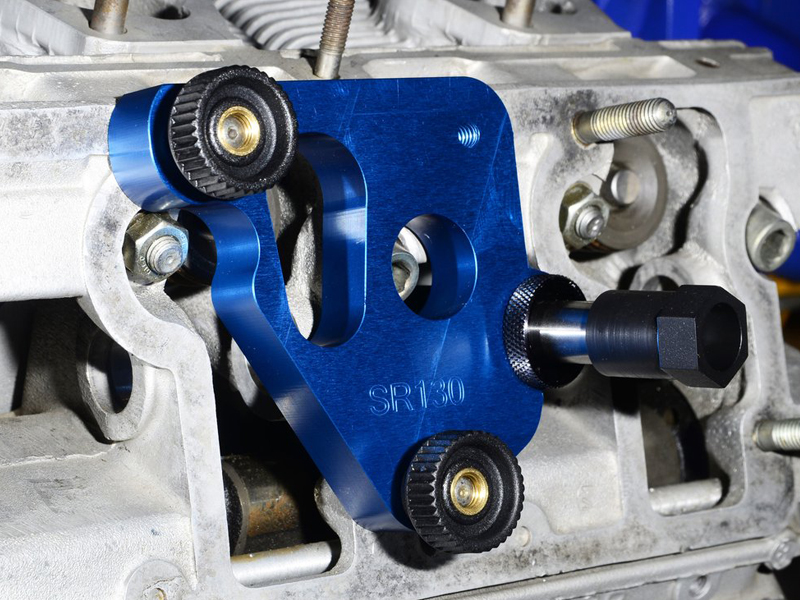

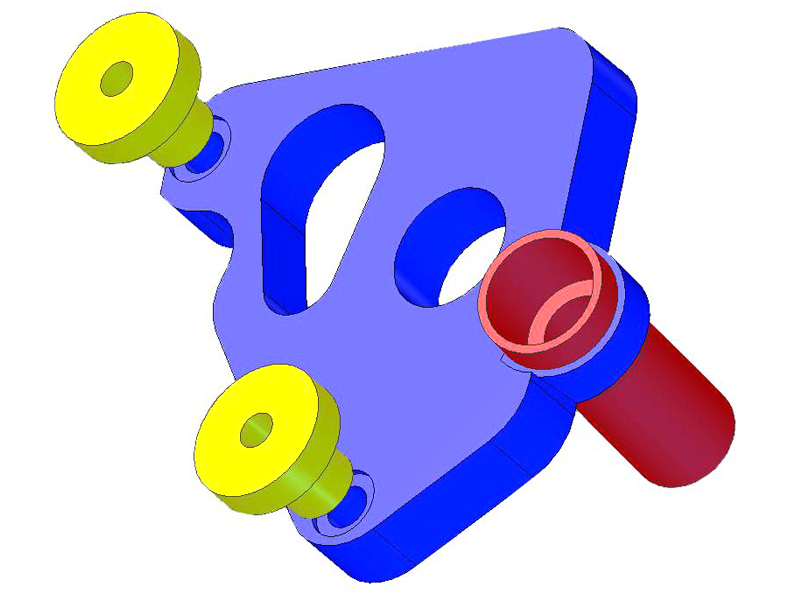

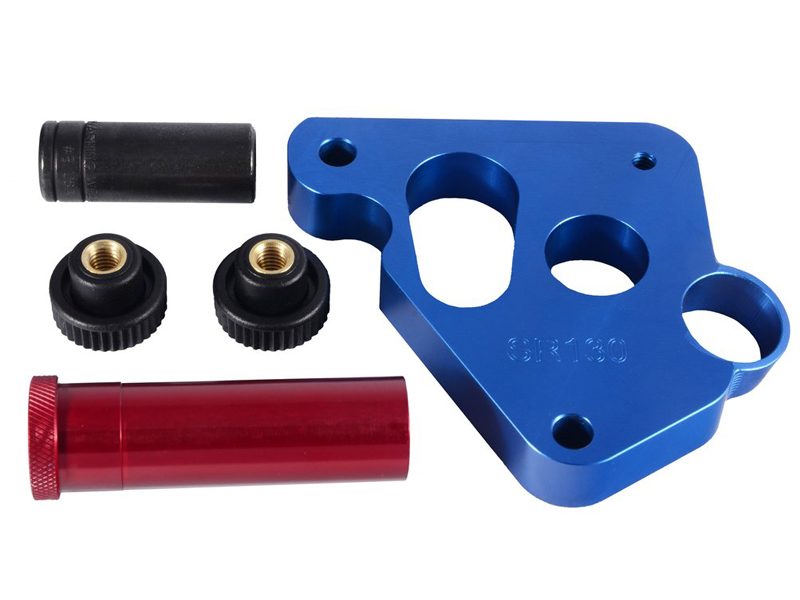

STOMSKI RACING 的新款 911 火花塞孔修复套件可让您精确地追踪受损头部的螺纹，或者在必要时通过安装 Time-Sert（或 Big-Sert）进行完全修复。我们新设计的数控夹具安装在两个气门盖螺栓上，当用随附的翼形螺钉锁定时，Time-Sert 铰刀、追踪器、丝锥和定位器可通过夹具的导管和定制丝锥驱动器精确对准 - 所有这些都在发动机仍在车内时进行。

有两种不同版本：

• SR130 与标准 M14x1.25 TimeSert 套件和插件（TS4412E 和 TS44111）一起使用；

• SR130BS 与 Big-Sert M14x1.25 超大插入套件和插入件 (TS5141E 和 TS51407) 一起使用。


我们还提供 Time-Sert/Big-Sert 14x1.25 套件和插件，以组成完整的包装。

Sprocket alignment tool for Porsche 911



Sprocket alignment on the 911 engine requires an accurate and repeatable ability to measure the offset of the sprockets and lay shaft. Simply using a straight edge and vernier calipers requires at least three hands and rarely produces precise measurements. Now, with the SR008, measuring sprocket alignment on the 911 engine has never been simpler, more accurate, or more repeatable. A precisely fabricated block of 6061 aluminum secures an oversized Starrett straight edge (included) to enable easy and exact measurements. No more guessing or settling for "close enough."
Includes custom caliper base, as well as thumb screws for mounting on all 911 engines including the 964.

Sprocket registration pin puller for Porsche 911



This unique tool allows you to easily pull the cam timing sprocket registration pin. No more yanking on the factory tool, hurting your fingers, or pulling the sprocket off the end of the cam shaft. Use this precisely machined slide hammer to delicately pull the pin.

TDC indicator with travel gauge for Porsche 911



For engines where you do not have to use our "dead-stop" TDC Indicator (SR022/23), use our easy to use, highly accurate TDC Indicator With Travel Gauge to measure the exact position of the piston. Precisely manufactured from 6061 Aluminum and hard-coated for extra wear resistance, these indicators include ASME/ANSI certified travel gauges for proven accuracy. Not recommended for use on the hemispherical heads on air-cooled 911s.

Available for either 10mm, 12mm, or 14mm spark plug holes.

Sold separately.

保时捷 911 的 TDC 指示器

#斯托姆斯基#

为了确保最高的计时精度，应检查所有发动机的真实 TDC，以确认皮带轮 TDC 标记相对于实际 TDC 的准确性。此工具拧入火花塞孔，并提供活塞相对于皮带轮/曲轴的位置的机械指示。通过旋转曲轴并接触/撞击活塞至死点 BTDC，然后以相反方向旋转发动机并再次接触/撞击活塞至死点 ATDC，在度盘、皮带轮或我们的 DigiDix-SR095 上记录两个测量值，您可以计算出纯 TDC。

适用于 12 毫米或 14 毫米火花塞孔。

分开售卖。

Through bolt o-ring installer for Porsche 911



Installing O-rings on the through bolts for a 911 engine case often slices the rings on the threads of the bolt, leading to ripped seals at best, or a leaky engine at worst. Use this cap to protect the O-ring and to insure a factory quality seal. Precisely machined from quality brass.

Stomski Racing SR024 Through bolt o-ring installer with sleeve for Porsche 911



Based on the factory P9511 tool, STOMSKI RACING's version of this tool incorporates a brass cap and a double-ended stainless steel sleeve to install the o-rings on the crankcase through-bolts of the 3.6 and later cases (but possibly can be used on some other 911 engines). By using the included brass cap to protect the delicate o-ring from getting cut on the threads of the bolt, you then use the "thin" end of the sleeve to slide the o-ring over the brass cap onto the shank of the through-bolt. Once the o-ring is clear of the threads, remove the SR024 brass cap and flip the SR024 stainless steel sleeve over and use the blunted end to securely and gently seat the o-ring in the recess on the 3.6 case.

Time-sert spark plug M14 x 1.25 deep hole kit



The perfect compliment for our SR130, Time-Sert's M14x1.25 Deep Hole Kit contains a step tap, wrench, seat cutter, and insert driver.

Inserts shown on the image are not included and are sold separately.

Time-Sert™ thread repair kit for SR065/SR067/SR068 for Porsche 911 / Boxster / 996 / 997



For exhaust port studs on 911, Boxster, 996/997 or GT3 heads where the threads have been pulled, or to recover from an already improper repair, we have developed this Time-Sert(tm) kit so you may use our SR065, SR067, SR068 or SR069 tools to insert a Time-Sert and save an otherwise ruined head. In addition to the standard Time-Sert(tm) parts (short P drill, counter-bore, tap, insert tool, and 5 short inserts), our kit also includes a full length P drill, two drill jigs/bushings to guide the P drill and tap in our SR065, SR067, or SR068 fixtures, 5 full length inserts, and 5 studs.

Time-Sert(tm) is a registered trademark of TIME FASTENER COMPANY

Timing chain strap / support for Porsche 911



When assembling the case halves on the 911 engine STOMSKI RACING's SR222 Timing Chain Strap will prove instrumental in supporting the chain to allow easier mating of the halves. Proper length, radius bend, tension, and quality steel insure that this tool will provide reliable and consistent support for all your engine builds.

Fits
• SR222 for all 911 engines

Valve lash adjuster fixture for Porsche 911



The established method of setting valve lash with a feeler gauge often provides for a "close enough" result and rarely provides for accurate, consistent, and easy to obtain precision. STOMSKI RACING's new version of an old-standby takes the "feel" out of setting valves and provides absolute precision, speed, ease of use, and consistency. By conveniently mounting a travel indicator over the adjuster of the rocker arm, STOMSKI RACING's 911 Valve Lash Adjuster allows you to quickly and accurately set and confirm the actual valve lash without settling for "close enough" or wondering whether your feel is consistent while trying to contort a feeler gauge into the far reaches of the 911 engine.

The SR097 is precision machined from 6061 aluminum and anodized for years of service on all 911 engines including 964s and 993s. Also available are a range of dial indicators including metric, digital, and compact travel indicators for use in restricted areas (pictured).

PLEASE NOTE:  this tool does not come with the gauge

Rennline 气门间隙工具。



适合：
保时捷 911 - 1965 年至 1989 年
保时捷 964 - 1989 年至 1994 年

产品描述

即使对于经验丰富的保时捷机械师来说，调整风冷 911 发动机的气门间隙可能是一个令人沮丧且耗时的过程。
在狭小、拥挤的空间内工作会使阀门调整成为一个不愉快的过程。

最后，有一种更简单、更快速、更精确的方法来调整所有风冷保时捷 911 发动机的气门间隙！从专业机械师到车主/爱好者，这款易于使用的设备使用寿命长，将证明是您 911 工具箱的宝贵补充。

• 每个气门均可重复设定 0.1 毫米（0.004 英寸）间隙
• 节省时间，比传统塞尺方法更准确
• 铝和钢结构
• 镀锌表面提供防腐保护
• 激光雕刻标记
• 耐用的盒子带有泡沫内衬，可安全存放
