专业工具

适配器发动机箱支架。

适合:
保时捷 911
保时捷 964
保时捷 993
保时捷 986 / 996
保时捷 987 / 997

该转接环设计用于使用四个 3/8 英寸螺栓将发动机箱体直接安装到任何通用发动机支架上，从而使发动机能够 360 度旋转。

它经过精密加工，具有所有必要的凹槽和槽口，以确保发动机部件（包括飞轮及其相应的锁定工具）有适当的间隙。

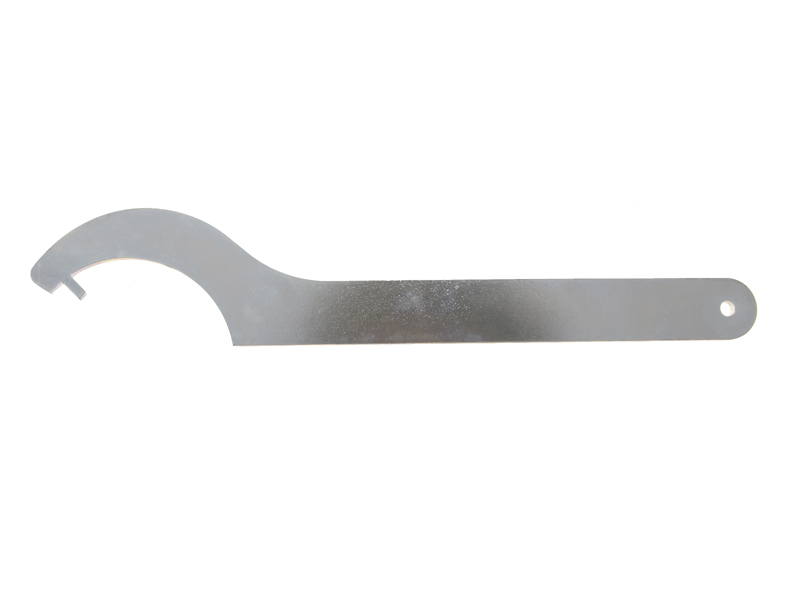

Alternator fan pulley wrench.
Reference numbers: 99957104702



Fits:
Porsche 911 F/G
Porsche 912

This hook wrench is an optimized version of the original on-board tool and fits better in the hole of the pulley thanks to the extended and curved pin. The locking key is a must for every 911 F/G model owner and allows you to separate the pulley from the fan wheel, for example to change the alternator V-belt.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

99957104702

您正在查看的产品与这些编号存在交叉引用关系

轴承润滑脂（200克）

#保时捷#

適用於:
保时捷 356（1950 年至 1965 年）
保时捷 911/912（1965 年至 1989 年）
保时捷 914（1970 年至 1976 年）
保时捷 924 / 924 S（1976 年至 1988 年）
保时捷 928（1978 年至 1995 年）
保时捷 944 /2（1982 年至 1991 年）
保时捷 968（1992 年至 1995 年）

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

PCG04311000

您正在查看的产品与这些编号存在交叉引用关系

博克 (Bock) 发动机工作台支架。

#北环赛道#

适合：
保时捷 356
保时捷 911 912 F/G
保时捷 930
保时捷 914
保时捷 964
保时捷 993
保时捷 996
保时捷 997
保时捷 986/987 Boxster
保时捷 987c Cayman

参考编号：
00072120100, 000.721.201.00, 000 721 201 00, P201

为改装您的保时捷发动机，我们提供发动机支架。法兰表面与悬臂一起连接到安装轴，可确保发动机牢固且同时易于安装到滚动发动机支架上。
在这里，您可以获得所需的支架，以便能够将发动机支架安装在工作台或类似物上。
我们的项目包括适用于所有经典保时捷以及 3.4-3.8L 水冷发动机的发动机支架。
该支架适用于直径为 60 毫米的发动机支架。

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

6822

您正在查看的产品与这些编号存在交叉引用关系

凸轮/动力转向阻断板适用于保时捷 911 / 964 / 993

#斯托姆斯基#

使用此板封闭 993 的凸轮塔上的动力转向泵开口，或封闭涡轮增压器和早期 911 的凸轮塔上的油泵和喷射泵开口。此板是定制设计的，适用于库存和非库存凸轮。

阳极氧化铝。

适用于 1998 年之前的 911。

单独出售。

Cam timing indicator fixture (dual) for Porsche 911 / 964 / 993



STOMSKI RACING finally takes the guess work out of timing the 911 engines. No longer do you need to hassle with convoluted setups, indicator contacts slipping off of the valve retainer, or measurements that will not repeat. This fixture indexes off of two cam carrier studs and literally takes only 10 seconds to setup. Once in place, the SR098 consistently and repeatedly holds the dial indicator contact in the same place on the valve retainer- EVERY time.

Includes adapters and extensions for both metric and AGD (inch) indicators.
Anodized aluminum for years of service.

For all 911s including the 993.

Please note: Gauges sold separately.

外倾角调整工具。后轴。
保时捷参考编号 00072191710

适合:
保时捷 911
保时捷 968
保时捷 944

该特殊工具适用于所有带有扭力杆悬架的保时捷 911、924/944/968 拖曳臂后轴，用于调整外倾角。
为了进行调整，将车辆顶起，将带有两个螺钉连接的半拖臂松开，并通过偏心工具将其向车轴臂旋转。

该工具具有镀锌表面和钝化层。
“德国制造”品质

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

1118

您正在查看的产品与这些编号存在交叉引用关系

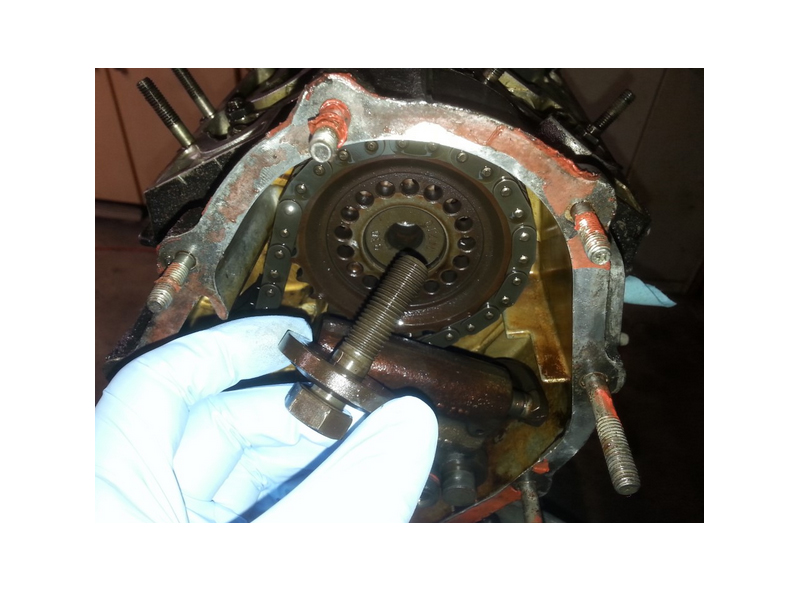

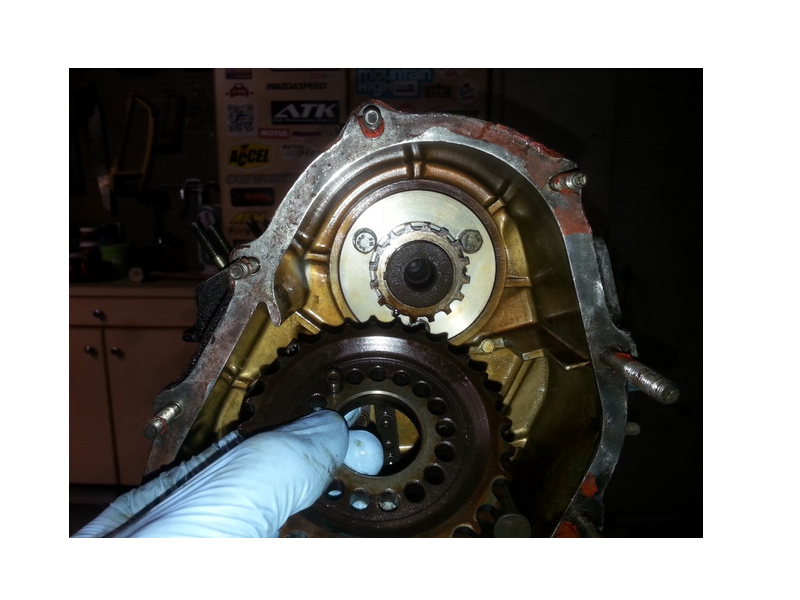

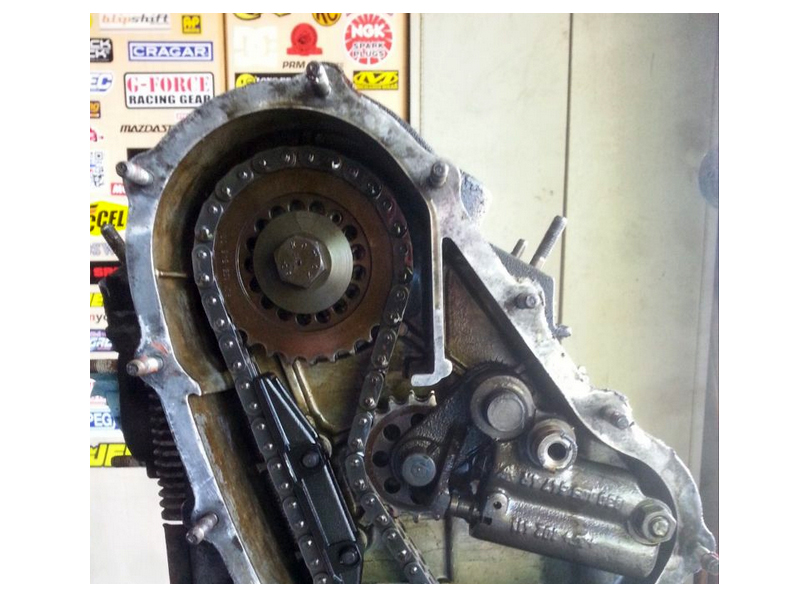

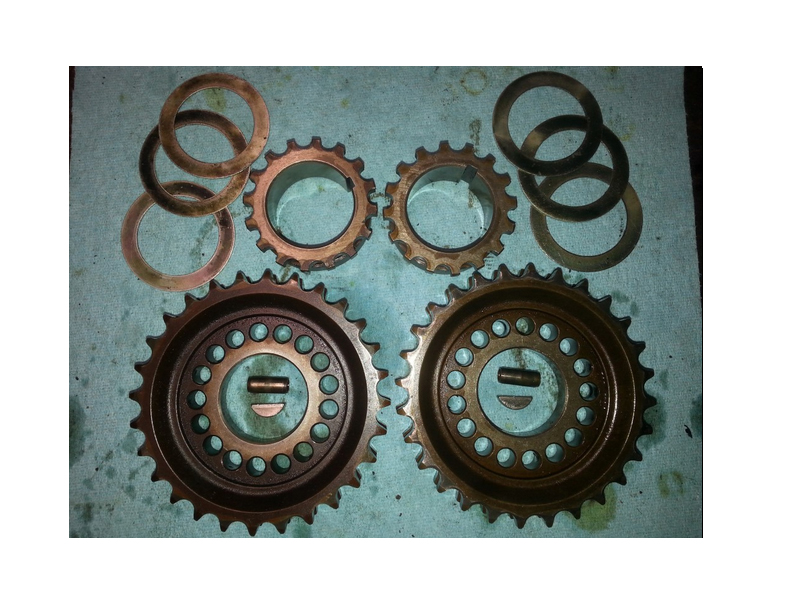

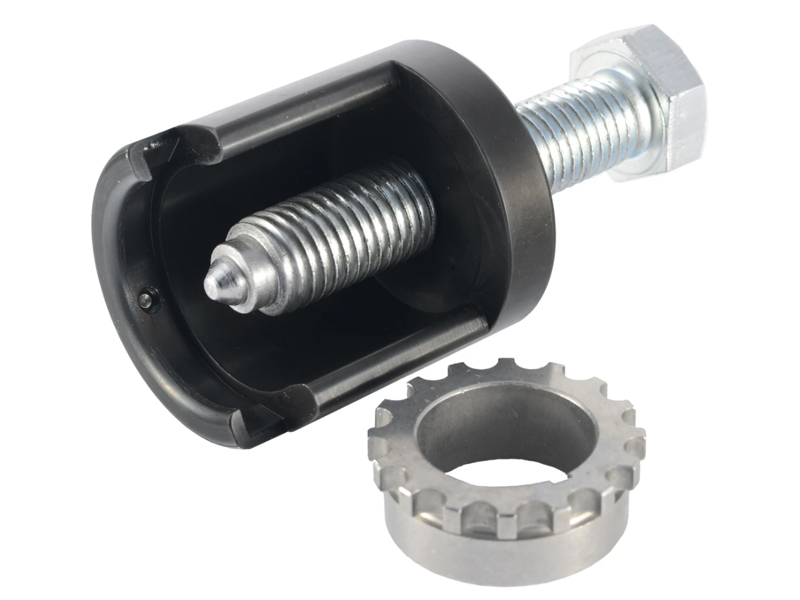

Cam drive gear/inner sprocket puller for Porsche 911



More than occasionally the inner sprocket on the end of the 911 camshaft is jammed or fused in place and refuses to budge. The confined space of the chain box makes it impossible to leverage the gear off, and even if you can get an edge, chances are you will only cock the gear, jamming it further, or possibly breaking a tooth on the gear (or even mar the cam itself).

STOMSKI RACING's SR079 centers over the end of the camshaft and slips behind the sprocket flange, allowing you to smoothly and effortlessly slide the gear off– protecting both the camshaft and the gear itself (and the curse jar!). Black oxide hardened steel with stainless steel drive bolt.

Designed to pull the seized inner sprockets from the ends of the camshafts on and early air cooled 911 likes SC's etc, probably up to mid-993 as we think by then they stopped using the pin you slide in from outer sprocket into available slot in the inner sprocket which the tool is for, it's held in place with woodruff key to end of camshaft.

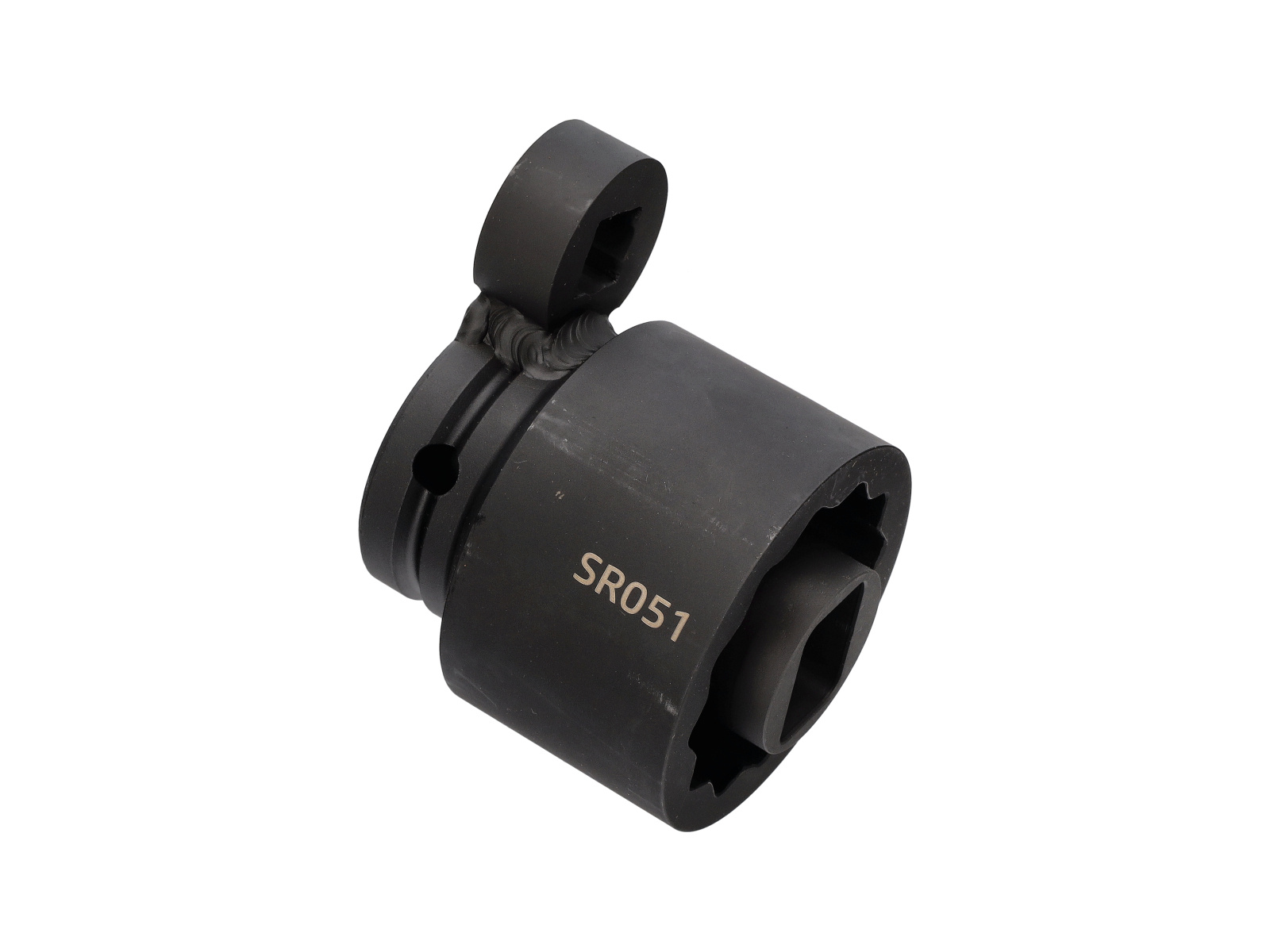

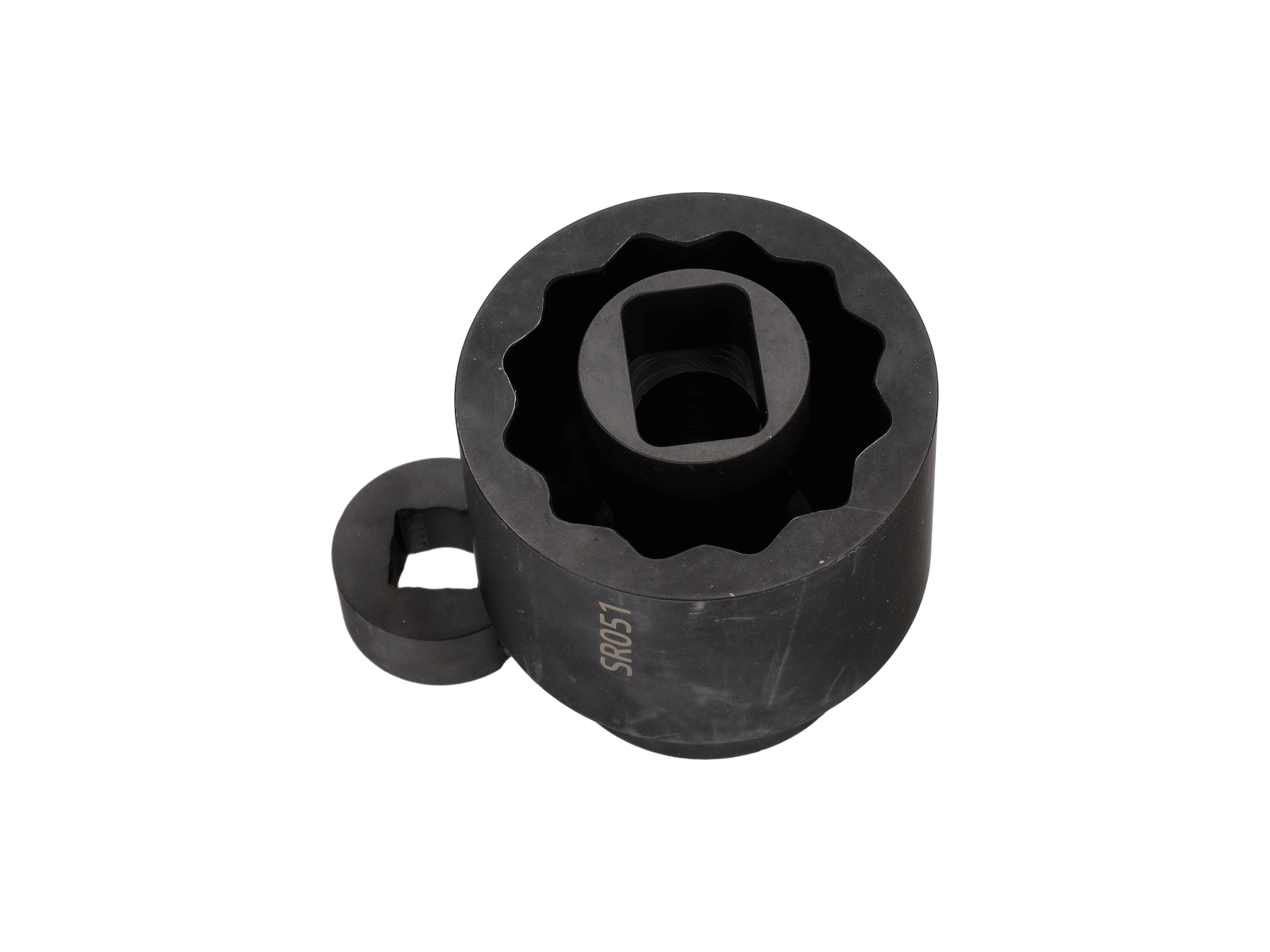

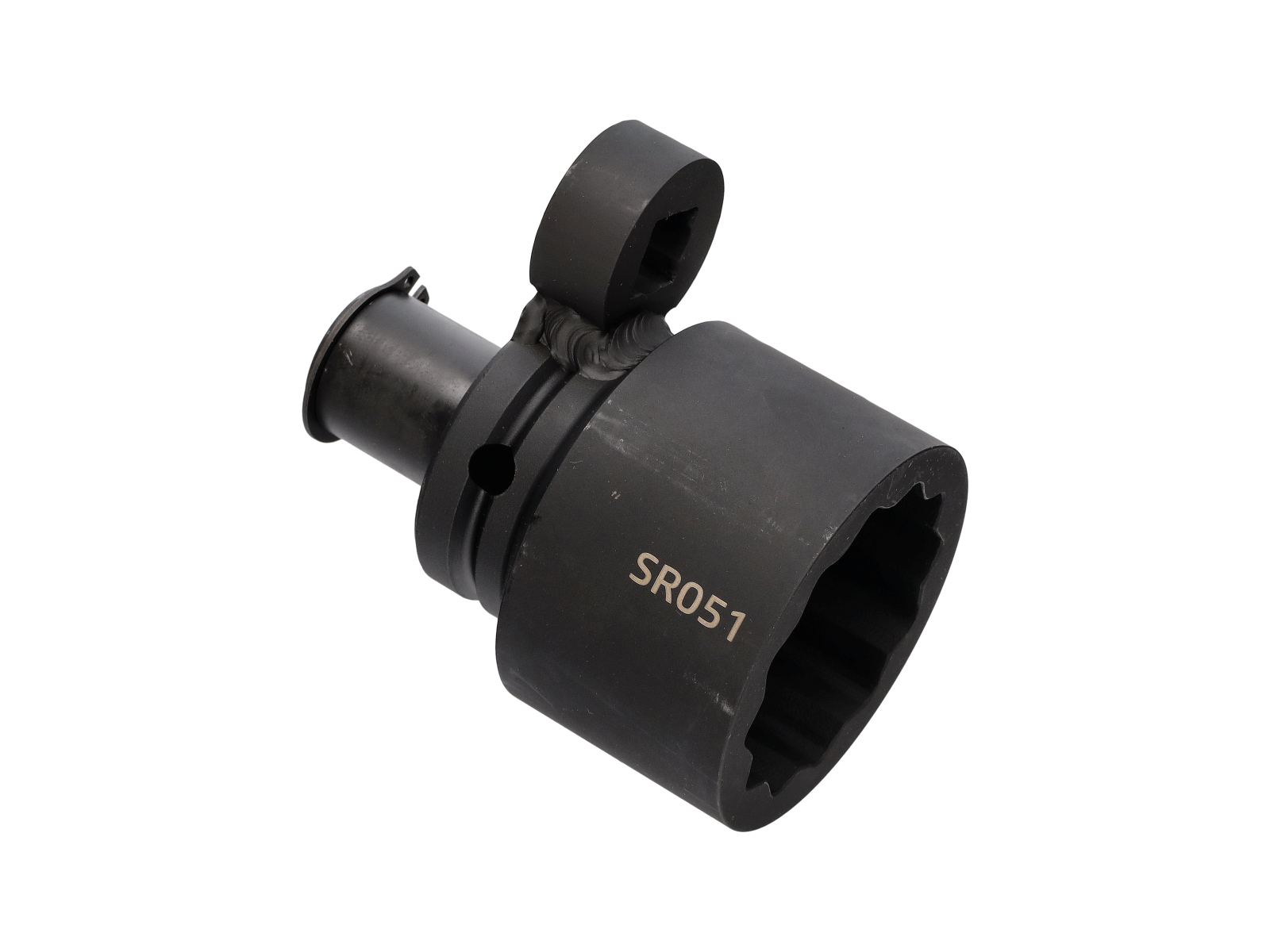

保时捷 911 凸轮螺母工具

#斯托姆斯基#

这种高品质工具是迄今为止拆卸早期 911 发动机（到 1980 1/2 年）凸轮轴末端螺母的最佳方法。

12 点套筒精确地套在凸轮螺母（46 毫米）上，而凸轮支架则穿过套筒的中心 - 确保不会滑动、不会再有螺母损坏，并且更容易扭矩螺母。

黑色氧化物钢/铸件。

更换工厂工具 P202 和 P203。

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

SR051

您正在查看的产品与这些编号存在交叉引用关系

Camshaft tool securing bar 9191 for Porsche 911 cam timing. Camshaft tool is compatible with Porsche 9191. It secures the camshaft from rotating during R&R of camshaft nut. It is used to adjust valves or set cam timing for Porsche 911 80-89



Fits:
Porsche 911 1980-89

Application
Porsche 911 80-89: Compatible with Porsche 9191
Specification: Black colour
Features Highlights: Strong and durable

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

00072191910

您正在查看的产品与这些编号存在交叉引用关系

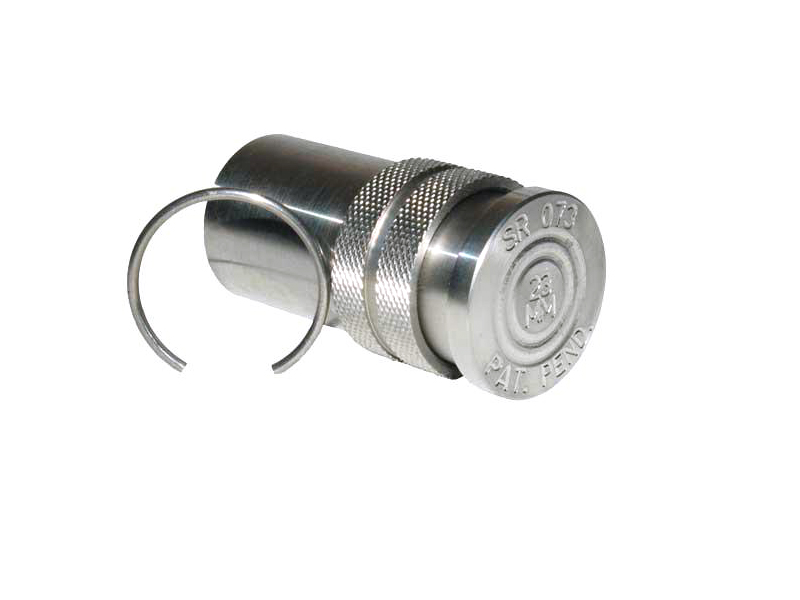

Circlip injector™ for Prosche 911



The cumbersome, awkward task of installing the wrist pin circlips into pistons has just gone from chore to joy. No more flying circlips, gouged fingers, scratched pistons, contortions, or swearing. Simply slip the circlip into the Circlip Injector Sleeve, insert the Circlip Injector Plunger, and "inject" the circlip into its wrist pin groove. Quick. Painless. Simple. Precisely machined from stainless steel.

Available in six stock sizes (19-24mm) and other sizes by special order (tool sizing corresponds to wrist pin diameter).

US Patent 8,302,304.

PDF Instructions (SR072)

Crankcase head stud driver for Porsche All 911 964 993 996 / 997 GT3 & Turbo Models 1965-On



Double-nutting a head stud to install it into the engine case not only takes time, but can be stressful for the threads, and can lead to variations in stud depth (unless you are extra careful when removing the double nuts). Protect your hardware investment and speed installation by using STOMSKI RACING's Head Stud Driver.

Made from black oxide finished hardened steel, this uniquely designed tool threads onto the head stud but will not clamp on to the threads, making installation faster, gentler, and more accurate.

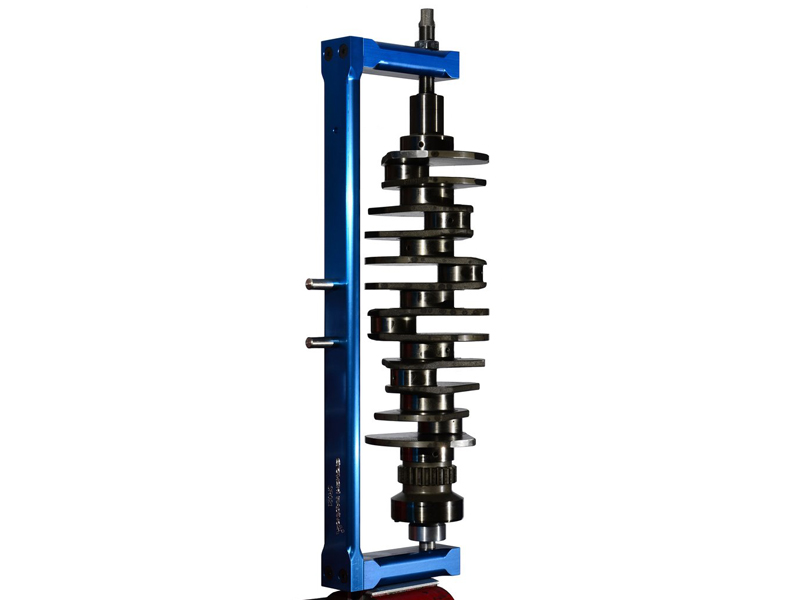

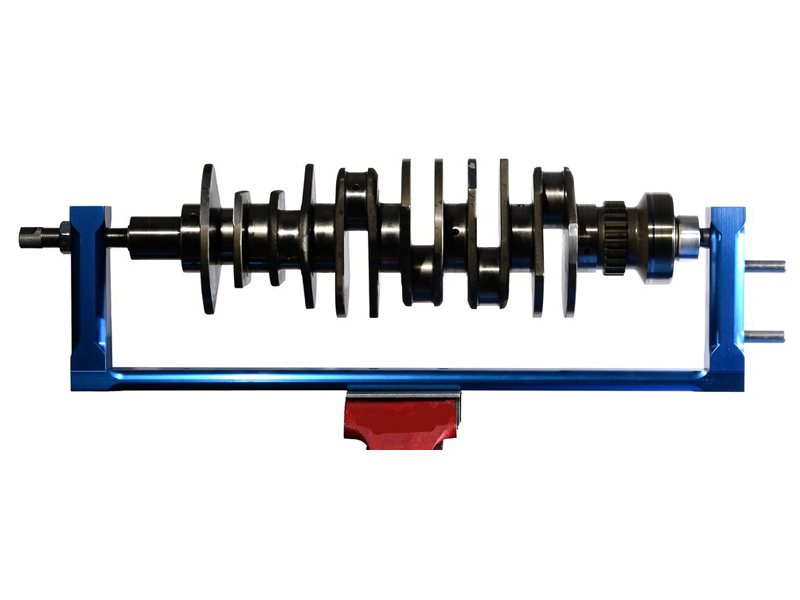

Crankshaft holder for Porsche 911



At last an elegant way to hold the 911 crankshaft for inspection, cleaning, disassembly, and rod bolt stretching. The crank rotates smoothly between centres to allow for complete access to all journals. Mounts vertically or horizontally in you bench mounted vice for optimal versatility.

Made from stainless steel and anodized aluminium.

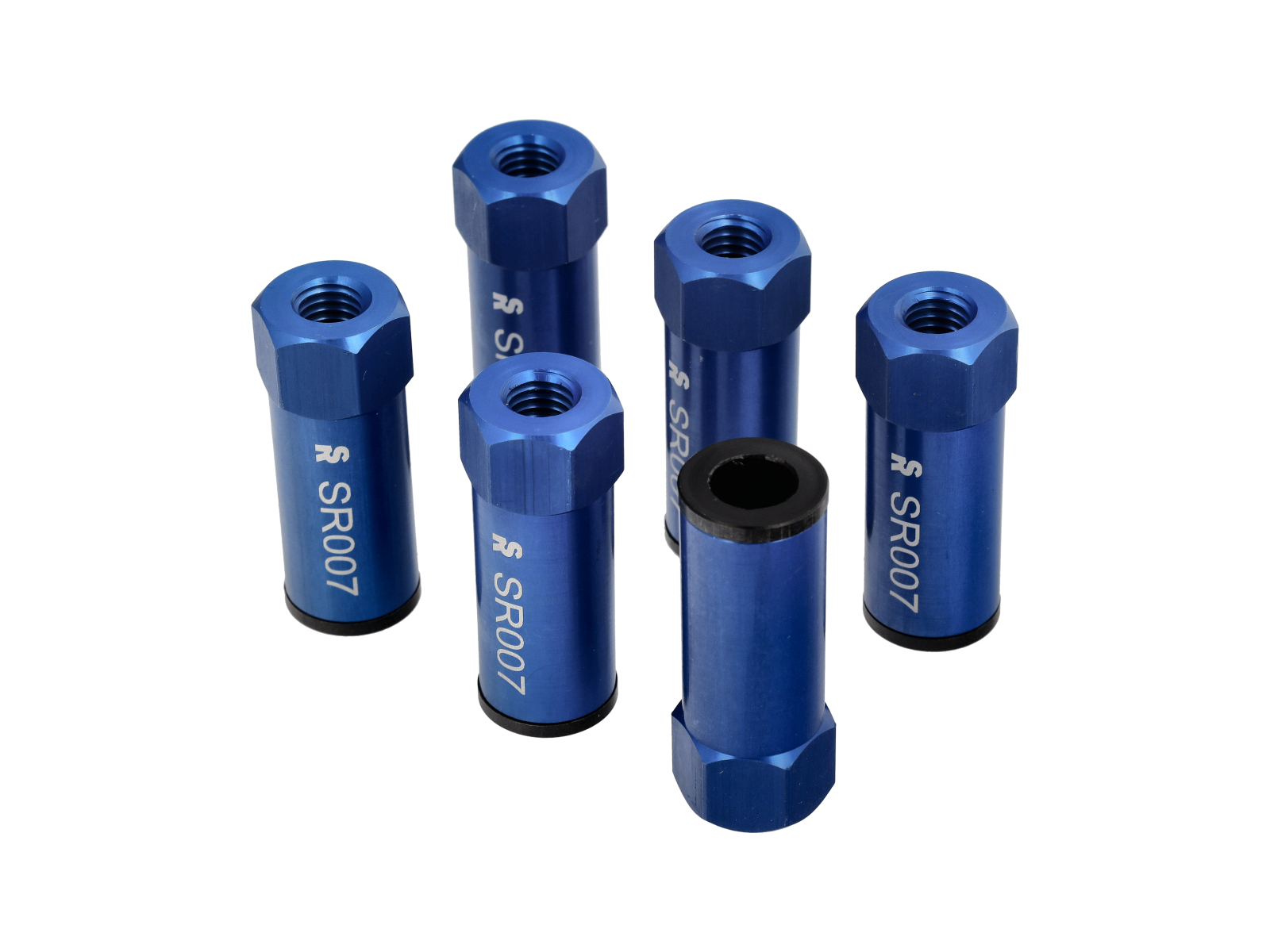

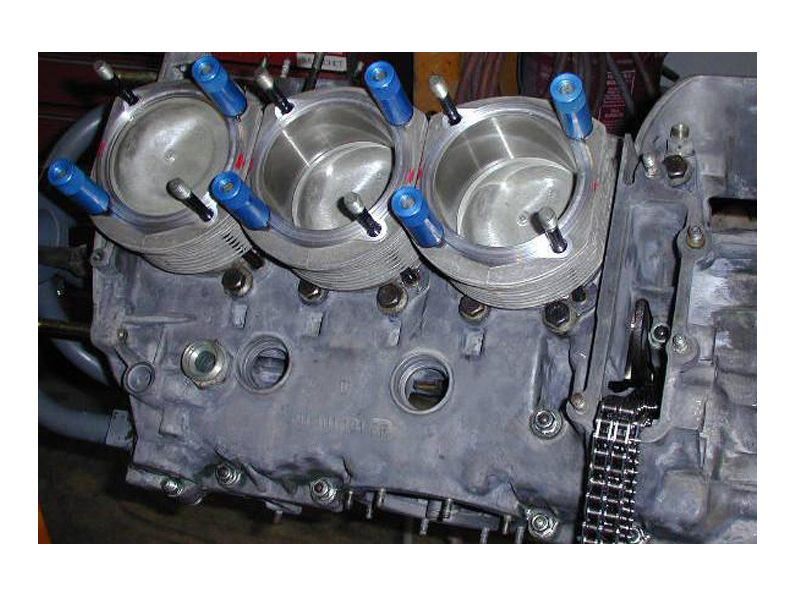

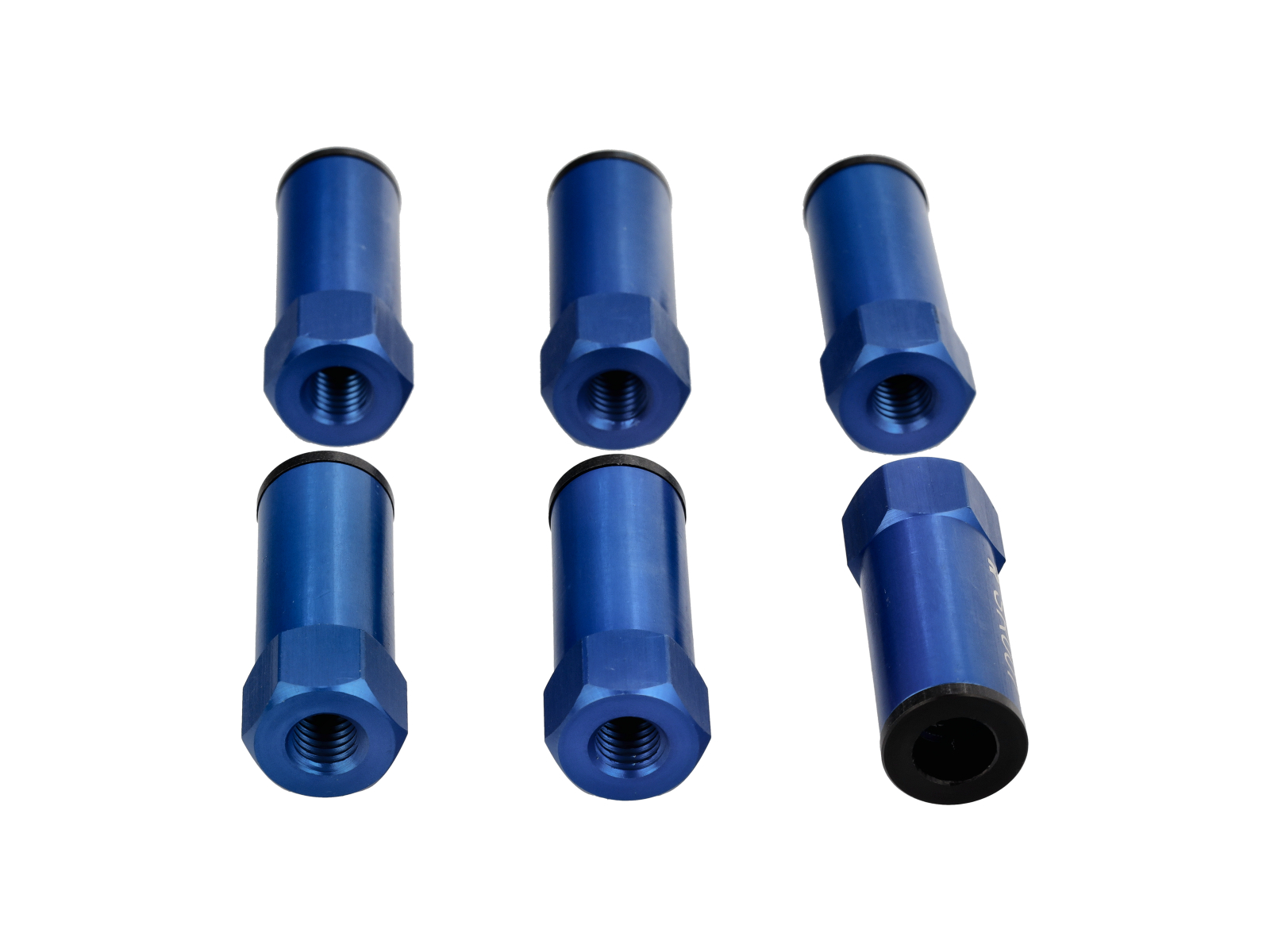

气缸固定螺母，6 件套，适用于保时捷 911

#斯托姆斯基#

这些专门设计和制造的螺母可在重建期间将 911 气缸固定到位。螺母可轻松旋转曲柄并安装活塞/气缸，而不会使气缸滑出机壳。采用 2011 铝材精心制造，阳极氧化处理，可使用多年。每个螺母都配有特殊的 Delrin 衬垫，以保护您的气缸。

一套六件。
