前悬挂连接杆及衬套

SuperPro 替换前下拉连杆衬套。
更换保时捷零件编号 90134378300
4 件套

#超级职业选手#

下拉链接衬套前部。1 件（每辆车需要 4 件）。

适合：
保时捷 911 / 911S / 912 1965-67
保时捷 911S 1969
保时捷 911S / Carrera 2.7L / 911T/E / 911T-K 1970-73 年
保时捷 911 Turbo 1975-77
保时捷 914 1970-76

使用聚氨酯悬架衬套替换您的汽车橡胶悬架衬套将为您带来：

- 更好的抓地力
- 恒定转向几何
- 延长轮胎寿命
- 转向更灵敏
- 悬架部件的使用寿命更长

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

SPF0526K

您正在查看的产品与这些编号存在交叉引用关系

前部下拉链接衬套。1 件（每辆车需要 4 件）。

适合:
保时捷 911 / 911S / 912 1965-67
1969 年款保时捷 911S
保时捷 911S / 卡雷拉 2.7L / 911T/E / 911T-K 1970-73
保时捷911 Turbo 1975-77
保时捷914 1970-76

图表参考编号 35

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

90134378300

您正在查看的产品与这些编号存在交叉引用关系

下拉链接衬套前部。
1 件（每辆车需要 4 件）。

适合:
保时捷 911 / 911S / 912 1965-67
1969 年款保时捷 911S
保时捷 911S / 卡雷拉 2.7L / 911T/E / 911T-K 1970-73
保时捷911 Turbo 1975-77
保时捷914 1970-76

图表参考编号 35

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

90134378300

您正在查看的产品与这些编号存在交叉引用关系

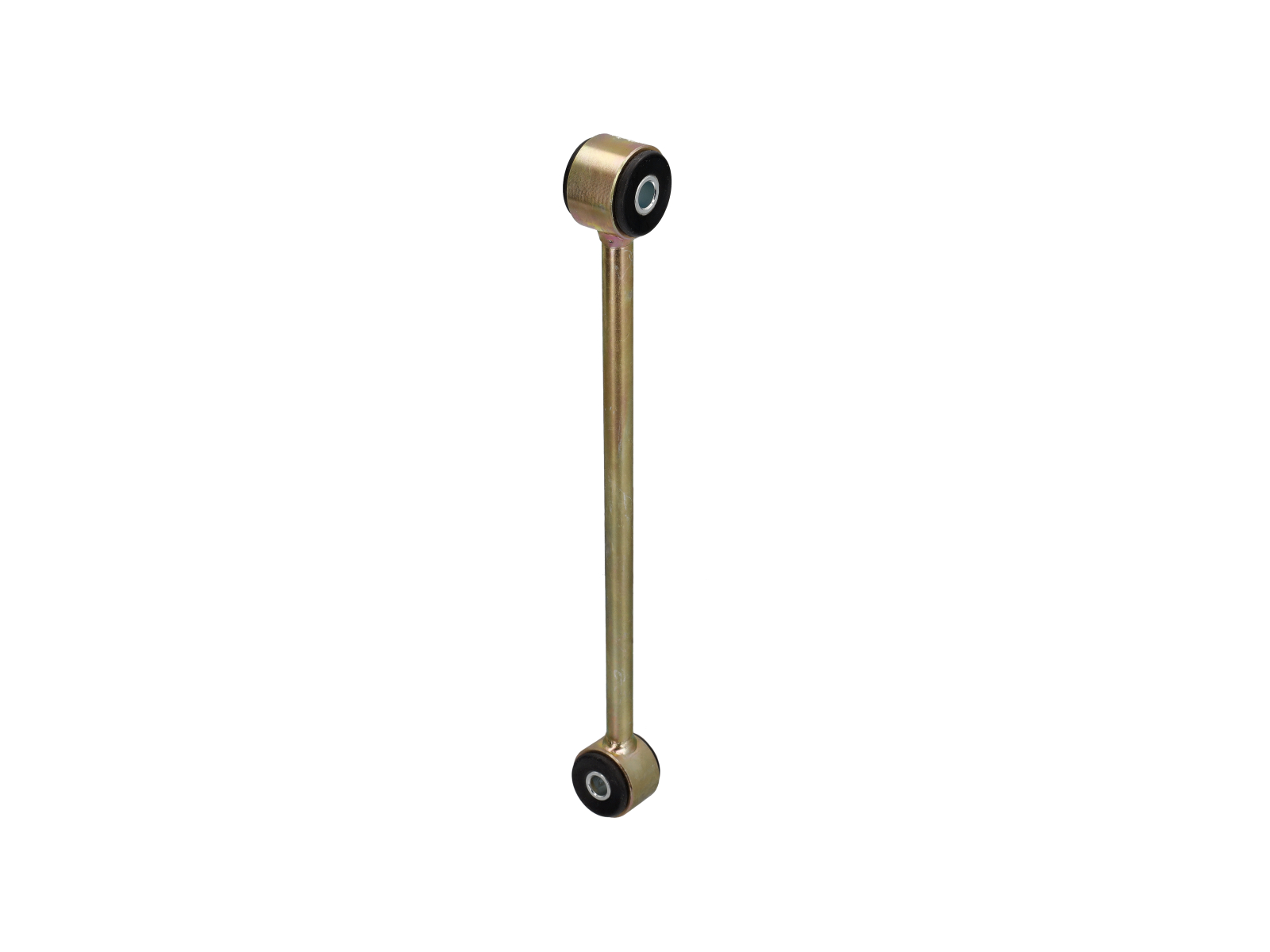

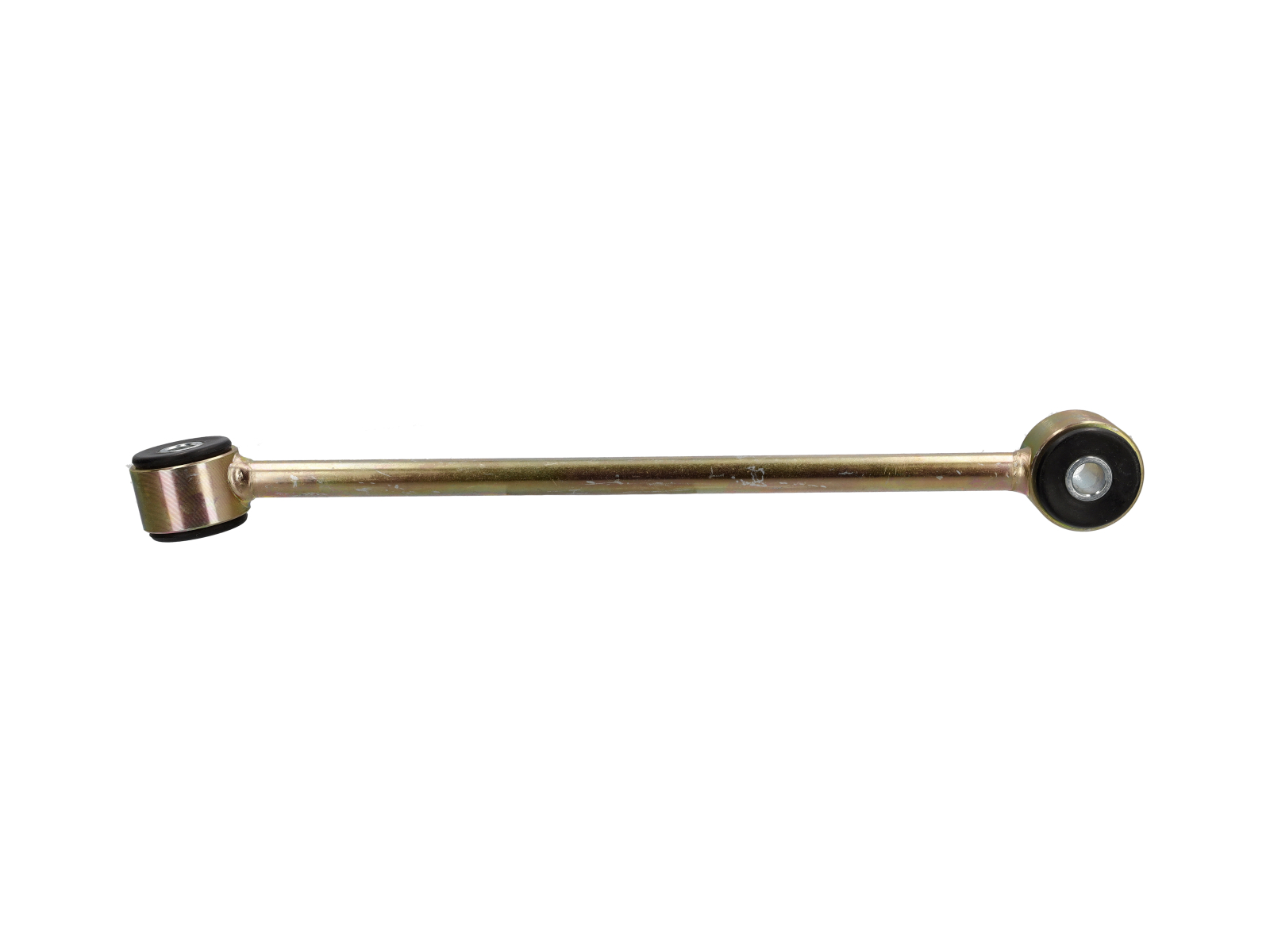

前下拉式连接件。适合：左侧和右侧。

适合:
保时捷911（1965-73年）
保时捷 930 Turbo 3.0L 1975-77

图表参考编号 33

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

90134307603

您正在查看的产品与这些编号存在交叉引用关系

前下拉式连接件。适合：左侧和右侧。

适合:
保时捷911（1965-73年）
保时捷 930 Turbo 3.0L 1975-77

图表参考编号 33

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

90134307603

您正在查看的产品与这些编号存在交叉引用关系

Front QuickChange™ Blade Style Sway bar

1 kit required per car



Fits
Porsche 911 - 1965 to 1989
Porsche 911 turbo - 1977 to 1989
Porsche 912 - 1966 to 1976
Porsche 914 - 1970 to 1976

Front and Rear QuickChange™ Blade Style Sway Bar System

Blade style adjustable sway bar (anti roll bar) system is the ultimate choice for performance and tuning. This superior-quality system delivers unique features and advantages that are without rival. It is simply the best.The blade style adjuster mechanism varies roll stiffness with the angle of the blade. Set it vertically for full-stiff, horizontal for full-soft, and intermediate angles for other stiffness levels.

Blade style adjustment offers advantages over traditional adjustable sway bars including faster adjustment and superior geometry.

The rear sway bars fit 66mm bolt spacing on the sway bar mounts as equipped on 1978-1989 911 cars. 1965-1977 cars can be upgraded to the later 66mm type mounts

Perfect Geometry

Fixed-length arms ensure the angle of the drop links are not changed with stiffness adjustment. Geometry and kinematic behavior is always perfect. The bar always rotates freely, with low-friction, and without binding in all adjustment positions.

Traditional sway bars adjust roll stiffness by changing the length of the lever arm, at the same time changing the angle of the drop link. This can cause poor force-transmission angles in some positions. The result can be binding, high-friction, and excessive load on the mounts to the chassis.

Lightweight

Hollow bar reduces weight.

Fast and Easy Adjustment

No need to jack up the car or remove the wheels. Reach under the car, loosen one bolt to rotate the blade type adjuster. The angle of the blade defines the stiffness.
Literally about 1 minute to adjust, faster with practice.Infinitely variable adjustment lets you dial in the precise roll stiffness.

For track cars this fast-adjustment can be invaluable when time in the pits or paddock is short. Adjusting traditional sway bars is a lengthy process – jack up car, remove wheels, adjust, re-install wheels.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

227002

您正在查看的产品与这些编号存在交叉引用关系

SuperPro 聚氨酯悬架衬套套件。

#超级职业选手#

适合：
保时捷 911 1974-85 车型，前防倾杆为 18 毫米，后防倾杆为 22 毫米

该套件包括
1 x SPF0893K 齿轮连杆衬套套件 2 个衬套、SuperPro 润滑脂
1 x SPF1436K 前支柱安装衬套套件 2 个衬套、2 根钢管、SuperPro 润滑脂
1 x SPF0526K 前稳定杆连杆衬套套件 4 个衬套、SuperPro 润滑脂
1 x SPF1450-18K 前稳定杆至横梁安装套件 2 个衬套、SuperPro 润滑脂
1x SPF0236AK 前扭力杆枢轴衬套套件 4 个衬套、SuperPro 润滑脂
1 x SPF1375K 后发动机安装衬套套件 4 个衬套、2 根钢管、SuperPro 润滑脂
1 x SPF0095-22K 后稳定杆底部连杆衬套套件 2 个衬套、SuperPro 润滑脂
1 x SPF0134-22K 后稳定杆至底盘衬套 2 个衬套，SuperPro 润滑脂
1 x SPF0236K 扭力杆枢轴衬套套件 4 个衬套、SuperPro 润滑脂
1 x SPF0988K 后拖曳臂（香蕉臂）前衬套套件 4 个衬套、SuperPro 润滑脂

使用聚氨酯悬架衬套替换您的汽车橡胶悬架衬套将为您带来：

- 更好的抓地力
- 恒定转向几何
- 延长轮胎寿命
- 转向更灵敏
- 悬架部件的使用寿命更长。

Sway bar backdate mounting kit
1 kit required per car



Fits
Porsche 911 - 1969 to 1989
Porsche 911 turbo - 1977 to 1989
Porsche 912 - 1966 to 1976
Porsche 914 - 1970 to 1976

For Retro-Fitting the Through Body Anti Roll Bar

Required for Adjustable sway bars when installed on cars not originally equipped with a through body sway bar. These plates fit to the back side of the wheel well and distribute the sway bar load to prevent tearing.

When installing many thru-body type front sway bars onto cars originally equipped with an under-body type sway bar. U tabs are welded to stock control arms in place of the 'loop' style bushing holders used on cars originally equipped with under body type front sway bars.

• Required For Through-Body Sway bar Conversions
• Not required for Elephant Racing Blade Type Sway bars
• Welding required for proper installation

Generally required for all 911/912/914/930 from 1974-1989 with A arm mounted anti roll bars

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

2270025_2270024

您正在查看的产品与这些编号存在交叉引用关系

Sway bar mounting backer plate kit
1 kit required per car



Fits
Porsche 911 - 1974 to 1989
Porsche 911 turbo - 1977 to 1989
Porsche 912 - 1966 to 1976
Porsche 914 - 1970 to 1976

For Retro-Fitting the Through Body Anti Roll Bar

Required for Adjustable sway bars when installed on cars not originally equipped with a through body sway bar. These plates fit to the back side of the wheel well and distribute the sway bar load to prevent tearing.

Generally required for all 911/912/914/930 from 1974-1989 with A arm mounted anti roll bars

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

2270024

您正在查看的产品与这些编号存在交叉引用关系
