马勒

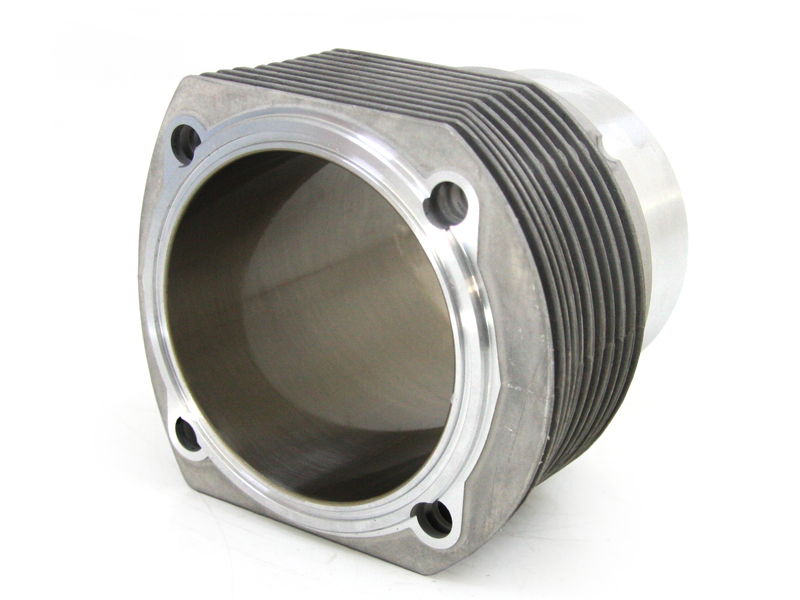

Engine cylinder / liner.



Fits:
Porsche 993 3.6L C2 / C4 1994>>

Supplementary Article/Supplementary Info with piston rings
Cylinder Bore [mm] 100 mm
Length [mm] 63,2 mm
Compression Height [mm] 31,8 mm
Valve pocket depth 2 [mm] 47,3 mm
Top land height [mm] 6,2 mm
Bolt Ø [mm] 23 mm
Bolt length [mm] 54 mm
Surface Tin-plated
Production Number 100 P 47

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.


This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

503WR45

您正在查看的产品与这些编号存在交叉引用关系

Engine cylinder / liner.



Cylinder Bore 100 mm
Fits:
Porsche 964 3.6L C2 / C4 1990>>

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

503WR45

您正在查看的产品与这些编号存在交叉引用关系

Engine cylinder / liner.



Cylinder Bore 100 mm
Fits:
Porsche 964 3.6L Turbo

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

503WR45

您正在查看的产品与这些编号存在交叉引用关系

Engine cylinder / liner.



Fits:
Porsche 993 Turbo 3.6L 1994>>

Cylinder Bore: 100 mm
Length: 63,3 mm
Compression Height: 31,8 mm
Top land height: 6,1 mm
Bolt Ø : 23 mm
Bolt length: 54 mm
Surface: Coated
Production Number: 100 P 46

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

503WR44

您正在查看的产品与这些编号存在交叉引用关系

Engine cylinder / liner.



Fits:
PORSCHE 356 1600cc
Engine code: 616.15
82.50 Ø
4 Cylinder
8 valve
1582cc
55 KW
75 HP

Please note: These pistons will need to be purchased as 4 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

61610410400

您正在查看的产品与这些编号存在交叉引用关系

Engine cylinder / liner.



Fits:
PORSCHE 911L 2.0L 01/63 - 12/68
901.01
KW96
HP13

Cyl. Bore: 80,000 mm
Outer diameter: 92,000 mm
Length: 123,000 mm
Height: 82,300 mm
Flange Ø: 88,0 mm
Flange Ø: 88,000 mm

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

503WR18

您正在查看的产品与这些编号存在交叉引用关系

Engine cylinder / liner.



Fits:
Porsche 911 L 2.0L 01/63 - 12/68 COUPE or Targa
901.17
901.05
901.06
901.07
901.14
KW96
HP131

Cyl. Bore: 80,000 mm
Outer diameter: 92,000 mm
Length: 123,000 mm
Height: 82,300 mm
Flange Ø: 88,0 mm
Flange Ø: 88,000 mm

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

503WR18

您正在查看的产品与这些编号存在交叉引用关系

Engine cylinder / liner.



Fits:
Porsche 911E / 911S 2.0L

Engine code: 901.02
80.00 Ø
6 Cylinder
12 valve
1,991
118 KW
160 HP
07/66 - 11/68

Engine code: 901.08
80.00 Ø
6 Cylinder
12 valve
1,991
118 KW
160 HP

Engine code:901.11
80.00 Ø
6 Cylinder
12 valve
1,991
140 HP

Engine code: 901.09
80.00 Ø
6 Cylinder
12 valve
1,991
103 KW
140 HP


Cyl. Bore: 80,000 mm
Outer diameter: 92,000 mm
Length: 123,000 mm
Height: 82,300 mm
Flange Ø: 88,0 mm
Flange Ø: 88,000 mm

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

503WR18

您正在查看的产品与这些编号存在交叉引用关系

Engine cylinder / liner.



Fits:
Engine code: 901.10
Porsche 911S 125Kw / 170PS 07/1966-02/1972

Cyl. Bore: 80,000 mm
Outer diameter: 92,000 mm
Length: 123,000 mm
Height: 82,300 mm
Flange Ø: 88,0 mm
Flange Ø: 88,000 mm

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

503WR18

您正在查看的产品与这些编号存在交叉引用关系

Engine cylinder / liner.



Fits:
Engine codes: 911.52 / 911.55 / 911.62
Porsche 911E 2.4L 121kw / 165PS
08/1971 - 12/1973

Cyl. Bore: 84,000 mm
Outer diameter: 92,000 mm
Length: 120,000 mm
Height: 85,500 mm
Flange Ø: 107,000 mm

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

503WR19

您正在查看的产品与这些编号存在交叉引用关系

Engine cylinder / liner.



Fits:
Engine codes: 911.02
Porsche 911S 2.2L
09/1969 - 02/1972

Cyl. Bore: 84,000 mm
Outer diameter: 92,000 mm
Length: 120,000 mm
Height: 85,500 mm
Flange Ø: 107,000 mm

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

Covers part numbers:
91110391801, 91110391802, 91110391891,

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

503WR19

您正在查看的产品与这些编号存在交叉引用关系

Engine cylinder / liner.



Fits:
Engine codes: 911.01 / 911.04
Porsche 911E 2.2L 114kw / 80 - 155PS
09/1969 - 02/1972

Cyl. Bore: 84,000 mm
Outer diameter: 92,000 mm
Length: 120,000 mm
Height: 85,500 mm
Flange Ø: 107,000 mm

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

503WR19

您正在查看的产品与这些编号存在交叉引用关系

Engine cylinder / liner.



Fits:
Engine code: 911.53 / 911.56
Porsche 911S 2.4L 140Kw / 190PS
08/1971 - 08/1973

Cyl. Bore: 84,000 mm
Outer diameter: 92,000 mm
Length: 120,000 mm
Height: 85,500 mm
Flange Ø: 107,000 mm

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

Special order item and subject to 20% restocking or cancellation fee.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

503WR19

您正在查看的产品与这些编号存在交叉引用关系

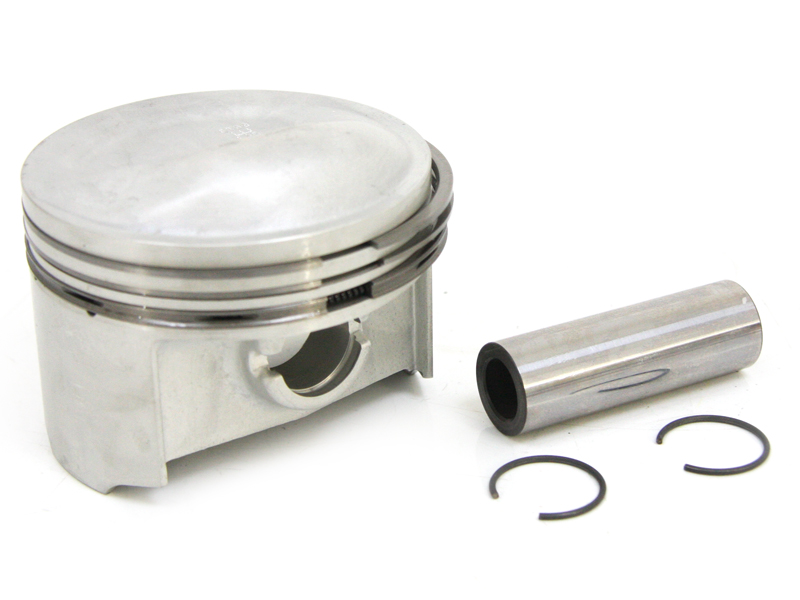

Engine piston.



Fits:
Porsche 911E / 911S 2.0L
Engine code: 901.02
80.00 Ø
6 Cylinder
12 valve
1,991
118 KW
160 HP
07/66 - 11/68

Engine code: 901.08
80.00 Ø
6 Cylinder
12 valve
1,991
118 KW
160 HP

Engine code901.11
80.00 Ø
6 Cylinder
12 valve
1,991
140 HP

Engine code: 901.09
80.00 Ø
6 Cylinder
12 valve
1,991
103 KW
140 HP

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

90110390600

您正在查看的产品与这些编号存在交叉引用关系

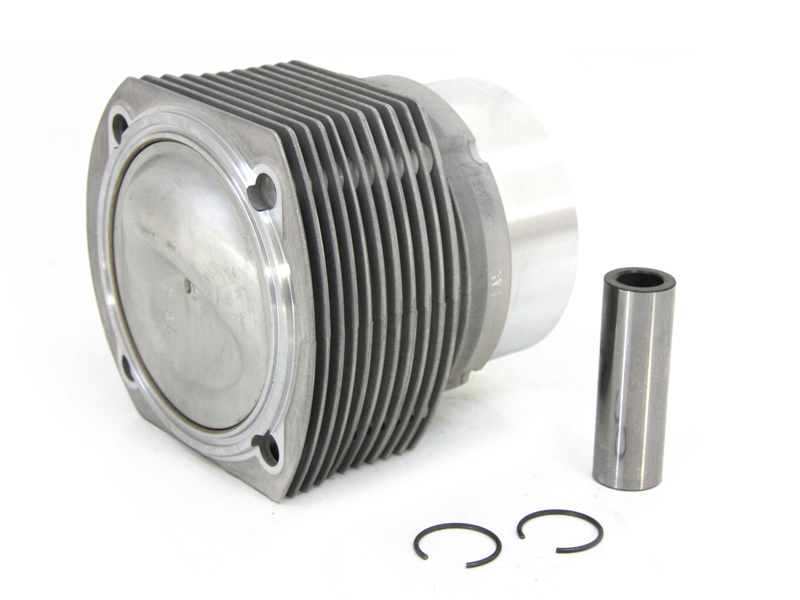

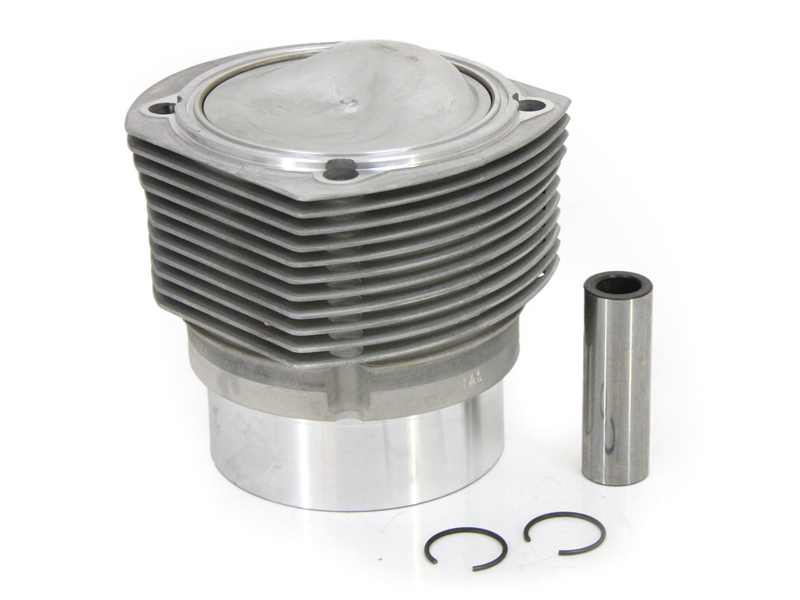

Engine piston and cylinder.



Fits:
Porsche 911E / 911S 2.0L
Engine code: 901.02
80.00 Ø
6 Cylinder
12 valve
1,991
118 KW
160 HP
07/66 - 11/68

Engine code: 901.08
80.00 Ø
6 Cylinder
12 valve
1,991
118 KW
160 HP

Engine code901.11
80.00 Ø
6 Cylinder
12 valve
1,991
140 HP

Engine code: 901.09
80.00 Ø
6 Cylinder
12 valve
1,991
103 KW
140 HP

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

90110390600

您正在查看的产品与这些编号存在交叉引用关系

Engine piston.



Fits:
Porsche 911 2.7L Mech Injection
Engine Type: 911/83

Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.

This set should only be fitted by engine builders or tuners as other parts may be required.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

91110392801

您正在查看的产品与这些编号存在交叉引用关系
