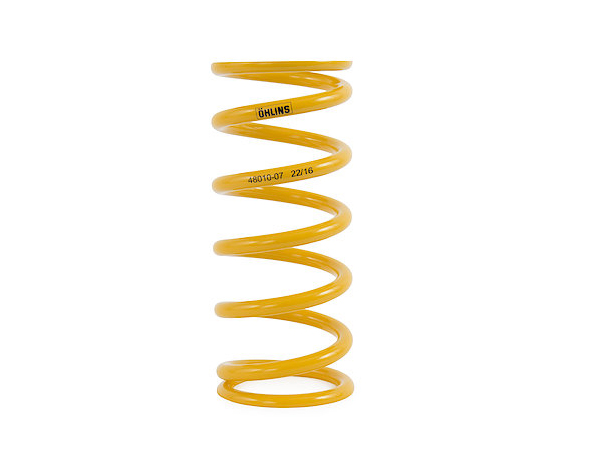

Öhlins Coil Spring front and rear helper 20 N/mm, 40 mm  ❭  05173-12

The Öhlins Road & Track range for Porsche covers a major part of all 996 and 997 models with kits for all needs. It's a kit designed for track day use and club racing but with the DFV technology it also offers superb handling and comfort on the way to and from the tracks.

Fits:
Porsche 997 C2*
*Cars WITH PASM Porsche Active Suspension Management system this kit can be fitted kit but you will require a PASM cancellation kit to delete the light on the dash board

The Road & Track kit with DFV technology is a kit now developed with Porsche specific settings. The DFV technology acts like a high and low speed blow off valve and with adjustable compression and rebound the days of compromise are over.
This kit works surprisingly well on the road as well as at high speed on racing tracks, whether it is trackdays or racing. The settings have been developed using both shake rigs and testing by racing drivers to make sure the Öhlins DNA is present.

These kits are in a light weight design with most of the parts in aluminium and have been corrosion tested and comes with a two year limited warranty. They are also TÜV approved.

This kit is especially developed for high end racing and also TÜV approved.

Technical Info:
• DFV (Dual Flow Valve)
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year Limited Warranty
• Height adjustable
• 20 mm lower than standard

Front Shocks:
• McPherson Strut
• Single bleed adjuster
• Spring preload adjuster
• Coil Springs
• Dustcovers
• Use with original top mounts

Rear Shocks:
• Conventional Shock Absorber
• Single bleed adjuster
• Spring preload adjuster
• Coil Springs
• Dustcovers
• Use with original top mounts

For Mounting Instructions CLICK HERE

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

POSMZ20S1

The product you are viewing cross references to these numbers

The Öhlins wire extension kit allows easy access to the damping adjusted, when your car is equipped with a BOSE sound system or is a convertible. The adjuster will be extended and placed above the rear panel.

Purchased Parts Package:
2x Adapter
2x Control wire 280 mm
2x Control knob
2x Screw control knob M4x0,7

Fits:
Porsche 911 (996) Carrera 2 (1998-2006)
Porsche 911 (996) Carrera 4 / Turbo (1999-2005)
Porsche 911 (996) GT2 / GT3 / GT3 RS (1999-2004)
Porsche 911 (997) Carrera 2 (2004-2012)
Porsche 911 (997) Carrera 4/4S, Targa, Cabrio (2006-2012)
Porsche 911 (997) GT2, GT3 (2007-2009)
Porsche 911 (997) GT3 RS (2007-2011)
Porsche 911 (997) Turbo/S, Targa/Cabrio (2006-2012)

CARGRAPHIC LiftSystem Evolution Upgrade Kit

The CARGRAPHIC LiftSystem Evolution is available as an upgrade kit to be mounted on an existing factory front coilover suspension.  Fits cars with PASM or without

It is important to note that the CARGRAPHIC LiftSystem Evolution can only be fitted to coilovers with cylindrical suspension springs. Alternatively, the kit can be fitted to Bilstein, Ohlins and KW coilover suspension kits, which are available to purchase from Design911

Please note when ordering we will need your full vehicle details, together with which type of coilover kit is being used with the kit

Consisting of:
• 2x CARGRAPHIC LiftSystem Air spring / Air bellows
• 1x CARGRAPHIC LiftSystem Control unit V9
• 1x Wiring loom
• 1x Air duct set with connections
• 1x Remote control
• Fitting material
• Installation manual
• TÜV-Certificate*
• For vehicles with coilover suspension with cylindrical suspension springs

Features:
• Raising of the body by 55mm, measured at the fender
• Fast response time: maximum increase within 15 seconds
• No change or impairment of driving behaviour
• Safe control with automatic lowering from 50km/h
• Pneumatic operation, thus no liquid in the vehicle
• No reduction of the luggage compartment volume
• Low weight of approx. 3Kg
• Short installation time of approx. 3 hours.
• Operation via radio or permanently installed switch
• German TUEV certificate*
• Tested by world champion Walter Röhrl
• Fitting:  A qualified, experienced technician will need to fit this kit needs with due skill, care and diligence.
