Ohlins

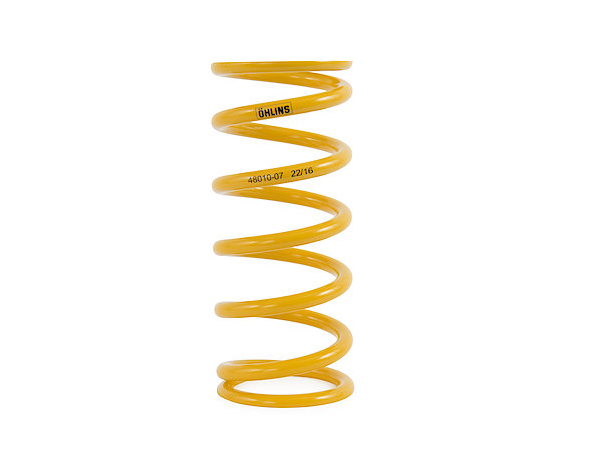

Coil Spring front, 70 N/mm, 200 mm



Price per piece.There are no individual ABE's, "Teilegutachten" (TÜV), material-/consistency approvals or other documentation for Road & Track springs available.

Certain products of the Road & Track suspension series from Öhlins are delivered without springs. Recommended springs must be ordered separate.
Technical Spezifikations:

Spring rate: 70 N/mm
Length: 200 mm
Inner diameter: 65 mm
Outer diameter: 88 mm
Wire diameter: 11,5 mm
Colour: yellow, powder coated
Material: steel

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

48010-19

The product you are viewing cross references to these numbers

Adjustable suspension kit (without springs).



Fits:
Porsche 911 (991.1) GT3/RS, 2013 – 2015
Porsche 911 (991.2) GT3/RS, 2017 – 2018

TTX technology:
•  2-way adjustable
•  Height adjustable
•  Rebuildable
•  Corrosion salt spray tested (ISO 9227)
•  2 year limited warranty
•  Delivery without springs - please add them separately

This coil over set is available as a:
•  Track day kit with softer springs
   - front: 48120-17 (main) / 05173-12 (help.)
   - rear: 48140-37 (main) / 05173-12 (help.)
•  Motorsport kit with stiffer springs
   - front: 48120-21 (main) / 05173-12 (help.)
   - rear: 48140-37 (main) / 05173-12 (help.)

Front:
•   McPherson strut, upside down
•   Twin tube technology
•   Separate compression and rebound adjusters
•   Spring preload adjuster
•   Approx. 20 mm lower than standard with recommended setup
•   Spring rate main spring 200 N/mm (TRACKDAY KIT)
•   Spring rate main spring 120 N/mm (MOTORSPORT KIT)
•   Spring rate helper spring 7,5 N/mm

•   Dustcovers
•   Use with original top mounts

Rear:
•   McPherson strut, upside down
•   Twin tube technology
•   Separate compression and rebound adjusters
•   Spring preload adjuster
•   Approx. 20 mm lower than standard with recommended setup
•   Dustcovers
•   Use with original top mounts

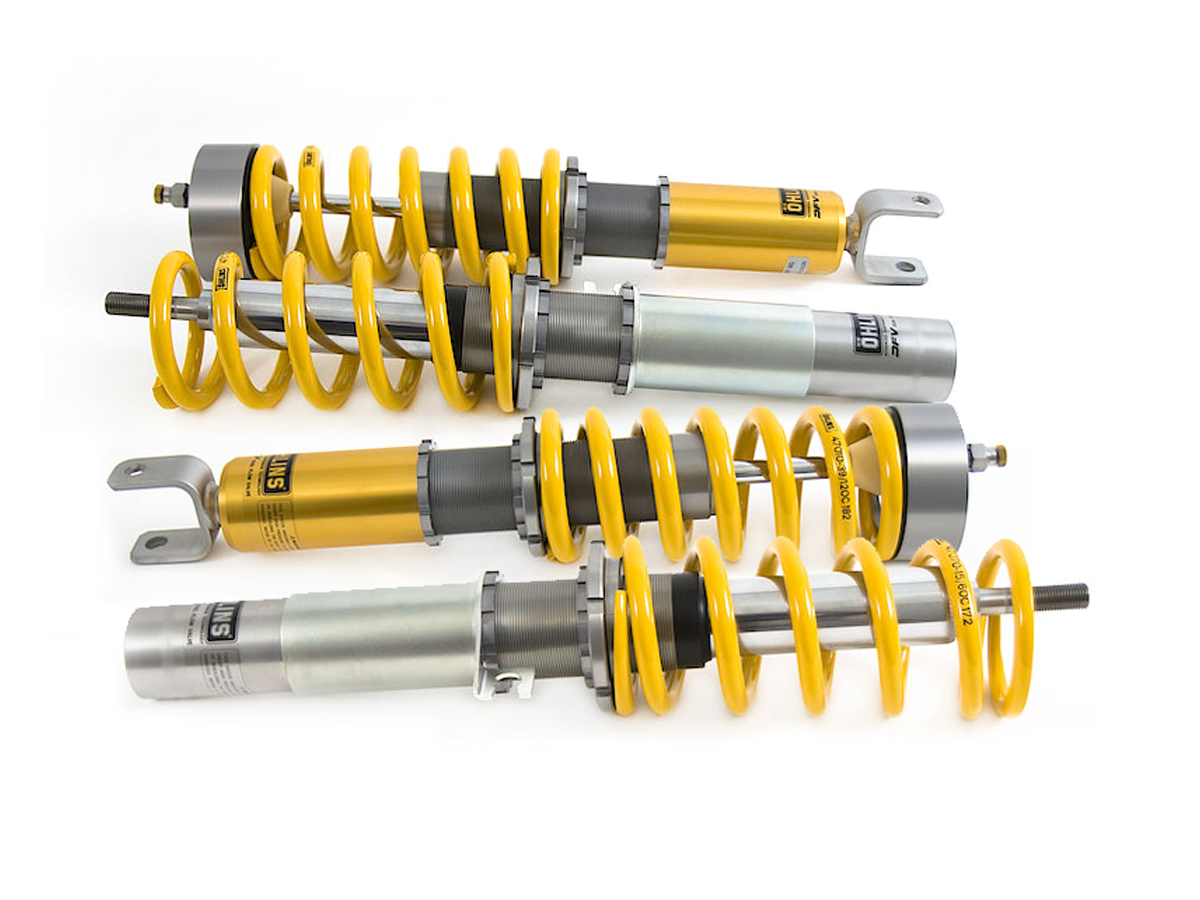

Ohlins Adjustable suspension kit (incl. springs). DFV technology (Dual Flow Valve)



Fits:
Porsche 981C Cayman / Cayman S 2013>>
Porsche 718 (982) Boxster 2016>>
Porsche 718 (982) Cayman 2016>>

General Features:
• DFV technology (Dual Flow Valve)
• Height adjustable
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year limited warranty
• Set incl. springs

Front:
• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Approx. 20 mm lower than standard with recommended setup
• Height adjustment range -15/+15 mm
• Spring rate 70 N/mm
• Dustcovers
• Use with original top mounts

Rear:
• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Approx. 20 mm lower than standard with recommended setup
• Height adjustment range -15/+15 mm
• Spring rate 80 N/mm
• Dustcovers
• Use with original top mounts

Adjustable suspension kit. Advanced Trackday. Porsche 991 GT3 (2013-) 120/200 N/mm



Fits:
Porsche 911 (991) GT3 RS, year 2015>>

General Features:
• TTX technology
• 2-way adjustable
• Height adjustable
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year limited warranty

Front:
• McPherson strut, upside down
• Twin tube technology
• Separate compression and rebound adjusters
• Spring preload adjuster
• Approx. 20 mm lower than standard with recommended setup
• Spring rate main spring 120 N/mm
• Spring rate helper spring 20 N/mm
• Dustcovers
• Use with original top mounts

Rear:
• Conventional Shock Absorber
• Twin Tube technology
• Separate compression and rebound adjusters
• Spring preload adjuster
• Approx. 20 mm lower than standard with recommended setup
• Spring rate main spring 200 N/mm
• Spring rate helper spring 20 N/mm
• Dustcovers
• Use with original top mounts

Notes: The set consists of 2 dampers POF 5R00 for the front and 2 dampers POF 6R00 for the rear.

Adjustable suspension set (without springs)



Fits:
Porsche 718 Boxster Spyder/RS (982), 2019 –
Porsche 718 Cayman GT4 (982), 2019 –
Porsche Cayman GT4 (981c), 2015 – 2016
Porsche Cayman GT4 Clubsport (981c), 2015 – 2016

General Features:
•  TTX technology
•  2-way adjustable
•  Height adjustable
•  Rebuildable
•  Corrosion salt spray tested (ISO 9227)
•  2 year limited warranty
•  Delivery without springs - please add them separately

This coil over set is available as a:
•  Track day kit with softer springs
    - front: 48120-17 (main) / 05173-17 (help.)
    - rear: 48140-21 (main) / 05173-17 (help.)
•  Motorsport kit with stiffer springs
    - front: 48120-21 (main) / 05173-17 (help.)
    - rear: 48140-25 (main) / 05173-17 (help.)

Front:
•  McPherson strut, upside down
•  Twin tube technology
•  Separate compression and rebound adjusters
•  Spring preload adjuster
•  Approx. 20 mm lower than standard with recommended setup
•  Spring rate main spring 120 N/mm (TRACKDAY KIT)
•  Spring rate main spring 120 N/mm (MOTORSPORT KIT)
•  Spring rate helper spring 20 N/mm
•  Dustcovers
•  Use with original top mounts

Rear:
•  Conventional shock absorber
•  Twin tube technology
•  Separate compression and rebound adjusters
•  Spring preload adjuster
•  Approx. 20 mm lower than standard with recommended setup
•  Dustcovers
•  Use with original top mounts

Ohlins Adjustable suspension kit TTX-Technology



Fits:
Porsche 911 (997) GT2, 2007 – 2010
Porsche 911 (997) GT3 RS, 2006 – 2011
Porsche 911 (997) GT3 RS 4.0L 2011

The Porsche Club Sport Kit features the Öhlins well known TTX (Twin-Tube) technology. The unique combination of a 46 mm, two way adjusted, through rod and lightweight McPherson strut for the front and rear will completely transform your car.

The Öhlins Club Sport kit use the technology derived from Touring cars and GT3 racing but in this version, the shocks are also set up for street use. With the club race kit you will cut seconds of your lap times compared to the standard setup on the racetrack, and you are only a few clicks away from the street comfort setting.

With more adjustability options, you are able to fine-tune the suspension setting for each individual track as well as the tires you chose to use. Öhlins professional test drivers have tested all settings to find the optimum performance so you can focus on the driving.

GENERAL FEATURES:
• TTX-technology
• Fully independent two-way adjustable shock absorbers
• Rebuildable
• 2 year limited warranty
• Height adjustable
• 20 mm lower than standard

FRONT FEATURES:
• MacPherson strut
• Two-way adjustable
• Spring preload adjuster
• Coil springs
• Use with original top mounts

REAR FEATURES:
• MacPherson strut
• Two-way adjustable
• Spring preload adjuster
• Coil springs
• Use with original top mounts

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

POVMY00

The product you are viewing cross references to these numbers

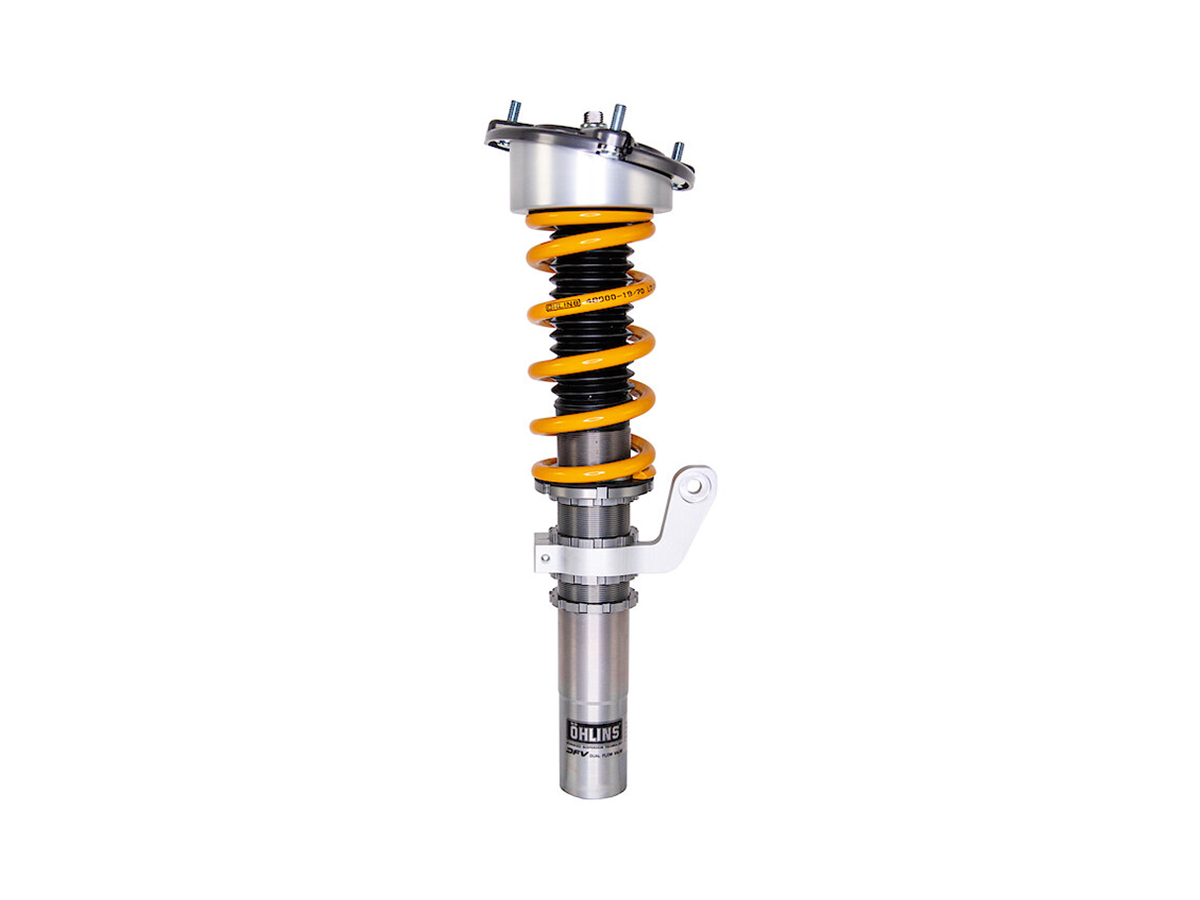

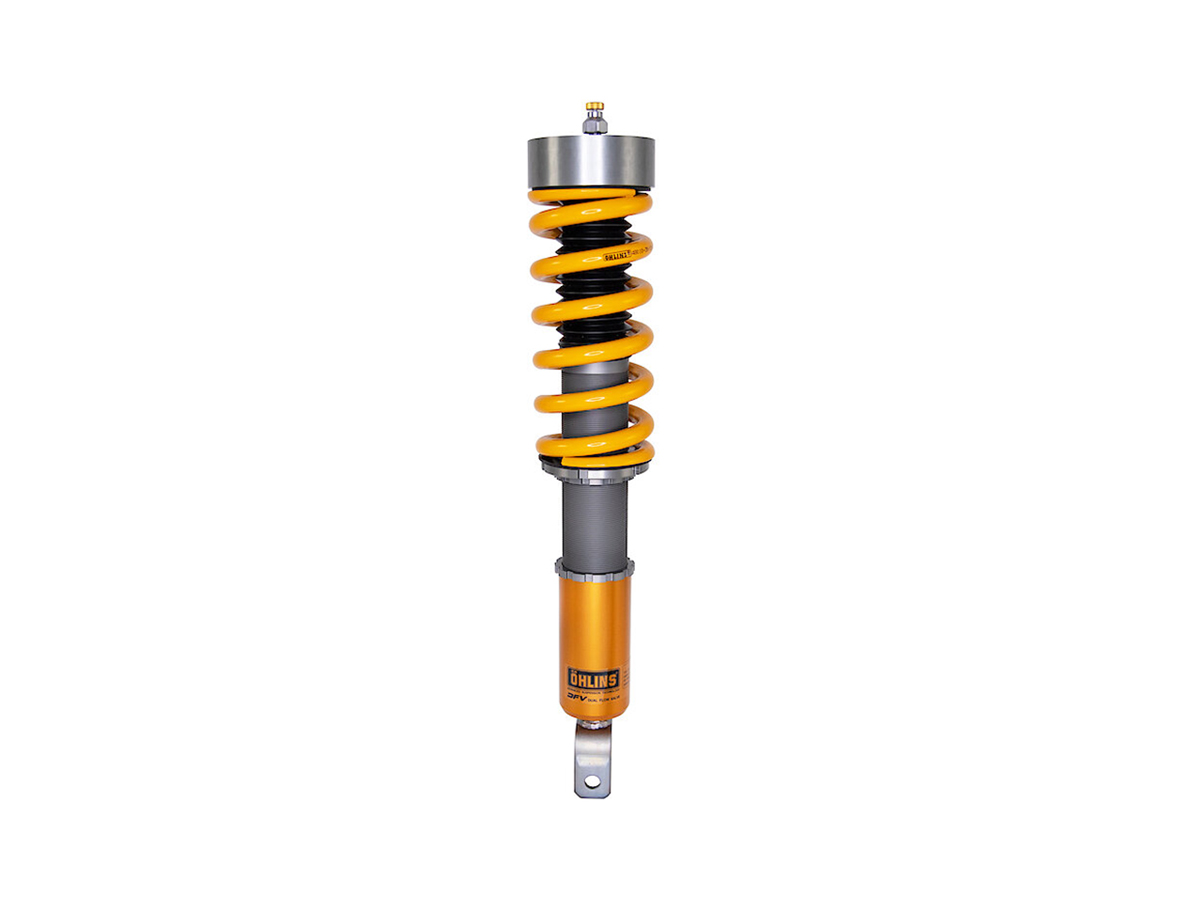

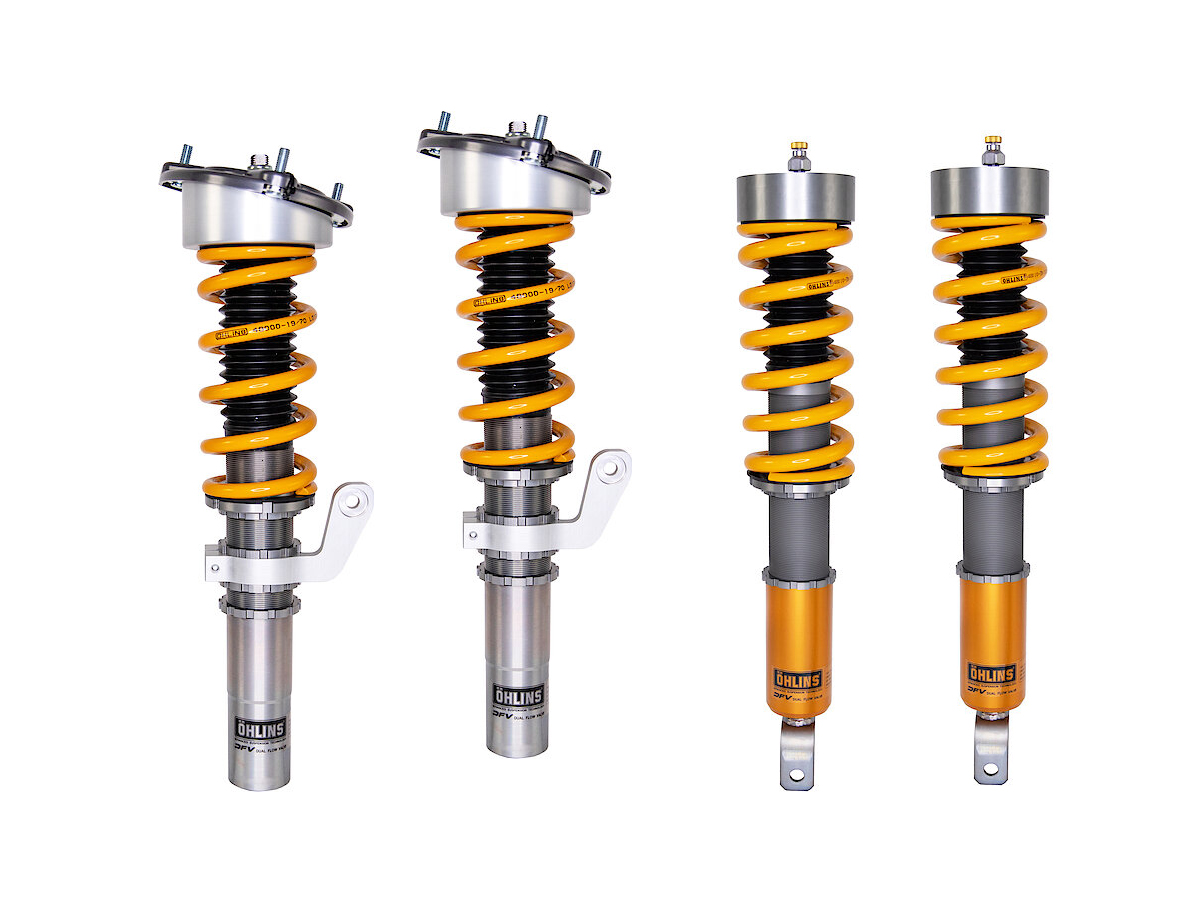

Ohlins DFV Technology Adjustable Suspension kits for Porsche 993 Carerra 2/4/S/4S, Targa, Cabrio, Turbo 1993-98
With Adjustable Aluminium Top Mounts



The Öhlins Road & Track range for Porsche covers a major part of all 993 models with kits for all needs. It's a kit designed for track day use and club racing but with the DFV technology it also offers superb handling and comfort on the way to and from the tracks.

The Road & Track kit with DFV technology is a kit now developed with Porsche specific settings. The DFV technology acts like a high and low speed blow off valve and with adjustable compression and rebound the days of compromise are over.
This kit works surprisingly well on the road as well as at high speed on racing tracks, whether it is trackdays or racing. The settings have been developed using both shake rigs and testing by racing drivers to make sure the Öhlins DNA is present.

These kits are in a light weight design with most of the parts in aluminium and have been corrosion tested and comes with a two year limited warranty. They are also TÜV approved.

Technical Info:
• DFV (Dual Flow Valve)
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year Limited Warranty
• Height adjustable

Front Shocks:
• McPherson shock absorber
• Length adjustment
• Easy adjustment
• Spring preload adjuster
• Coil Springs (60 N/mm)
• with Aluminium Top Mounts
• Camber adjustable
• Dustcovers

Rear Shocks:
• Conventional shock absorber
• Length adjustment
• Easy adjustment
• Spring preload adjuster
• Coil Springs (100 N/mm)
• with Aluminium Top Mounts
• Dustcovers

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PORGP01S1

The product you are viewing cross references to these numbers

Cancellation Kit for PASM Porsche 987



In order to fit Ohlins suspension kit to cars with PASM (Porsche Active Suspension Management) you will need to disable it with this PASM cancellation kit.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35020-08

The product you are viewing cross references to these numbers

Cancellation Kit for PASM Porsche 991 GT3 / 981 GT4



In order to fit Ohlins suspension kit to cars with PASM (Porsche Active Suspension Management) you will need to disable it with this PASM cancellation kit.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35020-13

The product you are viewing cross references to these numbers

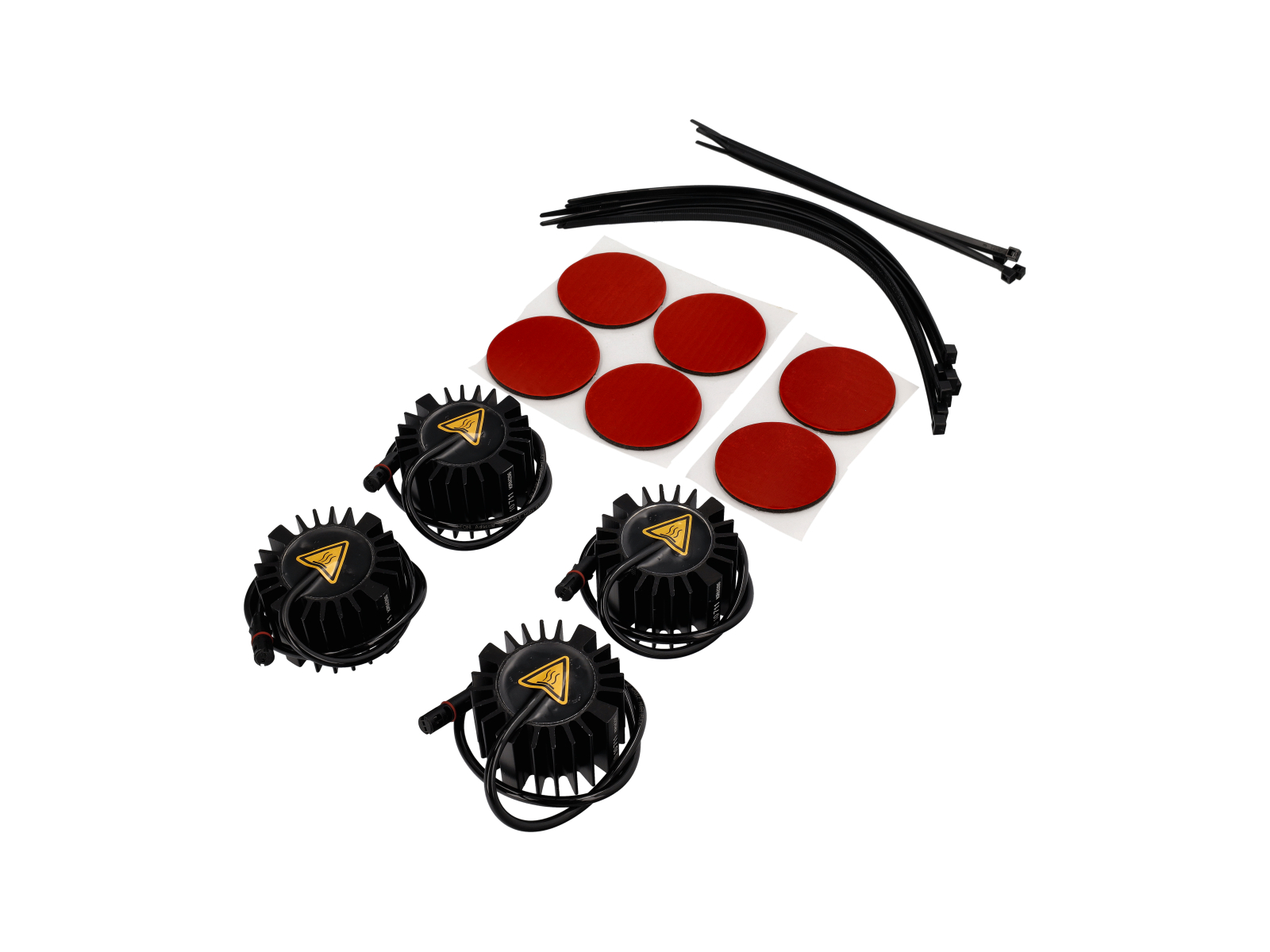

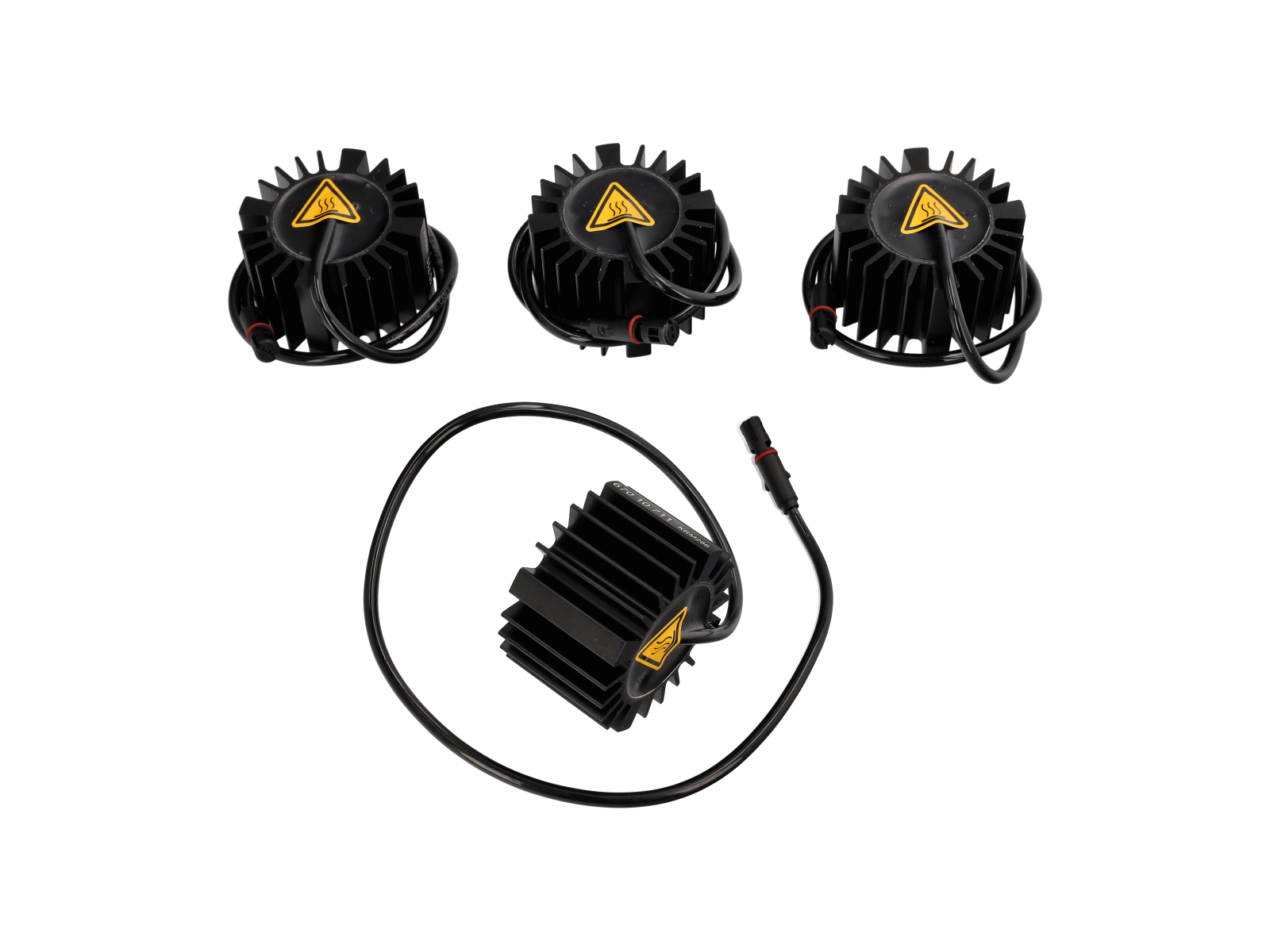

Cancellation Kit for PASM Porsche 981 / 991



In order to fit Ohlins suspension kit to cars with PASM (Porsche Active Suspension Management) you will need to disable it with this PASM cancellation kit.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35020-07

The product you are viewing cross references to these numbers

Cancellation Kit for PASM Porsche 997 Cabrio



In order to fit Ohlins suspension kit to cars with PASM (Porsche Active Suspension Management) you will need to disable it with this PASM cancellation kit.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35020-09

The product you are viewing cross references to these numbers

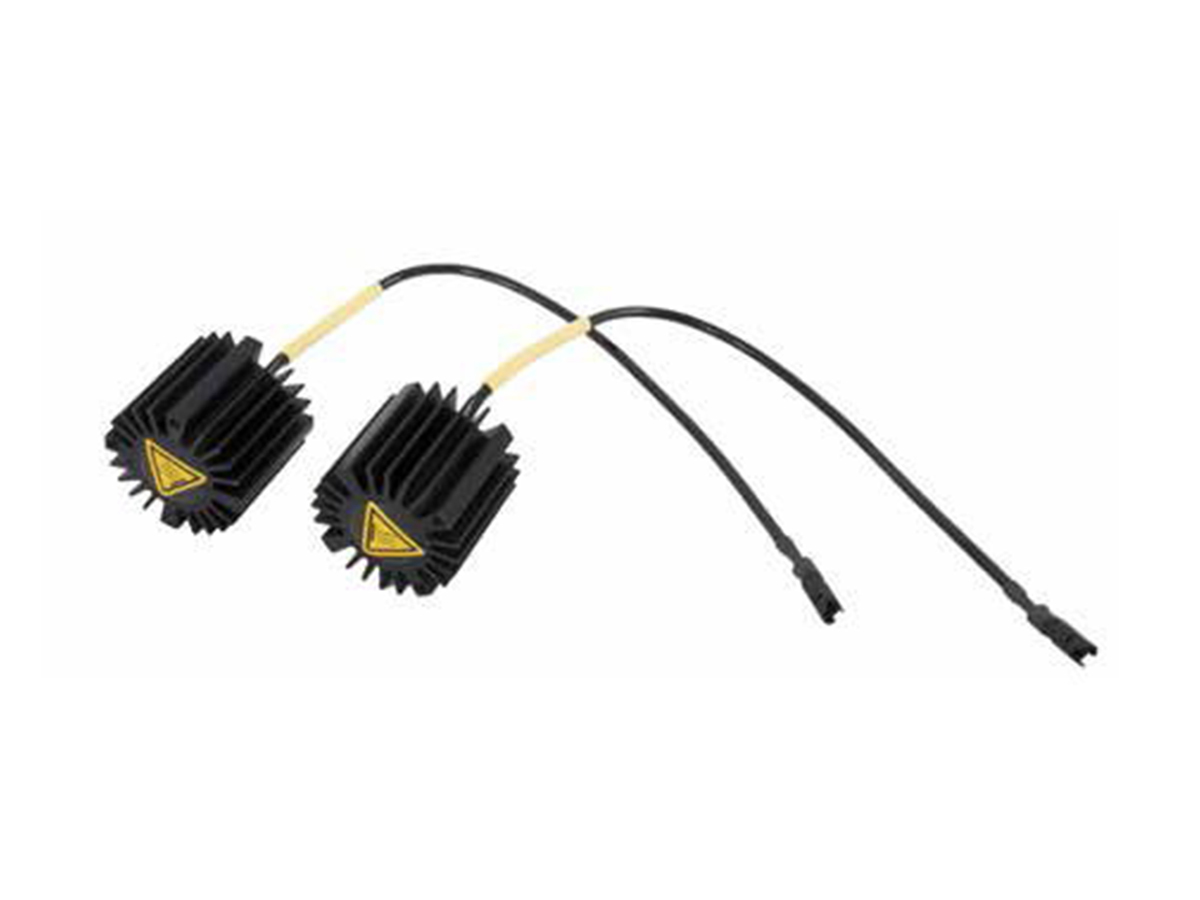

Cancellation kit for PASM Porsche 997 (not cabrio.)



In order to fit Ohlins suspension kit to cars with PASM (Porsche Active Suspension Management) you will need to disable it with this PASM cancellation kit.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35020-10

The product you are viewing cross references to these numbers

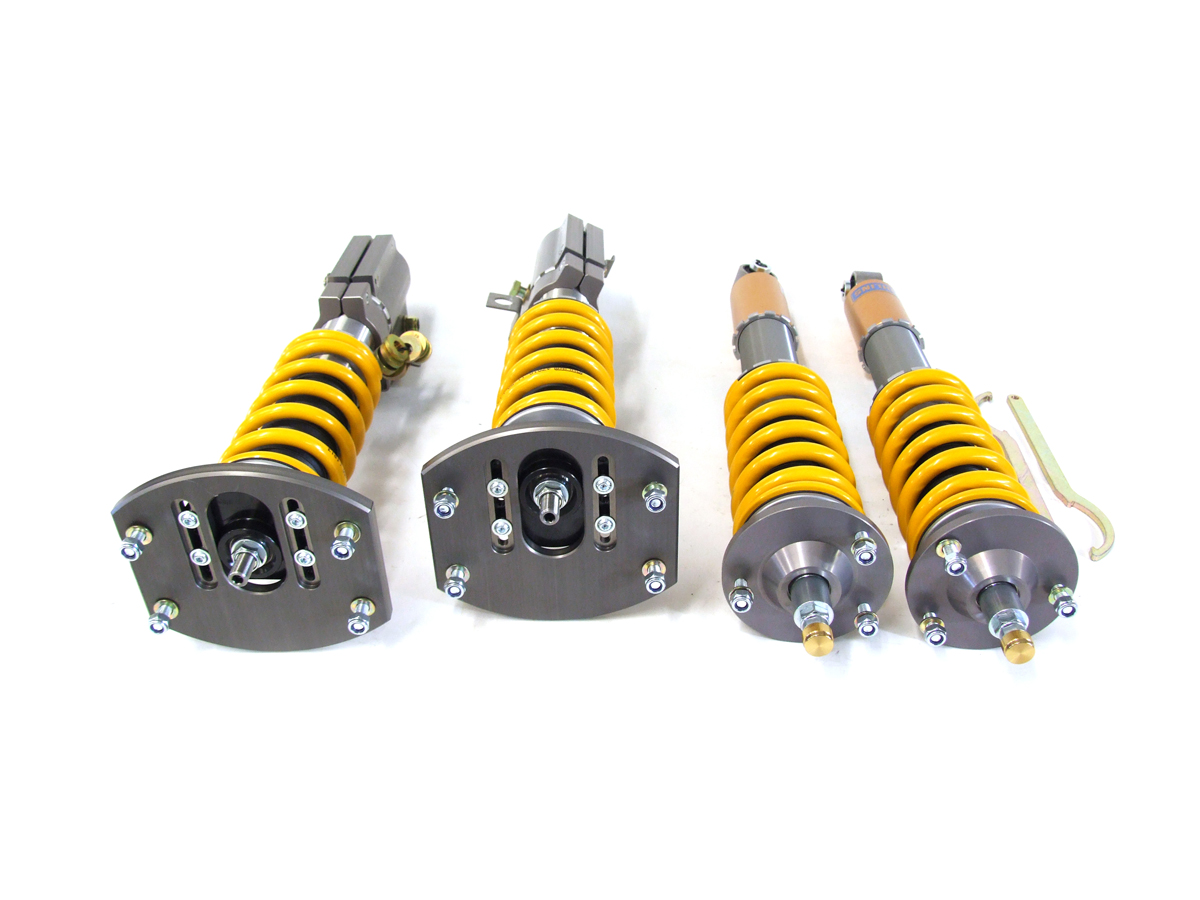

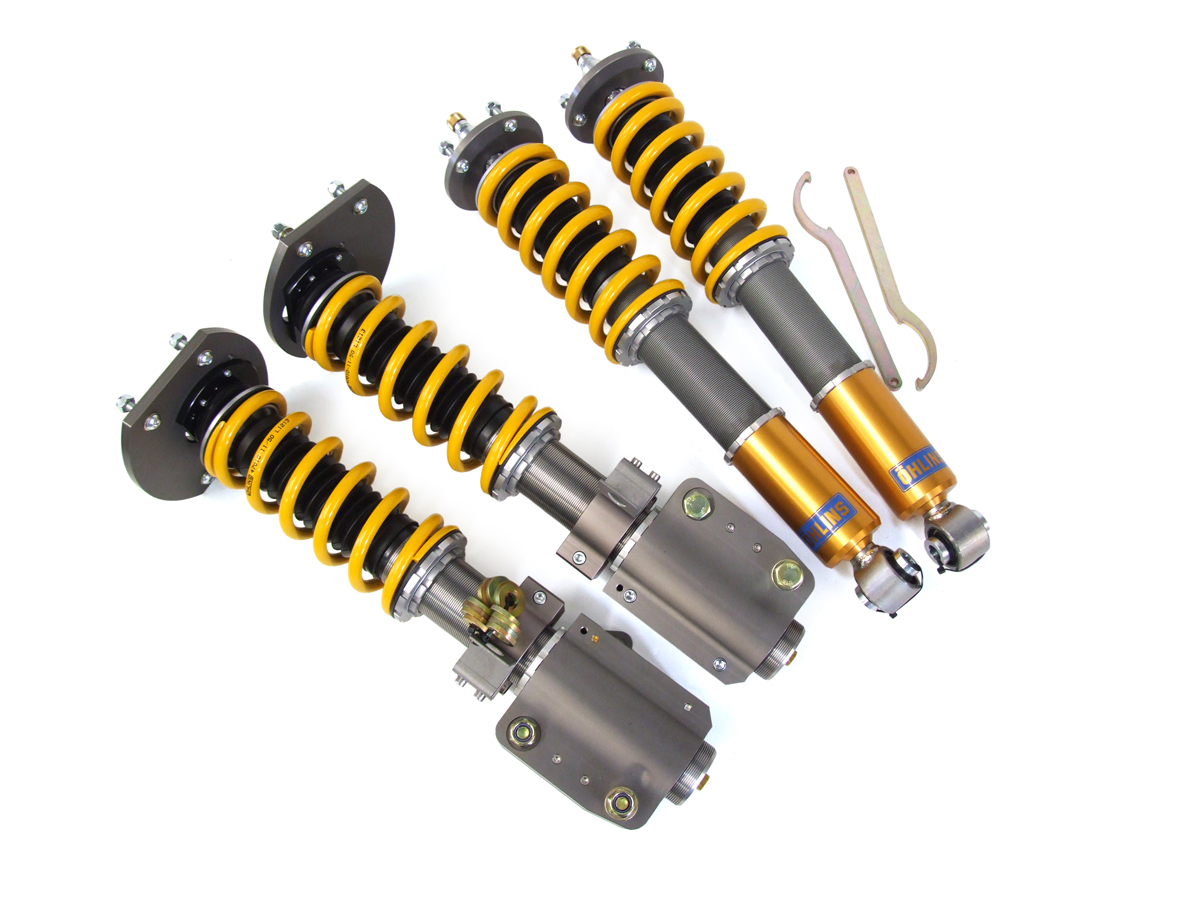

Ohlins DFV Technology Adjustable Suspension kit for Porsche 964 C2 / C4 / RS / Turbo All Model Years
Complete With Adjustable Aluminium Top Mounts



The Öhlins Road & Track range for Porsche covers a major part of all 964 models with kits for all needs. It's a kit designed for track day use and club racing but with the DFV technology it also offers superb handling and comfort on the way to and from the tracks.

The Road & Track kit with DFV technology is a kit now developed with Porsche specific settings. The DFV technology acts like a high and low speed blow off valve and with adjustable compression and rebound the days of compromise are over.
This kit works surprisingly well on the road as well as at high speed on racing tracks, whether it is trackdays or racing. The settings have been developed using both shake rigs and testing by racing drivers to make sure the Öhlins DNA is present.

These kits are in a light weight design with most of the parts in aluminium and have been corrosion tested and comes with a two year limited warranty. They are also TÜV approved.

Technical Info:
• DFV (Dual Flow Valve)
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year Limited Warranty
• Height adjustable

Front Shocks:
•  McPherson shock absorber
• Adjustable length +/- 15mm
• Single adjustable
• Spring preload adjuster
• Coil Springs (50 N/mm)
• with Aluminium Top Mounts
• Camber adjustable
• Dustcovers

Rear Shocks:
• Conventional shock absorber
• Adjustable length +/- 15mm
• Single adjustable
•  Spring preload adjuster
• Coil Springs (90 N/mm)
• with Aluminium Top Mounts
• Dustcovers

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PORGN01S1

The product you are viewing cross references to these numbers

The Öhlins Road & Track range for Porsche covers a major part of all 996 and 997 models with kits for all needs. It's a kit designed for track day use and club racing but with the DFV technology it also offers superb handling and comfort on the way to and from the tracks.

PLEASE NOTE: approx. in stock from November 2024



Fits:
Porsche 997 GT3*
Porsche 997 GT2*
*Cars WITH PASM Porsche Active Suspension Management system this kit can be fitted kit but you will require a PASM cancellation kit to delete the light on the dash board

The Road & Track kit with DFV technology is a kit now developed with Porsche specific settings. The DFV technology acts like a high and low speed blow off valve and with adjustable compression and rebound the days of compromise are over.
This kit works surprisingly well on the road as well as at high speed on racing tracks, whether it is trackdays or racing. The settings have been developed using both shake rigs and testing by racing drivers to make sure the Öhlins DNA is present.

These kits are in a light weight design with most of the parts in aluminium and have been corrosion tested and comes with a two year limited warranty. They are also TÜV approved.

This kit is especially developed for high end racing and also TÜV approved.

Technical Info:
• DFV (Dual Flow Valve)
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year Limited Warranty
• Height adjustable
• 20 mm lower than standard

Front Shocks:
• McPherson Strut
• Single bleed adjuster
• Spring preload adjuster
• Coil Springs
• Dustcovers
• Use with original top mounts

Rear Shocks:
• Conventional Shock Absorber
• Single bleed adjuster
• Spring preload adjuster
• Coil Springs
• Dustcovers
• Use with original top mounts

For Mounting Instructions CLICK HERE

The Öhlins Road & Track range for Porsche covers a major part of all 996 and 997 models with kits for all needs. It's a kit designed for track day use and club racing but with the DFV technology it also offers superb handling and comfort on the way to and from the tracks.



Fits:
Porsche 997 C4/S*
Porsche 997 Turbo/S*
*Cars WITH PASM Porsche Active Suspension Management system this kit can be fitted kit but you will require a PASM cancellation kit to delete the light on the dash board

The Road & Track kit with DFV technology is a kit now developed with Porsche specific settings. The DFV technology acts like a high and low speed blow off valve and with adjustable compression and rebound the days of compromise are over.
This kit works surprisingly well on the road as well as at high speed on racing tracks, whether it is trackdays or racing. The settings have been developed using both shake rigs and testing by racing drivers to make sure the Öhlins DNA is present.

These kits are in a light weight design with most of the parts in aluminium and have been corrosion tested and comes with a two year limited warranty. They are also TÜV approved.

This kit is especially developed for high end racing and also TÜV approved.

Technical Info:
• DFV (Dual Flow Valve)
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year Limited Warranty
• Height adjustable
• 20 mm lower than standard

Front Shocks:
• McPherson Strut
• Single bleed adjuster
• Spring preload adjuster
• Coil Springs
• Dustcovers
• Use with original top mounts

Rear Shocks:
• Conventional Shock Absorber
• Single bleed adjuster
• Spring preload adjuster
• Coil Springs
• Dustcovers
• Use with original top mounts

For Mounting Instructions CLICK HERE

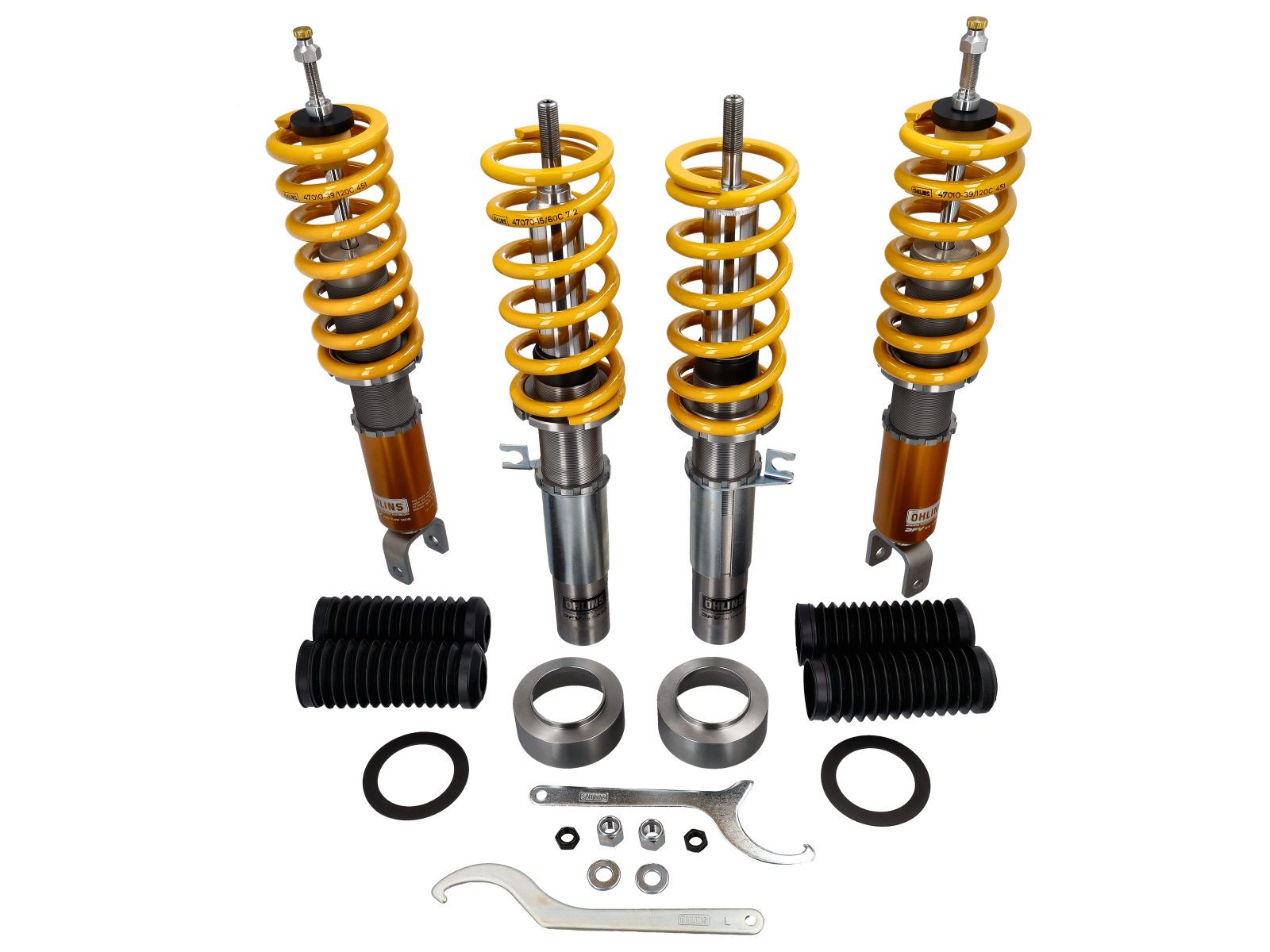

The Öhlins Road & Track range for Porsche covers a major part of all 996 and 997 models with kits for all needs. It's a kit designed for track day use and club racing but with the DFV technology it also offers superb handling and comfort on the way to and from the tracks.



Fits:
Porsche 997 C2*
*Cars WITH PASM Porsche Active Suspension Management system this kit can be fitted kit but you will require a PASM cancellation kit to delete the light on the dash board

The Road & Track kit with DFV technology is a kit now developed with Porsche specific settings. The DFV technology acts like a high and low speed blow off valve and with adjustable compression and rebound the days of compromise are over.
This kit works surprisingly well on the road as well as at high speed on racing tracks, whether it is trackdays or racing. The settings have been developed using both shake rigs and testing by racing drivers to make sure the Öhlins DNA is present.

These kits are in a light weight design with most of the parts in aluminium and have been corrosion tested and comes with a two year limited warranty. They are also TÜV approved.

This kit is especially developed for high end racing and also TÜV approved.

Technical Info:
• DFV (Dual Flow Valve)
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year Limited Warranty
• Height adjustable
• 20 mm lower than standard

Front Shocks:
• McPherson Strut
• Single bleed adjuster
• Spring preload adjuster
• Coil Springs
• Dustcovers
• Use with original top mounts

Rear Shocks:
• Conventional Shock Absorber
• Single bleed adjuster
• Spring preload adjuster
• Coil Springs
• Dustcovers
• Use with original top mounts

For Mounting Instructions CLICK HERE

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

POSMZ20S1

The product you are viewing cross references to these numbers
