Porsche > 991 (911) MK2 2016-2019 > Suspension Upgrades >

Anti Roll Sway Bar

Anti Roll Sway Bar

Refine by Car Type
Filter by brand
DISPLAYING 1 to 3 (of 3 products)

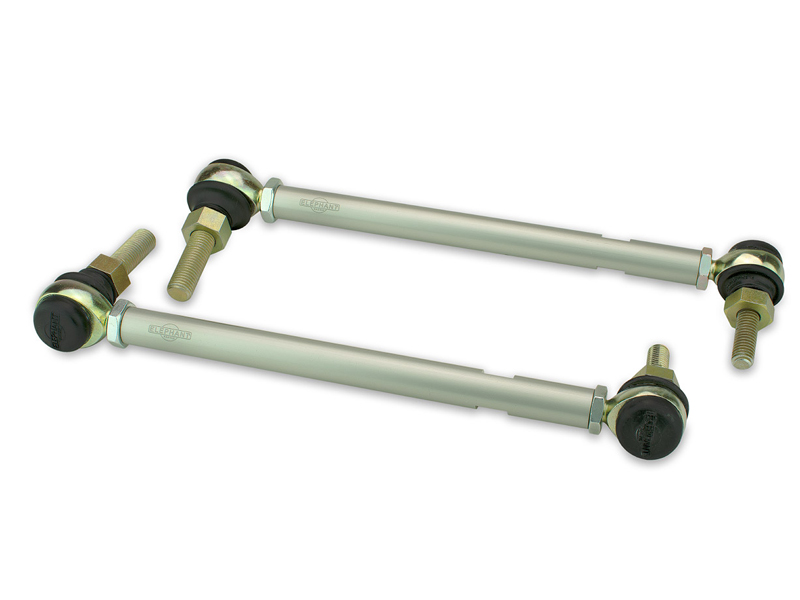

Adjustable front sway bar drop links. Porsche 991 - 2271003, 99134306902, 9P1411317, 99134307002, 9P1411318, 99134306980
1
Adjustable front sway bar drop links. Porsche 991
2271003
Product Information
Product Information
Adjustable front sway bar drop links.
1 kit required per car

elephantracing

Fits
Porsche 991.1 and 991.2 C2
Porsche 991.1 and 991.2 C4
Porsche 991 GT3
Porsche 991 GT3 RS

NOT FOR PDDC


Adjustable Drop Links
The ideal sway bar (anti roll bar) is completely unloaded at static ride height. Stock drop links almost always preload the sway bar since the car doesn't sit perfectly level due to asymmetries such as driver weight. Our front and rear adjustable-length drop links for C4/C2 allow you to eliminate preload of the sway bar for maximum performance.

A preloaded sway bar shifts the weight carried by each of the tyres, increasing grip on weighted ones at the expense of decreasing grip on un-weighted ones. This shifted weight/grip causes uneven handling in left and right turns, and premature brake lockup since the less-loaded tyre locks up first. Preload can be completely eliminated by adjusting drop link length and sway bar performance optimized.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2271003
2271003
99134306902
9P1411317
99134307002
9P1411318
99134306980

The product you are viewing cross references to these numbers

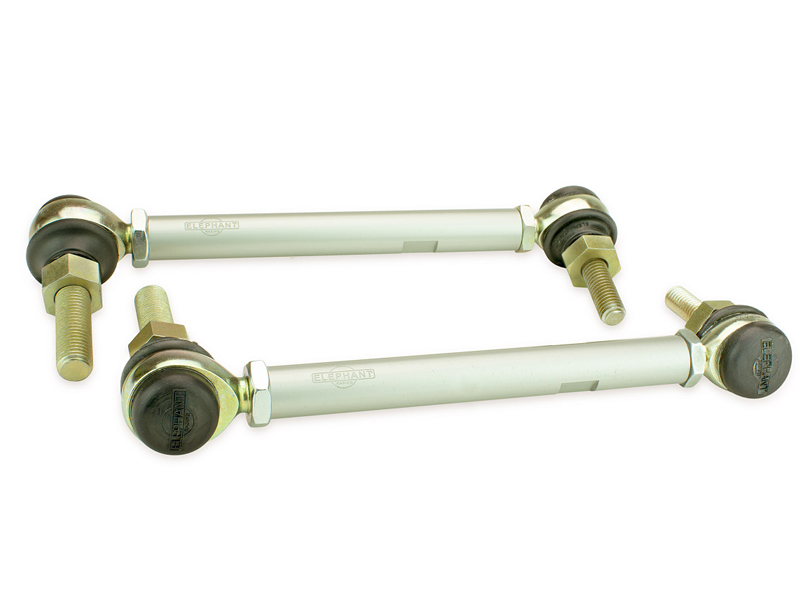

Adjustable rear sway bar drop links. Porsche 991 GT3 / 991 GT3 RS - 2271019, 99133307180, 99133307280, 99133307102, 9P1511467A
1
Adjustable rear sway bar drop links. Porsche 991 GT3 / 991 GT3 RS
2271019
Product Information
Product Information
Adjustable front sway bar drop links.
1 kit required per car

elephantracing

Fits
Porsche 991 GT3
Porsche 991 GT3 RS


Adjustable Drop Links

The ideal sway bar (anti roll bar) is completely unloaded at static ride height. Stock drops links almost always preload the sway bar since the car doesn't sit perfectly level due to asymmetries such as driver weight. Our front and rear adjustable-length drop links for C4/C2 allow you to eliminate preload of the sway bar for maximum performance.

A preloaded sway bar shifts the weight carried by each of the tyres, increasing grip on weighted ones at the expense of decreasing grip on un-weighted ones. This shifted weight/grip causes uneven handling in left and right turns, and premature brake lockup since the less-loaded tyre locks up first. Preload can be completely eliminated by adjusting drop link length and sway bar performance optimized.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2271019
2271019
99133307180
99133307280
99133307102
9P1511467A

The product you are viewing cross references to these numbers
Lateral support clamp anti roll bar. Various sizes for Porsche - PFC13-14, PFC15-16, PFC17-18, PFC19-20, PFC21-22, PFC23-24, PFC25-27, PFC31-33, PFC28-30
3
Lateral support clamp anti roll bar. Various sizes for Porsche
PFC
Product Information
Product Information
Lateral support clamp anti roll bar.

powerflex

Anti-Roll Bars (ARB’s) play an important role in a vehicle’s suspension system, helping to reduce body roll by transferring cornering load from one side of a vehicle to the other.

Often mounted to the vehicle’s chassis with rubber bushes, these bushes ensure the bar works as intended. To prevent the anti-roll bar from moving laterally within its mounts when turning, OE manufacturers will either bond the bushes to the bar, add dead-stops to the bar itself, or rely solely on the clamping pressure of the rubber.

But what happens when those bushes wear and need to be replaced? Often anti-roll bars with bonded bushes come as a costly complete assembly, so the alternative is to fit a more cost-effective unbonded polyurethane replacement, like the many we offer.

In most cases, friction from the bush will prevent any side-to-side bar movement. Still, when turning aggressively or cornering at higher speeds, a laterally shifting anti-roll bar decreases the efficiency and effectiveness of the bar, changing the dynamics of your suspension system in unpredictable ways. It also poses the risk of the bar fouling on other areas of the vehicle or suspension system.


DISPLAYING 1 to 3 (of 3 products)
Also found on these pages
About Anti Roll Sway Bar

Anti Roll Bars / Sway Bars – Improved Handling and Body Control

Anti roll bars, also known as sway bars, are suspension upgrade components designed to reduce body roll during cornering and improve overall vehicle stability. By linking the left and right sides of the suspension, anti roll bars resist excessive chassis movement, helping the car stay flatter through corners and delivering sharper, more predictable handling.

At Design911, our range of anti roll bars includes high-quality OE replacement and performance upgrade options from trusted suspension brands. Whether you’re refreshing worn factory components or upgrading for fast-road and track use, anti roll bars are one of the most effective ways to enhance handling without compromising ride comfort.

What Do Anti Roll Bars / Sway Bars Do?

Anti roll bars are torsion bars mounted across the suspension axle that control lateral body movement when cornering. Their main functions include:

  • Reducing body roll during turns
  • Improving cornering balance and grip
  • Enhancing steering response and driver confidence
  • Distributing load more evenly across the suspension

By limiting excessive chassis lean, sway bars allow tyres to maintain better contact with the road, improving traction and control.

Why Upgrade Your Anti Roll Bars?

Upgrading anti roll bars is a popular suspension modification because it offers:

  • Noticeable handling improvements with minimal impact on ride comfort
  • Better control during spirited driving or track use
  • Improved balance between front and rear suspension
  • Reduced understeer or oversteer when correctly matched

Performance anti roll bars are often adjustable, allowing fine-tuning of suspension balance to suit driving style, tyre choice and road conditions.

When Should You Replace or Upgrade Anti Roll Bars?

Anti roll bars should be replaced or upgraded when:

  • Factory suspension feels soft or unstable during cornering
  • Rubber bushes or mounting hardware are worn or damaged
  • Upgrading other suspension components such as springs or dampers
  • Preparing a vehicle for fast-road, track day or performance use

Replacing tired components or upgrading to performance sway bars restores precise handling and improves overall driving enjoyment.

At Design911, we supply anti roll bars and suspension upgrades that meet professional workshop standards and enthusiast expectations.
