Oil Sump

Brey Krause Deep Sump Kit.



For Boxster 986, 987 and 996, 997 Non-Turbo Models through 2008

Scavenging and aeration in the oil pan have been identified as a problem in 996/997, Boxster, and Cayman models experiencing high G-forces on the racetrack. The R-9095 oil pan spacer provides a simple solution. This spacer increases sump capacity by half a quart, providing more reserve to ward off starvation. The R-9095 is approved by the Porsche Club of America for use in PCA club racing Stock and Prepared class cars. The R-9095 kit clears all factory options including the rear skid plate. Added oil capacities as well as increased oil pan surface area increase oil cooling and engine performance.

*Note: Oil pan and sump baffle are OEM parts and do not need to be purchased. Baffle spacer and pick-up tube spacer are included in this kit.

Material: 6061 T6 Aluminum Alloy
Finish: Clear Anodized
Weight: N/A
Models: Boxster, Boxster S, 996/997 models (excludes GT3 and turbocharged models) and Cayman through 2008.
Installation: For best results internal baffle passages should be modified. Modification instructions included in the kit.
Miscellaneous: Spacer adds .5 U.S. quarts to oil pan volume and improves internal baffling system. Extension bolts, baffle spacer and pick-up tube spacer included in the kit.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

R-9095

The product you are viewing cross references to these numbers

2 Quart (1.89 Litre) Deep Sump Track Oil Pan Kit.
Models: Boxster, Cayman, 996 and 997 models (excludes GT3 and turbocharged models).



This kit is best used on track only vehicles as ground clearance will become an issue due to the extension.

Fits:
Porsche Boxster 986 / 987.1
Porsche 996 (excluding Turbo, GT2/GT3 models and cars with factory power upgrade – option code X51)
Porsche 997.1 (excluding Turbo and GT2/GT3 models)
Porsche Cayman 987.1

Scavenging and aeration in the oil pan have been identified as a problem in the 996, 997 and Boxster models that experience high G-forces on the racetrack. Motorsports 2 Quart Deep Sump Oil Pan Kit for all 986/996/987/997 Porsche's (excluding GT3, GT2 Turbo and DFI models). This deep sump kit is an extension added to the original oil pan, increasing oil capacity by 2 quarts, helping with oil starvation problems these vehicles commonly have.

Kit Includes:
- 2Quart Pan Extension
- Oil pickup spacer
- Extended Hexagon Head Bolts (x15)
- Aluminium spacers for baffle (x3)
- Stainless oil trap
Please order extra
1 x 703141410 Reinzosil Universal Sealing Compound
2 x 99710701600 Oil tubes

For Installation Instructions CLICK HERE

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

996107032XX

The product you are viewing cross references to these numbers

Engine oil level gasket.



Fits:
Porsche 997.2 Carrera 2009-12
Porsche 997.2 Turbo 2011-13
Porsche 987.2 Boxster 2009-12
Porsche 987C.2 Cayman 2009-12
Porsche 955 Cayenne 3.2L 2004-06
Porsche 955 Cayenne S / Turbo 2003-06
Porsche 957 Cayenne 2007-10

Click picture for large parts diagram.
Diagram Ref No 20

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94860624000

The product you are viewing cross references to these numbers

Engine oil level gasket.

Fits:
Porsche 997.2 Carrera 2009-12
Porsche 997.2 Turbo 2011-13
Porsche 987.2 Boxster 2009-12
Porsche 987C.2 Cayman 2009-12
Porsche 955 Cayenne 3.2L 2004-06
Porsche 955 Cayenne S / Turbo 2003-06
Porsche 957 Cayenne 2007-10

Click picture for large parts diagram.
Diagram Ref No 20

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94860624000

The product you are viewing cross references to these numbers

Engine Oil Sump Bulkhead.



Fits:
Porsche 987 Boxster 2005-08
Porsche 987C Cayman 2006-08
Porsche 997 Carrera / Carrera S 2005-08 COUPE / CABRIO

Click 'Zoom in' for large parts diagram.
Diagram ref no 25

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99710724300

The product you are viewing cross references to these numbers

Replacement hexagon head bolt - M8 x 70 - used to secure the coolant pipework to the coolant carrier (transports coolant between banks).

Sold individually; three required per vehicle.



Fits:

Porsche 987.2 Boxster / S 2009-12
Porsche 987.2 Cayman / S 2009-12
--
Porsche 981 Boxster / S 2012-16
Porsche 981 Boxster Spyder 2016
Porsche 981 Cayman / S 2013-16
Porsche 981 Cayman GT4 2016
--
Porsche 718 (982) Boxster GTS 4.0L 2017>>
Porsche 718 (982) Boxster Spyder / RS 4.0L 2019>>
Porsche 718 (982) Cayman GTS 4.0L 2017>>
Porsche 718 (982) Cayman GT4 2019>>
--
Porsche 997.2 Carrera / S 2009-12
Porsche 997.2 Turbo / S 2010-13 - Not including GT2 RS
--
Porsche 991.1 / 991.2 Carrera / S 2012-19
Porsche 991 Turbo / GT2 RS 2014-20
Porsche 991 GT3 / GT3 RS 2014-21
--
Porsche 992.1 Carrera 2019-24
Porsche 992 Turbo / S 2020-25
Porsche 992 GT3 / RS 2021-25

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PAF008158

The product you are viewing cross references to these numbers

Replacement hexagon head bolt - M8 x 70 - used to secure the coolant pump housing.

Sold individually; three required per vehicle.



Fits:

Porsche 987.2 Boxster / S 2009-12
Porsche 987.2 Cayman / S 2009-12
--
Porsche 981 Boxster / S 2012-16
Porsche 981 Boxster Spyder 2016
Porsche 981 Cayman / S 2013-16
Porsche 981 Cayman GT4 2016
--
Porsche 997.2 Carrera / S 2009-12
Porsche 997.2 Turbo / S 2010-13 - Not including GT2 RS
--
Porsche 991.1 Carrera / S 2012-16
Porsche 991 Turbo / GT2 RS 2014-20

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PAF008158

The product you are viewing cross references to these numbers

Replacement hexagon head bolt - M8 x 70 - used for the exhaust manifold.

Sold individually; two required per vehicle.



Fits:

Porsche 718 (982) Boxster Spyder RS 2019>>

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PAF008158

The product you are viewing cross references to these numbers

Oil drain plug seal ring. Size A 18 x 24.

Fits:
Porsche 986 Boxster
Porsche 987 Boxster
Porsche 981 Boxster
Porsche 982 (718) Boxster
Porsche 987C Cayman
Porsche 981C Cayman
Porsche 982 (718) Cayman
Porsche 996
Porsche 997
Porsche 991

Diagram ref no 24

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90012310630

The product you are viewing cross references to these numbers

Oil drain plug.
Please note: Sealing O-ring must be ordered separately – Part Number 90012310630/2

Fits:
Porsche 986 Boxster 1997 - 2004
Porsche 987.1  Boxster 2005 - 2008
Porsche 987.2 Boxster 2009 - 2012
Porsche 987C.1 Cayman 2005 - 2008
Porsche 987C.2 Cayman 2009 - 2012
Porsche 981 Boxster 2013 - 2016
Porsche 981 Cayman 2014 - 2016
Porsche 996 1998 - 2005
Porsche 997.1 2005 - 2008
Porsche 997.2 2009 - 2012
Porsche 991.1 2012 - 2016


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90021900930

The product you are viewing cross references to these numbers

Oil drain plug, non magnetic, alu, M18 x 1.5 x 12.
Please note: Sealing O-ring must be ordered separately – part number 90012310630/2

Fits:
Porsche 986 Boxster 1997 - 2004
Porsche 987.1  Boxster 2005 - 2008
Porsche 987.2 Boxster 2009 - 2012
Porsche 987C.1 Cayman 2005 - 2008
Porsche 987C.2 Cayman 2009 - 2012
Porsche 981 Boxster 2013 - 2016
Porsche 981 Cayman 2014 - 2016
Porsche 996 1998 - 2005
Porsche 997.1 2005 - 2008
Porsche 997.2 2009 - 2012
Porsche 991.1 2012 - 2016

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90021900930

The product you are viewing cross references to these numbers

Magnetic oil drain plug, with a seal ring (washer).
Hard Anodized Aluminum, with magnet, 18 x 1.5mm



Fits:
Porsche 996 1997-04
Porsche 997 2005-08
Porsche 986 Boxster 1997-04
Porsche 987 Boxster 2005-08
Porsche 987C Cayman 2005-08

A magnetic sump oil drain plug is a type of oil drain plug that contains a small magnet designed to attract and capture metallic particles that may be present in your engine's oil. While this type of drain plug is not exclusive to Porsche and can be used in various vehicles, it can provide several benefits, including:

Improved Engine Longevity: The magnet in the drain plug helps to capture tiny metal particles, such as iron, steel, or aluminum, that may circulate in the engine oil. Removing these particles can reduce wear and tear on engine components, potentially extending the engine's lifespan.

Enhanced Engine Performance: By reducing the presence of contaminants in the oil, a magnetic drain plug can help maintain the oil's lubricating properties, which is crucial for smooth engine operation. Clean oil can also contribute to improved fuel efficiency.

Early Detection of Problems: As the magnetic drain plug collects metallic debris, it can serve as an early warning system. By inspecting the drain plug during oil changes, you can get an idea of the engine's condition and detect any unusual wear or damage before it becomes a major issue.

Reduced Maintenance Costs: Regularly inspecting and cleaning a magnetic drain plug can prevent larger issues from developing over time. Addressing potential problems early can save you money on more extensive repairs down the road.

Peace of Mind: Knowing that you are taking steps to protect your engine from premature wear and tear can give you peace of mind as a vehicle owner. It's a relatively inexpensive and simple modification that can provide added assurance.

Easy Installation: Magnetic drain plugs are typically straightforward to install. They often replace the existing drain plug and require no special tools or modifications.

While magnetic drain plugs can offer these benefits, it's essential to remember that they are not a substitute for regular oil changes and proper maintenance. Regular oil changes with the appropriate oil and filter are still crucial for the health and longevity of your engine. Additionally, magnetic drain plugs may not capture all types of contaminants, so they should be seen as a supplementary measure rather than a comprehensive solution.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90021900930

The product you are viewing cross references to these numbers

Oil level sender in sump pan.



Fits:
Porsche 958 Cayenne 3.6L V6 Petrol
Porsche 958 Cayenne 4.2L V8 Diesel
Porsche 958 Cayenne 4.8L V8 S / GTS / TURBO

Porsche 981 Boxster
Porsche 981C Cayman
Porsche 981SP Boxster Spyder
Porsche 981 Cayman GT4

Porsche 991 Gen 1
Porsche 991 Gen 2

Click 'Zoom in' for large parts diagram.
Diagram ref no 19

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95860616011

The product you are viewing cross references to these numbers

Oil level sender in sump pan (with gasket/seal)



Fits:
Porsche 958 Cayenne 3.6L V6 Petrol
Porsche 958 Cayenne 4.2L V8 Diesel
Porsche 958 Cayenne 4.8L V8 S / GTS / TURBO

Porsche 981 Boxster
Porsche 981C Cayman
Porsche 981SP Boxster Spyder
Porsche 981 Cayman GT4

Porsche 991 Gen 1
Porsche 991 Gen 2

Click 'Zoom in' for large parts diagram.
Diagram ref no 19

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95860616011

The product you are viewing cross references to these numbers

Oil pan gasket.



Fits:
Porsche 987 Boxster / S 2009-12
Porsche 987C Cayman / S 2009-12
Porsche 981 Boxster / S 2012>>
Porsche Boxster Spyder 2016>>
Porsche 981 Cayman / S 2013>>
Porsche Cayman GT4 2016>>
Porsche 991 2012>>
Porsche 991 Turbo 2014>>
Porsche 997 MKII 2010>>
Porsche 997 TURBO / S 2010-13

Click 'Zoom in' for large parts diagram.
Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9A110732502

The product you are viewing cross references to these numbers

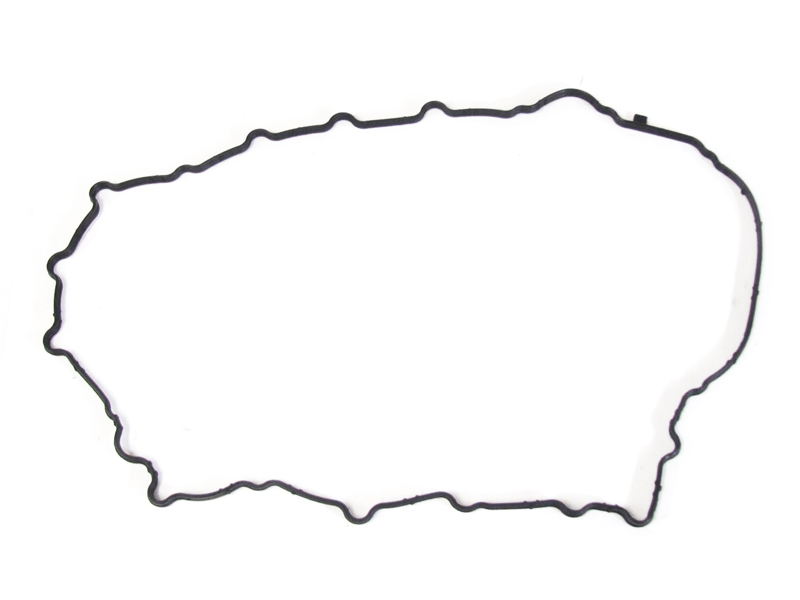

Oil pan gasket.



Fits:
Porsche 987 Boxster / S 2009-12
Porsche 987C Cayman / S 2009-12
Porsche 981 Boxster / S 2012>>
Porsche Boxster Spyder 2016>>
Porsche 981 Cayman / S 2013>>
Porsche Cayman GT4 2016>>
Porsche 991 2012>>
Porsche 991 Turbo 2014>>
Porsche 997 MKII 2010>>
Porsche 997 TURBO / S 2010-13

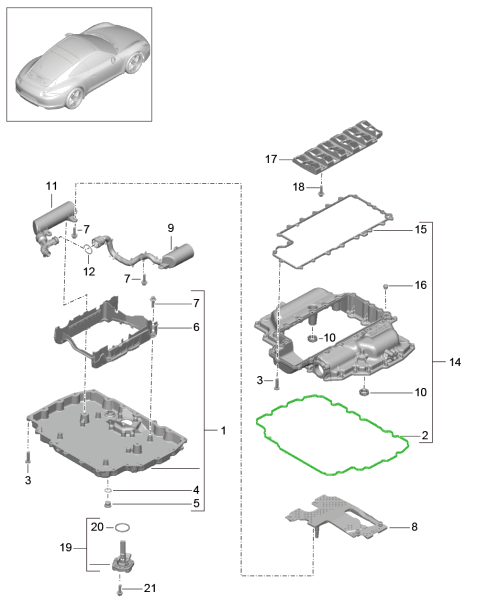

Click 'Zoom in' for large parts diagram.
Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9A110732502

The product you are viewing cross references to these numbers
