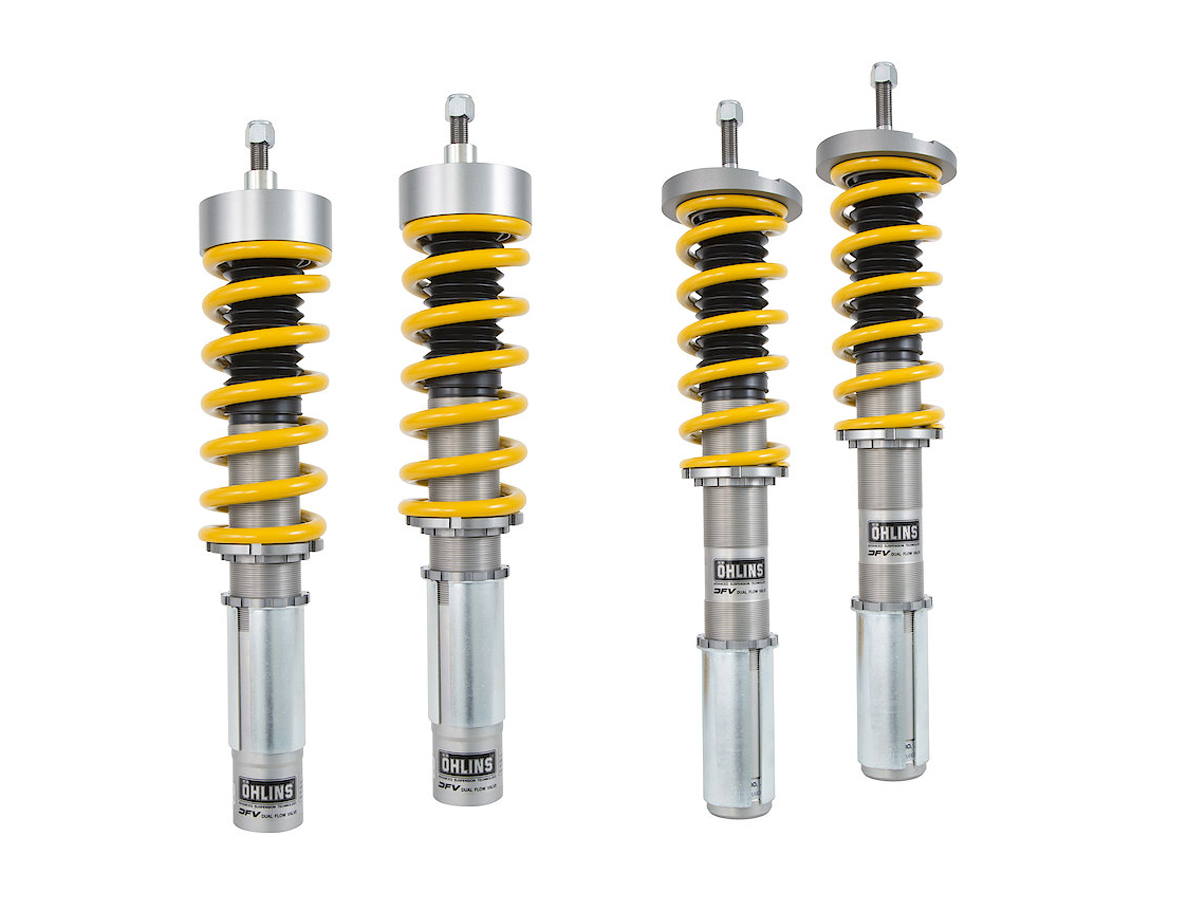

Ohlins Road & Track Suspension

Adjustable suspension kit (without springs),  DFV Technology
Springs to be ordered separately.

Fits:
Porsche 981 Cayman GT4
Porsche 718 Cayman GT4
Porsche 718 Boxster Spyder

Please add:
2 x front springs 48000-23
2 x rear springs 48000-27
2 x rear helper springs 05173-20

Coil Over Suspension Road & Track POZ MR90 complete kit

General Features:
•    DFV technology (Dual Flow Valve)
•    Height adjustable
•    Rebuildable
•    Corrosion salt spray tested (ISO 9227)
•    2 year limited warranty

Features Front:
•    McPherson strut, upside down
•    Compression and rebound damping with one adjuster
•    Spring preload adjuster
•    Approx. 10 mm lower than standard with recommended setup
•    Spring rate 80 N/mm
•    Dustcovers
•    Use with original top mounts

Features Rear:
•    McPherson strut, upside down
•    Compression and rebound damping with one adjuster
•    Spring preload adjuster
•    Approx. 10 mm lower than standard with recommended setup
•    Spring rate 90 N/mm
•    Dustcovers
•    Use with original top mounts

Öhlins EDC Cancellation Kits:
•    981 PASM, Art. Nr. 35020-13
•    718 PASM, Art. Nr. 35020-32
*** Cancellation kits are not included and need to be ordered separately.

*** Please note: The picture shown can deviate from the product delivered.

Ohlins DFV Technology Adjustable Suspension kits with springs.

Top mounts not included use factory top mounts.

Springs included

Fits:
Porsche 986 / 987 Boxster
Porsche 987 Cayman

For cars with PASM please use cancellation kit 35020-08

The Öhlins Road & Track suspension gives our customers a true racing experience, with their own cars, without losing comfort when commuting to work. Our unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.

With Öhlins Road & Track coil overs you will experience a car with blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.

GENERAL FEATURES

• DFV (Dual Flow Valve)
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year limited warranty
• Height adjustable
• Springs included in kit

FRONT FEATURES

• McPherson strut
• Single bleed adjuster
• Spring preload adjuster
• Height adjustable (approx. 20 mm lower than standard)
• Coil springs
• Use with original top mounts

REAR FEATURES

• McPherson strut
• Single bleed adjuster
• Spring preload adjuster
• Height adjustable (approx. 20 mm lower than standard)
• Coil springs
• Use with original top mountsMR80

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

POSMY10S1

The product you are viewing cross references to these numbers

Ohlins Adjustable suspension kit (incl. springs). DFV technology (Dual Flow Valve)



Fits:
Porsche 981C Cayman / Cayman S 2013>>
Porsche 718 (982) Boxster 2016>>
Porsche 718 (982) Cayman 2016>>

General Features:
• DFV technology (Dual Flow Valve)
• Height adjustable
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year limited warranty
• Set incl. springs

Front:
• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Approx. 20 mm lower than standard with recommended setup
• Height adjustment range -15/+15 mm
• Spring rate 70 N/mm
• Dustcovers
• Use with original top mounts

Rear:
• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Approx. 20 mm lower than standard with recommended setup
• Height adjustment range -15/+15 mm
• Spring rate 80 N/mm
• Dustcovers
• Use with original top mounts

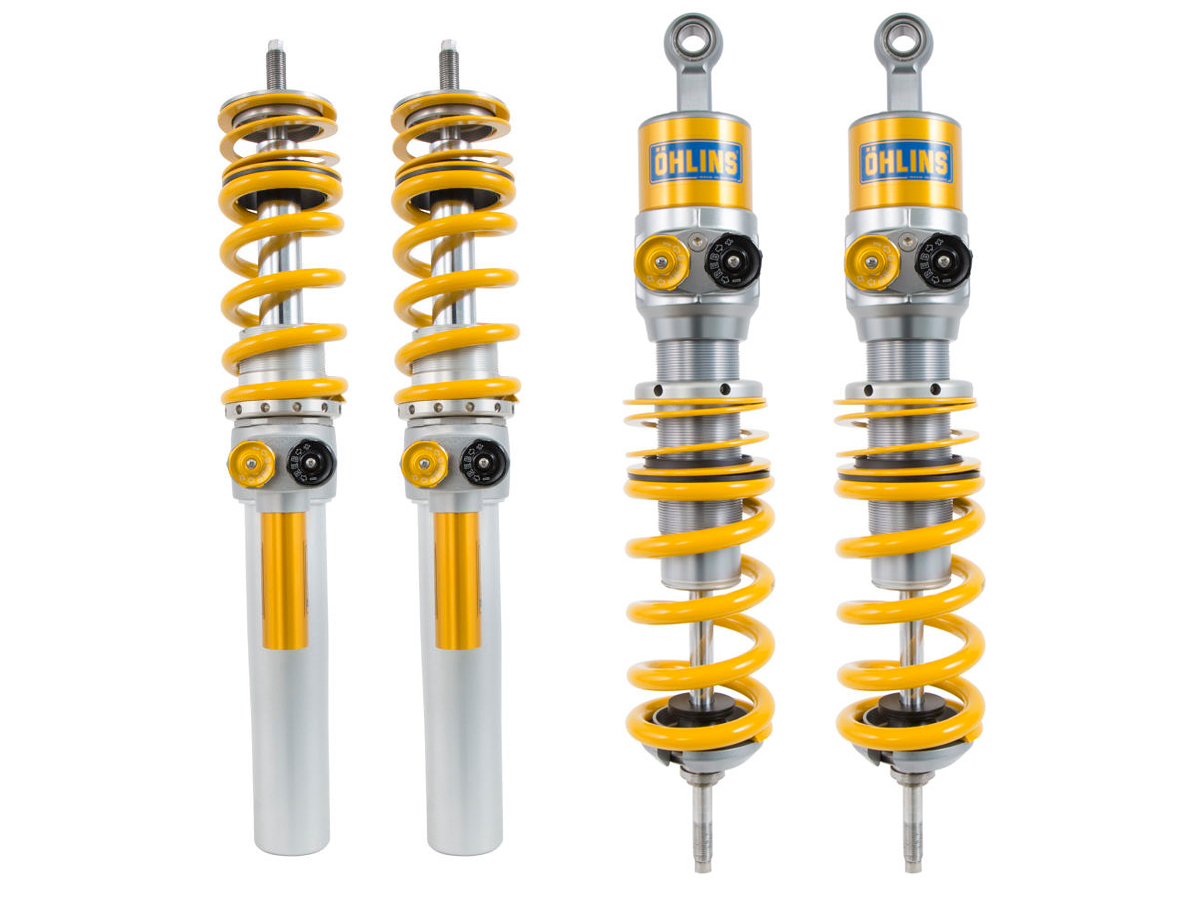

Adjustable suspension kit. Porsche Cayman GT4  (981c) incl. 100/120 N/mm springs (trackday kit)



Fits:
Porsche 981C Cayman GT4

General Features:
TTX technology
2-way adjustable
Height adjustable
Rebuildable
Corrosion salt spray tested (ISO 9227)
2 year limited warranty

Front:
McPherson strut, upside down
Twin tube technology
Separate compression and rebound adjusters
Spring preload adjuster
Approx. 20 mm lower than standard with recommended setup
Spring rate main spring 100 N/mm
Spring rate helper spring 20 N/mm
Dustcovers
Use with original top mounts

Rear:
McPherson strut, upside down
Twin tube technology
Separate compression and rebound adjusters
Spring preload adjuster
Approx. 20 mm lower than standard with recommended setup
Spring rate main spring 120 N/mm
Spring rate helper spring 20 N/mm
Dustcovers
Use with original top mounts

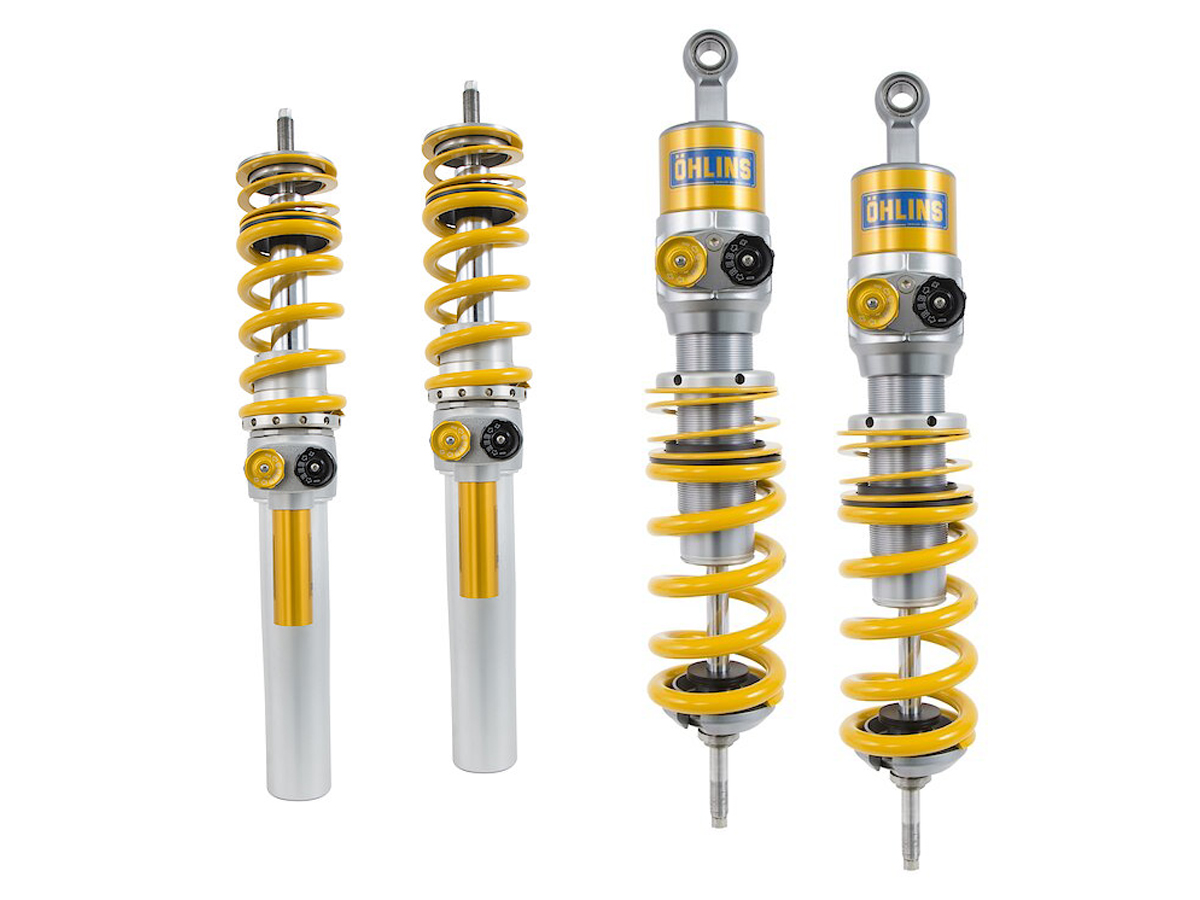

Adjustable suspension kit. Porsche Cayman GT4  (981c) incl. 120/140 N/mm springs (motorsport kit)



Fits:
Porsche 981C Cayman GT4

General Features:
TTX technology
2-way adjustable
Height adjustable
Rebuildable
Corrosion salt spray tested (ISO 9227)
2 year limited warranty

Front:
McPherson strut, upside down
Twin tube technology
Separate compression and rebound adjusters
Spring preload adjuster
Approx. 20 mm lower than standard with recommended setup
Spring rate main spring 120 N/mm
Spring rate helper spring 20 N/mm
Dustcovers
Use with original top mounts

Rear:
McPherson strut, upside down
Twin tube technology
Separate compression and rebound adjusters
Spring preload adjuster
Approx. 20 mm lower than standard with recommended setup
Spring rate main spring 140 N/mm
Spring rate helper spring 20 N/mm
Dustcovers
Use with original top mounts

Adjustable suspension set (without springs)



Fits:
Porsche 718 Boxster Spyder/RS (982), 2019 –
Porsche 718 Cayman GT4 (982), 2019 –
Porsche Cayman GT4 (981c), 2015 – 2016
Porsche Cayman GT4 Clubsport (981c), 2015 – 2016

General Features:
•  TTX technology
•  2-way adjustable
•  Height adjustable
•  Rebuildable
•  Corrosion salt spray tested (ISO 9227)
•  2 year limited warranty
•  Delivery without springs - please add them separately

This coil over set is available as a:
•  Track day kit with softer springs
    - front: 48120-17 (main) / 05173-17 (help.)
    - rear: 48140-21 (main) / 05173-17 (help.)
•  Motorsport kit with stiffer springs
    - front: 48120-21 (main) / 05173-17 (help.)
    - rear: 48140-25 (main) / 05173-17 (help.)

Front:
•  McPherson strut, upside down
•  Twin tube technology
•  Separate compression and rebound adjusters
•  Spring preload adjuster
•  Approx. 20 mm lower than standard with recommended setup
•  Spring rate main spring 120 N/mm (TRACKDAY KIT)
•  Spring rate main spring 120 N/mm (MOTORSPORT KIT)
•  Spring rate helper spring 20 N/mm
•  Dustcovers
•  Use with original top mounts

Rear:
•  Conventional shock absorber
•  Twin tube technology
•  Separate compression and rebound adjusters
•  Spring preload adjuster
•  Approx. 20 mm lower than standard with recommended setup
•  Dustcovers
•  Use with original top mounts

CARGRAPHIC AirLift Evolution Upgrade Kit



The CARGRAPHIC AirLift Evolution is available as an upgrade kit to be mounted on an existing factory front coilover suspension.  Fits cars with PASM or without

It is important to note that the CARGRAPHIC AirLift Evolution can only be fitted to coilovers with cylindrical suspension springs. Alternatively, the kit can be fitted to Bilstein, Ohlins and KW coilover suspension kits, which are available to purchase from Design911

Please note when ordering we will need your full vehicle details, together with which type of coilover kit is being used with the kit

Consisting of:
• 2x CARGRAPHIC AirLift Air spring / Air bellows
• 1x CARGRAPHIC AirLift Control unit V9
• 1x Wiring loom
• 1x Air duct set with connections
• 1x Remote control
• Fitting material
• Installation manual
• TÜV-Certificate*
• For vehicles with coilover suspension with cylindrical suspension springs

Features:

• Raising of the body by 55mm, measured at the fender
• Fast response time: maximum increase within 15 seconds
• No change or impairment of driving behaviour
• Safe control with automatic lowering from 50km/h
• Pneumatic operation, thus no liquid in the vehicle
• No reduction of the luggage compartment volume
• Low weight of approx. 3Kg
• Short installation time of approx. 3 hours.
• Operation via radio or permanently installed switch
• German TUEV certificate*
• Tested by world champion Walter Röhrl
• Fitting:  A qualified, experienced technician will need to fit this kit needs with due skill, care and diligence.
