Brake Disc Standard

1. What Are Brake Discs?

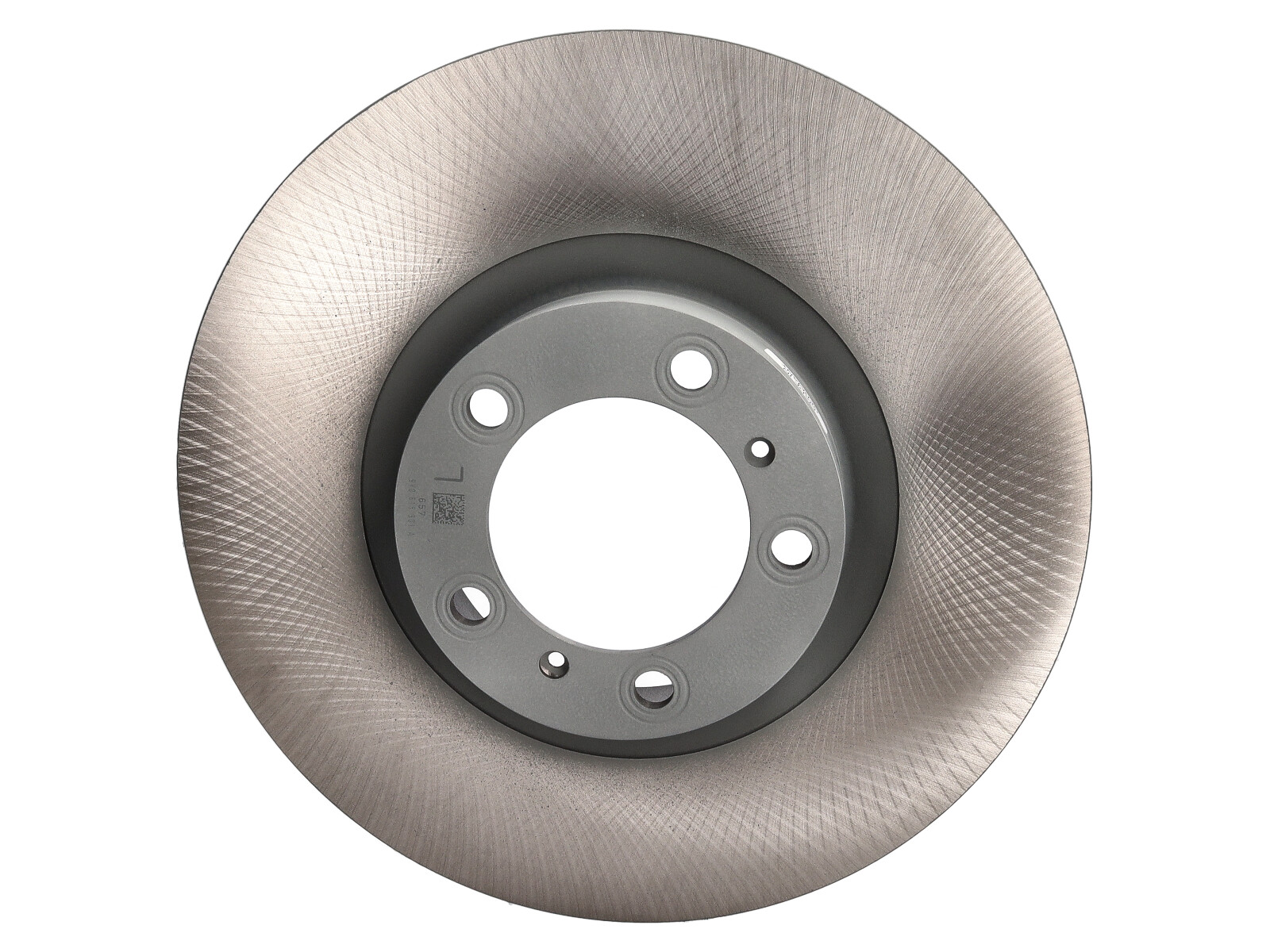

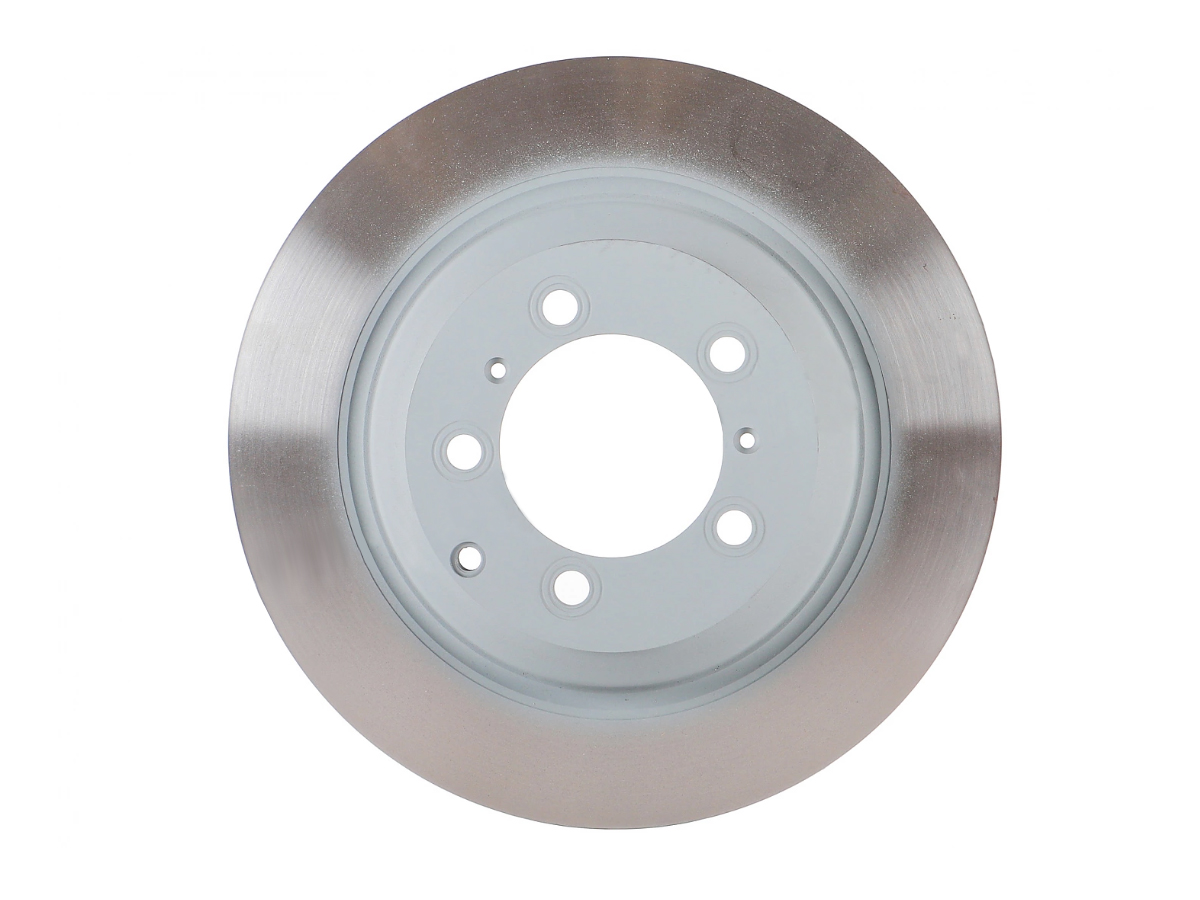

Brake discs, also known as brake rotors, are circular metal components attached to your Porsche’s wheel hub. When you press the brake pedal, the brake calipers squeeze brake pads against the disc, generating friction that slows or stops the vehicle. This process converts the vehicle's kinetic energy into heat energy, which is then dissipated into the air. Why are Porsche brakes so good? Porsche has been transferring technology from their race cars into everyday cars. Top end engineering implemented to the cars on your driveway.

2. How can you tell if your brake discs are worn?

You will feel noticeable vibrations or pulsating when breaking. Car will make unusual noises like squealing or grinding. Your Porsche will take longer to stop. You can see the cracks on the surface or uneven wear.

3. Materials Used in Brake Discs on Porsche’s

Brake discs are made from various materials, each offering unique benefits:

• Cast Iron:

o    Most Common Material: Durable, cost-effective, and provides excellent heat resistance.

o    Drawback: Heavy, which can impact fuel efficiency and handling.

• High-Carbon Steel:

o    A premium variant of cast iron that incorporates additional carbon for better thermal resistance and reduced noise or vibration.

• Carbon-Ceramic known as PCCB:

o    Used in high-performance sports cars and racing.

o    Advantages: Extremely lightweight (upto 50% lighter over steel discs), excellent heat dissipation, and can withstand extreme temperatures without warping.

o    Disadvantages: Expensive, on average x15 more than cast-iron discs. Can be prone to damage in everyday driving conditions. Brake feel is not so good if the brakes are not heated up to required temperature.

o    There are few options if your car was equipped with Ceramics from factory, several manufacturers are now offering cast iron replacements so you can enjoy your car without breaking the bank.

• Porsche Surface Coated Brakes (PSCB):

  Porsche is claiming to be a pioneer in the market and first to use this technology. (tungsten-carbide coat same as used on drilling tools).
  Mirror-like finish, low dust production, less brake fade, longer service life by around 30%, rust proof surface. Porsche has released these discs on larger models like Cayenne’s and Macan’s. Perform great from cold. Price is approx x5 of the cast-iron discs.

4. Functions of Brake Discs

Brake discs are integral to vehicle safety, with the following primary functions:

1. Friction Generation: The brake pads press against the disc to create friction and slow the vehicle.
2. Heat Dissipation: Brake discs are designed to dissipate heat effectively to prevent brake fade, which occurs when brakes lose effectiveness due to overheating.
3. Structural Stability: Brake discs must maintain their shape and performance under extreme stress and high temperatures.



5. Variants of Iron Brake Discs

There are several types of brake discs, each suited to specific applications:

a. Solid Discs

• Description: Plain, flat discs with no special features.
• Use Case: Typically found on early Porsches.
• Advantages: Affordable and reliable for everyday driving.
• Disadvantages: Limited heat dissipation, making them less effective under high-stress conditions.



b. Ventilated Discs

• Description: Feature internal vents or channels between two solid surfaces.
• Use Case: Commonly used in all Porsches from 1970s onwards.
• Advantages: Improved cooling and reduced brake fade during heavy braking.



c. Drilled Discs

• Description: Have holes drilled into the surface.
• Advantages: Better heat dissipation and water evacuation, reducing the risk of fading or poor performance in wet conditions.
• Disadvantages: The drilled holes can weaken the disc structure, making them prone to cracking under extreme stress. This has been overexaggerated amongst the community and steers people towards slotted discs as an alternative.



d. Slotted or Grooved Discs

• Description: Feature machined grooves or slots on the surface.
• Advantages: Enhances pad bite and removes debris or gas buildup between the pad and disc.
• Disadvantages: Can wear down brake pads faster than other designs.

e. Drilled / Dimpled and Slotted Discs

• Description: Combine both drilled holes and slots.
• Advantages: Combines benefits of both drilled and slotted discs, offering excellent heat dissipation and pad bite.

6. Choosing the Right Brake Discs

The right brake disc depends on your vehicle type and how you use it:

• Daily Commuting: Solid or ventilated discs made of cast iron are sufficient for reliability and cost-effectiveness.
• Performance Driving: Drilled or slotted discs made from high-carbon steel or carbon-composite materials for superior performance.
• Luxury or Racing Applications: Carbon-ceramic discs for exceptional performance and durability.

Conclusion
Brake discs are a critical part of your Porsche’s braking system, ensuring safety and performance. By understanding the materials, variants, and functions of brake discs, you can make an informed decision when it’s time for a replacement or upgrade. Whether you need durability for daily driving or advanced performance for the track, there’s a brake disc designed to meet your needs.
