Wheel Hub / Carrier

Wheel Carrier Bush 85 Sports Shore Rating, Rear.
Upgrade your Porsche 997’s rear suspension precision with this high-performance 85 Shore wheel carrier bush, designed for the rear wheel carrier mountings of Carrera MK I & MK II models (2005–10). This firmer bushing compound significantly reduces flex at the carrier mount, maintaining correct wheel alignment, improving rear-end stability, and enhancing tyre contact under load. Ideal for spirited driving, track use or any performance-oriented setup, it offers a direct-fit, high-quality solution for improved handling response and control.
Sold Each.
x2 Required Per Car.

Fits:

• Porsche 997 MK1 Carrera 2 3.6L 2005-08
• Porsche 997 MK1 Carrera 2S 3.8L 2005-08
• Porsche 997 MK1 Carrera 2S 3.8L 2005-08
• Porsche 997 MK1 Carrera 2S 3.8L 2005-08
• Porsche 997 MK1 TURBO 2007-09
• Porsche 997 MK1 GT3 2007-09
• Porsche 997 MK1 GT2 2007-09
• Porsche 997 MKII Carrera C2 3.6L 2009-12
• Porsche 997 MKII Carrera C4 3.6L 2009-12
• Porsche 997 MKII Carrera C2S 3.8L 2009-12
• Porsche 997 MKII Carrera C4S 3.8L 2009-12
• Porsche 997 MKII GT3 2010-11
• Porsche 997 MKII Turbo 2010-13
• Porsche 997 MKII GT2 RS 2011-13

What This Product Does:

• The wheel carrier bush is installed at the interface between the wheel carrier / hub carrier assembly and the vehicle’s rear suspension or subframe mount. Its role is to control movement, absorb some vibrations/loads, and provide a stable mounting point for the carrier.
• By using a stiffer compound (85 Shore vs standard 65 Shore), the mount allows less compliance, meaning the wheel carrier remains more tightly located under loads (cornering, acceleration, braking), which in turn helps maintain alignment (camber, toe, etc.) and improves handling precision.
• In effect: it helps keep the rear wheels more accurately positioned relative to the chassis during dynamic driving rather than letting the carrier mount deflect under load, which can degrade handling or tyre wear.

Symptoms & Signs Of Wear Or Need For Upgrade:

• Clunks, knocks or banging noises from the rear suspension or wheel carrier area, especially when going over bumps or during heavy cornering.

• Rear-end instability or vague handling, such as the rear stepping out, feeling loose or less composed when pushed hard.

• Uneven or accelerated tyre wear on the rear tyres, especially on the shoulder or edge, due to alignment shifting under load.

• Suspension modifications: If the car has been lowered, fitted with stiffer springs/anti-roll bars, or used in performance/track settings, the standard 65 Shore bush may be too soft — you might see more deflection than ideal. The 85 Shore version offers firmer control.

• Visible deterioration of the original bush: cracked or collapsing rubber, looseness of the bush in its bracket, or excessive movement of the carrier when tested.



Why Replacement / Upgrade Matters:

• Upgrading to the 85 Shore version helps restore or improve rear suspension precision, especially for performance or track-oriented driving.

• It reduces unwanted movement of the wheel carrier under dynamic loads, which results in better alignment retention, sharper handling, and longer tyre life.

• For vehicles still using the softer 65 Shore bushing, if they are used aggressively or have upgraded suspension components, the softer bush might compromise handling by allowing too much flex; hence the firmer 85 Shore version is a smart step.
• It supports the rest of your suspension upgrades: if you’ve improved springs, bushings, sway bars etc., using a firmer bush at the carrier mount ensures nothing is held back by a soft mounting point.
• Even for road use, replacing worn bushes prevents drift in alignment settings, reduces rear-end noise/vibration, and helps maintain the driving experience.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

997331111130

The product you are viewing cross references to these numbers

Wheel Carrier Hub Bolt, M 8 X 35.
This Wheel Carrier Hub Bolt is engineered to mount and secure the wheel hub and bearing assembly to the wheel carrier or steering knuckle, ensuring precise wheel alignment and dependable structural strength.
Sold Each.

Fits:

• Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
• Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
• Porsche 970.1 Panamera S V8 4.8L 2009-13
• Porsche 970.1 Panamera 4S V8 4.8L 2009-13
• Porsche 970.1 Panamera GTS V8 4.8L 2011-13
• Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
• Porsche 970.1 Panamera Turbo S V8 4.8L 2009-13
• Porsche 970.1 Panamera Diesel V6 3.0L 2011-13
• Porsche 970.1 Panamera S Hybrid V6 3.0L 2011-13
• Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
• Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
• Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD (420Hp) 2014-16
• Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD Executive 2014-16
• Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD (420Hp) 2014-16
• Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD Executive 2014-16
• Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
• Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
• Porsche 970.2 Panamera Turbo V8 Executive 2014-16
• Porsche 970.2 Panamera Turbo S V8 4.8L 2014-16
• Porsche 970.2 Panamera Diesel V6 3.0L (250Hp) 2014-16
• Porsche 970.2 Panamera S E-Hybrid V6 3.0L (416Hp) 2014-16
• Porsche Boxster 981 2.7L 2012-16
• Porsche Boxster 981 S / GTS 3.4L 2012-16
• Porsche Cayman 2.7L 981 2013-16
• Porsche Cayman S / GTS 3.4L 981 2013-16
• Porsche Boxster 987 MKII 2.9L 2009-2012
• Porsche Boxster S 987 MKII 3.4L 2009-2012
• Porsche Cayman 2.9L 987C MKII 2009-12
• Porsche Cayman S / R 3.4L 987C MKII 2009-12
• Porsche 991.1 Carrera C2 3.4L (350Bhp) 2012-16
• Porsche 991.1 Carrera C2S 3.8L (400Bhp) 2012-16
• Porsche 991.1 Carrera C4 3.4L (350Bhp) 2012-16
• Porsche 991.1 Carrera C4S 3.8L (400Bhp) 2012-16
• Porsche 991.1 Turbo 3.8L (520bhp) 2014-16
• Porsche 997 MK1 TURBO 2007-09
• Porsche 997 MK1 GT2 2007-09
• Porsche 997 MK1 GT3 2007-09
• Porsche 997 MKII Carrera C2 3.6L 2009-12
• Porsche 997 MKII Carrera C4 3.6L 2009-12
• Porsche 997 MKII Carrera C2S 3.8L 2009-12
• Porsche 997 MKII Carrera C4S 3.8L 2009-12
• Porsche 997 MKII GT3 2010-11
• Porsche 997 MKII Turbo 2010-13
• Porsche 997 MKII GT2 RS 2011-13

Diagram Ref No 4

What This Product Does:

• The bolt helps maintain the alignment and secure mounting of the hub assembly, ensuring the wheel and bearing remain solidly held to the vehicle’s suspension / wheel carrier.

Symptoms Of Failure / Needs Replacement:

• Loose hub assembly or play at the wheel bearing / hub interface

• Noise (rattling, knocking) from the wheel / suspension area

• Abnormal wheel alignment / geometry or uneven tire wear

• Bearing / hub damage, because the hub may move relative to its mounting surface under load

• Potential safety hazard if the wheel or hub becomes unstable

Why Replacement Matters:

• Safety-critical component: Keeps the wheel hub and bearing securely attached to the suspension carrier.

• Prevents looseness and wheel wobble: Ensures stability under braking and cornering.

• Essential during service: Always replaced when removing the hub or bearing for correct torque retention and clamping force.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99921704204

The product you are viewing cross references to these numbers

Wheel Carrier To Hub Spacer.



Fits:
Porsche 996 C4S 2002-05 (FRONT)
Porsche 996 Turbo/GT2 2001-05 (FRONT)
Porsche 996 GT3 1999-05 (FRONT)
Porsche 997 MKI / MKII Carrera 2005-12 (FRONT)
Porsche 997 MKI / MKII Turbo 2009-12 (FRONT)
Porsche 991 Carrera 2012>> (FRONT)
Porsche 991 Turbo 2014>> (FRONT)

Porsche 986 Boxster S 3.2L 2000-04 (FRONT & REAR)
Porsche 987 Boxster MKI & MKII 2005-12 (FRONT & REAR)
Porsche 987C Cayman MKI & MKII 2005-13 (FRONT & REAR)
Porsche 981 Boxster 2012>> (FRONT & REAR)
Porsche 981C Cayman 2013>> (FRONT)

Click 'Zoom in' for large parts diagram.
Diagram ref no 7

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

98633166120

The product you are viewing cross references to these numbers

Wheel carrier, Front Axle.

Fits:
for Cars with Ceramic Brakes (PCCB) I450
Porsche 997 Carrera 4 / 4S MKI & MKII 2005-10 COUPE / TARGA / CABRIO
Porsche 997 TURBO MKI & MKII 2007-10 (incl. CABRIO)

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99734116

The product you are viewing cross references to these numbers

Wheel carrier, Rear Porsche 997 9973311107, 99733111207

Fits:
Porsche 997 Carrera 4 / 4S MKI & MKII 2005-10 COUPE / TARGA / CABRIO


Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99733111

The product you are viewing cross references to these numbers

Wheel Hub. Front Axle. For cars without central lock.




Porsche 986 Boxster S 1997-2004

Porsche 996 C4S / Turbo / GT2 2001-2005
Porsche 996 GT3 / GT3 RS 1999-2005

Porsche 997 C2 / C4 / C2S / C4S / Turbo / GT2 / GT3 2005-2008
Porsche 997.2 C2 / C4 / C2S / C4S / Turbo / GT2 / GT3 2009-2012

Porsche 987.1 Boxster and Cayman 2005 - 2008
Porsche 987.2 Boxster and Cayman 2009 - 2012

Porsche 981 Boxster and Cayman 2012 - 2016
Porsche 981 Spyder 2016

Porsche 982 (718) Boxster and Cayman 2017>>

Porsche 991.1 Carrera / Turbo 2012 - 2016
Porsche 991.2 Carrera / Turbo 2017-2019

Porsche 992.1 Carrera 2019>>
Porsche 992 Turbo 2020>>

Click 'Zoom in' for large parts diagram.
Diagram ref no 9

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9P1407615

The product you are viewing cross references to these numbers

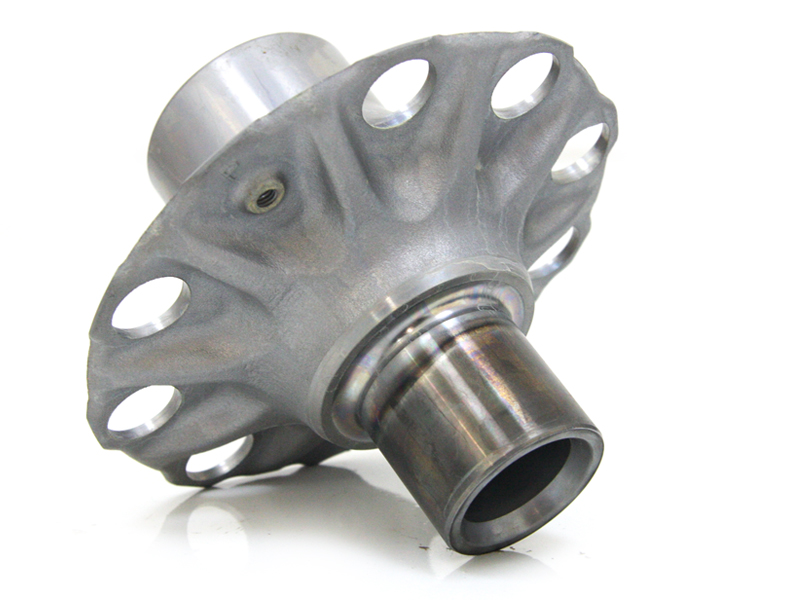

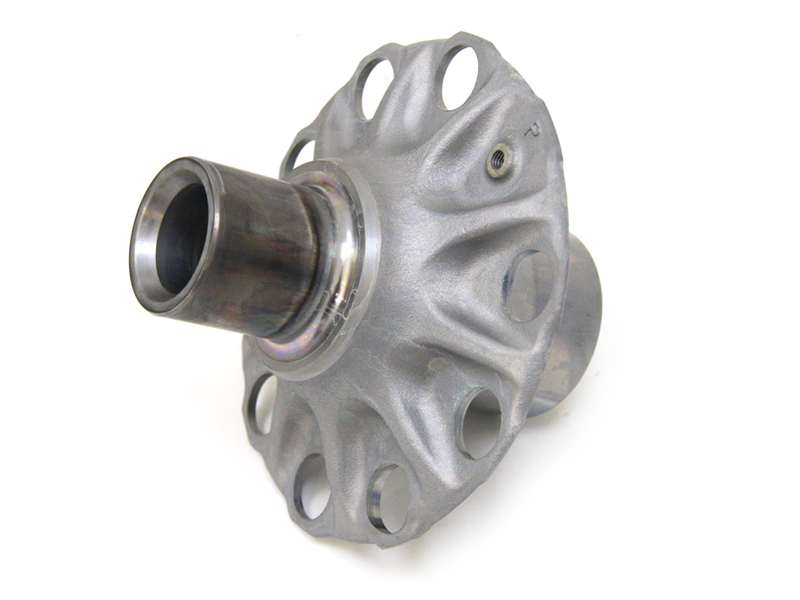

Rear wheel hub.



Fits:
For cars with (I422) Turbo wheels, 19", central lock
Porsche 997.1 Turbo 2009-10
Porsche 997.2 Turbo 2011-13

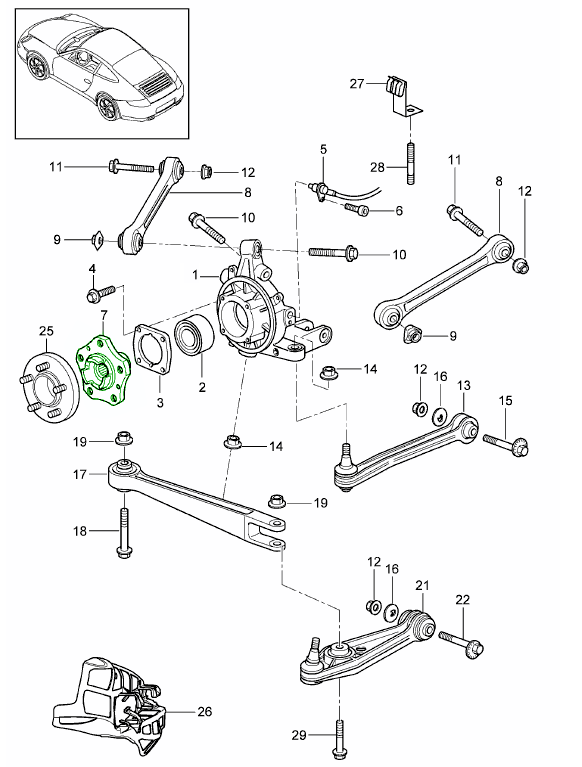

Click 'Zoom in' for large parts diagram.
Diagram ref no 7

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99733160702

The product you are viewing cross references to these numbers

Wheel hub. Front axle.



Fits:
Porsche 997.2 Carrera GTS / 4 GTS 2009-12
Porsche 997.1 Turbo 2009>> with Turbo wheel 19", central lock (option cod: 422)
Porsche 997.2 Turbo 2010-13 with Turbo wheel 19", central lock (option cod: 422)
Porsche 997.2 GT2 RS 2010-13
Porsche 997 GT3 2010-11

Click 'Zoom in' for large parts diagram.
Diagram ref no 9

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99734160702

The product you are viewing cross references to these numbers
