Side section / Sub frame

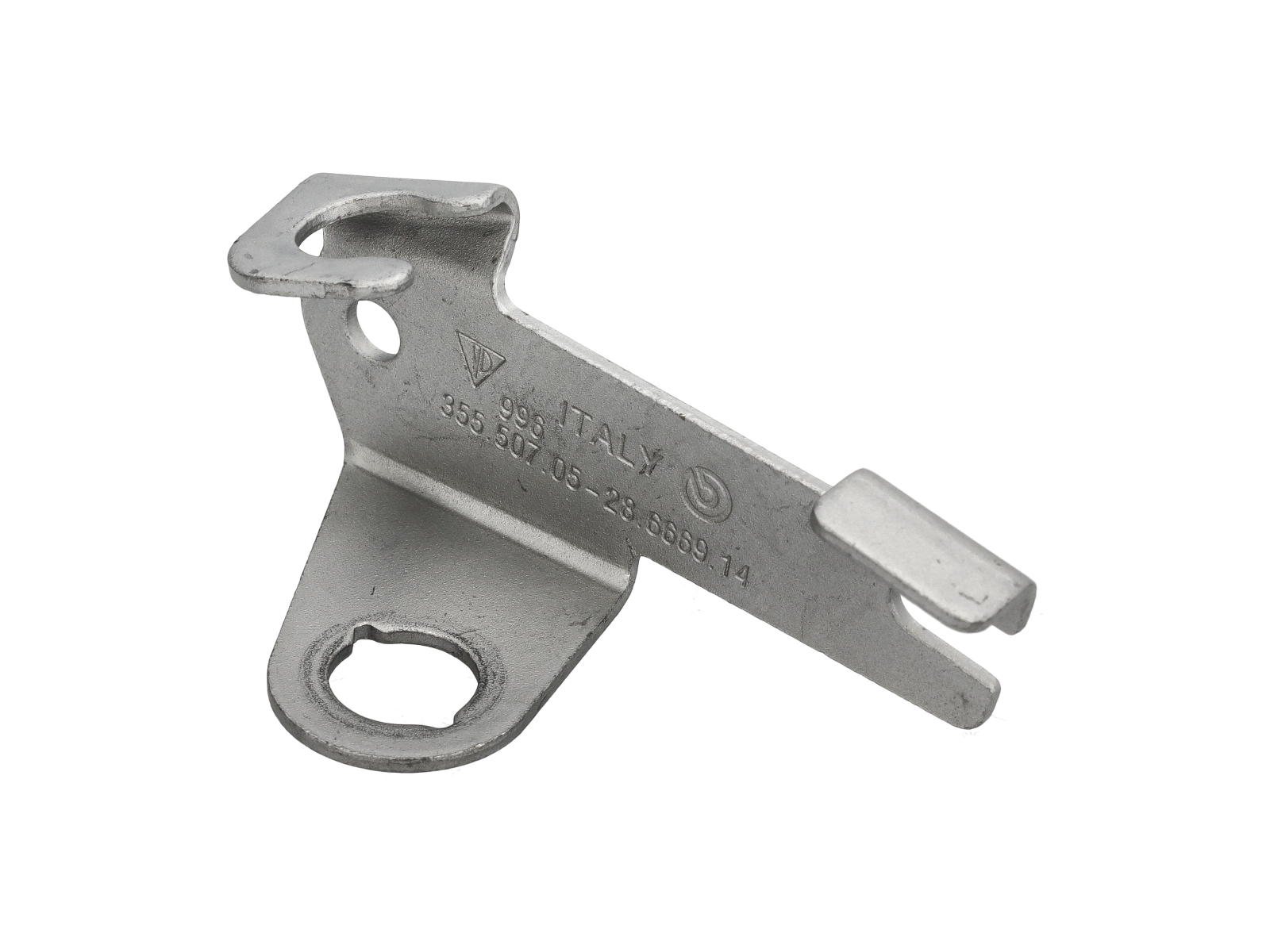

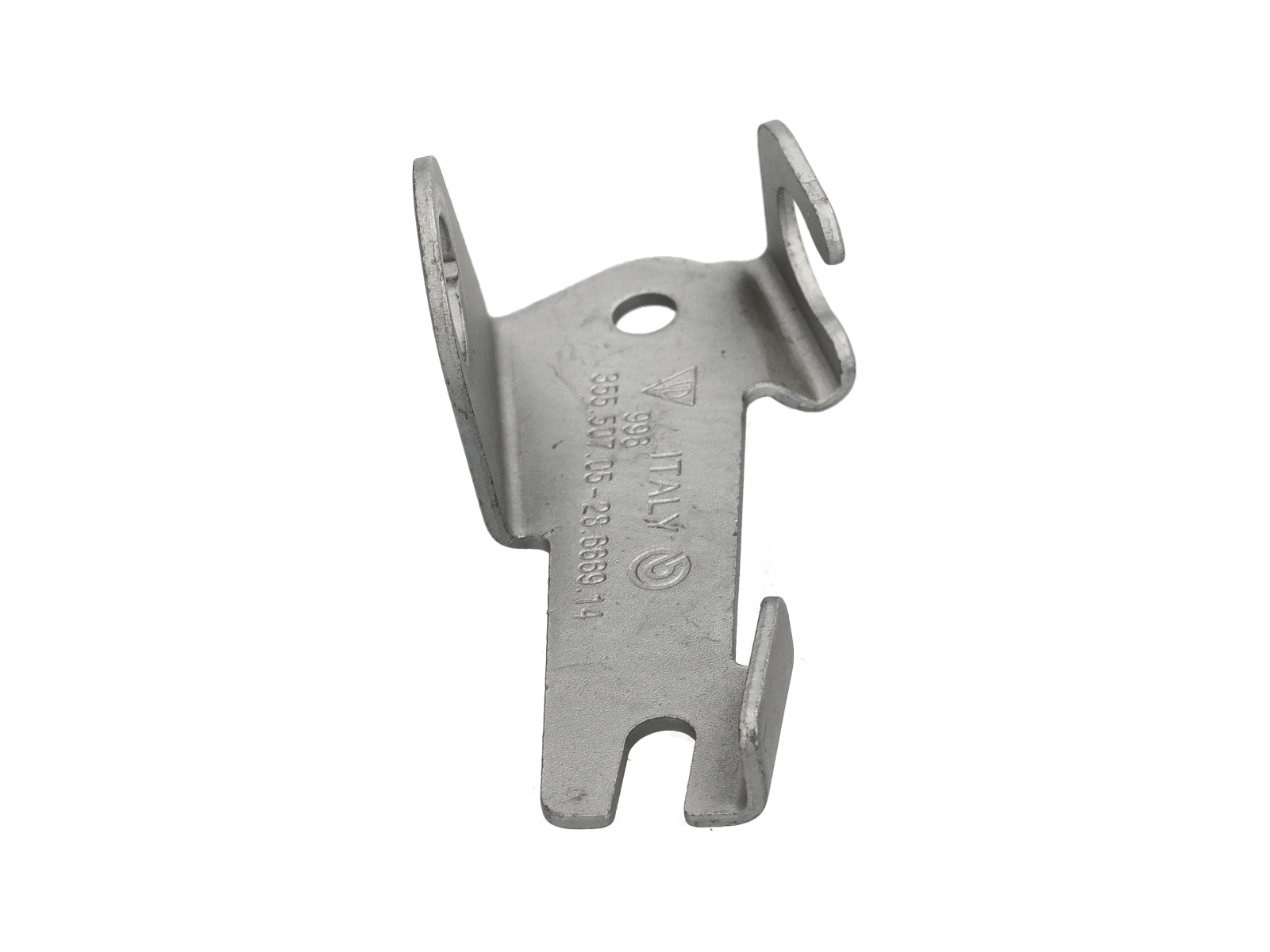

Brake hose support, Front left.



Fits:
Porsche 996 C4S 2002>>
Porsche 997.1 C4*
Porsche 997.2 C4*
*not for cars with PCCB/option I450

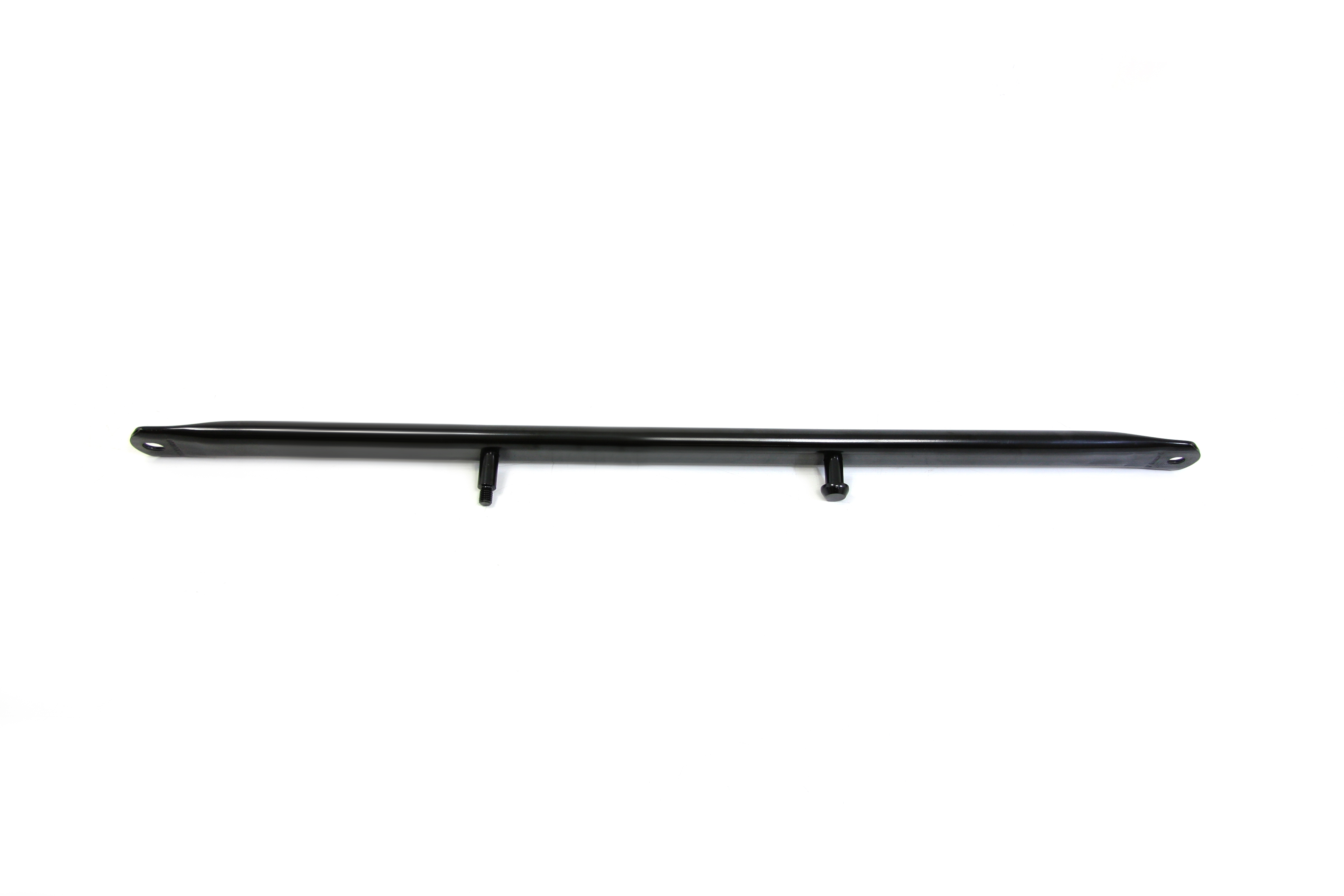

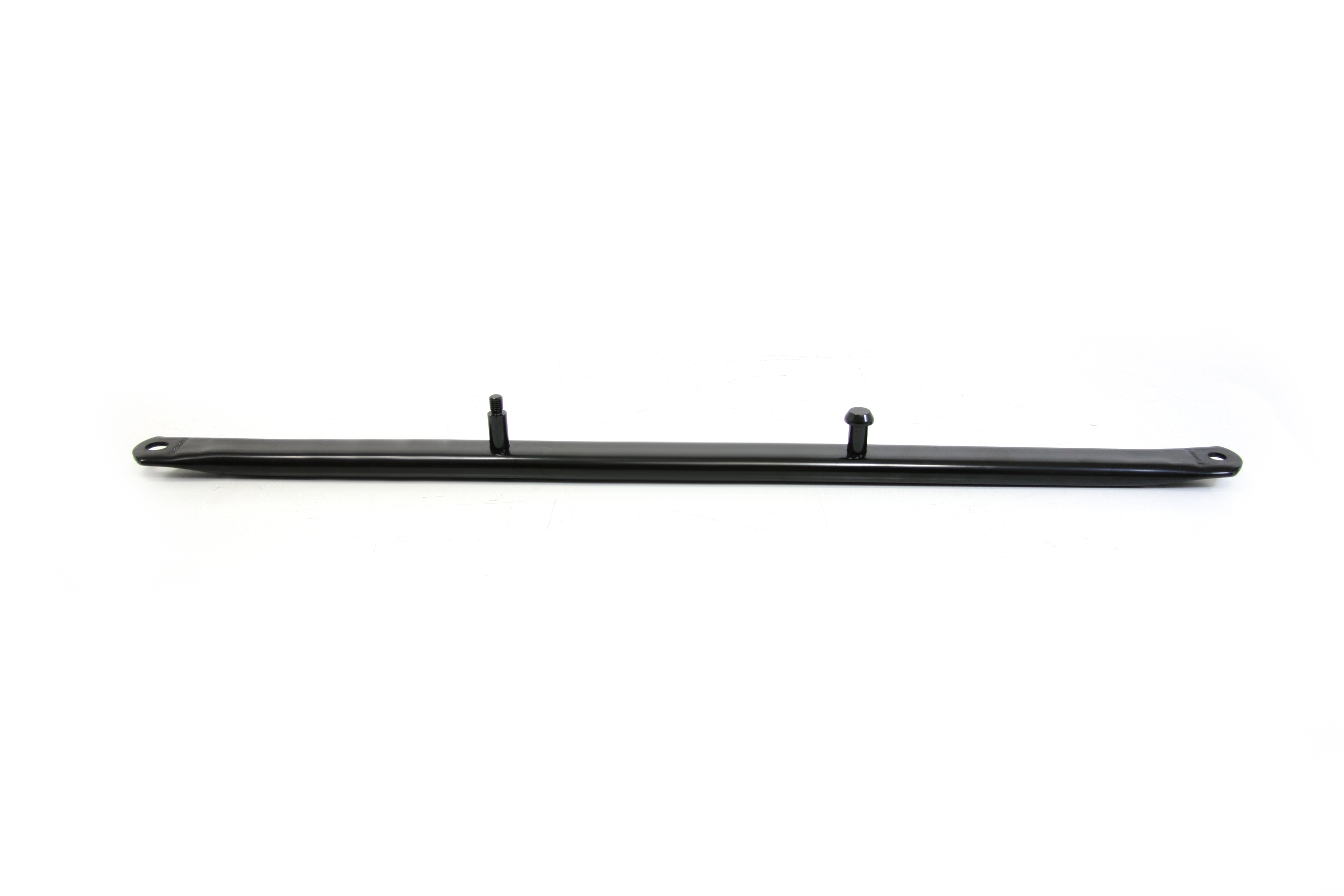

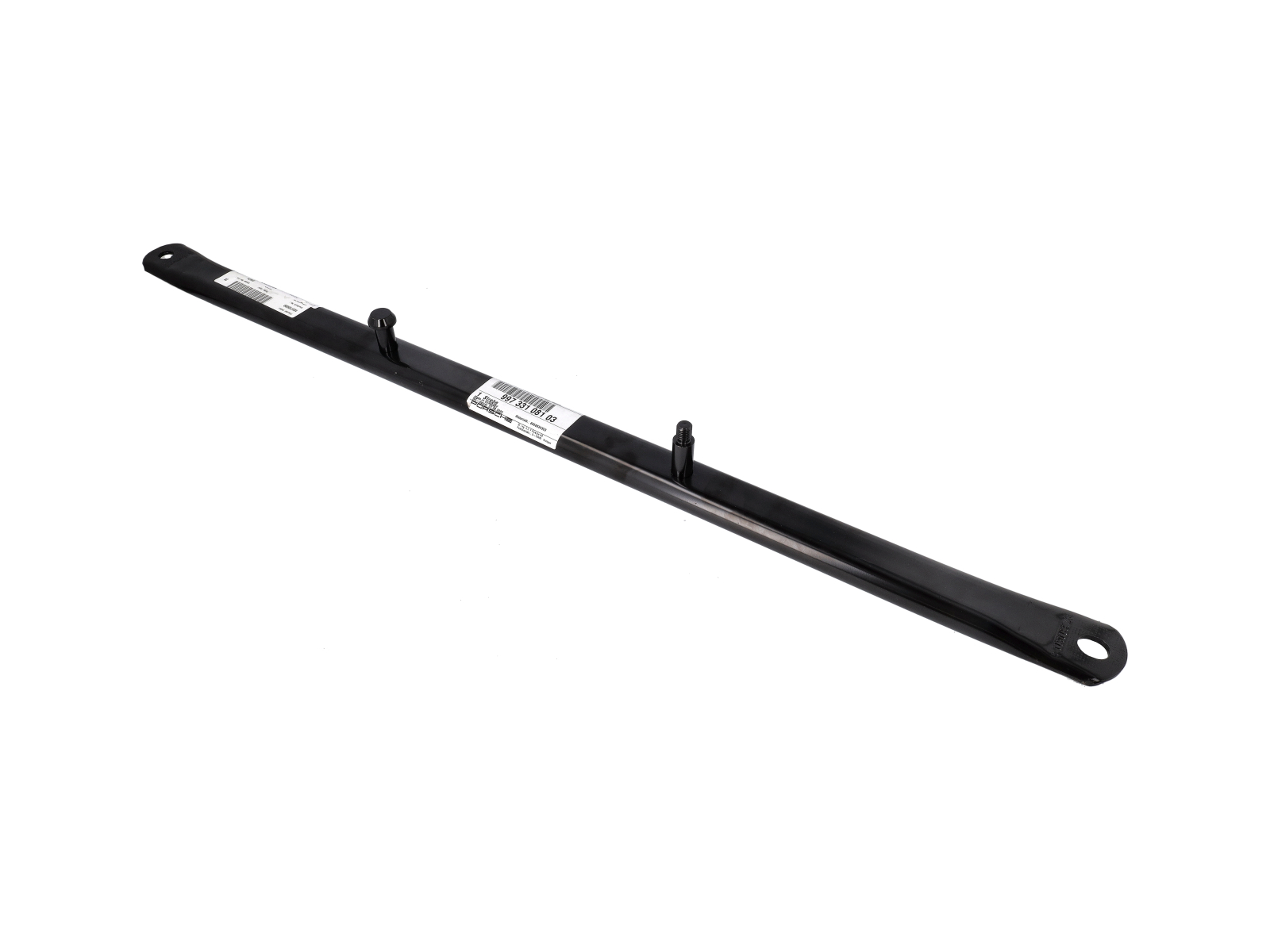

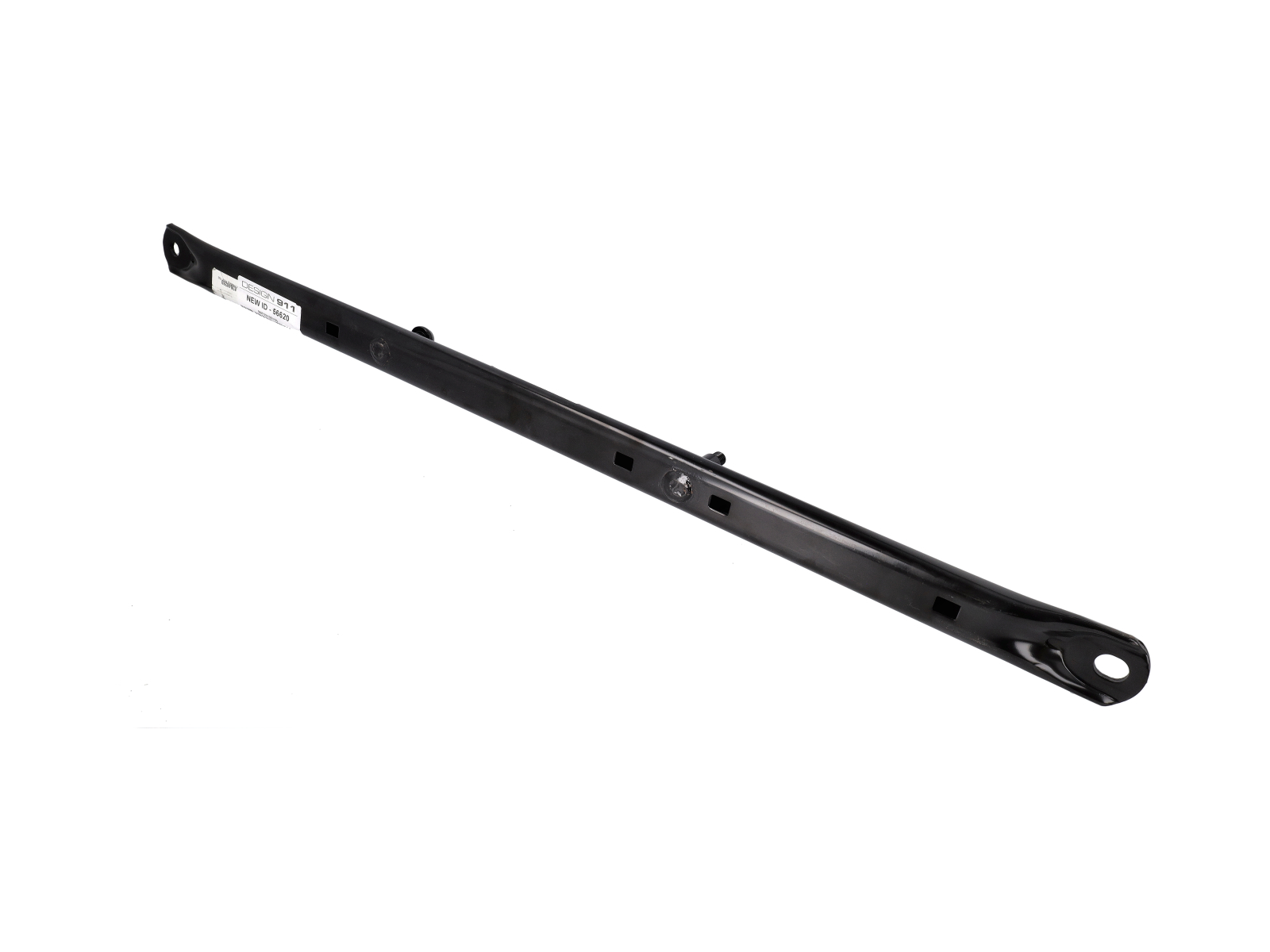

Cross brace rear suspension.
Sold each - 2 required per car



Fits:
Porsche 996 C2 / C4 / C4S - 1997 to 2004
Porsche 996 turbo - 2000 to 2005
Porsche 996 GT3 - 1999 to 2005
Porsche 997.1 C2 / C4 /C4S - 2005 to 2008
Porsche 997.1 turbo - 2007 to 2008
Porsche 997 GT3 - 2007 to 2012
Porsche 997.1 - 2005 to 2008

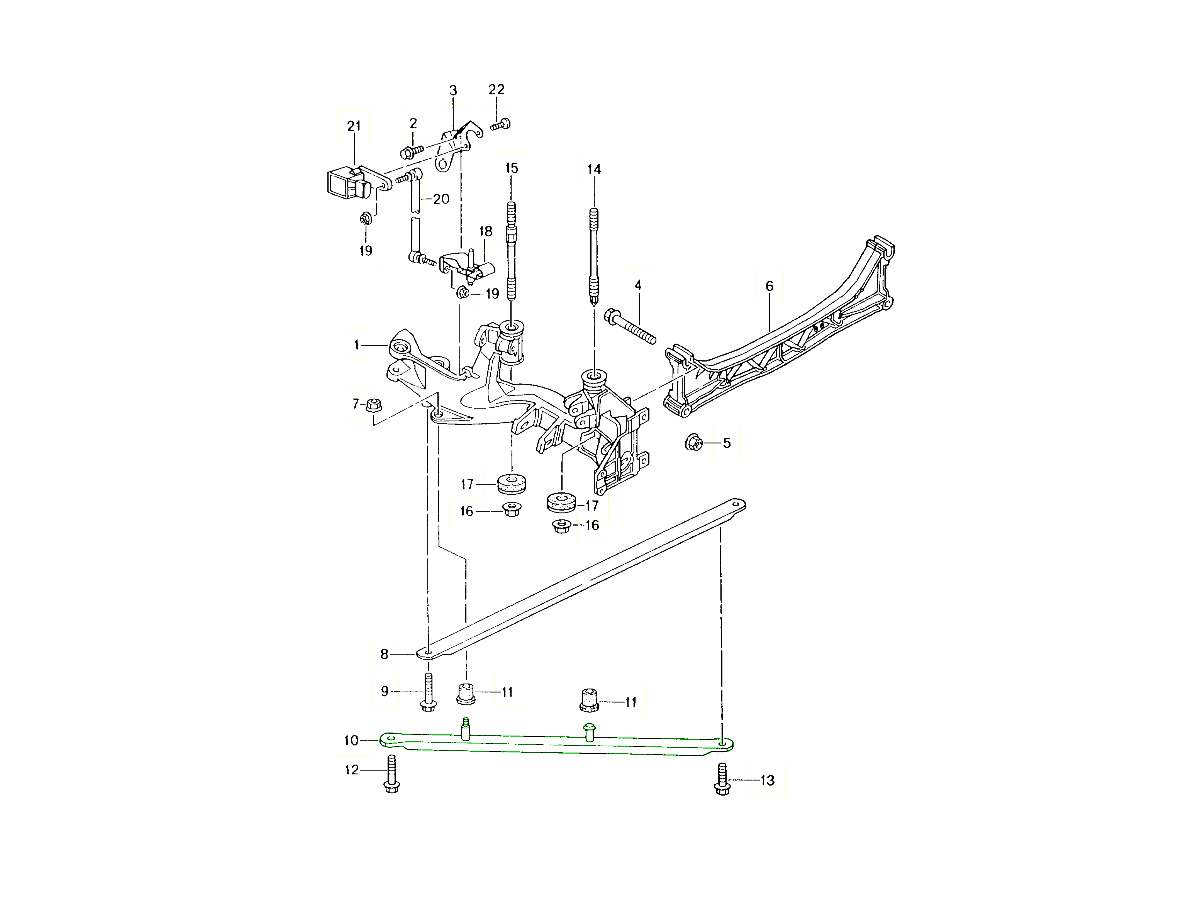

Click 'Zoom in' for large parts diagram.
Diagram ref no 10



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99733108103

The product you are viewing cross references to these numbers

Rear axle side section.



Fits:
Porsche 997.1 Carrera 2005-08
Porsche 997.2 Carrera 2009-12
Porsche 997.1 Turbo 2007-09
Porsche 997.2 Turbo 2010-13

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99733105

The product you are viewing cross references to these numbers

Exchange Rear axle side section. Porsche 997.1 / 997.2 Reconditioned

Fits:
Porsche 997.1 Carrera 2005-08
Porsche 997.2 Carrera 2009-12
Porsche 997.1 Turbo 2007-09
Porsche 997.2 Turbo 2010-13

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Please note:
Reconditioned products are sold on an exchange basis, A surcharge will be held and then refunded when the old one is returned.

The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer. Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer. Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning. All surcharges and exchanges are subject to our terms and conditions.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99733105

The product you are viewing cross references to these numbers

Rear suspension support brace for vehicles with a manual transmission. This is the singular brace which runs perpendicular to the car's body - not to be confused with the two braces (x2 99733108103, ref. no. 10 in the parts diagram) which sit at an angle and form a triangular shape alongside this part.



Fits:
Porsche 996 Carrera 2 / 4 / 4S 1998-05*
Porsche 996 Turbo 2001-05*
Porsche 996 GT3 1999-05*

Porsche 997.1 Carrera 2 / 2S / 4 / 4S 2005-08*
Porsche 997.1 Turbo / GT2 2007-09*
Porsche 997.1 GT3 2007-11*

*Please be advised, this part is only correct for vehicles with a manual transmission. If your model is Tiptronic, you will need to order 99733117100 instead.

Silent block set for rear axle sub frame. Porsche 996, 997
(Set of 3 bushings for one side) for Left and Right, 2 Sets required
Standard street version.



Fits:
Porsche 997

Porsche 996

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99633105XXX

The product you are viewing cross references to these numbers

Solid subframe bushing set. 12 bushings in kit. 1 kit req'd per car.



Fits:
Porsche 996 / 997

Improved Handling and Precision
Our Rear Subframe Solid Bushing kit improves handling and precision by providing geometry correction for lowered cars and eliminating deflection. Porsche recognizes these performance benefits and uses a similar solid rear subframe mounting approach on the latest GT3 street and Cup racecars.

Replaces stock rubber bushings in the rear subframe of the Porsche 996 and 997 cars, raising the subframe into the chassis 6.5mm (.25 inch).

Geometry Correction
Lowering the 996/997 provides the benefits of lower center of gravity and improved appearance. Unfortunately lowering also causes the rear suspension members to angle down as the inner links drop with the chassis and the outer links remain at wheel upright height. This downward angle harms performance.

With the suspension members angling up towards the wheel the Roll Center is lowered which causes increased chassis lean, toe and camber curves are shifted and become less optimal, static toe and camber adjustments are shifted often exceeding the range of the stock adjusters.

Our kit raises the rear subframe .25 inches (6.5mm) to help reverse the negative effects of lowering. Suspension member angles are improved and performance is enhanced. Our upper bushing fits inside the subframe, eliminating the entire thickness of the upper rubber bushing for the greatest possible geometry correction achievable from bushings alone.

Eliminate Deflection
Stock rubber bushings compress and deform under heavy cornering, braking, and acceleration loads. The compliant rubber bushings allow the entire rear subframe shift about relative to the chassis. Rear camber and toe settings wander along with the subframe making the car less predictable, less stable in turns.

Our solid bushings replace the compliant rubber and do not deform under cornering loads, keeping the subframe in position and alignment true even under heavy cornering loads. The car becomes more predictable and easier to drive fast.

Build Quality
Each bushing consists of two pieces, an upper plug and lower puck. The plug is machined from solid aluminum with knurled edges for perfect fit.

Lower puck is machined from solid steel with zinc finish for protection.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2290035

The product you are viewing cross references to these numbers

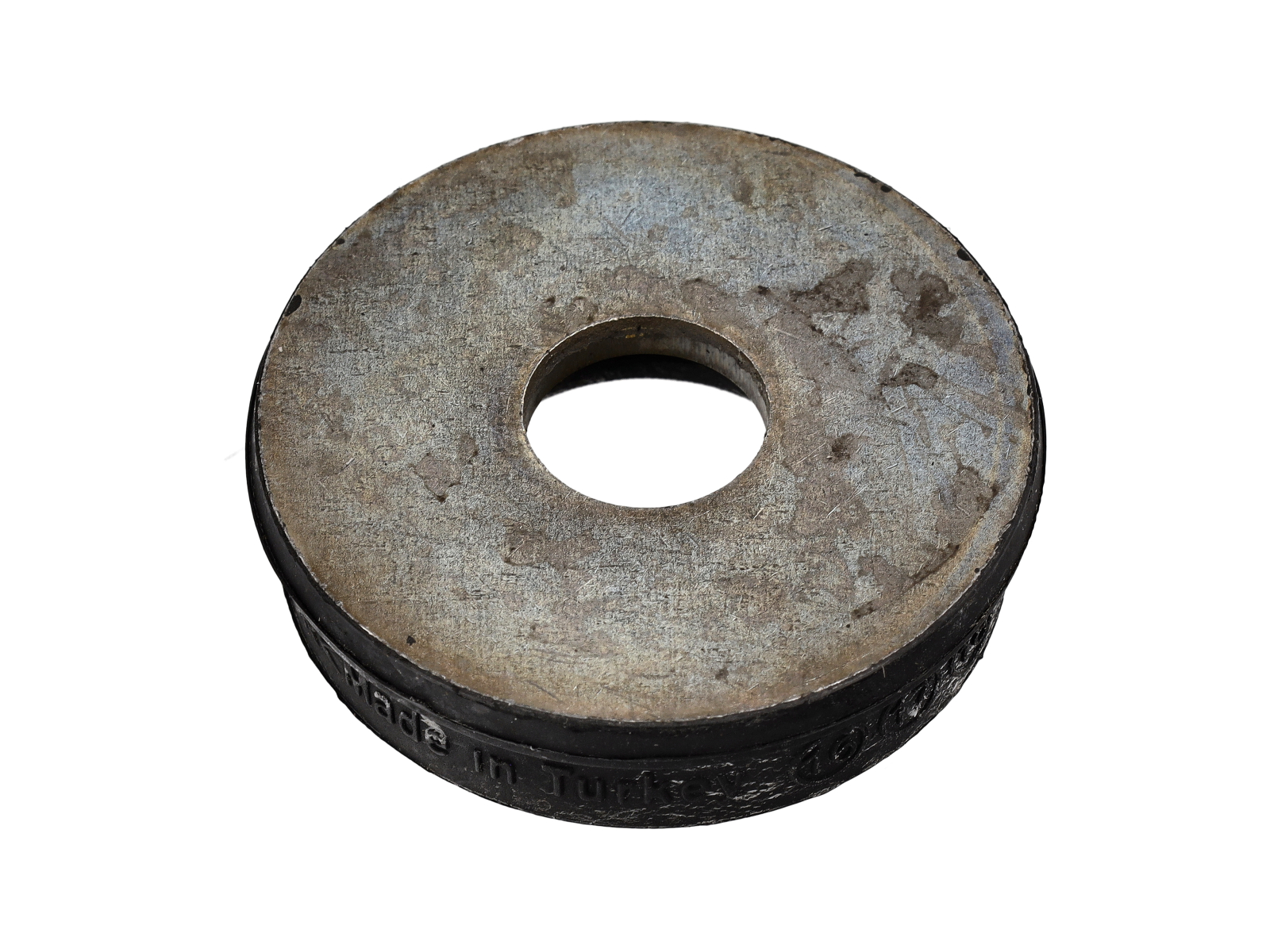

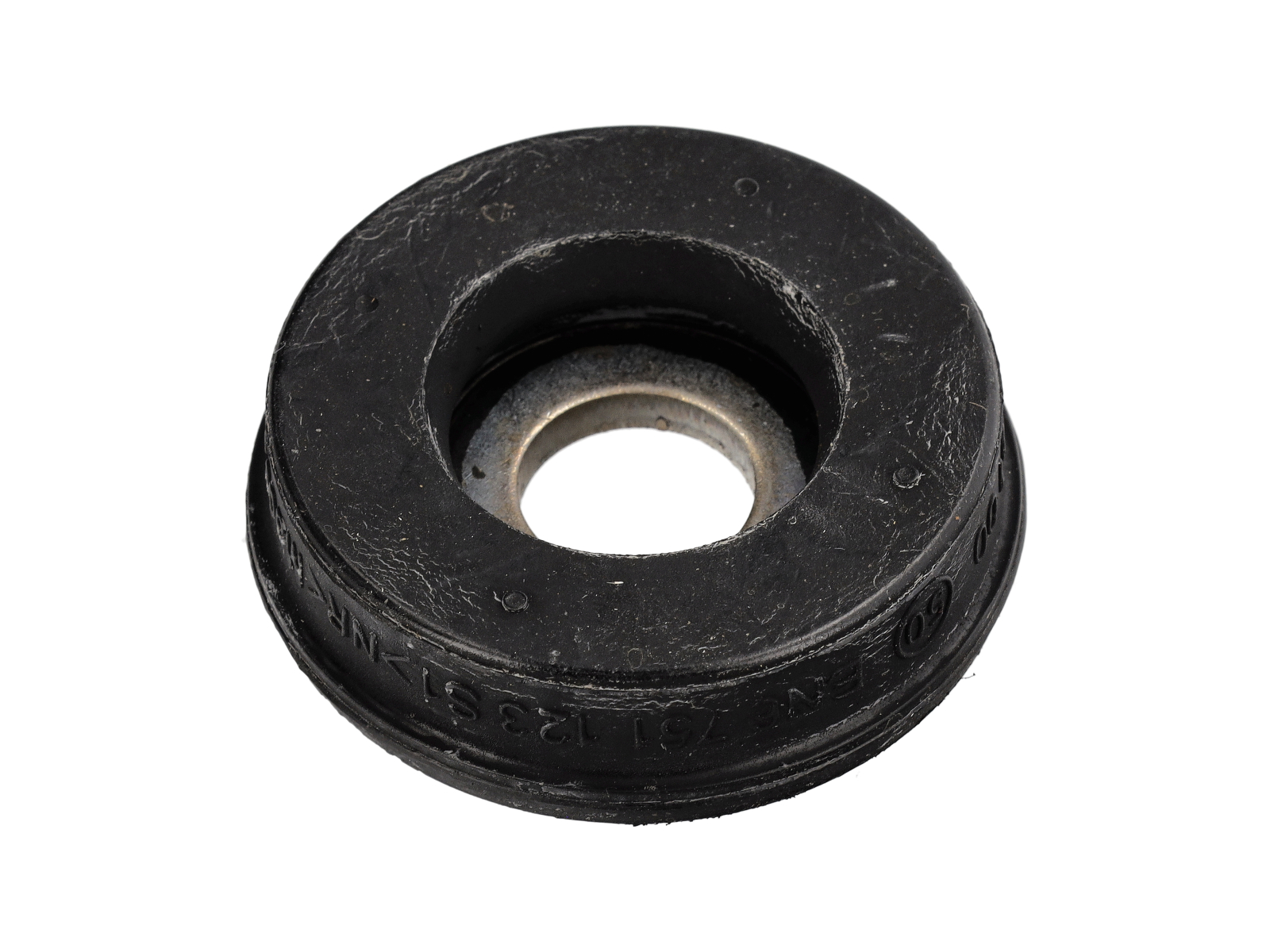

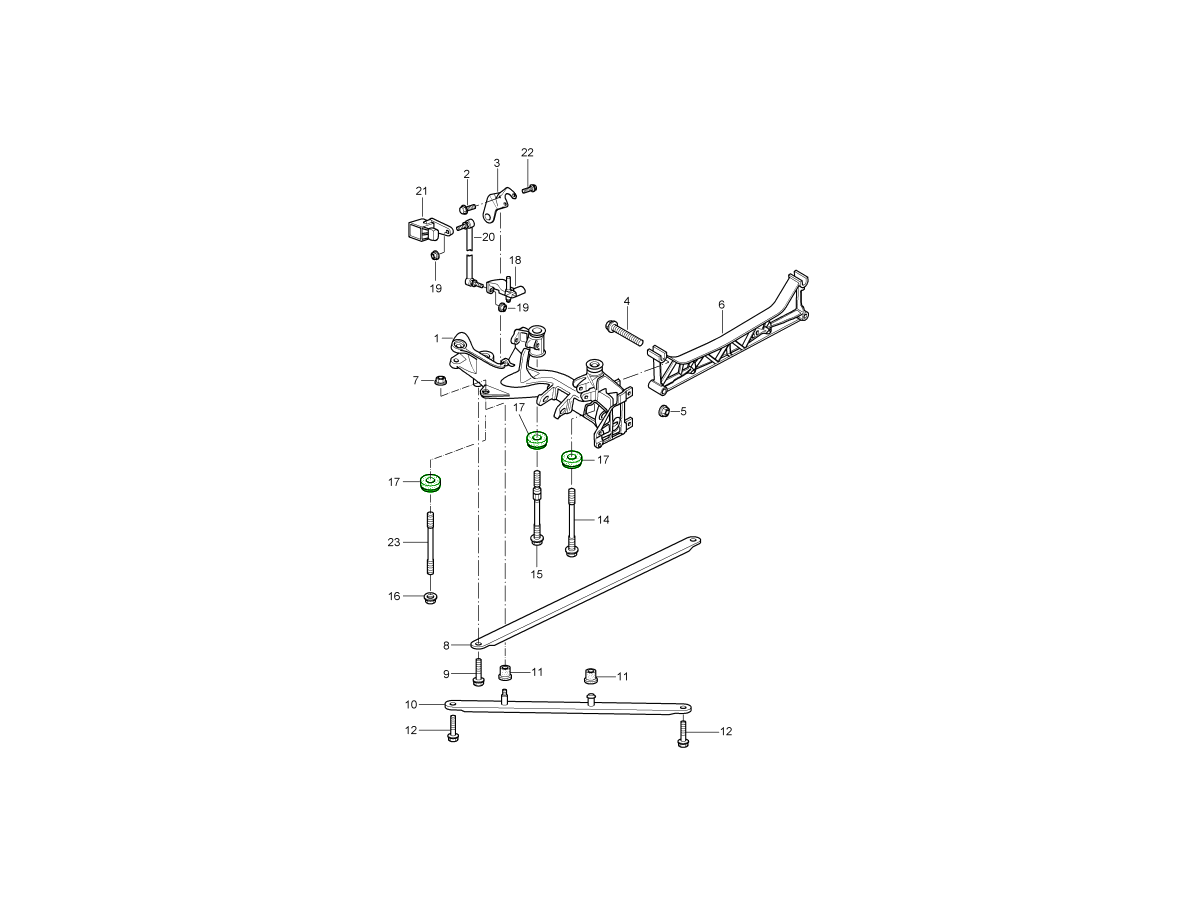

Mounting washer for the suspension side section, which connects to the rear crossmember to complete the subframe assembly.

Sold individually; x6 required per vehicle.

Fits:
Porsche 997-1 Carrera 2006-08*
Porsche 997-1 Turbo 2007-09
Porsche 997-1 GT2 2008-09

Porsche 997-2 Carrera 2009-12
Porsche 997-2 Turbo 2010-13
Porsche 997-2 GT2 RS 2011

Diagram ref. 17.

*NOTE: This washer is not suitable for 2005 model year 997 vehicles. Instead, a different washer is required, the part number of which is 99633129102.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99733129100

The product you are viewing cross references to these numbers
