Inter Coolers

Unleash the full potential of your Porsche 996 Turbo or 996 Turbo S with the EVO2 High Performance Intercooler Kit—the ultimate upgrade designed for those who crave superior power and precision.



Fits:
Porsche 996 (911) Turbo 309KW/420PS (2000-2006)
Porsche 996 (911) Turbo S 331KW/450PS (2004-2006)

Kit Includes:
2x Intercooler, black
4x Carbon air shrouds
4x Silicone hoses
4x Hose clamps
1x Mounting Material
2x Aluminum adapter

*Please note, replacement gaskets are not included with this kit. Please re-use your existing ones, or order replacements. You will be given this option when you add the product to your basket. You will need two of each.

Our EVO2 high-performance intercoolers (2 x [330mm x 222mm x 145mm] = 21,244cc). Are designed to provide a whopping 77% more charge air volume than the factory intercoolers. This translates into a significant increase in your vehicle's performance. Our specially designed Competition high performance intercooler core ensures excellent cooling characteristics. Even under extreme conditions, your engine will maintain the optimum temperature. Despite its impressive performance, our intercooler kit is surprisingly lightweight. Each of the two coolers weighs just 6.7 kg.

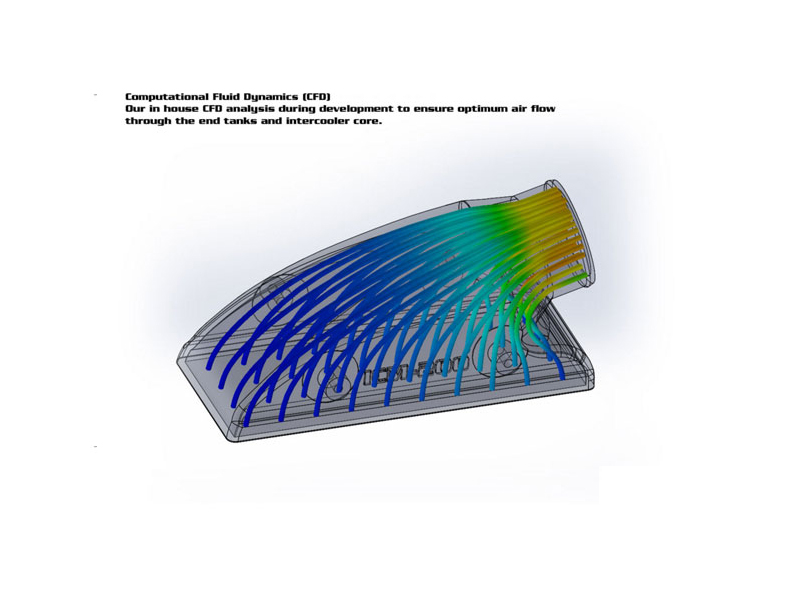

CAD designed cast aluminium freeform end boxes provide the best possible internal airflow and high pressure resistance of up to 6 bar (tested). Our kit includes a custom-fit carbon air duct that ensures the intercooler is optimally supplied with fresh air. This is crucial for maximum performance of your vehicle. The kit includes additional silicone hoses with an enlarged cross-section to optimize airflow.

Our intercoolers are finished with an anti-corrosion coating that not only ensures durability, but also provides excellent heat conduction properties. Our kit comes complete with new carbon air guides, silicone hoses and aluminium adapters. Installation is simple and replaces the factory intercoolers. This kit is specifically designed for racing and features a 70mm intake and exhaust for maximum performance.

Performance intercoolers & pressure hoses kit.



To Fit:
Porsche 911 (996 Turbo), GT2 manual and auto 1999 to 2005

Significant advantages with do88's Porsche Performance Intercoolers & Silicone Hoses:

• Equivalent OEM numbers, 997.110.639.00, 997.110.640.00 (ref only)

• Core Volume: 6825 cm³ (4821 cm³), do88 41% larger!
• Lower post Intercooler Air Temperature at same conditions: OEM 50°C (122°F), do88 34°C (93°F)

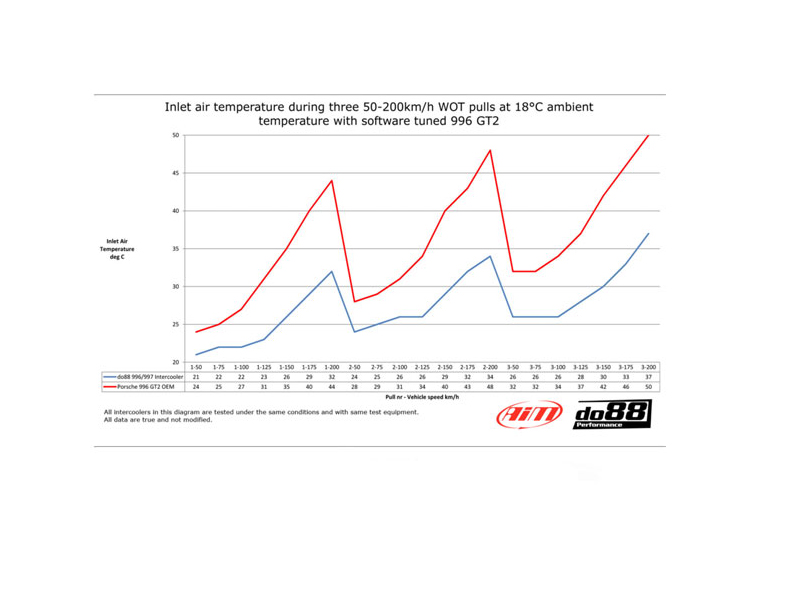

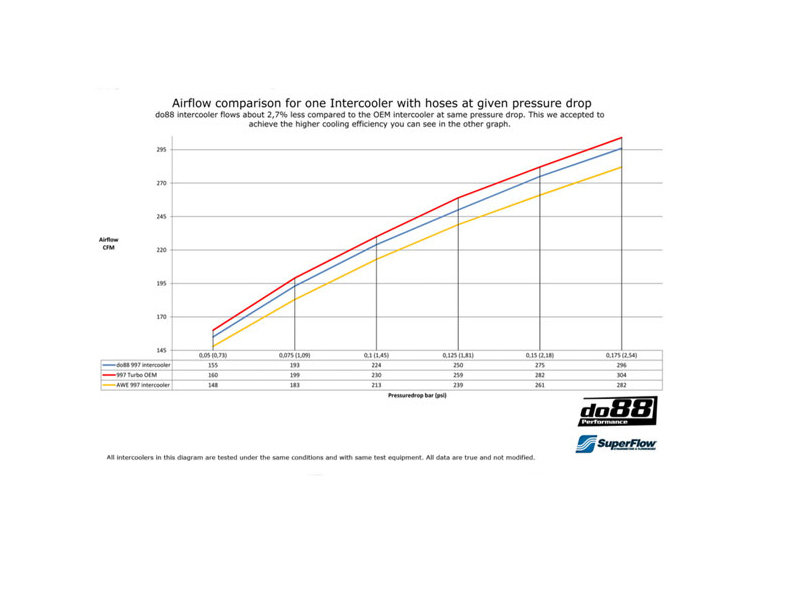

• See enlarged images for test data results!

These Intercoolers are constructed to deliver the best cooling efficiency during tough conditions. Exclusively manufactured in aluminium with continuous welds, they guarantees reliability and endurance when you really need it. The increased core volume improves cooling efficiency and lowers the intake air temperature. Do88 have undergone thorough testing under severe and continuous conditions to ensure the absolute best performance! These Intercoolers are immensely optimized to allow the maximum core size in the given space without compromising on easy drop-in-fitment. This is the undoubted choice for the inspired enthusiast or the race car driver demanding reliability at the limit.

This package is supplied with everything you need for fitment, including Silicone Hoses, Screws, Brackets and Clamps.

The Boost Pressure Hoses included in this Kit are Silicone reinforced 4 ply polyester fabric for optimum airflow, performance and reliability!

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

ICM-200-996

The product you are viewing cross references to these numbers

DesignTek introduces high performance Porsche 996 Turbo and 996 Turbo GT2 intercoolers.



The intercoolers control the side to side flow design that flows along it's 16inch length. This IC will be more than sufficient for any highly tuned 996TTs or GT2s cars to applications of upto 900hp. DesignTek Porsche intercoolers produces high-flow rate and dramatic temperature reduction which are mainly contributed by two key factors. Firstly, the great temperature reduction is accomplished by a 40% larger than stock sized intercooler cores in which each core has the capacity flow rate of 750 CFM. Secondly, which in our opinion is the most important element of an IC; the inlet/outlet end-tanks. Our end-tanks are a one piece cast aluminium construction design, formed with little to no corners and are also fully polished on the insides to increase air velocity; therefore minimizes welding points and greatly increases air flow and reduction in pressure drop which yields to improved efficiency. Also please note that all of our intercoolers come only in high polished finished for that uncompromised appearance.

The specifications:
- Dimensions Core Thickness: 3.5"
- Core Volume vs. Stock: 40% larger
- Performance Efficiency: 85%
- Flow rate: 620 CFM / side
- Leak Tested: @ 30 PSI
- Pressure Drop: less than 1%

Fits:
Porsche 996 Turbo 2000-05
Porsche 996 GT2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99611063000

The product you are viewing cross references to these numbers
