Distributor

Distributor drive belt warning kit. Porsche 964 / 993

Fits:
Porsche 964 - 1989 to 1994
Porsche 993 - 1994 to 1998

Product Description

This kit warns the Porsche 964/993 driver of a catastrophic distributor belt failure. The failure of the secondary distributor head drive belt will result in severe damage to the engine if the car is continued to be driven with a broken belt. The kit integrates with the existing engine cooling system fan belt warning system.

Once installed, if the distributor belt breaks, the fan belt warning light will illuminate on the car’s dashboard. A Visual inspection of the engine bay will reveal if the reason the dashboard light illuminated is a broken fan belt or broken distributor belt.

Kit Includes:
• Cover with integrated control electronics
• Set of connection cables
• Cable ties
• 2 x Neodymium magnets (5x4x2), pre-assembled in shrink tubing
• 1 tube of adhesive gel (20-30 seconds drying time for gluing the magnets)
• 1 retaining plate for sensor element (blue anodized aluminum plate)
• 1 sensor element assembly
• 1 alcohol cleaning pad (for cleaning the adhesive surfaces of the metal tabs in the distributor)

Please Note
Distributor not included in kit

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

96499320

The product you are viewing cross references to these numbers

Distributor o-ring.



Fits:
Porsche 911 1970-89
Porsche 911 (930) Turbo 1975-89
Porsche 964 1989-94 all models
Porsche 993 1995-98 all models

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160210201

The product you are viewing cross references to these numbers

Distributor o-ring.



Fits:
Porsche 911 1970-89
Porsche 911 (930) Turbo 1975-89
Porsche 964 1989-94 all models
Porsche 993 1995-98 all models

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160210201

The product you are viewing cross references to these numbers

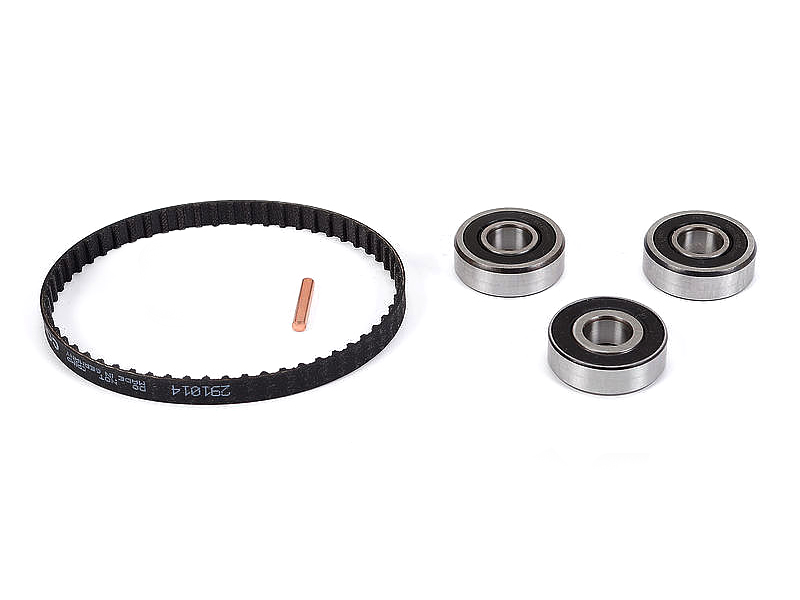

Distributor repair kit, 5 part kit.



Fits:
Porsche 964 1989-94
Porsche 993 1995-98

Distributor repair kit contains:
1 Qty. Distributor Timing Belt
1 Qty. Pin for Distributor Pinion
3 Qty. German Made Bearings

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99960296402

The product you are viewing cross references to these numbers

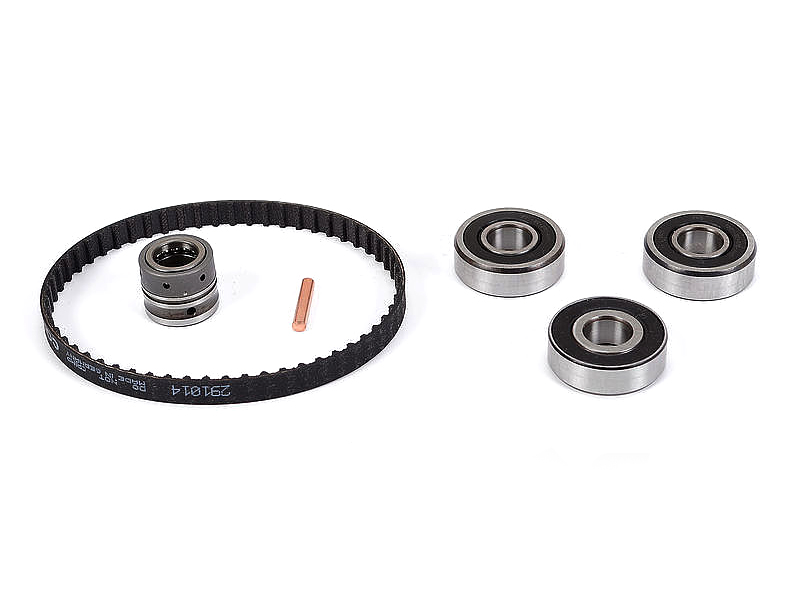

Distributor repair kit, 6 part kit.



Fits:
Porsche 964 1989-94
Porsche 993 1995-98

Distributor repair kit contains:
3 Qty. German Made Bearings
1 Qty. Distributor Timing Belt
1 Qty. Pin for Distributor Pinion
1 Qty. German Made Lower Bearing

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99960296403

The product you are viewing cross references to these numbers

Distributor Vent Kit.

964 Ventilation Kit includes:
- Distributor ventilation connection (A)
- Rubber Grommet (B)
- White Grommet connector (C)
- Hose (D)

HOW TO FIT: Firstly prise of the oval plate arrowed on the distributor with a screwdriver. Then remove the large black air guide pipe as we need to drill a hole in it at the green dot. The pipe removes by loosening jubilee clips at top and bottom. You will also need to remove two sensor connectors on the pipe. I also removed the two sensors near the distributor so that I had easy access to the plate. Drill at 18mm hole in the pipe, 40mm to the right of the tail light ventilation nipple. Deburr the hole and remove all shavings. Install the rubber grommet (B) into the hole and install the white connector (C) into the grommet.Install the distributor connector (A) into the hole in the distributor where the plate was. Finally refit the air pipe and connect back up all the sensors. Install the hose (D) onto the new distributor and air pipe nipples and route

Fits:
Porsche 964 1990-94
Porsche 993 1995-97

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00004320252

The product you are viewing cross references to these numbers

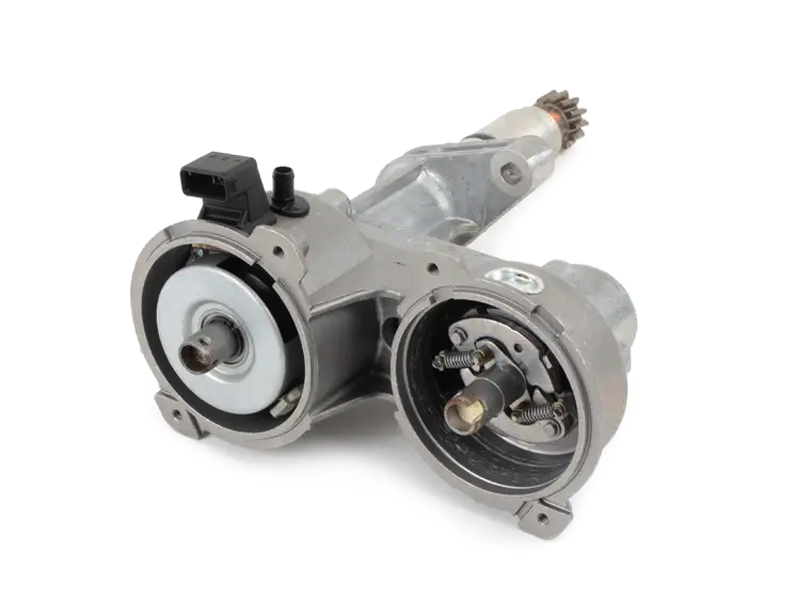

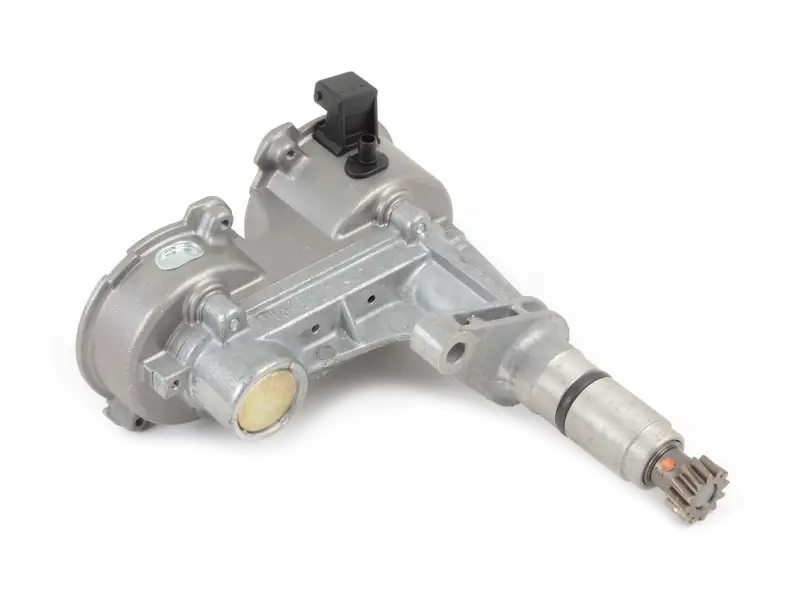

Reconditioned Double ignition distributor.

Fits:
Porsche 964 Carrera 1989-94 (not turbo)
Porsche 993 Carrera 1995-98 (not turbo)

PLEASE NOTE:

The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer.

Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer.

Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning.

All surcharges and exchanges are subject to our terms and conditions.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

930602015AX

The product you are viewing cross references to these numbers
