Engine Bolts / Studs

Dilavar Head Studs.
Normally 24 studs per engine. Sold EACH



Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1994-98

This product supersedes Porsche's old part numbers:
- 99310117051

Solves the problems of loose head studs, The exhaust leak you hear in the 911 may actually be the cylinder head leaking where the studs have pulled loose. As Porsche increased displacement of the 911 engine, the different rates of thermal expansion have caused head studs to break or pull out from the engine case. These latest Dilavar steel head studs have a thermal expansion rate of approximately the same as the alloy case.

Click 'Zoom in' for large parts diagram.
Diagram Ref No 2.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99310117054

The product you are viewing cross references to these numbers

Dilavar head studs. Normally 24 studs per engine.
Sold EACH



Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1994-98

This product supersedes Porsche's old part numbers:
- 99310117051

Solves the problems of loose head studs, The exhaust leak you hear in the 911 may actually be the cylinder head leaking where the studs have pulled loose. As Porsche increased displacement of the 911 engine, the different rates of thermal expansion have caused head studs to break or pull out from the engine case. These latest Dilavar steel head studs have a thermal expansion rate of approximately the same as the alloy case.

Click 'Zoom in' for large parts diagram.
Diagram Ref No 2.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99310117054

The product you are viewing cross references to these numbers

Engine crankcase stud, BM 8 x 30. LEFT.
Sold each.



Fits:
Porsche 964 1989-94
Porsche 993 1995-98

Click 'Zoom in' for large parts diagram.
Diagram ref no 7

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99906204402

The product you are viewing cross references to these numbers

Engine crankcase stud M8 X 78. 3 per engine. Price is for each.



Fits:
Porsche 911 1965-89 all models
Porsche 964 1989-94
Porsche 993 1995-98
Porsche 996 TURBO / GT3 1998-04
Porsche 997 TURBO / GT3 2005-12
Porsche 914 1970-76


Click 'Zoom in' for large parts diagram.
Diagram Ref No 6.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90006010101

The product you are viewing cross references to these numbers

Engine crankcase stud, BM 8 x 30. LEFT.
Sold each.



Fits:
Porsche 964 1989-94
Porsche 993 1995-98

Click 'Zoom in' for large parts diagram.
Diagram ref no 7

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99906204402

The product you are viewing cross references to these numbers

Engine crankcase stud, BM8FO x 22.
Sold each.



Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1995-98
Porsche 996 Turbo 2001-05
Porsche 996 GT3 3.6L 1999-05
Porsche 997.1 Turbo 2007-09
Porsche 997 GT3 3.6L 2006-09
Porsche 914-6 1970-76

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90006010601

The product you are viewing cross references to these numbers

Engine crankcase stud, BM8FO x 22.
Sold each.



Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1995-98
Porsche 996 Turbo 2001-05
Porsche 996 GT3 3.6L 1999-05
Porsche 997.1 Turbo 2007-09
Porsche 997 GT3 3.6L 2006-09
Porsche 914-6 1970-76

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90006010601

The product you are viewing cross references to these numbers

Engine crankcase stud, M8 x 52. RIGHT.
Sold each.



Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1995-98
Porsche 996 Turbo 2001-05
Porsche 996 GT3 3.6L 1999-05
Porsche 997.1 Turbo 2007-09
Porsche 997 GT3 3.6L 2006-09
Porsche 914-6 1970-76

Click 'Zoom in' for large parts diagram.
Diagram ref no 11

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90006010201

The product you are viewing cross references to these numbers

Head stud height setter for Porsche 911



Precisely set the height of head studs on all the 911 engines using this innovative tool. The Delrin insert protects the engine case from scratches or marring, while the adjustable three-piece anodized aluminium tubular construction provides complete flexibility for all engine setups, tools, and stud combinations.

For all 911s including GT3s.

Engine Head Studs Porsche 911 / 964 / 993 1965-98
Normally 24 studs per engine.

Solves the problems of loose head studs, The exhaust leak you hear in the 911 may actually be the cylinder head leaking where the studs have pulled loose. As Porsche increased displacement of the 911 engine, the different rates of thermal expansion have caused head studs to break or pull out from the engine case.

Superior Tested/Proven strength. (compared to Dilavar & Raceware)

Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1994-98

This product supersedes Porsche's old part numbers:
- 993 101 170 51

Click picture for large parts diagram.
Diagram Ref No 2.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99310117054

The product you are viewing cross references to these numbers

Engine head studs. Set of 24 head studs with nuts and washers.

SET OF 24
Head stud kit for Porsche 2.0L-3.8L air-cooled engines

Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1994-98

Diagram Ref No 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99310117054

The product you are viewing cross references to these numbers

Exhaust head stud, L - 45mm. Made out of Titanium (Grade 5 Ti-6Al-4V)
Sold each.



Fits:
Porsche 911 3.2L 1984-89
Porsche 930 turbo
Porsche 965 turbo

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99906223902T

The product you are viewing cross references to these numbers

Exhaust head stud repair kit for Porsche Air-cooled 911's



Never lose sleep again over a bent or broken exhaust stud on a 911 engine. This new tool is a must for every 911 mechanic and will pay for itself the first time you use it. This is a quick and totally accurate tool to repair and replace broken studs without damaging the head, or worse, having to remove the engine. The SR065 fixture indexes off of the exhaust port (by using one of the various sized port bushings included), secures to the opposite stud, and allows you to drill out, tap, and replace the stud dead on, every time. Includes LH drill bits, tap with extension, drill jigs/guides, port bushings, and a sturdy storage case.

Now includes our SR065D drill guide.

Fits ALL of the 911 heads including the 993.

Crankcase Stud Nut.




Fits:
Porsche 964 1990-94 (13 per engine)
Porsche 993 1995-98 (11 per engine)
Porsche 996TT / GT3 2001-2005 (11 per engine)

Click 'Zoom in' for large parts diagram
Diagram ref no 29

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95910117200

The product you are viewing cross references to these numbers

Stud - M8 x 30 / 45mm - which is used to mount the heat exchanger.

Sold individually; x12 required per engine.

Fits:
Porsche 911 Turbo (930) 1978-89
Porsche 964 Turbo 3.3L 1991-92
Porsche 964 Turbo 3.6L 1993-94

Porsche 911 Carrera 3.2L 1984-89

Diagram ref. 5A.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99906223903

The product you are viewing cross references to these numbers

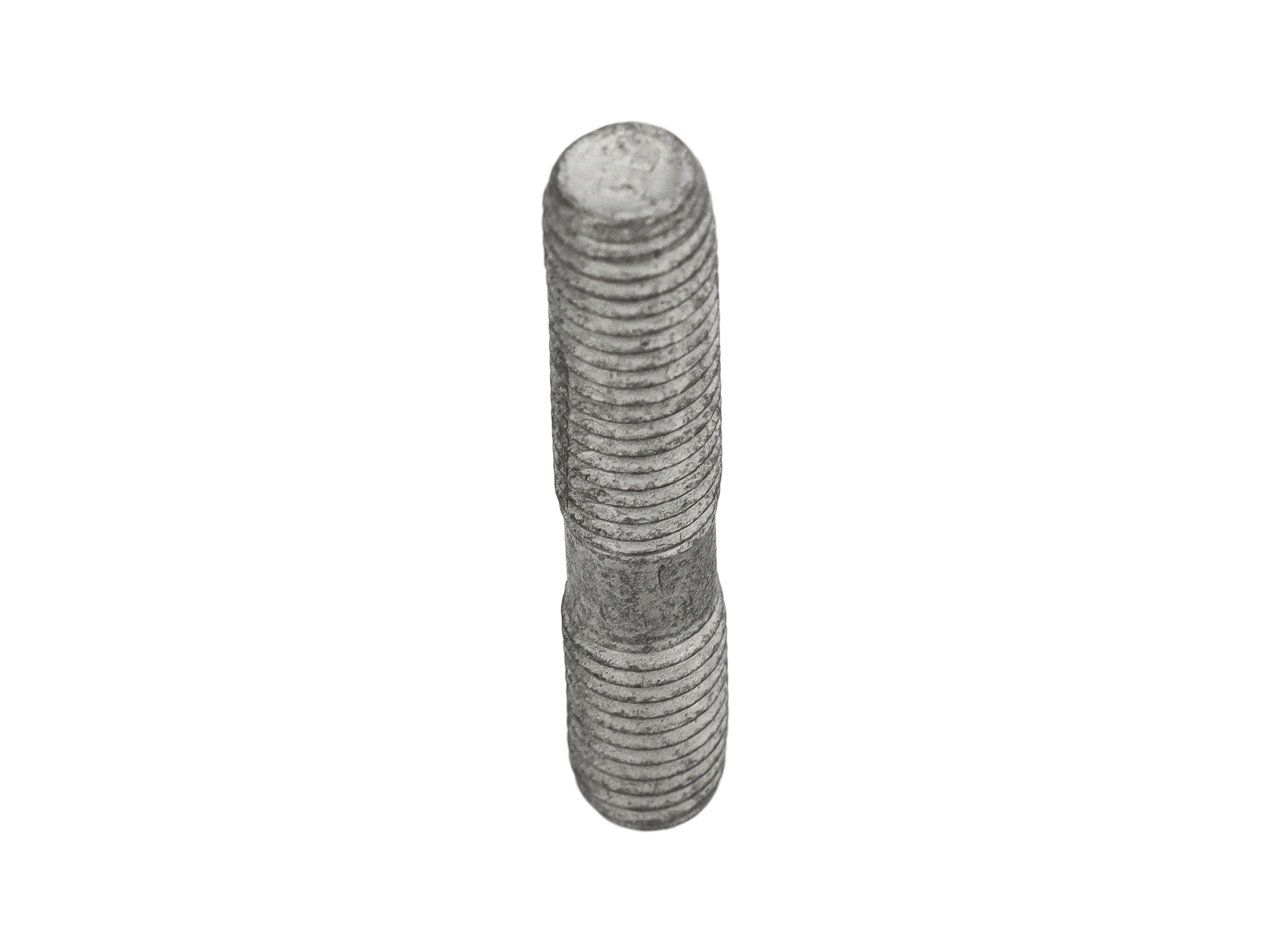

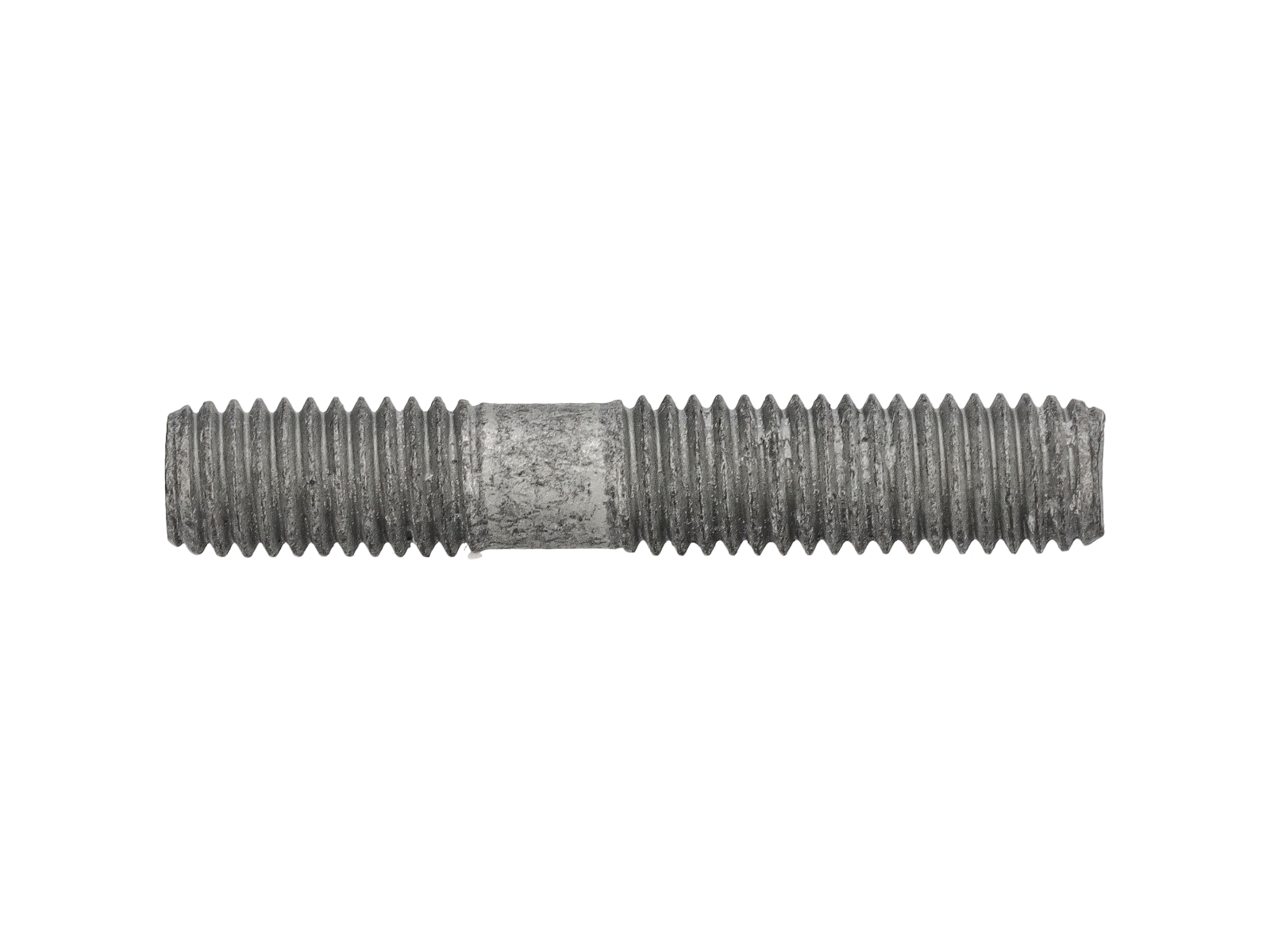

Stud - M8 x 30 / 45mm - which is used to mount the heat exchanger.

Sold individually; x12 required per engine.

Fits:
Porsche 911 Turbo (930) 1978-89
Porsche 964 Turbo 3.3L 1991-92
Porsche 964 Turbo 3.6L 1993-94

Porsche 911 Carrera 3.2L 1984-89

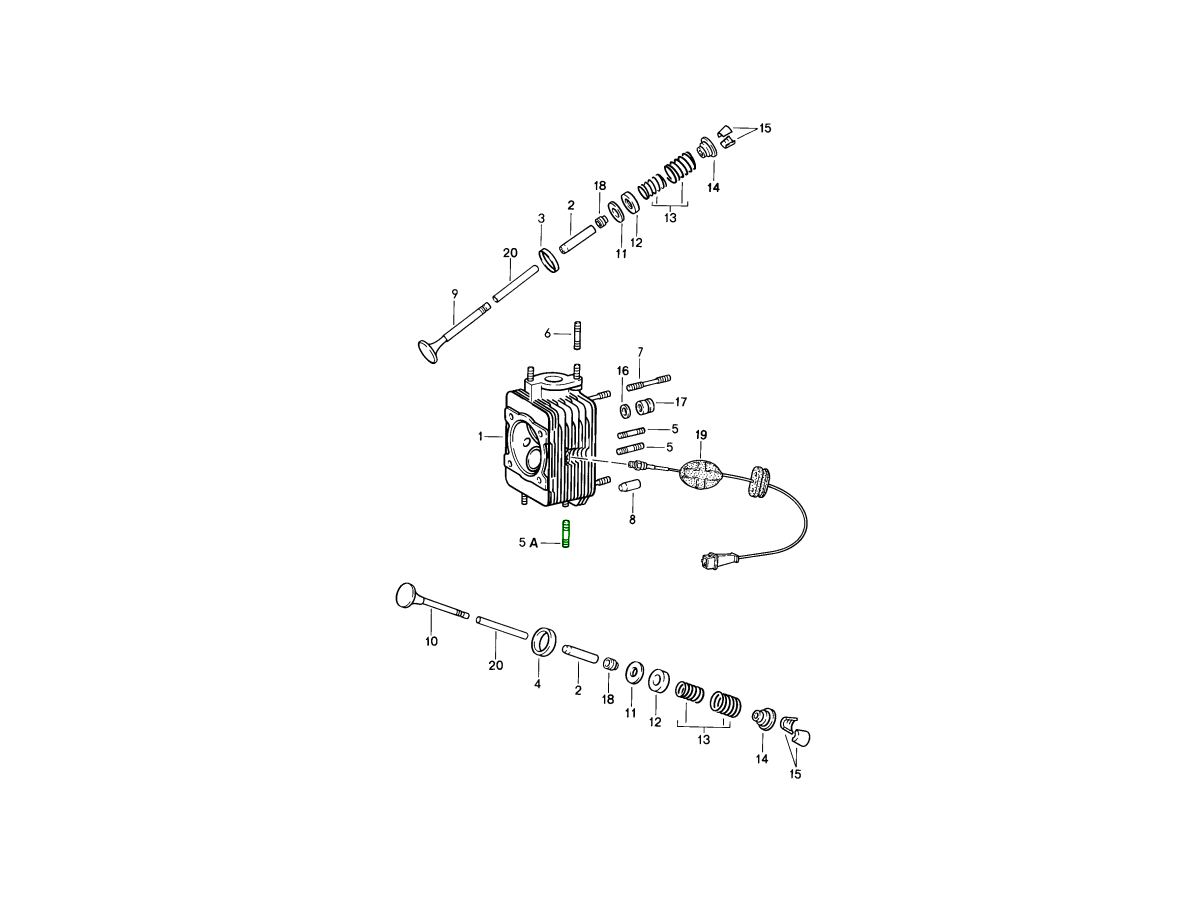

Diagram ref. 5A.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99906223903

The product you are viewing cross references to these numbers
