Oil Radiators / Heat Exchangers

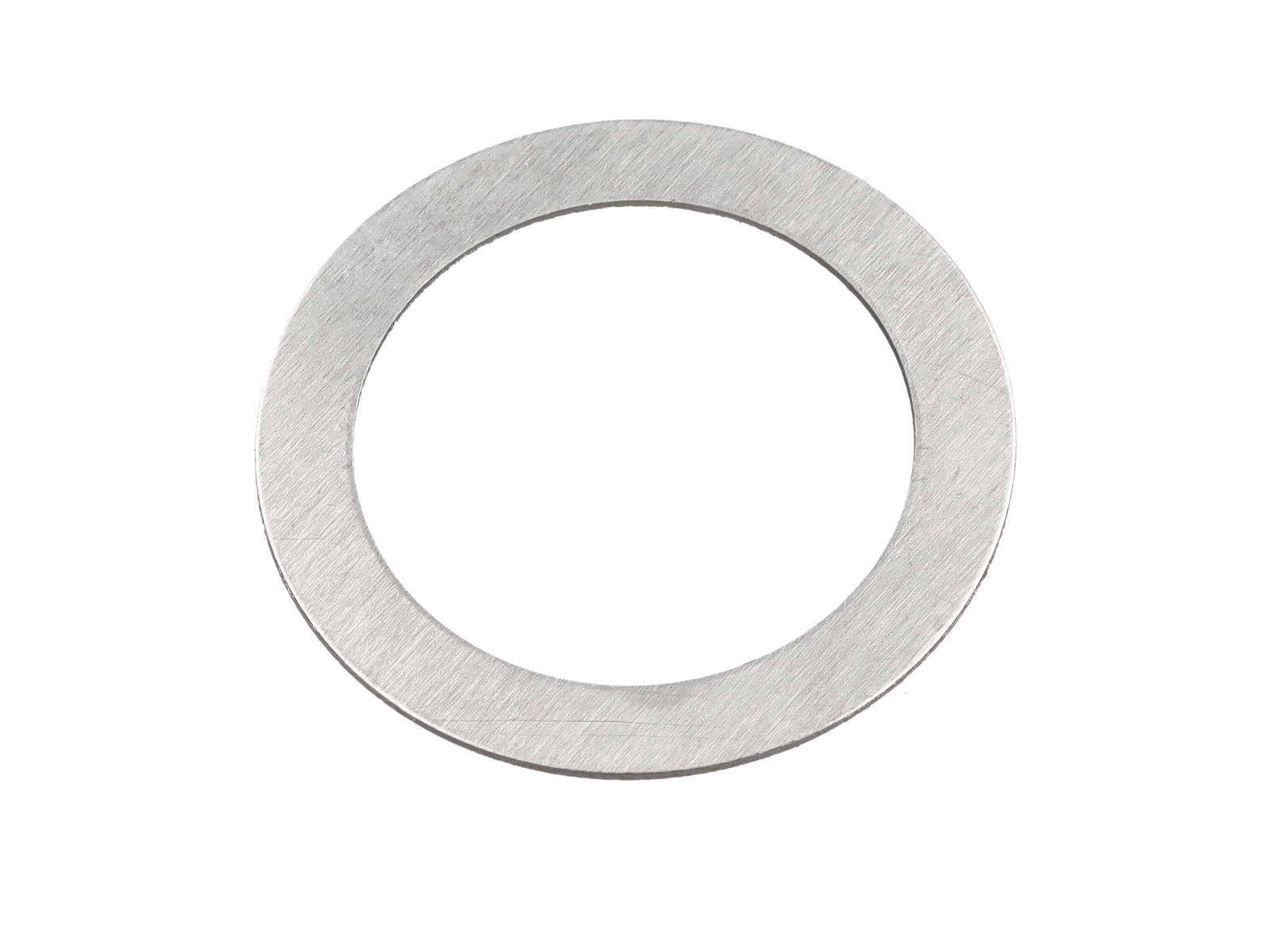

Engine Oil Cooler Shim.
The Porsche Engine Oil Cooler Shim is a genuine OEM part designed to provide precise alignment and sealing for the engine oil cooler assembly. This thin 0.5 mm shim is fitted between the oil cooler and its mounting surface, ensuring the correct spacing for a leak-free installation.

Fits:

• Porsche 924S 2.5L 1986-87
• Porsche 924S 2.5L 1988
• Porsche 944 2.5L 8V 1982-87
• Porsche 944S 2.5L 16V 1987-88

What This Product Does:
The shim helps to adjust the spacing / clearance between the oil cooler and its mounting surface (engine block / cooler housing). It ensures proper sealing and alignment of the oil cooler assembly.

Symptoms / Signs It Might Be Needed:

• Oil leaks around the oil cooler mounting flange — if the cooler is not seated flush, oil may seep past the gasket or mating surfaces.
• Difficulty in getting a good seal when fitting a replacement oil cooler; the cooler may seem slightly misaligned or stressed.
• The mounting bolts for the oil cooler either bottom out or don’t tighten uniformly due to uneven spacing.
• Gasket damage — repeated leaking may damage gaskets, which could require a shim correction.

Why Replacement / Using the Correct Shim Matters:

• Ensures the oil cooler is properly aligned and sealed, preventing oil leaks, which are messy and can lead to lubrication issues.

• Helps maintain correct engine oil pressure and flow — misaligned or improperly mounted coolers might affect cooling efficiency or add resistance in oil paths.
• Prevents damage from oil leaks (on exhausts, belts, hoses) and avoids risk of oil starvation or overheating of engine components.
• It's a very low-cost part but can save more expensive issues (leak repairs, gasket replacements, etc.).

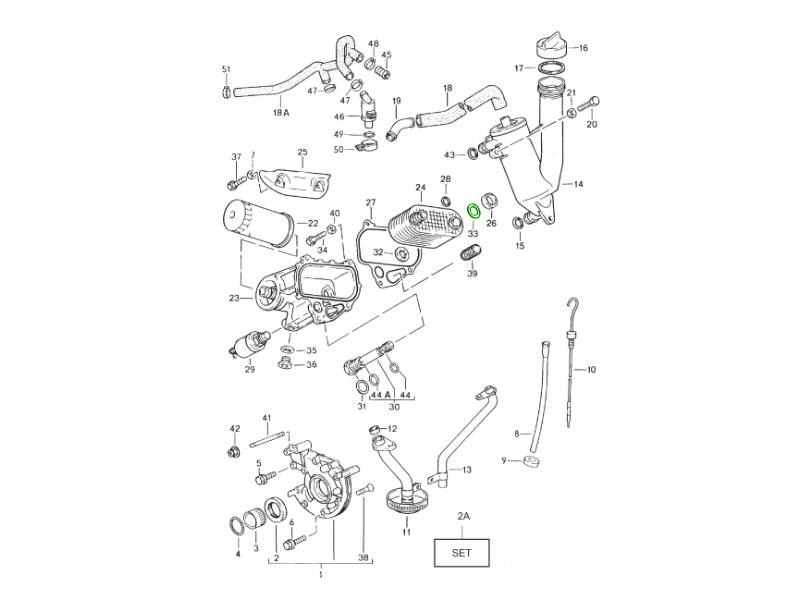

Diagram Ref No 33

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94410721900

The product you are viewing cross references to these numbers

Engine Oil Radiator in Oil Filter Housing.



Fits:
Porsche 924S 1986-88
Porsche 944 1982-91

Click 'Zoom in' for large parts diagram.
Diagram ref no 25

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94410716501

The product you are viewing cross references to these numbers

Oil cooler gasket.



Fits:
Porsche 924S 1986-88
Porsche 944 1982-91
Porsche 968 1992-95

Click 'Zoom in' for large parts diagram
Diagram ref no 28

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94410714703

The product you are viewing cross references to these numbers

Oil cooler gasket.



Fits:
Porsche 924S 1986-88
Porsche 944 1982-91
Porsche 968 1992-95

Click 'Zoom in' for large parts diagram
Diagram ref no 28

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94410714703

The product you are viewing cross references to these numbers

Oil cooler thermostat gasket kit. Porsche 924S / 944 / 968

Fits:
Porsche 924S 1986-88
Porsche 944 1982-91
Porsche 968 1992-95

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94410714799

The product you are viewing cross references to these numbers

Assembly tool for oil cooler repairs.
Porsche ref no 0007219261.



Fits:
Porsche 924 S (from 08.87)
Porsche 944 2.5 / 2.7 / S / S2 / Turbo (from 08.87)
Porsche 968

The seals of the oil-water cooler are a typical weak point on the transaxle models. For proper repair, Porsche provides this special tool to ensure correct positioning of the seal during installation. Incorrect installation and insufficient sealing can cause serious consequential damage.

Here you get a true-to-original assembly tool high quality machined and phosphate coated. We also have the required sealing kit for the oil cooler in our assortment.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

1120

The product you are viewing cross references to these numbers
