Wiring harness

Air conditioning relay wiring harness loom.

Fits:
Porsche 911 - 1974 to 1984
Porsche 911 turbo - 1974 to 1984

Loom - NR 80

Complete harness from fusebox to relay socket (AC control relay) and 2 pole female connector.
As original coloured wiring.

Original neoprene terminal sleeves used, (no shrink wrap)

High quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53

Gasoline, oil, battery acid, engine coolant resistant.

The high flex sleeving is very resistant to solvents and free of halogen, sulphur and phosphorous.

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161208001

The product you are viewing cross references to these numbers

Air conditioning thermo switch wiring harness loom - Left Hand Drive (LHD)



Fits:
Porsche 911 - 1978 to 1989
Porsche 911 turbo - 1978 to 1989

Wiring Harness Nr. 29
Thermo Bi-metal Switch - Left hand Drive

Model: M559 - 1978-1989, Air conditioner

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 12

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161202901

The product you are viewing cross references to these numbers

Air conditionong wiring harness loom.

Fits:
Porsche 911 - 1974 to 1984
Porsche 911 turbo - 1974 to 1984

Loom - NR 78

Complete harness from fusebox to AC control relay and 6 pole female connector.

As original coloured wiring.
Original neoprene terminal sleeves used, (no shrink wrap)
High quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53
Gasoline, oil, battery acid, engine coolant resistant.
The high flex sleeving is very resistant to solvents and free of halogen, sulphur and phosphorous.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 8

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161207801

The product you are viewing cross references to these numbers

Cable tie wrap.



Fits:
Porsche 911 - 1970 to 1989
Porsche 914 - 1970 to 1976
Porsche 928 - 1978 to 1995
Porsche 996 GT3 - 1999 to 2005
Porsche 997 turbo - 2007 to 2013

Click 'Zoom in' for large parts diagram.
Diagram ref no 13

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99951302340

The product you are viewing cross references to these numbers

Diode for rear window wiper.



Fits:
Porsche 911 1974-89



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161710602

The product you are viewing cross references to these numbers

Engine bay lamp wiring harness loom.

Fits:
Porsche 911 1974 to 1989

Harness from left rear light (tunnel harness) to engine bay light in engine lid & ground.

Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161204900

The product you are viewing cross references to these numbers

Engine Bay Lamp Wiring Harness Loom.

Fits:
Porsche 911 1974>>1985

Diagram Ref No 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161204904

The product you are viewing cross references to these numbers

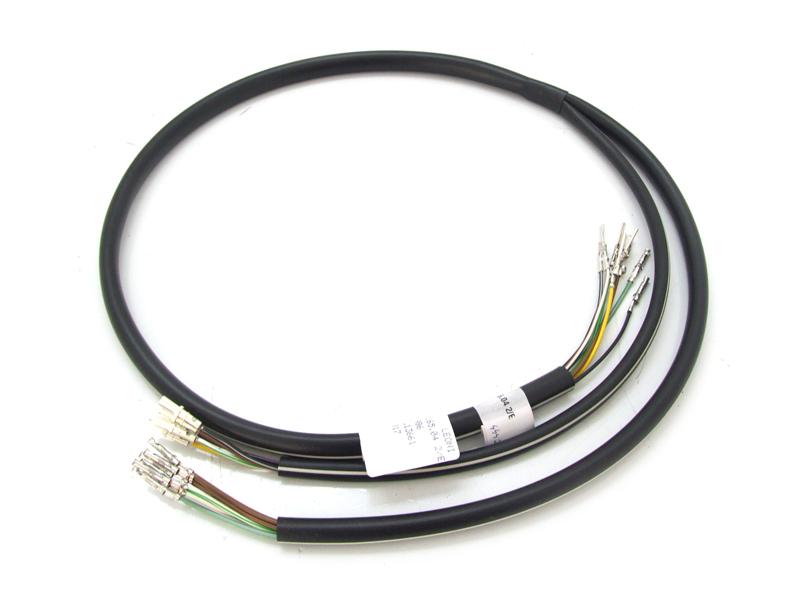

Exterior mirror wiring harness, Nr 165, Driver's door



Fits:
Porsche 911 1987-89

Click 'Zoom in' for large parts diagram.

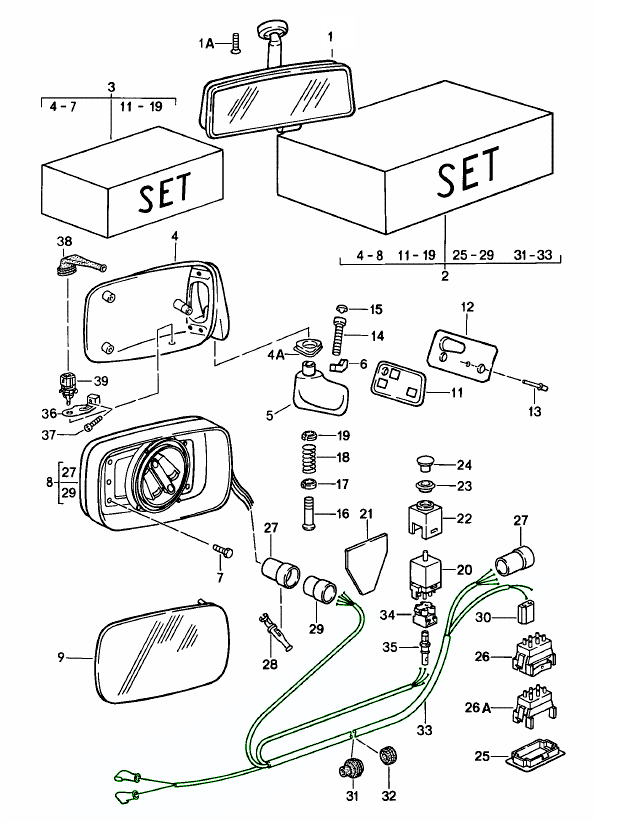

Diagram ref no 33

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161216504

The product you are viewing cross references to these numbers

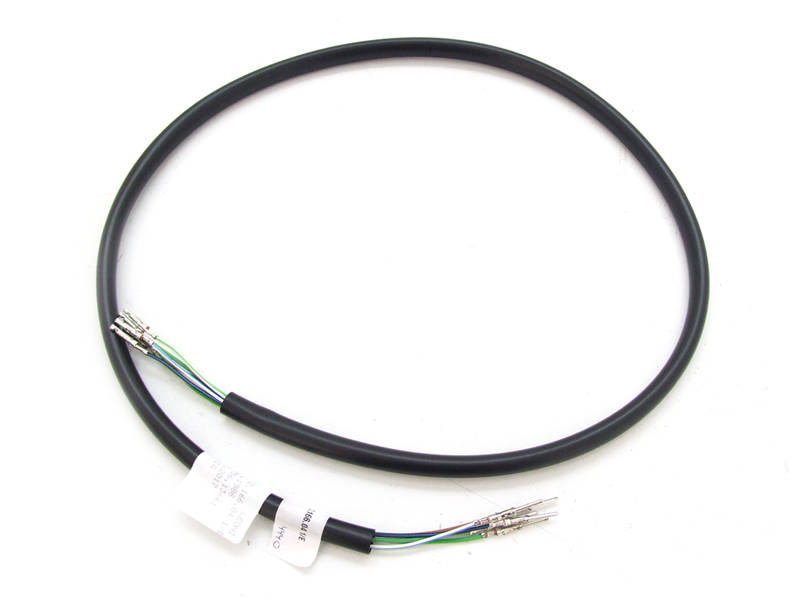

Exterior mirror wiring harness, Nr 166, Passenger's door



Fits:
Porsche 911 1987-89

Click 'Zoom in' for large parts diagram.
Diagram ref no 33

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161216604

The product you are viewing cross references to these numbers

External starter motor relay.
Bypass your expensive ignition switch and install a hot start relay that will lead the current directly to the starter.
We have a 6 or 12 volt version and it works in any classic.

Fits:
Porsche 911 / 924 / 928 / 914 / 944 / 968 / 356

This relay can be placed near the starter motor and is used to limit the starting current and no longer allow it to be switched via the ignition switch.

Hazard warning relay plug socket 4 pole.



Fits:
Porsche 911 - 1970to 1989
Porsche 964 - 1990 to 1994
Porsche 968 - 1992 to 1995
Porsche 914 - 1970 to 1976
Porsche 924S - 1986 to 1988
Porsche 944  - 1982 to 1991

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161233400

The product you are viewing cross references to these numbers

Heated and electric seat wiring harness loom.



Fits:
Porsche 911 3.2 Carrera - 1987 to 1989
Porsche 911 turbo - 1987 to 1989

Harness for both heated and electrically adjustable front seats.

2 x 8 POLE connectors. (Driver & Passenger seat)

Comes with detailed connection diagram.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 10

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161252102

The product you are viewing cross references to these numbers

Ignition switch wiring harness loom.



Fits:
Porsche 911 - 1976 to 1984
Porsche 911 turbo - 1976 to 1984 (including)

Harness with 6 pole male connector that connects to ignition switch and comes with original colour coded wiring.

Harness will fit exactly like the original with the wire tube and oil resistant tape as original.

Terminals have rubber sleeves.

Harness comes with detailed connection instructions.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201132

The product you are viewing cross references to these numbers

Ignition switch wiring harness loom.



Fits:
Porsche 911 - 1985 to 1986
Porsche 911 turbo - 1985 to 1986

Harness with 6 pole male connector that connects to ignition switch and comes with original colour coded wiring.

** Ignition switch harness two bulb holders are NLA and need to be re-used from the original.

You will need to send us the original harness for this.
The reason for requiring the donor harness is that some of the unique components required to manufacture a new harness are no longer available, or no longer being reproduced.
Harness will fit exactly like the original with the wire tube and oil resistant tape as original.

Terminals have rubber sleeves.

Harness comes with detailed connection instructions.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201134

The product you are viewing cross references to these numbers

Ignition switch wiring harness loom.

Fits:
Porsche 911 - 1987 to 1989
Porsche 911 turbo - 1987 to 1989

Harness with 6 pole male connector that connects to ignition switch and comes with original colour coded wiring.
Harness will fit exactly like the original with the wire tube and oil resistant tape as original.
Terminals have rubber sleeves.
Harness comes with detailed connection instructions.

2 x Bulb holder to re-used from old harness

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201135

The product you are viewing cross references to these numbers

Inline fuse for dash illumination lights.



Fits:
Porsche 911 - 1965 to 1989

The power supply lead (black-blue) for the dashboard illumination is unfused.

A short in the brass bulb holder can lead to serious damage in your wiring harness. This easy to install inline fuse holder protects your wiring and expensive light switch.

This inline fuse can be positioned at the light switch in between terminal 58A  and the black blue wire(s) *
* for 1969 and 1970 models this wire will be black-purple.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161204303

The product you are viewing cross references to these numbers
