Oil Radiators / Heat Exchangers

Air duct diverter plate centre oil cooler.



Fits:
Porsche 911 / 930 - 1974 to 1989

Optimize Airflow for Maximum Cooling Efficiency
Enhance your center-mount oil cooler setup with this air duct, designed to sit behind the cooler. It creates a streamlined exit path for air, significantly improving airflow and boosting cooling performance.

RS/RSR Diverter Plate Replica
This oil cooler panel is a precise replica of the original RS/RSR diverter plate. Installed by cutting out the front of the tub and welding the panel in place, it securely mounts the oil cooler. Air enters from the front, passes through the cooler, and is efficiently diverted downward. Some trimming may be required for a perfect fit. Compatible with 1974-89 911/912/930 models.

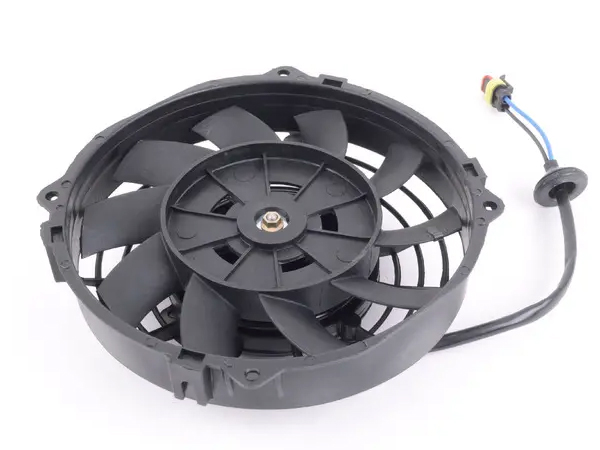

Auxiliary Fan for Front Oil Cooler. Only in combination with bracket part number PCG62410400 (position 42 on diagram).



Fits:
Porsche 911 1984-89

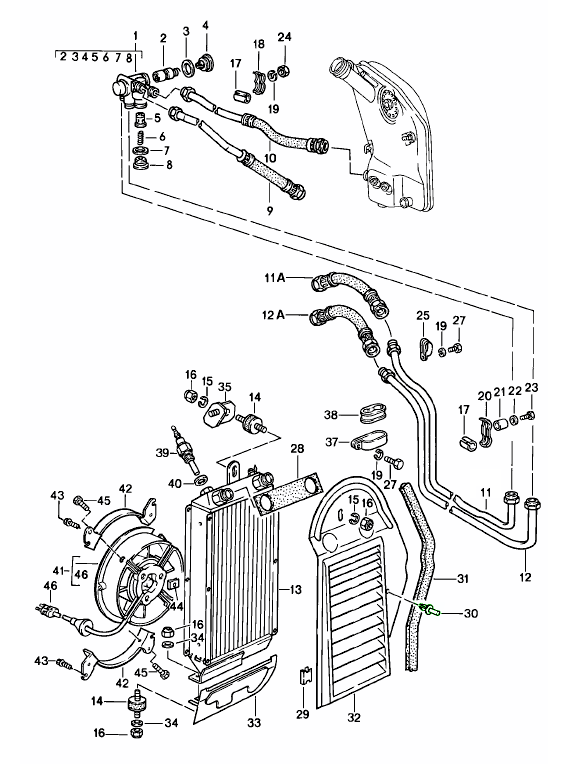

Click 'Zoom in' for large parts diagram.
Diagram ref no 41

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91162412101

The product you are viewing cross references to these numbers

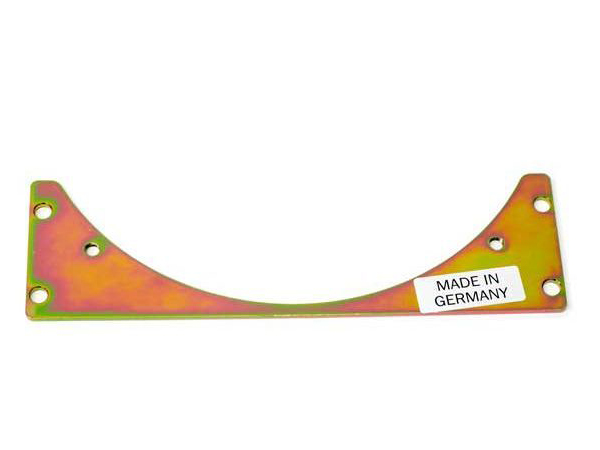

Bracket for Front Oil Cooler Auxiliary Fan part no 91162412101



Fits:
Porsche 911 1984-89

Click 'Zoom in' for large parts diagram.
Diagram ref no 42

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PCG62410400

The product you are viewing cross references to these numbers

Universal dual-pass oil cooler with direct fitment for Porsche 911 center front oil cooler (RS Style).
Custom end tanks with a 45° chamfer
M22 x 1.5 connections - 22" L x 4.75" H x 2.25" W
Dual pass for increased oil cooling



Fits
911/930 models up to 1989

RS style bar and plate oil coolers for air-cooled Porsche 911/930 models (up to 1989). This oil cooler is a direct-fit performance replacement for the original Porsche items but they can also be used as heavy duty universal units

These new oil coolers have custom end tanks with a 45° chamfered front angle, allowing them to fit flush inside '73-style RS/RSR bumpers. The fittings are pointed straight back. For best airflow and highest performance, CSF recommends cutting the front tub to allow for proper air flow, exiting behind the oil cooler and underneath the vehicle. Cutting the front tub will also give clearance to allow adding a rear fan shroud to pull more air through the cooler at slower speeds or while idling

Product Features:

•High Efficiency & Rugged Durability Bar/Plate Design

• M22 x 1.5 Inlet/Outlet Connections
• "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow
• Triangular flush mounting bolts on both top & bottom (M8x1.25)
• Satin Black Finish for Extreme Protection Against Corrosion and Debris
• Pressure Tested at 120psi

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

8201

The product you are viewing cross references to these numbers

Universal single-pass oil cooler with direct fitment for Porsche 911 center front oil cooler (RS Style).
Custom end tanks with a 45° chamfer
M22 x 1.5 connections - 22" L x 4.75" H x 2.25" W



Fits
911/930 models up to 1989

RS style bar and plate oil coolers for air-cooled Porsche 911/930 models (up to 1989). This oil cooler is a direct-fit performance replacement for the original Porsche items but they can also be used as heavy duty universal units

These new oil coolers have custom end tanks with a 45° chamfered front angle, allowing them to fit flush inside '73-style RS/RSR bumpers. The fittings are pointed straight back. For best airflow and highest performance, CSF recommends cutting the front tub to allow for proper air flow, exiting behind the oil cooler and underneath the vehicle. Cutting the front tub will also give clearance to allow adding a rear fan shroud to pull more air through the cooler at slower speeds or while idling

Product Features:

•High Efficiency & Rugged Durability Bar/Plate Design

• M22 x 1.5 Inlet/Outlet Connections
• "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow
• Triangular flush mounting bolts on both top & bottom (M8x1.25)
• Satin Black Finish for Extreme Protection Against Corrosion and Debris
• Pressure Tested at 120psi

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

8202

The product you are viewing cross references to these numbers

Oil cooler kit for front bumper.



Fits:
Porsche 911 2.7RS / 2.8 RSR - 1973
Porsche 911 G-Body backdates - 1974 to 1989

Kit Includes
Front bumper centre oil cooler
Oil cooler mounts, brackets and screws
Oil cooler pipe x 2
Oil pipe connector x 2

Modification and welding is required to the trunk front section.
The centre oil cooler can be added to the existing front wing oil cooler circuit.

Dimensions:
Total width (without connectors) = 58 cm
Height with connecting support: 12 cm
Depth: = 6,3 cm.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

11F-R130

The product you are viewing cross references to these numbers

Oil Cooler Pipe Rubber Mount.



Fits:
Porsche 911 1984-89

Click 'Zoom in' for large parts diagram.
Diagram ref no 38

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020726501

The product you are viewing cross references to these numbers

Oil Cooler Pipe Rubber Mount.



Fits:
Porsche 911 1984-89

Click 'Zoom in' for large parts diagram.
Diagram ref no 38

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020726501

The product you are viewing cross references to these numbers

Oil cooler tester for Porsche 911

No more guessing, wondering, or hoping about your 911 engine mounted oil coolers. SR009, precisely fabricated from 6061 aluminum, allows you to easily, quickly, and simply test your cooler for leaks. This tool is a must to pressure test all coolers (1965-1989) before re-installation. This high-quality tool is anodized for years of service and includes a liquid filled gauge, Schrader valve, seals and hardware. Order one now to avoid the mess of a leaky cooler and the headache of replacing a cooler on an otherwise fine engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

SR009

The product you are viewing cross references to these numbers

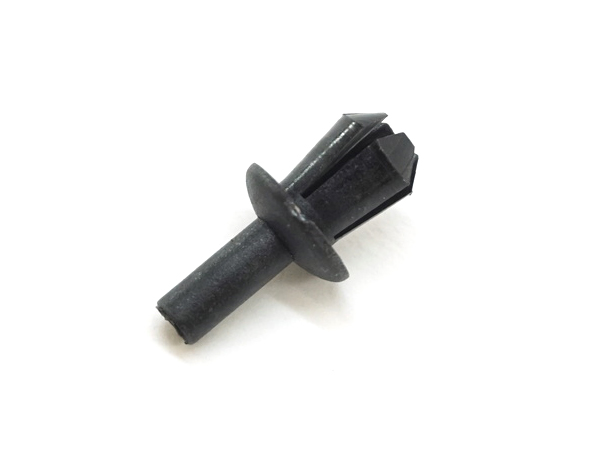

Plastic Expansion Rivet for oil cooler cover plate.



Fits:
Porsche 911 1984-89

Click 'Zoom in' for large parts diagram.
Diagram ref no 30.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99959142940

The product you are viewing cross references to these numbers

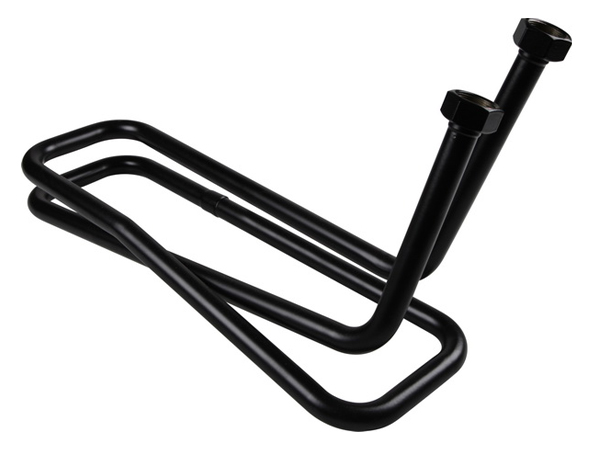

Radiator Engine Oil Cooler Front "Snake Type".
Radiator fits in the front under the wing.

Fits:
Porsche 911 1974-79
Porsche 930 1975-77 3.0L Turbo
Porsche 930 1978-79 3.3L Turbo

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91120705001

The product you are viewing cross references to these numbers

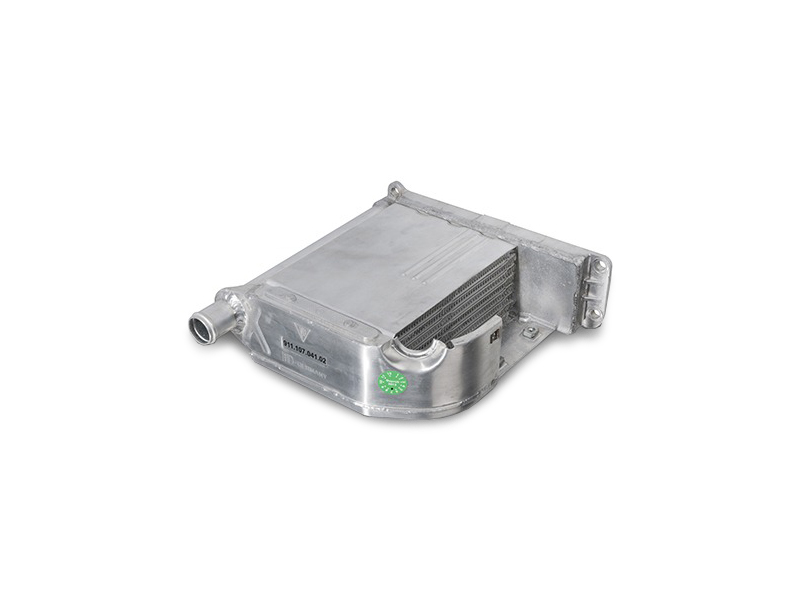

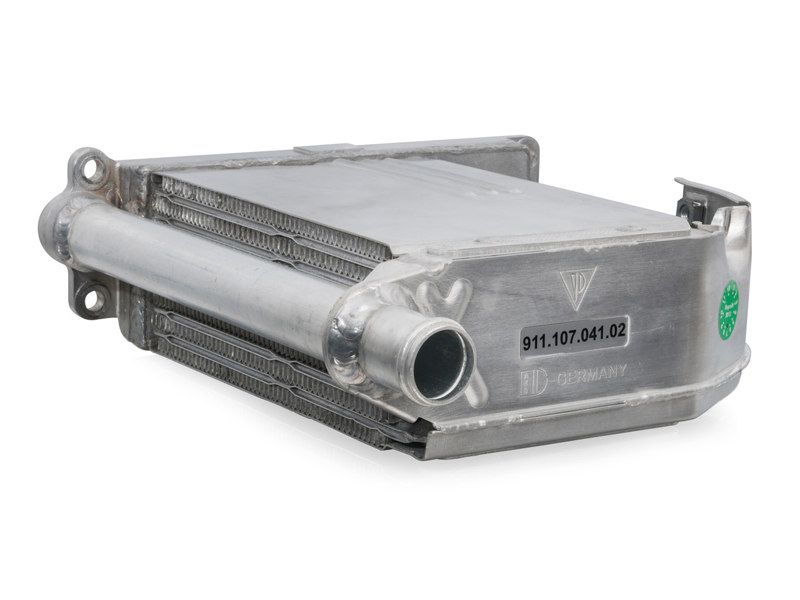

Radiator engine oil cooler.
Radiator type fits in engine compartment.



Fits:
Porsche 911 1972-89

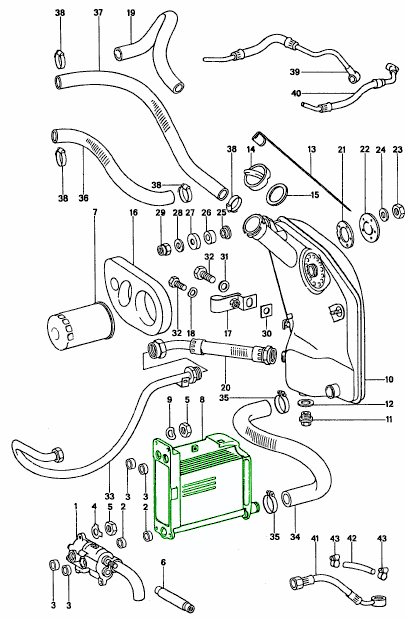

Click 'Zoom in' for large parts diagram.
Diagram Ref No 8.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91110704102

The product you are viewing cross references to these numbers

Radiator engine oil cooler.
Radiator type fits in engine compartment.



Fits:
Porsche 911 1972-89

Click 'Zoom in' for large parts diagram.
Diagram Ref No 8.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91110704102

The product you are viewing cross references to these numbers

Radiator Oil Cooler - Front.

Fits:
Porsche 911 3.2L / 3.0L 1980-89

Porsche 911 3.3L Turbo 1980-89

When you add the cooler to your basket you will have an option to select temperature sensor or the blanking plug (and washer)
Please add as and when required. The cooler doesn't come with either of the options included.

Diagram Ref No 13

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020705304

The product you are viewing cross references to these numbers
