Gearbox Gears / Crown Wheel and Pinion

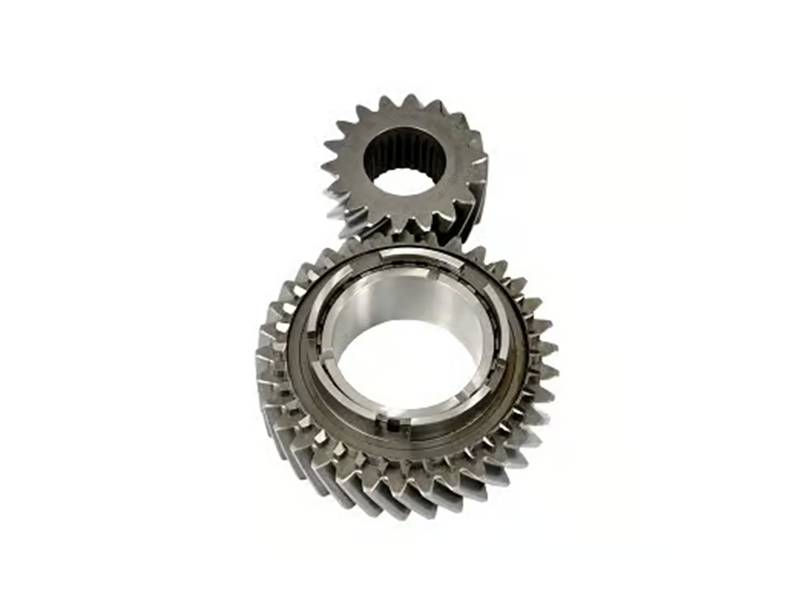

1st gear set for 930 4 speed gearbox.

Fits:
Porsche 911 turbo - 1975 to 1989
For 930, 4 speed gearbox

Available with different gear ratios - example - 17:34 (number of teeth on each gear) - 2.00:1 (gear ratio)

17:34 - 2.00:1
20:32 - 1.60:1
19:34 - 1.79:1
19:33 - 1.74:1
16:36 - 2.25:1
18:33 - 1.83:1
20:33 - 1.65:1

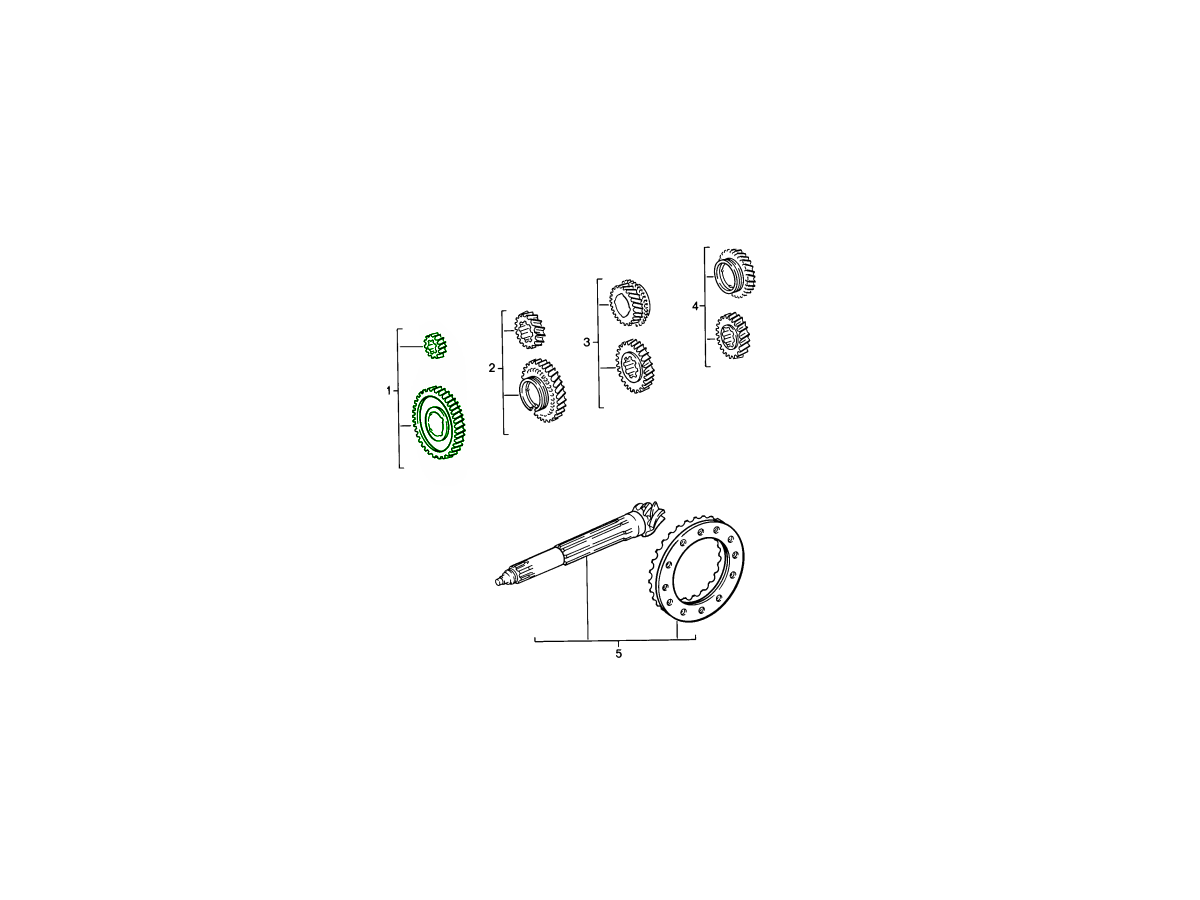

Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93030290106

The product you are viewing cross references to these numbers

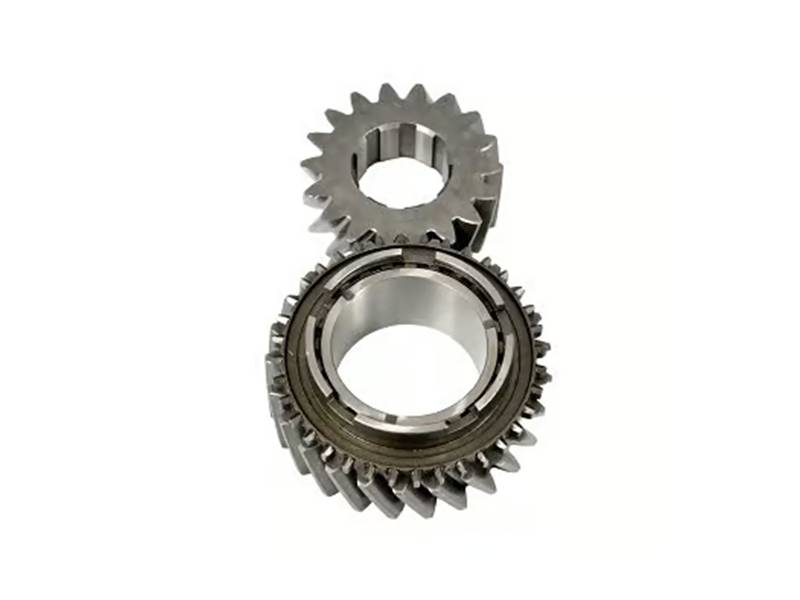

2nd gear set for 930 4 speed gearbox.

Fits:
Porsche 911 turbo - 1975 to 1989
For 930, 4 speed gearbox

Available with different gear ratios - example - 18:33 (number of teeth on each gear) - 1.83:1 (gear ratio)

18:33 - 1.83:1
19:34 - 1.79:1
19:33 - 1.74:1
20:34 - 1.70:1
20:33 - 1.65:1
20:32 - 1.60:1
17:26 - 1.53:1
18:26 - 1.44:1
18:25 - 1.39:1
23:31 - 1.35:1
23:30 - 1.30:1
24:30 - 1.25:1
24:29 - 1.21:1
25:28 - 1.12:1
26:28 - 1.08:1
26:27 - 1.04:1

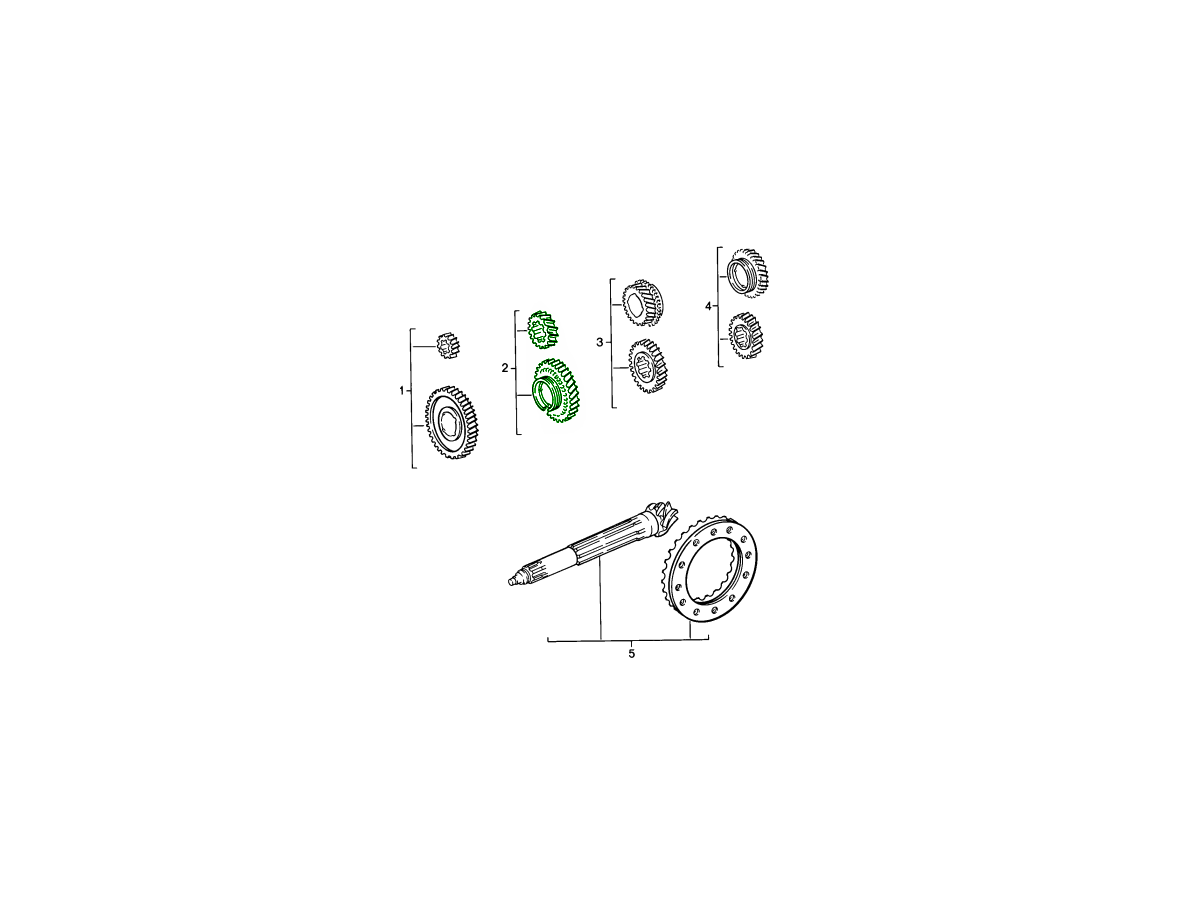

Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93030290206

The product you are viewing cross references to these numbers

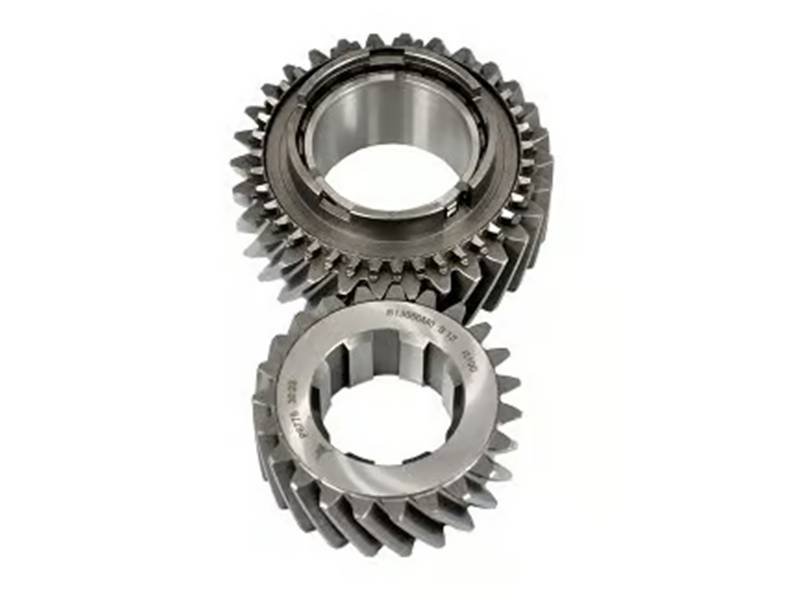

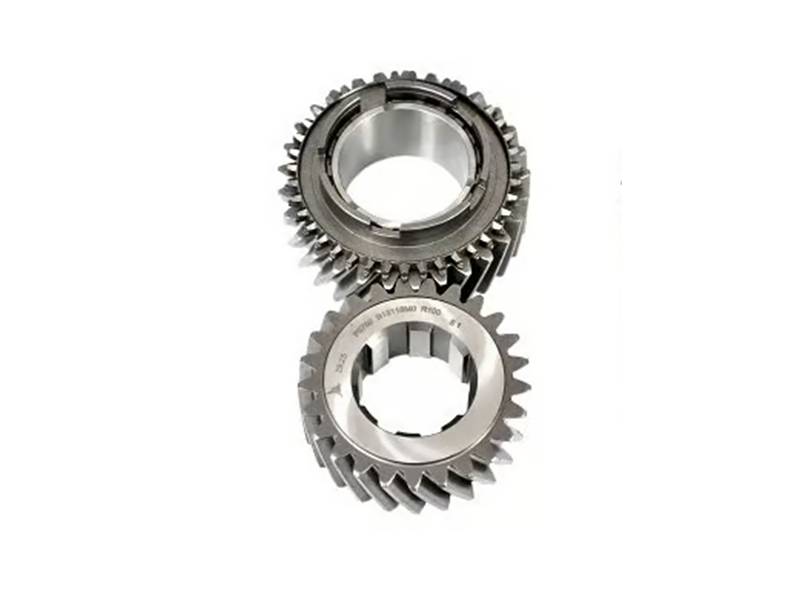

3rd and 4th gear set for 930 4 speed gearbox - Can be used for 3rd and 4th gear

Fits:
Porsche 911 turbo - 1975 to 1989
For 930, 4 speed gearbox

Available with different gear ratios - example - 22:29 (number of teeth on each gear) - 1.32:1 (gear ratio)

22:29 - 1.32:1
24:30 - 1.25:1
24:29 - 1.21:1
25:29 - 1.16:1
26:30 - 1.15:1
25:28 - 1.12:1
26:28 - 1.08:1
26:27 - 1.04:1
26:26 - 1.00:1
27:26 - 0.96:1
28:26 - 0.93:1
28:25 - 0.89:1
29:25 - 0.86:1
29:24 - 0.83:1
29:23 - 0.79:1
30:23 - 0.77:1
30:22 - 0.73:1
31:22 - 0.71:1
32:21 - 0.66:1
32:20 - 0.63:1
32:19 - 0.59:1

Diagram ref no 3 and 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93030290304

The product you are viewing cross references to these numbers

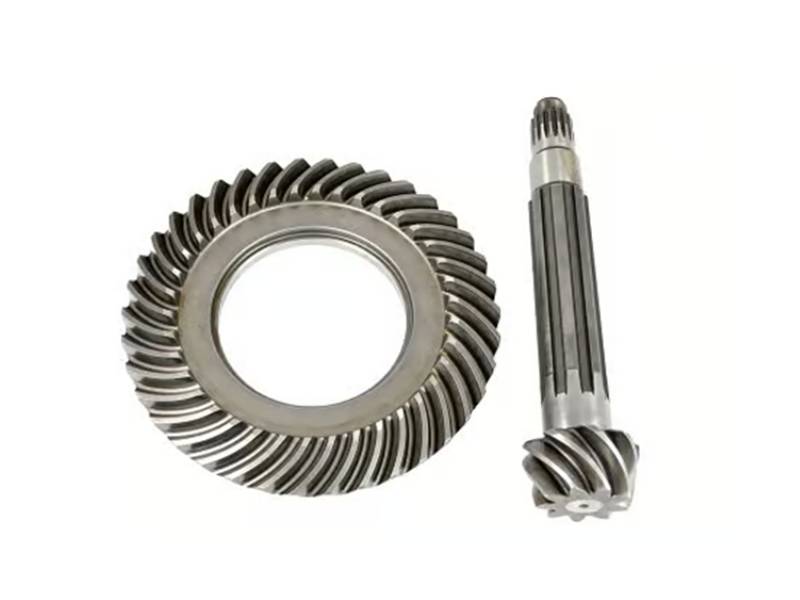

Ring gear and pinion shaft for 930 4 speed gearbox.

Fits:
Porsche 911 turbo - 1975 to 1989
For 930, 4 speed gearbox

Available with different gear ratios - example - 9:38 (number of teeth on each gear) - 4.22:1 (gear ratio)

9:38 - 4.22:1
8:37 - 4.63:1
8:40 - 5.00:1

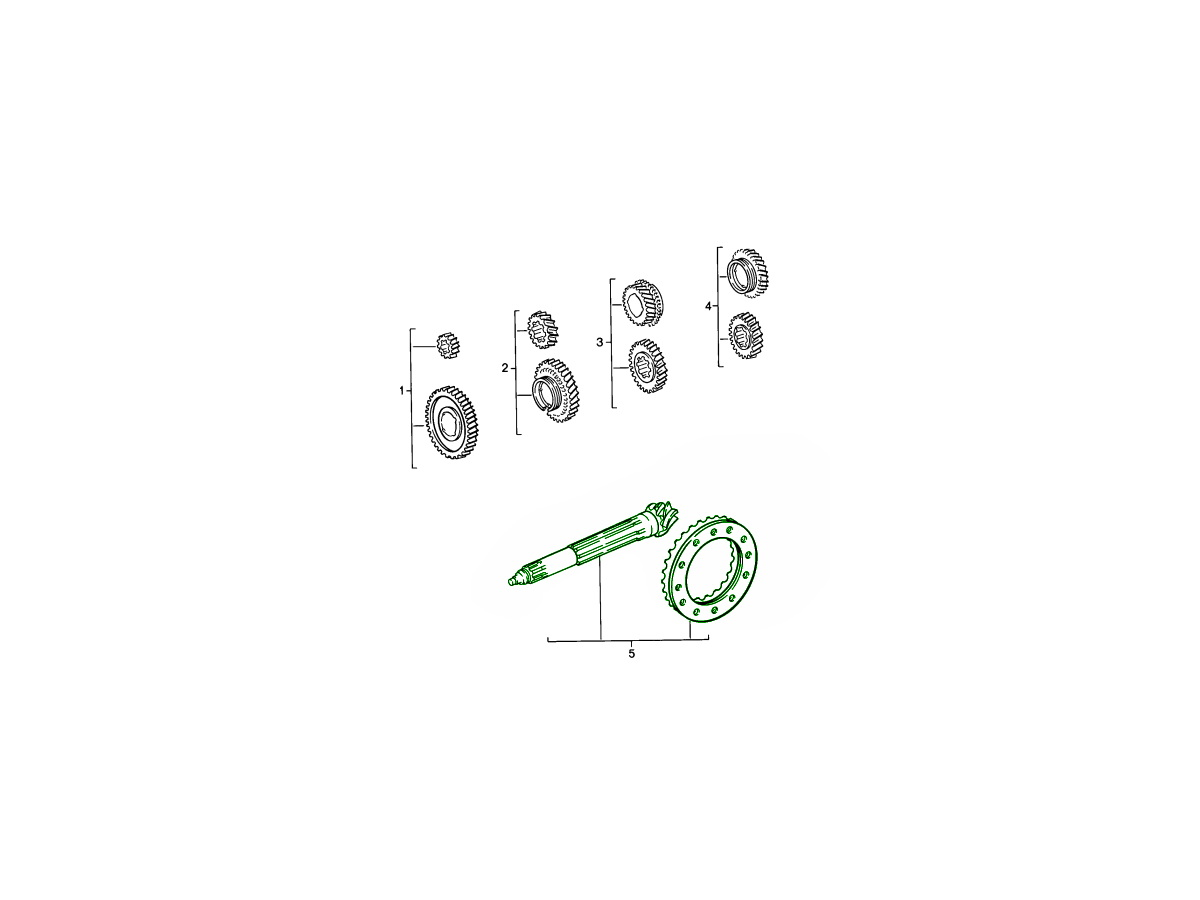

Diagram ref no 5

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93030291103

The product you are viewing cross references to these numbers

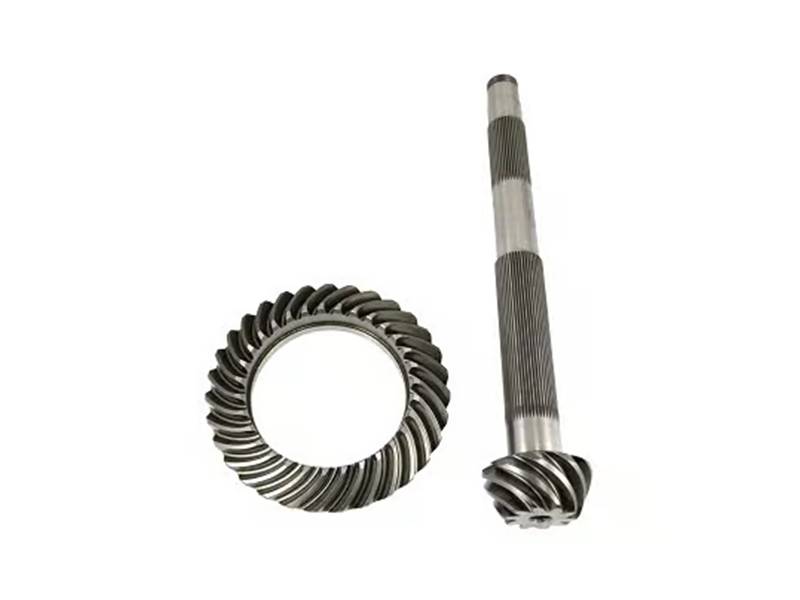

Ring gear and pinion shaft set for G50 gearbox

Fits:
Porsche 911 - 1986 to 1989
Porsche 964 - 1989 to 1994

Available with different gear ratios - example - 10:31 (number of teeth on each gear) - 3.10:1 (gear ratio)

10:31 - 3.10:1
9:31 - 3.44:1
8:32 - 4.00:1
8.33 - 4.125:1
8:37 - 4.625

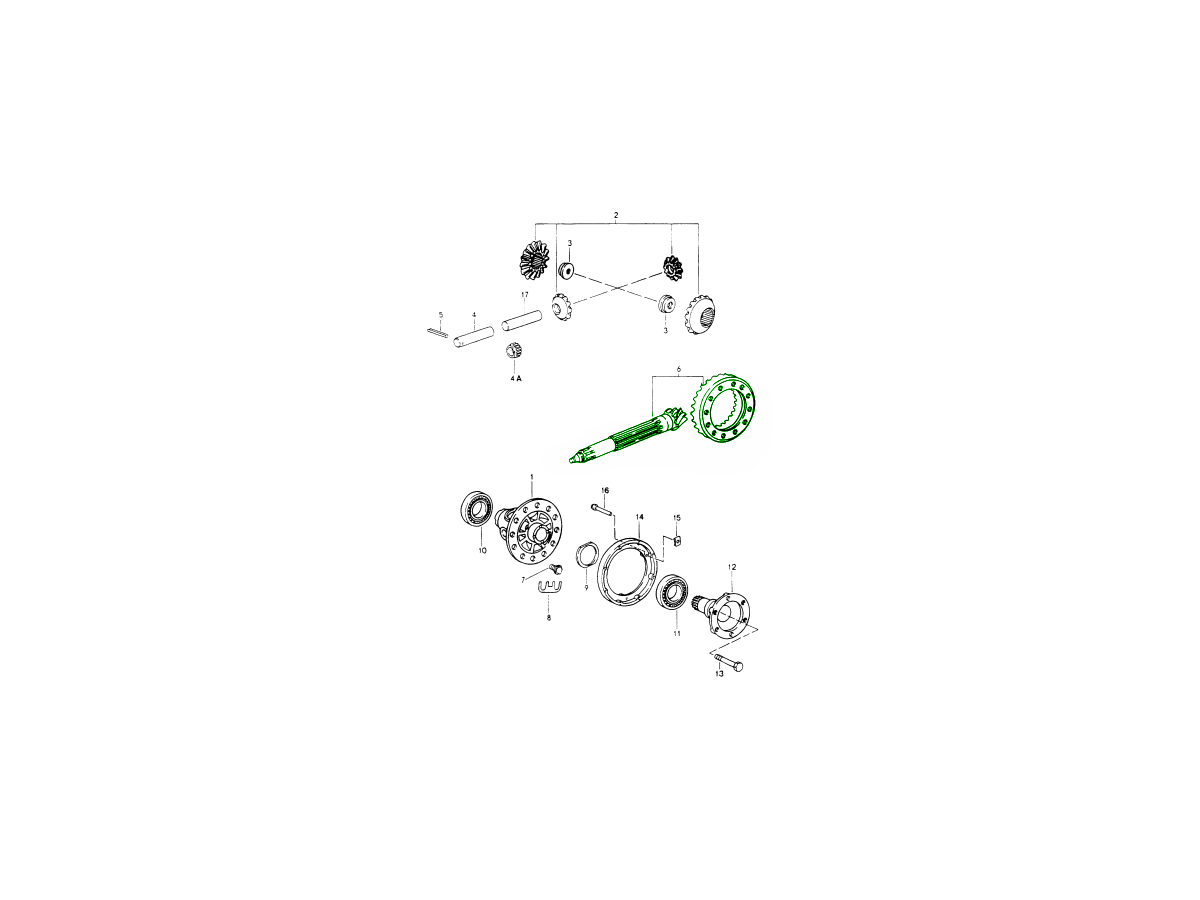

Diagram ref no 6

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95030291107

The product you are viewing cross references to these numbers

Transmission main shaft collar nut.

Fits:
Porsche 930 Turbo 3.0L 1975 - 1977
Porsche 930 Turbo 3.3L 1978 - 1989

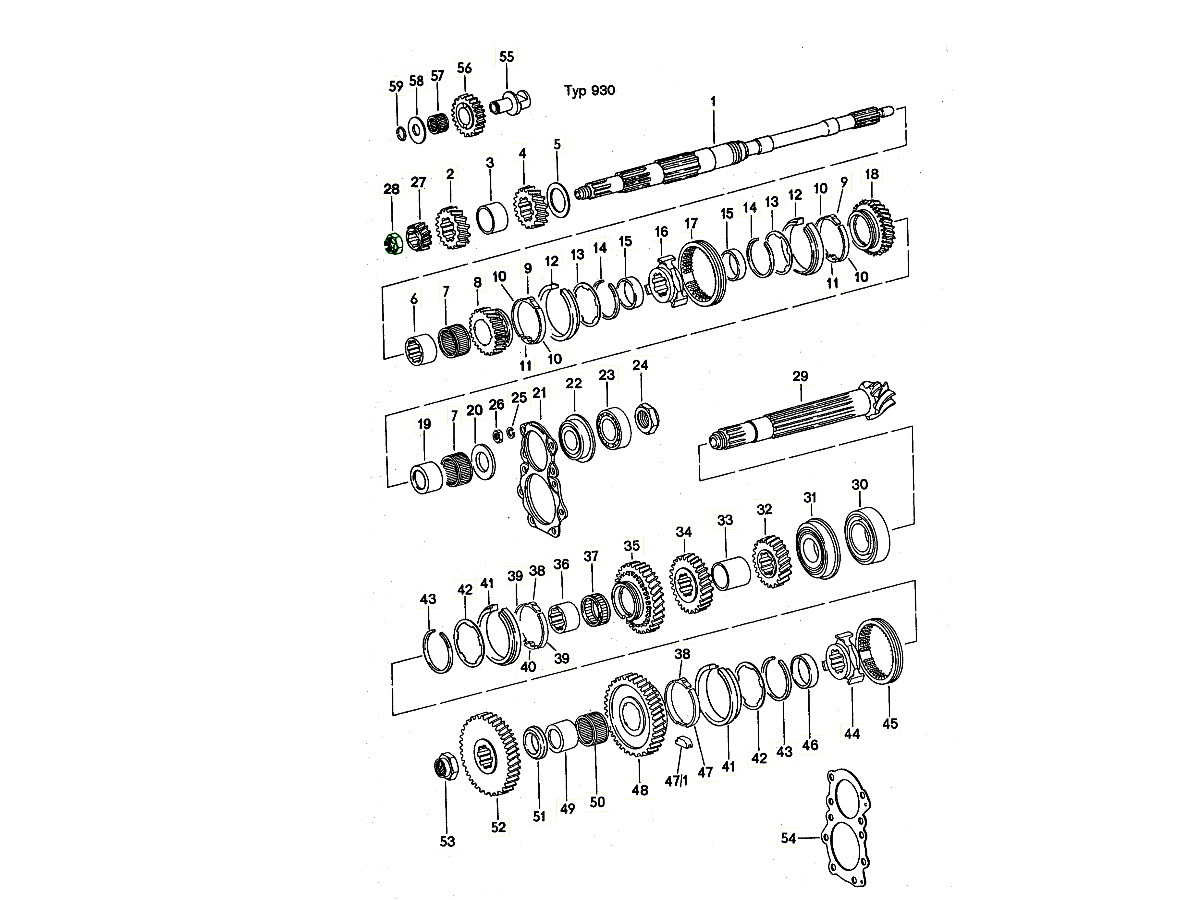

Diagram ref no 28

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93030245100

The product you are viewing cross references to these numbers

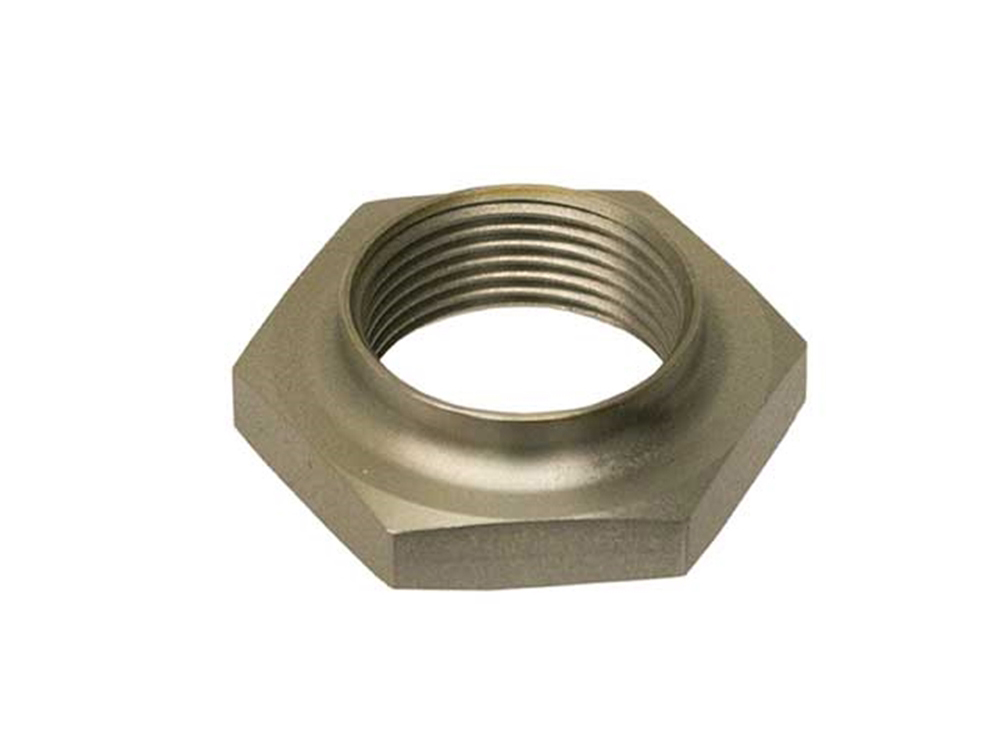

Transmission pinion shaft collar nut.

Fits:
Porsche 930 Turbo 3.0L 1975 - 1977
Porsche 930 Turbo 3.3L 1978 - 1989

Diagram ref no 53

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93030245300

The product you are viewing cross references to these numbers
