Oil System & Pipes

Oil cooler kit for front bumper.



Fits:
Porsche 911 2.7RS / 2.8 RSR - 1973
Porsche 911 G-Body backdates - 1974 to 1989

Kit Includes
Front bumper centre oil cooler
Oil cooler mounts, brackets and screws
Oil cooler pipe x 2
Oil pipe connector x 2

Modification and welding is required to the trunk front section.
The centre oil cooler can be added to the existing front wing oil cooler circuit.

Dimensions:
Total width (without connectors) = 58 cm
Height with connecting support: 12 cm
Depth: = 6,3 cm.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

11F-R130

The product you are viewing cross references to these numbers

Rear hollow sway Bar.
Kit sold individually -2 required per car

Fits
Porsche 911 - 1965 to 1989
Porsche 911 turbo - 1977 to 1989
Porsche 964 - 1989 to 1994
Porsche 993 - 1994 to 1998

Save Expensive Thermostats And Oil Lines

Stripped threads are a common problem when removing oil lines from the external thermostat.
The aluminum thermostat threads become fused to the steel tube nut that secures the oil lines. If you get enough leverage to force the nut free, it takes the aluminum threads along with it – destroying the expensive thermostat and the oil line.

Elephant Racing has the solution; we manufacture a 30mm tube nut replacement kit that let's you save thermostats and oil lines.
If your oil lines won't come free from the thermostat, use a cut-off wheel to slit the side of the tube nut. You can then break the nut free using a cold chisel. This technique sacrifices the tube nut to save the expensive thermostat.

You then use our kit to replace the tube nut that was cut off. Both the oil line and the thermostat are saved.

The kit provides a 2-piece tube nut. The threaded nut fits over the end of the tube and is slipped on first. A spring lock ring is then slipped on. The spring lock ring cinches down on the tube, preventing the nut from coming off

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0170000

The product you are viewing cross references to these numbers

Oil pipe oil tank to thermostat.



Fits:
Porsche 911 3.0L 1974-83
Porsche 911 3.2L 1984-89

OE Part numbers
- 91110773010
- 91110773011

Click 'Zoom in' for large parts diagram.
Diagram Ref No 17.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91110773013

The product you are viewing cross references to these numbers

Oil pipe oil tank to thermostat.

Fits:
Porsche 911 3.0L 1974-83
Porsche 911 3.2L 1984-89

OE Part numbers
- 91110773010
- 91110773011

Diagram Ref No 17

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91110773013

The product you are viewing cross references to these numbers

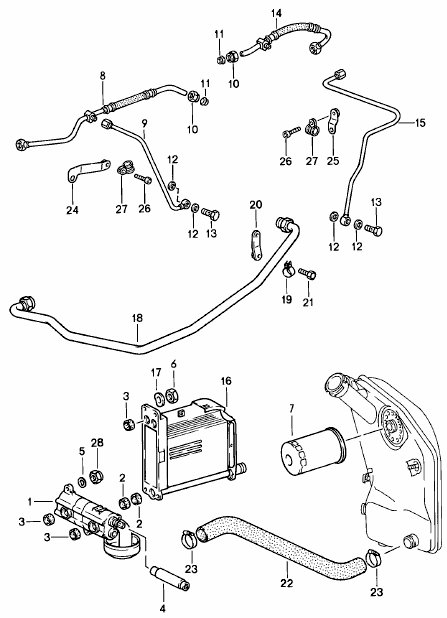

Oil Pipe Support Clamp 1100 22/15



Fits:
Porsche 911 1972-89

Click 'Zoom in' for large parts diagram.
Diagram Ref No 26.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99951108002

The product you are viewing cross references to these numbers

Oil Pipe Support Clamp 1100 2 X 22/15



Fits:
Porsche 911 1972-89

Click 'Zoom in' for large parts diagram.
Diagram Ref No 25.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99951108402

The product you are viewing cross references to these numbers

Oil return tube o-ring installer for Porsche 911



With this high-quality anodized aluminum tool, you will no longer have to worry about slicing the oil return tube O-rings or your fingers when installing these tight fitting seals. Simply insert the flanged end of the SR027 into the oil return tube, and slide the O-ring over the tapered end, sliding smoothly into place. No rips. No tears. No leaks.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

SR027

The product you are viewing cross references to these numbers

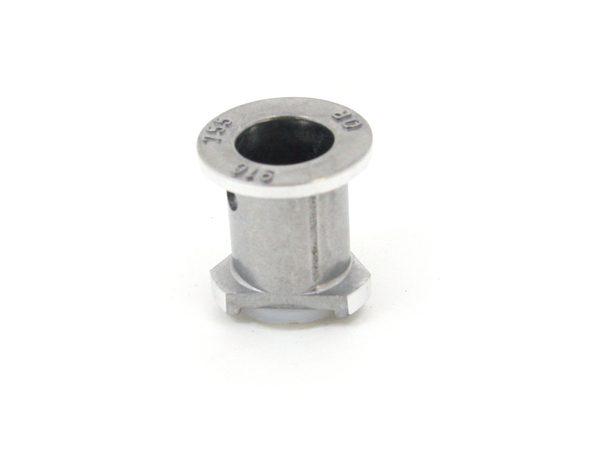

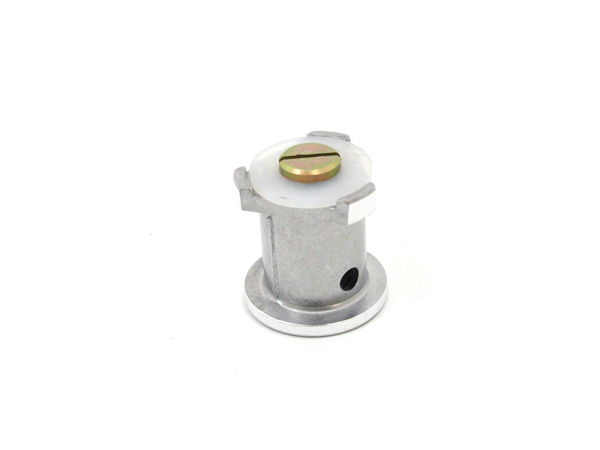

Oil thermostat piston



Fits:
Porsche 911 1972-89

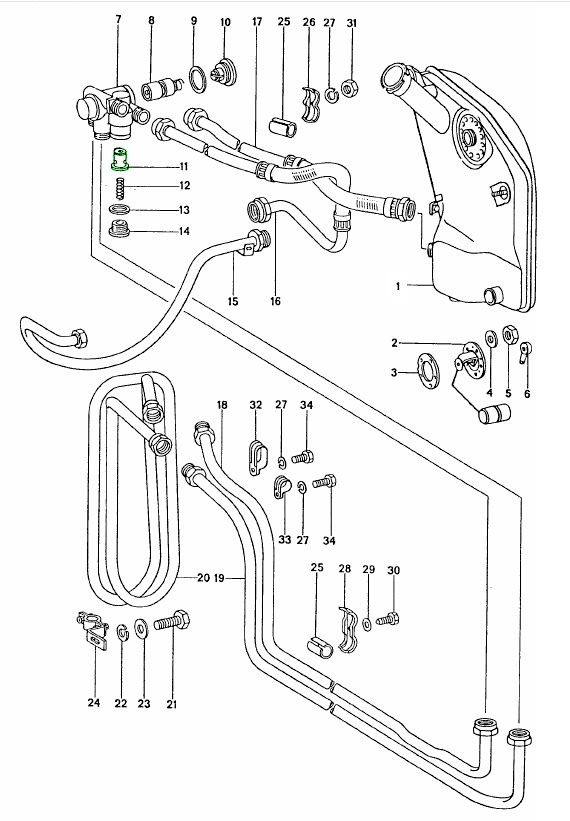

Click picture for large parts diagram.
Diagram Ref No 11.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93010707600

The product you are viewing cross references to these numbers

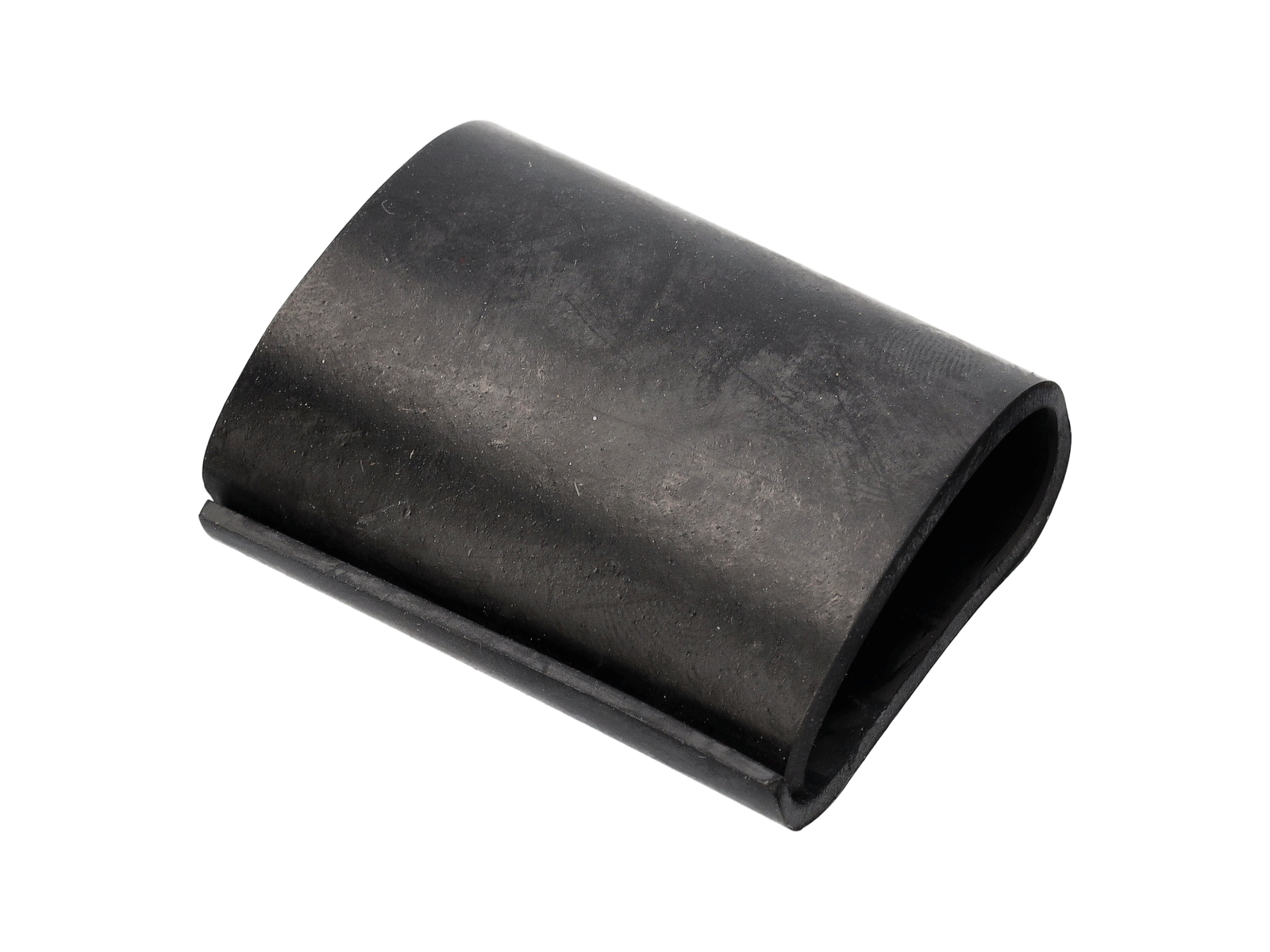

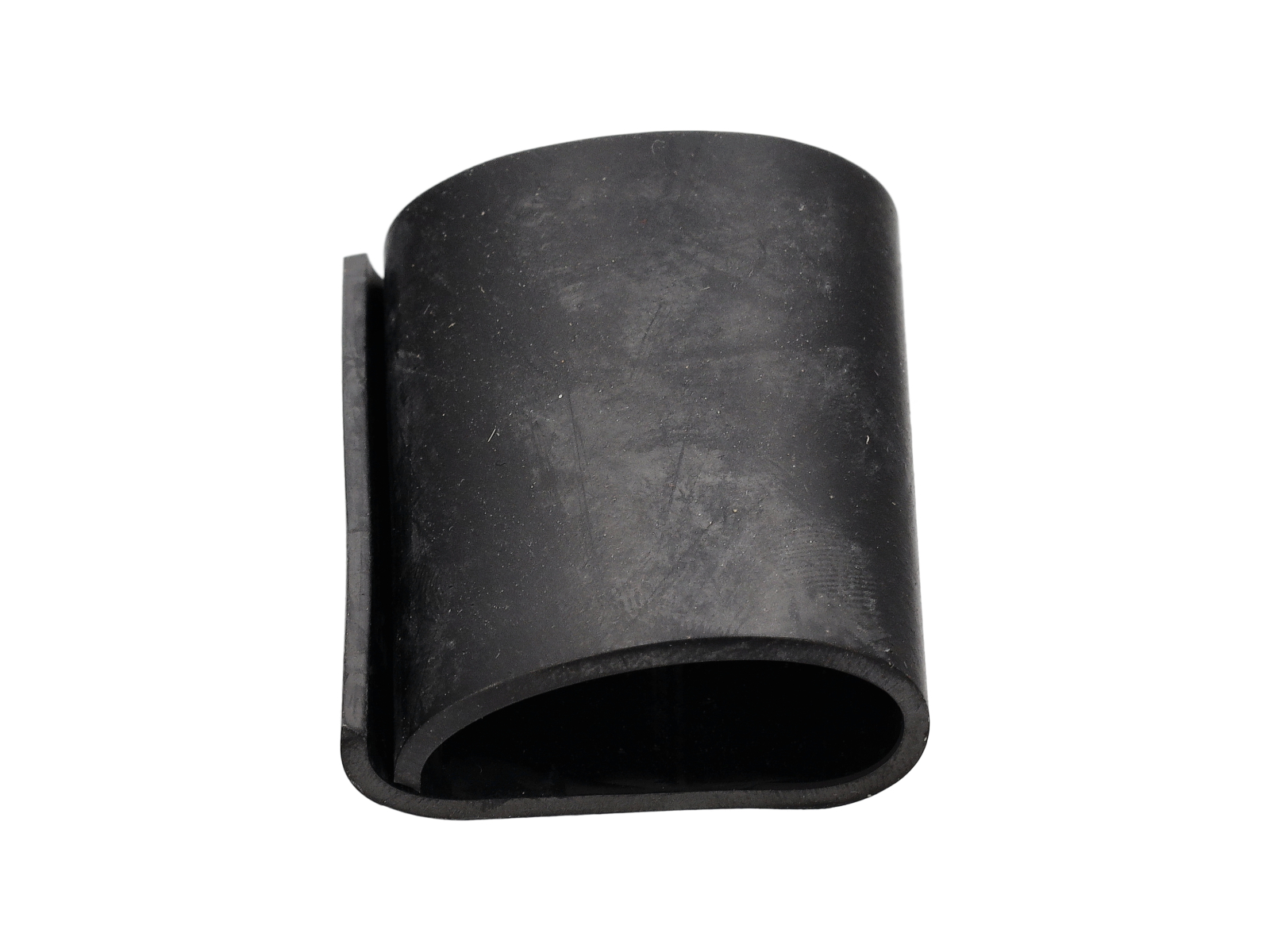

Oil tube mount hose piece



Fits:
Porsche 911 1972-89
Porsche 911 (930) Turbo 1975-77

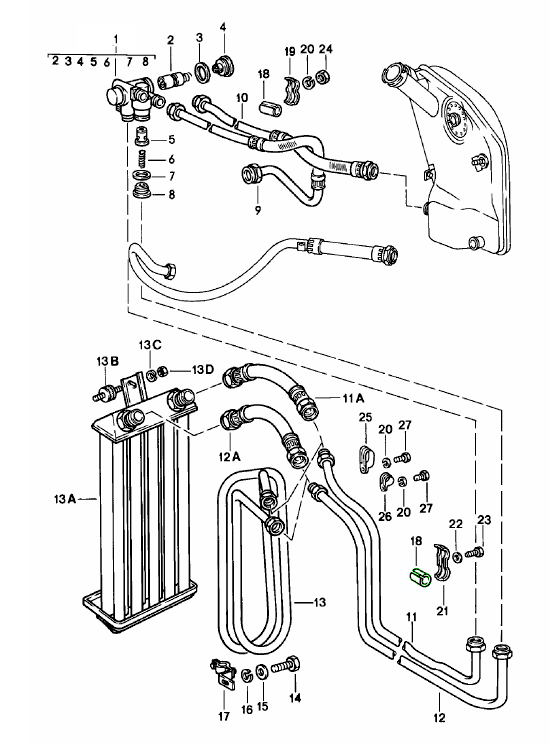

Click 'Zoom in' for large parts diagram.
Diagram Ref No 18

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91120730200

The product you are viewing cross references to these numbers

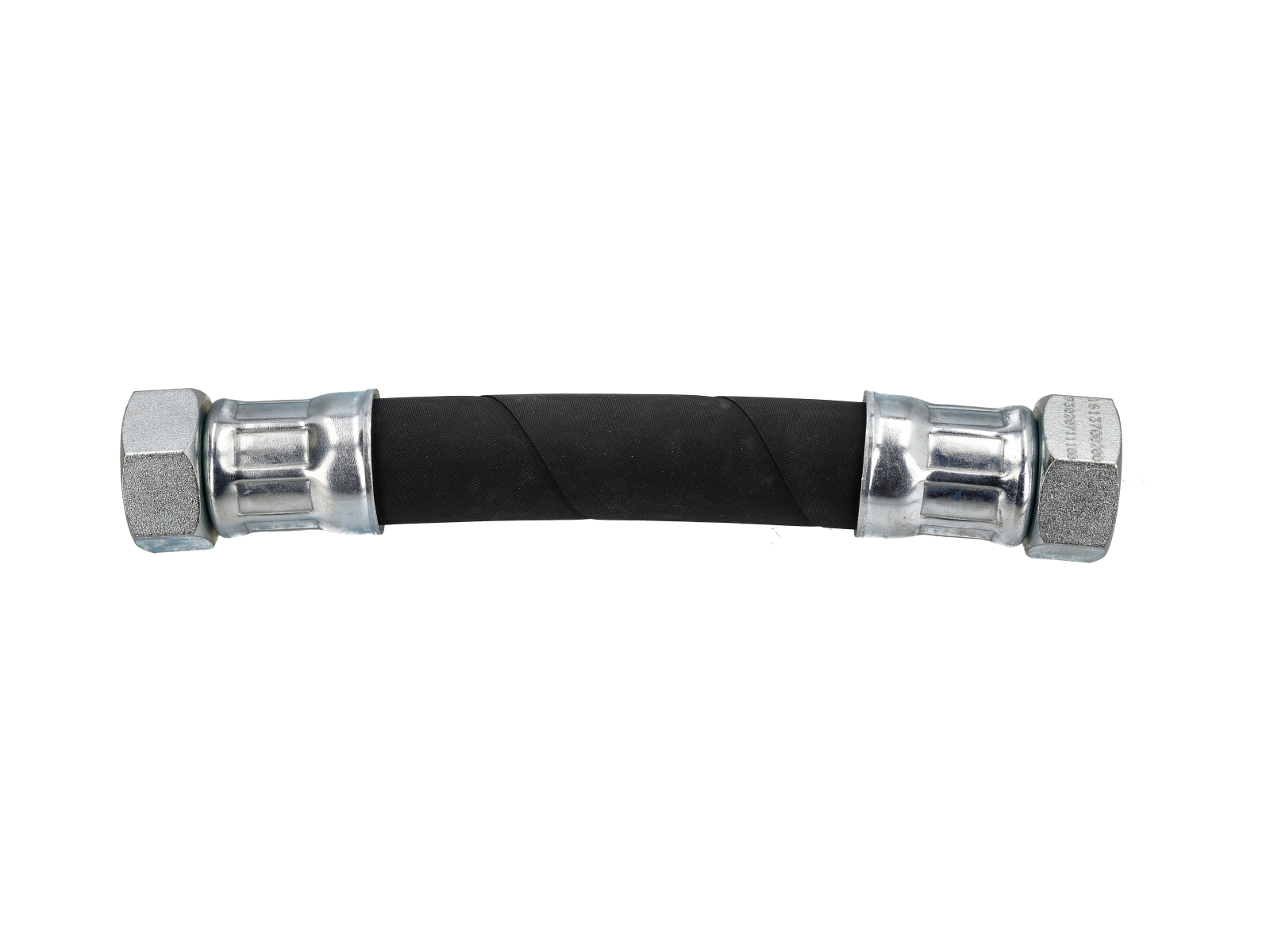

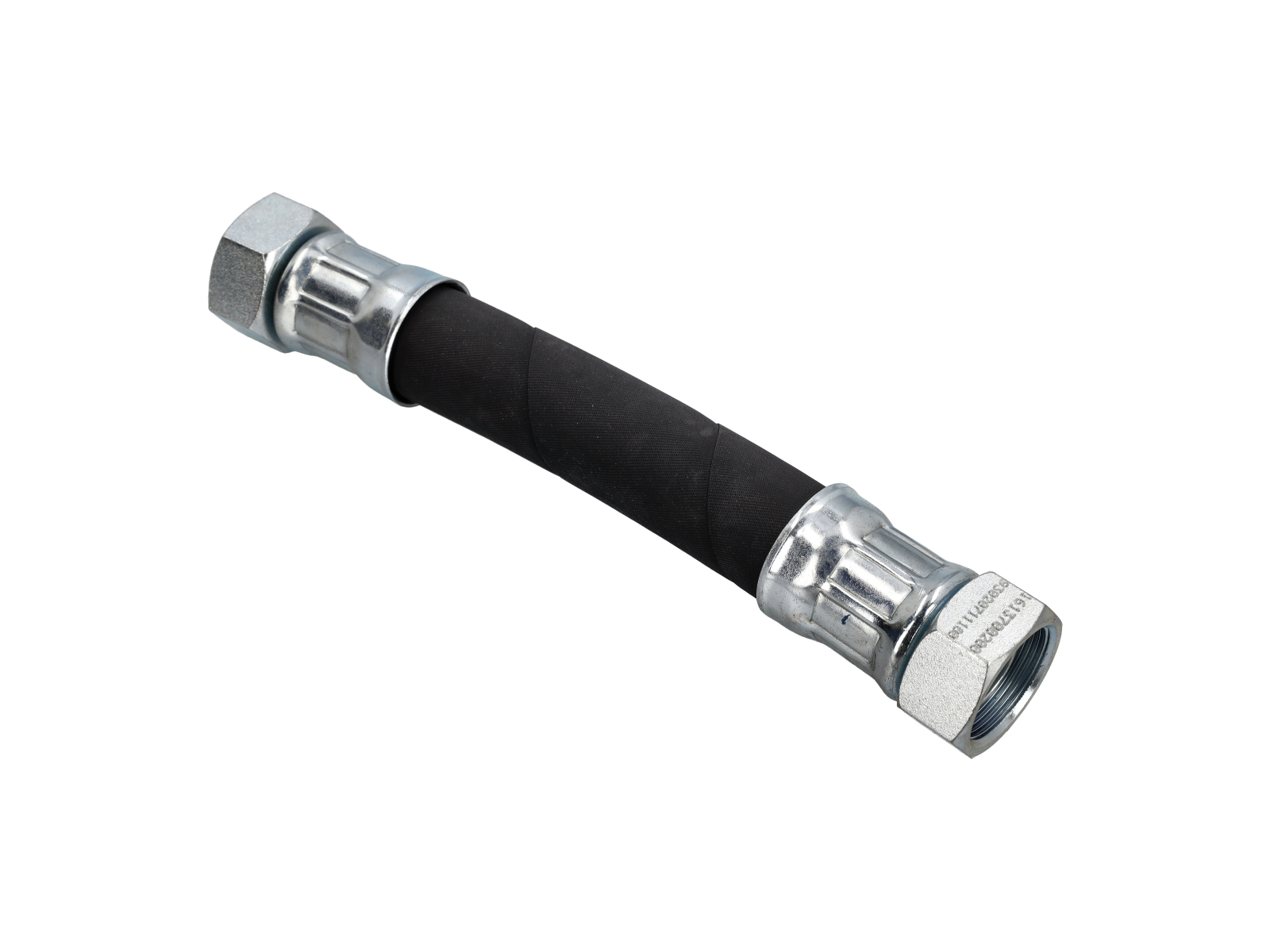

Oil tube to front cooler.

Fits:
Porsche 911 SC / 3.2L 1974-89

Diagram Ref No 12A

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020711107

The product you are viewing cross references to these numbers

Oil tube to front cooler.

Fits:
Porsche 911 SC / 3.2L 1974-89

Diagram Ref No 12A

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020711107

The product you are viewing cross references to these numbers

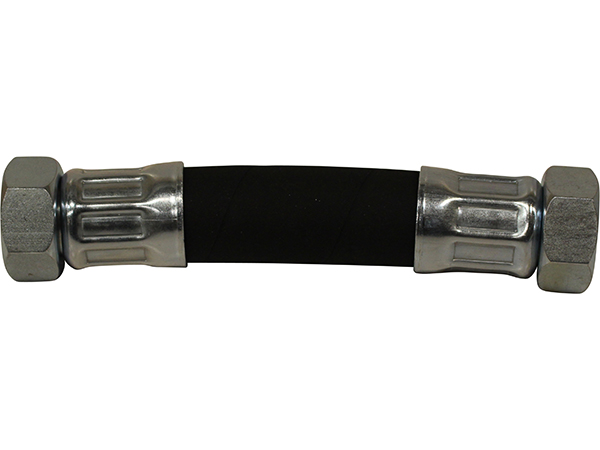

Oil tube to front cooler.



Fits:
Porsche 911 SC / 3.2L 1980-89

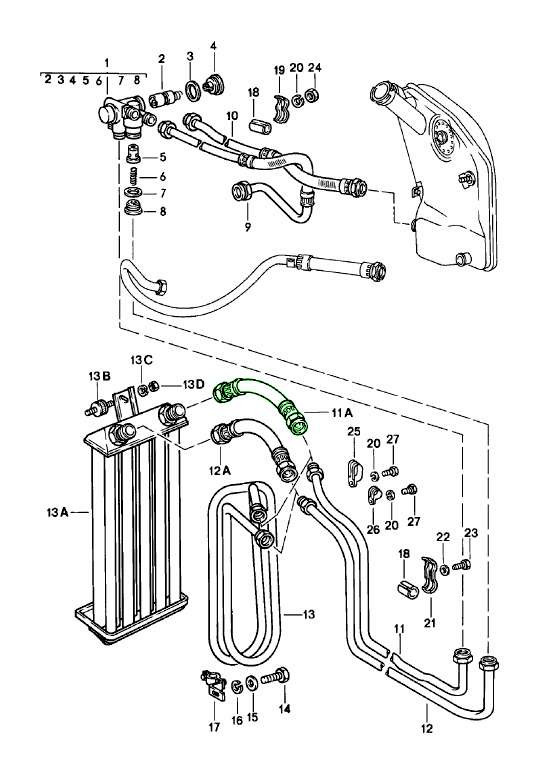

Click 'Zoom in' for large parts diagram.
Diagram Ref No 11A.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020711306

The product you are viewing cross references to these numbers

Oil tube to front cooler.

Fits:
Porsche 911 SC / 3.2L 1980-89

Diagram Ref No 11A

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020711306

The product you are viewing cross references to these numbers

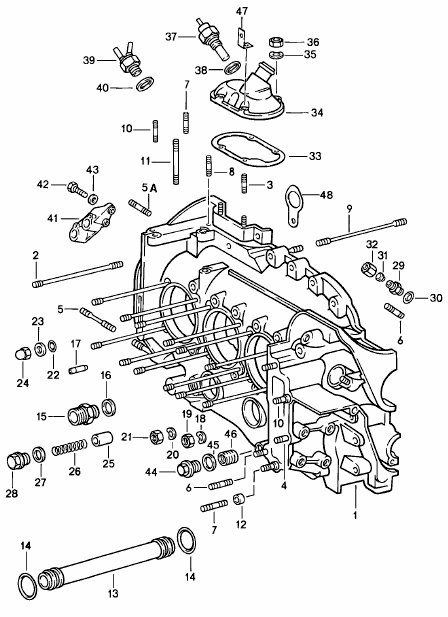

Oil tube. (non collapsible )
O-rings required part number 99970711240
Price is for 1 but there are 4 per engine



Fits:
Porsche 911 911 2.0L 1965-1969
Porsche 911 1970-89
Porsche 964 1989-94
Porsche 993 1994-98

Click picture for large parts diagram.
Diagram Ref No 13.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90110735101

The product you are viewing cross references to these numbers

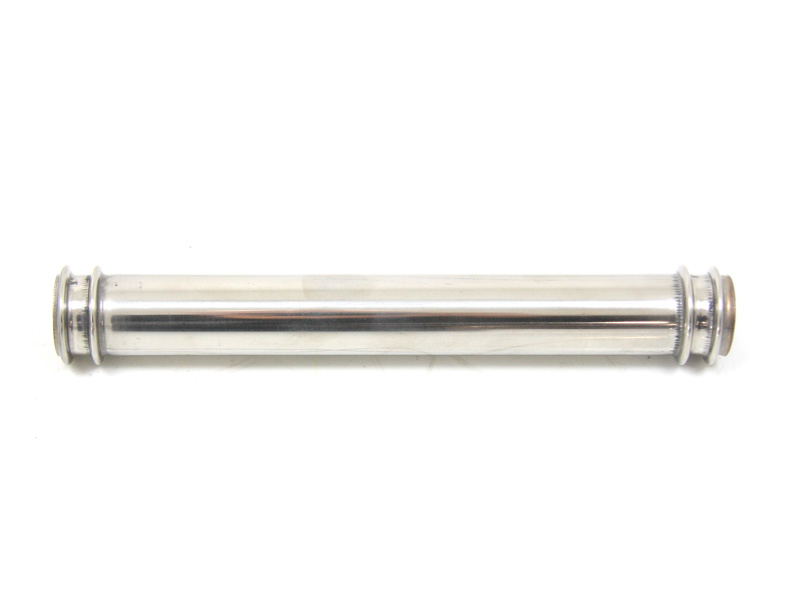

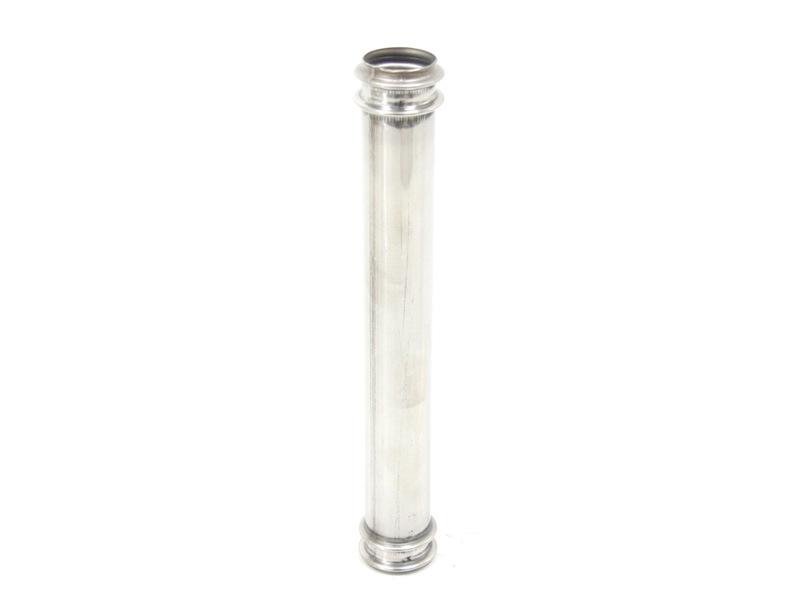

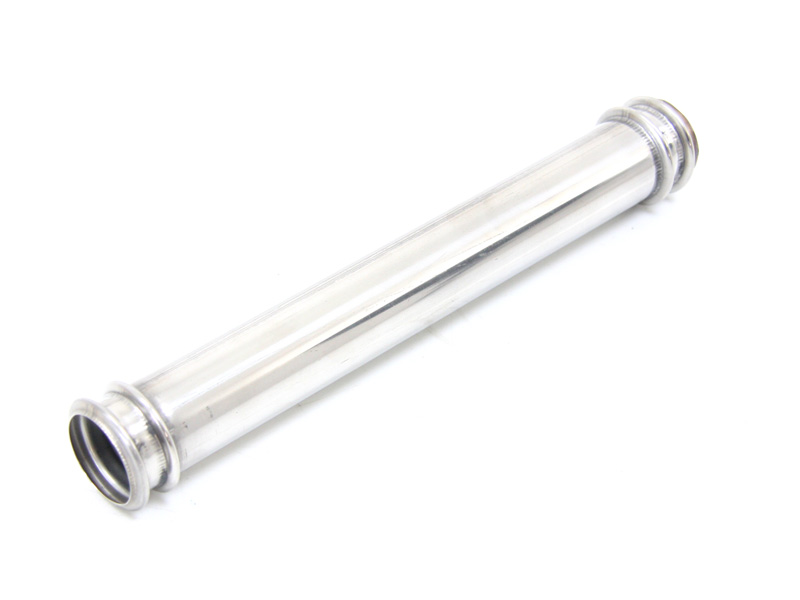

Oil Tube. (non Collapsible ). Stainless steel.
O-rings required part number 99970711240



Fits:
Porsche 911 911 2.0L 1965-1969
Porsche 911 1970-89
Porsche 964 1989-94
Porsche 993 1994-98

Price is for 1 but there are 4 per engine

Click picture for large parts diagram.
Diagram Ref No 13.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90110735101

The product you are viewing cross references to these numbers

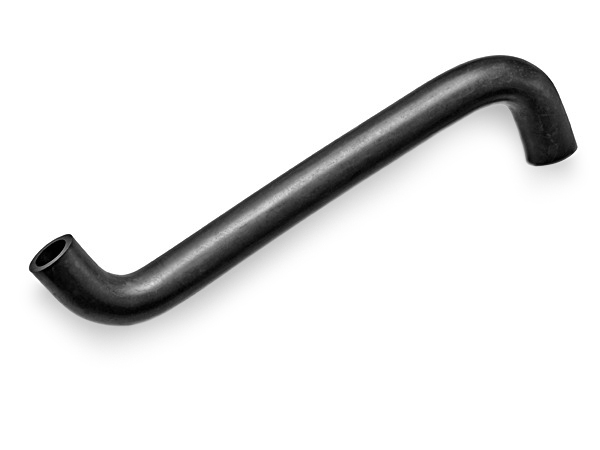

S Hose Oil Cooler to Tank. S Bend pipe now reduced.

Fits:
Porsche 930 Turbo 1977-89

Diagram Ref No 22

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93010723302

The product you are viewing cross references to these numbers
