Distributor

Connection piece brake master cylinder.

Fits:
Porsche 911 - 1974 to 1989
Porsche 911 turbo - 1975 to 1989
Connection piece for master cylinder feed pipe

Porsche 964 - 1989 to 1994
Connection union for distributor vent kit

Diagram ref no 20 (911) and 15 (964)

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91135532300

The product you are viewing cross references to these numbers

Distributor and harness for 911 SC and turbo with 6 PIN CDI box.
Porsche 911 1978-89.



Fits:
Porsche 911 SC 1978-83
Porsche 930 3.0ltr 1975-77  (US cars only)
Porsche 930 3.3ltr 1978-89 (US cars only)

New Perma Tune GEN 6 unit.

Bespoke distributor for the 911SC 3.0ltr engine and other engines like the Porsche Turbo 930 that use the six pin ignition module (CDI) and CIS injection

6 pin CDI was used from 1978 - 1983 on 911 and 1978 - 1989 on the turbo

The Perma-Tune distributor is an exact fit, replacement part that will drop right into the engine. Setting the static timing is easy with the built in trigger point LED that lets you know when the rotor is pointing in the right direction.
Idle timing is set in exactly the same way as the factory manual indicates and the factory mechanical and vacuum curves are preprogrammed into the distributor.
The mechanical vacuum can is replaced with a reliable MAP sensor that is fully programmable to perform advance, retard, vacuum and boost functions.
On Turbo cars the vacuum/boost timing control can is very prone to leaks and the vacuum switches and manifold boost valves connected to the can are failure prone as well.
When these parts fail, performance deteriorates and fuel is wasted. These parts are bypassed by connecting the manifold hose directly to the MAP sensor of the distributor.
It just doesn't get any easier than this.

The distributor harness is made using the same vinyl sleeve loom construction as the original wiring for that factory original look. It is very common on the Porsche 911 cars to develop engine misfire problems due to the brittle and deteriorating green shielded wire between the ignition distributor and module.
The defective wiring is replaced at the same time the new distributor is installed which cures two ills at once.

Distributors wear out and rob your engine of the horsepower it was intended to produce. Worse yet, they can leave you stranded or even damage the crankshaft ring gear.
Forget about rebuilding an outdated distributor with hard to find parts when you can replace it with modern technology that looks original. Replacing that worn out distributor has never been easier with the Perma-Tune distributor.
There are no wires to cut and splice: the distributor has the electrical harness built in and features the original equipment compatible connectors for a plug and play installation. Simply unplug the car harness connector from the ignition module and plug it into the matching connector of the distributor harness. Then plug the distributor harness connector into the Perma-Tune module and done There is no way to make a mistake with this installation, the connectors will only plug in the right way.
The harness connector has built in diagnostics lights that tell you when the ignition system has power and when the ignition module is making sparks. The blue connector LED is a power indicator and the red connector LED is a strobe light that flashes each time the ignition system makes a spark, just like a timing light.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

930602021DX

The product you are viewing cross references to these numbers

Distributor o-ring.



Fits:
Porsche 911 1970-89
Porsche 911 (930) Turbo 1975-89
Porsche 964 1989-94 all models
Porsche 993 1995-98 all models

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160210201

The product you are viewing cross references to these numbers

Distributor o-ring.



Fits:
Porsche 911 1970-89
Porsche 911 (930) Turbo 1975-89
Porsche 964 1989-94 all models
Porsche 993 1995-98 all models

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160210201

The product you are viewing cross references to these numbers

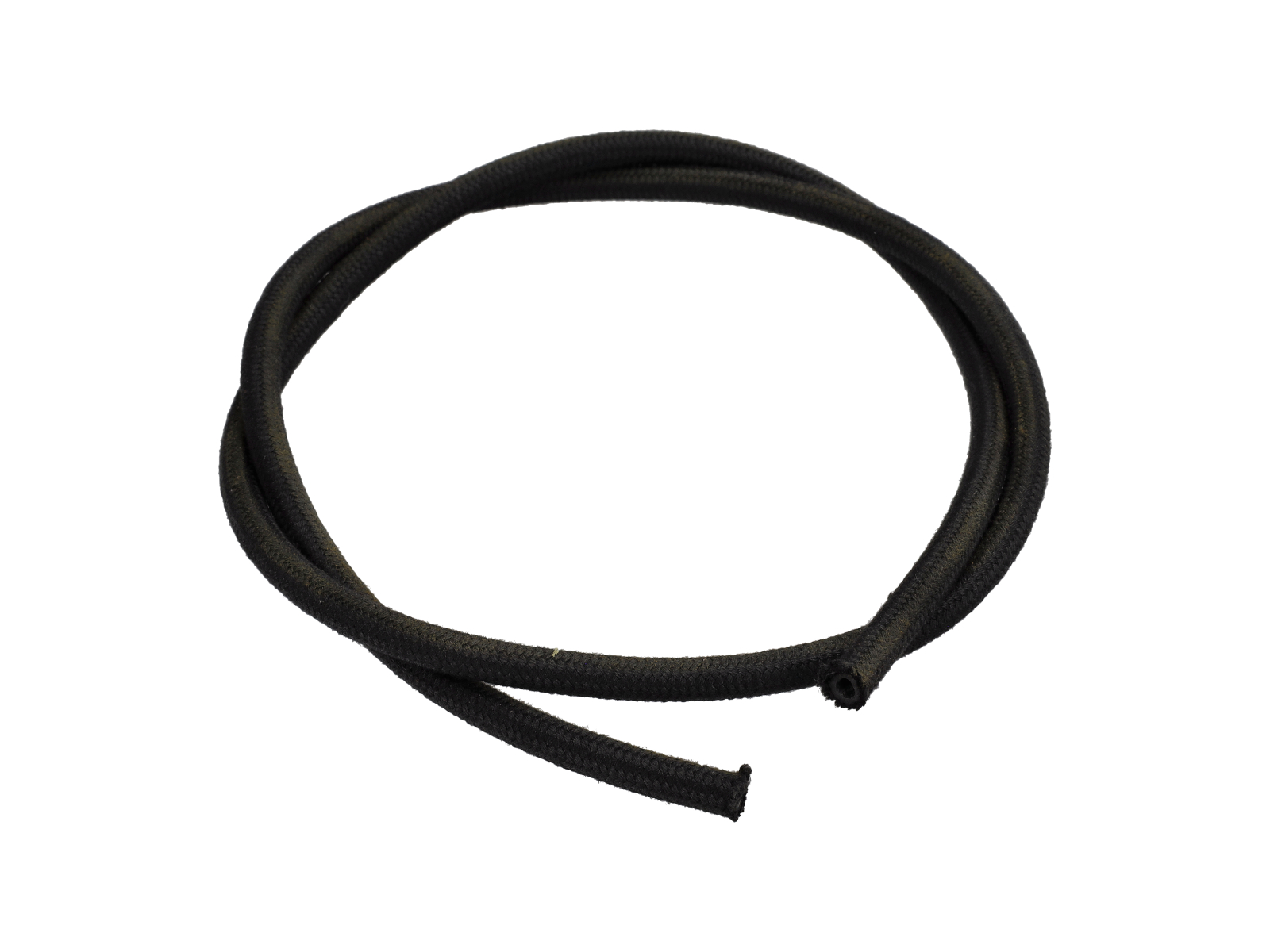

Vacuum hose - 3,5 x 2
Sold in 1 meter lengths.

###

Fits:
Porsche 911 SC - 1978 to 1983
Porsche 911 turbo - 1975 to 1977
Porsche 924 - 1976 to 1985
Porsche 914 - 1970 to 1976

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PAF020353

The product you are viewing cross references to these numbers
