Anti Roll Bar

Anti Roll Bar Bracket. (Weld on bracket) - Fits left or right side
Sold each - 2 required per car

Fits:
Porsche 911 1970-77
Porsche 911 (930) Turbo 1975-77

Diagram ref no 12




Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91150118000GRV

The product you are viewing cross references to these numbers

Anti Roll Bar Bracket Rear. (Weld on bracket) - Fits left or right side
Sold each - 2 required per car

Fits:
Porsche 911 - 1970 to 1977
Porsche 911 turbo - 1975 to 1977

Diagram ref no 12



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91150118000GRV

The product you are viewing cross references to these numbers

Front QuickChange™ Blade Style Sway bar

1 kit required per car



Fits
Porsche 911 - 1965 to 1989
Porsche 911 turbo - 1977 to 1989
Porsche 912 - 1966 to 1976
Porsche 914 - 1970 to 1976

Front and Rear QuickChange™ Blade Style Sway Bar System

Blade style adjustable sway bar (anti roll bar) system is the ultimate choice for performance and tuning. This superior-quality system delivers unique features and advantages that are without rival. It is simply the best.The blade style adjuster mechanism varies roll stiffness with the angle of the blade. Set it vertically for full-stiff, horizontal for full-soft, and intermediate angles for other stiffness levels.

Blade style adjustment offers advantages over traditional adjustable sway bars including faster adjustment and superior geometry.

The rear sway bars fit 66mm bolt spacing on the sway bar mounts as equipped on 1978-1989 911 cars. 1965-1977 cars can be upgraded to the later 66mm type mounts

Perfect Geometry

Fixed-length arms ensure the angle of the drop links are not changed with stiffness adjustment. Geometry and kinematic behavior is always perfect. The bar always rotates freely, with low-friction, and without binding in all adjustment positions.

Traditional sway bars adjust roll stiffness by changing the length of the lever arm, at the same time changing the angle of the drop link. This can cause poor force-transmission angles in some positions. The result can be binding, high-friction, and excessive load on the mounts to the chassis.

Lightweight

Hollow bar reduces weight.

Fast and Easy Adjustment

No need to jack up the car or remove the wheels. Reach under the car, loosen one bolt to rotate the blade type adjuster. The angle of the blade defines the stiffness.
Literally about 1 minute to adjust, faster with practice.Infinitely variable adjustment lets you dial in the precise roll stiffness.

For track cars this fast-adjustment can be invaluable when time in the pits or paddock is short. Adjusting traditional sway bars is a lengthy process – jack up car, remove wheels, adjust, re-install wheels.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

227002

The product you are viewing cross references to these numbers

Front anti-roll bar link.



Fits:
Porsche 911 Turbo 1975-77 3.0L

Click 'Zoom in' for large parts diagram.
Diagram ref no 28

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91134308300

The product you are viewing cross references to these numbers

Front anti-roll bar link.

Fits:
Porsche 911 Turbo 1975-77 3.0L

Diagram ref no 28

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91134308300

The product you are viewing cross references to these numbers

SuperPro Polyurethane Suspension Bush Kit.



Fits:
Porsche 911 1974-85 Cars with 18mm Front and 22mm Rear anti-roll bars

This kit includes
1 x SPF0893K Gear Linkage Bush Kit 2 Bushes, SuperPro Grease
1 x SPF1436K Front Strut Mount Bush Kit 2 Bushes, 2 Steel Tubes, SuperPro Grease
1 x SPF0526K Front Sway Bar link Bush Kit 4 Bushes, SuperPro Grease
1 x SPF1450-18K Front Sway Bar To Cross Member Mount Kit 2 Bushes, SuperPro Grease
1x SPF0236AK Front Torsion Bar Pivot Bush Kit 4 Bushes, SuperPro Grease
1 x SPF1375K Rear Engine Mounting Bush Kit 4 Bushes, 2 Steel Tubes, SuperPro Grease
1 x SPF0095-22K Rear Sway Bar Bottom Link Bush Kit 2 Bushes, SuperPro Grease
1 x SPF0134-22K Rear Sway Bar To Chassis Bush 2 Bushes, SuperPro Grease
1 x SPF0236K Torsion Bar Pivot Bush Kit 4 Bushes, SuperPro Grease
1 x SPF0988K Rear Trailing (Banana) Arm Front Bush Kit 4 Bushes, SuperPro Grease

Replacing your car rubber suspension bushes with Polyurethane Suspension Bushes will give you:

- Better road holding
- Constant steering geometry
- Increased tyre life
- More responsive steering
- Longer service life of suspension components.

Rear 25mm anti roll bar & adjustable drop links kit



Fits:
Porsche 911 1978-89

Rear fast road and race anti roll bar, this replaces the original 20mm / 22mm bars with a better more stable 25mm bar, the kit comes with adjustable drop links.
The ROHLER products is made from aircraft-quality alloy steel and heat treated to maximize strength and reliability.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3602709111

The product you are viewing cross references to these numbers

Rear retro RSR adjustable sway bar.

Fits
Porsche 911 - 1965 to 1989
Porsche 911 turbo - 1977 to 1989
Porsche 912 - 1966 to 1976
Porsche 914 - 1970 to 1976

Retro RSR Adjustable Sway Bar System

Retro appearance combined with modern performance and features make these adjustable sway bars (anti roll bar) a great choice for period-correct builds.

Drop links

Appearance similar to the RSR originals with a grey colour for a discreet and retro appearance. Left and right threaded precision rod ends make easy work of adjusting front drop link length. Adjustable length makes it easy to eliminate any preload on the bar. Teflon lined rod ends never require lubrication.

Lightweight

Hollow bars weigh half as much as similar solid bars delivering equal stiffness..
Bushings

Teflon impregnated bushings are grease and maintenance free and provide smooth operation and long life.

Through-body style front bar

Installs through the body same as the pre-1974 cars and the early turbo cars. Cars not originally equipped with a through-body sway bar should purchase the optional backer plate kit.

Retro-Look Arms

Steel arms are similar to the original RSR type and have drilled adjustment positions.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

1-RSRRSBA

The product you are viewing cross references to these numbers

Rear swaybar mount kit.



Fits:
Porsche 911/912/930 1965-89

Stock 911 rear swaybar mounts have a nasty habit of tearing away from the body. Stiff sway bars and aggressive driving only accelerate the inevitable mount failure.
Replace your mounts with these super strong aftermarket mounts and solve the problem for good. Requires grinding off the factory mounts and welding for installation.

The mounts have two sets of screw holes to fit both the 66mm bolt spacing as equipped on the 1978 to 1989 cars as well as the 56mm bolt spacing as equipped on the 1965 to 1977 cars.

• Fully machined surfaces for a precision fit
• Consistent material thickness for easy installation
• Tighter tolerances, more surface area, and stronger than any other rear swaybar mounts available.

Click 'Zoom in' for large parts diagram.
Diagram ref no 16

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91150198300

The product you are viewing cross references to these numbers

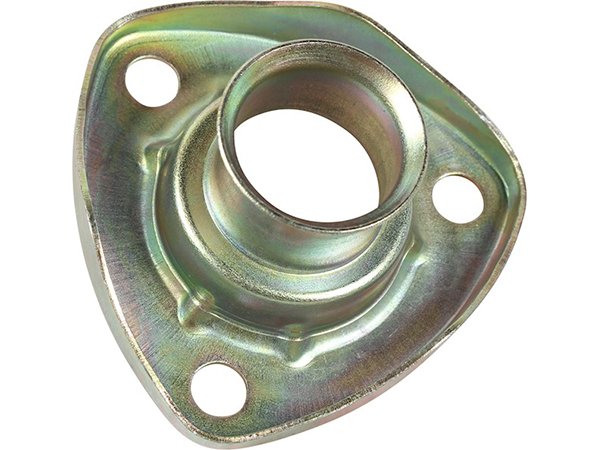

Stabiliser / torsion bar mounting plate.

Fits:
Porsche 911/911 S / 912 1965-67
Porsche 911 S/L / 912 1968-69
Porsche 911 S / Carrera 2.7 / 911 T/E 1970-73
Porsche 911 (930) Turbo 1795-77
Porsche 914 1970-76

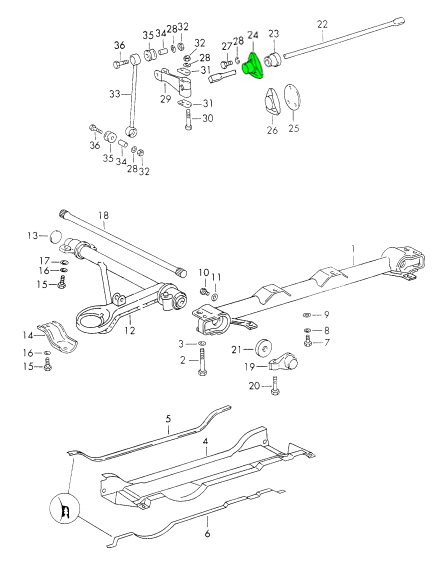

Diagram ref no 24

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90134375401

The product you are viewing cross references to these numbers

Stabiliser / torsion bar mounting plate.

Fits:
Porsche 911/911 S / 912 1965-67
Porsche 911 S/L / 912 1968-69
Porsche 911 S / Carrera 2.7 / 911 T/E 1970-73
Porsche 911 (930) Turbo 1795-77
Porsche 914 1970-76

Diagram ref no 24

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90134375401

The product you are viewing cross references to these numbers

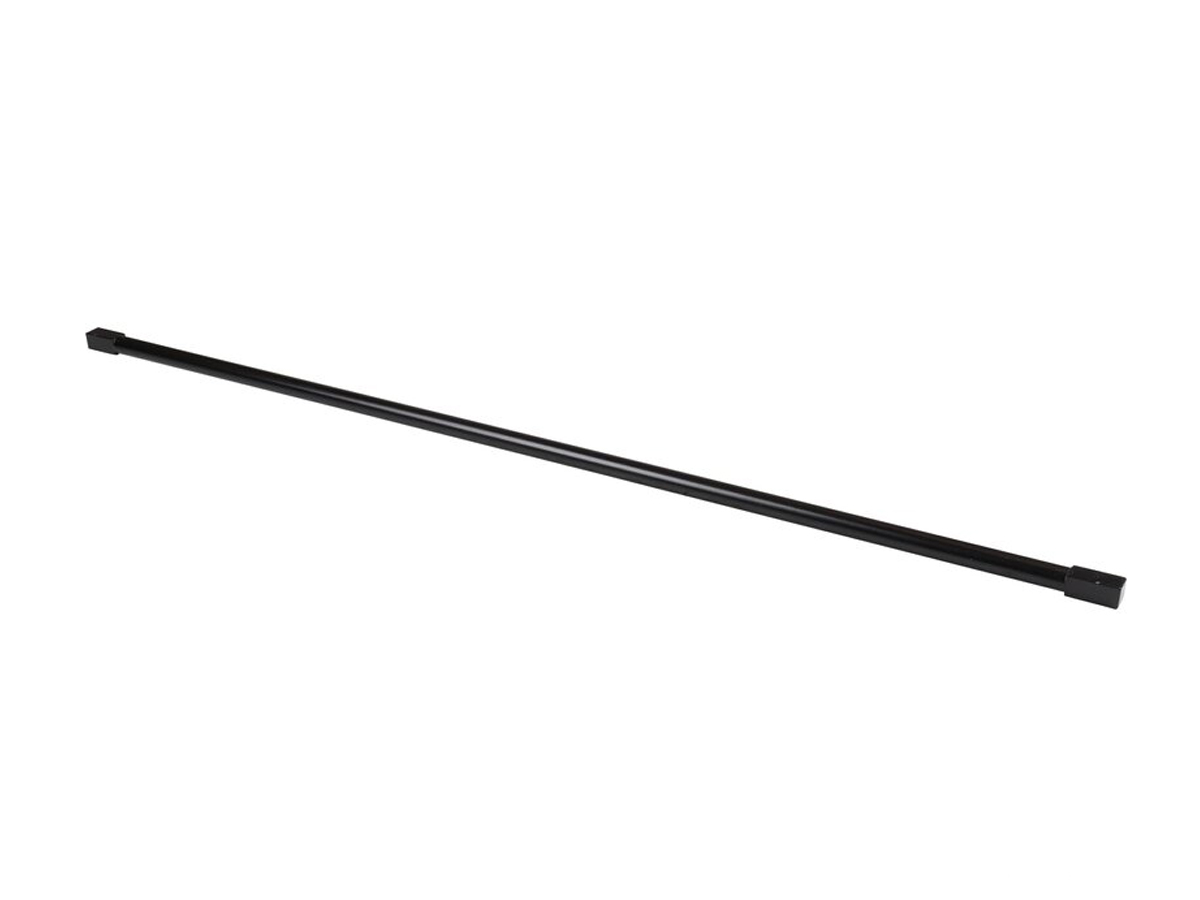

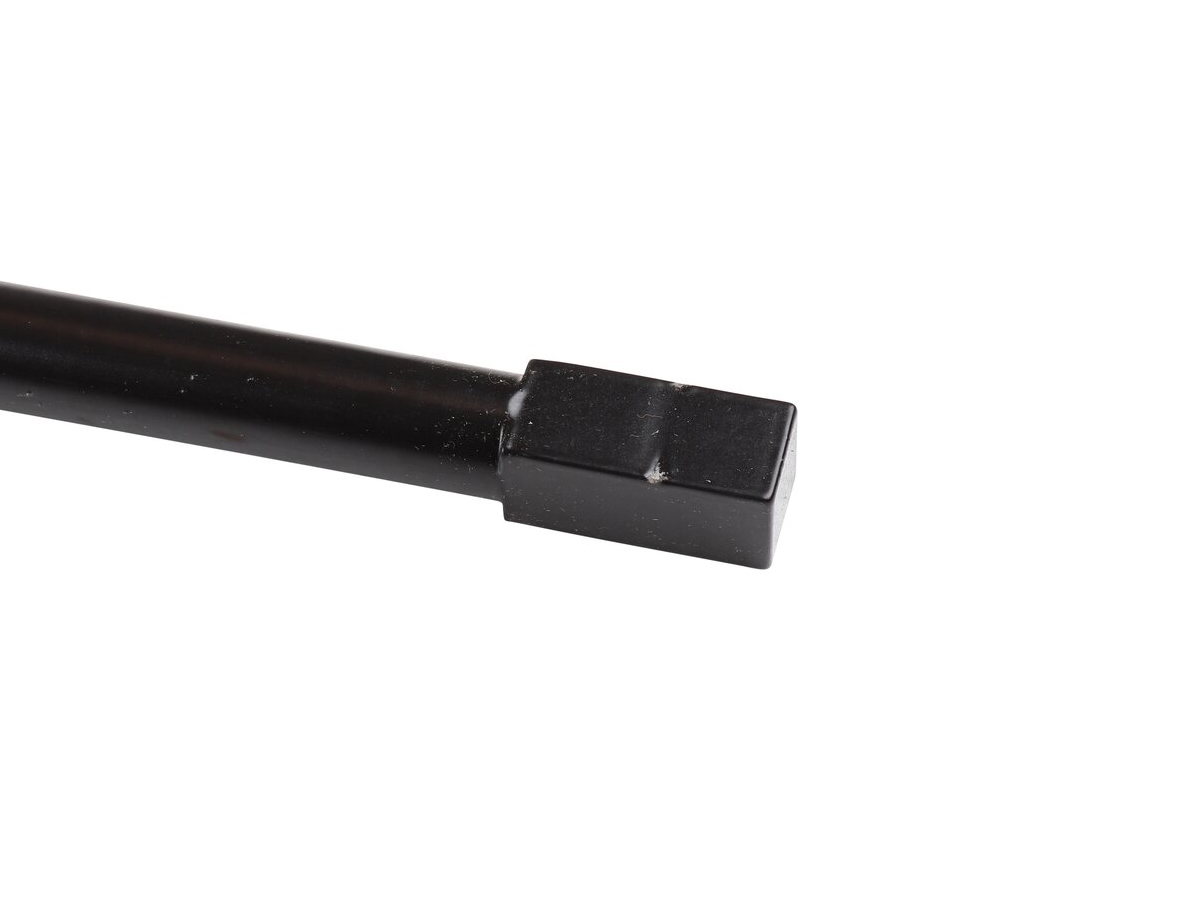

Stabilizer, front, 18mm.



Fits:
Porsche 911 Turbo 1975-77

Click 'Zoom in' for large parts diagram.

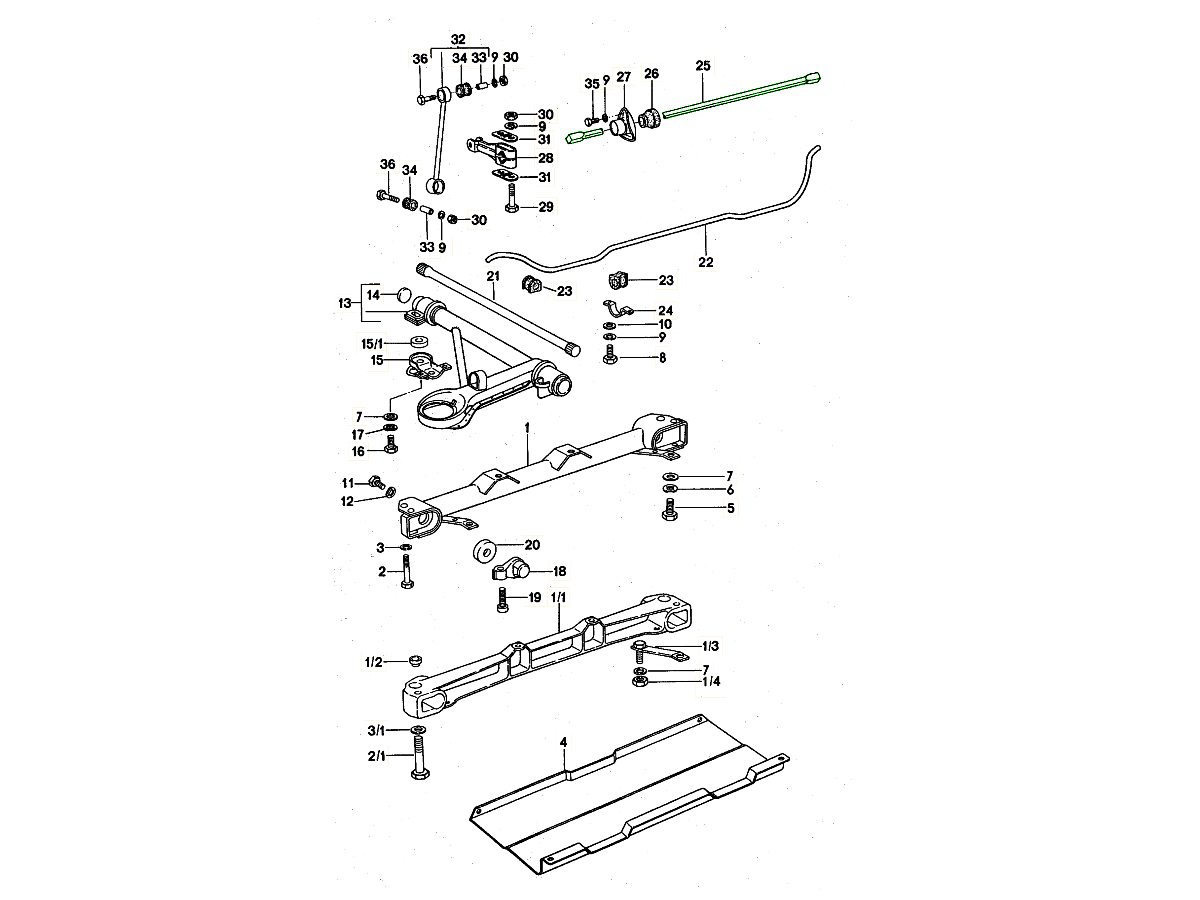

Diagram ref no 25

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91134370500

The product you are viewing cross references to these numbers

Sway bar backdate mounting kit
1 kit required per car



Fits
Porsche 911 - 1969 to 1989
Porsche 911 turbo - 1977 to 1989
Porsche 912 - 1966 to 1976
Porsche 914 - 1970 to 1976

For Retro-Fitting the Through Body Anti Roll Bar

Required for Adjustable sway bars when installed on cars not originally equipped with a through body sway bar. These plates fit to the back side of the wheel well and distribute the sway bar load to prevent tearing.

When installing many thru-body type front sway bars onto cars originally equipped with an under-body type sway bar. U tabs are welded to stock control arms in place of the 'loop' style bushing holders used on cars originally equipped with under body type front sway bars.

• Required For Through-Body Sway bar Conversions
• Not required for Elephant Racing Blade Type Sway bars
• Welding required for proper installation

Generally required for all 911/912/914/930 from 1974-1989 with A arm mounted anti roll bars

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2270025_2270024

The product you are viewing cross references to these numbers

Sway bar mounting backer plate kit
1 kit required per car



Fits
Porsche 911 - 1974 to 1989
Porsche 911 turbo - 1977 to 1989
Porsche 912 - 1966 to 1976
Porsche 914 - 1970 to 1976

For Retro-Fitting the Through Body Anti Roll Bar

Required for Adjustable sway bars when installed on cars not originally equipped with a through body sway bar. These plates fit to the back side of the wheel well and distribute the sway bar load to prevent tearing.

Generally required for all 911/912/914/930 from 1974-1989 with A arm mounted anti roll bars

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2270024

The product you are viewing cross references to these numbers

Thru-body front swaybar reinforcement kit.
Sold per pair, 1 pair req'd per car.

Fits:
Porsche 911/912/930 1965-89

Prevent or repair common failure point.
Elephant Racing Swaybar Mount Reinforcement Panels will help prevent or repair the common problem of cracked swaybar mounts resulting from the application of overly stiff, binding, or incorrectly adjusted aftermarket swaybars.

Elephant Racing Swaybar Mount Reinforcement Panels are precision laser-cut from18 gauge steel. They distribute the swaybar loads into the bulkhead and double-layer sheet metal just beyond the original single-layer hole location.

You may also be interested in an upgrade to Elephant Racing's QuickChange Blade Style Swaybar which mounts to the chassis using spherical bushings that articulate or "float" ensuring no binding. Spherical bushings allow mounts to automatically re-align themselves when the chassis is flexing under load. We believe this binding plays a significant role in the mount's failure.

Installation requires welding

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2270026

The product you are viewing cross references to these numbers
