Alternator / Generator

Alternator 75A (Internal Regulator)



Fits:
Porsche 911 1978-83

Voltage: 12V
Power: 75 Amp.
Direction of rotation: Clockwise (CW)
Attachment: 6 bolts, Radius 135 mm
Controller: internal
Pulley: no

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160312004

The product you are viewing cross references to these numbers

Alternator 75A (Internal Regulator)



Fits:
Porsche 911 1978-83

Voltage: 12V
Power: 75 Amp.
Direction of rotation: Clockwise (CW)
Attachment: 6 bolts, Radius 135 mm
Controller: internal
Pulley: no

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160312004

The product you are viewing cross references to these numbers

Alternator 160A (Internal Regulator)

Direct replacement with double power. Designed to put enough power to run all existing electrics and supply additional features like air conditioning and more. Comes with built in internal regulator and will fit existing cowling.

Fits:
Porsche 911 1974-83 3.0L
Porsche 911 Turbo 1975-76 3.0L
Porsche 911 Turbo 1977-83 3.3L

Weight: 5.4kg
Warranty: 3 years
Made in UK

Please note: This alternator is supplied with additional lead cables that are mandatory to fit with this unit.

Red cable - Battery lead. Connect from main battery feed on alternator to starter solenoid.

Black cable - Earth lead. Connect from alternator through bolt or fan cowling to crank casing.

Suitable for engines:
911 3.0L engines:
- 930.12 / 930.02 / 930.03 / 930.13 / 930.09 / 930.19 / 930.04 / 930.10

930 3.3L engines:
- 930.60 / 930.66

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160312004

The product you are viewing cross references to these numbers

Alternator fan / impeller housing strap.

Fit:
Porsche 911 1965-89
Porsche 911 (930) Turbo 1975-89
Porsche 964 Turbo 3.3L / Turbo 3.6L 1991-94
Porsche 914-6 1970-76

Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

96410625120

The product you are viewing cross references to these numbers

Alternator fan / impeller housing strap.  Stainless steel

Fit:
Porsche 911 1965-89
Porsche 911 (930) Turbo 1975-89
Porsche 964 Turbo 3.3L / Turbo 3.6L 1991-94
Porsche 914-6 1970-76

Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

96410625120

The product you are viewing cross references to these numbers

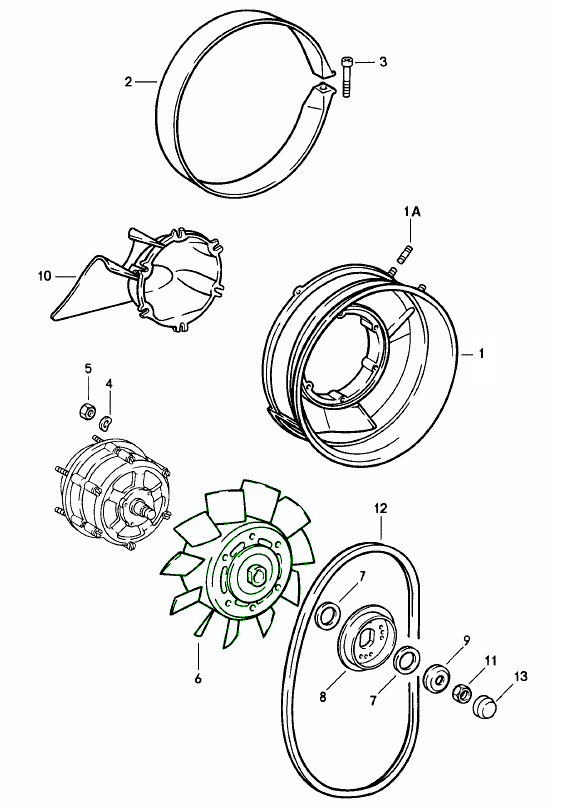

Alternator Fan / Impeller.

Fit:
Porsche 911SC / Turbo (1978-1983) (SC)
Porsche 911SC / Turbo (1978-1983) (TURBO)
Porsche 911 Carrera / Turbo (1984-1986)

Replace your old or worn 11 blade alternator fan with our EPS Performance replacement. A worn fan can cause premature damage to the alternator. On some older cars, this fan is an upgrade which improves cooling and engine temperature. The additional blades allow for increased airflow. Balanced and true, this fan will far outlast the failure prone fans. Made of high strength Aluminium with a Drop Forged Steel hub.

11-Blade Alternator Fan / Impeller (245mm Diameter), 3.25" Diameter Pulley,(also replaces 5 bladed fan) 911 (1980-89)

If your Porsche is fitted with a 226mm Alternator Fan you will need to upgrade to the 245mm fan and also buy a new fan housing Part No. 93010600600/1 , Pully 93010202804 & V belt 99919217650.


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93010601200

The product you are viewing cross references to these numbers

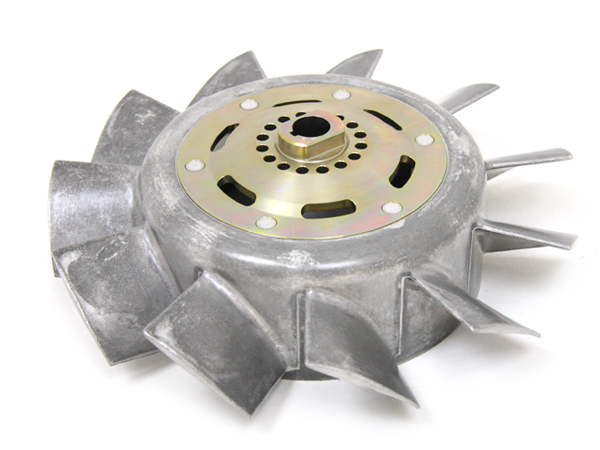

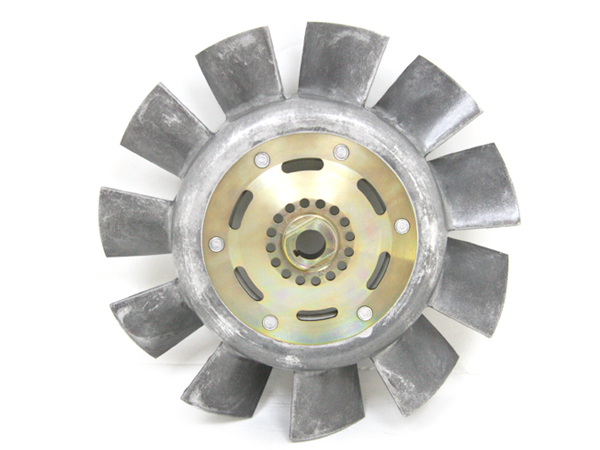

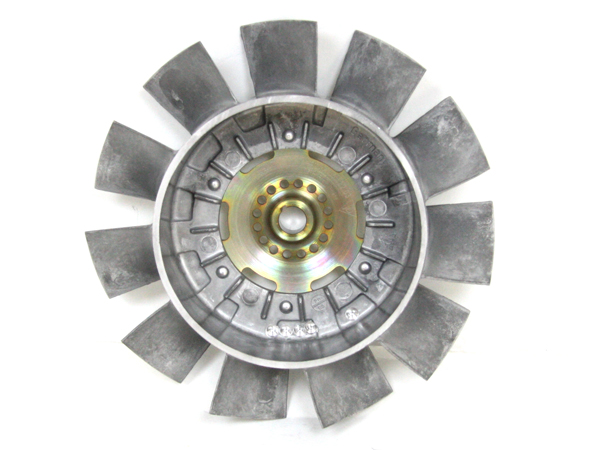

11-Blade Alternator Fan / Impeller (245mm Diameter), 3.25" Diameter Pulley, (also replaces 5 bladed fan).

Fits:
Porsche 911SC / Turbo (1978-1983) (SC)
Porsche 911SC / Turbo (1978-1983) (TURBO)
Porsche 911 Carrera / Turbo (1984-1986)

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93010601201

The product you are viewing cross references to these numbers

Alternator Fan Housing - Alloy

Fits:
Porsche 911 1974-83
Porsche 911 Turbo 1976-83

Please Note: 1978-79 911SC You Will Need To Also Replace The Fan Part No. 93010601200/1

Long discontinued from Porsche we have manufactured an All Aluminium Replacement Alternator Fan Housing that is much more durable then it's predecessor. You can expect a direct fit with no modifications needed.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93010600600

The product you are viewing cross references to these numbers

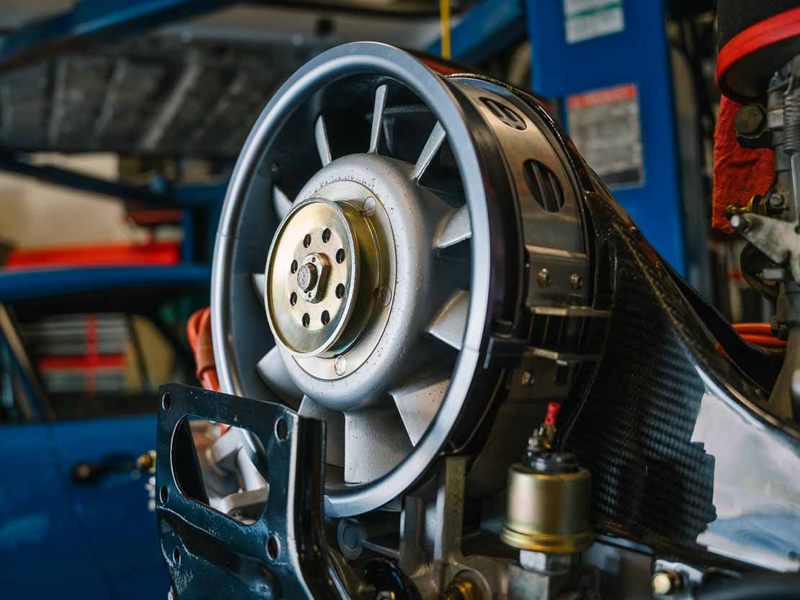

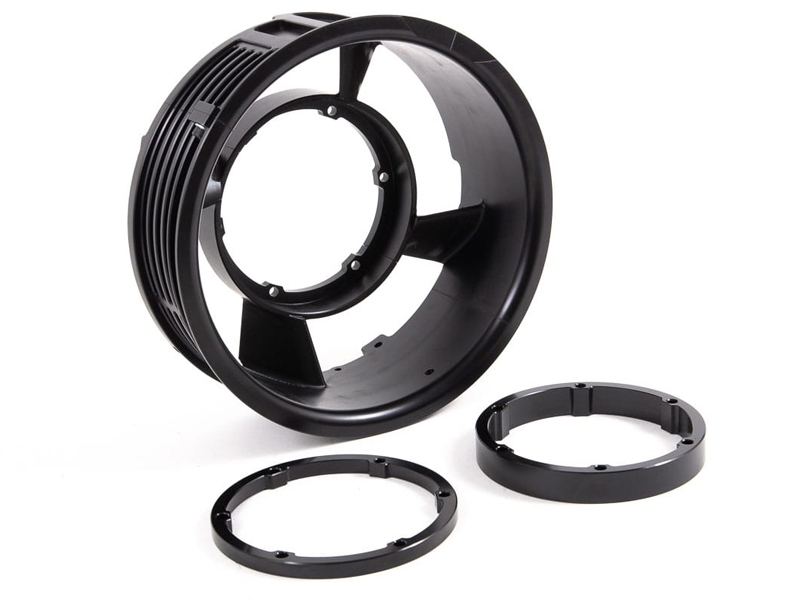

Alternator fan housing



Fit:
Porsche 911 1965-89

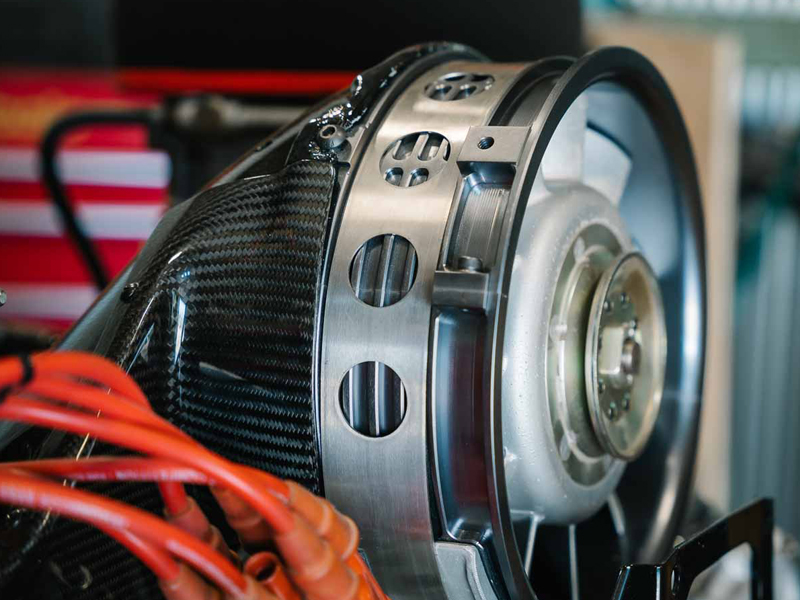

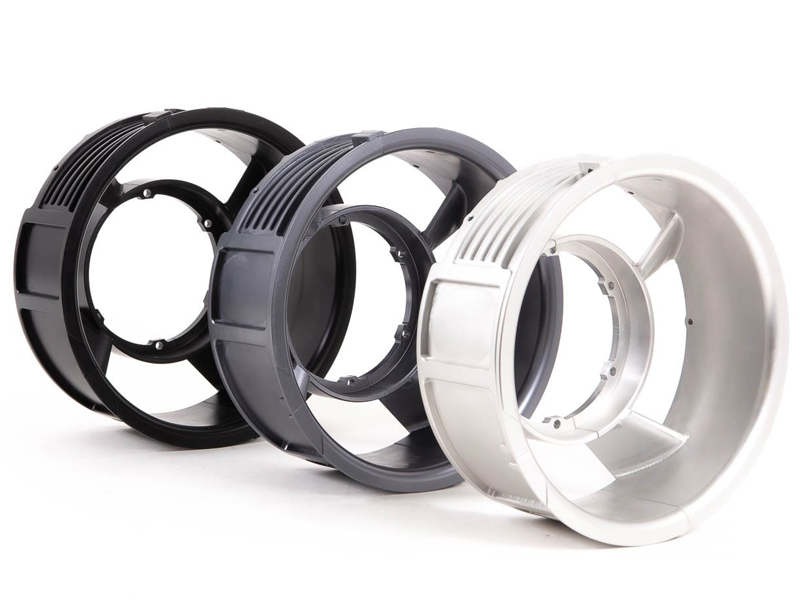

Rennline's Billet Fan Shroud is fully CNC machined from two solid blocks of aluminium for a stronger and more stylish look than other aftermarket OEM replacements made from cast aluminium or magnesium.

Dress up your flat 6 with a new Fan Shroud - available in 3 different coloured anodized finishes.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

M57

The product you are viewing cross references to these numbers

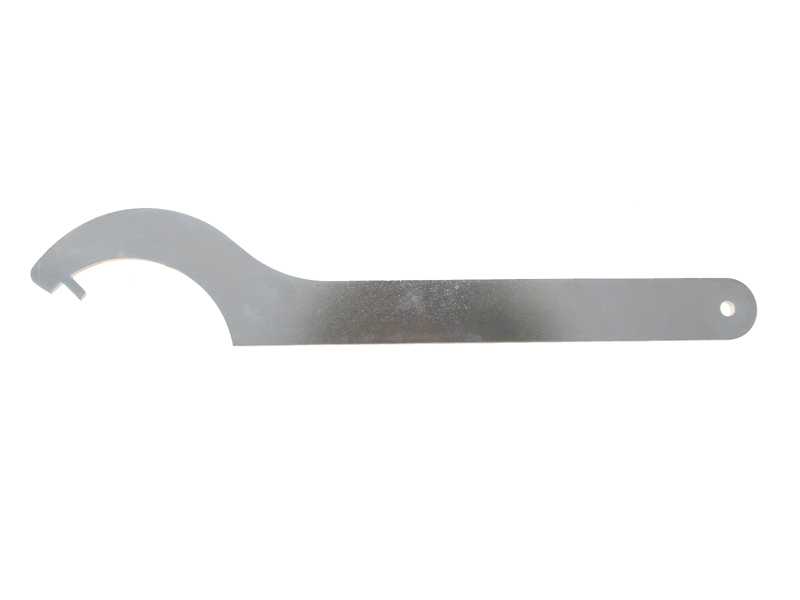

Alternator fan pulley wrench.
Reference numbers: 99957104702



Fits:
Porsche 911 F/G
Porsche 912

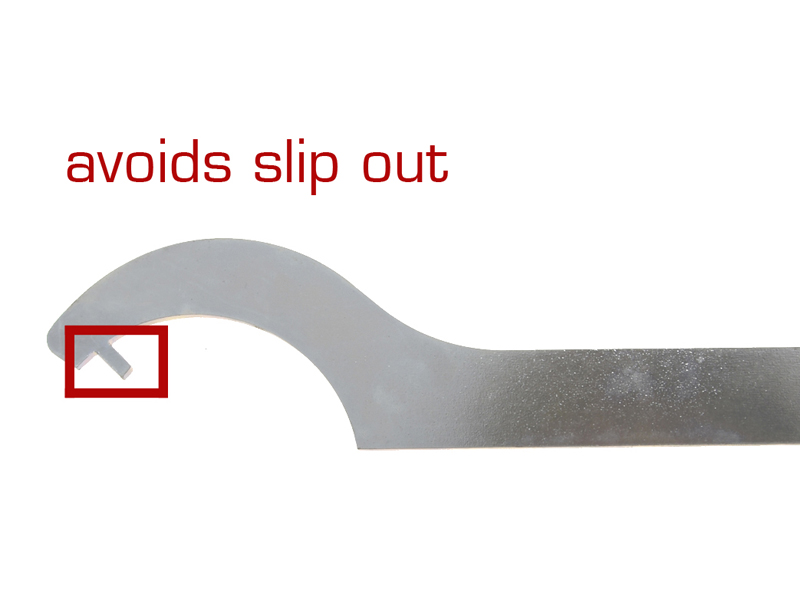

This hook wrench is an optimized version of the original on-board tool and fits better in the hole of the pulley thanks to the extended and curved pin. The locking key is a must for every 911 F/G model owner and allows you to separate the pulley from the fan wheel, for example to change the alternator V-belt.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99957104702

The product you are viewing cross references to these numbers

Alternator fan pulley for cars *WITHOUT AIR INJECTION

Fits:
Porsche 911 turbo 1975-89
Porsche 911 2.7ltr 1976-77 (engine code 911/81 and 911/86)
Porsche 911 Carrera 3.0ltr 1976-77 (engine code 930/02 and 930/12)
Porsche 911 3.2 Carrera 1984-89

The pulley half for driving the alternator. The design is the same as the original part, ensuring that the engine compartment looks as good as the day it first left the factory.
A precision part which is, of course, produced according to the original specifications. Can be used for the Porsche 911 from model years 1975 to 1989.

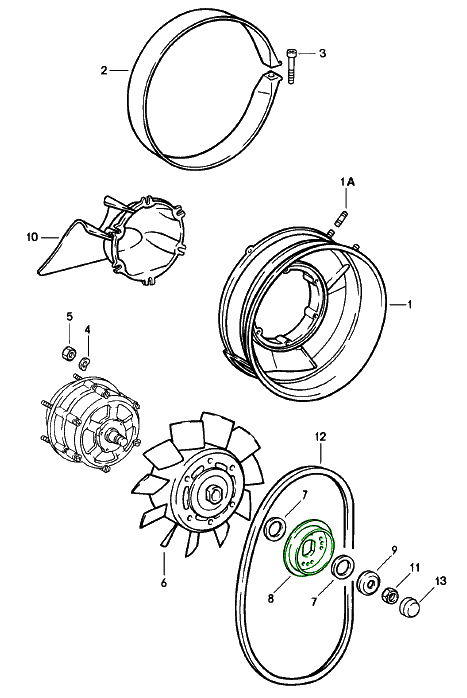

Diagram ref no 8

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93010620902

The product you are viewing cross references to these numbers

Alternator fan pulley for cars *WITHOUT AIR INJECTION

Fits:
Porsche 911 turbo 1975-89

Porsche 911 2.7ltr 1976-77 (engine code 911/81 and 911/86)
Porsche 911 Carrera 3.0ltr 1976-77 (engine code 930/02 and 930/12)
Porsche 911 3.2 Carrera  1984-89

The pulley half for driving the alternator. The design is the same as the original part, ensuring that the engine compartment looks as good as the day it first left the factory.
A precision part which is, of course, produced according to the original specifications. Can be used for the Porsche 911 from model years 1975 to 1989.

Diagram ref no 8

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93010620902

The product you are viewing cross references to these numbers

High output 175 amp alternator. Porsche 911 (mid range fan housing)

Fits:
Porsche 911 2.7ltr - 1974 to 1977
Porsche 911S 2.7ltr - 1974 to 1977
Porsche 911 3.0ltr - 1976 to 1977
Porsche 911 SC 3.0ltr - 1978 to 1983
Porsche 911 turbo - 1975 to 1983


• Weight: 5.2kg
• Amp: 175
• Connections: B+ / Lamp
• Construction: Full Billet
• All units are produced to BSI ISO 9002 standards.
• All units have their own serial number for traceability.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160312002

The product you are viewing cross references to these numbers

Hexagon head bolt M10 x 45 - Various applications

Sold each



Fits:
Porsche 356B / 356C - 1960 to 1965
Porsche 911 - 1978 to 1989
Porsche 924S - 1986 to 1988
Porsche 944 - 1985 to 1991
Porsche 968 - 1992 to 1995
Porsche 928 - 1978 to 1995

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90007437201

The product you are viewing cross references to these numbers

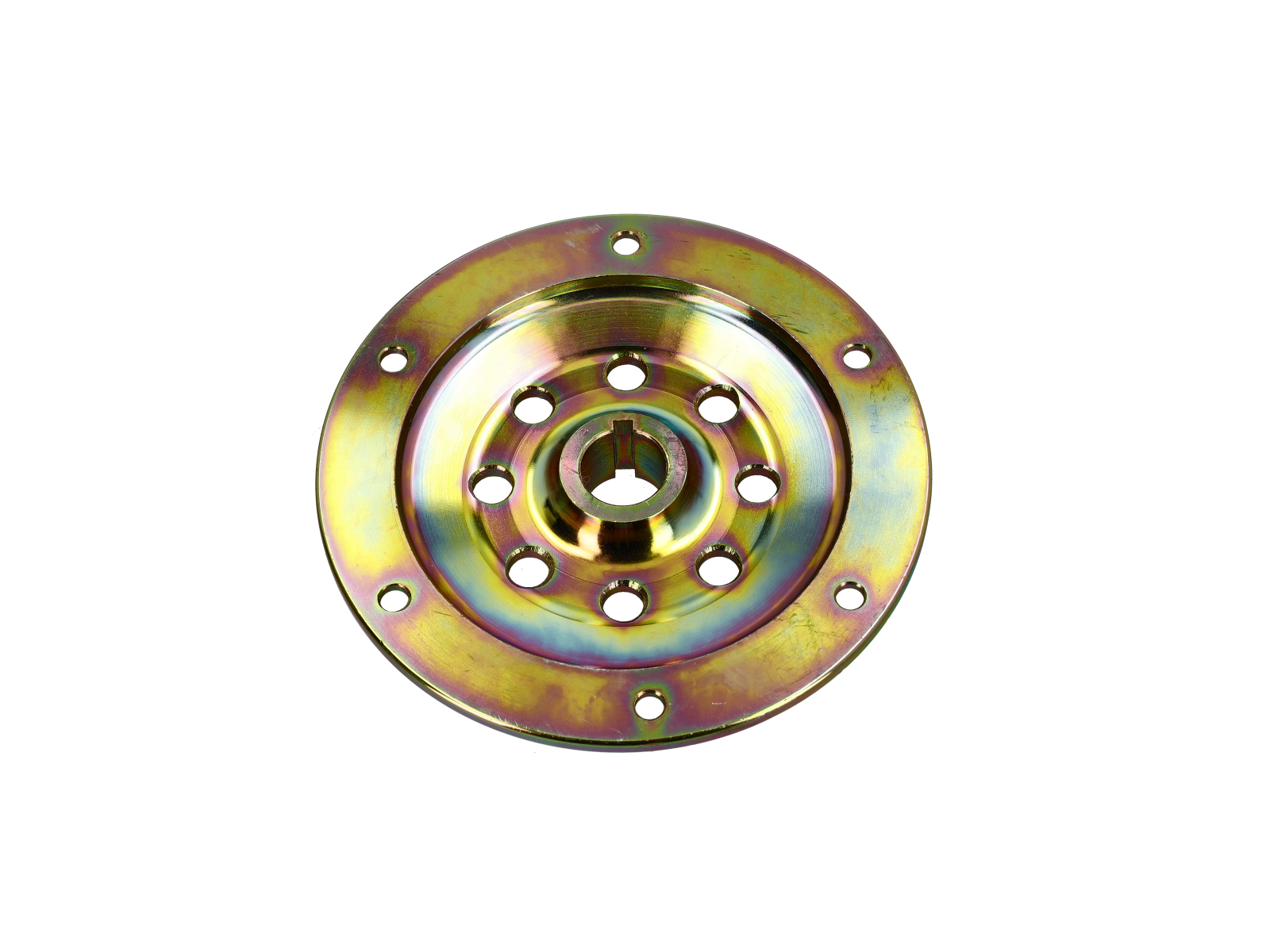

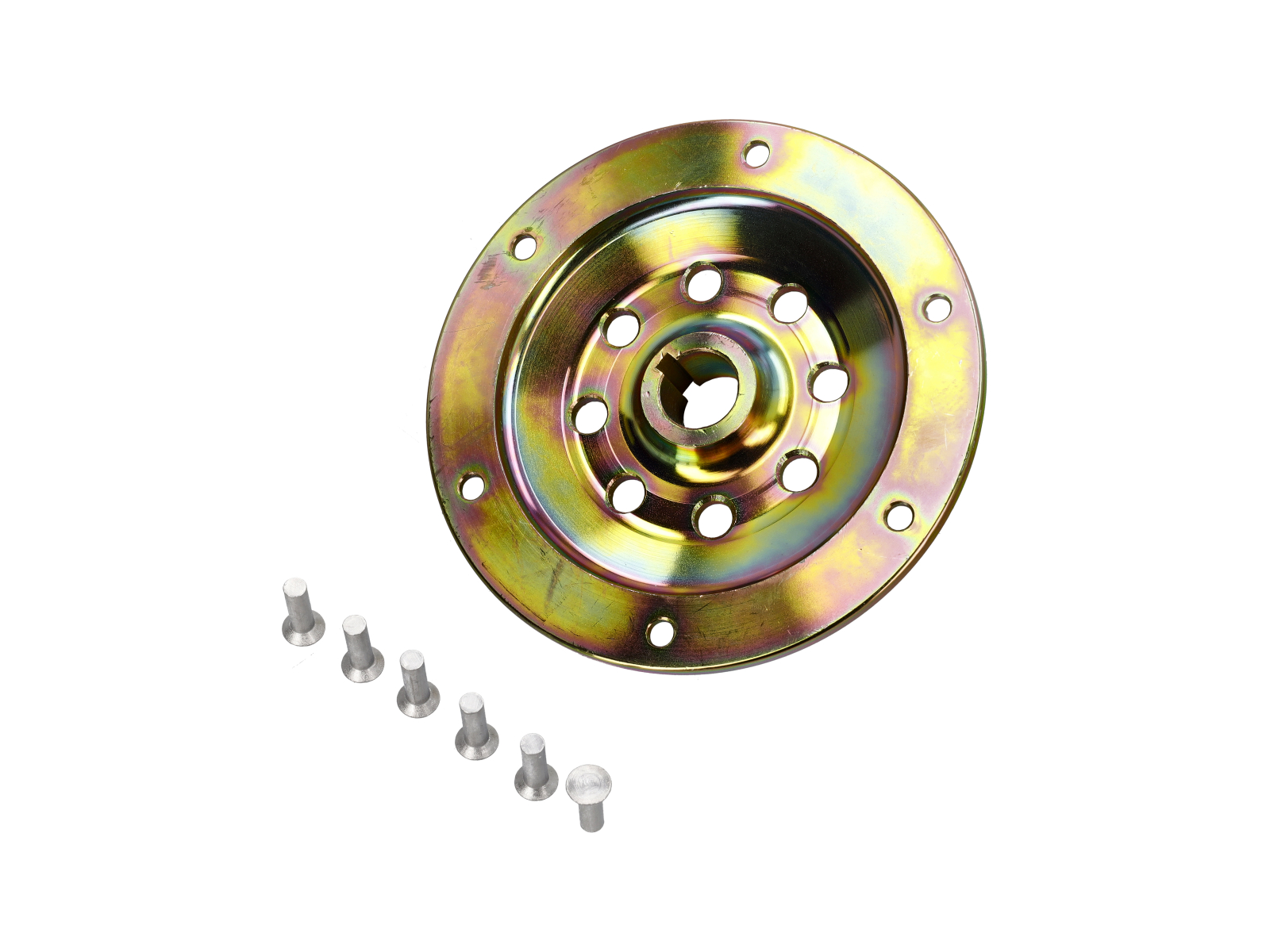

Replacement Impeller blade fan centre support complete with rivets.



Fit:
Porsche 911/912 (1965-1969) (911 up Through 68)
Porsche 911T/E/S Carrera RS (1970-73)
Porsche 911/911S / Carrera (1974-1977)

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9011060100X

The product you are viewing cross references to these numbers

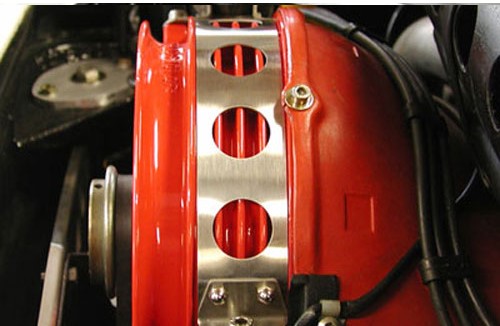

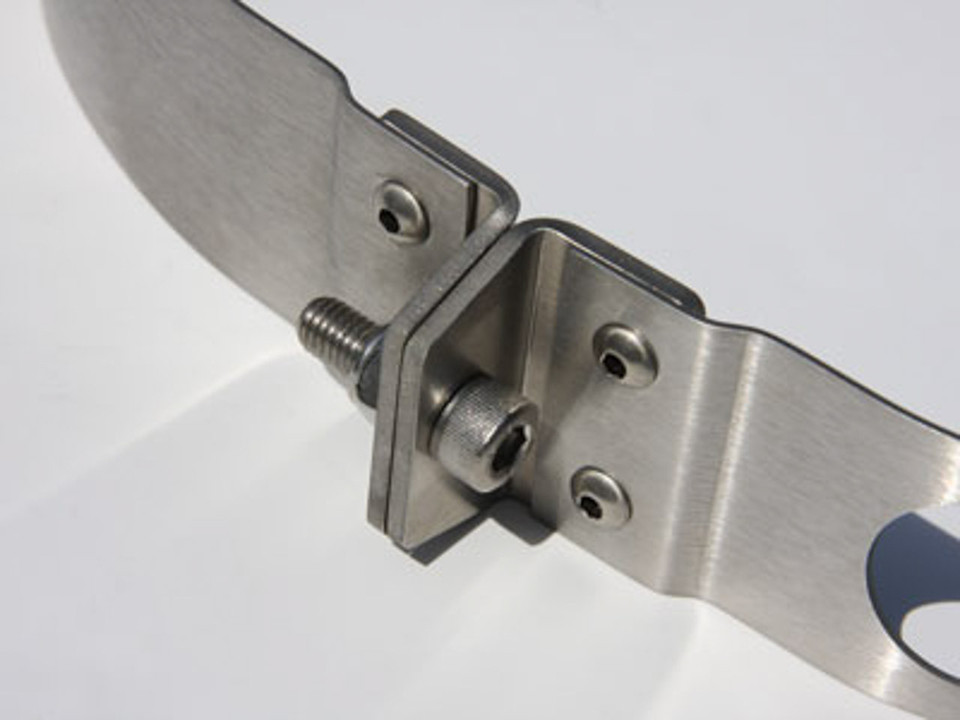

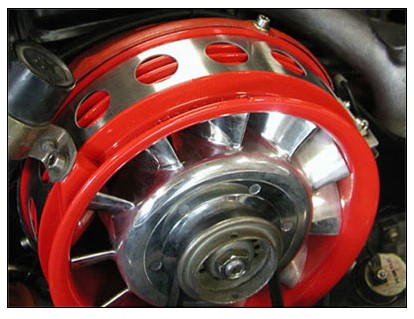

Rennline Stainless Steel Alternator Strap.

Fits:
Porsche 911/930 All 1965-89

We have redesigned our alternator straps for a sleeker look and simpler install. On most older 911's, the cadmium-plated alternator housing strap looks worse for the wear - the plating has become dull or corroded. The factory alternator housing strap can't be replaced without removing the ignition distributor, which necessitates resetting the engine's timing. Rennline's new alternator housing strap solves both problems: the brushed stainless steel perforated strap can be left as is or painted the color of your choice, and its unique 3 piece design makes installation easy to accomplish without touching the distributor. Comes with stainless steel hardware.

Note: Pictures may not show actual product.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

M03
