Rotor Arms / Point Sets

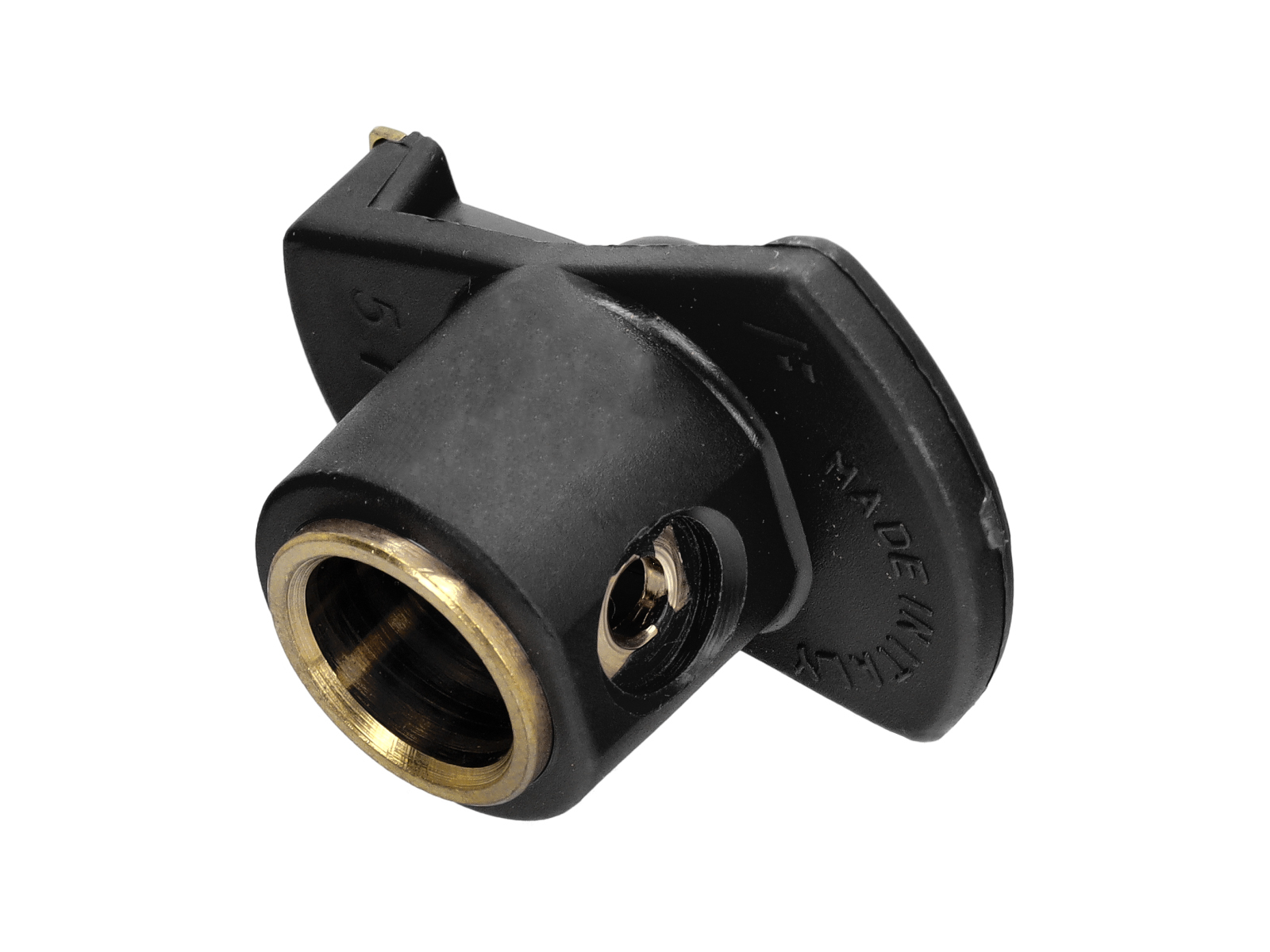

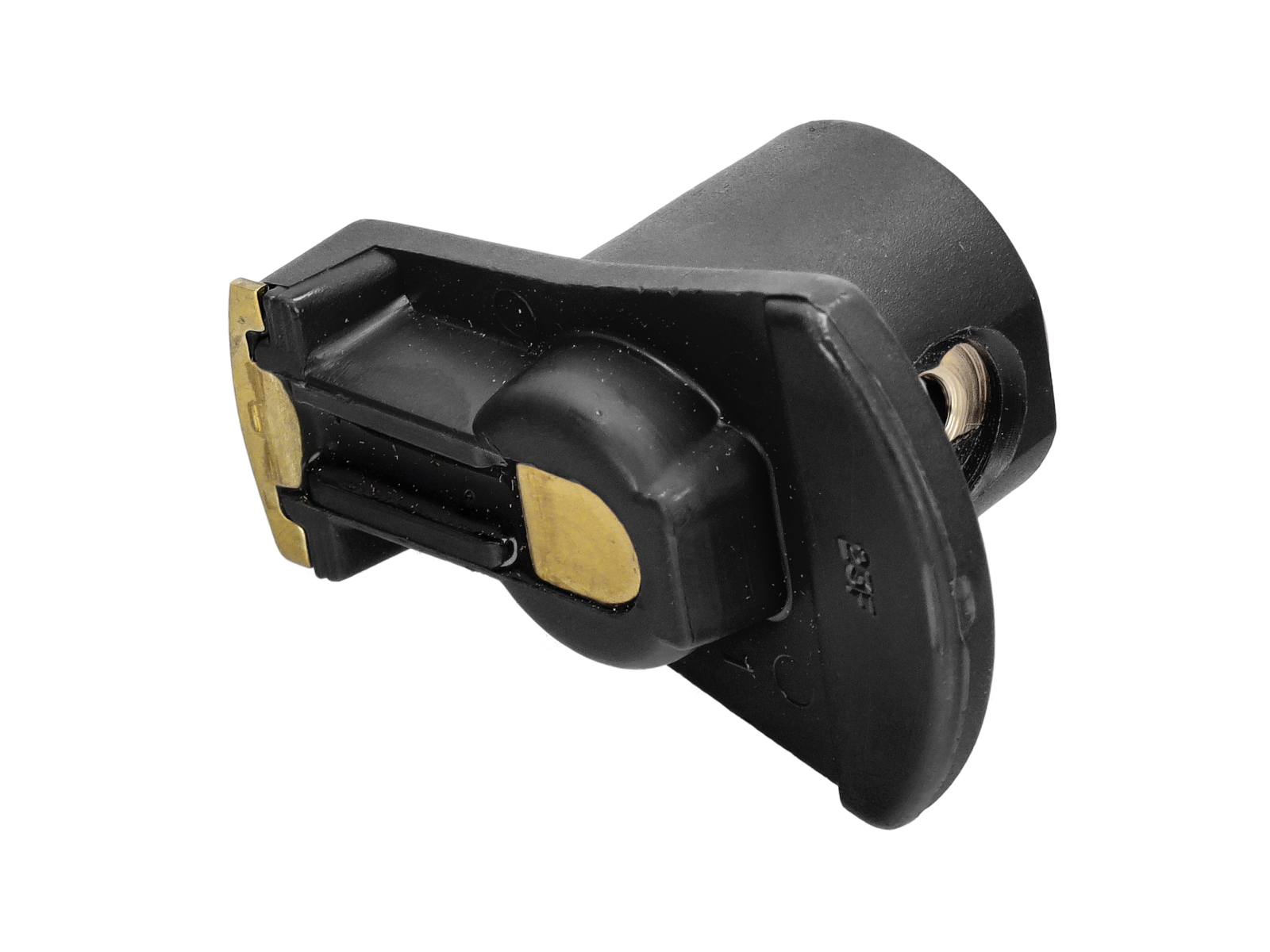

Rotor arm



Fits:
Porsche 924S 1986-88 8V Engines
Porsche 928 S2 1982-86
Porsche 944 / 944T 8V Engines 1982-89

The "rotor" head is attached to the top of the distributor shaft which is driven by a gear on the engine's camshaft and thus synchronized to it. This rotor is pressed against a carbon brush on the center terminal of the distributor cap which connects to the ignition coil either through the top and wired directly to the coil in HEI systems, or via the center terminal in points ignition systems and remotely connected to the coil.

The rotor is constructed such that the center tab is electrically connected to its outer edge so that voltage coming in to the center post travels through the carbon point to the outer edge of the rotor. As the camshaft rotates, the rotor spins and its outer edge passes each of the internal plug terminals to fire each spark plug.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94460290101

The product you are viewing cross references to these numbers
