Drop links Rear
Fits:
Porsche 928 1978-96 all models

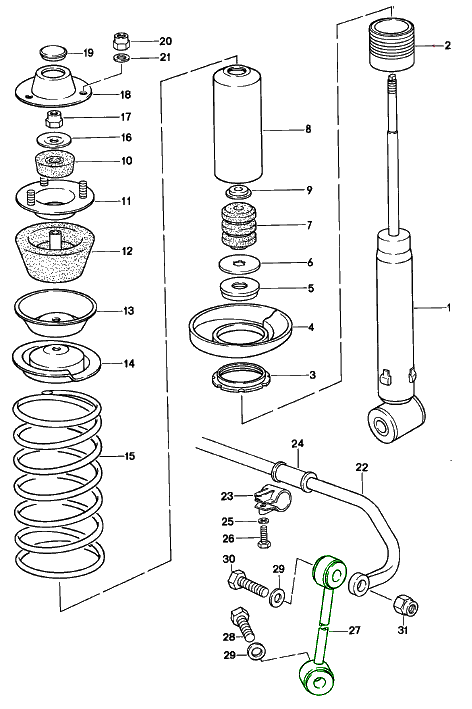

Click 'Zoom in' for large parts diagram.
Diagram ref no 27.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9283330
The product you are viewing cross references to these numbers
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 928GTS 5.4L 1992-95
Shop Securely
12 Month Warranty
Worldwide Delivery

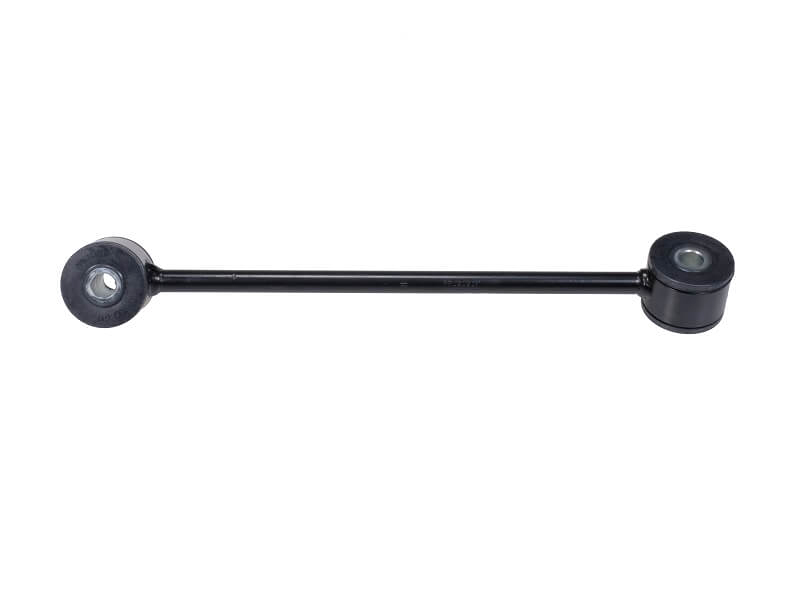

Ensure your Porsche 928 maintains its legendary handling precision with this pair of Rear Drop Links.
These stabilizer links connect the rear anti-roll bar to the suspension arms, allowing the sway bar to counteract body roll and stabilize the chassis during cornering.
Fits:
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 928GTS 5.4L 1992-95
Diagram Ref No 27
What This Product Does:
- The rear drop links connect the rear anti-roll bar (sway bar) to the rear suspension arms or linkage.
- When the car corners or one side of the rear suspension moves differently than the other, the drop links transfer force (torque) between the anti-roll bar and suspension to resist body roll.
- They help keep the rear of the car stable and flat in turns, improving grip, balance, and predictability.
- The drop link must allow some articulation to accommodate suspension travel without binding, while maintaining a solid mechanical connection.
Symptoms / Signs Of Worn Or Failed Rear Drop Links:
- Clunking or knocking noise from the rear when driving over bumps or uneven surfaces
- Excessive body roll in rear (the rear may lean more in corners than expected)
- Loose or vague rear handling — feeling of instability or wandering at the rear
- Uneven rear tire wear if the sway bar is not effectively held in place
- Noise during braking or transitions — because the sway bar may be loaded or unloaded unevenly
- Restores proper roll control — ensures the rear sway bar is effective and contributes to stability
- Eliminates noise & slack — worn links introduce play, rattle, or knock
- Improves handling balance — keeps the rear behavior consistent and predictable
- Protects other suspension parts — prevents overloading of adjacent arms or bushings compensating for the worn link
- Better driver confidence & safety — especially during aggressive driving or in emergency maneuvers
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9283330
The product you are viewing cross references to these numbers
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 928GTS 5.4L 1992-95
Shop Securely
12 Month Warranty
Worldwide Delivery

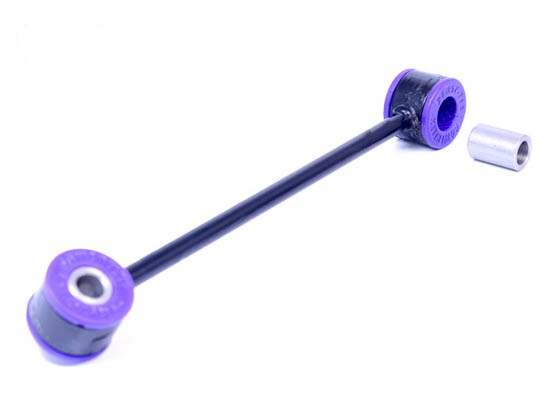

Sold as 4 bushes (both drop links)
Porsche Reference to: 477511061 / 92833305901 / 92833306001
Fits:
Porsche 928 1978-1995
Replacing your car rubber suspension bushes with Polyurethane Suspension Bushes will give you:
- Better road holding
- Constant steering geometry
- Increased tyre life
- More responsive steering
- Longer service life of suspension components

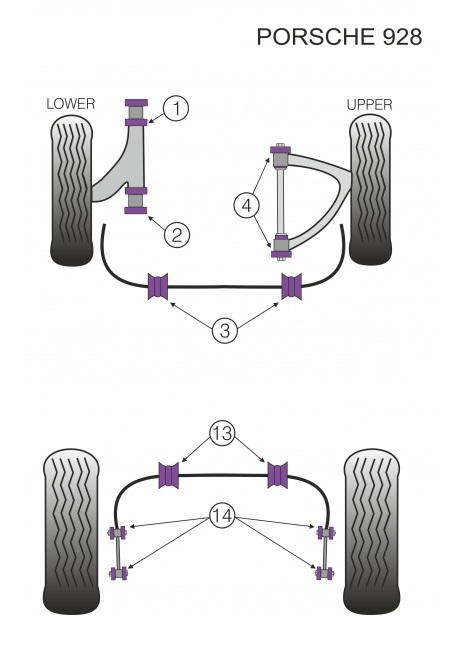

Please click 'Zoom in' to view the diagram.
Diagram ref no 14
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
PFR57-714
The product you are viewing cross references to these numbers
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 928GTS 5.4L 1992-95
Shop Securely
12 Month Warranty
Worldwide Delivery
Sold as 4 bushes (both drop links)
Porsche Reference to: 477511061 / 92833305901 / 92833306001
Fits:
Porsche 928 1978-1995
POWERFLEX Black Series bushes are manufactured using our Black 95 Shore A compound to provide maximum control of chassis geometry.
They are designed for the Track, ready to Race and are engineered to be the best.
Diagram ref no 14
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
PFR57-714BLK
The product you are viewing cross references to these numbers
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 928GTS 5.4L 1992-95
Shop Securely
12 Month Warranty
Worldwide Delivery
Sold as 4 bushes (both drop links)
Porsche Reference to: 477511061 / 92833305901 / 92833306001
Fits:
Porsche 928 1978-1995

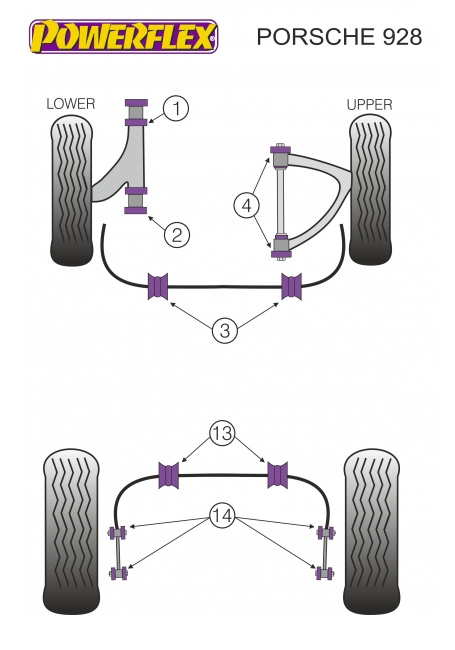

Please click 'Zoom in' to view the diagram.
Diagram ref no 14
Powerflex Heritage Collection. For Modern Day Classics.
A range of bushes engineered for the road to compliment your classic car.
POWERFLEX Heritage Collection bushes are manufactured using modern day materials with properties biased for the road. These dark grey coloured bushes will improve any collector's car, whilst retaining the same standard appearance of a rubber bush.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
PFR57-714H
The product you are viewing cross references to these numbers
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 928GTS 5.4L 1992-95
Shop Securely
12 Month Warranty
Worldwide Delivery
Rear ARB Drop Links – Balanced Handling and Rear Suspension Control
Rear ARB drop links are vital suspension components that connect the rear anti roll bar (sway bar) to the suspension, allowing it to operate correctly during cornering and load changes. By transmitting suspension movement to the anti roll bar, rear drop links help control body roll, maintain chassis balance and improve rear-end stability.
At Design911, we offer OE replacement and performance rear ARB drop links from trusted suspension brands. Whether you’re replacing worn components or upgrading as part of a handling-focused suspension setup, quality rear drop links are essential for predictable, confidence-inspiring driving.
What Do Rear ARB Drop Links Do?
Rear ARB drop links act as the linkage between
the rear suspension and the anti roll bar, ensuring the bar can resist body
roll effectively. Their key functions include:
- Transferring suspension movement to the anti roll bar
- Improving rear-end stability during cornering
- Helping balance front and rear handling characteristics
- Supporting consistent traction and tyre contact
Worn or damaged rear drop links can reduce the effectiveness of the anti roll bar and negatively impact handling balance.
Why Upgrade or Replace Rear ARB Drop Links?
- Replacing or upgrading rear ARB drop links provides:
- Restored anti roll bar effectiveness
- Reduced knocking or clunking noises from worn joints
- Improved handling balance and stability
- Better compatibility with upgraded or adjustable anti roll bars
Performance rear drop links may feature uprated joints, stronger materials or adjustable lengths, making them ideal for lowered vehicles or fast-road and track-focused suspension setups.
When Should You Replace Rear ARB Drop Links?
Rear ARB drop links should be replaced when:
- Knocking or rattling noises are present from the rear suspension
- Ball joints or bushes show play or wear
- Installing new anti roll bars or lowering springs
- Carrying out a suspension refresh or alignment
- Rear handling feels inconsistent or unstable
Replacing worn rear drop links ensures the anti roll bar works as intended and helps maintain predictable rear-end behaviour.
At Design911, our rear ARB drop links meet OE or performance standards for fitment, durability and handling performance.
