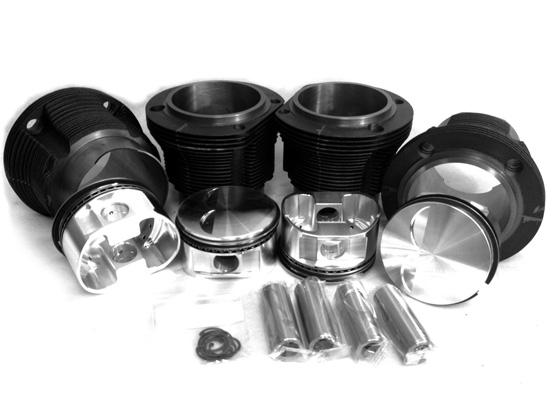

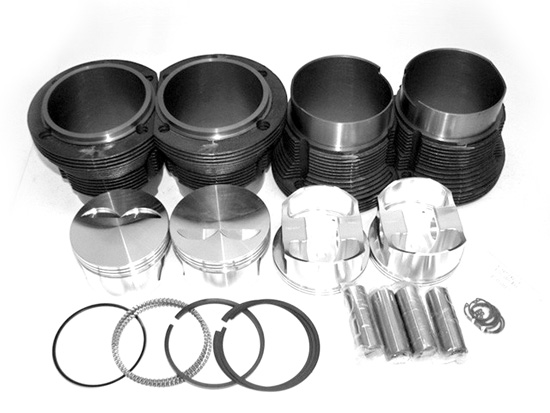

This is a new set of Type 4 2.0 liter 96mm flat top JE Pistons and cylinders.



JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins. It is a Slip in kit no machine work is needed.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc
Stroke: 71 to 78mm
Cylinders: Cast Iron
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

This is a new set of Type 4 2.0 liter 96mm stroker flat top JE Pistons and Cylinders.



JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 30.08mm Compression Height with a 22mm Pin. The smaller compression height allows you to build large stroked engines 78 to 86mm using longer rods that have the 22mm pins. It is a Slip in kit no machine work is needed.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc
Stroke: 78 to 86mm
Cylinders: cast iron
Pistons: Forged JE
Compression Height: 30.08mm
Pin: 22mm

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

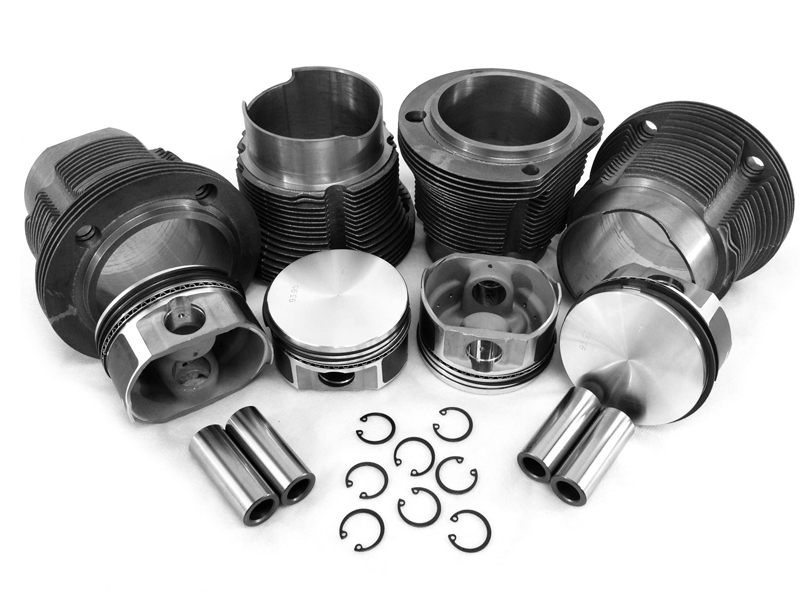

This is a new set of Type 4 2.0 liter 94mm flat top slipper skirt performance pistons and cylinders. These are high-compression European-style pistons. Perfect for adding some compression to your performance rebuild or for those in the European market.



Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.

Engine size: 2000cc
Stroke: 71 to 78mm
Cylinders: Cast iron
Pistons: Hypereutectic aluminum alloy
Compression Height: 35.20mm

Set includes: 4 pistons, 4 cylinders, 4 pins, and a set of rings

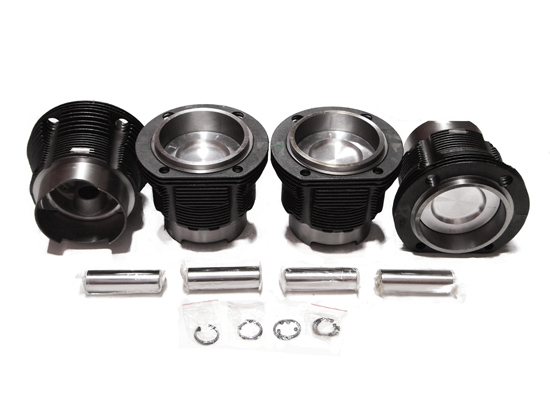

Piston and Liner kit 94mm 2.0L Porsche 914/ VW Type 4.


2.0 litre 94mm Dished Pistons and cylinders.

Engine size: 2000cc
Stroke: 71mm stroke pistons
Cylinders: Cast Iron
Pistons: Hypereutectic aluminium alloy
Compression Height: 35.5mm
Dish cc: 10cc
Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

Fits:
Porsche 914 1970-76

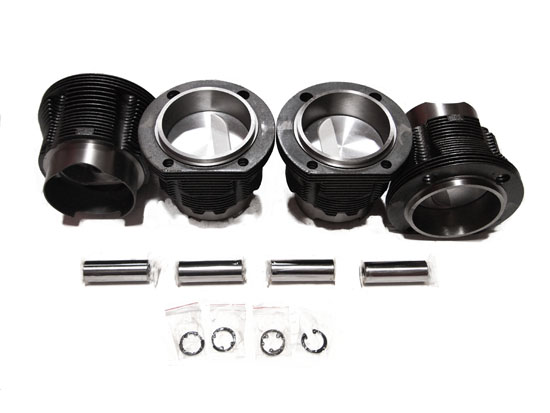

Piston and Liner kit 96mm 2.0L Porsche 914/ VW Type 4


2.0 liter 96mm flat top Pistons and cylinders.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc
Stroke: 71 to 78mm
Cylinders: Cast Iron
Pistons: Forged
Compression Height: 34.60mm
Pin: 24mm
Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

Fits:
Porsche 914 1970-76

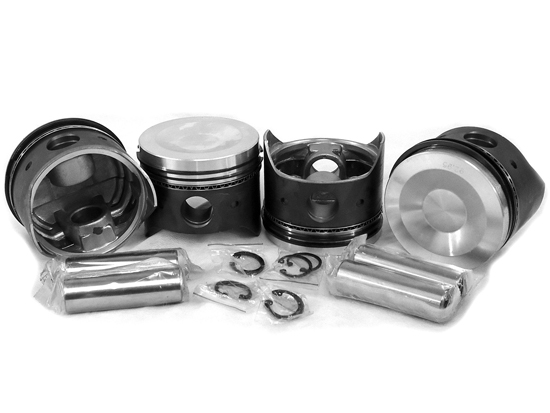

Dished Piston Set, 93x66mm.



Fits: Porsche 914, Type 4
Engine size: 1800cc

Stroke: For 66mm stroke crankshafts
Pistons: Hypereutectic aluminium alloy
Compression Height: 42mm
Dish cc: 10cc

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

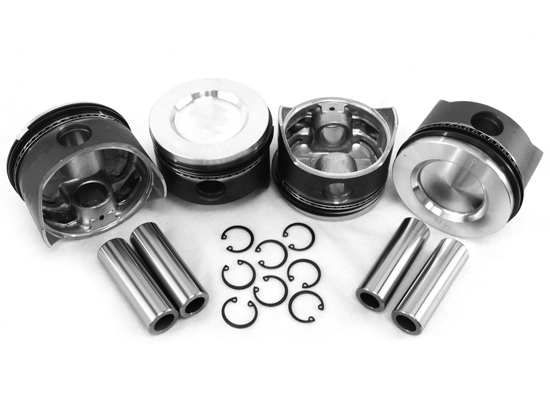

Dished Piston Set, 94x71mm.



Fits: Porsche 914, Type 4
Engine size: 2000cc

Stroke: For 71mm stroke crankshafts
Pistons: Hypereutectic aluminium alloy
Compression Height: 35.5mm
Dish cc: 10cc

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

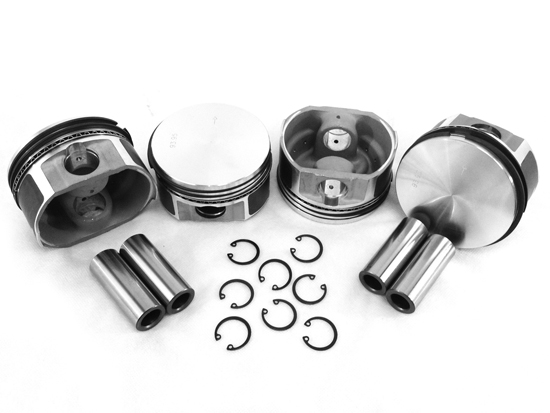

Piston set, Flat top 90x66mm.



Fits: Porsche 914, Type 4

Engine size: 1700cc
Stroke: For 66mm stroke crankshafts
Pistons: Hypereutectic aluminium alloy
Compression Height: 42mm

Set includes: 4 pistons, 4 pins and a set of rings.

This is a new set of Type 4 2.0 liter 94mm flat top slipper skirt performance pistons. These are high compression European style pistons. Perfect for adding some compression to your performance rebuild, or for those in the European market.



Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.

Engine size: 2000cc
Stroke: 71 to 78
Pistons: Hypereutectic aluminum alloy
Compression Height: 35.2mm

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

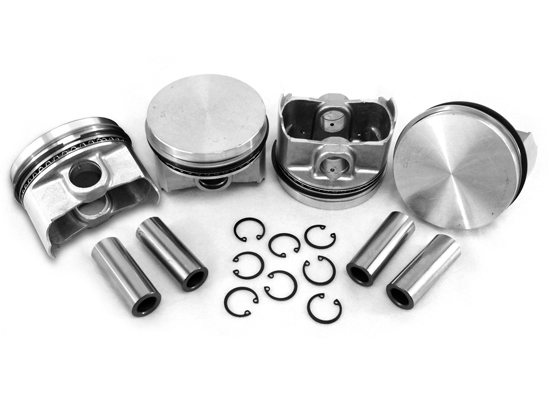

Piston set, Flat top 96x66mm



Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.

Stroke: For 66mm Crankshaft
Pistons: Hypereutectic aluminum alloy
Compression Height: 41.3mm

Set includes: 4 pistons,4 pins and a set of rings.

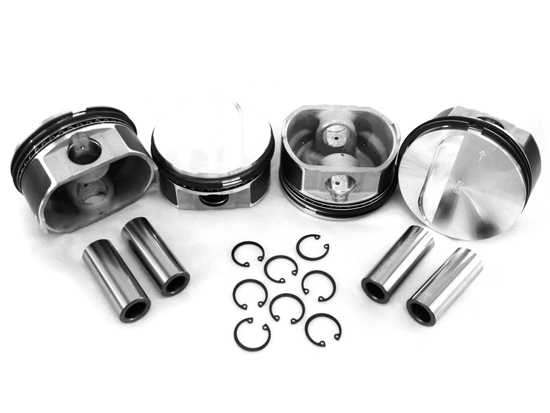

96x71mm Flat top Piston Set



Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc

Stroke: For use with 71mm to 78mm Crankshafts
Pistons: Hypereutectic aluminium alloy
Compression Height: 35.50mm
Pin: 24mm

Set includes: 4 pistons, 4 pins and a set of rings

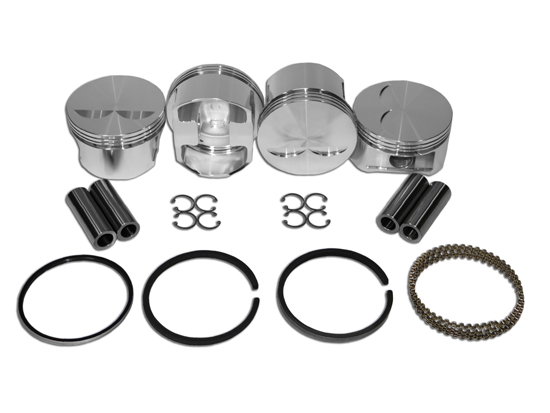

This is a new set of Type 4 flat top JE Pistons.



JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins giving you the option to Build 2.3L and bigger Engines.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.

Stroke: 71 to 78mm
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm

Set includes: 4 pistons, 4 pins, 4 clips and a set of rings

This is a new set of Type 4 flat top JE Pistons.



JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins giving you the option to Build 2.3L and bigger Engines.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.

Stroke: 71 to 78mm
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm

Set includes: 4 pistons, 4 pins, 4 clips and a set of rings

This is a new set of Type 4 2.0 liter flat top JE Pistons.



JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 30.08mm Compression Height with a 22mm Pin. The smaller compression height allows you to build large stroked engines 78 to 86mm using longer rods that have the 22mm pins.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc

Stroke: 78 to 86mm
Pistons: Forged JE
Compression Height: 30.08mm
Pin: 22mm

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

This is a new set of Type 4 2.0 liter 96mm flat top JE Pistons.



Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc

JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins.

Stroke: 71 to 78mm
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm

Set includes: 4 cylinders, 4 pins and a set of rings
