Porsche specialists based in the UK
Porsche > 914 (1970-1976) > Suspension & Axle >

Anti Roll Bar Bracket

Anti Roll Bar Bracket

Filter by brand
DISPLAYING 1 to 5 (of 5 products)
Anti roll bar reinforcement plate. Porsche 914 - 91450153271, 91450153211 - URO-014782
2
Anti roll bar reinforcement plate. Porsche 914
91450153271/1
Product Information
Product Information
Anti roll bar reinforcement plate. Rear.
Price is each.

Fits:
Porsche 914 1970-76

Diagram ref no 29

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91450153271
91450153271
91450153211

The product you are viewing cross references to these numbers
Anti roll bar reinforcement plates front. Porsche 914 - 91450153271/1
2
Anti roll bar reinforcement plates front. Porsche 914
91450153271/2
Product Information
Product Information
Anti roll bar reinforcement plates. Front.
Sold as a pair

Fits:
Porsche 914 - 1970 to 1976

These reinforcement plates are used to reinforce the area around the front anti roll bar.
The plates will thicken and strengthen the area.

Lateral support clamp anti roll bar. Various sizes for Porsche - PFC13-14, PFC15-16, PFC17-18, PFC19-20, PFC21-22, PFC23-24, PFC25-27, PFC31-33, PFC28-30
3
Lateral support clamp anti roll bar. Various sizes for Porsche
PFC
Product Information
Product Information
Lateral support clamp anti roll bar.

powerflex

Anti-Roll Bars (ARB’s) play an important role in a vehicle’s suspension system, helping to reduce body roll by transferring cornering load from one side of a vehicle to the other.

Often mounted to the vehicle’s chassis with rubber bushes, these bushes ensure the bar works as intended. To prevent the anti-roll bar from moving laterally within its mounts when turning, OE manufacturers will either bond the bushes to the bar, add dead-stops to the bar itself, or rely solely on the clamping pressure of the rubber.

But what happens when those bushes wear and need to be replaced? Often anti-roll bars with bonded bushes come as a costly complete assembly, so the alternative is to fit a more cost-effective unbonded polyurethane replacement, like the many we offer.

In most cases, friction from the bush will prevent any side-to-side bar movement. Still, when turning aggressively or cornering at higher speeds, a laterally shifting anti-roll bar decreases the efficiency and effectiveness of the bar, changing the dynamics of your suspension system in unpredictable ways. It also poses the risk of the bar fouling on other areas of the vehicle or suspension system.

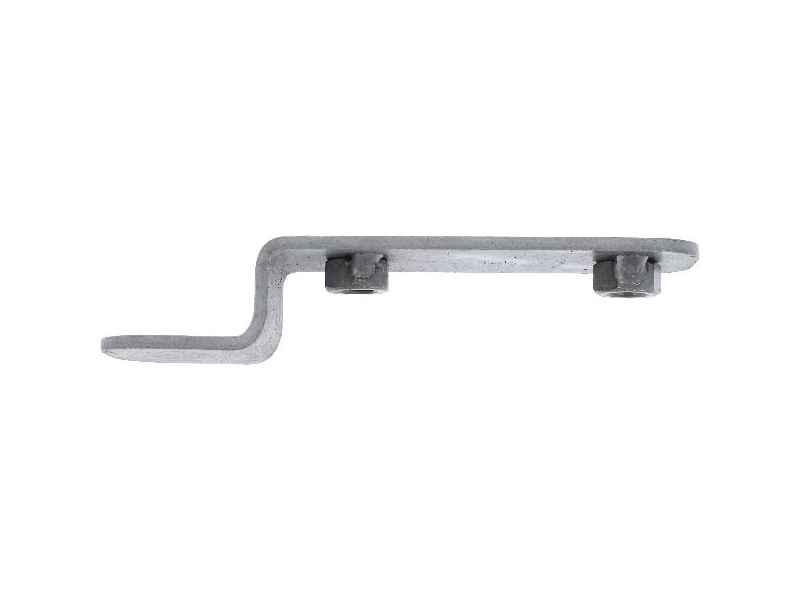

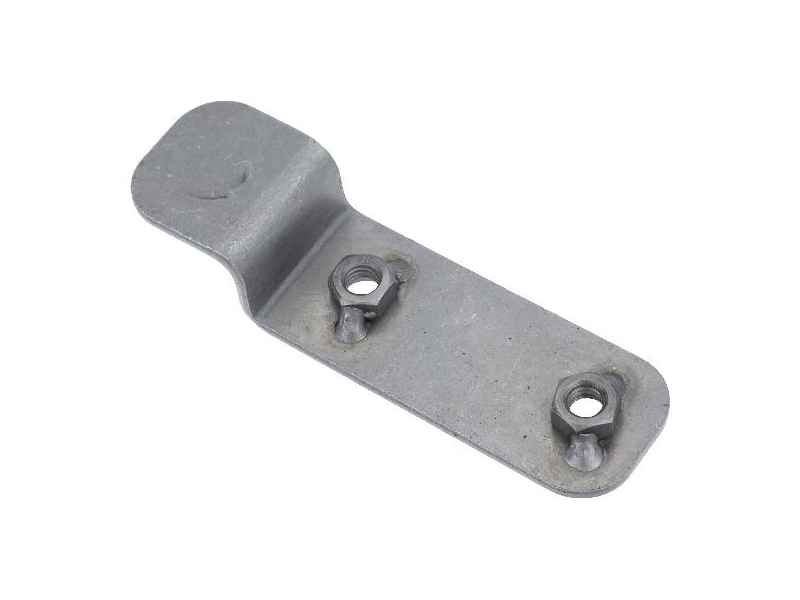

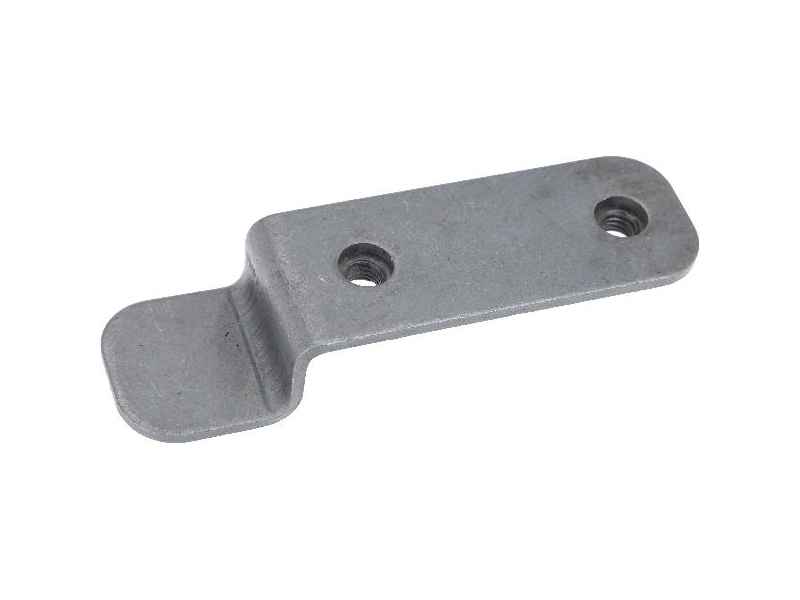

Mounting bracket rear anti roll bar. Porsche 914 1970-74 - 91450125910 - URO-014781
5
Mounting bracket rear anti roll bar. Porsche 914 1970-74
91450125910/1
Product Information
Product Information

Anti-Roll Bar Mounting Bracket. Porsche 914
Sold each, 2 required per car
Replace the worn or damaged anti-roll bar mounting bracket in your Porsche 914’s suspension system with this precision-engineered replacement component. Designed to securely hold the anti-roll (sway) bar in place, this bracket maintains correct suspension geometry and stabiliser alignment — essential for sharp cornering and balanced ride control.

Fits:

  • Porsche 914 (1970-1974)

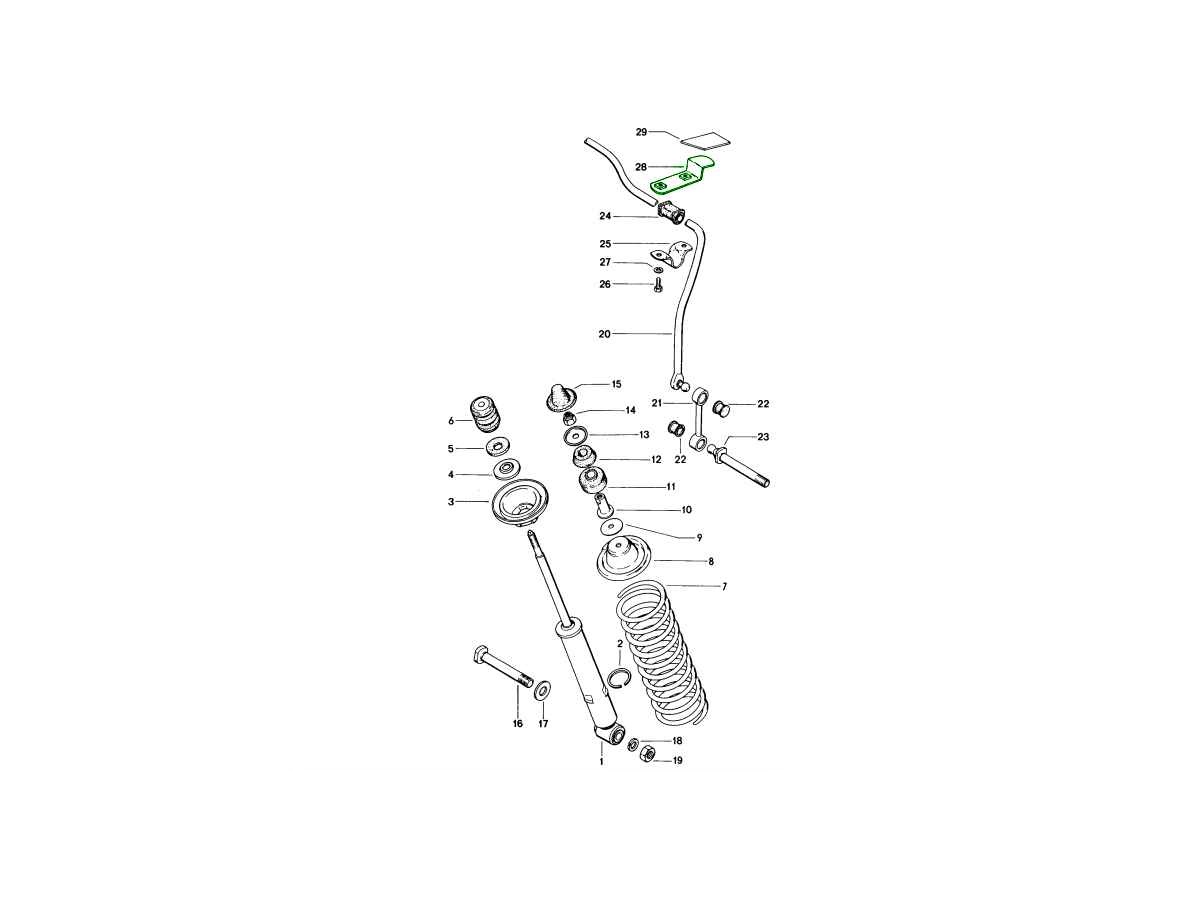

Diagram Ref No: 28

What This Product Does:

• The anti-roll bar mounting bracket is a crucial part of the front suspension that holds the sway bar bushing and stabiliser bar securely to the chassis. It ensures that the anti-roll bar can twist effectively during cornering, reducing body roll and maintaining stability.
• Properly fitted brackets prevent unwanted movement of the anti-roll bar, ensuring it transmits forces evenly across the suspension and keeps your Porsche planted through corners.
• A solid, corrosion-free bracket ensures the sway bar operates smoothly without excessive flexing or misalignment, supporting predictable handling and safe performance.

Symptoms & Signs Of Wear / When To Replace:

• Clunking or knocking sounds from the front suspension when driving over bumps or during cornering — often caused by loose or cracked brackets.
• Visible corrosion, cracking, or deformation of the original brackets due to age, rust, or impact.
• Excessive body roll or unstable handling indicating that the anti-roll bar is not properly secured.
• If replacing sway bar bushings or performing front suspension restoration, it is recommended to renew these brackets for full system integrity.

Why Replacement Matters:

• Restores handling precision: Ensures the anti-roll bar remains firmly attached, reducing body roll and improving steering feedback.
• Prevents suspension damage: Loose or broken brackets can cause premature wear of sway bar links and bushings — replacing them avoids further component stress.
• Improves safety and ride quality: A properly mounted stabiliser bar is key to maintaining chassis balance and cornering confidence.
• Cost-effective repair: Small, affordable part that prevents larger suspension issues and extends the life of bushings and bar components.

Enhance your Porsche 914’s suspension stability with a replacement anti-roll bar mounting bracket (91450125910) from Design911. This precision-fit component secures the sway bar to the chassis, ensuring consistent anti-roll performance and accurate handling response. Over time, original brackets can rust, deform, or loosen due to years of load cycles and environmental exposure — leading to increased body roll, clunking noises, and poor cornering grip.

Installing new Porsche 914 sway bar brackets restores chassis rigidity, protects suspension components, and keeps your handling tight and responsive. Perfect for classic Porsche restorations, performance upgrades, or preventative maintenance on ageing suspension hardware.



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91450125910
91450125910

The product you are viewing cross references to these numbers
U-tab kit. Porsche 911 / 912 / 930 / 914 - 2270025, 91134190100, 91134190200
1
U-tab kit. Porsche 911 / 912 / 930 / 914
Special Offer
2270025
Product Information
Product Information
U-tab kit.

elephantracing

Fits:
Porsche 911 / 912 / 930 1969-89
Porsche 914 1970-76

Required when installing many thru-body type front sway bars onto cars originally equipped with an under-body type sway bar. U tabs are welded to stock control arms in place of the 'loop' style bushing holders used on cars originally equipped with under body type front sway bars.

• Required For Thru-Body Swaybar Conversions
• Not required for Elephant Racing Blade Type Swaybars
• Welding required for proper installation

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2270025
2270025
91134190100
91134190200

The product you are viewing cross references to these numbers
DISPLAYING 1 to 5 (of 5 products)
Also found on these pages
About Anti Roll Bar Bracket

Porsche Anti-Roll Bar Brackets | Design911 Precision Mounts for Suspension Stability & Control

Anti-roll bar brackets are crucial mounting components that secure the anti-roll bar (sway bar) to your Porsche’s chassis, allowing it to function correctly during cornering and body movement. These brackets keep the anti-roll bar firmly aligned, ensuring the suspension maintains balance, grip, and predictable handling under load. Without strong, well-fitted brackets, your Porsche’s anti-roll system cannot effectively reduce body roll or maintain stable steering response.

At Design911, we stock a premium range of anti-roll bar brackets, clamps, and mounting hardware designed for strength, accuracy, and durability. Manufactured from reinforced steel or lightweight alloy, these components provide secure attachment and resistance against vibration, heat, and road stress. Ideal for routine maintenance, suspension restoration, or performance upgrades, our brackets help keep your Porsche’s suspension system operating with precision and confidence.

What Do Anti-Roll Bar Brackets Do?

Anti-roll bar brackets secure the anti-roll bar to the vehicle’s subframe or chassis, enabling the bar to twist and counteract body roll effectively.

Core Functions:
• Mount and stabilise the anti-roll bar to maintain alignment.
• Support proper bar movement under cornering forces.
• Ensure secure and vibration-free attachment to the chassis.
• Prevent unwanted flex, noise, or bar misalignment.
• Enhance the consistency and precision of suspension performance.

High-quality anti-roll bar brackets ensure your Porsche’s suspension delivers smooth, controlled, and stable handling during dynamic driving.

Why Do Anti-Roll Bar Brackets Fail or Degrade?

Brackets are constantly subjected to torsional forces, corrosion, and environmental wear, especially on performance and older vehicles.

Common Causes of Failure Include:
• Corrosion or rust weakening the bracket’s structure.
• Wear or cracking due to continuous suspension load.
• Deformation from impact or heavy cornering forces.
• Loose fittings causing excessive bar movement or noise.
• Age-related fatigue or material degradation.

When anti-roll bar brackets fail, the sway bar loses stability and effectiveness — resulting in poor handling, clunking noises, and reduced chassis control.

Why Replace or Upgrade Your Porsche Anti-Roll Bar Brackets?

Replacing worn or damaged brackets restores suspension integrity and eliminates unwanted flex or movement. Upgraded materials and reinforced designs improve strength, handling precision, and long-term durability.

Key Benefits:
• Restores anti-roll bar stability and performance.
• Reduces noise, vibration, and body roll.
• Improves cornering response and suspension consistency.
• Precision-engineered for perfect alignment and fitment.
• Available for Porsche 911, 944, 968, Boxster, Cayman, Cayenne, and Macan models.
• Ideal for restoration, maintenance, or performance applications.

Design911’s Porsche anti-roll bar brackets are built for strength, precision, and longevity — ensuring your suspension system performs exactly as intended, mile after mile.

Highlights

• Premium Porsche anti-roll bar brackets, clamps, and mounts.
• Constructed from corrosion-resistant steel or alloy.
• Engineered for perfect fitment and vibration resistance.
• Restores suspension stability and cornering control.
• Suitable for both classic and modern Porsche models.
• Perfect for servicing, restoration, or track preparation.
