This is a new set 86mm Porsche 356/912 CP pistons with Biral cylinders.



It fits Porsche 356; C, SC, 1963-66 & Porsche 912; 1965 and Up with the 3 piece case. The Cylinders are Biral with CP Forged pistons with 30° Angle.

CP Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pocket, CP kits come with wirelock pin clips for extreme RPM. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better . This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 1600cc
Stroke: 74mm
Cylinders: Biral.
Pistons: CP 2618 Forged
Dome Height: .155
Compression: 9.5:1
Piston Angle: 30°

Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and wire locks with tool.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186PCP

The product you are viewing cross references to these numbers

This is a new set 82.5mm Porsche 356/912 JE High Compression pistons with Biral cylinders.



It fits Porsche 356; C, SC, 1963-66 & Porsche 912; 1965 and Up with the 3 piece case. The Cylinders are Biral with JE Forged pistons with 30° Angle.

JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pocket, Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This is a High Compression kit 11.5:1 more commonly used in race-cars . This kit requires no machine work, when installing in factory Porsche case & heads

Engine size: 1600cc
Stroke: 74mm
Cylinders: Biral.
Pistons: JE 2618 Forged
Dome Height: .295
Compression: 11.5:1
Piston Angle: 30°

Kit includes: 4 Cylinders, 4 Pistons, A set Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081182PJE

The product you are viewing cross references to these numbers

This is a new set 83.5mm Porsche 356/912 JE High Compression pistons with Biral cylinders.



It fits Porsche 356; C, SC, 1963-66 & Porsche 912; 1965 and Up with the 3 piece case. The Cylinders are Biral with JE Forged pistons with 30° Angle.

JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pocket, Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This is a High Compression kit 11.5:1 more commonly used in race-cars . This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 1600cc
Stroke: 74mm
Cylinders: Biral.
Pistons: JE 2618 Forged
Dome Height: .295
Compression: 11.5:1
Piston Angle: 30°

Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081183PJE

The product you are viewing cross references to these numbers

This is a new set 83.5mm Porsche 356/912 JE High Compression pistons with Biral cylinders.



It fits Porsche 356; C, SC, 1963-66 & Porsche 912; 1965 and Up with the 3 piece case. The Cylinders are Biral with JE Forged pistons with 30° Angle.

JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pocket, Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This is a High Compression kit 9.5:1 more commonly used in race-cars . This kit requires no machine work, when installing in factory Porsche case & heads

Engine size: 1600cc
Stroke: 74mm
Cylinders: Biral.
Pistons: JE 2618 Forged
Dome Height: .295
Compression: 9.5:1
Piston Angle: 30°

Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081183CJE

The product you are viewing cross references to these numbers

This is a new set 86mm Porsche 356/912 JE pistons & cylinders.



It fits Porsche 356; C, SC, 1963-66 & Porsche 912; 1965 and Up with the 3 piece case. The Cylinders are Cast Iron with JE Forged pistons with 30° Angle.

JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pocket. This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 1600cc
Stroke: 74mm
Cylinders: Cast Iron
Pistons: JE 2618 Forged
Dome Height: .155
Compression: 9.5:1
Piston Angle: 30°

Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186CJE

The product you are viewing cross references to these numbers

This is a new set of Big Bore 86mm Porsche 356/912 pistons with Biral cylinders.



It fits Porsche 356; C, SC, 1963-66 & Porsche 912; 1965 and Up with the 3 piece Case. The Cylinders are Biral with Graphite Coated Hypereutectic pistons with the 30° Angle, valve pockets, and the 22mm Pin. Biral Liners are a cast iron sleeve with aluminum fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 1600cc
Stroke: 74mm
Cylinders: Biral.
Pistons: Hypereutectic
Dome CC: 17
Compression: 9.2:1
Piston Angle: 30°

Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186PB

The product you are viewing cross references to these numbers

This is a new set of Big Bore 86mm Porsche 356/912 pistons and cylinders.



It fits Porsche 356; C, SC, 1963-66 & Porsche 912; 1965 and Up with the 3 piece Case. The Cylinders are cast iron with Graphite Coated Hypereutectic pistons with the 30° Angle, valve pockets, and the 22mm Pin. This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 1600cc
Stroke: 74mm
Cylinders: Cast Iron.
Pistons: Hypereutectic
Dome CC: 17
Compression: 9.2:1
Piston Angle: 30°

Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186PS

The product you are viewing cross references to these numbers

This is a new set 86mm Porsche 356/912 JE pistons with Biral cylinders.



It fits Porsche 356; C, SC, 1963-66 & Porsche 912; 1965 and Up with the 3 piece case. The Cylinders are Biral with JE Forged pistons with 30° Angle.

JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pocket, Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better . This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 1600cc
Stroke: 74mm
Cylinders: Biral.
Pistons: JE 2618 Forged
Dome Height: .155
Compression: 9.5:1
Piston Angle: 30°

Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186PJE

The product you are viewing cross references to these numbers

This is a new set of 81mm Porsche 911 2.0L High compression JE pistons with Biral cylinders.



The Compression ratio is 9.5:1 with the 66mm crank. JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads

Engine size: 2.0
Stroke: 66
Cylinders: Biral.
Pistons: JE 2618 Forged
Dome Height: .460
Compression: 9.5:1

Kit includes: 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891181SJE

The product you are viewing cross references to these numbers

This is a new set of 86mm Big Bore Porsche 356 or 912 Cast Iron Liners. This kit requires no machine work.



Fits:
Porsche 356
Porsche 912

Cylinders: Cast Iron.
Kit included: 4 Cylinders

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186SL

The product you are viewing cross references to these numbers

This is a new set of 83.5mm Big Bore Porsche 356 or 912 Biral Liners. This kit requires no machine work.



Fits:
Porsche 356
Porsche 912

Cylinders: Biral
Kit included: 4 Cylinders

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081183BL

The product you are viewing cross references to these numbers

This is a new set of 86mm Big Bore Porsche 356 or 912 Biral Liners. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This kit requires no machine work.



Fits:
Porsche 356
Porsche 912

Cylinders: Biral.
Kit included: 4 Cylinders

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186BL

The product you are viewing cross references to these numbers

This is a new set of 82.5mm Porsche 356 or 912 Biral Liners. This kit requires no machine work.



Fits:
Porsche 356
Porsche 912

Cylinders: Biral
Kit included: 4 Cylinders

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081182BL

The product you are viewing cross references to these numbers

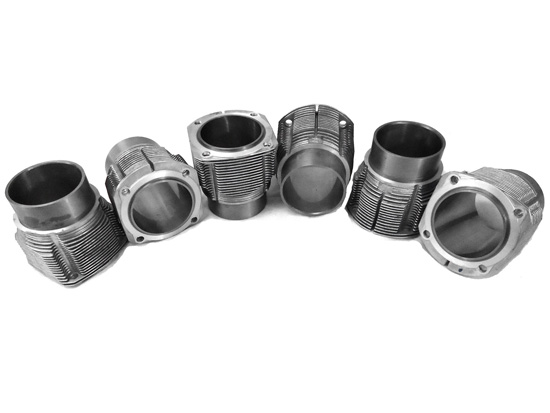

This is a set of (6) Big Bore Biral cylinders for the 2.0 Liter 911 engine.

Fits:
Porsche 911 2.0L

Size: 81 mm
Cylinders: Biral.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891181BL

The product you are viewing cross references to these numbers

This is a new set of Big Bore 86mm Porsche 356/912 pistons.



Fits: Porsche 356C / SC 1963-66 & Porsche 912 1965 and Up with the 3 piece Case.

Graphite Coated Hypereutectic pistons with the 30° Angle, valve pockets, and the 22mm Pin.

Engine size: 1600cc
Stroke: 74mm
Pistons: Hypereutectic
Dome CC: 17
Compression: 9.2:1
Piston Angle: 30°

Kit includes: 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186SP

The product you are viewing cross references to these numbers

This is a new set Porsche 356/912 JE High Compression pistons.



Fits: Porsche 356 C / SC 1963-66 & Porsche 912 1965 and Up with the 3 piece case.

JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pocket and the 30° Angle. This is a High Compression Piston kit 11.5:1 more commonly used in race-cars .

Engine size: 1600cc
Stroke: 74mm
Pistons: JE 2618 Forged
Dome Height: .295
Compression: 11.5:1
Piston Angle: 30°

Kit includes: 4 Pistons, A set Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

008118
