Wiring harness

Air conditioning relay wiring harness loom.

Fits:
Porsche 911 - 1974 to 1984
Porsche 911 turbo - 1974 to 1984

Loom - NR 80

Complete harness from fusebox to relay socket (AC control relay) and 2 pole female connector.
As original coloured wiring.

Original neoprene terminal sleeves used, (no shrink wrap)

High quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53

Gasoline, oil, battery acid, engine coolant resistant.

The high flex sleeving is very resistant to solvents and free of halogen, sulphur and phosphorous.

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161208001

The product you are viewing cross references to these numbers

Air conditioning thermo switch wiring harness loom - Left Hand Drive (LHD)



Fits:
Porsche 911 - 1978 to 1989
Porsche 911 turbo - 1978 to 1989

Wiring Harness Nr. 29
Thermo Bi-metal Switch - Left hand Drive

Model: M559 - 1978-1989, Air conditioner

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 12

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161202901

The product you are viewing cross references to these numbers

Air conditionong wiring harness loom.

Fits:
Porsche 911 - 1974 to 1984
Porsche 911 turbo - 1974 to 1984

Loom - NR 78

Complete harness from fusebox to AC control relay and 6 pole female connector.

As original coloured wiring.
Original neoprene terminal sleeves used, (no shrink wrap)
High quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53
Gasoline, oil, battery acid, engine coolant resistant.
The high flex sleeving is very resistant to solvents and free of halogen, sulphur and phosphorous.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 8

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161207801

The product you are viewing cross references to these numbers

Cable tie wrap.



Fits:
Porsche 911 - 1970 to 1989
Porsche 914 - 1970 to 1976
Porsche 928 - 1978 to 1995
Porsche 996 GT3 - 1999 to 2005
Porsche 997 turbo - 2007 to 2013

Click 'Zoom in' for large parts diagram.
Diagram ref no 13

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99951302340

The product you are viewing cross references to these numbers

Diode for rear window wiper.



Fits:
Porsche 911 1974-89



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161710602

The product you are viewing cross references to these numbers

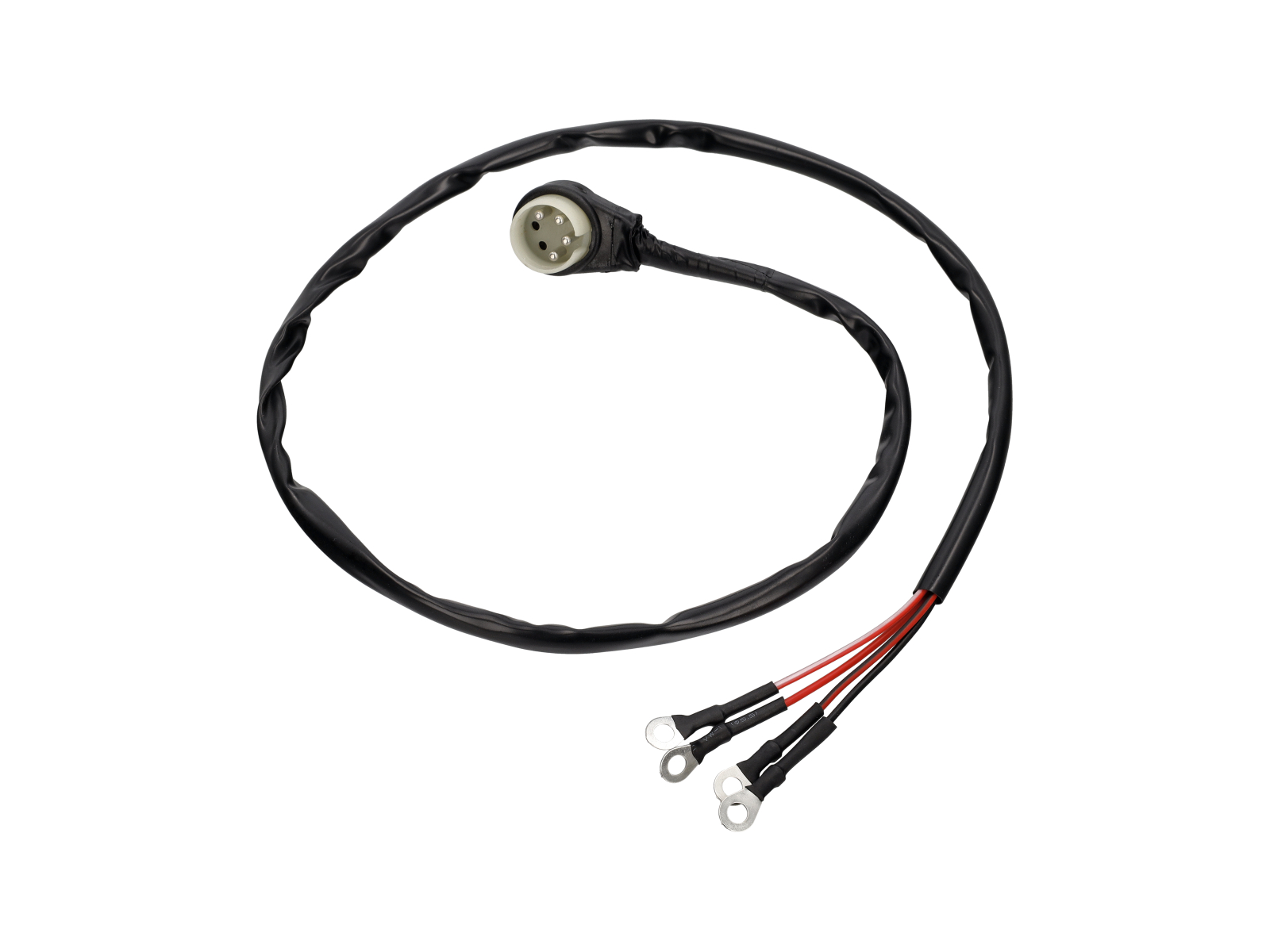

Electric window power supply wiring harness loom.



Fits:
Porsche 911 - 1969 to 1975

Power supply harness.
This harness in installed in the trunk and supplies both doors, it has a round female 6 pole connector on the left and right.

It is connected to the front fusebox and ground studs (8mm eyelet) on both sides.

Other side of this harness needs to be connected to the terminal strip inside the door.

Handmade to concourse quality.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161207102

The product you are viewing cross references to these numbers

Engine bay lamp wiring harness loom.

Fits:
Porsche 911 1974 to 1989

Harness from left rear light (tunnel harness) to engine bay light in engine lid & ground.

Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161204900

The product you are viewing cross references to these numbers

Engine Bay Lamp Wiring Harness Loom.

Fits:
Porsche 911 1974>>1985

Diagram Ref No 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161204904

The product you are viewing cross references to these numbers

External starter motor relay.
Bypass your expensive ignition switch and install a hot start relay that will lead the current directly to the starter.
We have a 6 or 12 volt version and it works in any classic.

Fits:
Porsche 911 / 924 / 928 / 914 / 944 / 968 / 356

This relay can be placed near the starter motor and is used to limit the starting current and no longer allow it to be switched via the ignition switch.

8 wire gauge illumination harness with bulb sockets - Bulbs not included.



Fits:
Porsche 911 1974-86

Click 'Zoom in' for large parts diagram.
Diagram ref no 19

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161204700

The product you are viewing cross references to these numbers

Hazard warning relay plug socket 4 pole.



Fits:
Porsche 911 - 1970to 1989
Porsche 964 - 1990 to 1994
Porsche 968 - 1992 to 1995
Porsche 914 - 1970 to 1976
Porsche 924S - 1986 to 1988
Porsche 944  - 1982 to 1991

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161233400

The product you are viewing cross references to these numbers

Ignition switch wiring harness loom.



Fits:
Porsche 911 - 1976 to 1984
Porsche 911 turbo - 1976 to 1984 (including)

Harness with 6 pole male connector that connects to ignition switch and comes with original colour coded wiring.

Harness will fit exactly like the original with the wire tube and oil resistant tape as original.

Terminals have rubber sleeves.

Harness comes with detailed connection instructions.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201132

The product you are viewing cross references to these numbers

Inline fuse for dash illumination lights.



Fits:
Porsche 911 - 1965 to 1989

The power supply lead (black-blue) for the dashboard illumination is unfused.

A short in the brass bulb holder can lead to serious damage in your wiring harness. This easy to install inline fuse holder protects your wiring and expensive light switch.

This inline fuse can be positioned at the light switch in between terminal 58A  and the black blue wire(s) *
* for 1969 and 1970 models this wire will be black-purple.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161204303

The product you are viewing cross references to these numbers

Inline Fuses for Footwell Heater Blower Motors. Porsche 911 1984-89

Fits:
Porsche 911 - 1984 to 1986
Porsche 911 Turbo 3.3ltr - 1983 to 1986

This harness set is designed to protect the footwell blowers of the 911 Carrera 3.2 with an inline fuse.

Models from 1984 until April 1986 lacked fusing for the footwell blowers. The fan motors, often prone to failure due to bearing issues, could seize and potentially overheat, leading to damage.

Our inline fuse set offers a direct solution, featuring a 10A inline LED fuse. In the event of a motor short, the fuse will blow and the LED will illuminate, safeguarding your valuable trunk harness.

Sold as a set of 2, with an easy plug-and-play installation.

Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91162404302

The product you are viewing cross references to these numbers

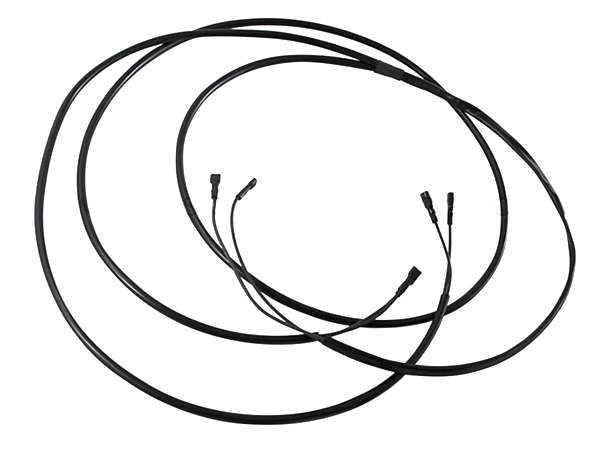

Wiring harness for interior light.



Fits:
Porsche 911 1969 Coupe
Porsche 911 1970-73 Coupe
Porsche 911 1978-84 Coupe

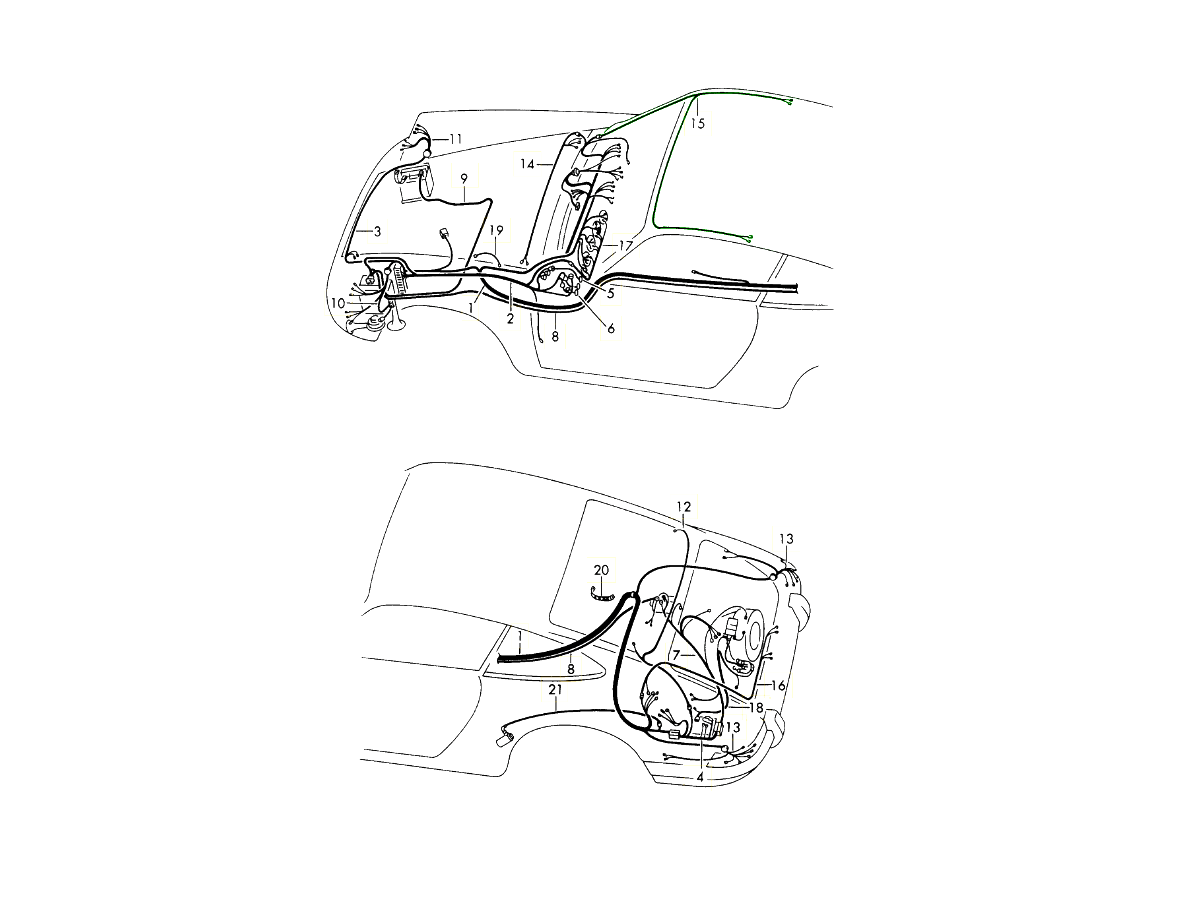

Click 'Zoom in' for large parts diagram.
Diagram ref no 15

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161203520

The product you are viewing cross references to these numbers

Interior light wiring harness loom - Targa

Fits:
Porsche 911 - 1969 to 1986 Targa Only

Harness for interior lights (Targa version)

Connects to main harness on right side under window.
As original coloured wiring.
Original neoprene terminal sleeves used, (no shrink wrap)
Very high quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53
Gasoline, oil, battery acid, engine coolant resistant.
High flex sleeving ,very resistant to solvents and free of halogen, sulphur and phosphorous.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161203541

The product you are viewing cross references to these numbers
