Shock Absorber Parts FRONT

Camber plate monoball cartridges for 2152200
Sold as Pair, 1 pair required per car



Fits:
Porsche 911 / 912 / 930 1966-89
Porsche 914 1970-76


Performance

Today's sticky tire compounds generate corner loads that easily compress factory rubber bushings causing wandering alignment settings. The result is that camber and toe change unpredictably, making steering imprecise and the car difficult to drive fast.

Monoball Cartridges replace compliant factory rubber bushings with hardened-steel spherical bearings. Unlike poly bushings that bind and resist movement, true spherical bearings allow free motion on multiple axis.

• Precise, razor sharp handling
• Holds alignment settings true
• Weather-Sealed for long life
• Eliminates camber loss due to compression
• Extremely low friction

Weather Seals
Our proprietary-design Monoball cartridges have optional weather seals to keep dirt out and extend product life.

This is the only Monoball suitable for street or extended track use. Dirt and water contaminate ordinary products and accelerate wear.

Fitment

Front monoballs fit easily into the stock camber plates of 67-89 911/912/930 cars (911 341 018 00). Cars with pre-67 camber plates are recommended to switch to a 67-89 camber plate for fitment. 65 cars without camber plates require grinding to enlarge the strut top opening to allow fitment of the cartridges.

Easy Bushing Replacement How-To

Your existing bushings are pressed in place, they will need to be pressed out, and you will need to press in the new bushings but it's really easy when you have the right tools. To ease and speed the bushing removal and installation process without using a shop press please see our purpose designed Split Bushing Removal Tool and our Bushing Installation tool.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2011000

The product you are viewing cross references to these numbers

Cover plate top mount (double-bore). Front.

Fits:
Porsche 911 1970-89
Porsche 930 1975-89
Porsche 914 1970-76

Diagram ref no 12

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91150193300

The product you are viewing cross references to these numbers

Cover plate top mount (double-bore). Front.

Fits:
Porsche 911 1970-89
Porsche 930 1975-89
Porsche 914 1970-76

Diagram ref no 12

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91150193300

The product you are viewing cross references to these numbers

Cover plate top mount (one-bore), Front.

Fits:
Porsche 911 1970-89
Porsche 930 1975-89
Porsche 914 1970-76

Diagram ref no 13

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91150193400

The product you are viewing cross references to these numbers

Cover plate top mount (one-bore), Front.

Fits:
Porsche 911 1970-89
Porsche 930 1975-89
Porsche 914 1970-76

Diagram ref no 13

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91150193400

The product you are viewing cross references to these numbers

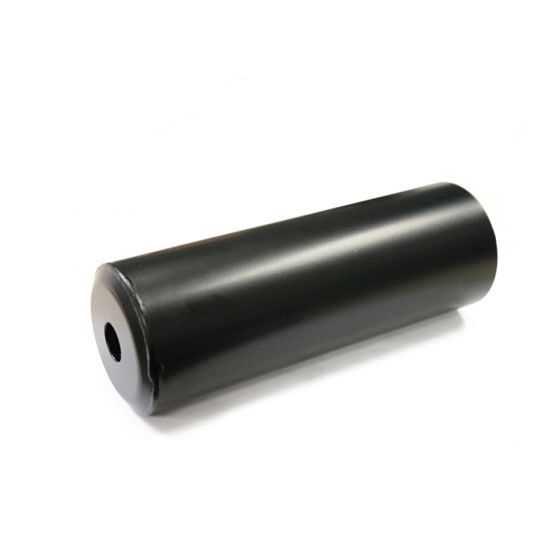

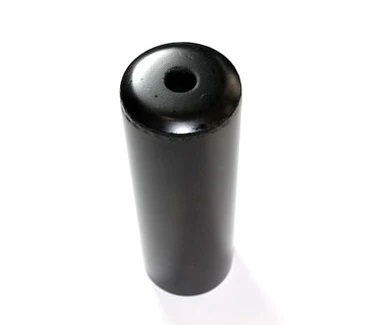

Dust Tubes for Front Shock Absorber Boge.



Fits:
Porsche 911 - 1969 to 1989
For Boge suspension legs

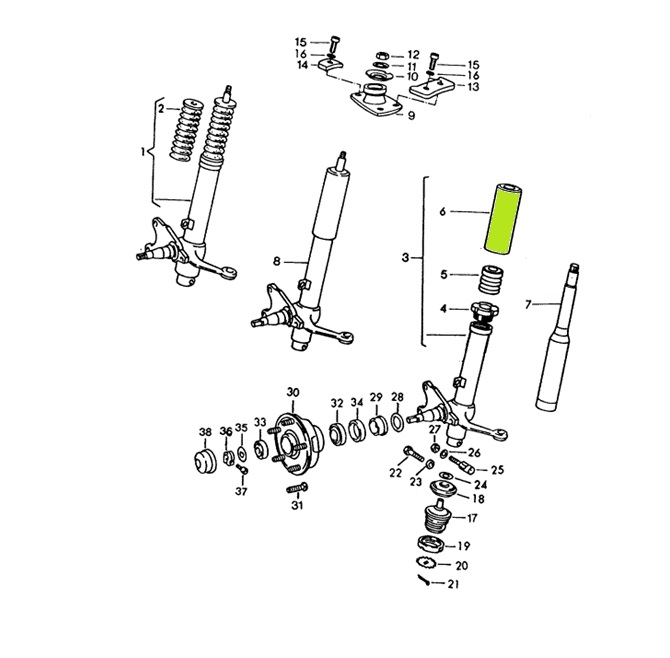

Click 'Zoom in' for large parts diagram.
Diagram ref no 6

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91134180501

The product you are viewing cross references to these numbers

Dust Tubes for Front Shock Absorber Boge.



Fits:
Porsche 911 - 1969 to 1989
For Boge suspension legs

Click 'Zoom in' for large parts diagram.
Diagram ref no 6

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91134180501

The product you are viewing cross references to these numbers

Front extended upper perches.
use ONLY with QuickChange camber plates  2152200
1 kit, req'd per car.



Fits:
Porsche 911 / 912 / 930 / 914 1965-1989


Product description:

Coilover springs increase the diameter of front struts, often contacting the chassis such that the spring diameter limits the available camber adjustment range.
These extended-length upper spring perches solve the problem by moving the spring down where it won't contact the chassis.

Some cars can get over a degree of added camber adjustment range.

Extended-length perches are available for 2.25″ springs. You can add a 2.25″ to 2.5″ adaptor to use with 2.5″ springs.

Available with a 26mm ID for use only with QuickChange camber plates and with a 16mm ID for use with conventional camber plates.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2280902

The product you are viewing cross references to these numbers

Front extended upper perches.
for stock and offset camber plates
1 kit, req'd per car.



Fits:
Porsche 911 / 912 / 930 / 914 1965-1989


Product description:

Coilover springs increase the diameter of front struts, often contacting the chassis such that the spring diameter limits the available camber adjustment range.
These extended-length upper spring perches solve the problem by moving the spring down where it won't contact the chassis.

Some cars can get over a degree of added camber adjustment range.

Extended-length perches are available for 2.25″ springs. You can add a 2.25″ to 2.5″ adaptor to use with 2.5″ springs.

Available with a 26mm ID for use only with QuickChange camber plates and with a 16mm ID for use with conventional camber plates.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2280904

The product you are viewing cross references to these numbers

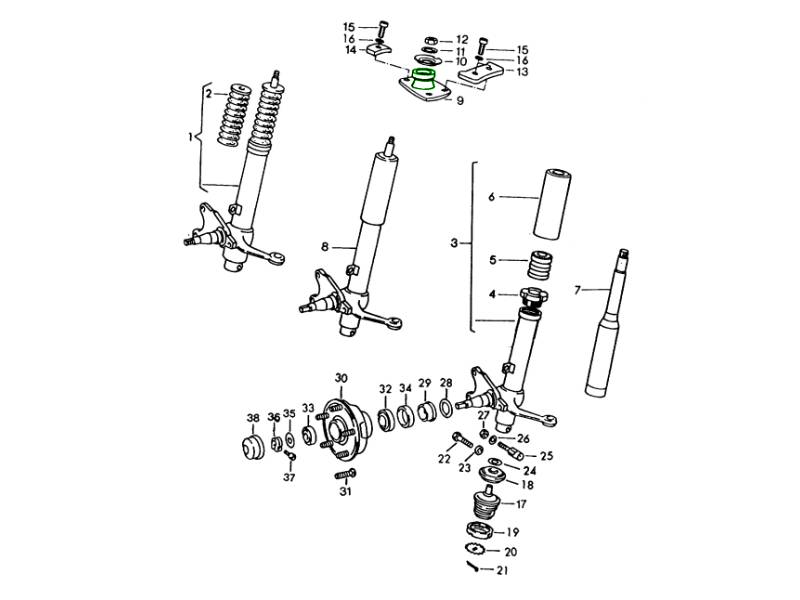

Supporting mount for Shock absorber strut. FRONT.



Fits:
Porsche 911 1970-89
Porsche 930 1975-89
Porsche 914 1970-76

Click 'Zoom in' for large parts diagram.
Diagram ref no 8

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91134101800

The product you are viewing cross references to these numbers

Supporting mount for Shock absorber strut.
Front

Fits:
Porsche 911 1970-89
Porsche 930 1975-89
Porsche 914 1970-76

Diagram ref no 9

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91134101800

The product you are viewing cross references to these numbers

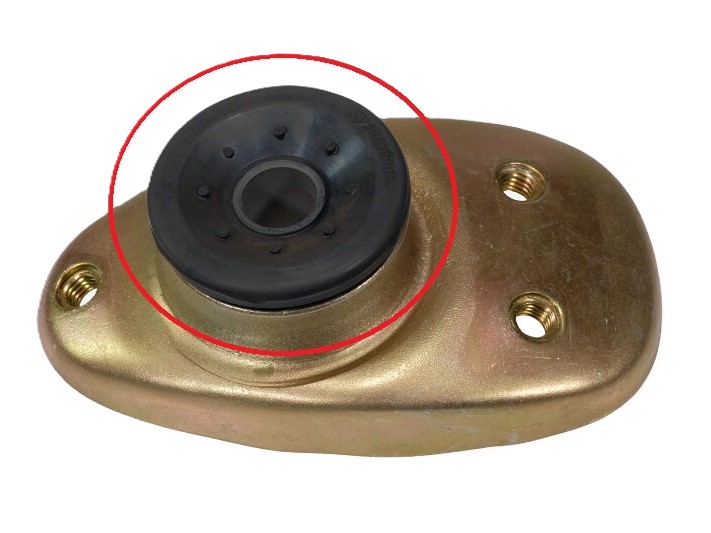

HD sport front strut top mount. SET OF 2. 85 Shore rating

Fits:
Porsche 911 / 912 / 930 / 914 All 1969-89
Will not fit SWB cars

High Density front strut mounts for your 911/914 not only replace tired factory rubber pieces, but return better handling and ride quality without being overly stiff. At 25% more stiff than stock, these are a great compromise, allowing the front suspension to maintain better alignment and geometry over bumps and around corners thanks to their increased stiffness. Still at home on a race track, these will ride with a feel closer to factory than that of our more track oriented full camber plate and monoball setups.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91134101800

The product you are viewing cross references to these numbers

Supporting mount. Stiffer sport style mount 30-35% Increased rubber stiffness.
Price is Each.



Fits:
Porsche 911 1970-89
Porsche 930 1975-89
Porsche 914 1970-76

Click 'Zoom in' for large parts diagram.
Diagram ref no 8

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91134101800HD

The product you are viewing cross references to these numbers
