Porsche > 911 & 912 (1965-1989) > 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F) > Engine Tuning >

OE MATCH Pistons and cylinders

DISPLAYING 1 to 9 (of 9 products)
Biral cylinders and CP piston kit 86mm. Porsche 911 2.2L/2.4L - 008 911 86S CP, 00891186SCP
1
Biral cylinders and CP piston kit 86mm. Porsche 911 2.2L/2.4L
00891186SCP
Product Information
Product Information
This is a new set of 86mm Porsche 911 2.2/2.4L CP Pistons with Biral cylinders.

oematch

CP Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets, CP kits come with wirelock pin clips for extreme RPM. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: CP 2618 Forged
Dome Height: .450
Compression: 9.5:1/10.7:1

Kit includes: 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and wirelocks with tool.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891186SCP
008 911 86S CP
00891186SCP

The product you are viewing cross references to these numbers
Cylinder and JE forged piston kit 86mm, Hi comp. Porsche 911 2.2L/2.4L - 008 911 86S JE, 00891186SJE
1
Cylinder and JE forged piston kit 86mm, Hi comp. Porsche 911 2.2L/2.4L
00891186SJE
Product Information
Product Information
This is a new set of 86mm Porsche 911 2.2/2.4L High compression JE Pistons with Biral cylinders.

oematch

The Compression ratios are 10.5:1 with the 66mm crank and 11.2:1 with the 70.4mm. JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: JE 2618 Forged
Dome Height: .450
Compression: 10.5:1/11.2:1

Kit includes: 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891186SJE
008 911 86S JE
00891186SJE

The product you are viewing cross references to these numbers
Cylinder and JE forged piston kit 86mm, Low comp. Porsche 911 2.2L/2.4L - 008 911 86E JE, 00891186EJE
1
Cylinder and JE forged piston kit 86mm, Low comp. Porsche 911 2.2L/2.4L
00891186EJE
Product Information
Product Information
This is a new set of 86mm Porsche 911 2.2/2.4L low compression JE Pistons with Biral cylinders.

oematch

The Compression ratios are 9.2:1 with the 66mm crank and 9.5:1 with the 70.4mm. JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: JE 2618 Forged
Dome Height: .300
Compression: 9.2:1/9.5:1

Kit includes: 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891186EJE
008 911 86E JE
00891186EJE

The product you are viewing cross references to these numbers
Cylinder kit, Biral. Porsche 911 2.2 / 2.4 - 008 911 84BL, 00891184BL, 008 911 86BL, 00891186BL
1
Cylinder kit, Biral. Porsche 911 2.2 / 2.4
0089118
Product Information
Product Information

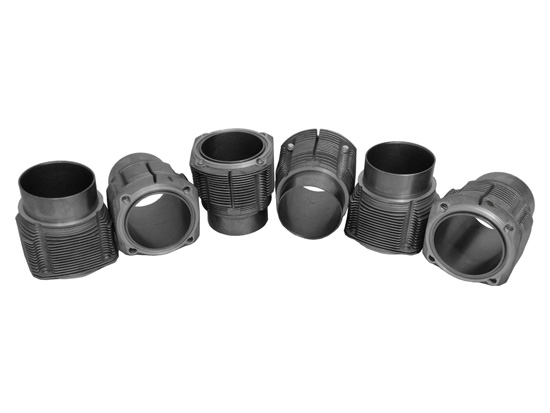

This is a set of (6) Biral Cylinder for the 2.2 & 2.4 Liter 911 engine

oematch

Fits:
Porsche 911 2.2L / 2.4L

Cylinders: Biral

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0089118
008 911 84BL
00891184BL
008 911 86BL
00891186BL

The product you are viewing cross references to these numbers
Piston and cylinder kit 84mm, Hi comp. Porsche 911 2.2/2.4L - 008 911 84S, 008 911 84S
1
Piston and cylinder kit 84mm, Hi comp. Porsche 911 2.2/2.4L
00891184S
Product Information
Product Information

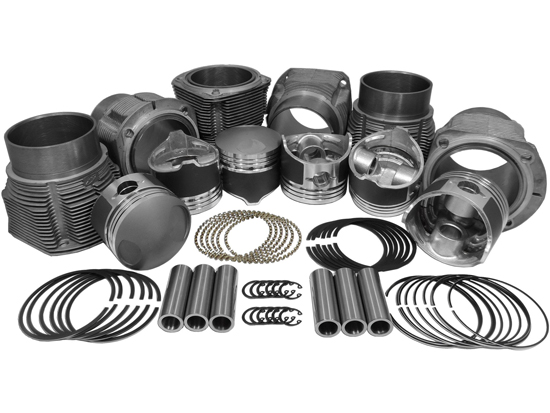

This is a new set of 84mm Porsche 911 2.2/2.4L High compression pistons with Biral cylinders. The Compression ratios are 9.1:1 with the 66mm crank and 9.7:1 with the 70.4mm.

oematch

The Cylinders are Biral with Graphite Coated Hypereutectic pistons with valve pockets, and the 22mm Pin. Biral Liners are a cast iron sleeve with aluminum fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: Hypereutectic
Dome Height:
Compression: 9.1:1/9.7:1

Kit includes: 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891184S
008 911 84S
008 911 84S

The product you are viewing cross references to these numbers

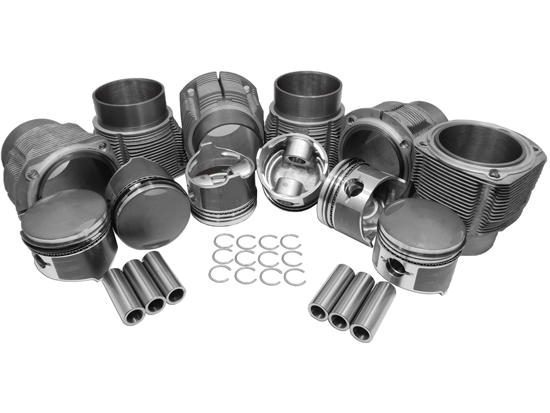

Piston and cylinder kit 84mm, Low comp. Porsche 911 2.2/2.4L - 00891184E, 008 911 84E
1
Piston and cylinder kit 84mm, Low comp. Porsche 911 2.2/2.4L
00891184E
Product Information
Product Information
This is a new set of 84mm Porsche 911 2.2/2.4L low compression Pistons with Biral cylinders. The Compression ratios are 8.5:1 with the 66mm crank and 9.1:1 with the 70.4mm.


oematch

The Cylinders are Biral with Graphite Coated Hypereutectic pistons with valve pockets, and the 22mm Pin. Biral Liners are a cast iron sleeve with aluminum fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: Hypereutectic
Dome Height:
Compression: 8.5:1/9.1:1

Kit includes 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891184E
00891184E
008 911 84E

The product you are viewing cross references to these numbers
Piston and cylinder kit 86mm, Hi comp. Porsche 911 2.2/2.4L - 00891186S, 008 911 86S
1
Piston and cylinder kit 86mm, Hi comp. Porsche 911 2.2/2.4L
00891186S
Product Information
Product Information

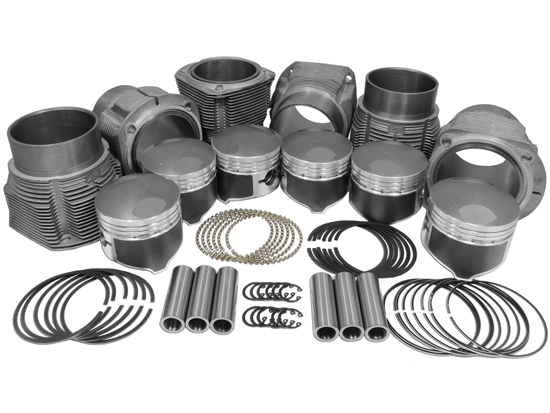

This is a new set of 86mm Porsche 911 2.2/2.4L High compression pistons with Biral cylinders. The Compression ratios are 9.5:1 with the 66mm crank and 10.7:1 with the 70.4mm.

oematch

The Cylinders are Biral with Graphite Coated Hypereutectic pistons with valve pockets, and the 22mm Pin. Biral Liners are a cast iron sleeve with aluminum fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: Hypereutectic
Dome Height:
Compression: 9.5:1/10.7:1

Kit includes: 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891186S
00891186S
008 911 86S

The product you are viewing cross references to these numbers
Piston set, Cast. Porsche 911S 2.2/2.4 - 008 911 86P, 008 911 84SP, 008 911 84EP, 00891186P, 00891184SP, 00891184EP
4
Piston set, Cast. Porsche 911S 2.2/2.4
0089118
Product Information
Product Information

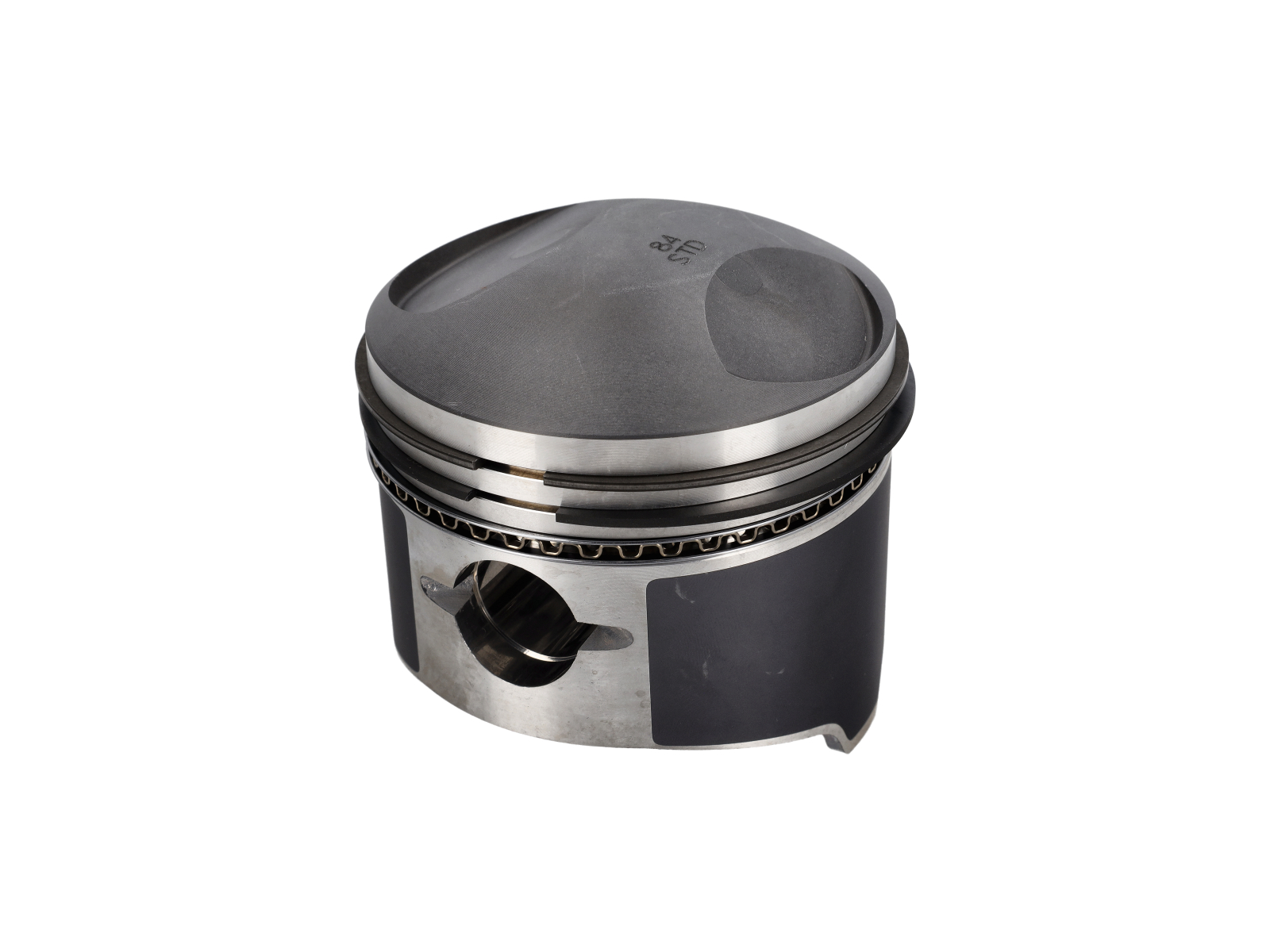

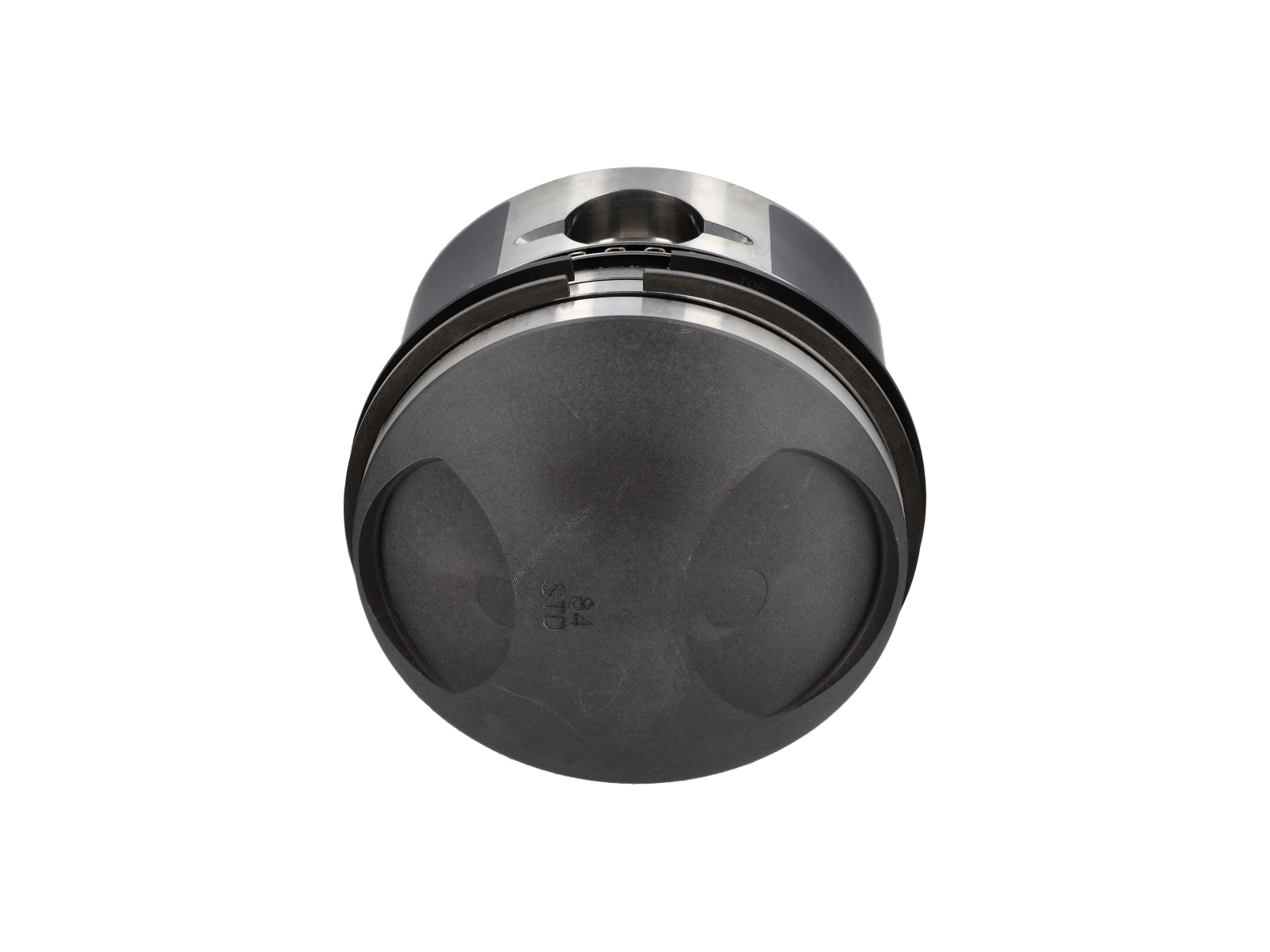

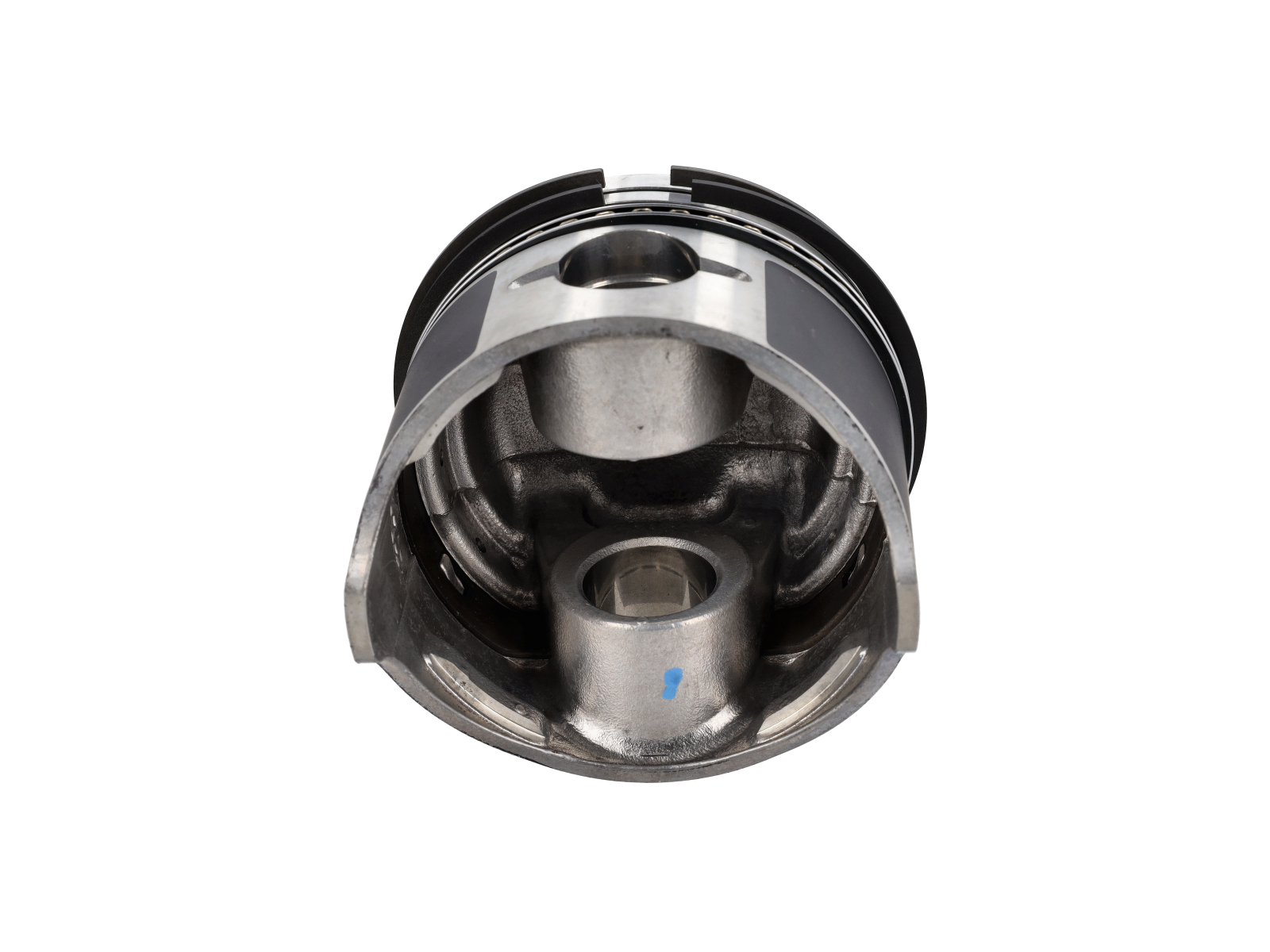

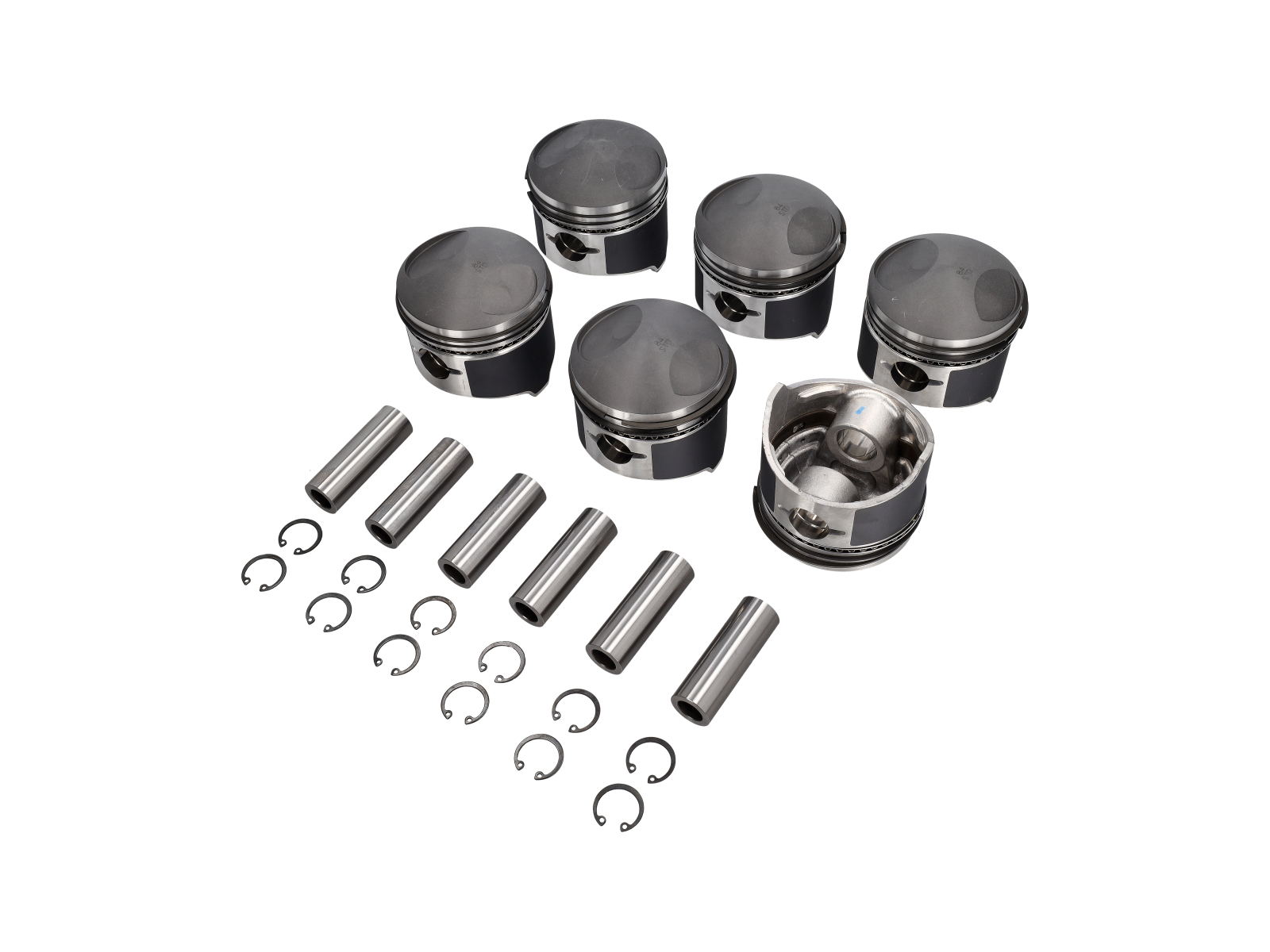

This is a new set of 6 cast pistons. Graphite Coated Hypereutectic pistons with valve pockets, and the 22mm Pin.

oematch

Fits: Porsche 911S 2.2L / 2.4L

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Pistons: Hypereutectic

Kit includes: 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

OPTIONS:
1. 84mm - Low compression
The Compression ratios are 8.5:1 with the 66mm crank and 9.1:1 with the 70.4mm.
2. 84mm - High compression
The Compression ratios are 9.1:1 with the 66mm crank and 9.7:1 with the 70.4mm.
3. 86mm - High compression
The Compression ratios are 9.5:1 with the 66mm crank and 10.7:1 with the 70.4mm.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0089118
008 911 86P
008 911 84SP
008 911 84EP
00891186P
00891184SP
00891184EP

The product you are viewing cross references to these numbers
Piston set, JE Forged. Porsche 911S 2.2/2.4 - 008 911 84P JE, 008 911 86EP JE, 008 911 86SP JE, 00891184PJE, 00891186EPJE, 00891186SPJE
1
Piston set, JE Forged. Porsche 911S 2.2/2.4
0089118
Product Information
Product Information

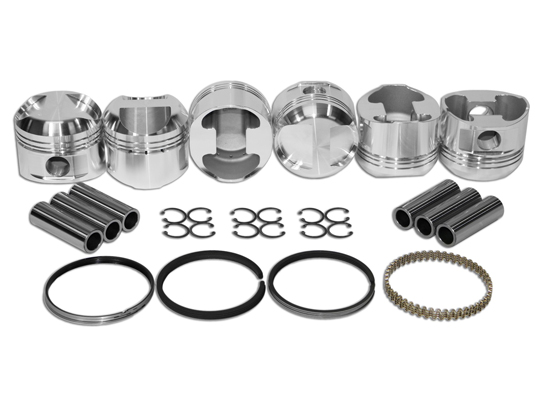

This is a new set of 6 JE Pistons.

oematch

JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets.

Fits: Porsche 911S 2.2L / 2.4L

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Pistons: JE 2618 Forged

Kit includes: 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

OPTIONS:
1. 84mm - High compression
The Compression ratios are 10.1:1 with the 66mm crank and 10.6:1 with the 70.4mm.
2. 86mm - Low compression
The Compression ratios are 9.2:1 with the 66mm crank and 9.5:1 with the 70.4mm.
3. 86mm - High compression
The Compression ratios are 10.5:1 with the 66mm crank and 11.2:1 with the 70.4mm.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0089118
008 911 84P JE
008 911 86EP JE
008 911 86SP JE
00891184PJE
00891186EPJE
00891186SPJE

The product you are viewing cross references to these numbers
DISPLAYING 1 to 9 (of 9 products)
About OE MATCH Pistons and cylinders

Porsche OE Match Pistons & Cylinders - Factory-Spec Engine Rebuild Solutions

OE MATCH Pistons and Cylinders are precision-engineered engine components designed to meet or exceed original Porsche factory specifications. These matched piston and cylinder sets restore correct engine tolerances, compression, and oil control—making them ideal for engine rebuilds where reliability, longevity, and OEM-level performance are the priority.

Available from Design911, OE MATCH piston and cylinder kits provide a cost-effective, high-quality alternative to original equipment parts, ensuring dependable performance for road-driven, high-mileage, and lightly tuned Porsche engines.

What Do OE MATCH Pistons & Cylinders Do?

Pistons and cylinders form the heart of the combustion process, converting fuel energy into mechanical power.

Core Functions:

  • Seal combustion pressure within the cylinder.
  • Maintain correct compression ratios.
  • Control oil consumption and lubrication.
  • Guide piston movement with precise clearances.
  • Support smooth, efficient engine operation.

Correctly matched pistons and cylinders are essential for engine performance and durability.

Why Do Pistons & Cylinders Fail?

Over time, pistons and cylinders wear due to heat, friction, and combustion forces. Common failure causes include:

  • Cylinder bore wear or scoring.
  • Piston skirt wear from high mileage.
  • Oil starvation or contamination.
  • Overheating causing piston expansion or seizure.
  • Loss of compression due to worn rings or bores.

These issues can lead to oil consumption, power loss, poor starting, and eventual engine failure.

Why Upgrade to OE MATCH Pistons & Cylinders?

OE MATCH piston and cylinder kits are designed to restore factory performance and reliability.

Upgrade Benefits:

  • Manufactured to OEM specifications and tolerances.
  • Matched sets ensure correct clearances and sealing.
  • Improved oil control and compression.
  • Ideal for engine rebuilds and preventative maintenance.
  • Cost-effective alternative to genuine OE parts.

Upgrading restores engine efficiency and reliability without altering factory characteristics.

Highlights

  • Porsche OE MATCH pistons and cylinder kits
  • Factory-spec performance and reliability
  • Precision-matched components for rebuilds
  • Improved compression and oil control
  • Ideal for road and high-mileage engines
