This is a new set of 86mm Porsche 911 2.2/2.4L CP Pistons with Biral cylinders.



CP Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets, CP kits come with wirelock pin clips for extreme RPM. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: CP 2618 Forged
Dome Height: .450
Compression: 9.5:1/10.7:1

Kit includes: 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and wirelocks with tool.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891186SCP

The product you are viewing cross references to these numbers

This is a new set of 86mm Porsche 911 2.2/2.4L High compression JE Pistons with Biral cylinders.



The Compression ratios are 10.5:1 with the 66mm crank and 11.2:1 with the 70.4mm. JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: JE 2618 Forged
Dome Height: .450
Compression: 10.5:1/11.2:1

Kit includes: 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891186SJE

The product you are viewing cross references to these numbers

This is a new set of 86mm Porsche 911 2.2/2.4L low compression JE Pistons with Biral cylinders.



The Compression ratios are 9.2:1 with the 66mm crank and 9.5:1 with the 70.4mm. JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: JE 2618 Forged
Dome Height: .300
Compression: 9.2:1/9.5:1

Kit includes: 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891186EJE

The product you are viewing cross references to these numbers

This is a set of (6) Biral Cylinder for the 2.2 & 2.4 Liter 911 engine



Fits:
Porsche 911 2.2L / 2.4L

Cylinders: Biral

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0089118

The product you are viewing cross references to these numbers

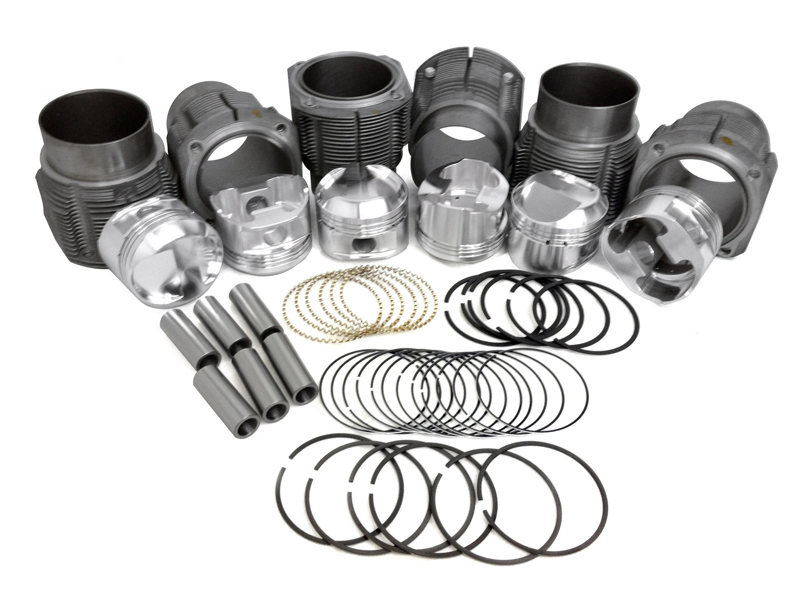

JE Forged Piston & Cylinder Kit 84 mm for Porsche 911 2.2 / 2.4



Description:
This is a new set of 84mm Porsche 911 2.2/2.4L High compression JE Pistons with Biral cylinders. The Compression ratios are 10.1:1 with the 66mm crank and 10.6:1 with the 70.4mm. JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads

Engine size: 2.2 / 2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: JE 2618 Forged
Compression: 10.1:1/10.6:1

Kit includes: 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891184SJE

The product you are viewing cross references to these numbers

This is a new set of 84mm Porsche 911 2.2/2.4L High compression pistons with Biral cylinders. The Compression ratios are 9.1:1 with the 66mm crank and 9.7:1 with the 70.4mm.



The Cylinders are Biral with Graphite Coated Hypereutectic pistons with valve pockets, and the 22mm Pin. Biral Liners are a cast iron sleeve with aluminum fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: Hypereutectic
Dome Height:
Compression: 9.1:1/9.7:1

Kit includes: 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891184S

The product you are viewing cross references to these numbers

This is a new set of 84mm Porsche 911 2.2/2.4L low compression Pistons with Biral cylinders. The Compression ratios are 8.5:1 with the 66mm crank and 9.1:1 with the 70.4mm.




The Cylinders are Biral with Graphite Coated Hypereutectic pistons with valve pockets, and the 22mm Pin. Biral Liners are a cast iron sleeve with aluminum fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: Hypereutectic
Dome Height:
Compression: 8.5:1/9.1:1

Kit includes 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891184E

The product you are viewing cross references to these numbers

This is a new set of 86mm Porsche 911 2.2/2.4L High compression pistons with Biral cylinders. The Compression ratios are 9.5:1 with the 66mm crank and 10.7:1 with the 70.4mm.



The Cylinders are Biral with Graphite Coated Hypereutectic pistons with valve pockets, and the 22mm Pin. Biral Liners are a cast iron sleeve with aluminum fins, making them lighter and dissipate heat better. This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Cylinders: Biral.
Pistons: Hypereutectic
Dome Height:
Compression: 9.5:1/10.7:1

Kit includes: 6 Cylinders, 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00891186S

The product you are viewing cross references to these numbers

This is a new set of 6 cast pistons. Graphite Coated Hypereutectic pistons with valve pockets, and the 22mm Pin.



Fits: Porsche 911S 2.2L / 2.4L

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Pistons: Hypereutectic

Kit includes: 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

OPTIONS:
1. 84mm - Low compression
The Compression ratios are 8.5:1 with the 66mm crank and 9.1:1 with the 70.4mm.
2. 84mm - High compression
The Compression ratios are 9.1:1 with the 66mm crank and 9.7:1 with the 70.4mm.
3. 86mm - High compression
The Compression ratios are 9.5:1 with the 66mm crank and 10.7:1 with the 70.4mm.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0089118

The product you are viewing cross references to these numbers

This is a new set of 6 JE Pistons.



JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets.

Fits: Porsche 911S 2.2L / 2.4L

Engine size: 2.2/2.4L
Stroke: 66/70.4mm
Pistons: JE 2618 Forged

Kit includes: 6 Pistons, A set of Piston Rings, and 6 wrist pins and clips.

OPTIONS:
1. 84mm - High compression
The Compression ratios are 10.1:1 with the 66mm crank and 10.6:1 with the 70.4mm.
2. 86mm - Low compression
The Compression ratios are 9.2:1 with the 66mm crank and 9.5:1 with the 70.4mm.
3. 86mm - High compression
The Compression ratios are 10.5:1 with the 66mm crank and 11.2:1 with the 70.4mm.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0089118

The product you are viewing cross references to these numbers
