OE MATCH Pistons and cylinders

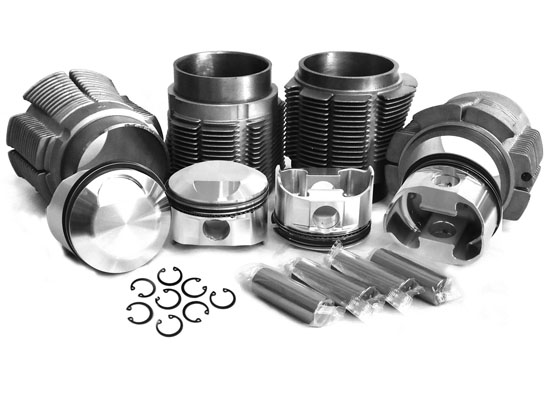

This is a new set 86mm Porsche 356/912 JE pistons & cylinders.



It fits Porsche 356; A and B, Super 90, 1955-63 with the 3 piece Case. The Cylinders are Cast Iron with JE Forged pistons with 22° Angle.

JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pocket. This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 1600cc
Stroke: 74mm
Cylinders: Cast Iron
Pistons: JE 2618 Forged
Dome Height: .155
Compression: 9.5:1
Piston Angle: 22°

Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186AJE

The product you are viewing cross references to these numbers

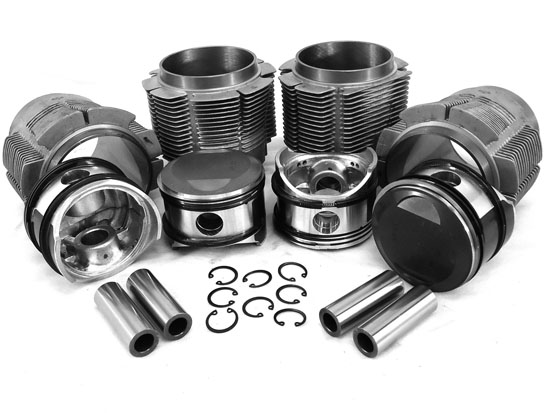

This is a new set of Big Bore 86mm Porsche 356 pistons and cylinders.

It fits Porsche 356; A and B, Super 90, 1955-63 with the 3 piece Case. The Cylinders are Biral with Graphite Coated Hypereutectic pistons with the 22° Angle, valve pockets, and the 22mm Pin. This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 1600cc
Stroke: 74mm
Cylinders: Biral
Pistons: Hypereutectic
Dome CC: 17
Compression: 9.2:1
Piston Angle: 22°

Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186PE

The product you are viewing cross references to these numbers

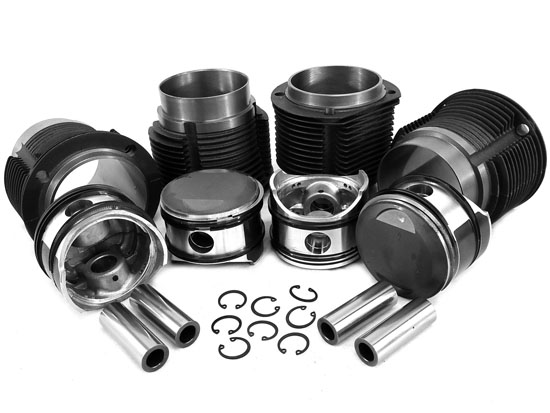

This is a new set of Big Bore 86mm Porsche 356 pistons and cylinders.



It fits Porsche 356; A and B, Super 90, 1955-63 with the 3 piece Case. The Cylinders are Cast Iron with Graphite Coated Hypereutectic pistons with the 22° Angle, valve pockets, and the 22mm Pin. This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 1600cc
Stroke: 74mm
Cylinders: Cast Iron
Pistons: Hypereutectic
Dome CC: 17
Compression: 9.2:1
Piston Angle: 22°

Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186PA

The product you are viewing cross references to these numbers

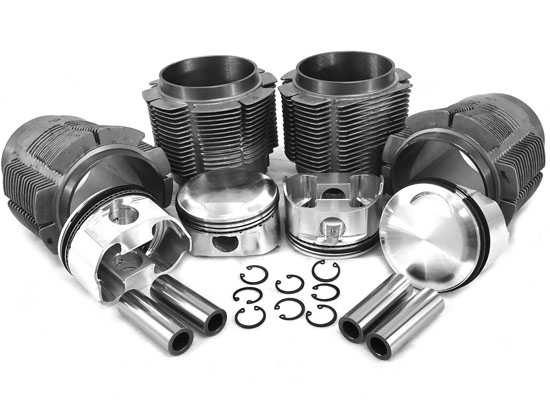

This is a new set 86mm Porsche 356/912 JE pistons with Biral cylinders.



It fits Porsche 356; A and B, Super 90, 1955-63 with the 3 piece Case. The Cylinders are Biral with JE Forged pistons with 22° Angle.

JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pocket, Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better . This kit requires no machine work, when installing in factory Porsche case & heads.

Engine size: 1600cc
Stroke: 74mm
Cylinders: Biral.
Pistons: JE 2618 Forged
Dome Height: .155
Compression: 9.5:1
Piston Angle: 22°

Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186BJE

The product you are viewing cross references to these numbers

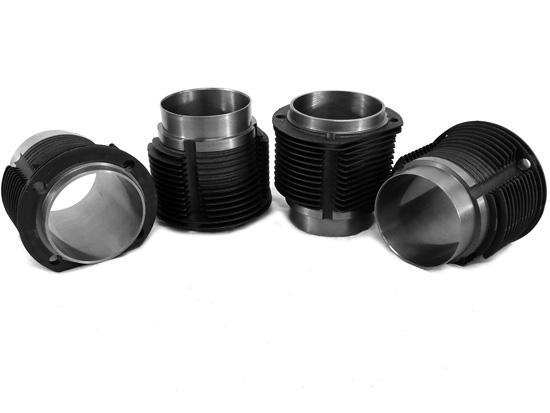

This is a new set of 86mm Big Bore Porsche 356 or 912 Cast Iron Liners. This kit requires no machine work.



Fits:
Porsche 356
Porsche 912

Cylinders: Cast Iron.
Kit included: 4 Cylinders

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186SL

The product you are viewing cross references to these numbers

This is a new set of 83.5mm Big Bore Porsche 356 or 912 Biral Liners. This kit requires no machine work.



Fits:
Porsche 356
Porsche 912

Cylinders: Biral
Kit included: 4 Cylinders

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081183BL

The product you are viewing cross references to these numbers

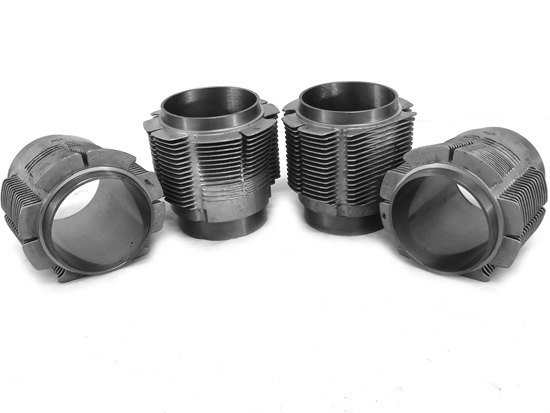

This is a new set of 86mm Big Bore Porsche 356 or 912 Biral Liners. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This kit requires no machine work.



Fits:
Porsche 356
Porsche 912

Cylinders: Biral.
Kit included: 4 Cylinders

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186BL

The product you are viewing cross references to these numbers

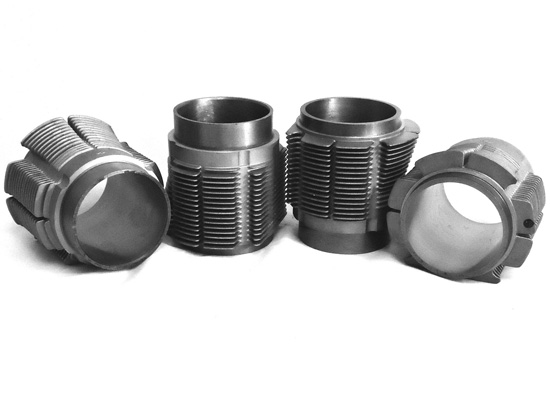

This is a new set of 82.5mm Porsche 356 or 912 Biral Liners. This kit requires no machine work.



Fits:
Porsche 356
Porsche 912

Cylinders: Biral
Kit included: 4 Cylinders

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081182BL

The product you are viewing cross references to these numbers

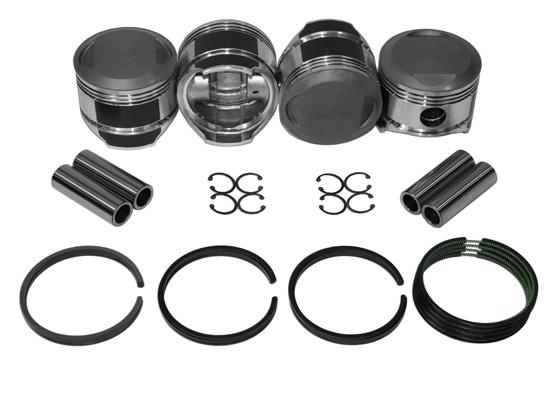

This is a new set of Big Bore 86mm Porsche 356 pistons.



Fits: Porsche 356 A and B, Super 90, 1955-63 with the 3 piece Case.

Graphite Coated Hypereutectic pistons with the 22° Angle, valve pockets, and the 22mm Pin.

Engine size: 1600cc
Stroke: 74mm
Pistons: Hypereutectic
Dome CC: 17
Compression: 9.2:1
Piston Angle: 22°

Kit includes: 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186EP

The product you are viewing cross references to these numbers

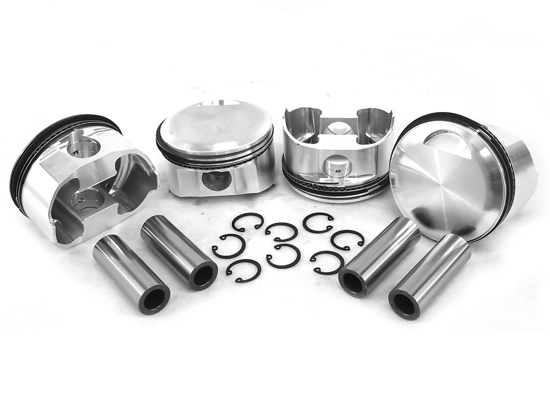

This is a new set 86mm Porsche 356/912 JE Pistons.



Fits: Porsche 356A and 356B, Super 90, 1955-63 with the 3 piece Case.

JE Forged Pistons with 22° Angle. JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pocket.

Engine size: 1600cc
Stroke: 74mm
Pistons: JE 2618 Forged
Dome Height: .155
Compression: 9.5:1
Piston Angle: 22°

Kit includes: 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

0081186JEAP
