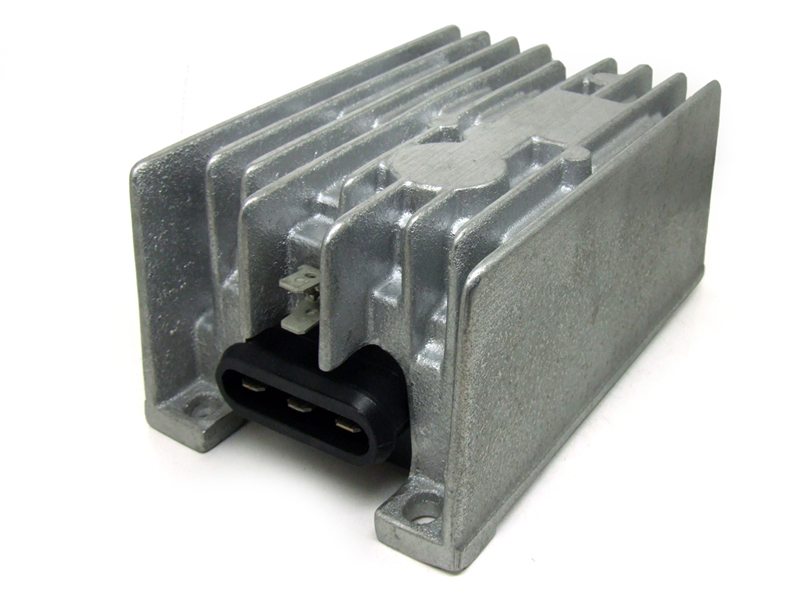

Original Porsche Part Genuine Porsche part 91160270201

3 Pin CDI ignition module. Porsche 911 / 914/6 1965-77
(Bosch reference 227-200-001)



Fits:
Porsche 911 1965-77




Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

901602702AX

The product you are viewing cross references to these numbers

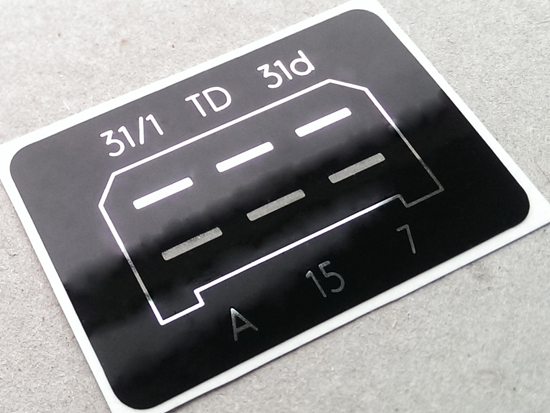

CDI Ignition Module Box decal for Porsche 911.
Reproduction.

Models:
Porsche 911 SC 1978 – 1983
Porsche 911 3.2L Carrera 1984 – 1989

Details:
Printed on sturdy mirror foil, which gives the decal close resemblance to the original.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160270255

The product you are viewing cross references to these numbers

Ignition Starter box CDI 3 PIN.
(Bosch reference 227-200-001)

Classic Retrofit replacement CDI+ ignition offers you bespoke modern electronics in a standard looking package. The CDI+ unit requires no modifications to the original wiring harness or vehicle metalwork and is 'plug and play'.

The CDI+ is a direct replacement for the 3 pin and 6 pin Bosch units fitted to Porsche 911's between 1969 and 1983 (and turbo models to ~1988). All CDI+ units have a 48 MHz microprocessor onboard to control ignition timing.

The basic unit is a plug and play replacement for the Original Bosch CDI. It will work with the existing distributor without modification and still uses the weights and springs for the advance curve. It is pre-set at the factory (to your specification) and has the following features:
- Hard RPM limiter.
- Soft RPM limiter.
- Double spark at all RPMs
- Shift Light output
- Tacho calibration
- Upgradeable through firmware updates (at one of our specialists)
- The following parameters can be adjusted using the hidden 'jog wheel'.
- Hard RPM limiter.
- Soft RPM limiter.
- Shift light RPM.
- Tacho calibration.

The Classic Retrofit 3-pin CDI+ ignition unit is a direct replacement for Bosch CDI units used in the classic Porsche 911 from 1969 to 1977. Extensive development and rigorous dyno testing has proven our CDI+ unit to be a major improvement over the original Bosch CDI, with improved torque right across the rev range.

CDI ignition was originally fitted to a great many European sports cars of the 1970s and 1980s, including Maserati Ghibli, Alfa Romeo Montreal and are popular with BMW 3.0 CSL racers. Our CDI+ is a great upgrade for all of these applications.

For Installation Guide CLICK HERE

For 911-CDI+ Dyno Test Results CLICK HERE


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160270700

The product you are viewing cross references to these numbers

Ignition Starter box CDI (HKZ) Bluetooth Programming Cable, fits with Perma Tune 3 pin and 6 Pin Cdi boxes.

Fits:
Porsche 356 12V
Porsche 911 1974-77
Porsche 911 1978-83
Porsche 930 3.3L 1978-89

The 90502 USB Smart Wire allows you to customize your Perma-Tune Ignition module program. It plugs into the USB port of a computer and then installs itself automatically. It also powers up the module for programming with a single plug without having to connect anything else to the module. The programming software is downloaded from the internet, free, so the module settings can then be changed, saved and organized as text files.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90502

The product you are viewing cross references to these numbers

3 Pin CDI (HKZ) ignition module.
Premium version
(Bosch reference 227-200-001)

New Perma Tune Gen 6

Fits:
Porsche 911 1965-77
Porsche 914/6

Disclaimer: Before fitting this CDI unit please make sure the new PERMA TUNE coil is being fitted with it. Do not try to start the car with Blue Bosch coil made in Brazil. This will damage the Perma-Tune CDI box and void the warranty. If CDI unit was not purchased with the PERMA TUNE coil the warranty will not be respected. Fitting with other brand coils at your own risk.

The Gen 6 Premium Perma-Tune CDI module makes diagnostics easier by providing onboard diagnostics that are automatically displayed by two coloured LED function lights.
These LED lights assist in diagnosing both the ignition module and the car. The green LED is a status indicator that can flash diagnostic fault codes. The red LED is a strobe light that flashes each time the coils fires in the same manner as a timing light which is especially useful for detecting engine misfire.
The LED function lights are mounted in the harness electrical connector and can only be seen with a mirror while the module is powered up.
As an additional feature of the Perma-Tune Premium module, there are three self-resetting overload protectors that protect your Perma-Tune and your car from overload damage. The overload protectors are hidden underneath the ignition module so they do not spoil the original look of the part.

The Premium ignition module features a die cast housing that has been treated to mimic the patina of the original aluminum die cast distributor and has a range of digital features that the Basic module does not have. The Premium module provides full control over RPM limit, mechanical advance timing, power output, multi spark function and has many other features that can be programmed using a computer, tablet or smart phone. The 911906 comes preprogrammed for the Porsche 911 so programming changes are optional. The programmable mechanical advance feature is very handy for restoring a distributor advance curve that has been distorted by worn mechanical parts without having to replace the weights and springs. Scroll down for more complete information about your programming options.

DISTRIBUTOR TRIGGER SIGNAL

The second most common cause of SC engine ignition failure is the ignition trigger circuit.
Since the ignition box is controlled by the magnetic pulse generator located inside the distributor, any disruption in the triggering signal will cause the ignition box to malfunction. Be aware that the connectors can push back in the housing. Pull the rubber boot back to inspect the connection between the box and harness.
Full disassembly and inspection of the distributor is highly recommended due to the intermittent nature of triggering problems. Pay special attention to the distributor trigger shielded cable ( green wire ), magnetic pulse generator magnet and magnetic pulse generator winding connection as these parts are known to fail in combination. An especially common problem is a broken magnet pole. Evidence of arching between the magnetic pulse generator magnet points indicates a defective rotor. In this case replace the rotor, magnetic pulse winding, green wire and ignition box. The Perma-Tune high performance triggering is so accurate that worn out distributor shaft bearings can be detected by the tachometer. This is indicated by the tachometer needle slightly bouncing at idle. Trigger signal problems can cause double triggering which results in a weak ignition spark. Due to the lower triggering resolution of the stock ignition box, some symptoms of trigger signal problems can be more evident after the Perma-Tune is installed. Refer to the vehicle maintenance manual for triggering signal wave form specifications and distributor repair instructions.
To quickly test the triggering circuit without the use of an oscilloscope: Unplug the harness connector from the ignition box. Refer to the 911SC Installation Instructions diagram, connect an Ohm meter between pins 3 and 6 of the harness connector. To prevent the possibility of misdiagnosis, tug on the green triggering signal wire located at the base of the distributor while viewing the meter. The published specification for the magnetic pulse generator is 600 Ohms +- 100. Our experience has shown that a variation of +- 25 Ohm indicates a need to repair defective connections or to replace the magnetic pulse generator windings.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160270700

The product you are viewing cross references to these numbers

3 pin Ignition module CDI (HKZ) box
Basic version
(Bosch reference 227-200-001)

Disclaimer: Before fitting this CDI unit please make sure the new PERMA-TUNE coil is being fitted with it. Do not try to start the car with Blue Bosch coil made in Brazil. This will damage the Perma-Tune CDI box and void the warranty. If CDI unit was not purchased with the PERMA-TUNE coil the warranty will not be respected. Fitting with other brand coils at your own risk.

Perma-Tune Gen 6

Fits:
Porsche 911 1965-77
Porsche 914/6

Take your pick: Basic or Premium

The Gen 6 Perma-Tune comes in two models: the Model Premium ignition module and the Basic ignition module.

The Basic model is just that, basic: it performs only the same functions as the analog modules did back in the day. For the average street car, this may be all that is desired and of course is more affordable than the Premium model.
It is however still a high performance part and is perfect for racing venues that do not allow programmable digital ignition systems. The Basic model has a smooth, more original looking housing than the Gen 5 cast housing.

DISTRIBUTOR TRIGGER SIGNAL

The second most common cause of SC engine ignition failure is the ignition trigger circuit.
Since the ignition box is controlled by the magnetic pulse generator located inside the distributor, any disruption in the triggering signal will cause the ignition box to malfunction. Be aware that the connectors can push back in the housing. Pull the rubber boot back to inspect the connection between the box and harness.
Full disassembly and inspection of the distributor is highly recommended due to the intermittent nature of triggering problems. Pay special attention to the distributor trigger shielded cable ( green wire ), magnetic pulse generator magnet and magnetic pulse generator winding connection as these parts are known to fail in combination. An especially common problem is a broken magnet pole. Evidence of arching between the magnetic pulse generator magnet points indicates a defective rotor. In this case replace the rotor, magnetic pulse winding, green wire and ignition box. The Perma-Tune high performance triggering is so accurate that worn out distributor shaft bearings can be detected by the tachometer. This is indicated by the tachometer needle slightly bouncing at idle. Trigger signal problems can cause double triggering which results in a weak ignition spark. Due to the lower triggering resolution of the stock ignition box, some symptoms of trigger signal problems can be more evident after the Perma-Tune is installed. Refer to the vehicle maintenance manual for triggering signal wave form specifications and distributor repair instructions.
To quickly test the triggering circuit without the use of an oscilloscope: Unplug the harness connector from the ignition box. Refer to the 911SC Installation Instructions diagram, connect an Ohm meter between pins 3 and 6 of the harness connector. To prevent the possibility of misdiagnosis, tug on the green triggering signal wire located at the base of the distributor while viewing the meter. The published specification for the magnetic pulse generator is 600 Ohms +- 100. Our experience has shown that a variation of +- 25 Ohm indicates a need to repair defective connections or to replace the magnetic pulse generator windings.
