Adaptor Ring Intercooler Mounting. Porsche 9YA Cayenne  ❭  PAB14517500

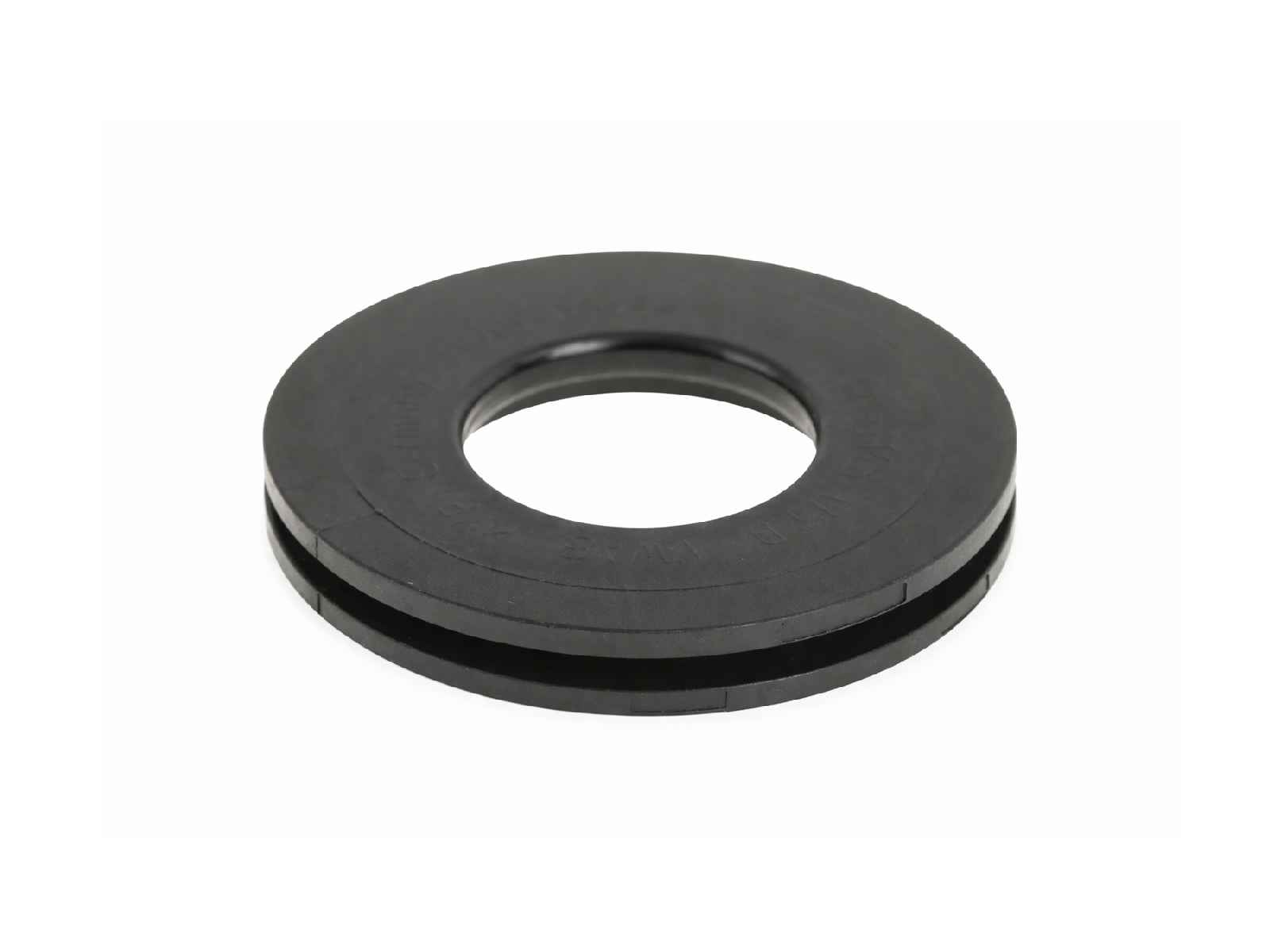

Intercooler Mounting Adaptor Ring
Sold each

This intercooler mounting adaptor ring is designed for Porsche Cayenne 9YA models and forms part of the essential mounting and securing system used to correctly install and position the intercooler within the vehicle.

Fits:

• Porsche 9YA Cayenne V6 3.0L Petrol (340Hp) 2018-23
• Porsche 9YA Cayenne Coupe V6 3.0L Petrol (340Hp) 2019-23
• Porsche 9YA Cayenne E-Hybrid V6 3.0L V6 (340Hp) 2018-23
• Porsche 9YA Cayenne Coupe E-Hybrid V6 3.0L (340Hp) 2020-23
• Porsche 9YA Cayenne S V6 2.9L Petrol (440Hp) 2018-23
• Porsche 9YA Cayenne Coupe S V6 2.9L Petrol (440Hp) 2019-23
• Porsche 9YA Cayenne GTS V8 4.0L Petrol (460Hp) 2020-23
• Porsche 9YA Cayenne Coupe GTS V8 4.0L Petrol (460Hp) 2021-23
• Porsche 9YA Cayenne Turbo V8 4.0L Petrol (550Hp) 2020-23
• Porsche 9YA Cayenne Coupe Turbo V8 4.0L Petrol (550Hp) 2019-23
• Porsche 9YA Cayenne Turbo S E-Hybrid V8 4.0L (550Hp) 2019-23
• Porsche 9YA Cayenne Coupe Turbo S E-Hybrid V8 4.0L (550Hp) 2020-23
• Porsche 9YA Cayenne Coupe Turbo GT V8 4.0L (640Hp) 2021-23
• Porsche 9YA.2 Cayenne V6 3.0L Petrol (353Hp) 2023>>
• Porsche 9YA.2 Cayenne Coupe V6 3.0L (353Hp) 2023>>
• Porsche 9YA.2 Cayenne E-Hybrid V6 3.0L (470Hp) 2023>>
• Porsche 9YA.2 Cayenne E-Hybrid Coupe V6 3.0L (470Hp) 2023>>
• Porsche 9YA.2 Cayenne S V8 4.0L Petrol (474Hp) 2023>>
• Porsche 9YA.2 Cayenne S Coupe V8 4.0L (474Hp) 2023>>
• Porsche 9YA.2 Cayenne S E-Hybrid V6 3.0L (519Hp) 2023>>
• Porsche 9YA.2 Cayenne S E-Hybrid Coupe V6 3.0L (519Hp) 2023>>
• Porsche 9YA.2 Cayenne Turbo E-Hybrid V8 4.0L (739Hp) 2023>>
• Porsche 9YA.2 Cayenne Turbo E-Hybrid Coupe V8 4.0L (739Hp) 2023>>
• Porsche 9YA.2 Cayenne Turbo E-Hybrid Coupe with GT Package V8 4.0 (739Hp) 2023>>

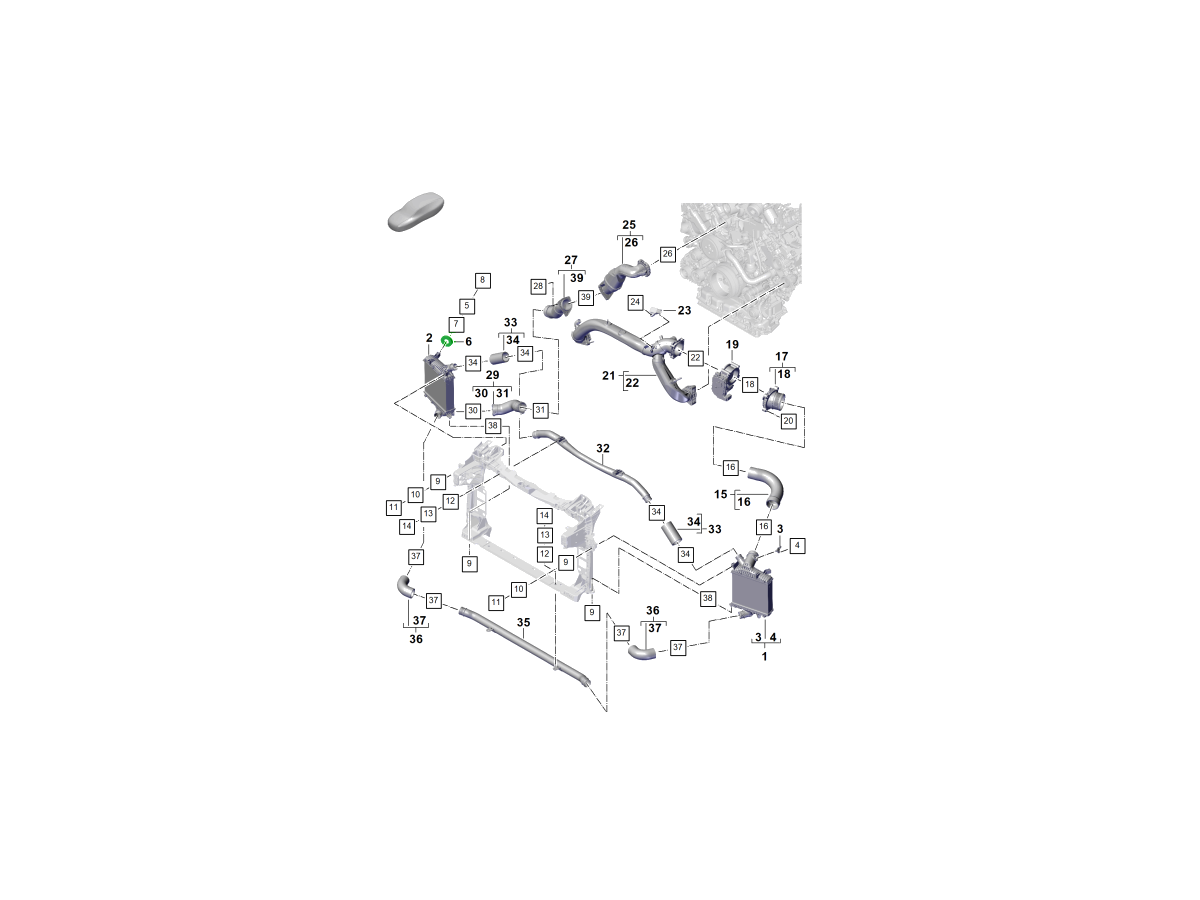

Diagram ref no 6

As part of the turbocharged intake system, the intercooler must be securely mounted to ensure stability, correct alignment and reliable operation. This adaptor ring plays a key role in holding the intercooler in place while also supporting proper connection to surrounding components.

What This Intercooler Mounting Adaptor Ring Does

The adaptor ring is used as part of the intercooler mounting assembly. It helps secure and stabilise the intercooler within its housing and ensures correct positioning relative to boost pipes and surrounding components.

It helps:

• Secure the intercooler in its mounting position
• Ensure proper alignment within the charge air system
• Support stable connections to pressure pipes
• Prevent movement or vibration during driving
• Maintain integrity of the turbo intake system

A correctly installed intercooler is essential for efficient cooling and consistent turbo performance.

Why Intercooler Mounting Components Fail

Mounting components such as adaptor rings are exposed to heat, vibration and mechanical stress, which can lead to wear over time.

Common causes include:

• Thermal stress - Repeated heating and cooling cycles can affect material strength.

• Vibration and movement- Engine and road vibrations can gradually wear mounting components.

• Material fatigue - Over time, the adaptor ring may lose structural integrity or deform.

• Damage during removal or installation - Intercooler servicing can sometimes lead to distortion or wear of mounting parts.

Symptoms of a Worn or Damaged Adaptor Ring

• Intercooler not sitting correctly in position
• Movement or vibration from intercooler area
• Misalignment of boost pipes or connections
• Increased wear on surrounding components
• Difficulty reinstalling intercooler securely

Replacing worn mounting components ensures the intercooler remains properly secured and aligned.

Why You May Need to Replace This Adaptor Ring

• Ensure Secure Intercooler Installation - A new adaptor ring helps maintain correct positioning and stability.

• Maintain System Alignment - Proper alignment ensures efficient airflow and correct fitment of connecting pipes.

• Prevent Vibration and Wear - Secure mounting reduces stress on intercooler and surrounding components.

• Recommended During Intercooler Service - Ideal to replace when removing or reinstalling intercoolers.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PAB14517500

The product you are viewing cross references to these numbers
