Adjustable Camshaft Sprocket. Porsche 924S / 944 8v / 944 turbo 8v  ❭  9441055451T

Adjustable Camshaft Sprocket - Precision Cam Timing Adjustment for Performance and Reliability

This adjustable camshaft sprocket is designed for Porsche 924S, 944 2.5 8V and 944 Turbo models. It allows precise adjustment of camshaft timing to optimise torque delivery, correct timing deviation after engine work and enhance overall driving characteristics.

Fits:

• Porsche 924S 2.5L 1986-87
• Porsche 924S 2.5L 1988
• Porsche 944 2.5L 8V 1982-87
• Porsche 944 2.7L 8V 1988-89
• Porsche 944 Turbo 2.5L 8V 1985-88
• Porsche 944 Turbo 2.5L 8V 1989-91
• Porsche 944 Turbo S 2.5L 8V 1988

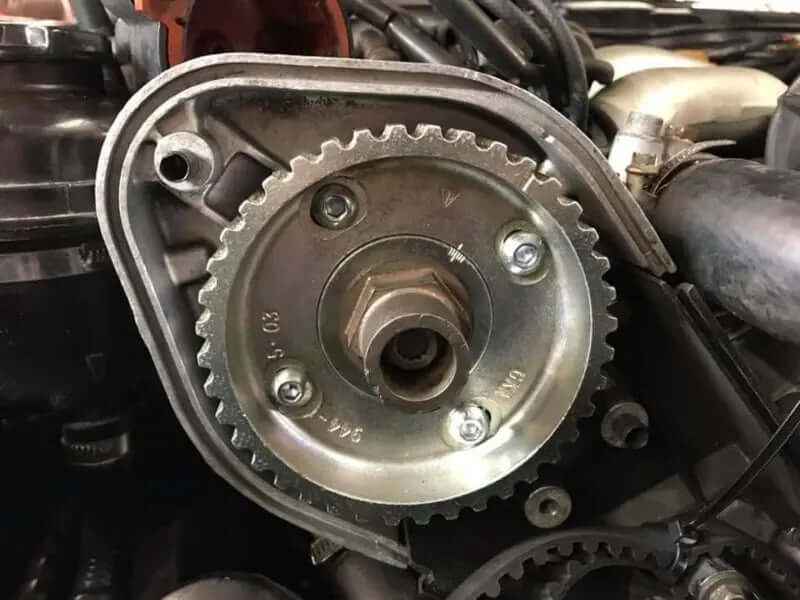

Engineered as a direct replacement for the original cam pulley, it installs easily and includes a new key and camshaft bolt for safe assembly.

What an Adjustable Camshaft Sprocket Does

The camshaft sprocket controls the timing relationship between the crankshaft and camshaft. By adjusting cam timing, you influence when the valves open and close relative to piston position.

This affects:

• Torque delivery
• Throttle response
• Powerband characteristics
• Maximum horsepower
• Engine drivability

By advancing or retarding the camshaft timing, you can shift the torque band higher or lower in the RPM range depending on your intended use.

Adjustability Range and Features

• Adjustable from -4° to +5° camshaft timing

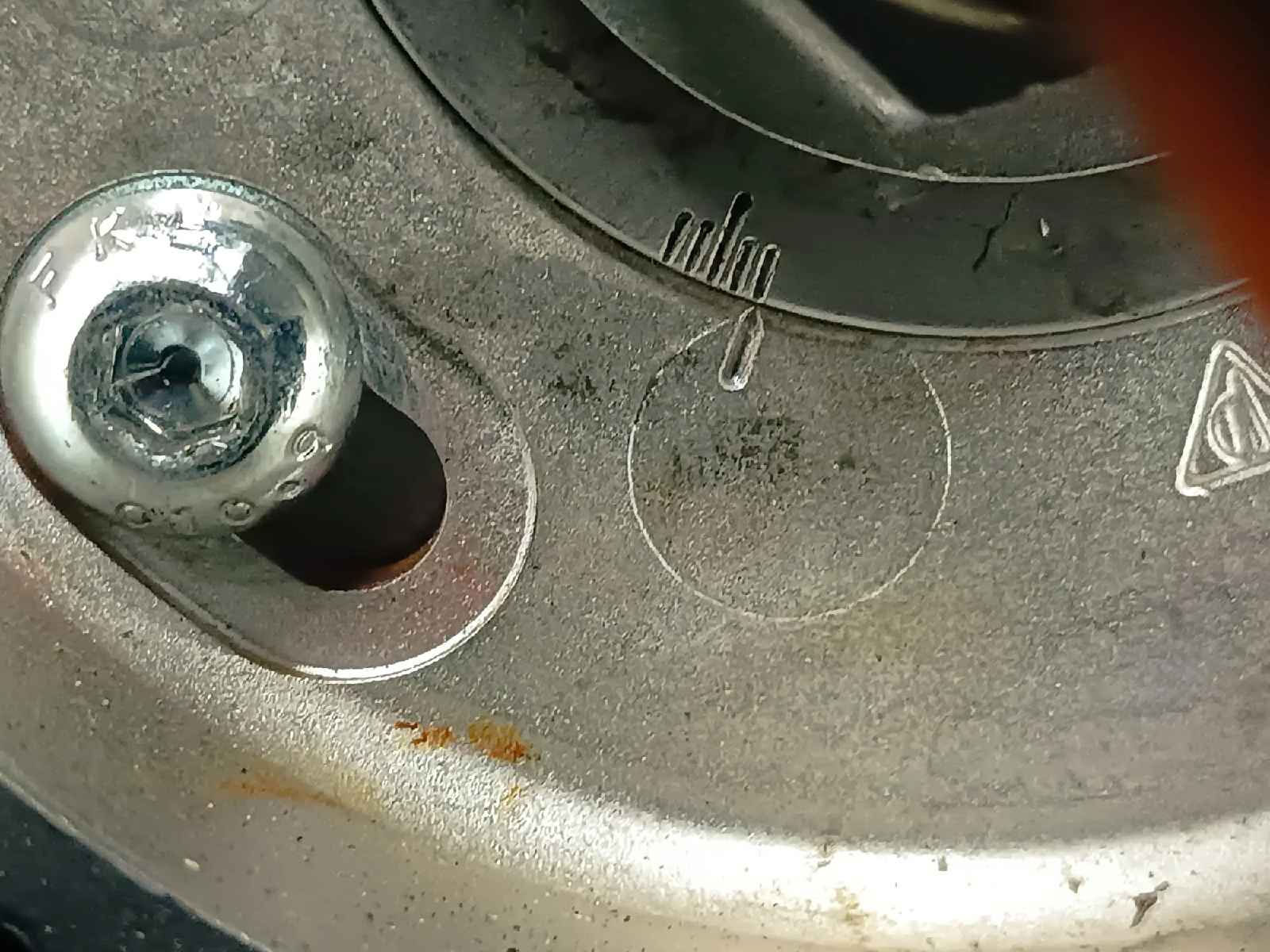

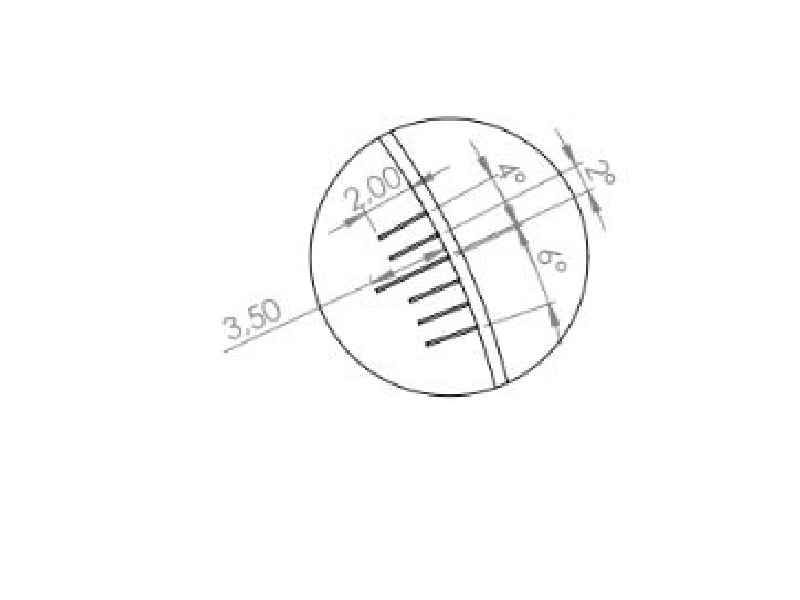

• Degree markings for accurate setting
• Original zero position retained +3° to +4° is typically ideal for most street setups
• Maximum adjustment range prevents valve-to-piston contact
• Adjustment possible while mounted on the camshaft
• No need to modify the distribution cover
• Safe to tune without a rolling road

The designed adjustment range ensures you cannot rotate the sprocket far enough to cause engine damage under normal use.

Why You May Want to Upgrade

Correct Timing After Head Work

Many Porsche 924S and 944 engines have had cylinder heads skimmed during overhaul. When material is removed, the head sits lower, slightly retarding cam timing. This adjustable sprocket allows you to correct timing precisely and restore factory performance.

Compensate for Manufacturing Variations

Even factory sprockets can vary slightly in keyway positioning. This gear allows fine correction for accurate timing alignment.

Performance Tuning

If you are running:

• A performance camshaft
• Engine modifications
• Increased boost on a Turbo
• Higher compression setup

An adjustable camshaft sprocket becomes essential for optimising performance.

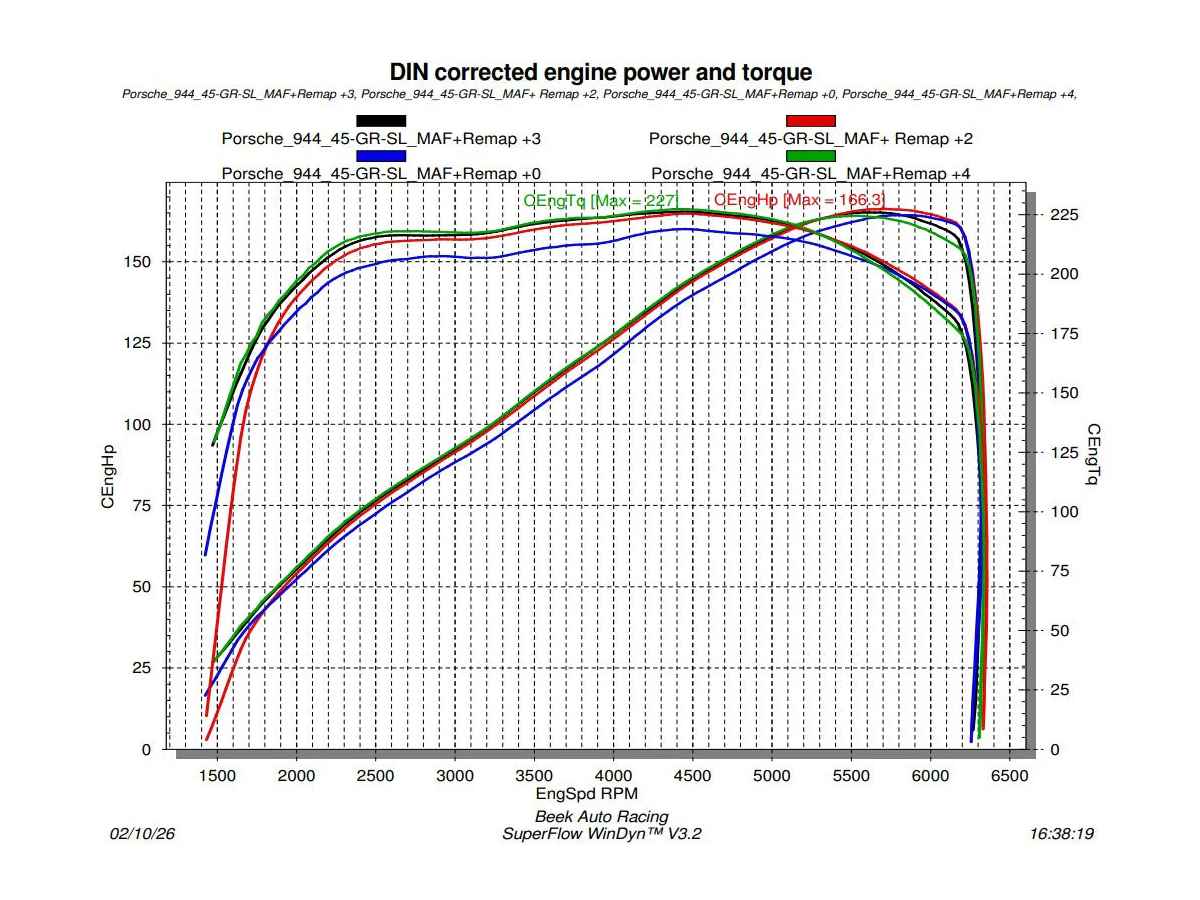

Street vs Racing Setup

For street use:
Advancing the cam (+3° to +4°) increases torque in the 2000 to 3500 RPM range, improving daily drivability and throttle response.

For racing use:
Retarding or advancing timing toward +5° can move peak torque higher in the RPM range for greater top-end performance.

You can safely experiment and feel the difference without needing a dyno session.

Superior Construction and Durability

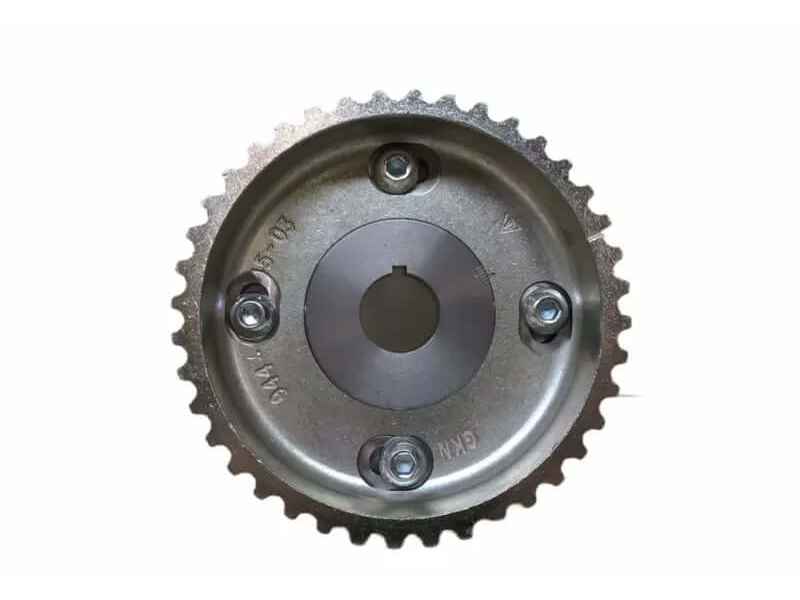

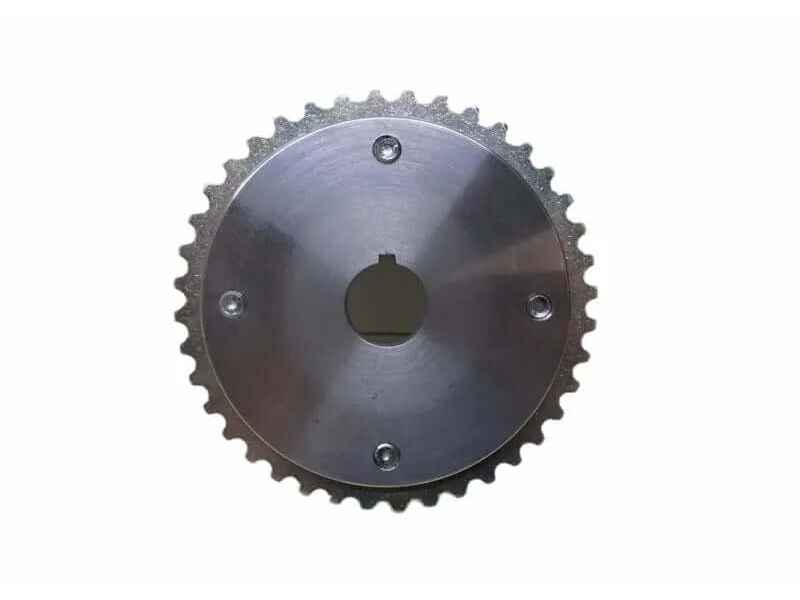

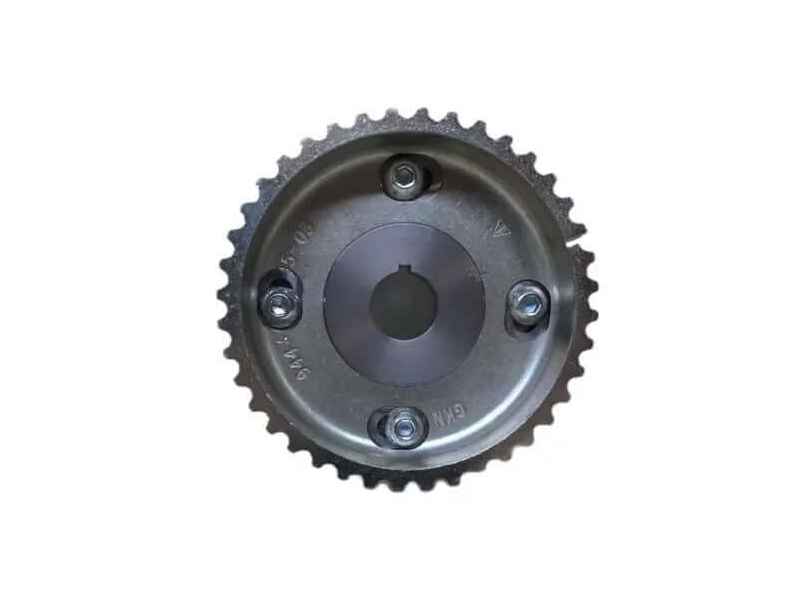

This sprocket uses the original toothed outer design to maintain correct belt engagement but improves the internal core strength.

Key upgrades include:

• High-quality steel core stronger than original
• Reinforced keyway to prevent tearing under load
• TriPass Yellow Special galvanised coating for corrosion resistance
• Four high-strength 10.9 M8 Allen bolts for secure clamping
• Cleanly centred for smooth rotation

The original sprocket’s common weak point was the keyway, which could fail under poor assembly or high stress. This upgraded version significantly improves durability.

Package Contents

• Adjustable camshaft sprocket
• New original key
• New camshaft bolt
• User manual (in Dutch)

Reusing old keys or bolts can lead to failure, which is why new components are supplied.

Key Benefits at a Glance

• Adjustable cam timing from -4° to +5° Safe adjustment range prevents valve damage
• Ideal after cylinder head machining Improves torque and drivability
• Suitable for street and racing use
• Stronger core and reinforced keyway
• Corrosion-resistant finish
• Direct replacement with easy assembly
