Milltek Sports Exhaust With Cat Replacement Pipe And Polished Trims. Porsche 718 GTS 2.5L

DesignTek Secondary Exhaust Muffler Bypass for Porsche 991 S 3.8L



Fits:
Porsche 991 Carrera S 3.8L

These simple U/J pipes remove the mufflers that are tucked up in the rear quarter panels. Why the reason for these I do not know. Typically in the past we either see a main centre muffler or 2 mufflers with catalyst pipes. So this was the first simplest part to change out. Keeping the same diameter for a perfect OEM replacement, these pipes are straight through which not only eliminates any muffler packing or baffling, but also the weight. Each stock muffler weighs approximately 15.6lbs. The Designtek Secondary Exhaust Muffler Bypass Pipes are about 3lbs each. Now eliminating restriction, we have also saved about 25lbs off the rear end. Because this part still retained the factory headers with cats and the factory center muffler, it added a slightly deeper tone to the exhaust but not a drastic droning change that a full exhaust could. Upon revving the car out stationary and on the dyno, you could hear the tone change nicely as you past the 4000rpm mark.

Garage Notes: The pipes sometimes rub on the heatshields causing a resonation through the car. This can be sorted by redressing the heatshields but isn't a straight forward bolt up and go replacement.

The sound its self is quite impressive and very sporty from the outside but to drive causes a pretty bad droning sound under normal driving conditions. This exhaust peaks at 101decibels

According to the factories dyno test, the secondary muffler bypass pipes really start achieving performance from 3700rpm all the way to redline. With a baseline test in 3rd gear and all wheel drive (have to for the dyno and no warning lights), the car made 344HP and 289ft/lbs of torque. Based on the ambient temperature, the factories Mustang Dyno, and 91octane fuel, this is about right considering the car comes with 400bhp. With the addition of our pipes, the car put down 358HP and 298ft/lbs of torque gaining 14HP and 9ft/lbs at the peak.

Click 'Zoom in' for large parts diagram.
3606009913 replace No11/12.



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3606009913

The product you are viewing cross references to these numbers

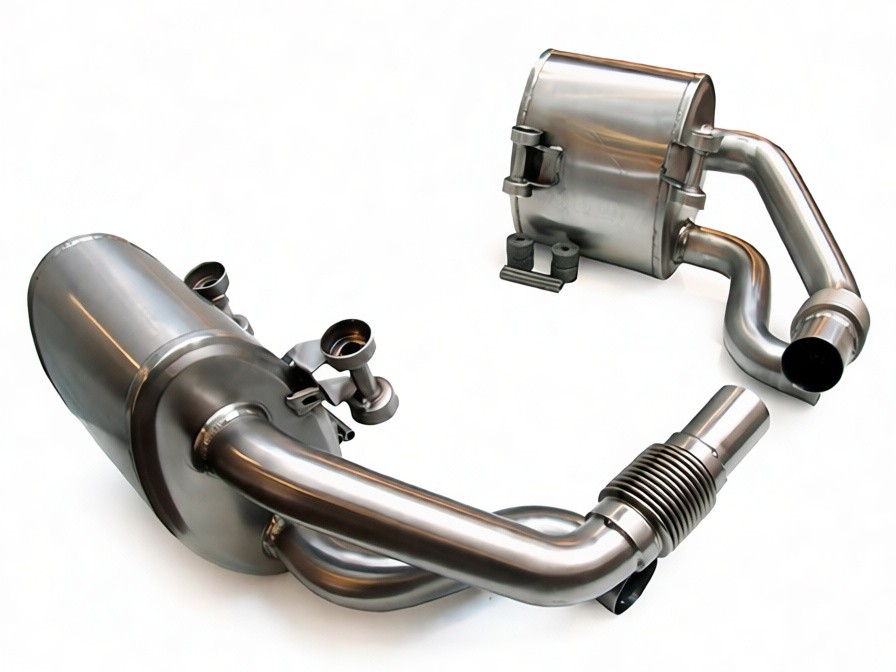

Secondary Sports Exhaust Boxes DesignTek for Porsche 991.1

Fits:
Porsche 991 Carrera 3.4L
Porsche 991 Carrera S 3.8L

The secondary sports exhaust boxes are designed to give the car a deeper sound, these car be added to the factory exhaust parts and replace the two side muffler cans.

Powerful, robust and sporty. Better still, it can be further enhanced thanks to the sports exhaust system, featuring a modified secondary sports exhaust boxes, the sound varies with driving behaviour, ranging from a robust output during normal road driving to a distinctively more aggressive tone during performance use.

Click 'Zoom in' for large parts diagram.
3606009913 replace No11/12.



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3606009923

The product you are viewing cross references to these numbers

Akrapovic Slip-On Line Titanium Exhaust

Fits:
Porsche 997.1 GT3 3.6L 2007>>
Porsche 997.2 GT3 3.8L 2010>>
Porsche 991 (911) GT3 2014>>
Porsche 991 (911) GT3 RS 2014>>

Akrapovič's Slip-On Line represents the first step in the exhaust system tuning process and the muffler can easily be installed onto the Porsche GT3's original system. Built from hi-grade titanium and finished with two eye-catching double round tailpipes, this entry system makes the GT3 more powerful and lighter, and gives the car that unique Akrapovič sound. Designed to make the car stand out from the crowd and increase its appeal even more, the visual delight of the Akrapovič Slip-On can be further enhanced with the addition of an optional carbon- fibre rear diffuser. Beautifully handcrafted from the finest materials and designed to enrich the exclusive look of the titanium exhaust system, the diffuser is a must-have extra for any discerning owner.

TECHNICAL DATA
* measured with: Porsche 911 GT3 RS (991) 2014

Maximum power:
- kW: plus 4.5 at 7800 rpm
- HP (m): plus 6.1 at 7800 rpm
- HP (i): plus 6 at 7800 rpm

Maximum torque:
- Nm: plus 4.9 at 8100 rpm
- lb-ft: plus 3.6 at 8100 rpm

Weight:
- minus 1.1 kg / 2.4 lb

*** Mandatory Extra Part Required
Tail pipe set (Titanium) - part no TP-PO991RS/H/T

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

MTP-PO997GT3H

The product you are viewing cross references to these numbers
