Brake Caliper & Disc "Big Yellows" Front Upgrade Kit for Porsche 911 - BIGBRAKE911Y32
DesignTek
BIGBRAKE911Y32
Product Information
Kit Includes
2 x Turbo Brake Disc 332mm x 32mm
2 x Caliper Mounting Brackets
4 x Caliper Bracket Bolts
2 x Big Red Calipers
1 x Set of Brake Pads
8 x Brake Pad Shims
2 x Caliper stickers in BLACK lettering
2 x Brake caliper sensors
Fits:
Porsche 911 1984-89 3.2L
The minimum wheels are 17" needed to make the clearance. Some cars may also need wheel spacers to clear the brake calliper offset
Product Information
Front Brake Caliper & Disc "Big Reds" Upgrade KitKit Includes
2 x Turbo Brake Disc 332mm x 32mm
2 x Caliper Mounting Brackets
4 x Caliper Bracket Bolts
2 x Big Red Calipers
1 x Set of Brake Pads
8 x Brake Pad Shims
2 x Caliper stickers in BLACK lettering
2 x Brake caliper sensors
Fits:
Porsche 911 1984-89 3.2L
The minimum wheels are 17" needed to make the clearance. Some cars may also need wheel spacers to clear the brake calliper offset
About kit
This kit is comprised of the following items:
1 x Brake disc rotor, Front. Porsche 993 C2S / C4S / Turbo (OE No 99335104510 and 99335104610) (99335104510SEB
1 x Brake disc rotor, Front. Porsche 993 C2S / C4S / Turbo (OE No 99335104510 and 99335104610) (99335104610SEB
1 x Brake Calipers 4 Piston "Big Red" (YELLOW) 993 Turbo brakes. Porsche multiple applications (3604209302
2 x MOUNTING BRACKET FOR 911 1974-89 "BIG RED" BRAKE CALIPERS FRONT (3604109304/1
4 x Cap screw Zinc Bbolt M12 X 1.5P X 30mm socket (801600037
4 x Brake Caliper Mounting Bolts. Porsche Various Models (99907340201
4 x Anti vibration damper 36mm. Porsche 928 / 944 / 964 / 968 / 993 (96435109601/1
4 x Anti vibration damper 44mm. Porsche 928 / 964 / 993 (96535109600/1
1 x Brake pads, Front. Porsche 993 / 965 / 928 GTS (99335194900BRE
2 x Hub adaptor, Each. Porsche 911 67-89 to fit front 993TT Disc (91135191193201
1 x Brake sensor (PAIR) for big brake conversion (BIGREDSENSORKIT
Vehicle Group
Vehicle Group
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
€1,848.29 inc. VAT
Now €1,571.05 inc. VAT
In Stock - 24 Hour Dispatch
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Trade Price Match
Related products
3604209301
Product Information
SET OF 2
Porsche multiple applications
Technical specification:
Piston size (mm): 36/44
Piston area (mm3): 50.37
Weight (Kg): 3.8
Pad thickness (mm): 18
Disc Diameter (mm): 322
Disc thickness (mm): 32
Hydraulic threads: M10 X 1
Mounting hole center (mm): 130
Mounting offset (mm): 55
Mounting hole diameter (mm): Ø12.2
Caliper body: Fission
Caliper material: AI A356
Material process: Cast
Made to the same dimensions and specifications as the original Porsche 993 turbo brake calipers "Big Reds" can be used to upgrade the braking system on your Porsche 964 / 993 model with bigger brake disc, brake pads from the 993 Turbo should be used with these brake calipers
Also Fits:
Porsche 964 C2 with Brackets - BRACKETKIT02
Porsche 964 C4 with Brackets - BRACKETKIT02
Porsche 964/965 Turbo with Brackets - BRACKETKIT02
Porsche 930 Turbo with Brackets - BRACKETKIT03
Porsche 911 1974-89 with Brackets - BRACKETKIT04
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3604209301
The product you are viewing cross references to these numbers
Product Information
Same as "Big Red" 993 Turbo brakes, these brake calipers are for customers wanting to modify their brakes, the technical details and sizes are in the description, please refer to your mechanic / fitter as these brakes have multiple applications SET OF 2
Porsche multiple applications
Technical specification:
Piston size (mm): 36/44
Piston area (mm3): 50.37
Weight (Kg): 3.8
Pad thickness (mm): 18
Disc Diameter (mm): 322
Disc thickness (mm): 32
Hydraulic threads: M10 X 1
Mounting hole center (mm): 130
Mounting offset (mm): 55
Mounting hole diameter (mm): Ø12.2
Caliper body: Fission
Caliper material: AI A356
Material process: Cast
Made to the same dimensions and specifications as the original Porsche 993 turbo brake calipers "Big Reds" can be used to upgrade the braking system on your Porsche 964 / 993 model with bigger brake disc, brake pads from the 993 Turbo should be used with these brake calipers
Also Fits:
Porsche 964 C2 with Brackets - BRACKETKIT02
Porsche 964 C4 with Brackets - BRACKETKIT02
Porsche 964/965 Turbo with Brackets - BRACKETKIT02
Porsche 930 Turbo with Brackets - BRACKETKIT03
Porsche 911 1974-89 with Brackets - BRACKETKIT04
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3604209301
99335142510
99335142610
1661900310
640-C100
The product you are viewing cross references to these numbers
Vehicle Group
Vehicle Group
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche Boxster 987 MKII 2.9L 2009-2012
- Porsche Boxster S 987 MKII 3.4L 2009-2012
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
- Porsche Cayman 2.9L 987C MKII 2009-12
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
- Porsche 924 2.0L 1976-79
- Porsche 924 2.0L 1980-85
- Porsche 924 Turbo 2.0L 1979-81
- Porsche 924 Turbo 2.0L 1982-84
- Porsche 924 Carrera GT 2.0L 1981
- Porsche 924 Carrera GTS 2.0L 1982
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988>>
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 928GTS 5.4L 1992-95
€474.81 inc. VAT
Now €403.59 inc. VAT
Due In 30+ Days
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Trade Price Match

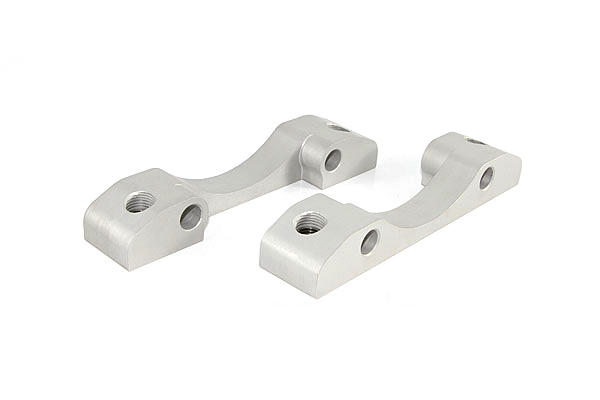

3604109642
Product Information
Set of 2 brackets
Porsche 964
6082-T6 Aluminum, Helicoil inserts
Product Information
These brackets are used to fit Rear 996 C2 brake calipers to the rear of a Porsche 964 / 944 / 968 models. Set of 2 brackets
Porsche 964
Porsche 944 S2 / Turbo ’87
Porsche 968
6082-T6 Aluminum, Helicoil inserts
Vehicle Group
Vehicle Group
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
€178.50 inc. VAT
Now €151.72 inc. VAT
In Stock - 24 Hour Dispatch
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Trade Price Match
CS04
Product Information
SET OF 2
Fits:
Porsche 964 1989-94
Porsche 944 S2
Porsche 968 1992-95
For 964/944's with medium S4 calipers: Use 304x32mm rotors Porsche part number 92835104360 / 92835104460
For 964/944's with 993TT (Big Red Calipers): Use 322x32mm rotors Porsche part number 96535104500 / 96535104600
Note: Pictures may not show actual product. The adaptor is intended for off road use only.
Product Information

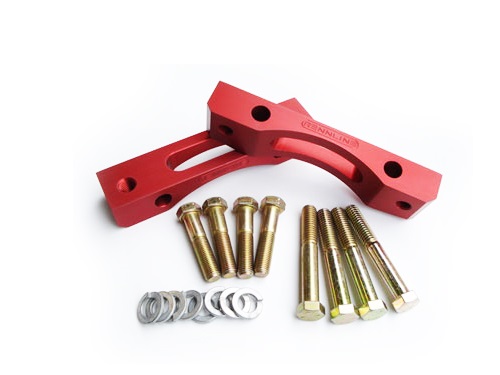

Rennline Brake Caliper Adapter Kit for Boxster/993/993TT Calipers. FRONTSET OF 2
Fits:
Porsche 964 1989-94
Porsche 944 S2
Porsche 968 1992-95
For 964/944's with medium S4 calipers: Use 304x32mm rotors Porsche part number 92835104360 / 92835104460
For 964/944's with 993TT (Big Red Calipers): Use 322x32mm rotors Porsche part number 96535104500 / 96535104600
Note: Pictures may not show actual product. The adaptor is intended for off road use only.
Vehicle Group
Vehicle Group
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
€522.41 inc. VAT
Now €496.29 inc. VAT
