Porsche > Diagrammi > 997 (911) MK1 2005-2008 > 997 TURBO 2007>> > Carrozzeria >

ventilation heating system 1 for 964 1989-94
801-00
body in white (prime coated sealed with underbody protection with doors/lids/wings) for 997.1 TURBO 2007-09
801-02
stopper plane 997.1 TURBO 2007-09
801-05
body front section 997.1 TURBO 2007-09
801-10
body front section single parts 997.1 TURBO 2007-09
801-15
dome strut 997.1 TURBO 2007-09
801-20
floor centre 997.1 TURBO 2007-09
801-35
rear end 997.1 TURBO 2007-09
801-40
wing 997.1 TURBO 2007-09
801-45
cowl 997.1 TURBO 2007-09
801-50
side section inner 997.1 TURBO 2007-09
801-55
side section outer 997.1 TURBO COUPE 2007-09
801-60
side section inner 997.1 TURBO CABRIO 2007-09
801-65
side section outer 997.1 TURBO CABRIO 2007-09
801-70
linings underbody 997.1 TURBO 2007-09
801-75
linings wheel housing 997.1 TURBO 2007-09
802-00
bumper front 997.1 TURBO 2007-09
802-02
bumper front 997.1 GT2 2007-09
802-05
lining bumper rear 997.1 TURBO 2007-09
802-06
lining bumper rear 997.1 GT2 2007-09
802-07
bumper heat protection rear 997.1 TURBO 2007-09
803-00
lid front 997.1 TURBO 2007-09
803-05
lid rear 997.1 TURBO 2007-09
803-06
lid rear 997.1 GT2 2007-09
803-07
rear spoiler 997.1 TURBO 2007-09
803-08
rear spoiler 997.1 GT2 2007-09
803-09
lid rear and rear spoiler 997.1 TURBO IXAF (Turbo aerokit) 2007-09
804-00
door in white, installation parts and door lock 997.1 TURBO 2007-09
804-10
door seal gasket windscreen 997.1 TURBO 2007-09
804-20
door handle 997.1 TURBO 2007-09
804-30
power windows 997.1 TURBO 2007-09
805-05
rear window 997.1 TURBO CABRIO 2007-09
807-00
luggage compartment
807-01
luggage compartment 997.1 TURBO 2007-09
807-02
carpet linings 997.1 TURBO 2007-09
807-03
lining door sill 997.1 TURBO 2007-09
807-05
linings rear 997.1 TURBO COUPE 2007-09
807-07
linings rear 997.1 TURBO CABRIO 2007-09
807-08
rooflining a-pillar 997.1 TURBO COUPE 2007-09
807-09
a-pillar, windscreen frame and sun visors for 997.1 TURBO CABRIO/COUPE 2008 ONWARDS
807-10
door trim panel accessories 997.1 TURBO 2007-09
807-15
body sound proofing - 1 - for 997.1 TURBO COUPE 2007-09
807-16
body sound proofing - 1 - for 997.1 TURBO CABRIO 2007-09
809-00
dashboard trim upper part with mounting parts for 997.1 TURBO 2007-09
809-01
accessories dashboard trim upper part 997.1 TURBO 2007-09
809-03
glove compartment lid and lining driver's side 997.1 TURBO 2007-09
809-04
retaining frame dashboard 997.1 TURBO 2007-09
809-10
interior mirror and door mirror for 997.1 TURBO 2007-09
809-15
centre console front 997.1 TURBO 2007-09
809-20
centre console rear 997.1 TURBO 2007-09
810-00
insignias, decorative fittings and stone guard film for 997.1 TURBO 2007-09
810-05
sill cover 997.1 TURBO 2007-09
811-00
sunroof 997.1 TURBO I650 (Electric sliding roof) 2007-09
811-05
convertible top frame, front, roof frame, catch and lubricants for 997.1 TURBO 2007-09
811-06
convertible top frame and single parts 997.1 TURBO 2007-09
811-07
convertible top frame and single parts for 997.1 TURBO 2007-09
811-09
convertible top seal 997.1 TURBO 2007-09
811-10
convertible top covering and roofliner 997.1 TURBO 2007-09
811-11
flap, lateral and folding top for 997.1 TURBO 2007-09
811-12
convertible top, driving mechanism and hydraulic for 997.1 TURBO 2007-09
811-13
convertible top compartm. lid and gaskets 997.1 TURBO 2007-09
811-14
wind deflector 997.1 TURBO 2007-09
811-15
roll-over bar 997.1 TURBO 2007-09
811-16
hardtop, accessories and gaskets 997.1 TURBO I550 (Hard Top) 2007-09
811-17
hardtop sound absorber 997.1 TURBO I550 (Hard Top) 2007-09
812-01
seat belt front 997.1 TURBO CABRIO 2007-09
812-05
seat belt rear 997.1 TURBO COUPE 2007-09
812-06
seat belt rear 997.1 TURBO CABRIO 2007-09
813-00
heating system - 1 - feed line and return line for 997.1 TURBO 2007-09
813-01
air distributor, passenger compartment 997.1 TURBO 2007-09
813-02
luggage compartment cooling (I575) for 997.1 TURBO 2007-09
813-10
water drain tube, mount and air conditioner 997.1 TURBO 2007-09
813-15
compressor 997.1 TURBO 2007-09
813-20
particle filter and cowl panel covering 997.1 TURBO 2007-09
813-25
refrigerant circuit 997.1 TURBO 2007-09
813-26
fuel cooler 997.1 TURBO 2007-09
813-45
control switch 997.1 TURBO 2007-09
817-00
front seat (complete not available) for 997.1 TURBO COUPE 2007 ONWARDS and 997.1 TURBO CABRIO 2008 ONWARDS
817-05
foam part, cover, comfort seat and ventilation component for 997.1 TURBO COUPE / CABRIO 2007-09
817-07
lumbar support, comfort seat 997.1 TURBO COUPE / CABRIO 2007-09
817-10
backrest shell, standard seat and comfort seat 997.1 TURBO COUPE / CABRIO 2007-09
817-15
backrest frame, comfort seat 997.1 TURBO COUPE / CABRIO 2007-09
817-16
cushion carrier, frame and seat surface 997.1 TURBO COUPE / CABRIO 2007-09
817-19
seat adjuster, standard seat and comfort seat 997.1 TURBO COUPE / CABRIO 2007-09
817-20
front seat (complete not available) sports seat 997.1 TURBO 2007-09
817-25
foam part, cover, sports seat 997.1 TURBO 2007-09
817-28
heating, sports seat, front seat 997.1 TURBO 2007-09
817-30
backrest shell, sports seat 997.1 TURBO 2007-09
817-40
backrest frame, sports seat 997.1 TURBO 2007-09
817-43
lumbar support, sports seat 997.1 TURBO 2007-09
817-45
seat adjuster, sports seat, manually 997.1 TURBO 2007-09
817-50
seat adjuster, sports seat, elect. vertical adjustment 997.1 TURBO 2007-09
817-53
cushion carrier sports seat frame seat cushion
817-60
wiring harnesses: switch, control units, sports seat and comfort seat for 997.1 TURBO 2007-09
817-62
bucket seat collapsible (complete not available) 997.1 TURBO 2008 ONWARDS
817-64
foam part, cover, seat and backrest surface, bucket seat, collapsible 997.1 TURBO 2008 ONWARDS
817-65
wiring harnesses: switch, control unit, electric motor, comfort seat 997.1 TURBO 2007-09
817-66
bucket seat, collapsible, seat adjuster and accessories 997.1 TURBO 2008 ONWARDS
817-67
heating, front seat, comfort seat 997.1 TURBO 2007-09
817-68
backrest shell, bucket seat, collapsible, accessories 997.1 TURBO/GT2 2008 ONWARDS
817-70
back seat backrest coupe 997.1 TURBO 2007-09
817-75
back seat backrest 997.1 TURBO CABRIO 2008 ONWARDS
817-80
back seat cushion coupe 997.1 TURBO 2007-09
817-82
back seat cushion 997.1 TURBO CABRIO 2008 ONWARDS
817-85
bucket seat collapsible (complete not available) 997.1 GT2 2008 ONWARDS
817-87
foam part, cover, seat and backrest surface, bucket seat, collapsible 997.1 GT2 2008 ONWARDS
817-89
bucket seat, collapsible, seat adjuster and accessories 997.1 GT2 2008 ONWARDS
817-91
backrest shell, bucket seat, collapsible and accessories 997.1 GT2 2008 ONWARDS

ventilation heating system 1 for 964 1989-94 - PORSCHE

Fai clic sui numeri delle immagini per visualizzare le info del prodotto

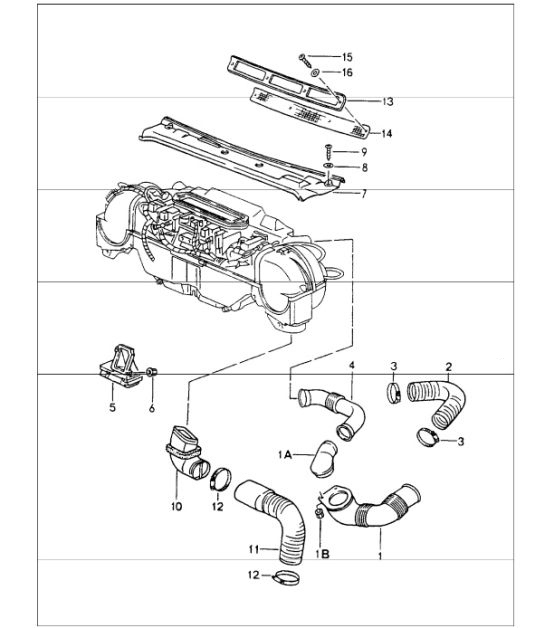

Diagram 813-00 Porsche 997 TURBO 2007>> Carrozzeria SKU: 96457225101, air duct,SKU: 96457225201, air duct side vent SKU: 96457224100, air duct cross panel SKU: W99904900940, plastic nut,SKU: 99959183940, plastic nut t 5,SKU: 99959183940, hexagon nut t 5 SKU: 99959183940, plastic nut t 5,SKU: 99959183940, hexagon nut t 5 SKU: 91157311500, hose lw 61 x 420 SKU: PCG51234902, hose clamp 50-70/9 SKU: PCG51234902, hose clamp 50-70/9 SKU: 99357241900, air duct,SKU: 96457243000, air duct heater SKU: 96457208300, footwell outlet vent,SKU: 96457208401, footwell outlet vent SKU: 99357240300, cover SKU: 99902518807, washer 5,3 x 17 x 1,SKU: 91151133200, spacer SKU: PAF013958, tapping screw bz 3,5 x 13,SKU: 90014304707, tapping screw b 4,2 x 19 SKU: 96457204500, connection piece,SKU: 96457204600, connection piece upper SKU: 96457252701, air hose,SKU: 96457252801, air hose SKU: 99951235102, hose clamp 70 - 90/9 SKU: 99951235102, hose clamp 70 - 90/9 SKU: 9115594010070K, grille frame - black SKU: 99355941100, grille SKU: N01408612, tapping screw b 3,5 x 13 SKU: 90155949120, spacer 813-00
