Porsche > Diagrams > 924 (1977-1988) > Engine >

Cylinder block with Pistons Oil pan Protective plate f. engine 924 1980 - 1985

101-000
Replacement engine 924 1976-79
101-000
Replacement engine M>>65X12345 (model: XK XJ TURBO M31.01/03/50) 924 1980 - 1985
101-005
Short engine 924 1980 - 1985
101-005
Short engine with Crankshaft, Piston, and Oil pump 924 1976-79
101-010
Cylinder block with pistons, Oil pan, Protective plate f. engine, 924 1976-79
102-000
Crankshaft / Connecting rod 924 1976-79
102-000
Crankshaft / Connecting rod 924 1980 - 1985
102-005
Piston / Piston rings 924 1976-79
102-005
Piston / Piston rings 924 1980 - 1985
103-000
Cylinder head 924 1974-79
103-000
Cylinder head 924 1980-1985
103-005
Camshaft / Valves 924 1976-79
103-005
Camshaft / Valves 924 1980 - 1985
104-000
Engine lubrication 924 1976-79
104-000
Engine lubrication 924 1980 - 1985
104-005
Engine lubrication / Engine oil cooler 924 TURBO 1979
104-005
Engine lubrication / Engine oil cooler 924 TURBO/GT 1980 - 1985
104-010
Engine lubrication / Turbocharger 924 TURBO 1979
104-010
Engine lubrication / Turbocharger 924 TURBO/GT 1980 - 1985
105-000
Water pump 924 1976-79
105-000
Water pump 924 1980 - 1985
105-005
Water cooling 924 1976-79
105-005
Water cooling 924 1980 - 1985
105-010
Water cooling 924 TURBO 1979
105-010
Water cooling 924 TURBO/GT 1980-1985
106-000
Air cleaner system 924 1976-79
106-000
Air cleaner system 924 1980-1985
106-005
Air cleaner system 924 TURBO 1979
106-005
Air cleaner system 924 TURBO/GT 1980 - 1985
107-000
K-jetronic - 1 - Mixture control unit 924 1980 - 1985
107-000
K-jetronic / Mixture control unit 924 1976-79
107-005
K-jetronic - 1 - Mixture control unit 924 TURBO/GT 1980 - 1985
107-005
K-jetronic / Mixture control unit 924 TURBO 1979
107-010
K-jetronic - 2 - 924 1980 - 1985
107-010
K-jetronic 924 1976-79
107-011
K-jetronic - 2 A - 924 1980 - 1985
107-015
K-jetronic - 2 - 924 TURBO/GT 1980 - 1985
107-015
K-jetronic 924 TURBO 1979
107-020
K-jetronic - 3 - 924 1980 - 1985
107-020
K-jetronic 924 TURBO 1979
107-025
K-jetronic - 3 - 924 TURBO/GT 1980 - 1985
107-025
Turbocharging 924 TURBO 1979
107-030
Turbocharging 924 TURBO/GT 1980 -1985
107-035
Charge air cooler 924 GT 1980 - 1985
109-000
Engine suspension 924 1976-79
109-000
Engine suspension 924 1980-1985
198-000
Maintenance set / Gasket set / Repair kit 924 1980 - 1985
198-000
Maintenance set / Gasket set / Repair kit 924 1976-79

Cylinder block with Pistons Oil pan Protective plate f. engine 924 1980 - 1985 - PORSCHE

Click the image numbers to view product info

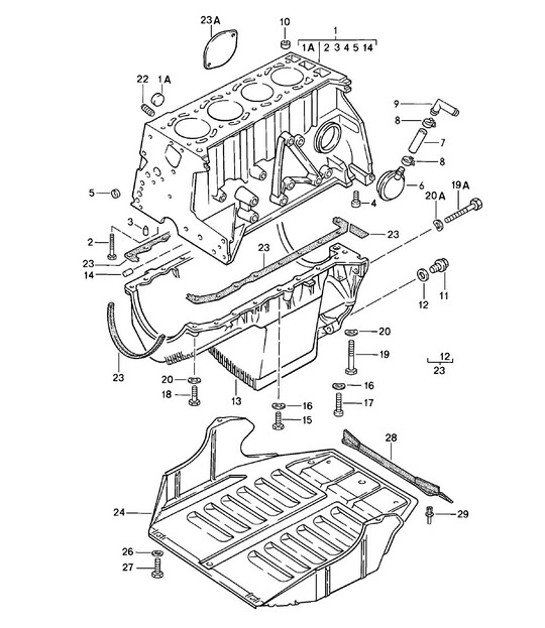

Diagram 101-010 Porsche 924 (1977-1988) Engine SKU: 047103101E, cylinder block with pistons mod. 80/81use also: 052.103.129.a,SKU: 047103101D, cylinder block with pistons,SKU: 93110310100, cylinder block,SKU: 93110310101, cylinder block with pistons,SKU: 931103101AX, crankcase with pistons SKU: 95510121500, lid SKU: N0104883, hexagon-head bolt m 12 x 85 SKU: 99901203400, straight pin 8 h 6 x 12 SKU: N0147243, pan-head screw m 10 x 20 SKU: N0119034, lid 16,SKU: N0119074, lid 14 SKU: PCG103129A, bleeder,SKU: 93110706301, bleeder SKU: N0203431, hose 18 x 2,5shorten to: 40 mm SKU: 99951234600, hose clamp lc 16-25 SKU: 99951234600, hose clamp lc 16-25 SKU: 047103227, elbow,SKU: 477133203, elbow SKU: 046103139, dowel sleeve SKU: 059103193, screw plugm 26 x 1,5,SKU: N0161554, screw plugm 14 x 1,5 SKU: N0438541, sealing ringc 26 x 32,SKU: 90012300730, sealing ringa 14 x 18 SKU: 047103603A, oil panuse also: 047.103.635,SKU: 047103603B, oil panuse also: 047.103.635 SKU: N0432072, straight pin 8 h 8 x 14 SKU: N01470310, pan-head screwm 6 x 18 SKU: N0122265, spring washer b 6 SKU: N0122265, spring washer b 6 SKU: 90006716601, pan-head screwm 6 x 60 SKU: 90006701803, pan-head screwm 8 x 25 SKU: N10011301, hexagon-head boltm 8 x 140,SKU: N0447242, pan-head screwm 8 x 70 SKU: N0104792, hexagon-head boltm 10 x 88,SKU: 90007437601, hexagon-head boltm 12 x 55,SKU: N0104671, hexagon-head boltm 12 x 45 SKU: N0122418, spring washer b 8 SKU: N0122418, spring washer b 8 SKU: 90002803202, spring washer b 10,SKU: 90002801403, washer b 12 SKU: 059115721, union SKU: 060198041A, gasket set for oil sump SKU: 060198041A, gasket set for oil sump SKU: 060198041A, gasket set for oil sump SKU: 060198041A, gasket set for oil sump SKU: 060198041A, gasket set for oil sump SKU: 93110113100, lid SKU: 477407583C, protective plate f >>92cn4 02197 f >>93cn1 00305,SKU: 94434116103, protective plate f 92cn4 02198>> f 93cn1 00306>>,SKU: 477407583D, protective plate SKU: 90015100603, washer 6,1 SKU: N01021513, hexagon-head bolt m 6 x 15 SKU: 477407587, protection cover f >>92cn4 02197 f >>93cn1 00305 SKU: N0385491, expansion rivet a 8 x 12 f >>92cn4 02197f >>93cn1 00305 101-010
