Engine lubrication 982 Cayman GT4 Clubsport 2019-2020 - PORSCHE

Click the image numbers to view product info

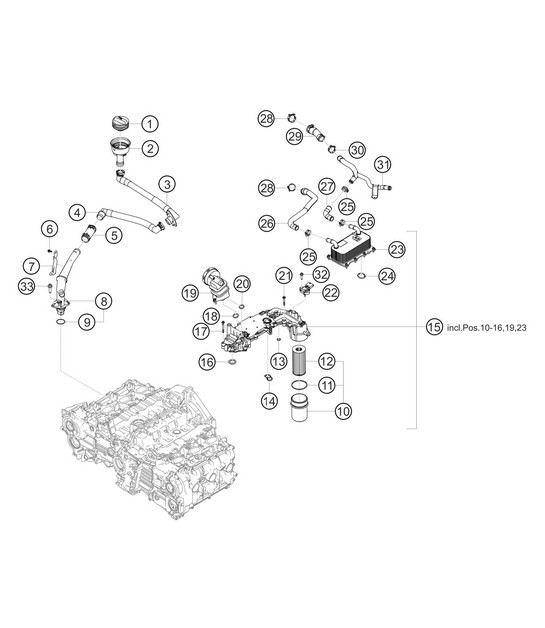

Diagram 1.1-11 Porsche Cayman S 3.4L 987C 2005-08 Engine SKU: 98110703508, as closure cap oil SKU: 98110716005, service shell oil SKU: 98110726503, as oil filling pipe trunk SKU: 98110726401, oil filling pipe engine SKU: 98110727400, hose SKU: PAF008124, pan-head screw bm6x12 SKU: 9A110721621, holder oil filling pipe SKU: 9A110701622, as oil filling pipe SKU: 99970734840, o-ring 42,00x4,0 SKU: 0PB115403A, z oil filter SKU: 0PB115499A, sealing ring oil-filter cover SKU: 0PB115466A, filter element SKU: PAF008087, o-ring 11,0x4,0 SKU: 9A110747500, sealing ring SKU: 9A11070208A, as oil guide module SKU: PAF008088, o-ring 20,0x4,0 SKU: 90038527601, torx screw bm 6x60 d34801 10.9 26b1 SKU: PAF008085, o-ring 21,0x4,0 SKU: 0PB115099A, z oil separator SKU: PAF008086, o-ring 18,5x4,0 SKU: PAF008131, torx screw bm6x45 10.9 SKU: 94860621300, oil pressure sensor w.temperature sensor SKU: 0PB117022, oil cooler SKU: 0PB115441, gasket oil cooler SKU: 99951265609, hose clamp b25x12 SKU: 99951265609, hose clamp b25x12 SKU: 99951265609, hose clamp b25x12 SKU: 9A110661100, feed line oil-water heat exch. SKU: 9A110666700, return line oil-water heat exch. SKU: 99951266209, clamp b32x12 SKU: 99951266209, clamp b32x12 SKU: 9A110666500, return line collector SKU: 99951265909, hose clamp SKU: 9F2117123, l return line SKU: PAF008126, pan-head screw bm6x20 1.1-11
