Porsche > Diagrams > 924 (1977-1988) > Transmission >

Replacement transmission / Final-drive housing / Automatic transmission 924 1976-79

Replacement transmission / Final-drive housing / Automatic transmission 924 1976-79 - PORSCHE

Click the image numbers to view product info

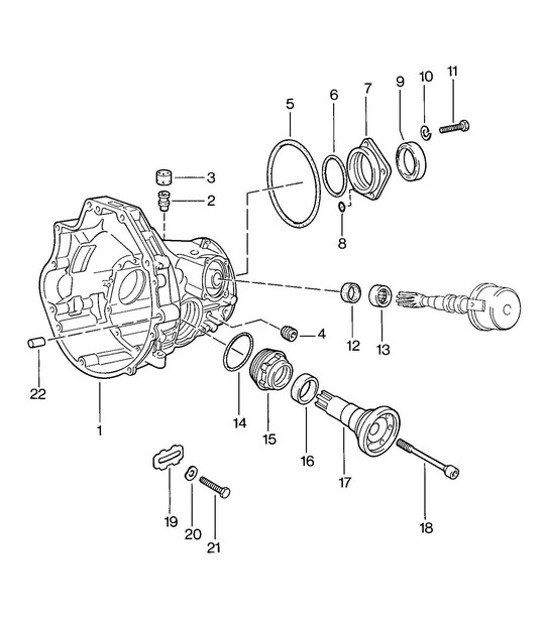

Diagram 308-000 Porsche 924 (1977-1988) Transmission SKU: 087409051F, final-drive housing g >> rk 15 06 7,SKU: 087409051H, final-drive housing g rk 16 06 7 >> SKU: 010409847, breather pipe SKU: 087409841, lid SKU: WHT001937, screw plug m 24 x 1,5 SKU: 010409549B, sealing ring SKU: 087409549, round seal SKU: 087409623, lid g >> rk 15 06 7,SKU: 087409623A, lid g rk 16 06 7 >> SKU: 089409637A, o-ring SKU: 087409529B, radial shaft seal SKU: 90002701503, lock ring SKU: 90007513603, hexagon-head bolt m 8 x 28,SKU: 90007511108, hexagon-head bolt m 10 x 30 SKU: 087409133, radial shaft seal SKU: 082409139, needle-roller bearing SKU: PCG519346, round seal SKU: 087409173, adjusting ring SKU: 016409399B, radial shaft seal SKU: 087409355, flanged shaft,SKU: 087409356, flanged shaft SKU: 087409359, screw,SKU: 087409360, screw SKU: 010409257, tab washer SKU: N0122265, spring washer SKU: N01021513, hexagon-head bolt m 6 x 15 SKU: 019301153, dowel sleeve 308-000
