Porsche > Diagrams > 996 (911) (1997-2005) > 996 GT3 RS 2003-04 > Engine >

Cylinder head / Cylinder with piston / M 90 501 >> 91 000 (Model: CARRERA 1500 GS/GT) 356, 356A 1950-1959
101-00
replacement engine ready for installation 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
101-05
crankcase left 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
101-10
crankcase right 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
101-15
belt tensioner, belt drive 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
102-00
crankshaft 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
102-05
cylinder with piston 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
103-00
cylinder head 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
103-05
chain case, chain adjuster 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
103-10
camshaft housing 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
103-15
valve control 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
104-00
oil pump 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
104-05
engine lubrication oil tank 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
104-10
oil filter bracket 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
104-20
oil supply return line 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT RS M96.79 2004-05
105-00
water pump, water pump housing 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
105-03
lines heating 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
105-05
water cooling 1 for 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
105-10
water cooling 2 for 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
105-15
water cooling 3 for 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
105-17
radiator centre 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
105-20
water cooling 4 for 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
106-00
air cleaner 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
107-00
throttle body 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
107-05
fuel collection pipe 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
107-10
intake distributor 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
108-05
air injection 996 GT3-1/GT3 RS M96.79 2004-05
109-00
engine suspension 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05

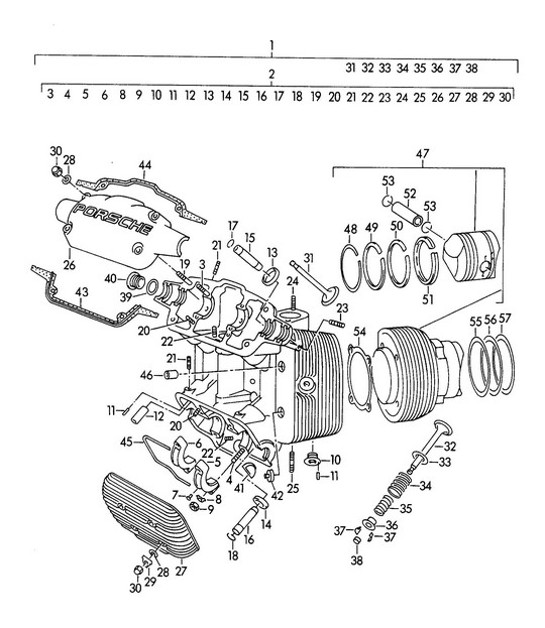

Cylinder head / Cylinder with piston / M 90 501 >> 91 000 (Model: CARRERA 1500 GS/GT) 356, 356A 1950-1959 - PORSCHE

Click the image numbers to view product info

Diagram 103-010 Porsche 996 GT3 RS 2003-04 Engine SKU: 54710490400, cylinder head with valves SKU: 54704023, cylinder head without valves SKU: 90006102800, stud housing m 8 x 28 SKU: 54704211, stud housing and valve cover SKU: 547042041, housing camshaft SKU: 547042051, housing camshaft SKU: 54704236, lock housing SKU: 99903900100, tab washer housing SKU: 50208310, hexagon nut SKU: 54704231, threaded bush spark plug SKU: 90001203200, straight pin 3h 8 x 8 SKU: 90001203200, straight pin 3h 8 x 8 SKU: 54705320, threaded bush SKU: 5470520610, valve seat ring intake oversize SKU: 58710431552, valve seat ring exhaust oversize SKU: 5470521110, valve guide intake oversize SKU: 5470521210, valve guide exhaust oversize SKU: 90015200300, circlip 12 valve guide intake SKU: 90015200500, circlip 16 valve guide exhaust SKU: 90006103000, stud m 8 x 35 SKU: 90006101600, stud m 6 x 12 SKU: 90006101600, stud m 6 x 12 SKU: 90008100300, stud m 6 x 12 SKU: 90008100300, stud m 6 x 12 SKU: 90006102300, stud m 8 x 15 SKU: 90006102300, stud m 8 x 15 SKU: 90006102200, stud m 8 x 12 SKU: 90006102500, stud m 8 x 20 old version,SKU: 90006102900, stud m 8 x 30 s SKU: 90006102500, stud m 8 x 20 SKU: 547042251, valve cover intake SKU: 54704226, valve cover exhaust SKU: 90012300220, sealing ring a 8 x 14 SKU: 90012300220, sealing ring a 8 x 14 SKU: 54704235, tab washer SKU: 90007000300, cap nut m 8 SKU: 90007000300, cap nut m 8 SKU: 54705209, valve 118,5 mm m >> 90 801,SKU: 547052091, intake valve 119,9 mm m 90 802 >> SKU: 54705210, exhaust valve 117,4 mm m >> 90 675,SKU: 547052101, exhaust valve 118,9 mm m 90 676 >> SKU: 54705217, washer SKU: 54705216, valve spring outer SKU: 54705215, valve spring inner SKU: 54705214, concave washer SKU: 54705213, valve collet SKU: 54705213, valve collet SKU: 54705313, cap 2,0 mmmounting length 3 mm valid forintake valve 547. 05.209exhaust valve 507. 05.210,SKU: 54705314, cap 2,5 mmmounting length 3 mm valid forintake valve 547. 05.209exhaust valve 507. 05.210,SKU: 54705315, cap 3,0 mmmounting length 3 mm valid forintake valve 547. 05.209exhaust valve 507. 05.210,SKU: 54705316, cap 3,5 mmmounting length 3 mm valid forintake valve 547. 05.209exhaust valve 507. 05.210,SKU: 54705317, cap 1,5 mmmounting length 3 mm valid forintake valve 547. 05.209exhaust valve 507. 05.210,SKU: 547053131, cap 2,0 mmmounting length 4 mm valid forintake valve 547. 05.209.1exhaust valve 547. 05.210.1,SKU: 547053141, cap 2,5 mmmounting length 4 mm valid forintake valve 547. 05.209.1exhaust valve 547. 05.210.1,SKU: 547053151, cap 3,0 mmmounting length 4 mm valid forintake valve 547. 05.209.1exhaust valve 547. 05.210.1,SKU: 547053161, cap 3,5 mmmounting length 4 mm valid forintake valve 547. 05.209.1exhaust valve 547. 05.210.1,SKU: 547053171, cap 1,5 mmmounting length 4 mm valid forintake valve 547. 05.209.1exhaust valve 547. 05.210.1 SKU: 54705246, sealing ring SKU: 54705302, screw plug SKU: 54704228, gasket SKU: 54704223, stopper rubber SKU: 54704233, gasket i SKU: 54704238, gasket ii SKU: 69210491300, gasket oval SKU: 53904202, cylinder head nut SKU: 54710390200, cylinder with pistoncomplete $ 85 mm SKU: 54703207, piston ring i SKU: 54703208, piston ring ii SKU: 54703209, oil scraper ring iii SKU: 54703210, piston ring iv SKU: 54703203, piston pin SKU: 54703211, circlip SKU: 54703211, circlip SKU: 54704222, cylinder head gasket SKU: 54704230, cylinder head gasket 0,2 mm for crankcase SKU: 547042301, cylinder head gasket 0,5 mm for crankcase SKU: 547042302, cylinder head gasket 1,0 mm for crankcase 103-010
