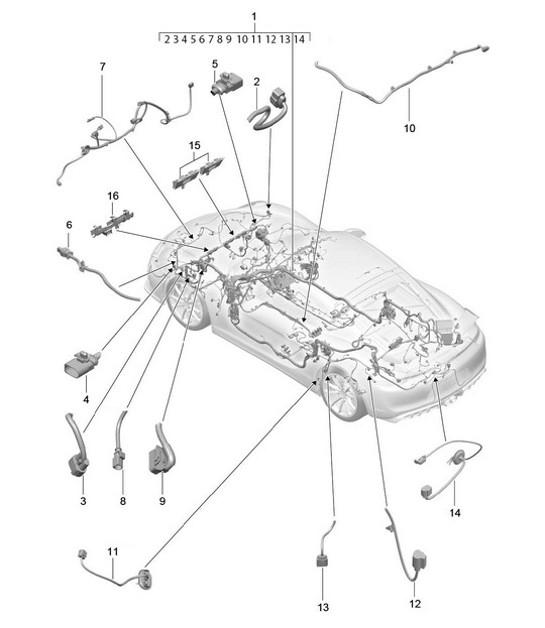

Wiring looms / Passenger compartment and part section wiring harness 981C Cayman GT4 2016 - PORSCHE

Click the image numbers to view product info

Diagram 902-010 Porsche Cayman 718C (982C) 2017>> Electrical equipment SKU: 98161290100, wire set passenger compartment * part number must be ordered * manually by indicating * vehicle id number. SKU: 99161292001, wire setpart section wiring harnessheadlightsmodify in workshop SKU: 99161292101, wire setpart section wiring harnessfan radiatormodify in workshop SKU: 99161292201, wire setpart section wiring harnessconnection pointtrimmodify in workshop,SKU: 99161292251, wire setpart section wiring harnessconnection pointtrimmodify in workshop SKU: 99161293701, wire setpart section wiring harnessconnection pointtrimmodify in workshop SKU: 99161292301, wire setpart section wiring harnesssensor airbagmodify in workshop SKU: 99161292401, wire setpart section wiring harnessfront endmodify in workshop,SKU: 99161292451, wire setpart section wiring harnessfront endmodify in workshop,SKU: 99161293801, wire setpart section wiring harnessfront endmodify in workshop SKU: 99161292610, wire setpart section wiring harnessconnection point front axlemodify in workshop SKU: 99161294001, wire setpart section wiring harnesscontrol unit hydraulic unitmodify in workshop SKU: 99161292501, wire setpart section wiring harnesscontrol unit tyre pressure control systemmodify in workshop SKU: 99161292801, wire setpart section wiring harnessaerial tyre pressure control system wheel housingmodify in workshop SKU: 98161292901, wire setpart section wiring harnesssensor rear axlemodify in workshop SKU: 99161293001, wire setpart section wiring harnessconnection point rear axlemodify in workshop SKU: 98161293401, wire setpart section wiring harnessconnection pointtrimmodify in workshop SKU: 99161023301, cable guide filler plate SKU: 99161023401, cable guide filler plate 902-010
