Porsche > Diagrams > 997 (911) MK2 2009-2012 > Engine >

cylinder head 996 CARRERA 2/4/4S M96.03 2002 ONWARDS
101-00
replacement engine (ready for installation) 997 GT3 M97.76 2007-09
101-000
Replacement engine - A170 - 997.2 Turbo 3.8L 2010-13
101-000
Replacement engine 997.2 2009-2012
101-001
Replacement engine - 9770 - 997.2 GT2 RS 3.6L 2011>>
101-005
Crankcase housing - A101, A102 - 997.2 Carrera 3.6L / 3.8L 2009-12
101-005
Crankcase housing - A170 - 997.2 Turbo 3.8L 2010-13
101-007
Crankcase housing, Left - 9770 - 997.2 GT2 RS 3.6L 2010-11
101-008
Crankcase housing, Right - 9970 - 997.2 GT2 RS 3.6L 2010-11
101-010
Belt tensioner / V-belt - A170 - 997.2 TURBO 3.8L 2010-13
101-010
Belt tensioner damper / V-belt 997.2 Carrera 2009-12
101-015
Belt tensioner / Belt drive - 9770 - 997.2 GT2 RS 3.6L 2010-11
101-05
crankcase left 997 GT3 M97.76 2007-09
101-06
crankcase left 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
101-10
crankcase right 997 GT3 M97.76 2007-09
101-11
crankcase right 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
101-15
belt tensioner and belt drive 997 GT3 M97.76 2007-09
101-16
belt tensioner and belt drive 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
102-00
crankshaft 997 GT3 M97.76 2007-09
102-000
Crankshaft - A101, A102 - 997.2 Carrera 3.6L / 3.8L 2009-12
102-000
Crankshaft - A170 - 997.2 TURBO 3.8L 2010-13
102-002
Crankshaft - 9770 - 997.2 GT2 RS 3.6L 2010-11
102-005
Piston - A101, A102 - 997.2 Carrera 3.6L / 3.8L 2009-12
102-005
Piston - A170 - 997.2 Turbo 3.8L 2010-13
102-007
Cylinder with pistons - 9770 - 997.2 GT2 RS 3.6L 2010-11
102-01
crankshaft 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
102-05
cylinder with piston 997 GT3 M97.76 2007-09
102-06
cylinder with piston 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS M97.74 2011
103-00
cylinder head 997 GT3 M97.76 2007-09
103-000
Cylinder head with: Valves / Cylinder head gasket / Valve cover - A170 - 997.2 Turbo 3.8L 2010-13
103-000
Cylinder head with: Valves, Cylinder head gasket, Valve cover 997.2 Carrera 2009-12
103-002
Cylinder head - 9770 - 997.2 GT2 RS 3.6L 2010-11
103-005
Cylinder head / Accessories / Valves - A170 - 997.2 Turbo 2010-13
103-005
Cylinder head / Accessories / Valves - A101, A102 - 997.2 Carrera 3.6L / 3.8L 2009-12
103-007
Chain case / Chain tensioner - 9770 - 997.2 GT2 RS 3.6L 2010-11
103-01
cylinder head 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
103-010
Camshaft / Hydraulic tappet / Camshaft adjuster unit - A101, A102 - 997.2 Carrera 2009-12
103-010
Camshaft / Hydraulic tappet / Camshaft adjuster unit - A170 - 997.2 Turbo 3.8L 2010-13
103-012
Camshaft housing - 9770 - 997.2 GT2 RS 3.6L 2010-11
103-015
Valve control - A101, A102 - 997.2 Carrera 3.6L / 3.8L 2009-12
103-015
Valve control - A170 - 997.2 Turbo 3.8L 2010-13
103-017
Valve control - 9770 - 997.2 GT2 RS 3.6L 2010-11
103-05
chain case and chain adjuster 997 GT3 M97.76 2007-09
103-06
chain case and chain adjuster 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
103-10
camshaft housing 997 GT3 M97.76 2007-09
103-11
camshaft housing 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
103-15
valve control 997 GT3 M97.76 2007-09
103-16
valve control 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
104-00
oil pump 997 GT3 M97.76 2007-09
104-000
Oil pump - A170 - 997.2 Turbo 3.8L 2010-13
104-000
Oil pump 997.2 Carrera 2009-12
104-001
Oil pump - 9770 - 977.2 GT2 RS 3.6L 2010-11
104-002
Cil sump - A170 - 997.2 Turbo 3.8L 2010-13
104-002
Oil sump 997.2 Carrera 2009-12
104-005
Engine lubrication - A170 - 997.2 Turbo 3.8L 2010-13
104-005
Engine lubrication 997.2 Carrera 2009-12
104-007
Engine lubrication / Oil tank - 9770 - 997.2 GT2 RS 3.6L 2010-11
104-01
oil pump 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
104-010
Crankcase housing / Bleeding / Tank ventilation / Vacuum pump - A170 - 997.2 Turbo 3.8L 2010-13
104-010
Crankcase housing / Bleeding / Tank ventilation / Vacuum pump 997.2 Carrera 2009-12
104-015
Oil filter / Console - 9770 - 997.2 GT2 RS 3.6L 2010-11
104-020
Oil supply / Return line - 9770 - 997.2 GT2 RS 3.6L 2010-11
104-05
engine lubrication, oil tank 997 GT3 M97.76 2007-09
104-06
lines oil tank 997 GT3 M97.76 2007-09
104-07
engine lubrication, oil tank 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
104-08
lines oil tank 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 2011
104-10
oil filter, bracket 997 GT3 M97.76 2007-09
104-11
oil filter, bracket 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
104-20
oil supply return line 997 GT3 M97.76 2007-09
104-21
oil supply return line 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
105-00
water pump, water pump housing 997 GT3 M97.76 2007-09
105-000
Coolant pump / Thermostat housing - A170 - 997.2 Turbo 3.8L 2010-13
105-000
Coolant pump / Thermostat housing 997.2 Carrera 2009-12
105-002
Coolant pump / Water pump housing - 9770 - 997.2 GT2 RS 3.6L 2010-11
105-003
Assembly carrier / Water pipe - A170 - 997.2 Turbo 3.8L 2010-13
105-003
Assembly carrier / Water pipe 997.2 Carrera 2009-12
105-004
Lines heater - 9770 - 997.2 GT2 RS 3.6L 2010-11
105-005
Connection / Water pipe - A170 - 997.2 Turbo 3.8L 2010-13
105-005
Connection / Water pipe 997.2 Carrera 2009-12
105-006
Water cooling 1 - A170 - 997.2 Turbo 3.8L 2010-13
105-007
Water cooling - 1 - 997.2 Carrera 2009-12
105-008
Water cooling 1 - 9770 - 997.2 GT2 RS 3.6L 2010-11
105-01
water pump, water pump housing 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
105-010
Water cooling - 2 - (A101,A102) 997.2 Carrera 3.6L / 3.8L 2009-12
105-010
Water cooling 2 - A170 - 997.2 Turbo 3.8L 2010-13
105-011
Water cooling 2 - 9770 - 997.2 GT2 RS 3.6L 2010-11
105-015
Water cooling - 3 - (A101,A102) 997.2 Carrera 3.6L / 3.8L 2009-12
105-015
Water cooling 3 - A170 - 997.2 Turbo 3.8L 2010-13
105-016
Water cooling 3 - 9770 - 997.2 GT2 RS 3.6L 2010-16
105-017
Radiator Center - A170 - 997.2 Turbo 3.8L 2010-13
105-017
Radiator Center (PR:183) 997.2 Carrera 2009-12
105-018
Radiator Center - 9770 - 997.2 GT2 RS 3.6L 2010-13
105-020
Coolant / Cooling system - A101,A102 - 997.2 Carrera 3.6L / 3.8L 2009-12
105-020
Water cooling 4 - A170 - 997.2 Turbo 3.L 2010-13
105-021
Water cooling 4 - 9770 - 997.2 GT2 RS 3.6L 2010-11
105-03
lines heating 997 GT3 M97.76 2007-09
105-04
lines heating 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS M97.74 2011
105-05
water cooling - 1 - for 997 GT3 M97.76 2007-09
105-06
water cooling - 1 - for 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
105-10
water cooling - 2 - for 997 GT3 M97.76 2007-09
105-15
water cooling - 3 - for 997 GT3 M97.76 2007-09
105-16
water cooling - 3 - for 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 2011
105-17
radiator centre 997 GT3 M97.76 2007-09
105-18
radiator centre 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
105-20
water cooling - 4 - for 997 GT3 M97.76 2010-11
105-21
water cooling - 4 - for 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
106-00
air cleaner 997 GT3 M97.76 2007-09
106-000
Air filter - A170 - 997.2 Turbo 3.8L 2010-13
106-000
Air filter 997.2 Carrera 2009-12
106-002
Air filter - 9770 - 997.2 GT2 RS 3.6L 2010-11
106-01
air cleaner 997 GT3 / GT3 RS M97.77 2010-11
107-00
throttle body 997 GT3 M97.76 2007-09
107-000
Vacuum control - A170 - 997.2 Turbo 3.8L 2010-13
107-002
Throttle valve adapter - 9970 - 997.2 GT2 RS 3.6L 2010-11
107-005
Fuel collection pipe / High pressure pump - A170 - 997.2 Turbo 3.8L 2010-13
107-005
Fuel collection pipe / high pressure pump 997.2 Carrera 2009-12
107-007
Fuel collection pipe - 9770 - 997.2 GT2 RS 3.6L 2010-11
107-010
Intake air distributor / Throttle valve adapter - A170 - 997.2 Turbo 3.8L 2010-13
107-010
Intake air distributor / Throttle valve adapter (A101,A102) 997.2 Carrera 3.6L / 3.8L 2009-12
107-012
Intake air distributor - 9770 - 997.2 GT2 RS 3.6L 2010-11
107-013
Intake air distributor / throttle valve adapter (A101+ PR:X51) 997.2 Carrera 3.8L with Powerkit 250kW 2009-12
107-014
Vacuum system / Engine (A101+ PR:X51) 997.2 Carrera 3.8L with Powerkit 250kW 2009-12
107-020
Turbocharging - A170 - 997.2 Turbo 3.8L 2010-13
107-022
Turbocharging - 9770 - 997.2 GT2 RS 3.6L 2010-11
107-05
fuel collection pipe 997 GT3 M97.76 2007-09
107-06
fuel collection pipe 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
107-10
intake distributor 997 GT3 M97.76 2007-09
107-11
intake distributor 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
108-005
Exhaust purification system w. secondary air injection - A170 - 997.2 Turbo 3.8L 2010-13
108-007
Air injection - 9770 - 997.2 GT2 RS 3.6L 2010-11
108-05
air injection 997 GT3 M97.76 2007-09
108-06
air injection 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
109-00
engine suspension 997 GT3 M97.76 2007-09
109-000
Engine lifting tackle (A101,A102) 997.2 Carrera 3.6L / 3.8L 2009-12
109-000
Engine suspension - A170 - 997.2 Turbo 3.8L 2010-13
109-002
Engine suspension - 9770 - 997.2 GT2 RS 3.6L 2010-11
109-01
engine suspension 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011

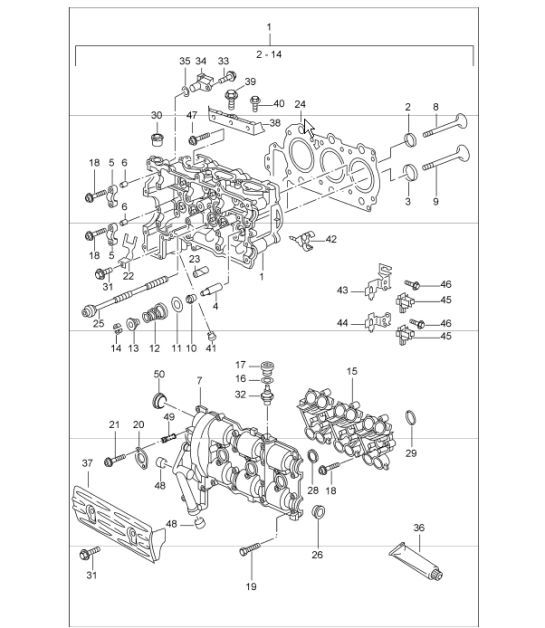

cylinder head 996 CARRERA 2/4/4S M96.03 2002 ONWARDS - PORSCHE

Click the image numbers to view product info

Diagram 103-01 Porsche 997 (911) MK2 2009-2012 Engine SKU: 99610490900, cylinder head cyl. 1 - 3 use also: m >> 664 03366 997.107.021.03,SKU: 99610490500, cylinder head cyl. 1 - 3,SKU: 99610491200, cylinder head cyl. 4 - 6 use also: m >> 664 03366 997.107.021.03,SKU: 99610490600, cylinder head cyl. 4 - 6 m >> 683 00433,SKU: 99610491000, cylinder head cyl. 4 - 6 m 683 00434 >> SKU: 99610490900, cylinder head cyl. 1 - 3 use also: m >> 664 03366 997.107.021.03,SKU: 99610490500, cylinder head cyl. 1 - 3,SKU: 99610491200, cylinder head cyl. 4 - 6 use also: m >> 664 03366 997.107.021.03,SKU: 99610490600, cylinder head cyl. 4 - 6 m >> 683 00433,SKU: 99610491000, cylinder head cyl. 4 - 6 m 683 00434 >> SKU: 99610411750, dowel sleeve SKU: 99610411750, dowel sleeve SKU: 99610527100, intake valve SKU: 99610527303, exhaust valve SKU: 99610511552, valve stem seal SKU: 99610511751, concave washer lower SKU: 99610511801, valve spring exhaust SKU: 99610512154, concave washer upper,SKU: 99610514700, concave washer lower,SKU: 99610593900, set of valve springs intake,SKU: 99610514500, concave washer upper SKU: 99610512351, valve collet SKU: 99610512351, valve collet SKU: 99610404205, housing cam follower hydraulic SKU: 90012300730, sealing ring a 14 x 18 SKU: 90021901830, screw plug m 14 x 1,5 SKU: 90006731601, combination screw m 6 x 35 SKU: 90006731601, combination screw m 6 x 35 SKU: 90006731601, combination screw m 6 x 35 SKU: 99921715509, hexagon-head bolt am 6 x 30 SKU: 99610524403, lid SKU: 90037803001, hexagon-head bolt m 6 x 20 SKU: 99610423301, heat shield SKU: 4320446, sleeve for valve stem seal SKU: 99610420104, cylinder head gasket SKU: 99610418058, screw m 10 x 230 SKU: 99610421554, lid SKU: 99610420300, gasket SKU: 99970176141, o-ring 28 x 2 SKU: 99610420753, connection piece SKU: 90037816301, hexagon-head bolt m 6 x 16 SKU: 90037816301, hexagon-head bolt m 6 x 16 SKU: 99660620302, oil pressure switch SKU: 99921800501, pan-head screw m 6 x 16 SKU: 99660610602, hall sender,SKU: 99660610603, hall sender SKU: 99970740440, o-ring 17,05 x 1,78 SKU: 00004320435, sealing compound 50 ml,SKU: 00004330573, extreme-pressure grease 1 tube 80 gr. for camshaft SKU: 99610444502, heat shield SKU: 99610412602, bracket SKU: 90037802209, hexagon-head bolt m 8 x 35 SKU: 90037801709, hexagon-head bolt m 8 x 20 SKU: 99903602602, lid 10 mm SKU: 99950707540, cable holder 3,0 - 12 SKU: 90006737709, pan-head screw m 6 x 30,SKU: 90038700401, combination screw m 6 x 30 SKU: 90003602301, lid d 18 SKU: 90003602301, lid d 18 103-01
