Zimmermann
For more than six decades, Otto Zimmermann has been developing, producing and selling sophisticated vehicle components for car manufacturers and the free spare parts market. Zimmermann discs have already proven their reliability and performance in the first vehicles that were standardly equipped with disc brakes.
Since its landmark relocation from Eppingen to Sinsheim in 1990 Otto Zimmermann GmbH has been systematically expanding its administrative premises, production facilities and warehousing space to over 29.000 square meters.
During the last years Otto Zimmermann expanded essentially its production capacity. The Porsche parts are manufactured on latest production lines matching the quality criteria of the automotive industry. Computer-controlled robots and drilling machines guarantee shortest production times and ensure constant quality on a very high level.

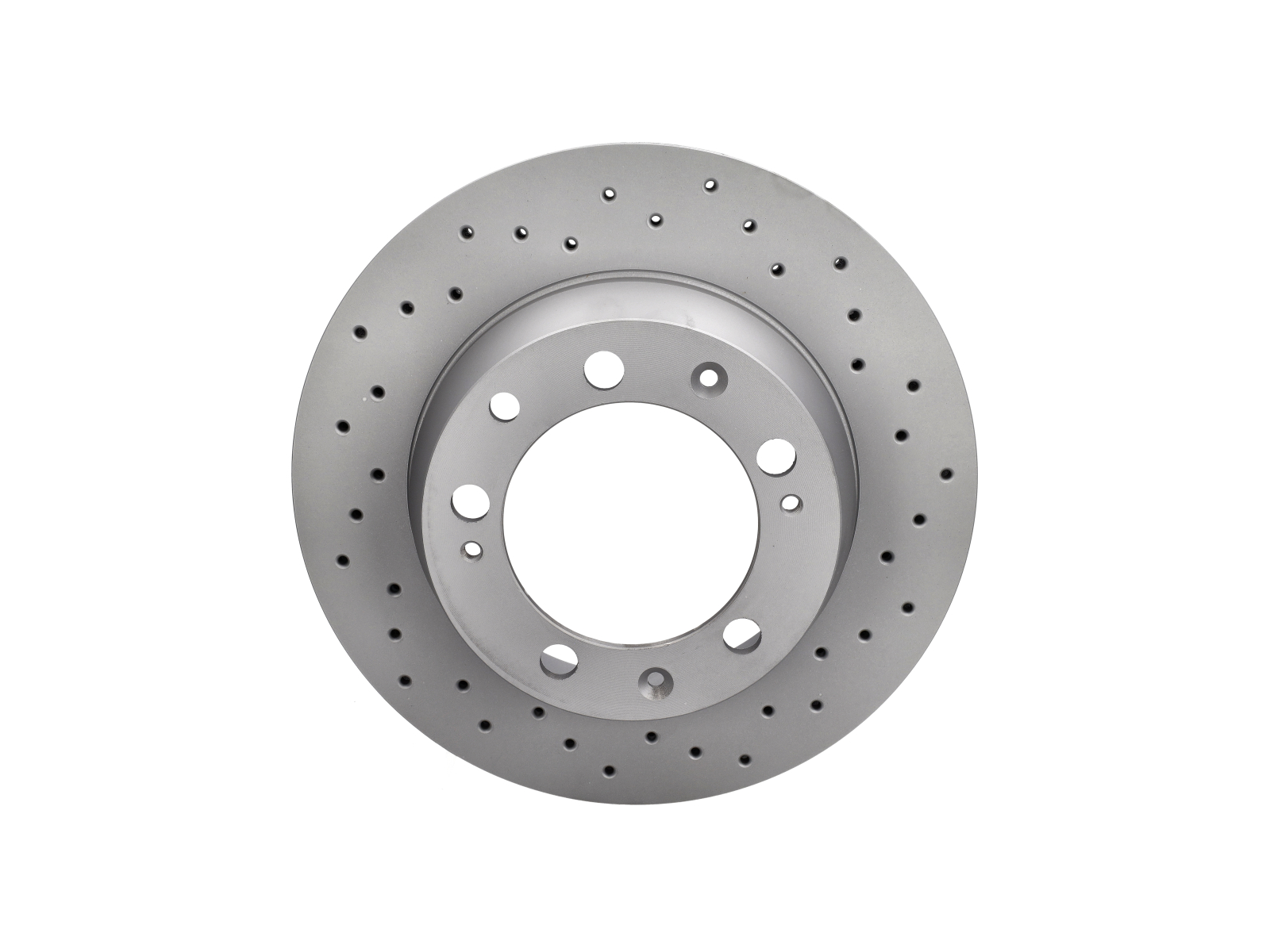

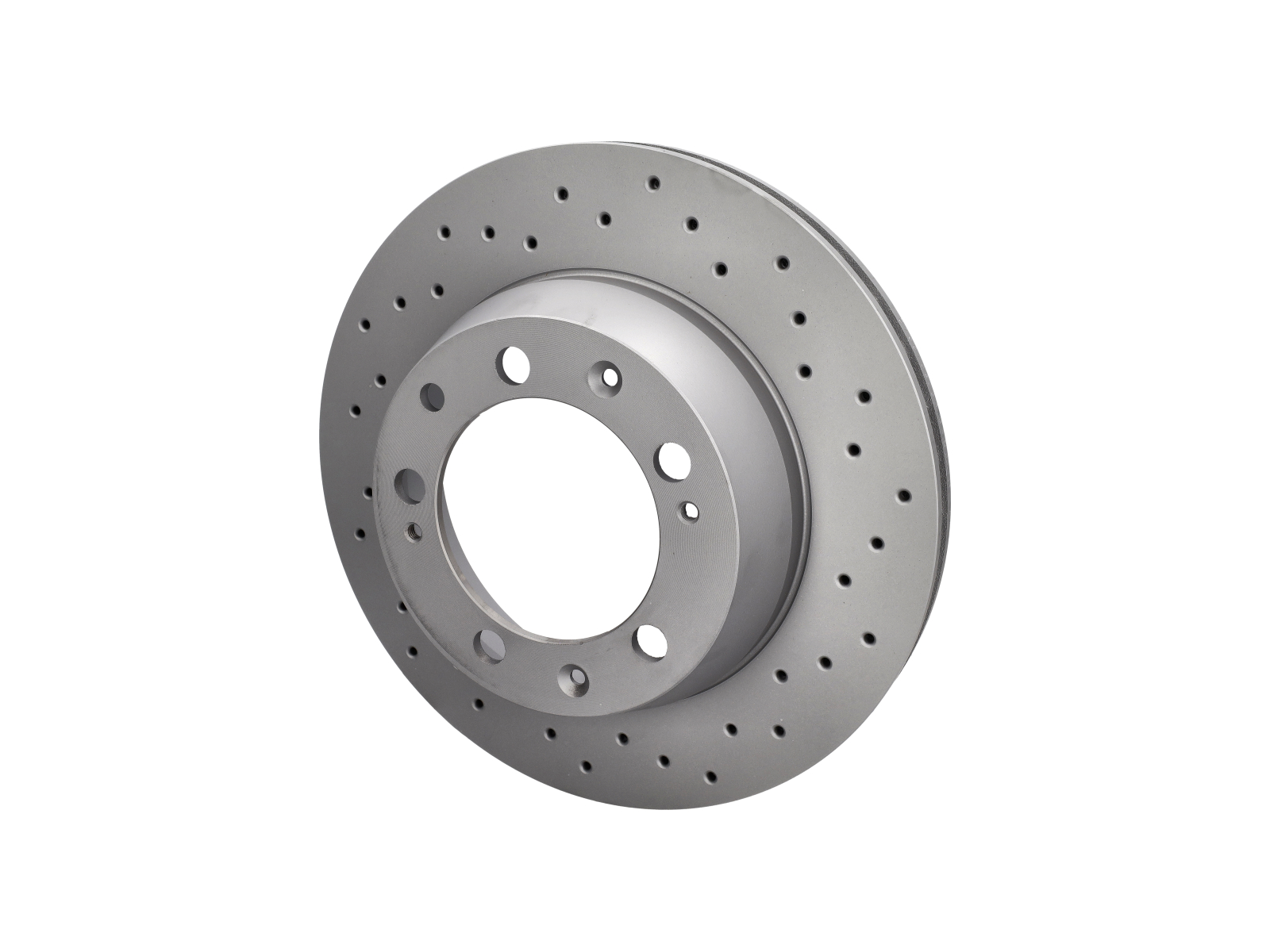

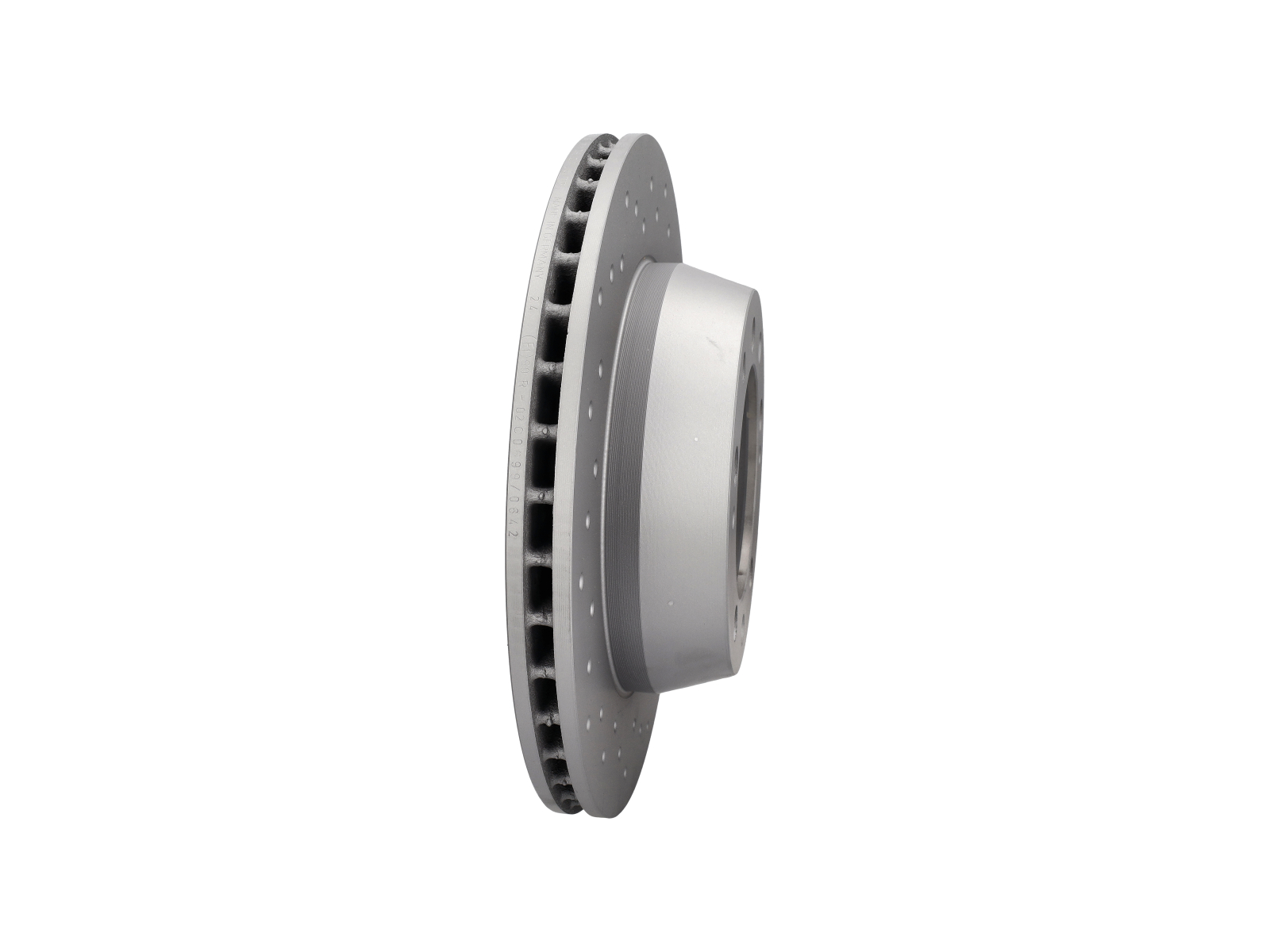

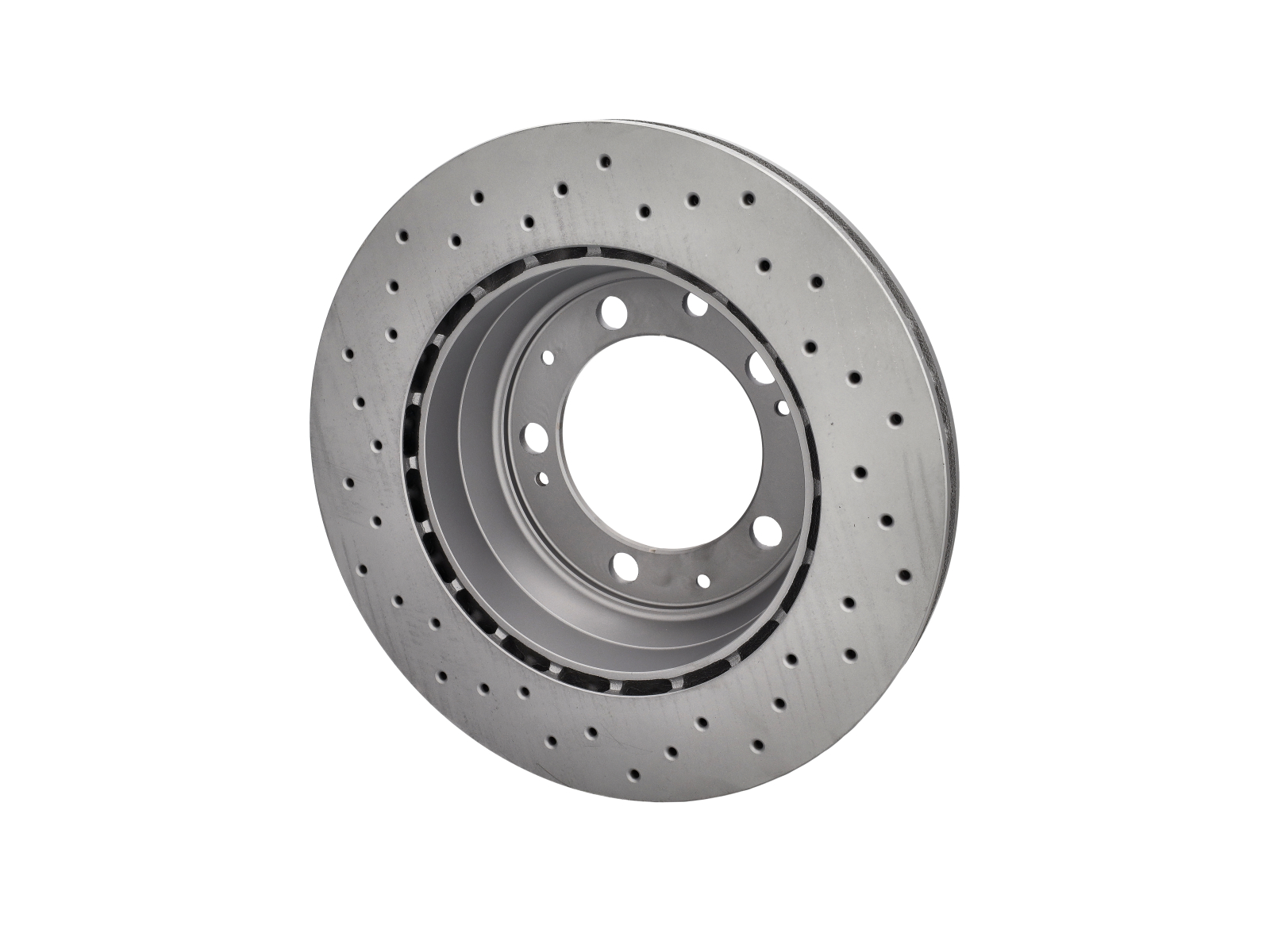

Cross drilled brake discs upgrade for better cooling & braking.
Internally Vented, Perforated, Coated
Outer diameter: 299 mm
Brake Disc Thickness: 24 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 103 mm
Hole Pitch / Number: 10/5


Porsche 944 1986 Turbo Rear
Porsche 928S4 / 928GTS Rear
Please note: Those discs are not sided. They fit left or right side of the car. Brake disc rotors are priced each.
The Zimmermann Sport Brake Disc was developed as a result of experience of brake discs in series-production vehicles in connection with racing. The brake system is optimised by combining high-quality cast materials with a perforated braking surface.
Your advantages:
• Better wet braking performance by permanent expulsion of brake dust and water
• Sporty look
• Because of the anti-corrosion protection Coat Z better finish - especially of the hub and the outer diameter
• Noticeable improvement in the braking power of your car
• Prevention of brake fade
• Countersinking of holes doubles up as wear indicator
• 1:1 exchange of original disc possible
• No additional adaptions necessary
• Not subject to registration: general ABE certification supplied with disc
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95135204103XZIM
The product you are viewing cross references to these numbers
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 928GTS 5.4L 1992-95

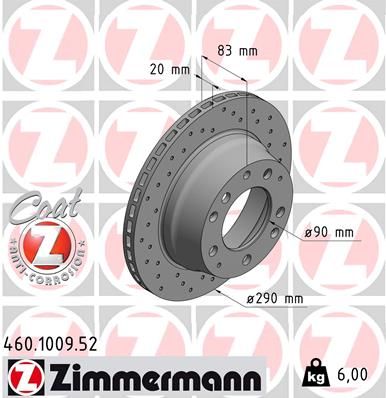

Cross drilled brake discs upgrade for better cooling & braking.
Internally Vented, Perforated, Coated
Outer diameter: 290 mm
Brake Disc Thickness: 20 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 90 mm
Hole Pitch / Number: 10/5


Porsche 911 1968-83 - REAR
Porsche 930 1975-77 - REAR
Please note: Those discs are not sided. They fit left or right side of the car. Brake disc rotors are priced each.
The Zimmermann Sport Brake Disc was developed as a result of experience of brake discs in series-production vehicles in connection with racing. The brake system is optimised by combining high-quality cast materials with a perforated braking surface.
Your advantages:
• Better wet braking performance by permanent expulsion of brake dust and water
• Sporty look
• Because of the anti-corrosion protection Coat Z better finish - especially of the hub and the outer diameter
• Noticeable improvement in the braking power of your car
• Prevention of brake fade
• Countersinking of holes doubles up as wear indicator
• 1:1 exchange of original disc possible
• No additional adaptions necessary
• Not subject to registration: general ABE certification supplied with disc
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90135204114XZIM
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1975-1977 3.0L Turbo (930)
