The Porsche brand is steeped in performance automotive and racing history with numerous world records. The early models broke technological barriers with innovative suspension, comfort, and reliability. The air-cooled rear-engine 911 evolved over the next 30 years until the new water-cooled models were introduced in 1999.
Wilwood engineers have developed replacement calipers and complete brake kits using race-proven designs for the early Porsche models to meet the growing demand for hard-to-find, pricey components. Wilwood calipers and kits are bred from a winning race history, dominating circle tracks and road race venues worldwide. Adapting the existing technology to the Porsche platform is a win-win for Porsche enthusiasts and racers. If you are looking for bolt-on calipers or complete brake kits, including rotors, hats, and stainless braided brake lines, Wilwood is rolling out solutions for you. Modern technology and USA manufacturing at Wilwood factories in California provide strong, lightweight forged aluminum calipers, high-performance alloy rotors, and a wide selection of brake pad compounds to keep Porsche models running strong and competitive.
It’s important to note that any brake kit of interest requires your review of the provided wheel clearance diagram on the product detail page before purchase to confirm a proper fit.
For early struts with brake caliper mounting bolt spacing of 3.0 inches (76.2mm)
Min Wheel Diameter Required: 15 inch
Caliper Mounting Bolt Spacing: 3.0 inch (76.2mm)
Spindle Type Used: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 piston - Powder Coated
Rotor Size: 11.10 x 0.8 inches (282mm x 20mm)

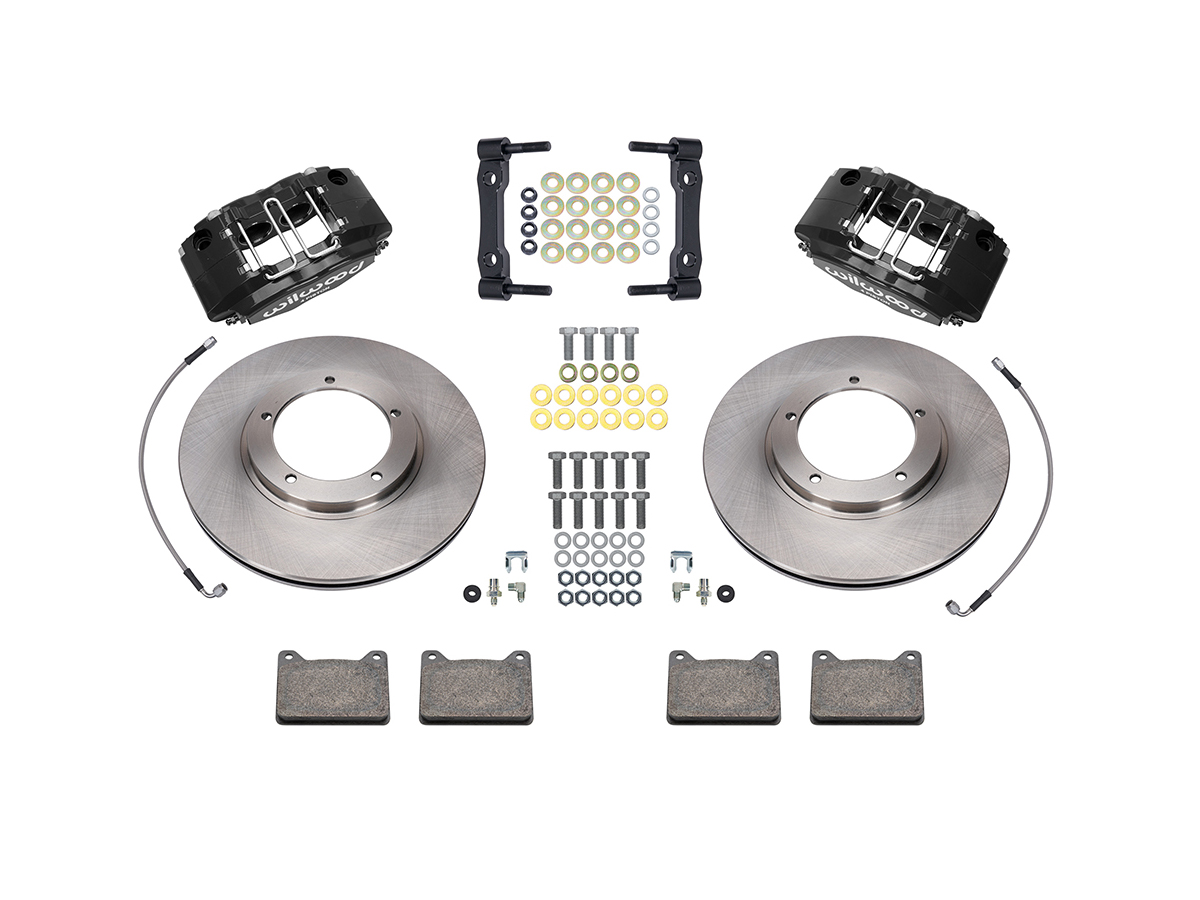

Porsche 911 - 1969 to 1973

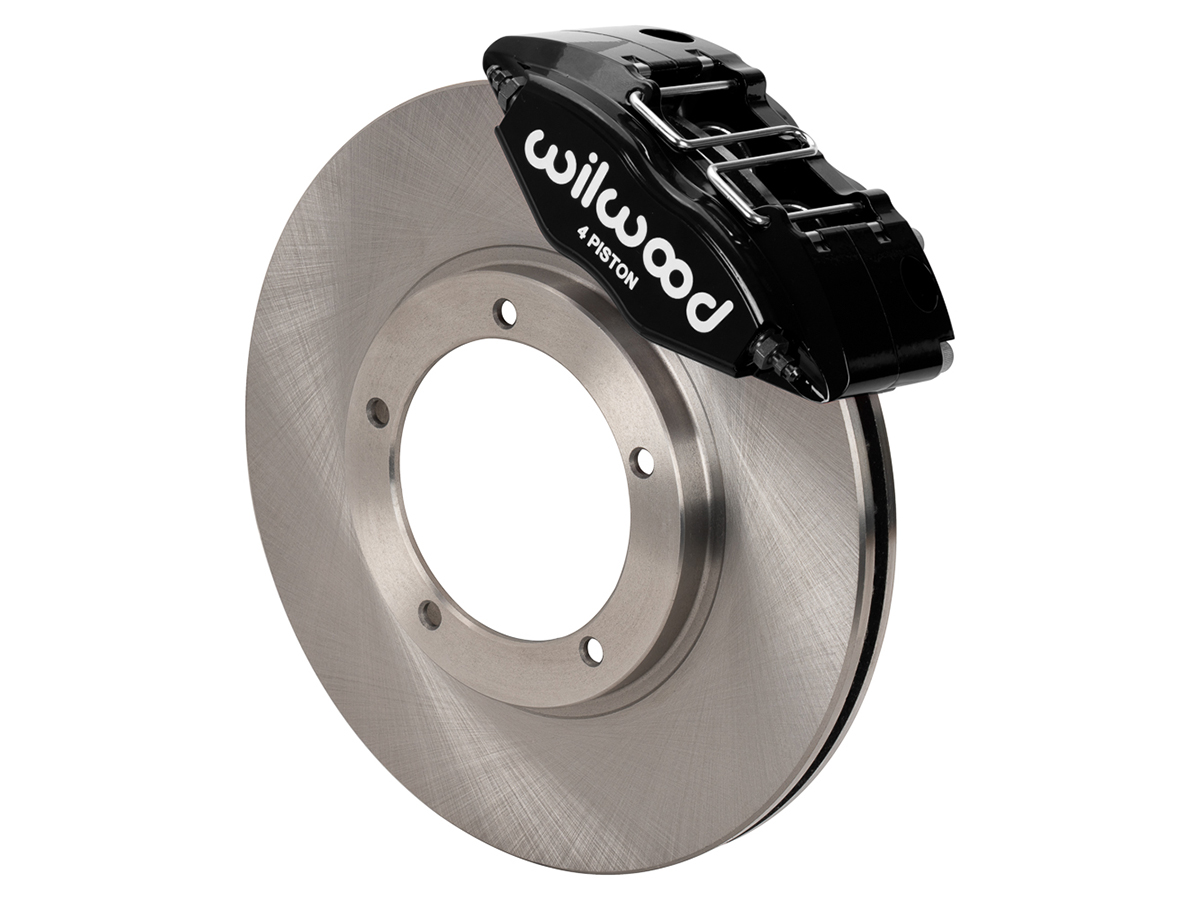

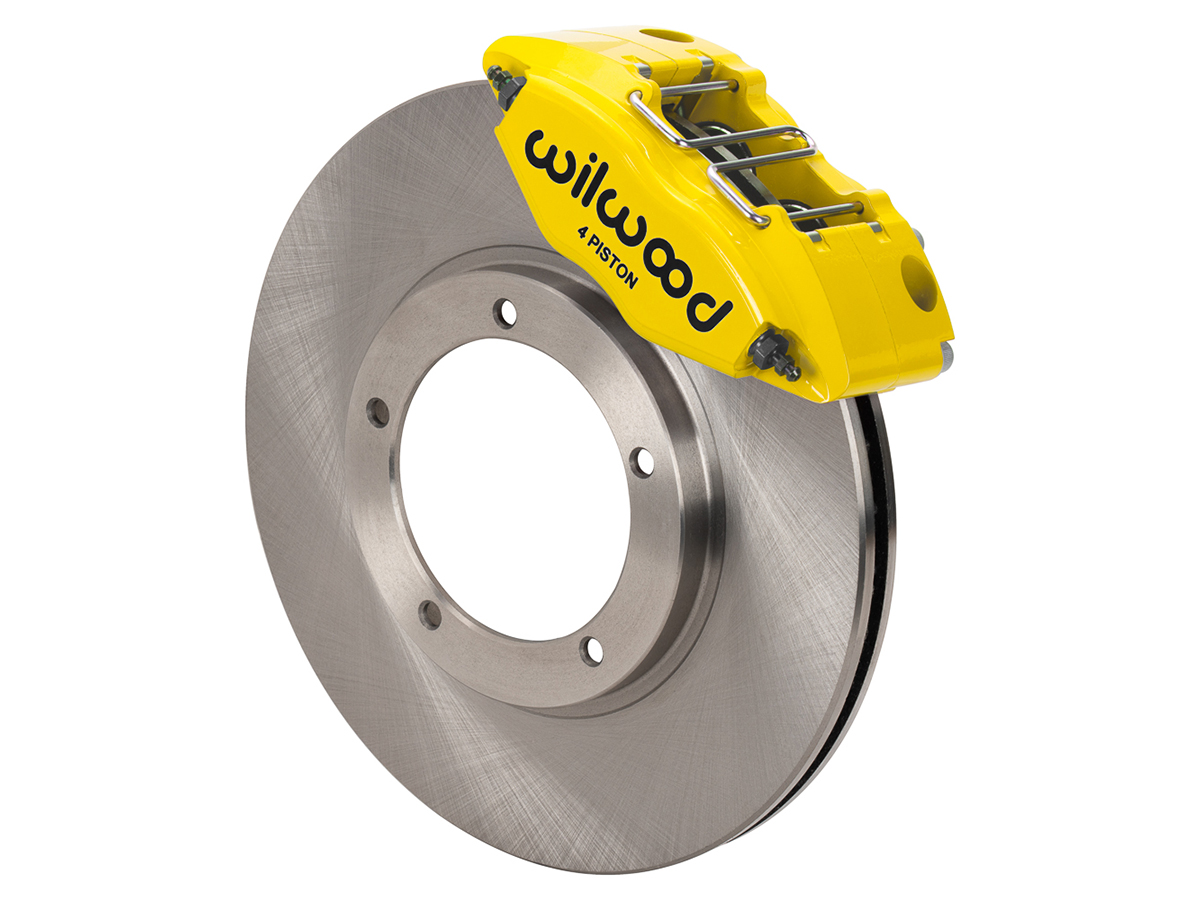

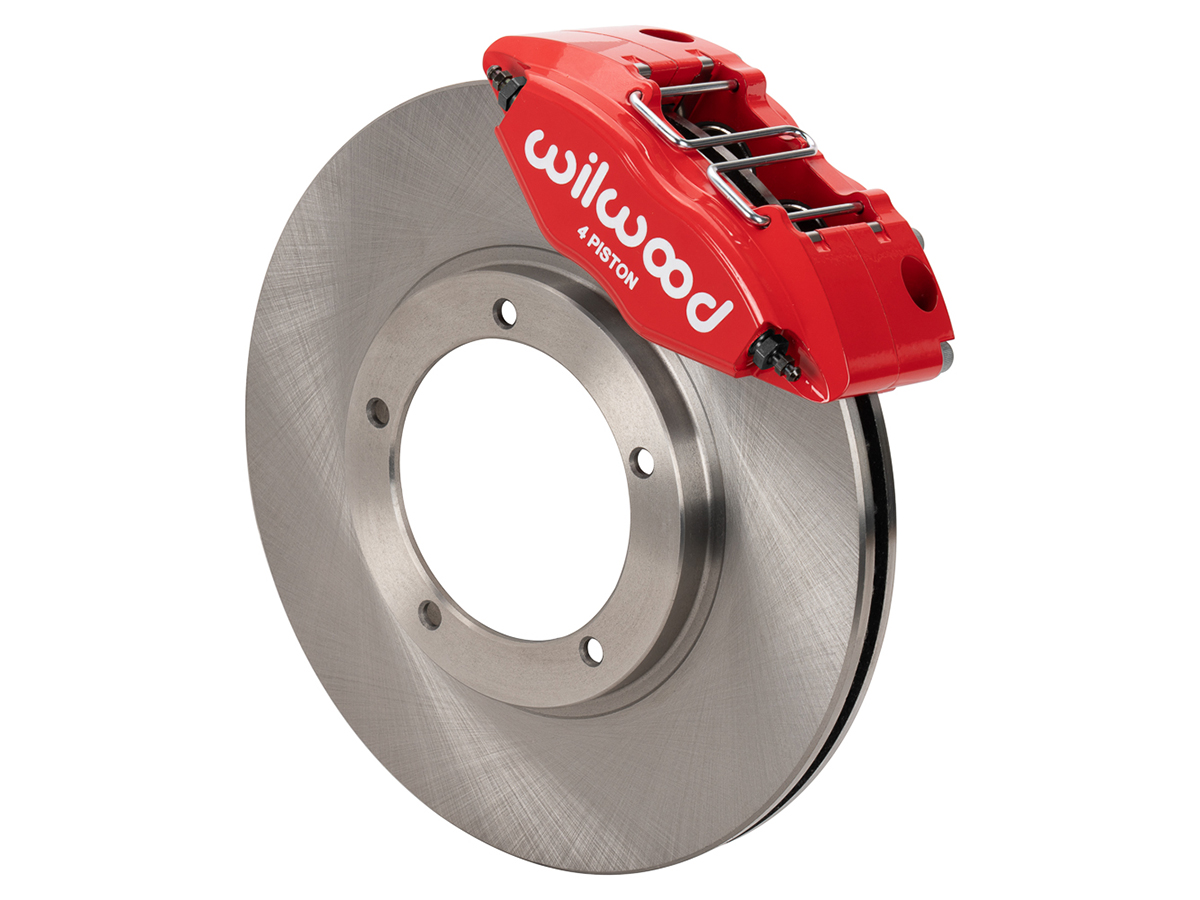

POWERLITE Front Brake Kits for using OE Hubs
Wilwood’s motorsports-proven Powerlite four piston calipers provide the foundation for a complete brake kit package for classic 1969-74 Porsche 911s using OE hubs. Complete brake kits include brackets for bolt-on mounting to struts with 3.0” (76,2mm) mounting tabs, rotors, stainless steel Flexlines and brake pads. Caliper-only kits include brackets for 3.0” mounting tabs, Flexlines, and brake pads.
Kit Features:
- Calipers continuously refined through modern engineering and manufacturing methods, including FEA (Finite Element Analysis)
- Compatible with factory master cylinder
Calipers: POWERLITE PL4R
- Rigid, forged aluminum radial mount four piston calipers
- Quick-clip top pad retainer allows faster pad changes and fits inside smaller diameter wheels
- One-piece stainless steel pistons slow heat transfer and resist corrosion
- Calipers are finished in gloss Le Mans yellow, black or red powder coat, over durable wear-resistant Type-III hard anodized coating
Rotors: Plain OR SRP Drilled and Slotted
- Vented rotors in plain face, or SRP drilled and slotted with black E-coat applied
- 11.10” x .80” (282 x 20mm) for use with OE hubs
Brake Pads: BP-10
- BP-10 street performance pads
Installation Parts:
- Caliper brackets, stainless steel Flexlines and all premium-grade hardware for installation are included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
140-16946
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
For later struts with brake caliper mounting bolt spacing of 3.5 inches (88.9mm)
Min Wheel Diameter Required: 15 inch
Caliper Mounting Bolt Spacing: 3.5 inch (88.9mm)
Spindle Type Used: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 piston - Powder Coated
Rotor Diameter: 12.19 x 0.95 inches
Porsche 911 - 1969 to 1989

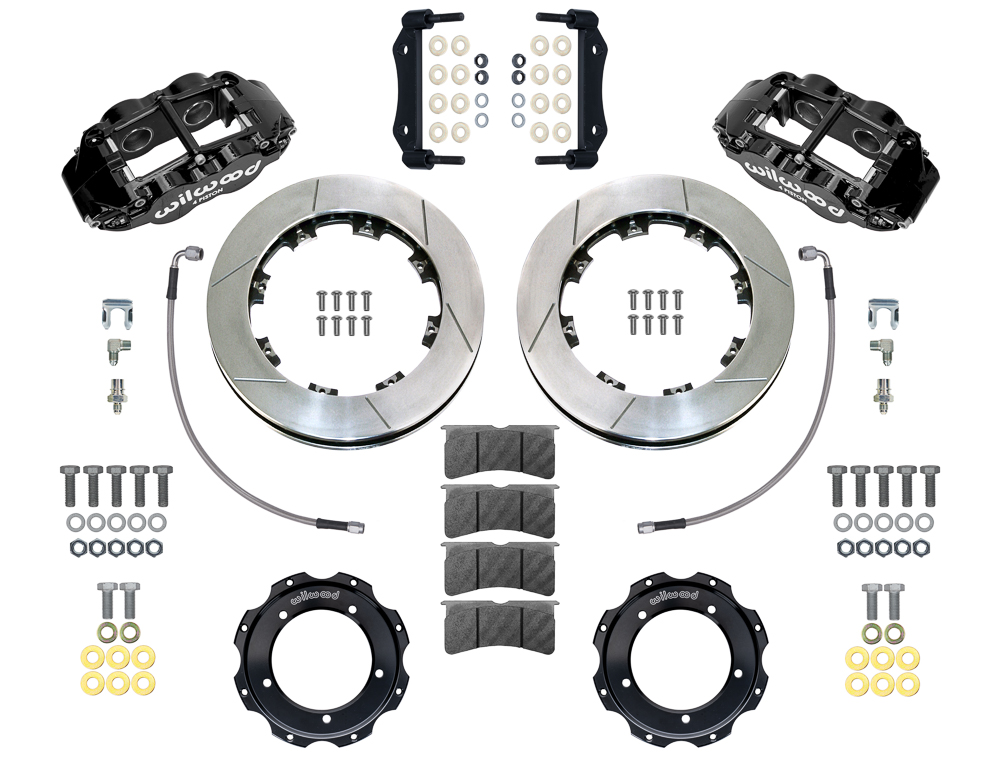

Forged Narrow Superlite 4R Front Brake Kit using OE hubs
Motorsports-proven Forged Narrow Superlite Radial mount caliper, with oversize rotor are engineered to bring 1969-89 Porsche 911s performance braking capability on par with the 1974 RS and 930 turbo, using lightweight components and modern USA manufacturing techniques. These kits combine the latest Superlite four piston caliper, used in countless laps of many competition classes, with 12.19” (310mm) diameter GT slotted or SRP series drilled and slotted e-coat rotors, and the positive response, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. Forged aluminum calipers, mounting hats, and bracket outperform stock parts while weighing less. These kits bolt directly to front struts with 3.00” (76.2mm) spaced mounting tabs without modification. Braided stainless Flexlines are included.
Wilwood engineered these big brake kits around the motorsports proven Superlite calipers for the classic 1969-89 Porsche 911. Larger 310mm (12.19”) iron alloy rotors with forged aluminum mounting hats and Wilwood brackets produce greater brake torque and less fade, while weighing substantially less than OE.
These rigid, forged billet aluminum four piston calipers upgrade the stock 911 to a spec similar to the 1974 RS or 930 turbo, with the added advantage of decades of material, design and manufacturing advancements. Kits are available for both 3.0” (76,2mm) and 3.5” (88,9mm) mounting tabs.
Kit Features:
- Superlite front calipers have been proven in countless road race, circle track and off-road competition classes. These have evolved over decades and been refined through millions of laps.
- Direct bolt-on upgrade for 1969-89 Porsche 911 with no permanent modifications
- Designed to work with OEM master cylinders and rear brakes to maintain proper front to rear brake bias
- Stress-flow forged aluminum calipers with stainless steel pistons for strength and durability
- Offered in gloss Le Mans yellow, black or red powder coat over durable wear-resistant Type-III hard anodized coating
- Big 310mm (12.19”) x 28mm (1.10”) vented rotors for greater brake torque and more thermal capacity (28mm/1.10” larger than OE)
- Precision-machined, low-distortion proprietary iron alloy rotors with 32 cooling vanes, mounted to forged aluminum hats
- Rotors offered with GT slotted, or SRP drilled and slotted faces
- High-performance street BP-10 brake pads
- Kits include brackets, stainless flexlines, fittings Drilledand hardware
- Part numbers available to fit 3.0” (76,2mm) and 3.5” (88,9mm) spaced front strut mounting tab
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
140-16947-D
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
For later struts with brake caliper mounting bolt spacing of 3.5 inches (88.9mm)
Min Wheel Diameter Required: 15 inch
Caliper Mounting Bolt Spacing: 3.5 inch (88.9mm)
Spindle Type Used: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 piston - Powder Coated
Rotor Diameter: 12.19 x 0.95 inches

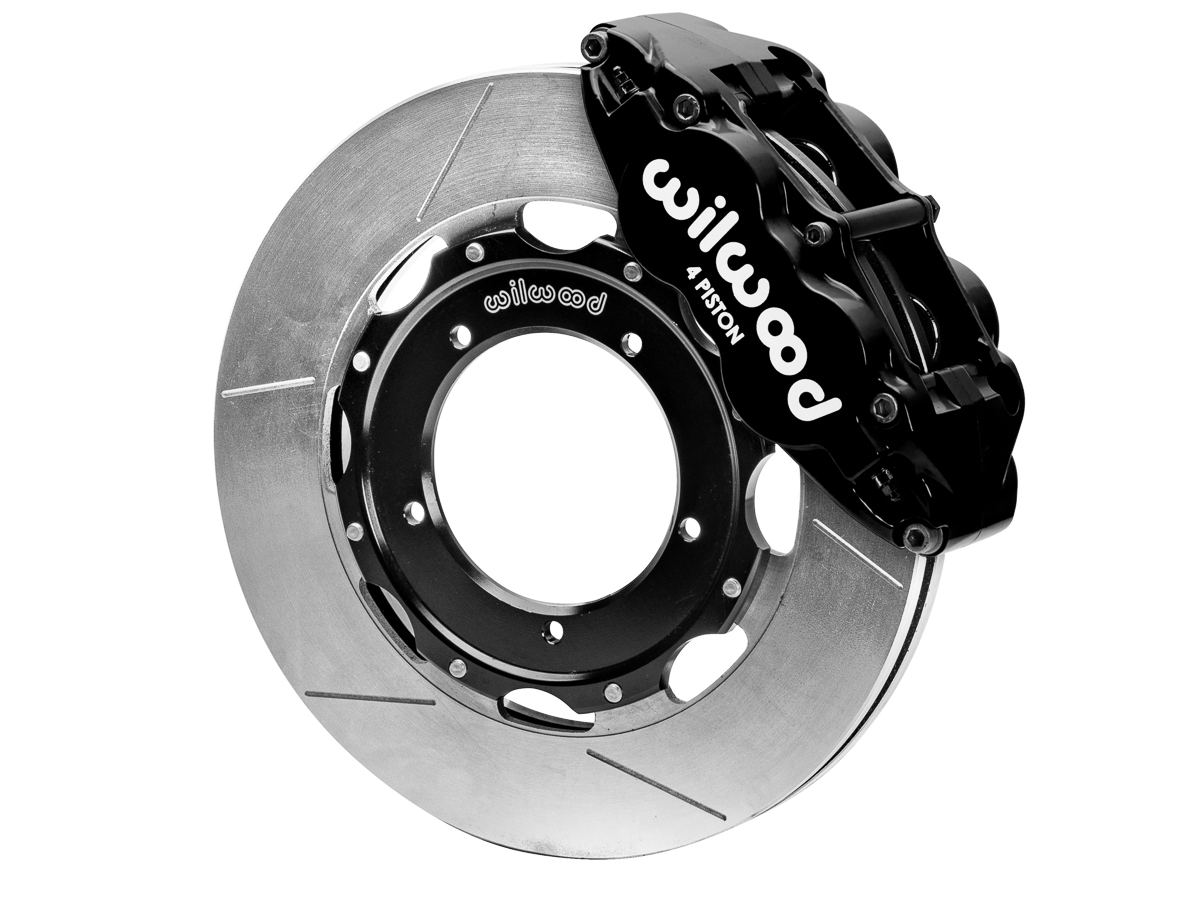

Porsche 911 - 1969 to 1989

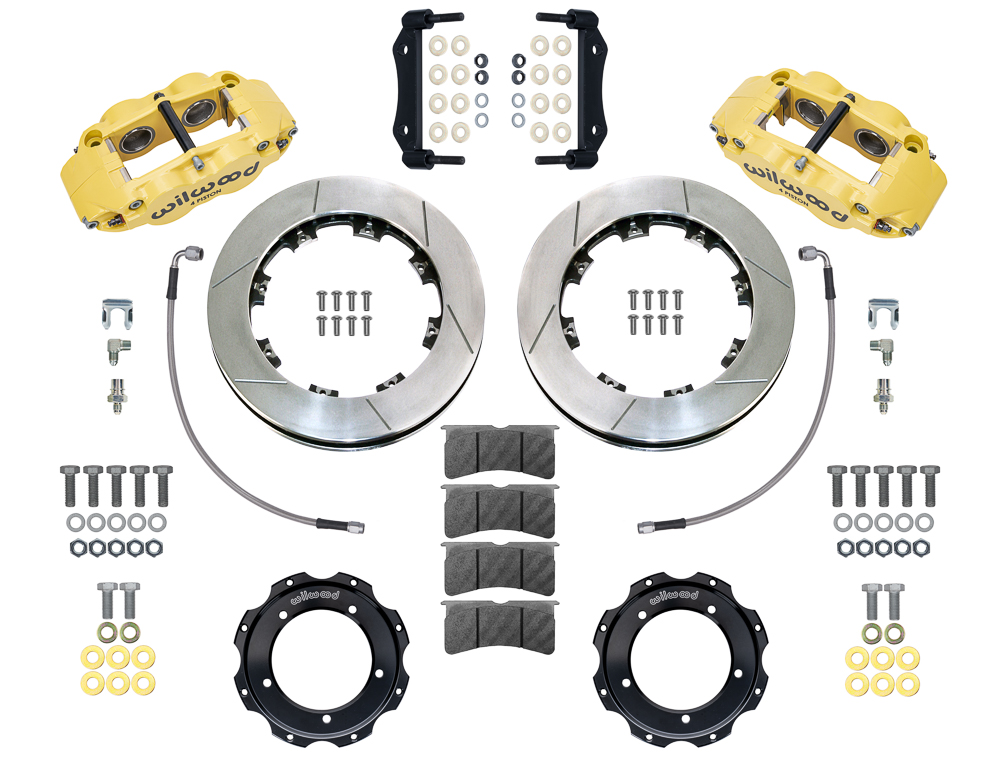

Forged Narrow Superlite 4R Front Brake Kit using OE hubs
Motorsports-proven Forged Narrow Superlite Radial mount caliper, with oversize rotor are engineered to bring 1969-89 Porsche 911s performance braking capability on par with the 1974 RS and 930 turbo, using lightweight components and modern USA manufacturing techniques. These kits combine the latest Superlite four piston caliper, used in countless laps of many competition classes, with 12.19” (310mm) diameter GT slotted or SRP series drilled and slotted e-coat rotors, and the positive response, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. Forged aluminum calipers, mounting hats, and bracket outperform stock parts while weighing less. These kits bolt directly to front struts with 3.00” (76.2mm) spaced mounting tabs without modification. Braided stainless Flexlines are included.
Wilwood engineered these big brake kits around the motorsports proven Superlite calipers for the classic 1969-89 Porsche 911. Larger 310mm (12.19”) iron alloy rotors with forged aluminum mounting hats and Wilwood brackets produce greater brake torque and less fade, while weighing substantially less than OE.
These rigid, forged billet aluminum four piston calipers upgrade the stock 911 to a spec similar to the 1974 RS or 930 turbo, with the added advantage of decades of material, design and manufacturing advancements. Kits are available for both 3.0” (76,2mm) and 3.5” (88,9mm) mounting tabs.
Kit Features:
- Superlite front calipers have been proven in countless road race, circle track and off-road competition classes. These have evolved over decades and been refined through millions of laps.
- Direct bolt-on upgrade for 1969-89 Porsche 911 with no permanent modifications
- Designed to work with OEM master cylinders and rear brakes to maintain proper front to rear brake bias
- Stress-flow forged aluminum calipers with stainless steel pistons for strength and durability
- Offered in gloss Le Mans yellow, black or red powder coat over durable wear-resistant Type-III hard anodized coating
- Big 310mm (12.19”) x 28mm (1.10”) vented rotors for greater brake torque and more thermal capacity (28mm/1.10” larger than OE)
- Precision-machined, low-distortion proprietary iron alloy rotors with 32 cooling vanes, mounted to forged aluminum hats
- Rotors offered with GT slotted, or SRP drilled and slotted faces
- High-performance street BP-10 brake pads
- Kits include brackets, stainless flexlines, fittings Drilledand hardware
- Part numbers available to fit 3.0” (76,2mm) and 3.5” (88,9mm) spaced front strut mounting tab
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
140-16947
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
For early struts with brake caliper mounting bolt spacing of 3.0 inches (76.2mm)
Min Wheel Diameter Required: 15 inch
Caliper Mounting Bolt Spacing: 3.0 inch (76.2mm)
Spindle Type Used: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 piston - Powder Coated
Rotor Size: 12.19 x 0.8 inches

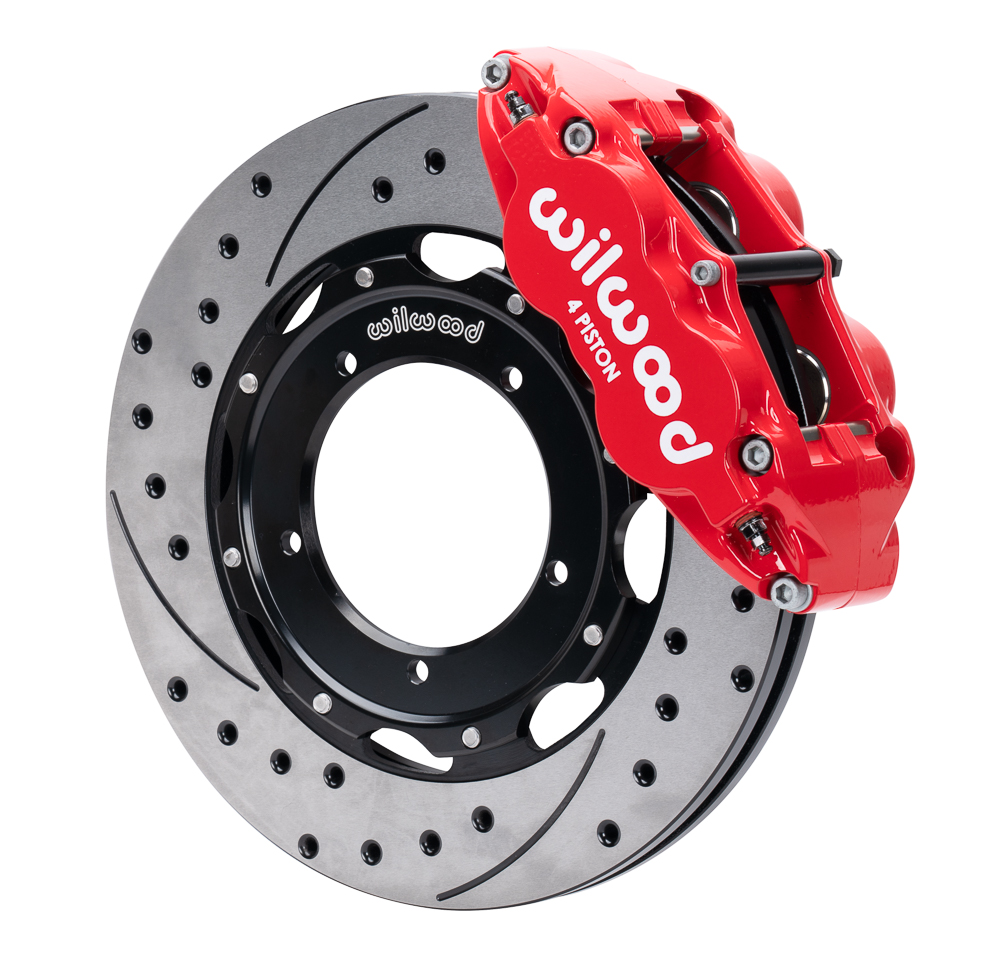

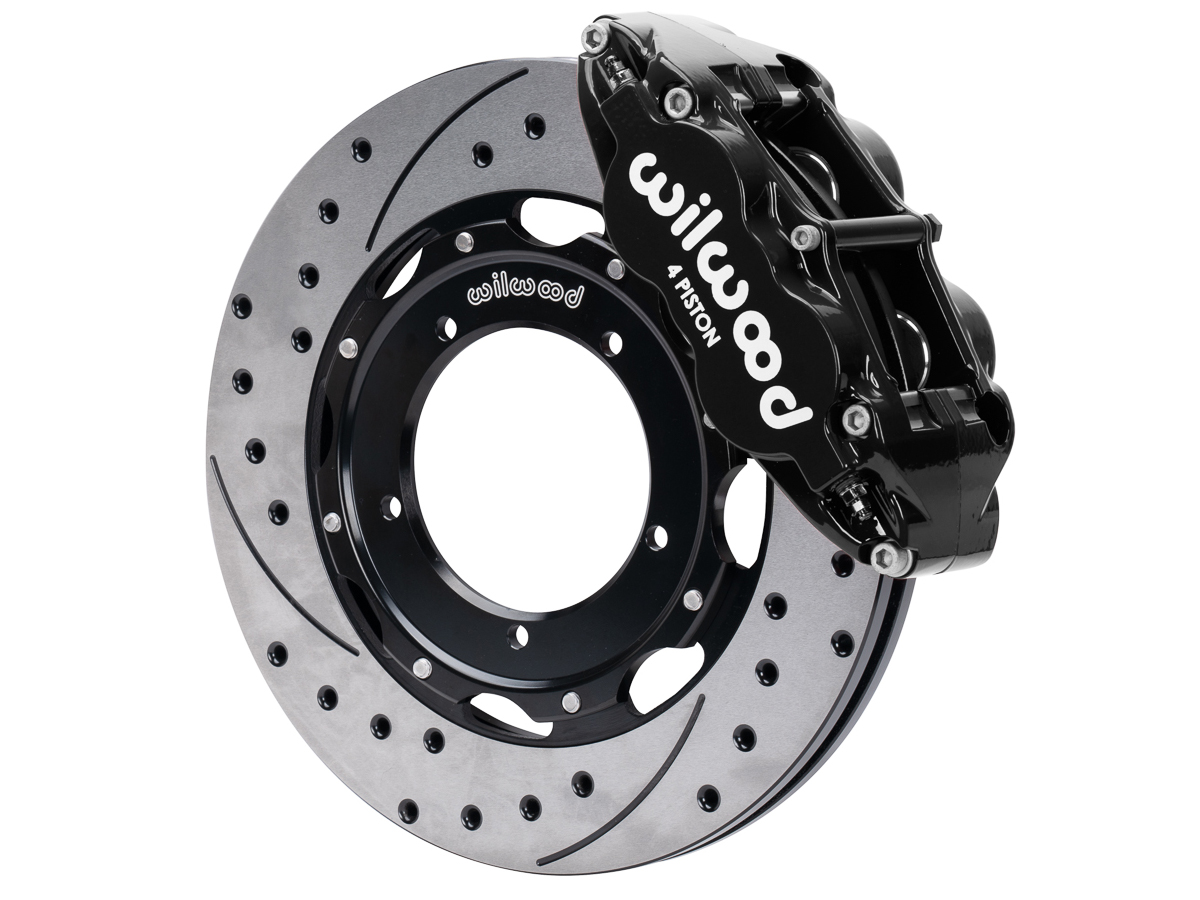

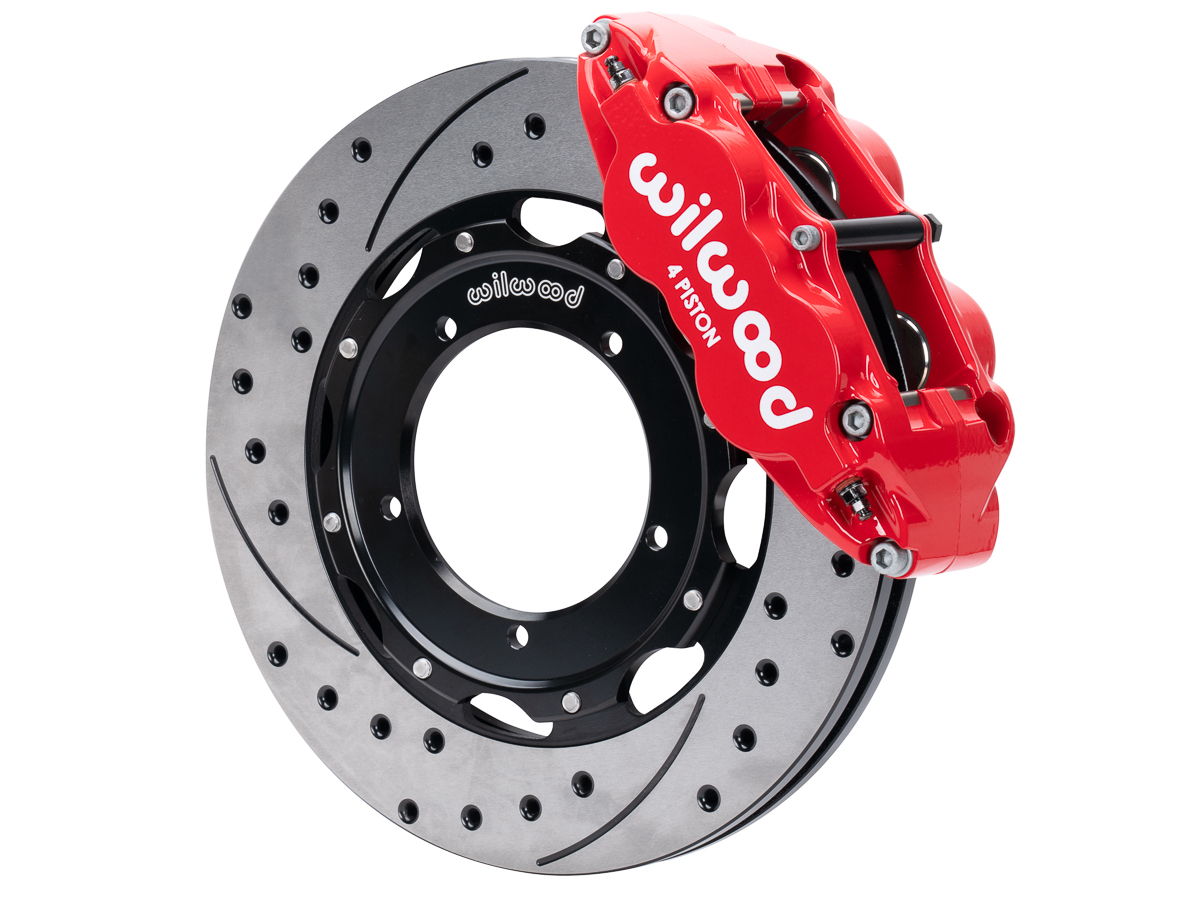

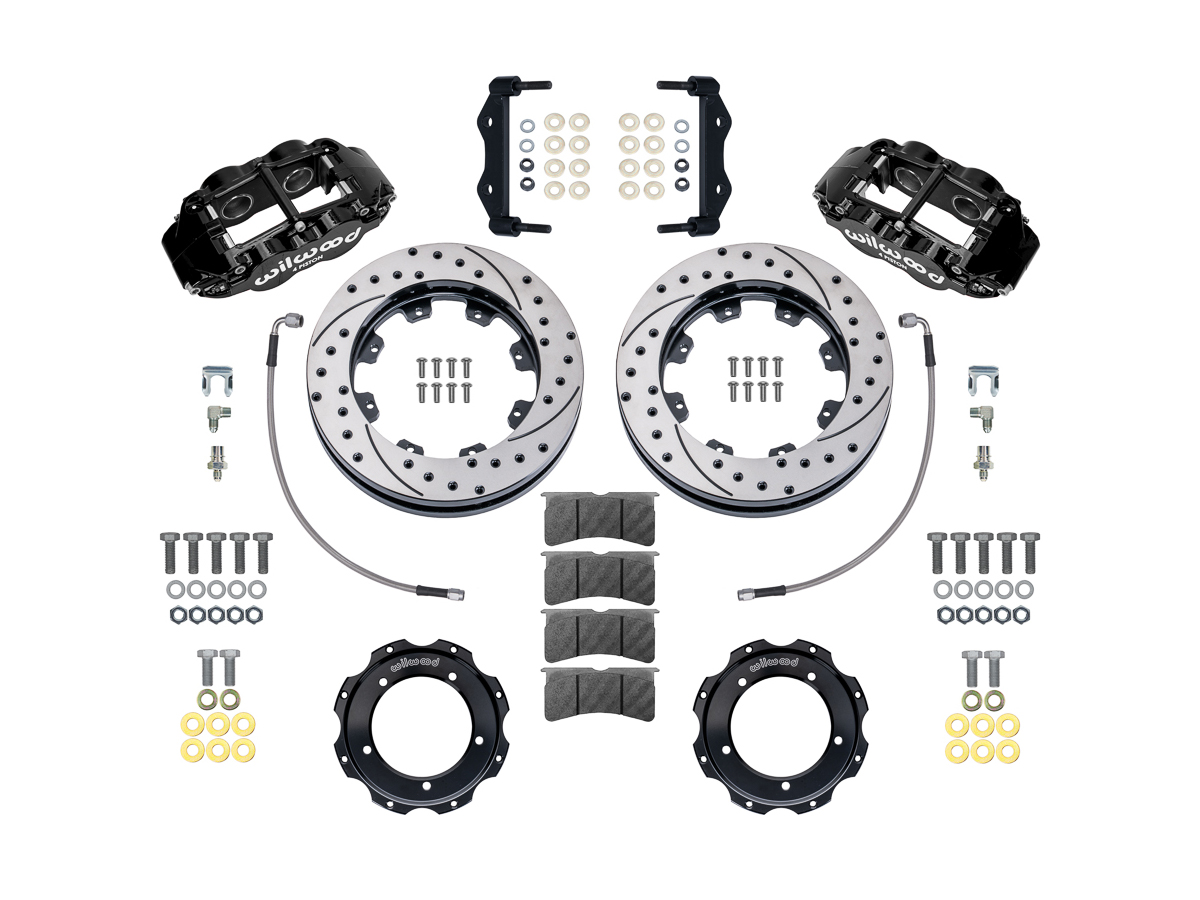

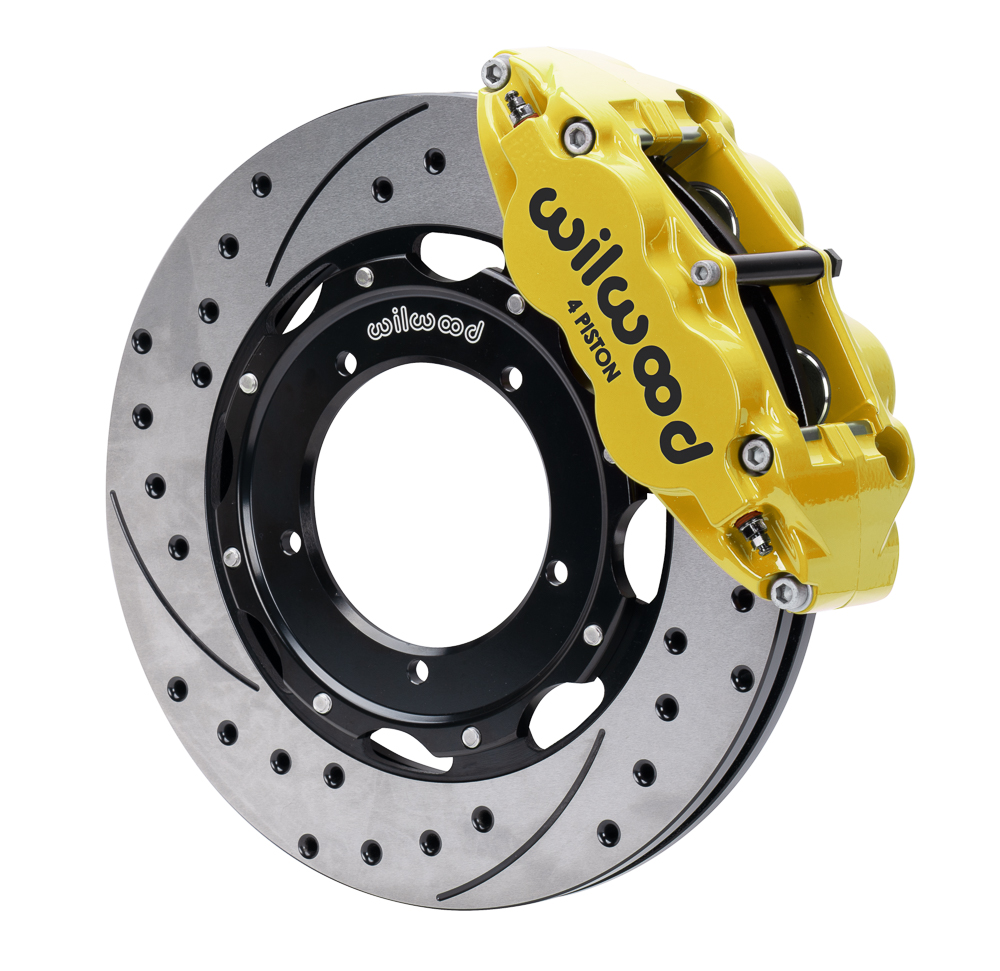

Porsche 911 - 1969 to 1973

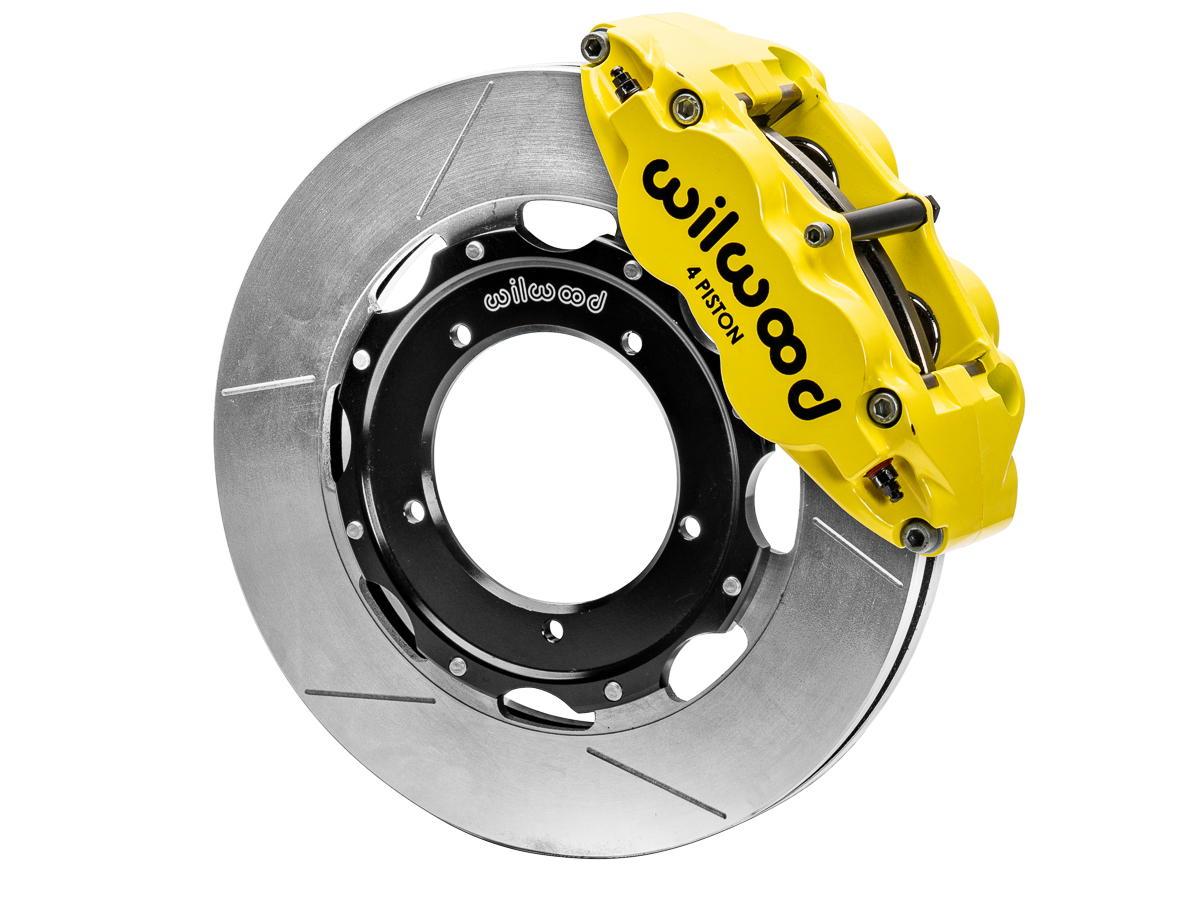

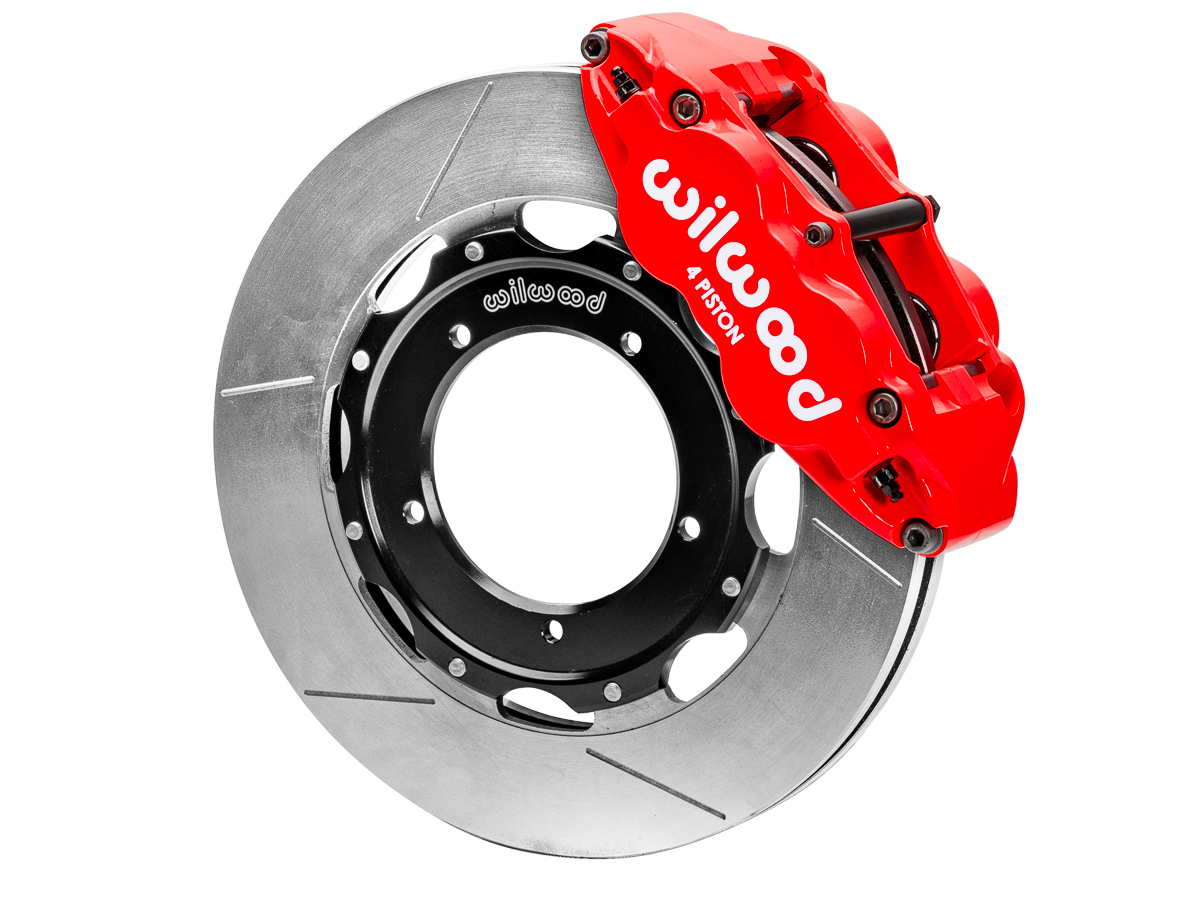

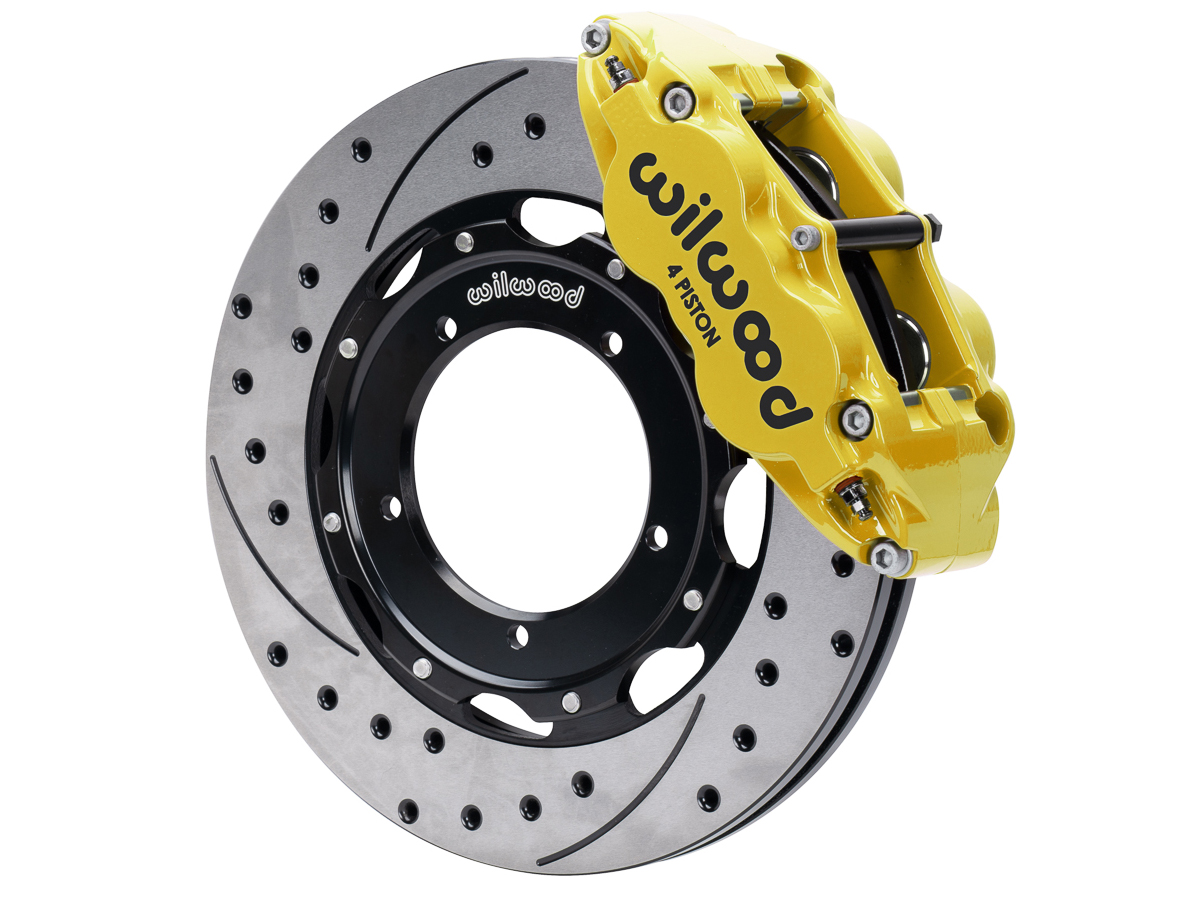

Forged Narrow Superlite 4R Front Brake Kit using OE hubs
Motorsports-proven Forged Narrow Superlite Radial mount caliper, with oversize rotor are engineered to bring 1969-89 Porsche 911s performance braking capability on par with the 1974 RS and 930 turbo, using lightweight components and modern USA manufacturing techniques. These kits combine the latest Superlite four piston caliper, used in countless laps of many competition classes, with 12.19” (310mm) diameter GT slotted or SRP series drilled and slotted e-coat rotors, and the positive response, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. Forged aluminum calipers, mounting hats, and bracket outperform stock parts while weighing less. These kits bolt directly to front struts with 3.00” (76.2mm) spaced mounting tabs without modification. Braided stainless Flexlines are included.
Wilwood engineered these big brake kits around the motorsports proven Superlite calipers for the classic 1969-89 Porsche 911. Larger 310mm (12.19”) iron alloy rotors with forged aluminum mounting hats and Wilwood brackets produce greater brake torque and less fade, while weighing substantially less than OE.
These rigid, forged billet aluminum four piston calipers upgrade the stock 911 to a spec similar to the 1974 RS or 930 turbo, with the added advantage of decades of material, design and manufacturing advancements. Kits are available for both 3.0” (76,2mm) and 3.5” (88,9mm) mounting tabs.
Kit Features:
- Superlite front calipers have been proven in countless road race, circle track and off-road competition classes. These have evolved over decades and been refined through millions of laps.
- Direct bolt-on upgrade for 1969-89 Porsche 911 with no permanent modifications
- Designed to work with OEM master cylinders and rear brakes to maintain proper front to rear brake bias
- Stress-flow forged aluminum calipers with stainless steel pistons for strength and durability
- Offered in gloss Le Mans yellow, black or red powder coat over durable wear-resistant Type-III hard anodized coating
- Big 310mm (12.19”) x 28mm (1.10”) vented rotors for greater brake torque and more thermal capacity (28mm/1.10” larger than OE)
- Precision-machined, low-distortion proprietary iron alloy rotors with 32 cooling vanes, mounted to forged aluminum hats
- Rotors offered with GT slotted, or SRP drilled and slotted faces
- High-performance street BP-10 brake pads
- Kits include brackets, stainless flexlines, fittings Drilledand hardware
- Part numbers available to fit 3.0” (76,2mm) and 3.5” (88,9mm) spaced front strut mounting tab
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
140-16937-D
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
For early struts with brake caliper mounting bolt spacing of 3.0 inches (76.2mm)
Min Wheel Diameter Required: 15 inch
Caliper Mounting Bolt Spacing: 3.0 inch (76.2mm)
Spindle Type Used: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 piston - Powder Coated
Rotor Size: 12.19 x 0.8 inches

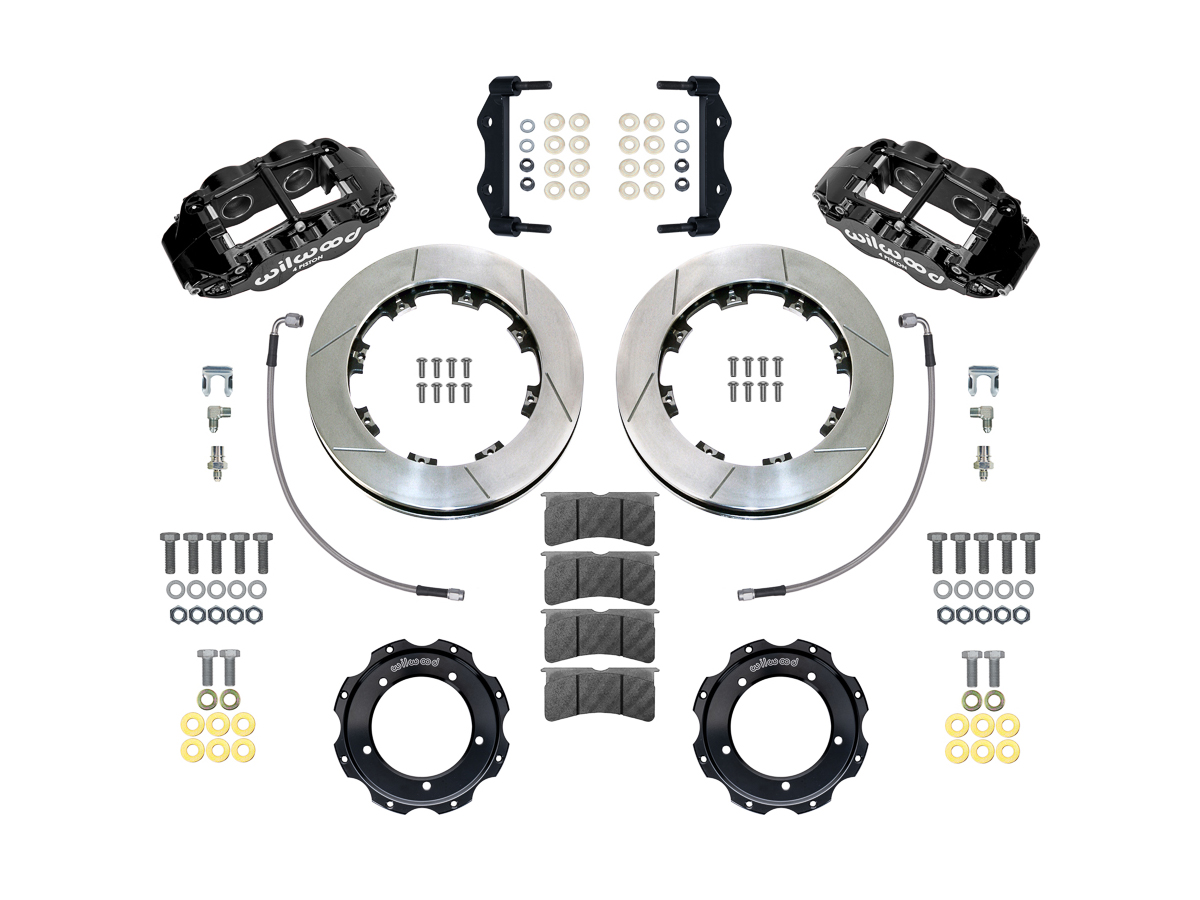

Porsche 911 - 1969 to 1973
Forged Narrow Superlite 4R Front Brake Kit using OE hubs
Motorsports-proven Forged Narrow Superlite Radial mount caliper, with oversize rotor are engineered to bring 1969-89 Porsche 911s performance braking capability on par with the 1974 RS and 930 turbo, using lightweight components and modern USA manufacturing techniques. These kits combine the latest Superlite four piston caliper, used in countless laps of many competition classes, with 12.19” (310mm) diameter GT slotted or SRP series drilled and slotted e-coat rotors, and the positive response, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. Forged aluminum calipers, mounting hats, and bracket outperform stock parts while weighing less. These kits bolt directly to front struts with 3.00” (76.2mm) spaced mounting tabs without modification. Braided stainless Flexlines are included.
Wilwood engineered these big brake kits around the motorsports proven Superlite calipers for the classic 1969-89 Porsche 911. Larger 310mm (12.19”) iron alloy rotors with forged aluminum mounting hats and Wilwood brackets produce greater brake torque and less fade, while weighing substantially less than OE.
These rigid, forged billet aluminum four piston calipers upgrade the stock 911 to a spec similar to the 1974 RS or 930 turbo, with the added advantage of decades of material, design and manufacturing advancements. Kits are available for both 3.0” (76,2mm) and 3.5” (88,9mm) mounting tabs.
Kit Features:
- Superlite front calipers have been proven in countless road race, circle track and off-road competition classes. These have evolved over decades and been refined through millions of laps.
- Direct bolt-on upgrade for 1969-89 Porsche 911 with no permanent modifications
- Designed to work with OEM master cylinders and rear brakes to maintain proper front to rear brake bias
- Stress-flow forged aluminum calipers with stainless steel pistons for strength and durability
- Offered in gloss Le Mans yellow, black or red powder coat over durable wear-resistant Type-III hard anodized coating
- Big 310mm (12.19”) x 28mm (1.10”) vented rotors for greater brake torque and more thermal capacity (28mm/1.10” larger than OE)
- Precision-machined, low-distortion proprietary iron alloy rotors with 32 cooling vanes, mounted to forged aluminum hats
- Rotors offered with GT slotted, or SRP drilled and slotted faces
- High-performance street BP-10 brake pads
- Kits include brackets, stainless flexlines, fittings Drilledand hardware
- Part numbers available to fit 3.0” (76,2mm) and 3.5” (88,9mm) spaced front strut mounting tab
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
140-16937
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
