TTE Global

TTE800 upgrade turbocharger for Porsche 993 / 996

Introducing our TTE800 upgrade performance turbochargers based on the original K24 turbochargers to new higher output specification. Offering an upgrade to over 800PS.

Engineered & Enhanced

At the core of our TTE800 upgrade stage is a much larger TTE compressor wheel, chosen because it is highly efficient and creates an extremely high flow for comparative size. Re-Profiled compressor cover to optimised tolerance to ensure maximum compressor efficiency is given.


We CNC mill the exhaust turbine housing to accept a larger 9 blade turbine and shaft.

Special profile 360 deg high-performance motorsport journal bearing is fitted, to remain durable at higher loads with no loss in transient response. The actuator used is sprung OE unit set at 0.8bar crack pressure(1.0bar if wanted)

Equilibrium:

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in-house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

• Original BorgWarner turbocharger as the base part
• TTE Billet geometry compressor 54.5MM inlet
• TTE 9 Blade High-Flow Low-Mass turbine
• TTE Upgrade bearing pack
• 800PS+ Capable on 102Ron
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Proven TheTurboEngineers quality
• Made in Germany

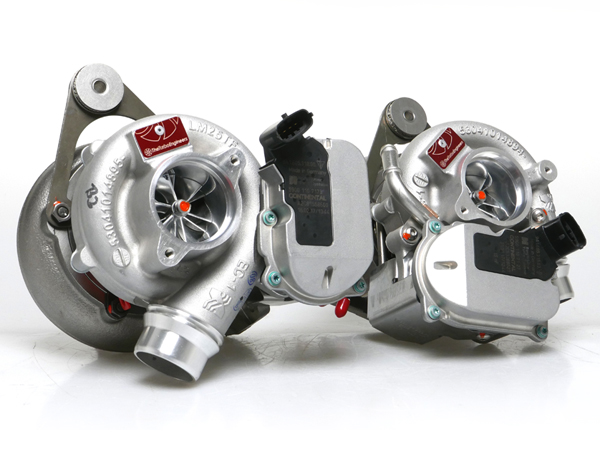

TTE850 VTG upgrade turbocharger for Porsche 991.1 & 991.2 Turbo / Turbo S

Welcome to our TTE850 VTG Stage for the 3.8-litre flat 6 engine. To construct a pair of TTE850 VTG we change the original compressor and employ a far larger and more efficient billet wheel and mill the compressor cover to optimum gap to match the new compressor profile. Still keeping the original turbine but clipping the original blades for greater flow and lower exhaust gas temperatures. We also remove some mass to improve response.

Equilibrium:

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Product Highlights:

• Original BWTS VTG turbocharger as base part
• Very early response
• Billet Milled TTE compressor 6+6 BLADE
• High Flow Clipped Turbine
• Plug and Play installation
• 850PS+ Proven
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Made in Germany

Introducing our TTE600 Turbochargers for the 991 CARRERA 3.0 for the ultimate blend of power, response, and Plug&play ease of fitment. Our first upgrade step utilizing the original turbochargers for greater flow and power. TTE600 Performance turbochargers can and do make over 600PS with the right software at low boost with ease, yet offer only a little loss in response but offer a big step too more power. These really do offer a great balance of high power and fast response.

Engineered & Enhanced:

TTE600 Turbochargers start life as Genuine OE units. Engineered and enhanced using mostly BorgWarner components. TTE600 uses RS4 compressor covers that we CNC machine in house to an optimum clearance to allow fitment and maintain the efficiency of a larger more advanced billet TTE compressor wheels. The compressor wheel design features promote greater airflow using a low inertia wheel that performs like a wheel of even greater size and mass. Extended tip technology enables the user to have faster spool-up at lower engine speeds while providing high boost with less heat for the powerful top-end performance.

Turbine and shaft are original BorgWarner items bigger in size than the original for more power.

Special profile 360 deg high-performance motorsport journal bearing is fitted as standard, to remain durable at higher loads with no loss in transient response.

Actuators used are OE units fitted for trouble-free operation.

Equilibrium:

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Product Highlights:

• Original BWTS turbocharger as base part
• TTE Billet Milled compressor 6+6 BLADE
• BWTS High-Flow Turbine
• Plug and Play installation
• 600 PS Capable
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Made in Germany

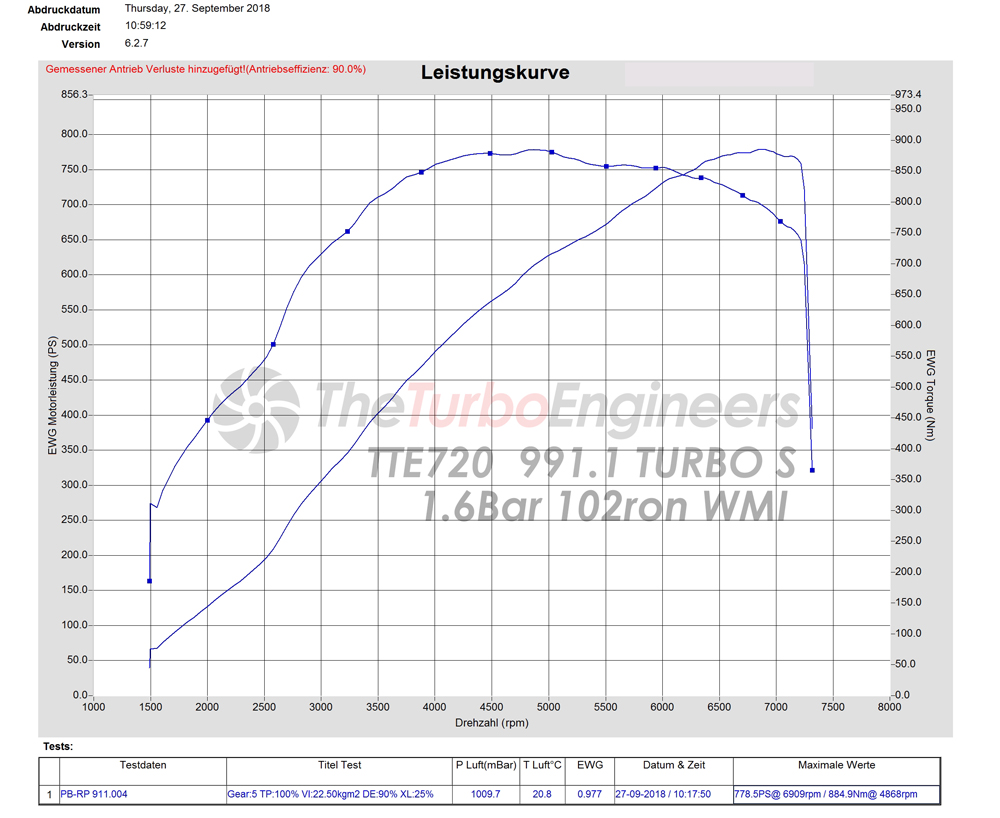

TTE720 VTG upgrade turbocharger for Porsche 991.1 Turbo / GT2


Product Highlights:
• Original BWTS VTG turbocharger as base part
• Very early response
• Billet Milled TTE compressor 6+6 BLADE
• High Flow Clipped Turbine
• Plug and Play installation
• 750 PS Capable
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Made in Germany

The TTE465 Turbo upgrade for the 718 horizontally-opposed flat-4 turbocharged 2.0L displacement motor. Still keeping the original turbocharger but utilizing a larger high flow 9 blade lightweight turbine and fitment of a bigger 7+7 blade milled billet compressor so producing extra power but still focused on response as most all TTE upgrades.

Equilibrium:

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

• Original turbocharger as the base part
• TTE Billet Milled 7x7 compressor wheel
• TTE High-Flow Low-Mass 9 blade Turbine
• Early boost response
• 465 PS Capable on 102ron
• Plug & Play installation
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Made in Germany
