Retro Line

Engine wiring harness loom.



Fits:
Porsche 911 SC 1978 to 1983

Complete engine harness.

Connects to 14 pole male connector from tunnel harness and has original colour coded wiring.

Harness will exactly fit like the original and the wire tube and oil resistant tape are as original.

Terminals have neoprene sleeves with new 14 pole female connector and rubber cable entry block, grommet for alternator, rubber boots on alternator connection, CDI connector & boot, green shielded distributor wire / plug etc.

1978 to 1981 version is for the earlier type SC model that has an external voltage regulator.
1983-1983 version is for the later type SC model that has a built in voltage regulator.

Harness comes with our detailed connection diagrams.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.

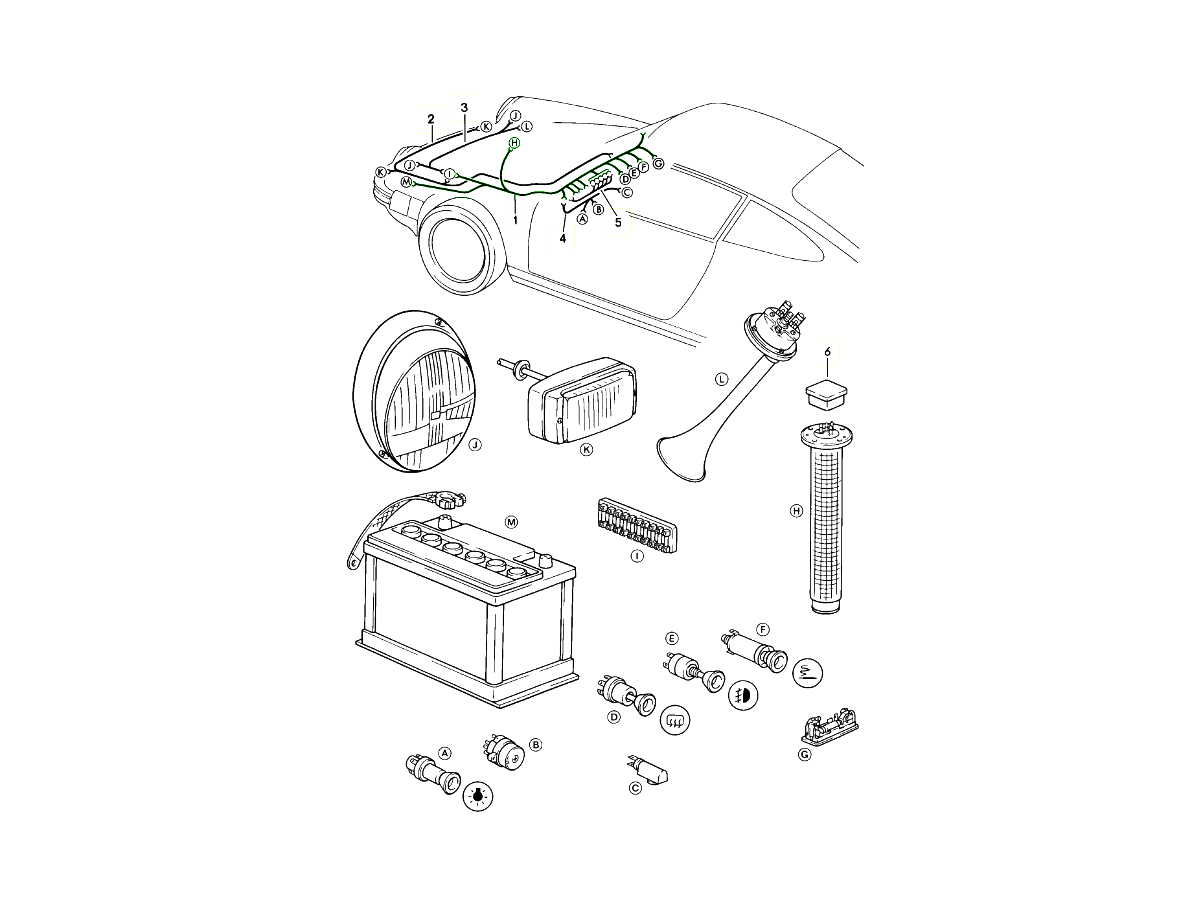

Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

911607016

The product you are viewing cross references to these numbers

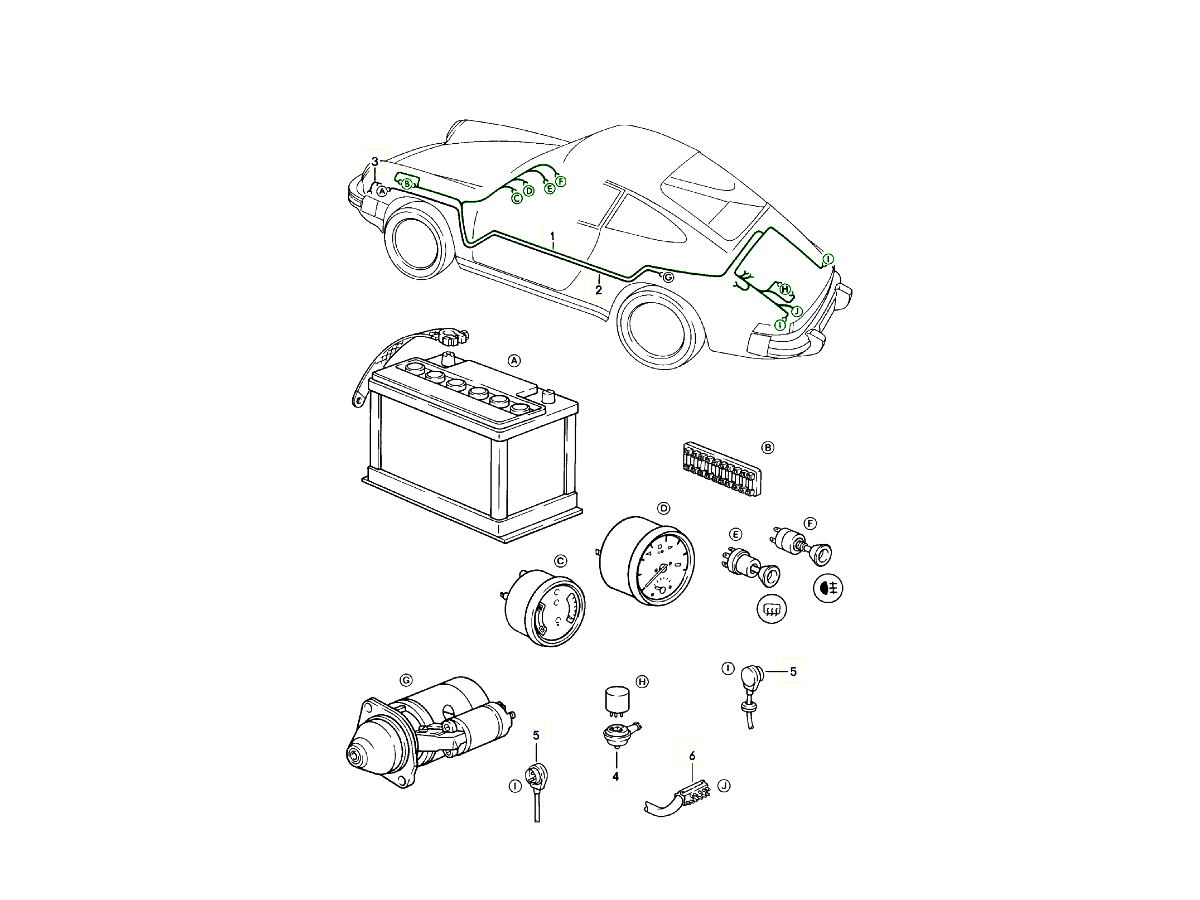

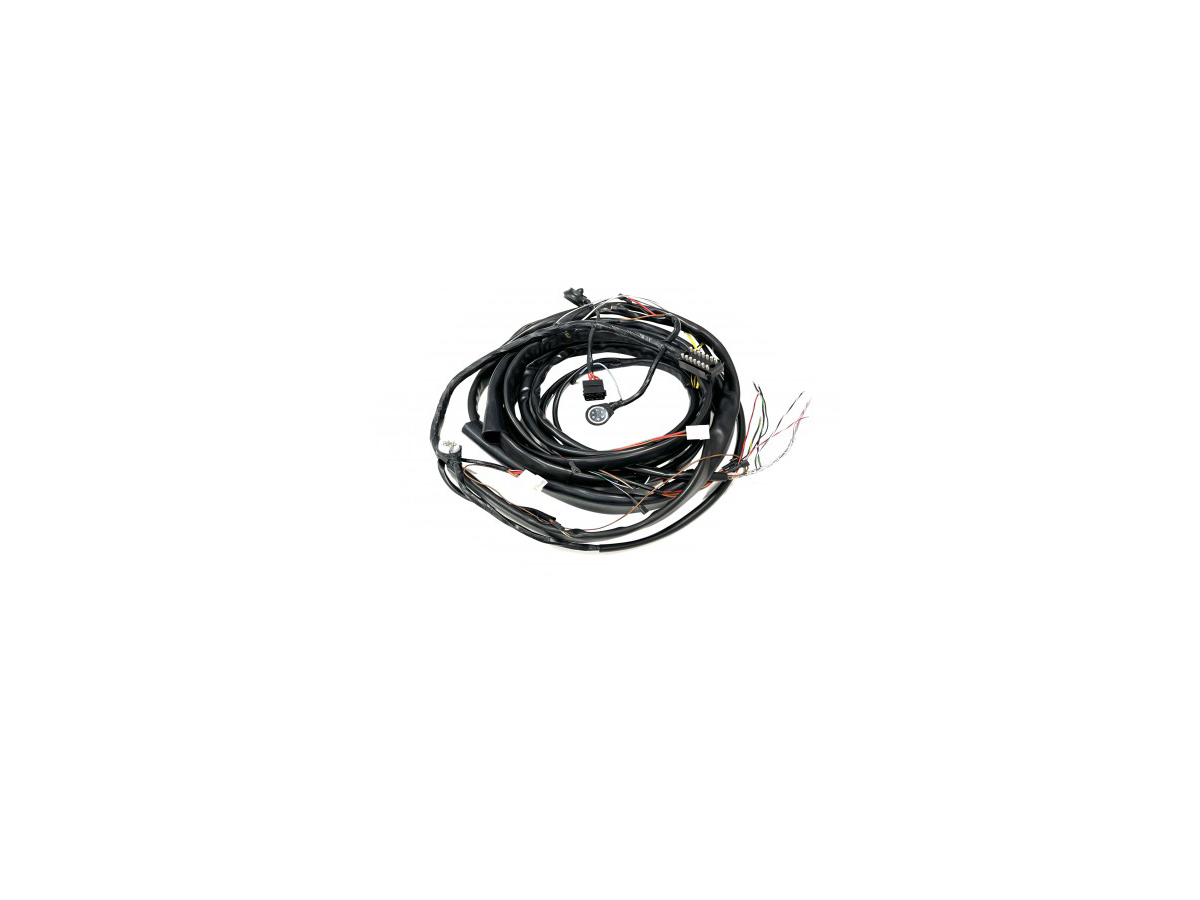

Tunnel wiring harness loom.

Fits:
Porsche 930 turbo - 1978 to 1983 Left Hand Drive (LHD)

Complete 911 tunnel harness with original spiral colour coded wiring.
Runs from front fusebox / gauges through tunnel to the engine bay.
Harness will exactly fit like the original.
Wire tube, and oil resistant tape as original.
The terminals have rubber sleeves.
Harness comes with detailed connection instructions.

Two new 6 pole male connector , 1 x 14 pole male connector and 1 x relay socket , rubber sleeve and grommet included.

As original colored wiring.

Original neoprene terminal sleeves used, (no shrink wrap)

Very high quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53

Gasoline, oil, battery acid, engine coolant resistant.

High flex sleeving ,very resistant to solvents and free of halogen, sulphur and phosphorous.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93061200106

The product you are viewing cross references to these numbers

Luggage compartment wiring harness loom

Fits:
Porsche 911 SC - 1978 to 1984

Complete main harness with original colour coded wiring. Runs from the front fusebox to dashboard.
This harness will exactly fit like the original and the wire tube, oil resistant tape are as original.
Terminals have rubber sleeves.

Harness comes with detailed connection instructions.
As original coloured wiring.
Original neoprene terminal sleeves used, (no shrink tube!)
Very high quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53
Gasoline, oil, battery acid, engine coolant resistant.
High flex sleeving ,very resistant to solvents and free of halogen, sulphur and phosphorous.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.


Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9116120

The product you are viewing cross references to these numbers

Rear fuel pump wiring harness loom.



Fits:
Porsche 911 - 1971 to 1973

Fuel pump harness (rear)

"T" connector and fuel pump connector + correct rubber fuel pump boot.

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.

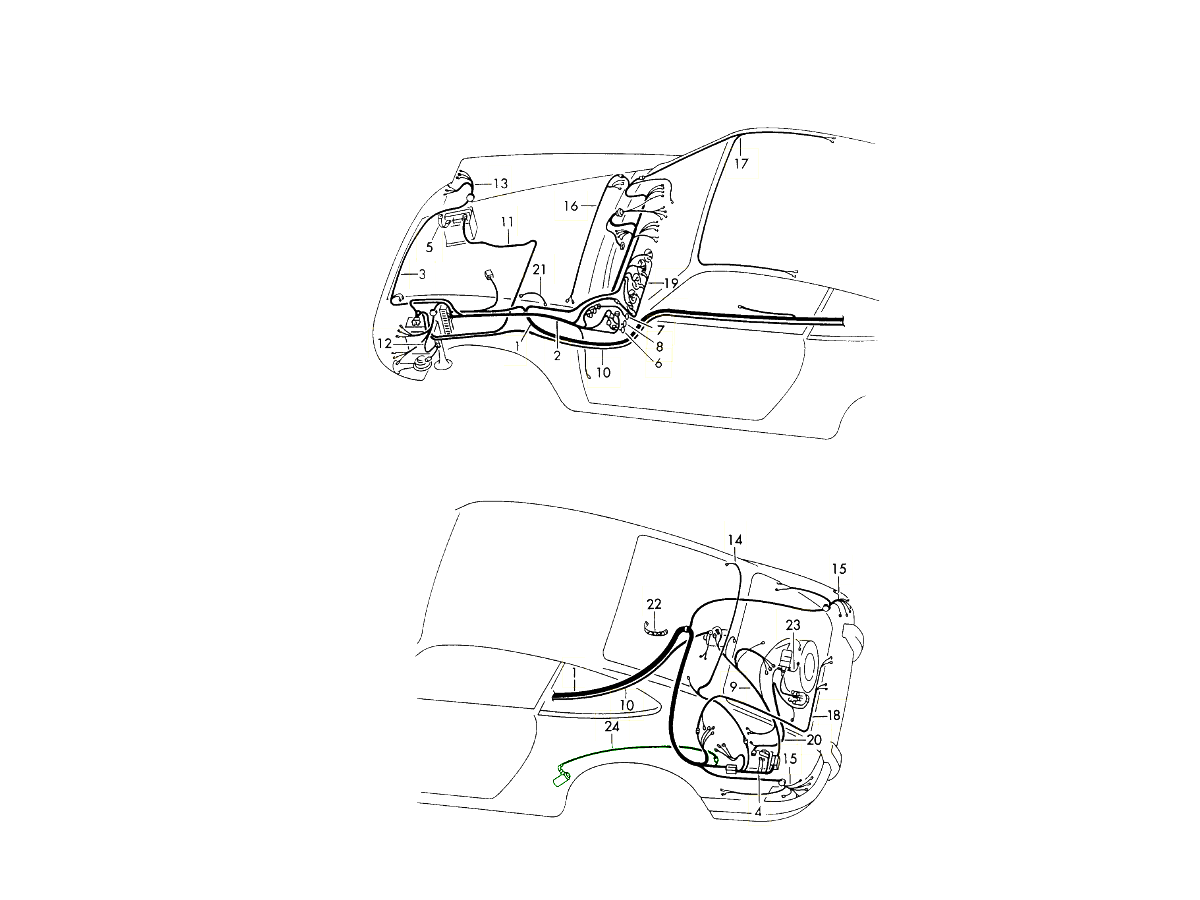

Diagram ref no 24

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161207210

The product you are viewing cross references to these numbers

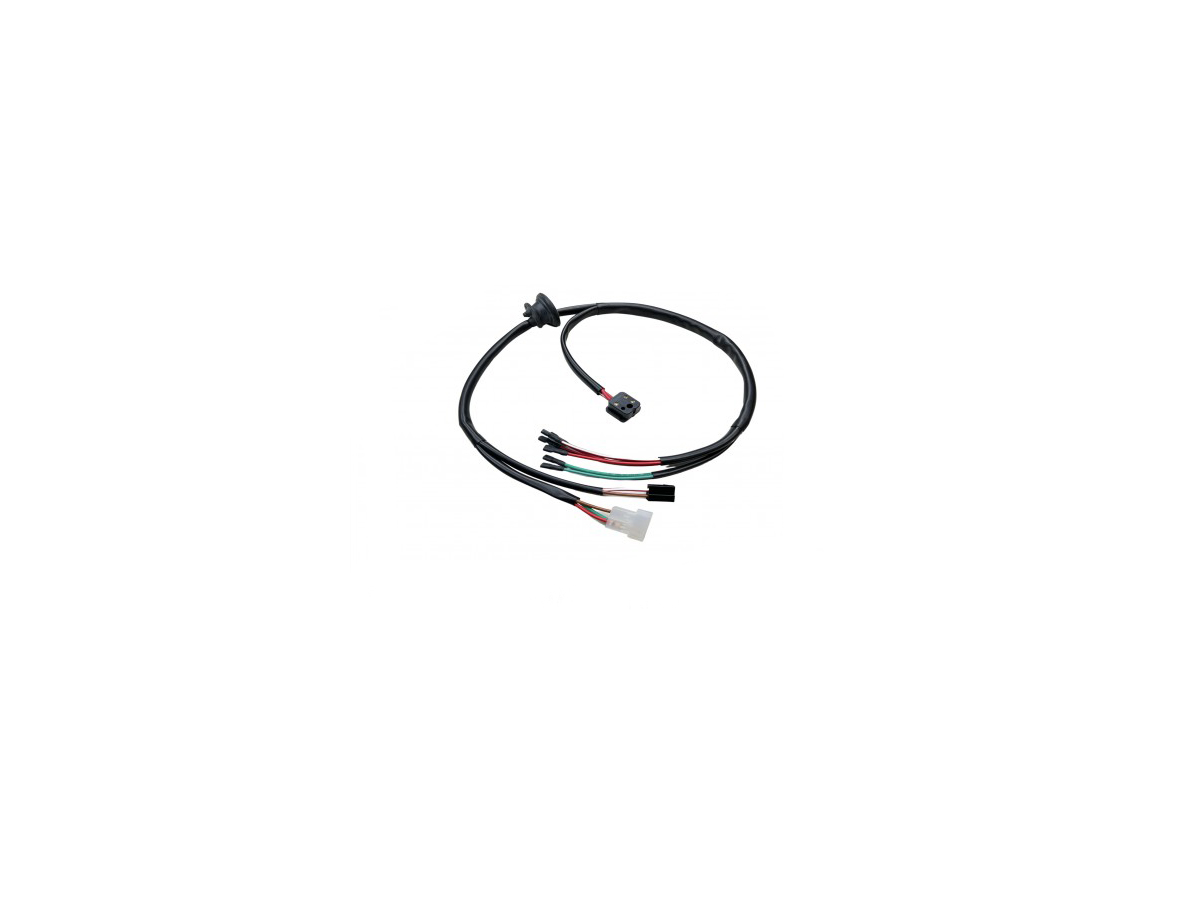

Air conditioning thermo switch wiring harness loom - Left Hand Drive (LHD)



Fits:
Porsche 911 - 1978 to 1989
Porsche 911 turbo - 1978 to 1989

Wiring Harness Nr. 29
Thermo Bi-metal Switch - Left hand Drive

Model: M559 - 1978-1989, Air conditioner

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.

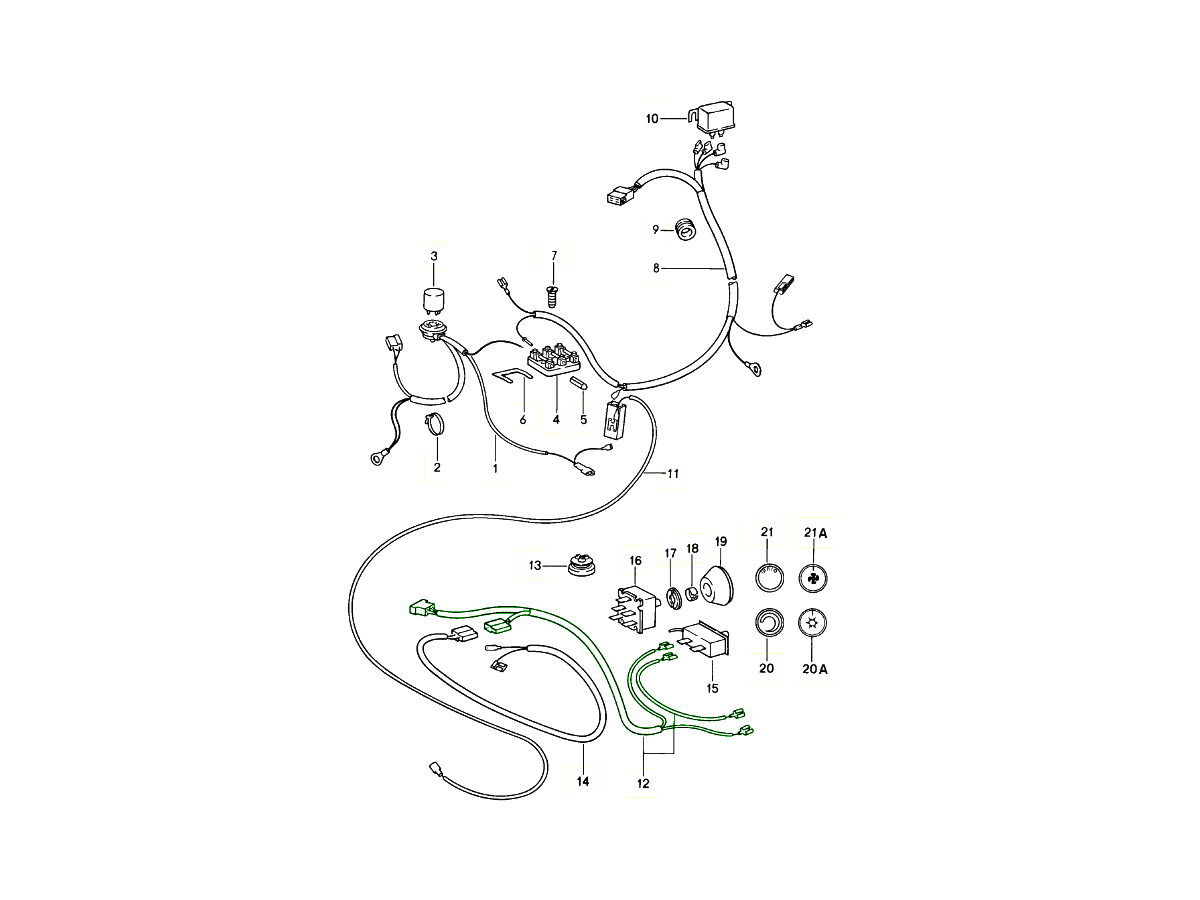

Diagram ref no 12

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161202901

The product you are viewing cross references to these numbers

Air conditionong wiring harness loom.

Fits:
Porsche 911 - 1974 to 1984
Porsche 911 turbo - 1974 to 1984

Loom - NR 78

Complete harness from fusebox to AC control relay and 6 pole female connector.

As original coloured wiring.
Original neoprene terminal sleeves used, (no shrink wrap)
High quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53
Gasoline, oil, battery acid, engine coolant resistant.
The high flex sleeving is very resistant to solvents and free of halogen, sulphur and phosphorous.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.

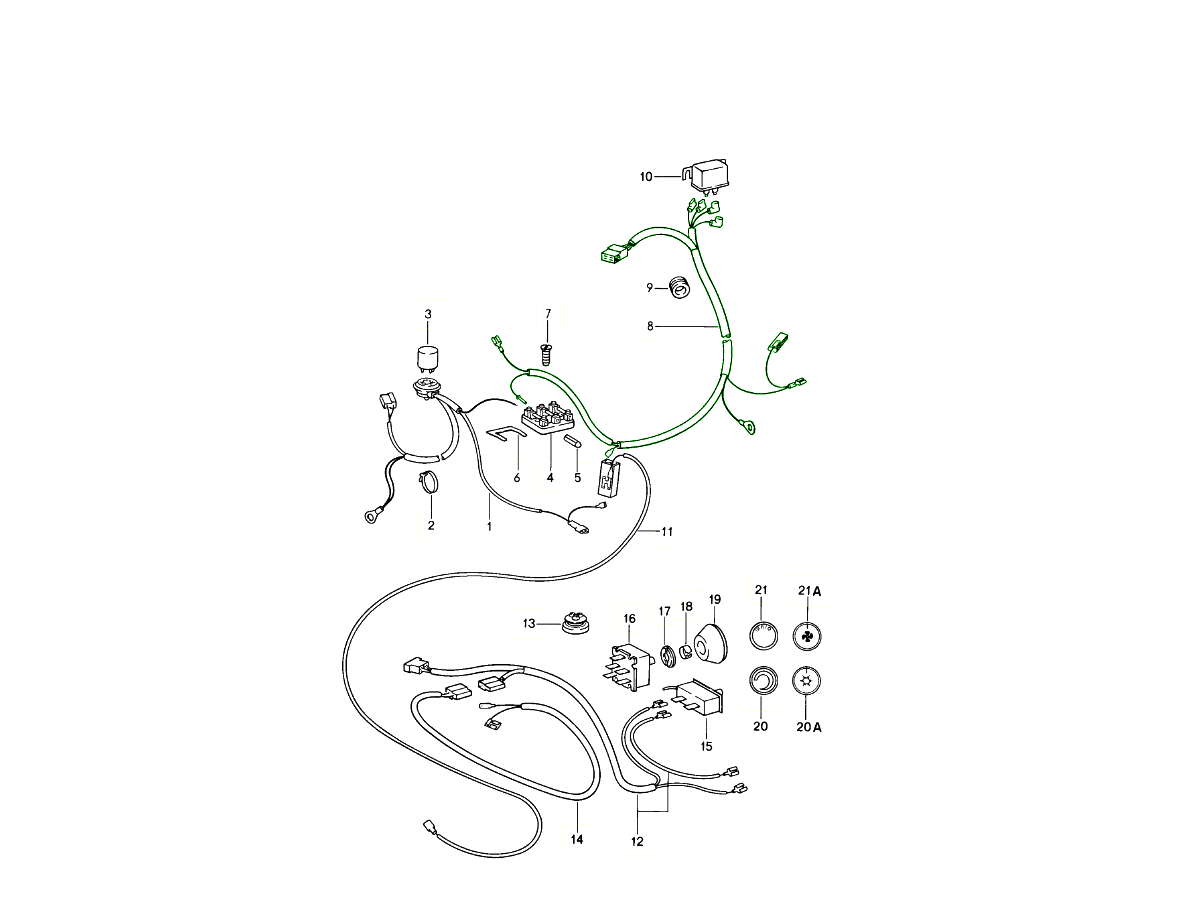

Diagram ref no 8

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161207801

The product you are viewing cross references to these numbers

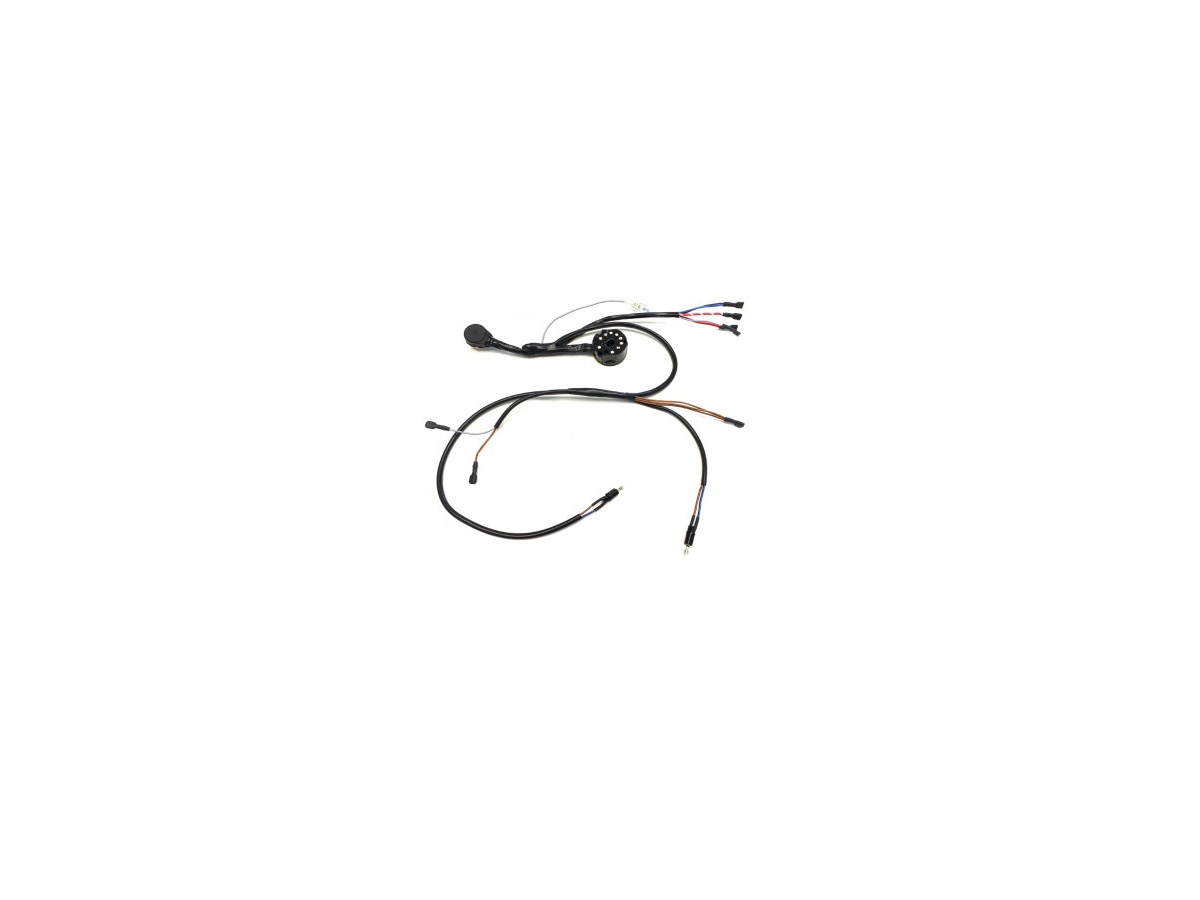

Ignition switch wiring harness loom.

Fits:
Porsche 911 - 1987 to 1989
Porsche 911 turbo - 1987 to 1989

Harness with 6 pole male connector that connects to ignition switch and comes with original colour coded wiring.
Harness will fit exactly like the original with the wire tube and oil resistant tape as original.
Terminals have rubber sleeves.
Harness comes with detailed connection instructions.

2 x Bulb holder to re-used from old harness

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

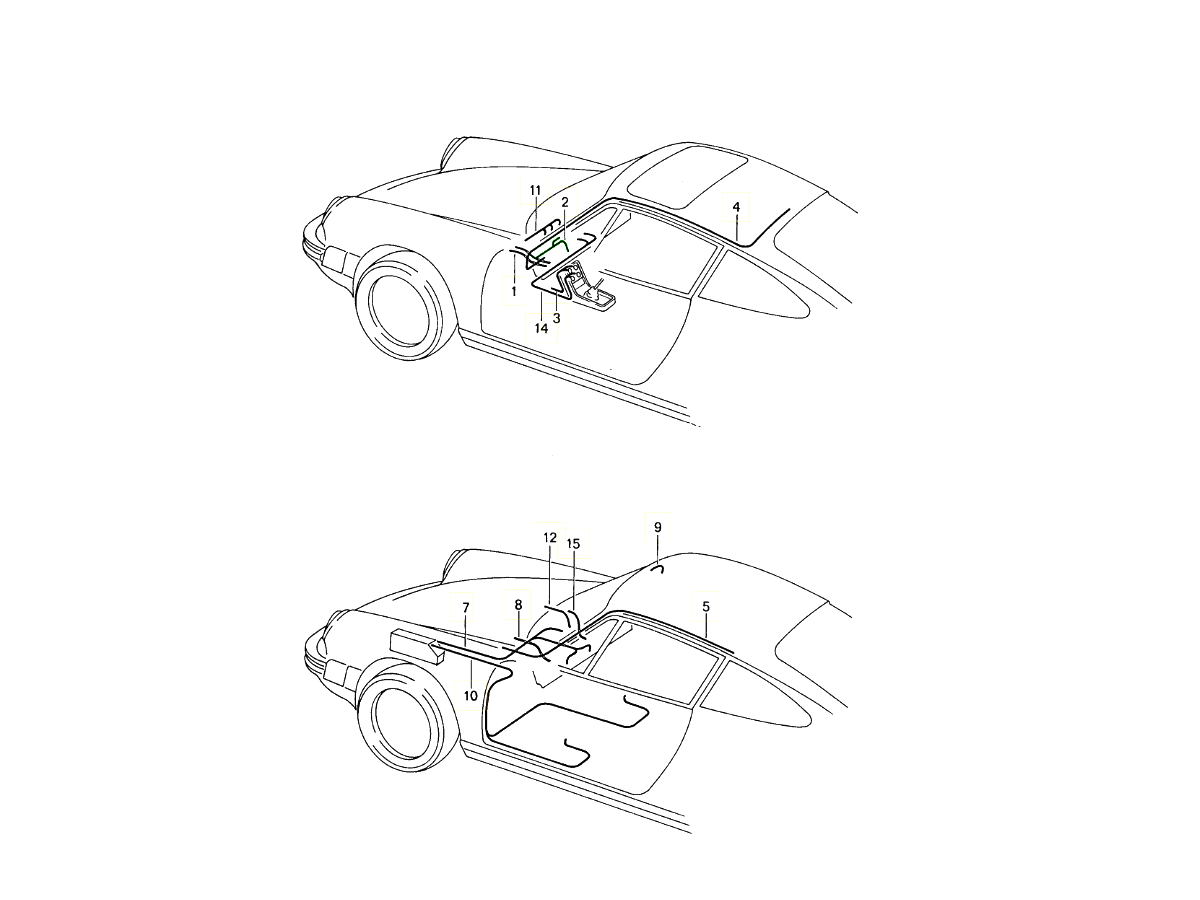

Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201135

The product you are viewing cross references to these numbers

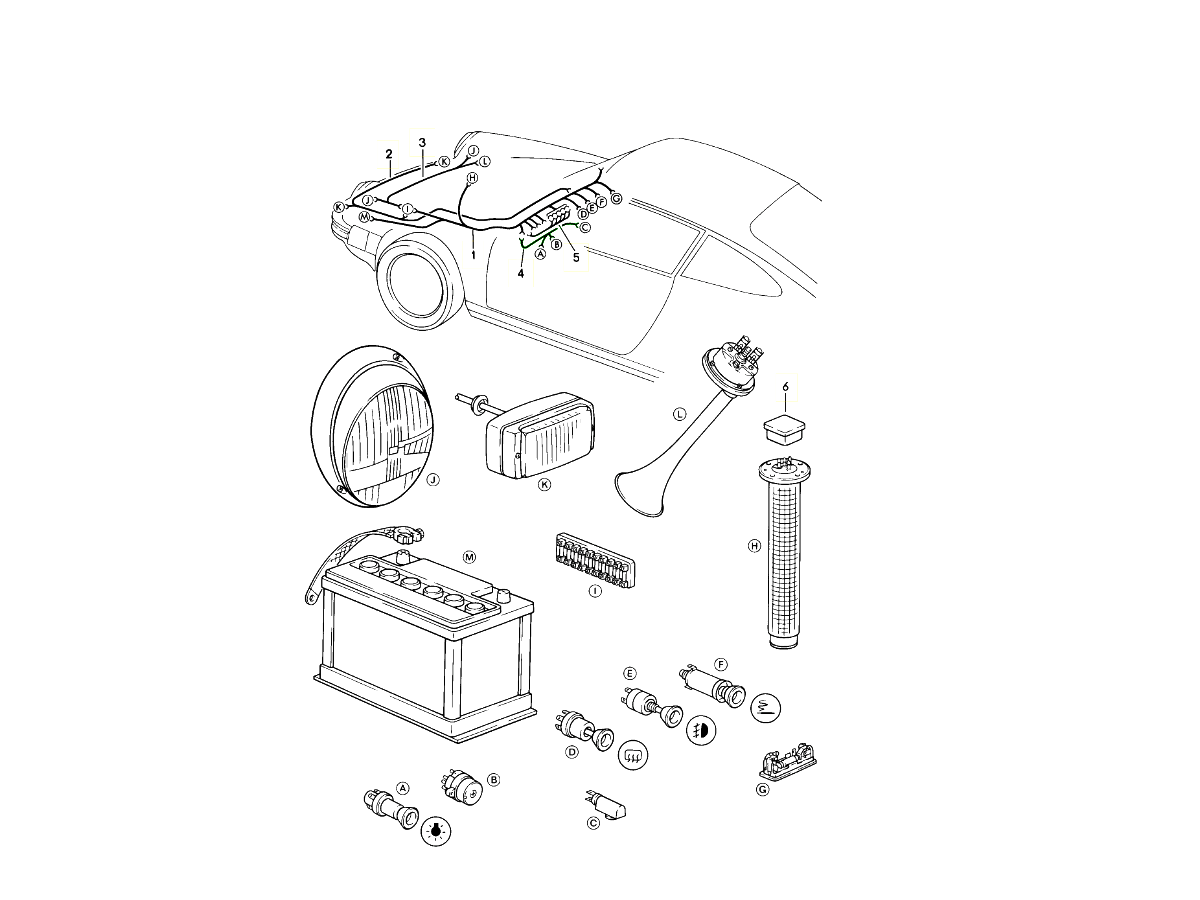

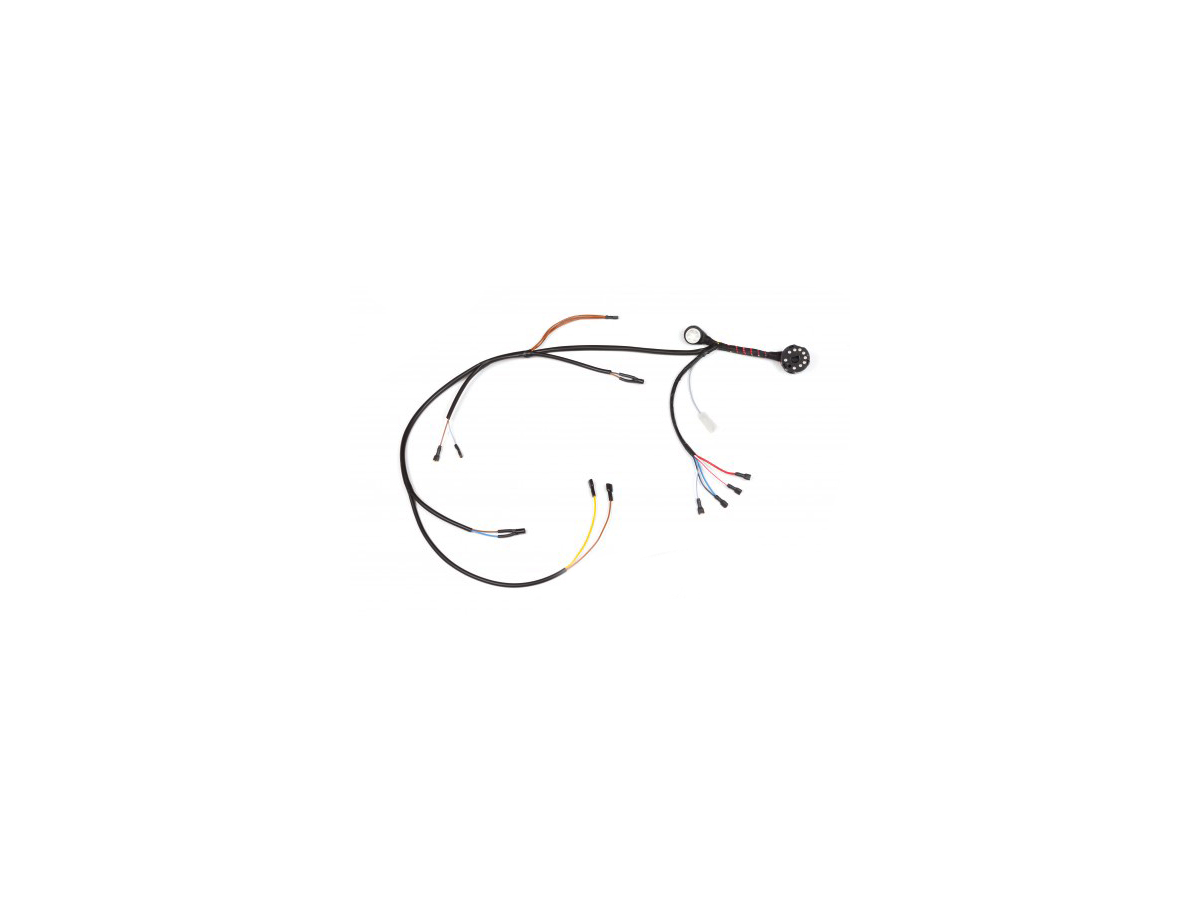

Ignition switch wiring harness loom.



Fits:
Porsche 911 - 1985 to 1986
Porsche 911 turbo - 1985 to 1986

Harness with 6 pole male connector that connects to ignition switch and comes with original colour coded wiring.

** Ignition switch harness two bulb holders are NLA and need to be re-used from the original.

You will need to send us the original harness for this.
The reason for requiring the donor harness is that some of the unique components required to manufacture a new harness are no longer available, or no longer being reproduced.
Harness will fit exactly like the original with the wire tube and oil resistant tape as original.

Terminals have rubber sleeves.

Harness comes with detailed connection instructions.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201134

The product you are viewing cross references to these numbers

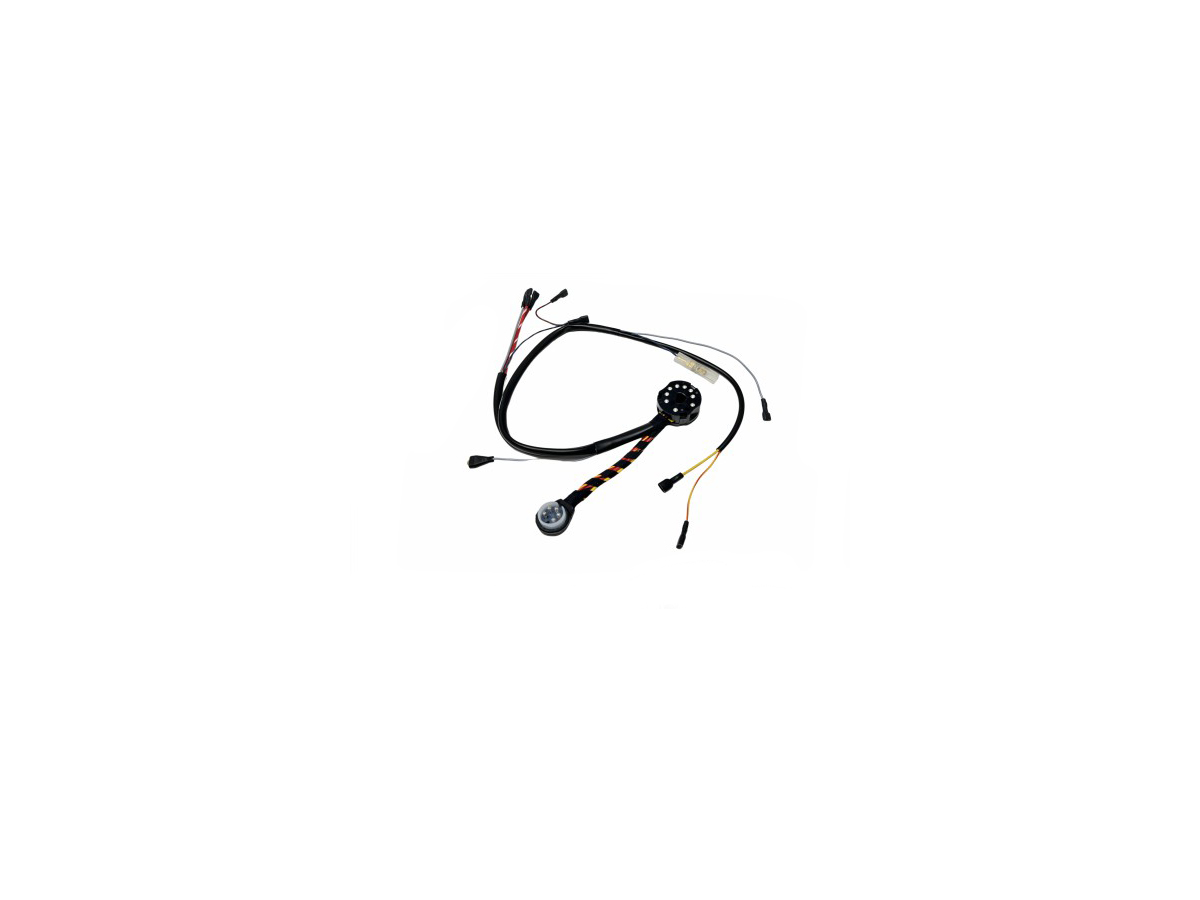

Ignition switch wiring harness loom.



Fits:
Porsche 911 - 1976 to 1984
Porsche 911 turbo - 1976 to 1984 (including)

Harness with 6 pole male connector that connects to ignition switch and comes with original colour coded wiring.

Harness will fit exactly like the original with the wire tube and oil resistant tape as original.

Terminals have rubber sleeves.

Harness comes with detailed connection instructions.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.

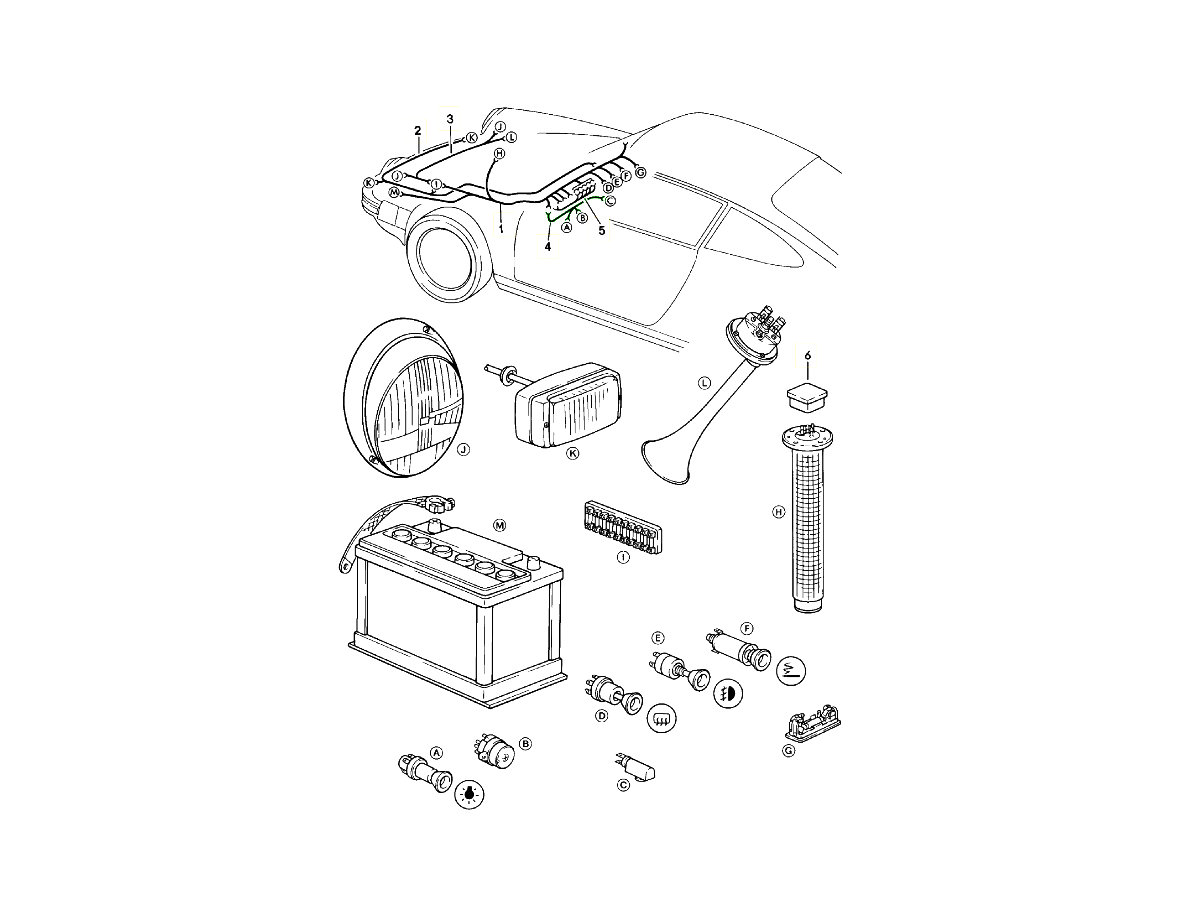

Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201132

The product you are viewing cross references to these numbers

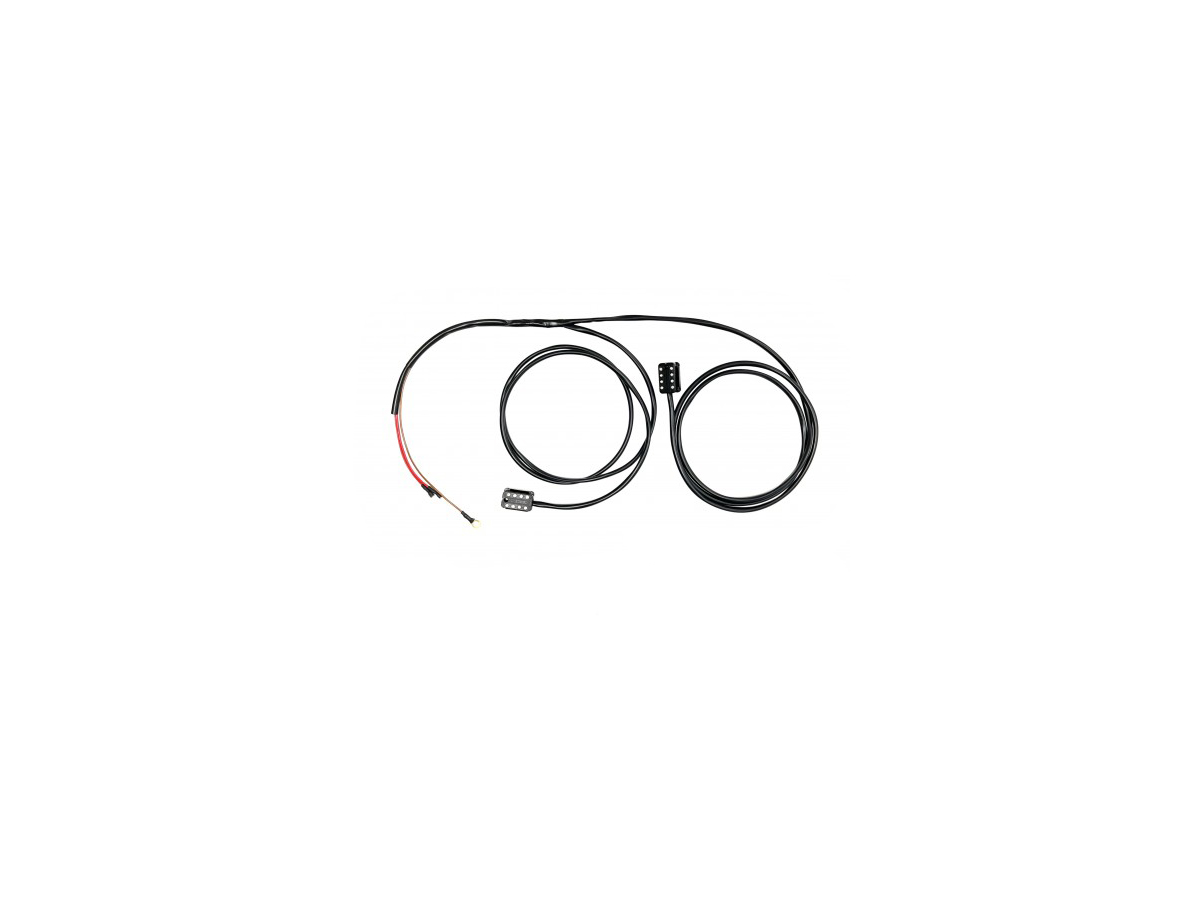

Heated and electric seat wiring harness loom.



Fits:
Porsche 911 3.2 Carrera - 1987 to 1989
Porsche 911 turbo - 1987 to 1989

Harness for both heated and electrically adjustable front seats.

2 x 8 POLE connectors. (Driver & Passenger seat)

Comes with detailed connection diagram.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.

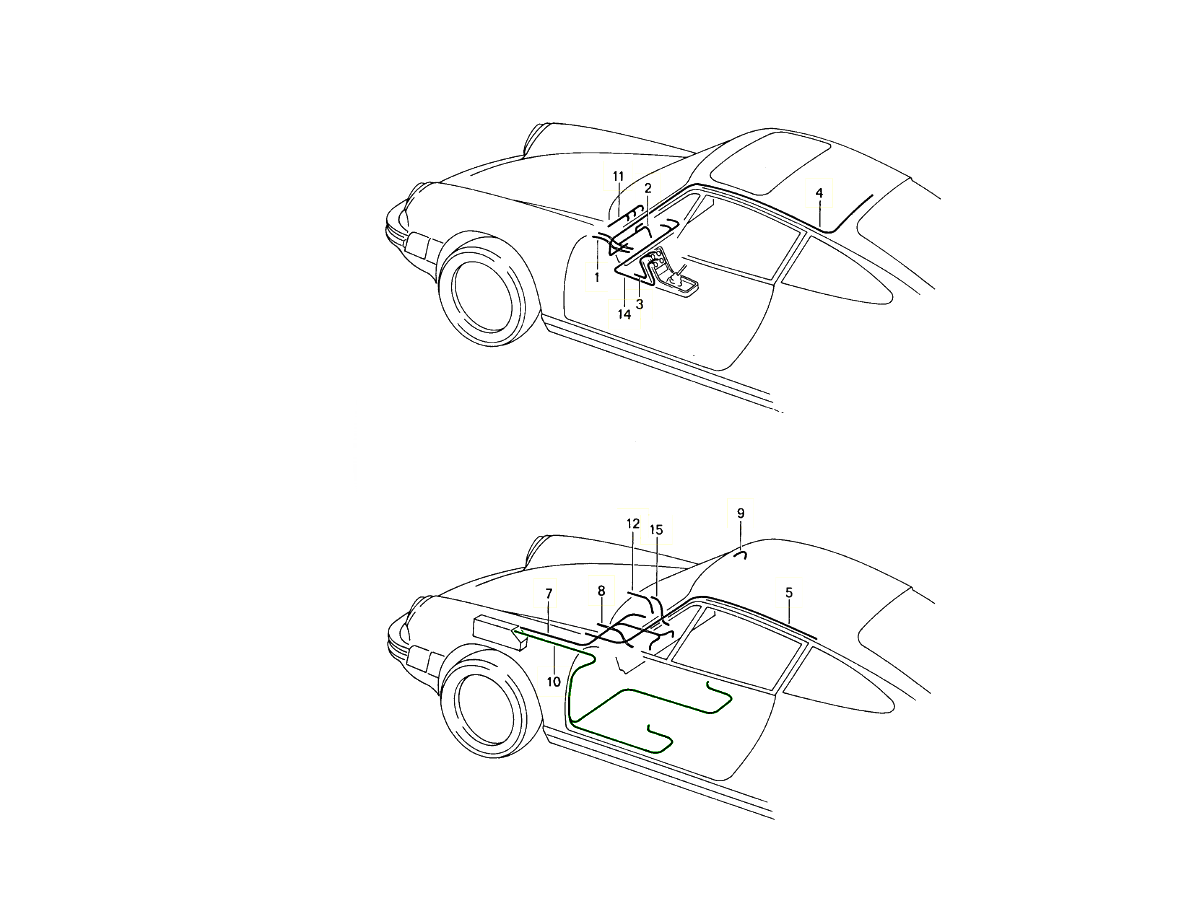

Diagram ref no 10

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161252102

The product you are viewing cross references to these numbers

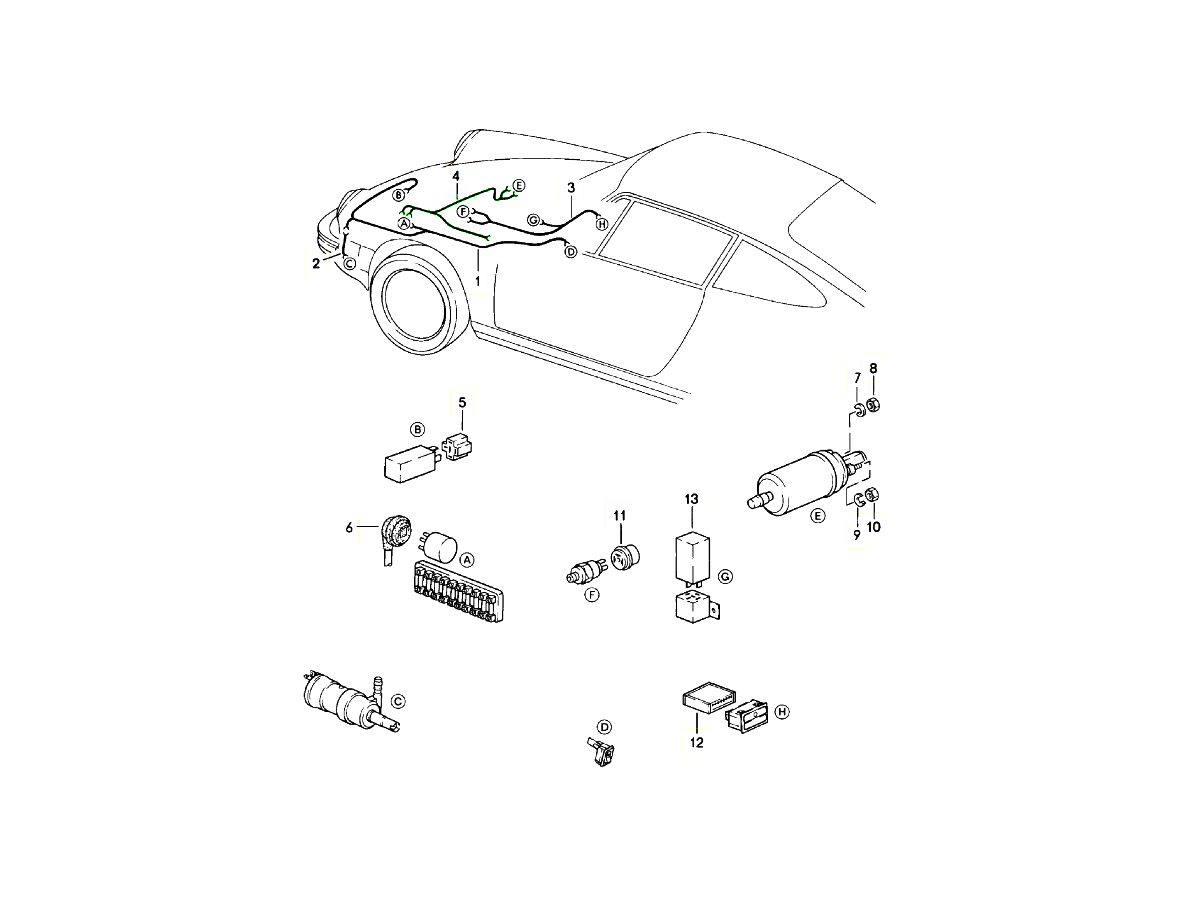

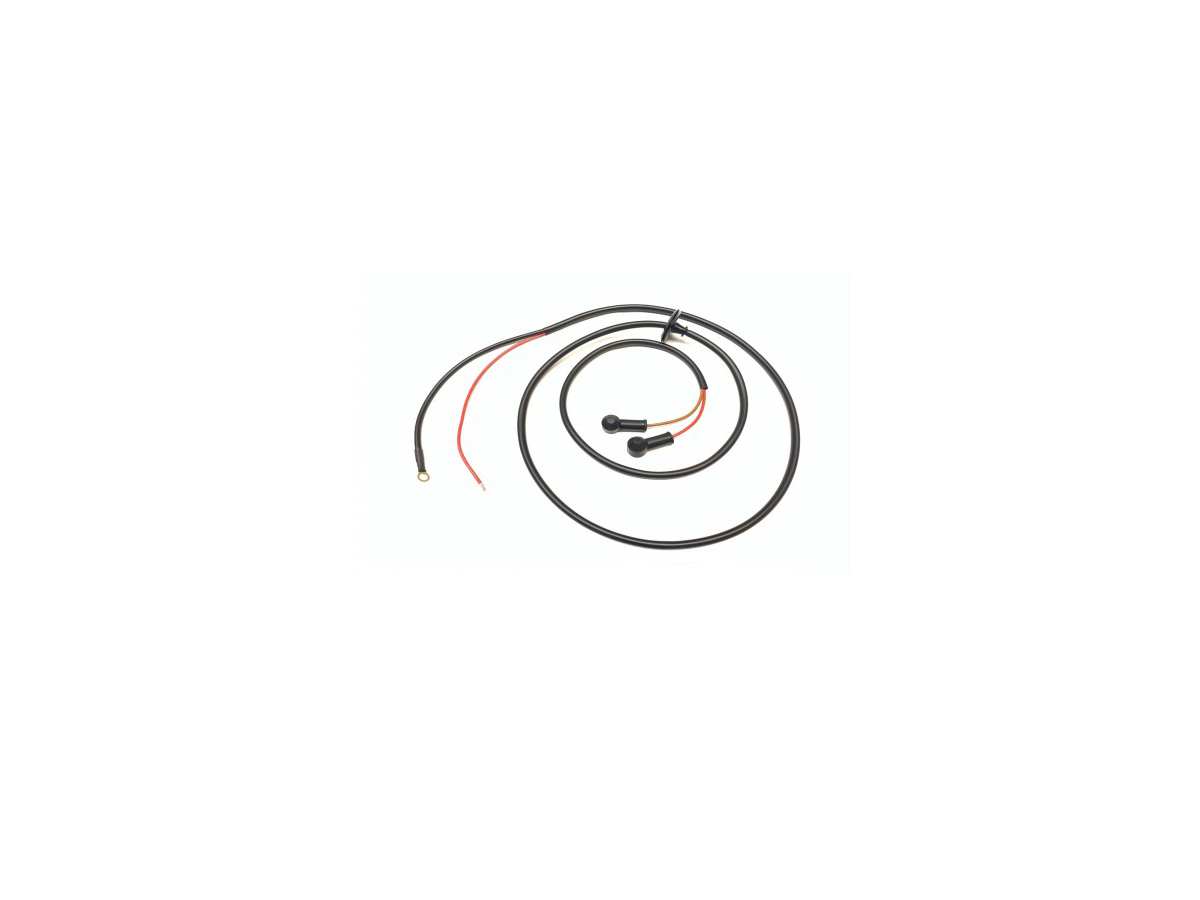

Fuel pump wiring harness loom.

Fits:
Porsche 911 3.2 Carrera - 1984 to 1986

Fuel pump harness from the fusebox to front fuel pump.
Grommets and fuel pump connection boots included.
Handmade to concourse quality.

Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161207215

The product you are viewing cross references to these numbers

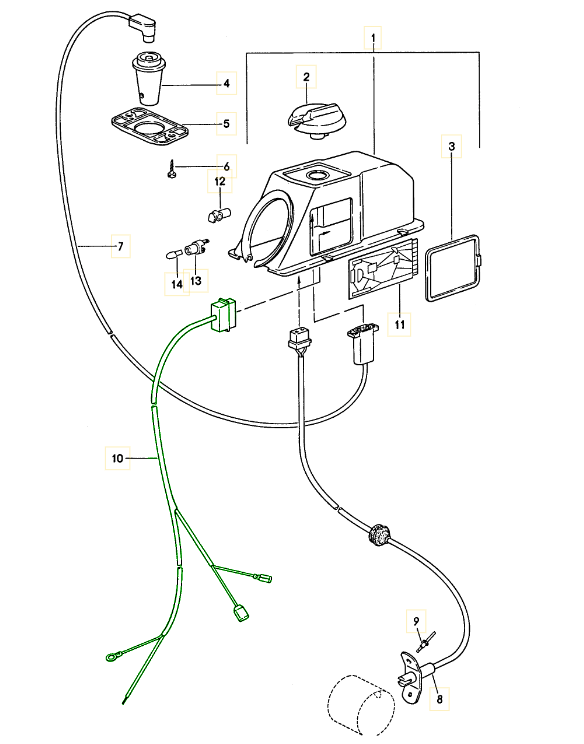

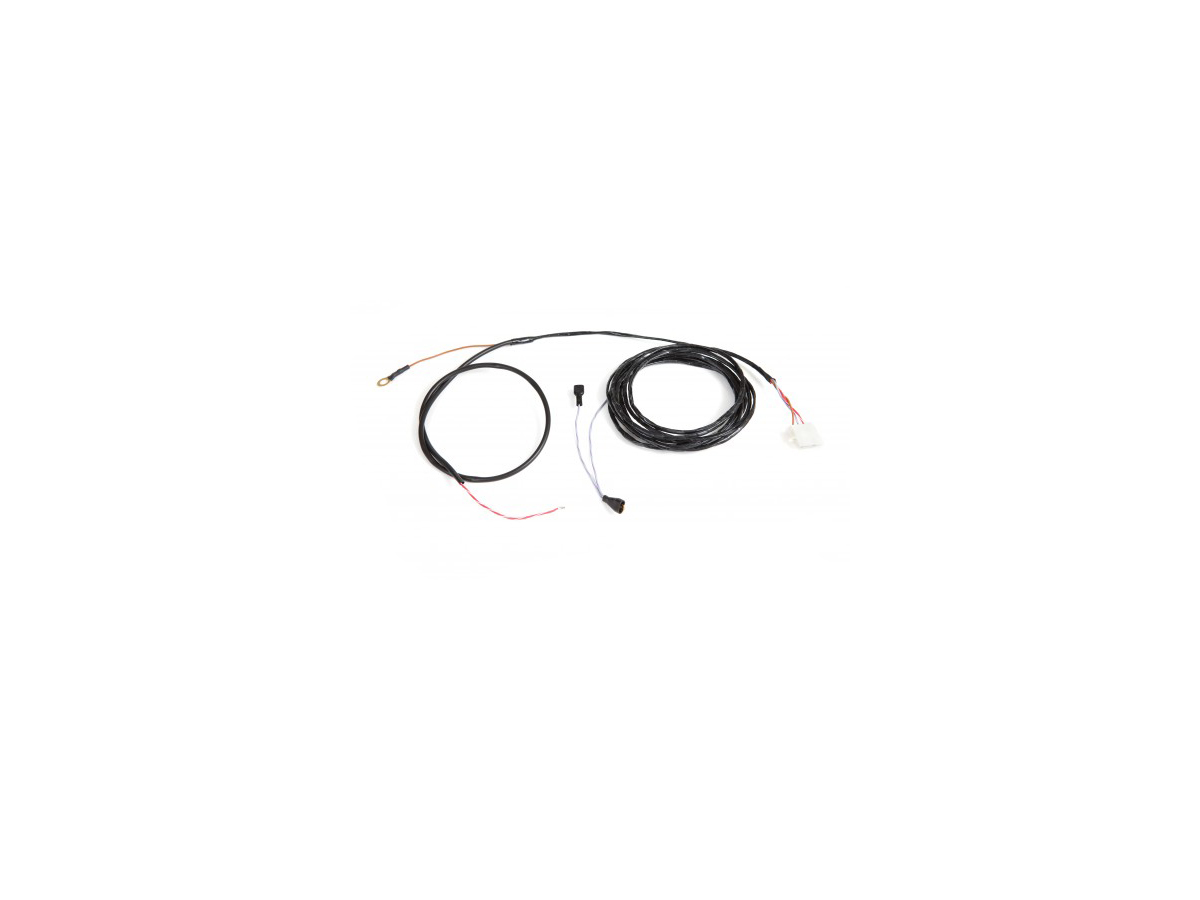

Tunnel heater panel wiring harness loom.

Fits:
Porsche 911 - 1975 to 1986

Harness for center heater control panel (between front seats)

Harness goes from the fusebox (& ground) through the tunnel towards the heater control unit.

Comes with the right female pins but the connector housing needs to be re-used (NLA)

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 10

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

911612152

The product you are viewing cross references to these numbers

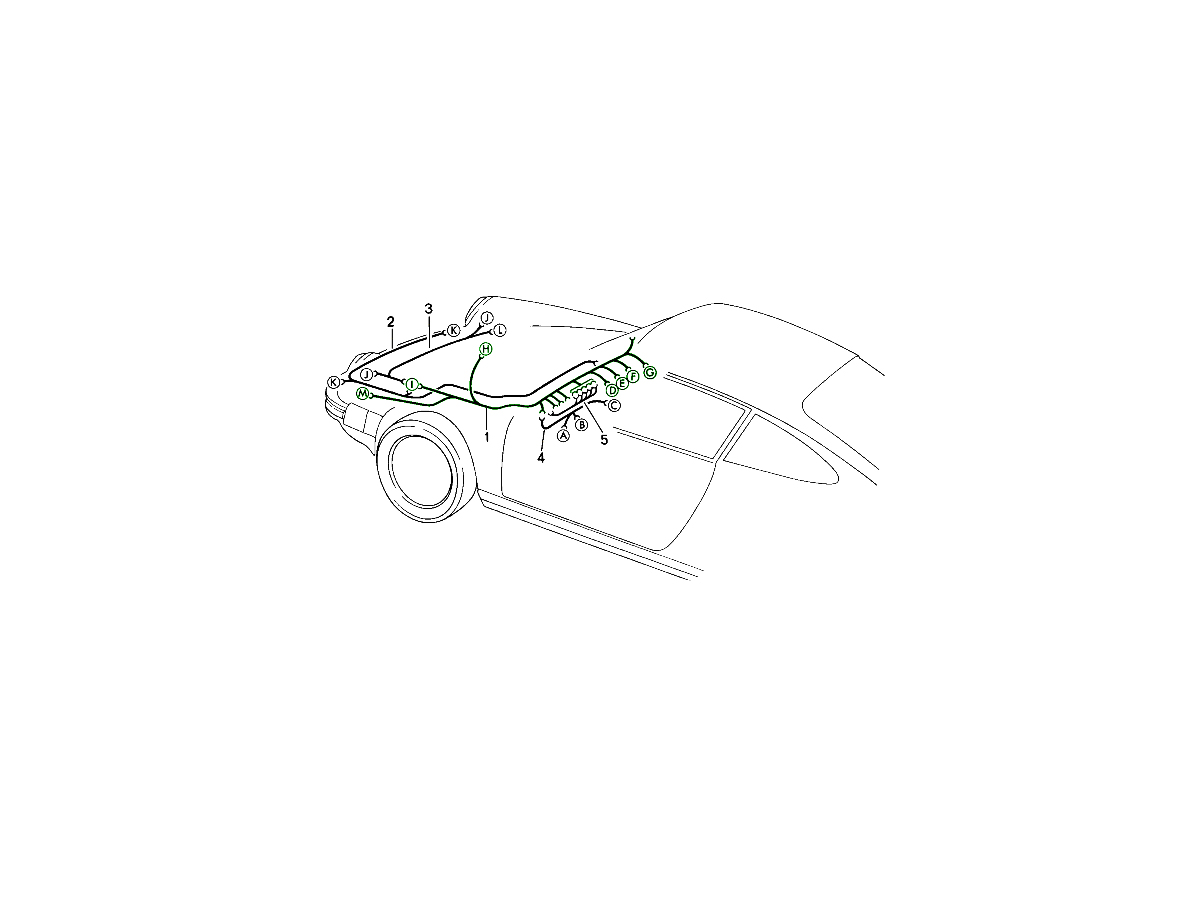

Luggage compartment wiring harness loom - Left Hand Drive (LHD)

Fits:
Porsche 911 3.2 Carrera - 1984 Left Hand Drive (LHD)

Complete main harness with original colour coded wiring. Runs from the front fusebox to dashboard.This harness will exactly fit like the original and the wire tube, oil resistant tape are as original. Terminals have rubber sleeves. Harness comes with detailed connection instructions.

• As original coloured wiring.
• Original neoprene terminal sleeves used, (no shrink tube!)
• Very high quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53
• Gasoline, oil, battery acid, engine coolant resistant.
• High flex sleeving ,very resistant to solvents and free of halogen, sulphur and phosphorous.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161200215

The product you are viewing cross references to these numbers

DME wiring harness loom.



Fits:
Porsche 911 3.2 Carrera - 1984 to 1985

DME harness for Carrera 3.2

Complete harness with 35PIN ECU/DME connector to Motronic Box

• Female connector to injector harness (chassis part is NLA and needs to be re-used from your old harness)

Connectors for:
• Cylinder head temp sensor
• Reference mark sensor
• Speed sensor
• Oxygen sensor
• Test connector
• Air flow sensor
• Idle speed positioner
• Idle speed switch
• Throttle valve switch
• RPM signal/Shift light
• Altitude sensor

Comes with detailed connection diagram.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.

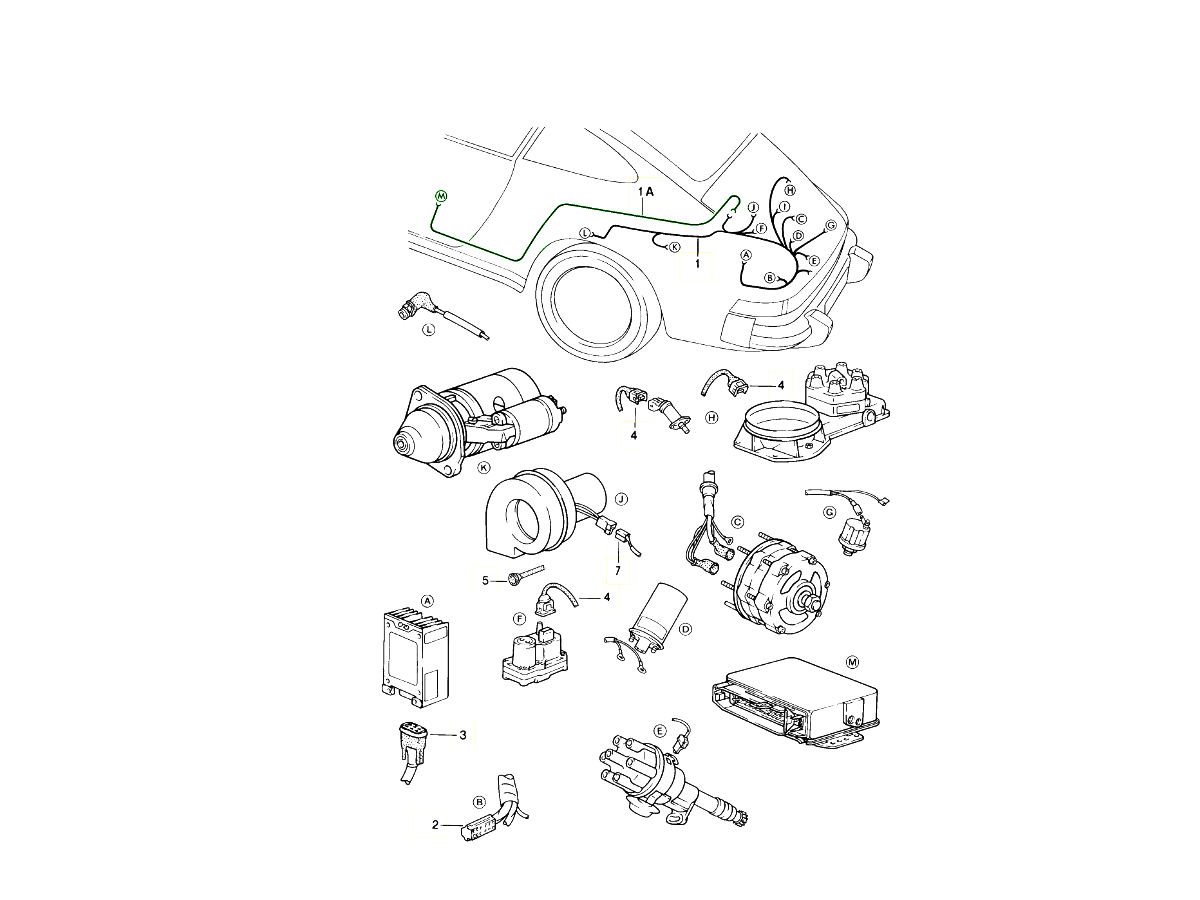

Diagram ref no 1A

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161217307

The product you are viewing cross references to these numbers

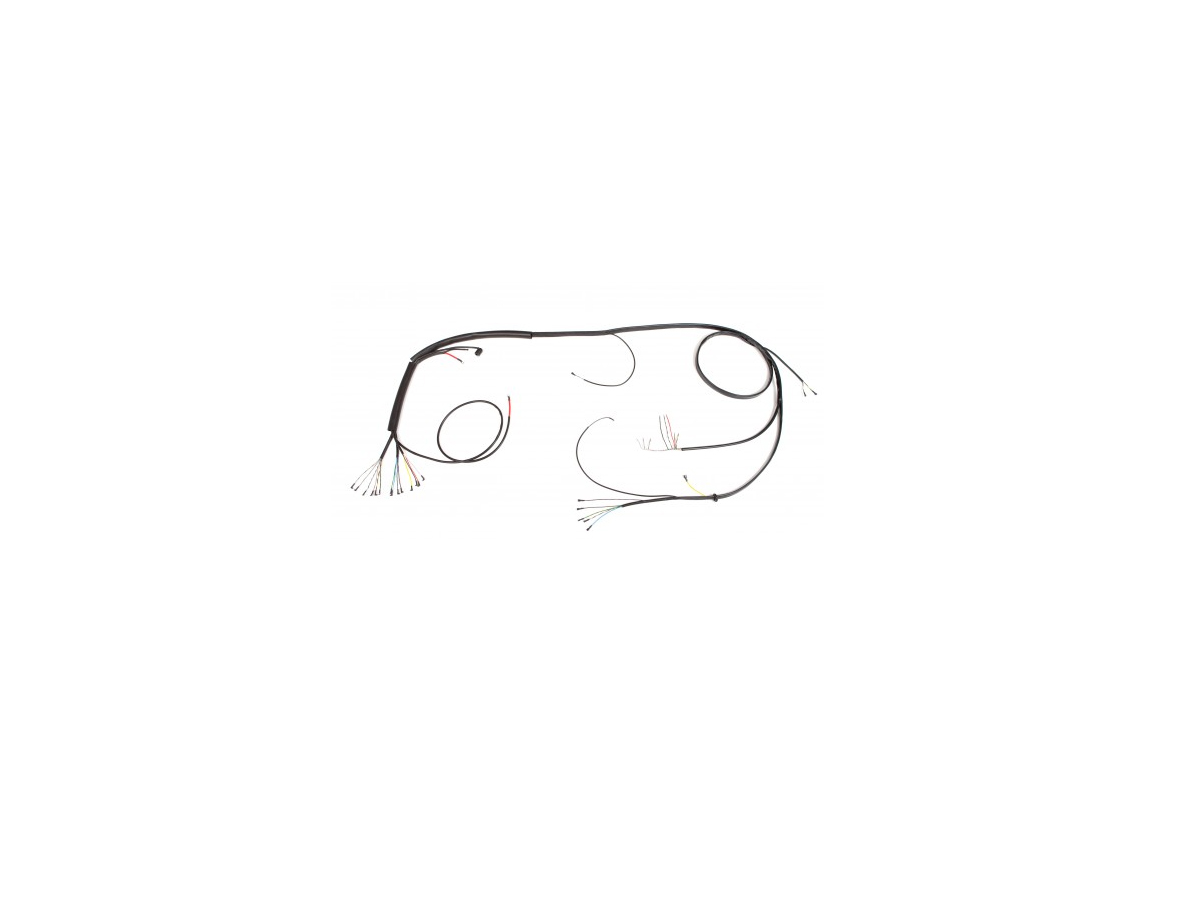

Tunnel wiring harness loom.



Fits:
Porsche 912 - 1969

Complete 912 tunnel harness with original spiral colour coded wiring.

Harness will exactly fit like the original with wire tube and oil resistant tape as original.
Fusebox wiring is bundled with waxed lacing wire. Terminals have rubber sleeves.

Harness comes with detailed connection instructions. This harness has the three only for 69 model used round connectors (female-female, no longer available, to be re-used from your original harness)

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90261200300

The product you are viewing cross references to these numbers

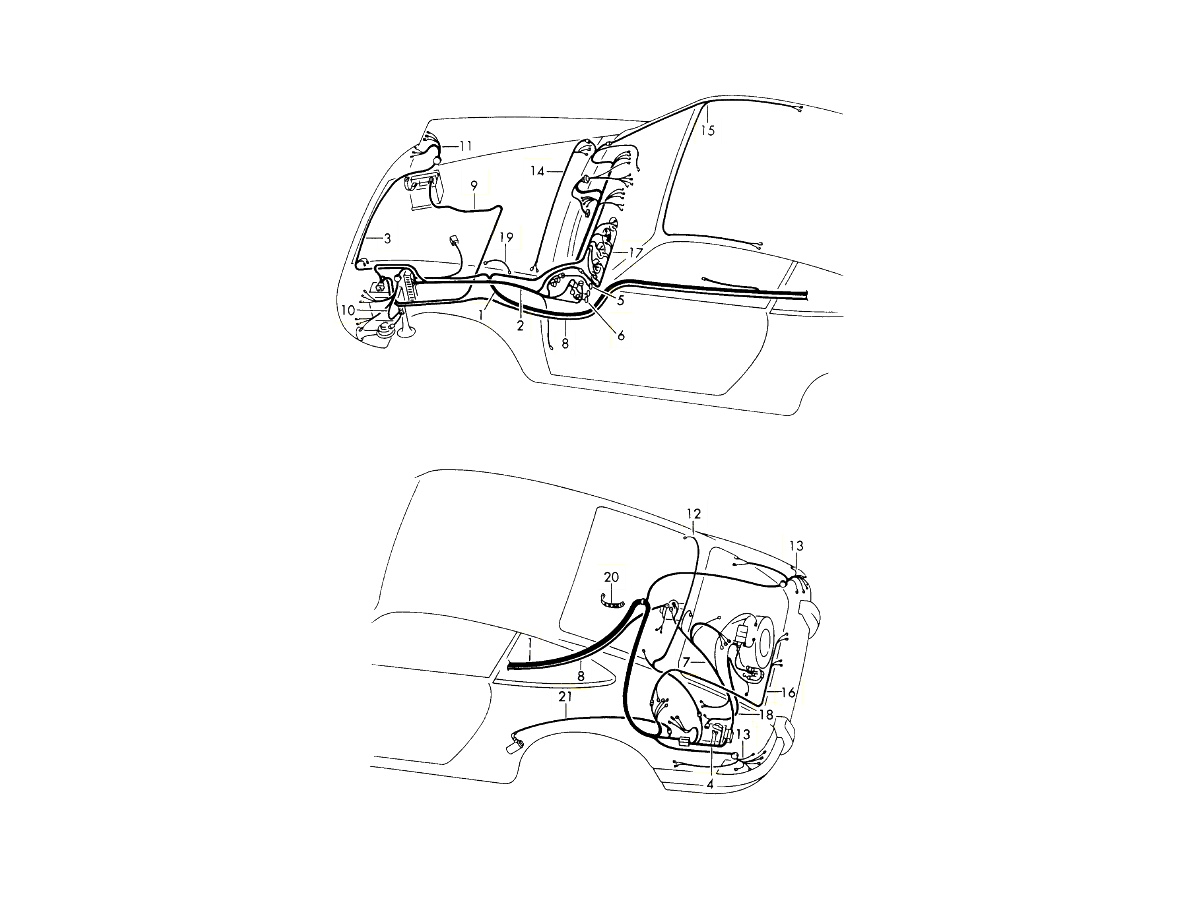

Tunnel wiring harness loom.



Fits:
Porsche 911 / 912 - 1969

Complete 911 tunnel harness with original spiral colour coded wiring.

Harness will exactly fit like the original with wire tube and oil resistant tape as original.
Fusebox wiring is bundled with waxed lacing wire. Terminals have rubber sleeves.

Harness comes with detailed connection instructions. This harness has the three only for 69 model used round connectors (female-female, no longer available, to be re-used from your original harness)

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

901612003

The product you are viewing cross references to these numbers
