Retro Line

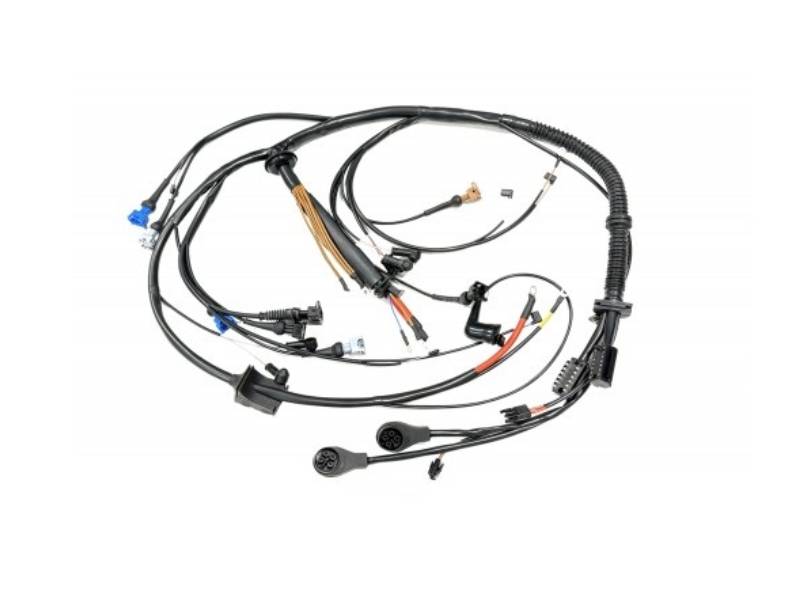

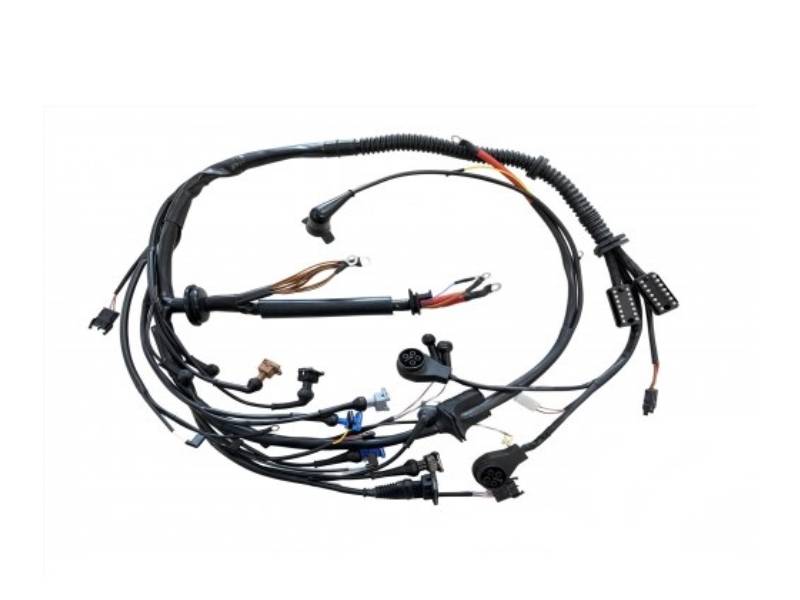

Engine wiring loom

Fits:
Porsche 964 turbo S 3.6ltr - 1991 to 1993 (engine code M64-50)

Complete new engine harness with all connectors (including to the ignition module) No parts needed from your old harness, it's plug & play.

• 2 x ignition module connector
• 1 x 14 pole male connector
• 1 x 14 pole male connector
• temp switch
• charge air
• charge air
• V belt control
• charge air temp
• 2 x ignition coil
• vacuüm control valve
• timing valve
• starting valve
• temp switch
• ground alternator connection
• oil temp
• temp switch 15 degrees
• hot running regulator
• throttle switch
• extra air slide control
• oil
• starter
• back up switch

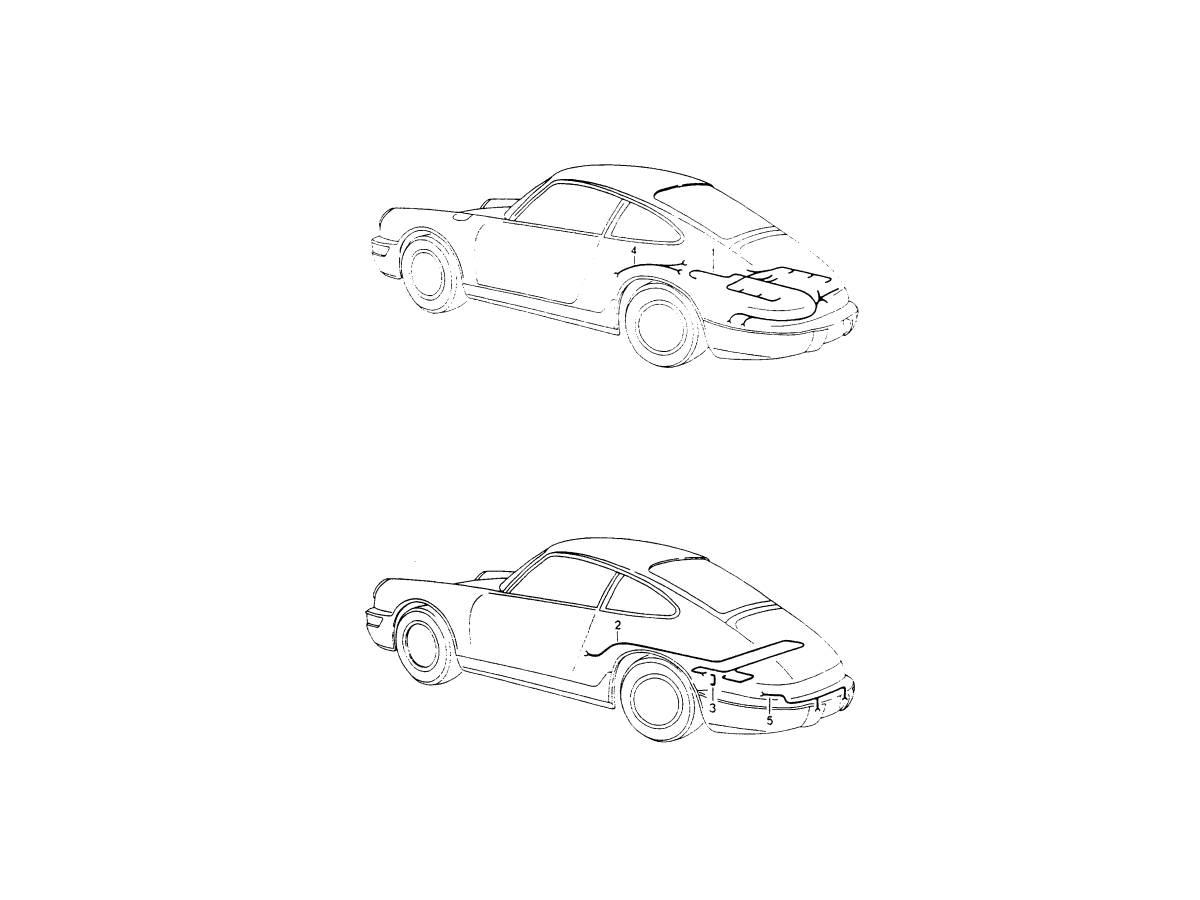

Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

96560701603

The product you are viewing cross references to these numbers

Engine wiring loom

Fits:
Porsche 964 turbo 3.3ltr - 1991 to 1993
Please check engine number before purchase

Complete new engine harness with all connectors (including to the ignition module) No parts needed from your old harness, it's plug & play.

• 2 x ignition module connector
• 1 x 14 pole male connector
• 1 x 14 pole male connector
• temp switch
• charge air
• charge air
• V belt control
• charge air temp
• 2 x ignition coil
• vacuüm control valve
• timing valve
• starting valve
• temp switch
• ground alternator connection
• oil temp
• temp switch 15 degrees
• hot running regulator
• throttle switch
• extra air slide control
• oil
• starter
• back up switch

Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9656070160

The product you are viewing cross references to these numbers

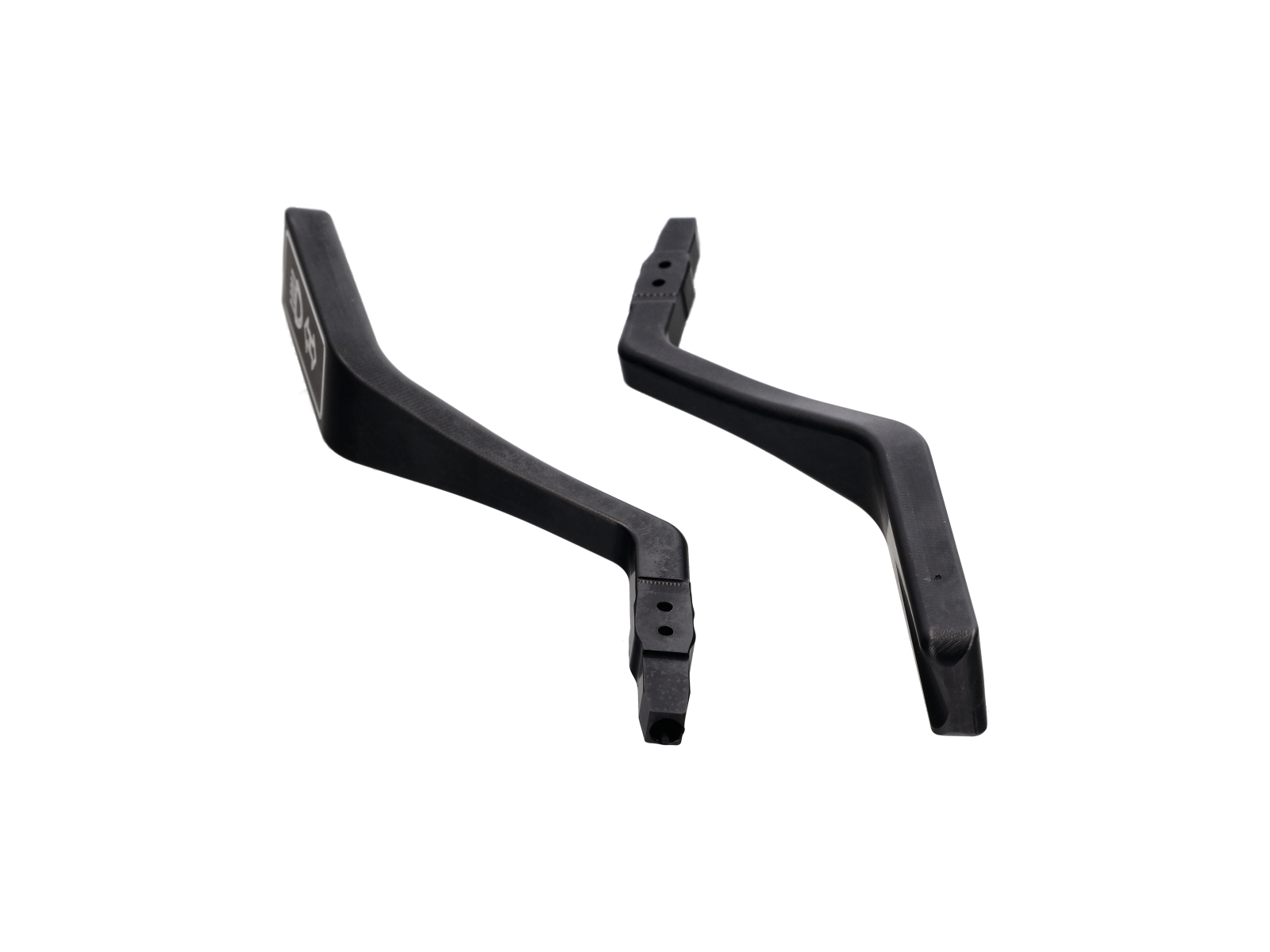

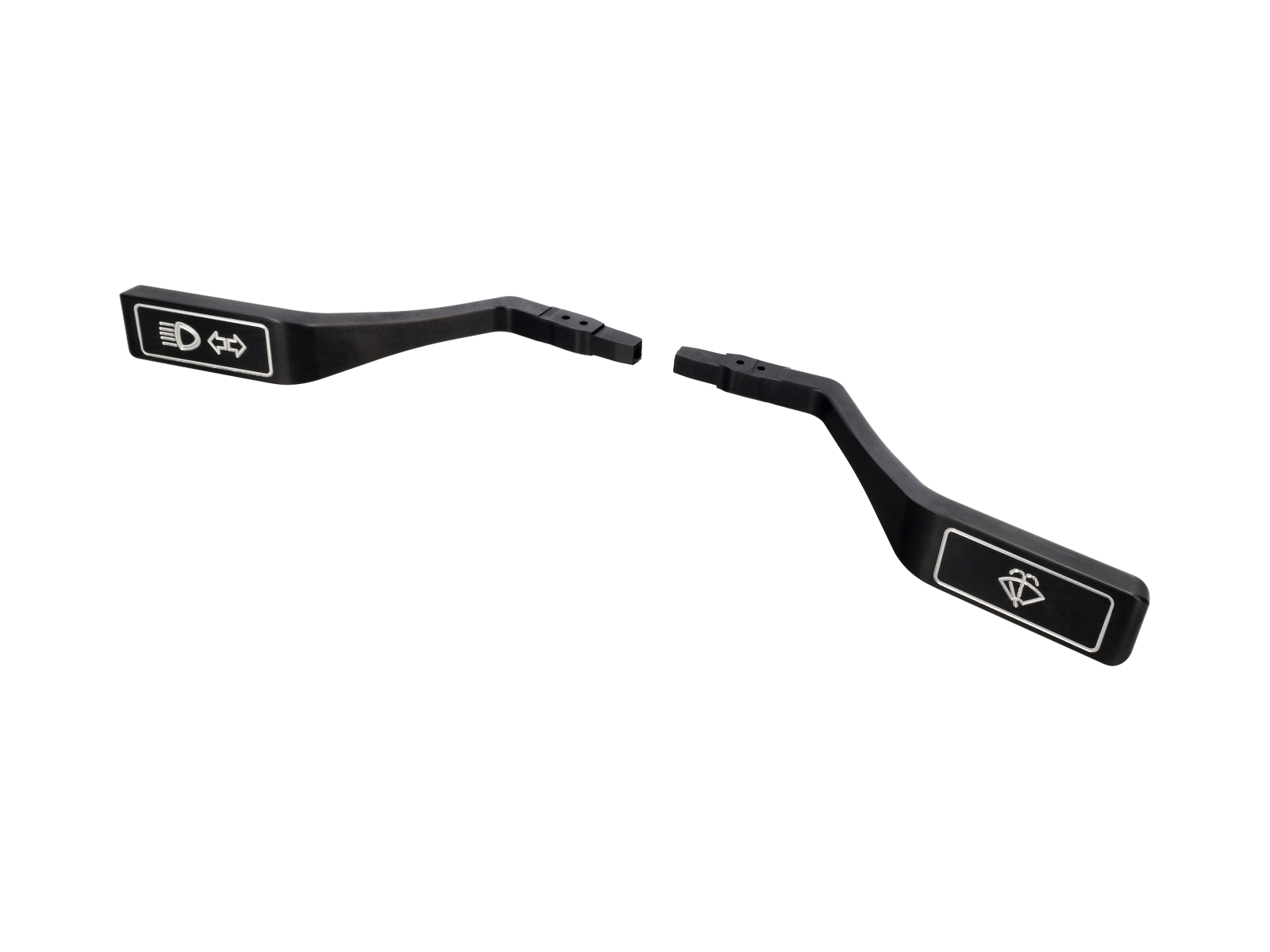

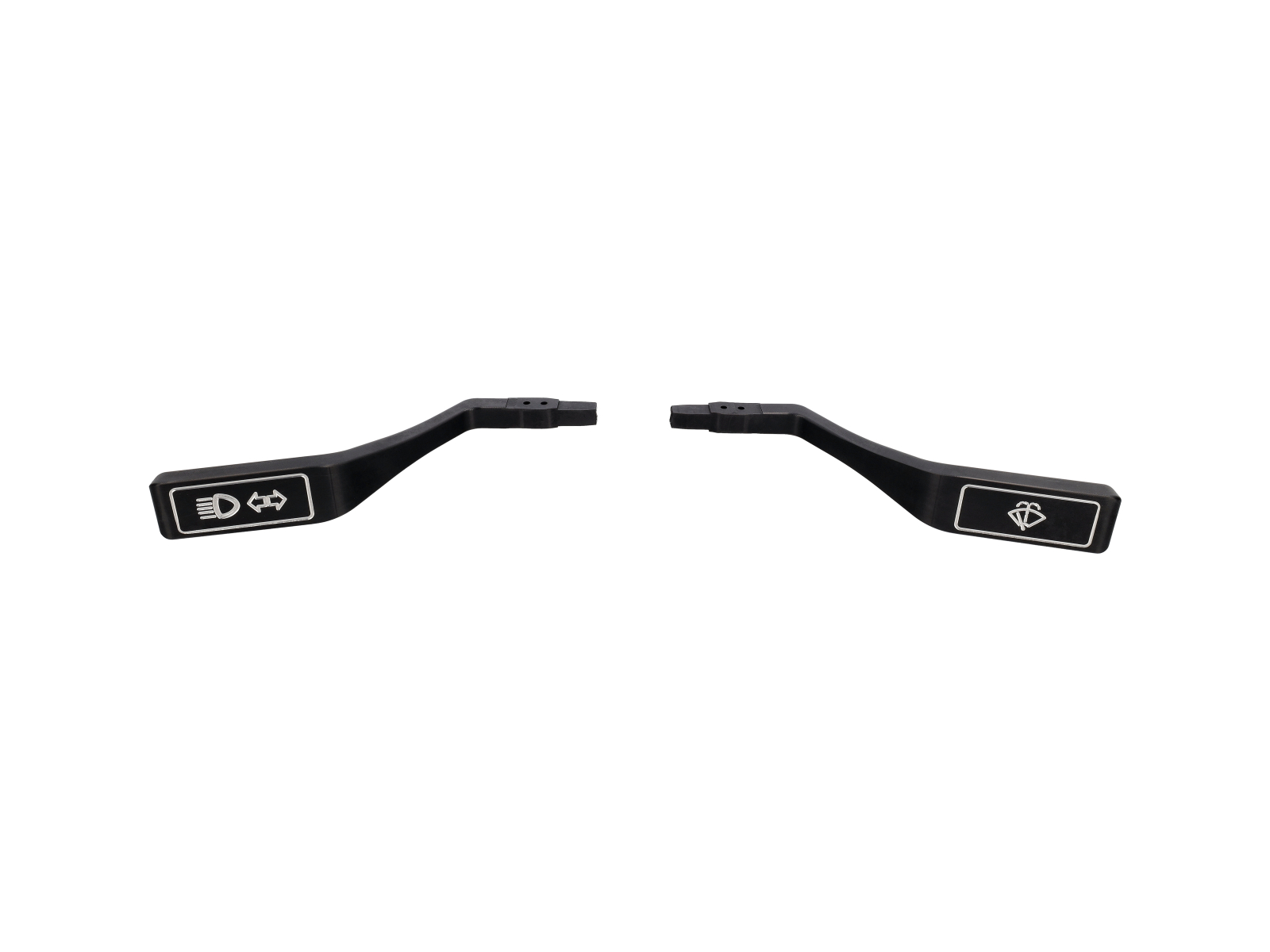

Indicator stalk column switch stalks. Black Billet alloy stalk replacements.



Fits:
Porsche 911 1976-89

Please note: You will require to transfer the spring from existing assembly onto new stalks. New spring is not included with the stalks.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161330506B

The product you are viewing cross references to these numbers

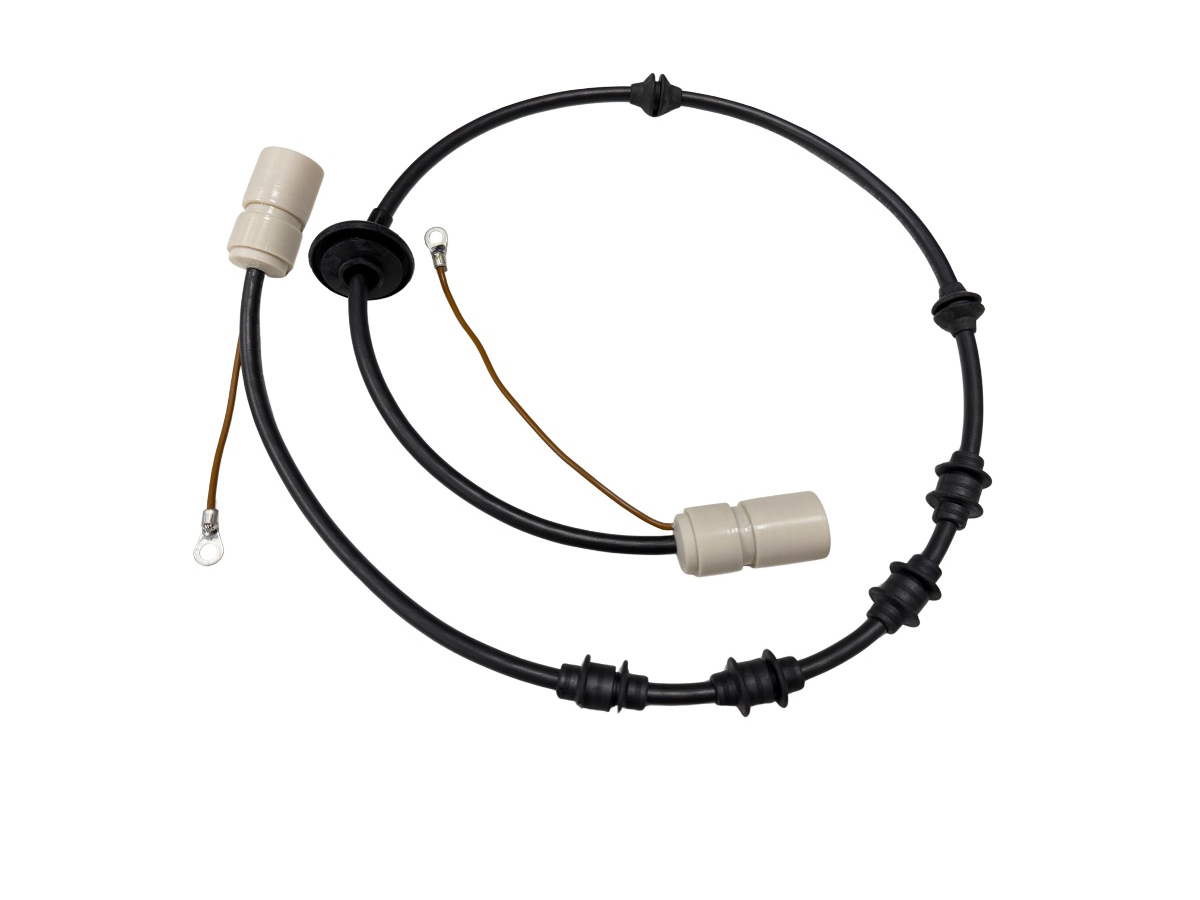

Wire harness for connection ABS sensor / brake pad warning / RDK
Rear
2 x barrel connector with grommets and ground wire on both sides

 Fits:
Porsche 928 1989 >>
with Tire Pressure Monitoring (option code: 482)

Diagram ref no 7


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9286124

The product you are viewing cross references to these numbers

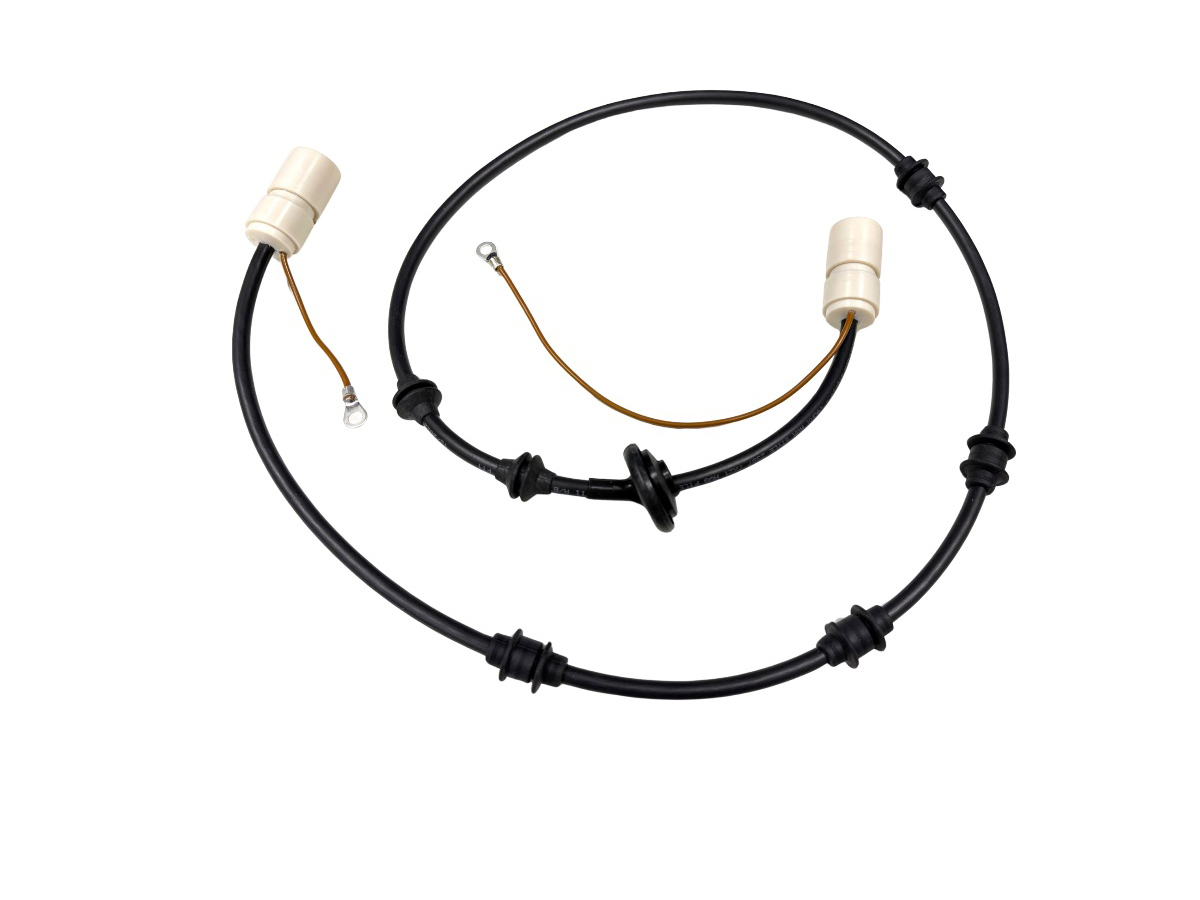

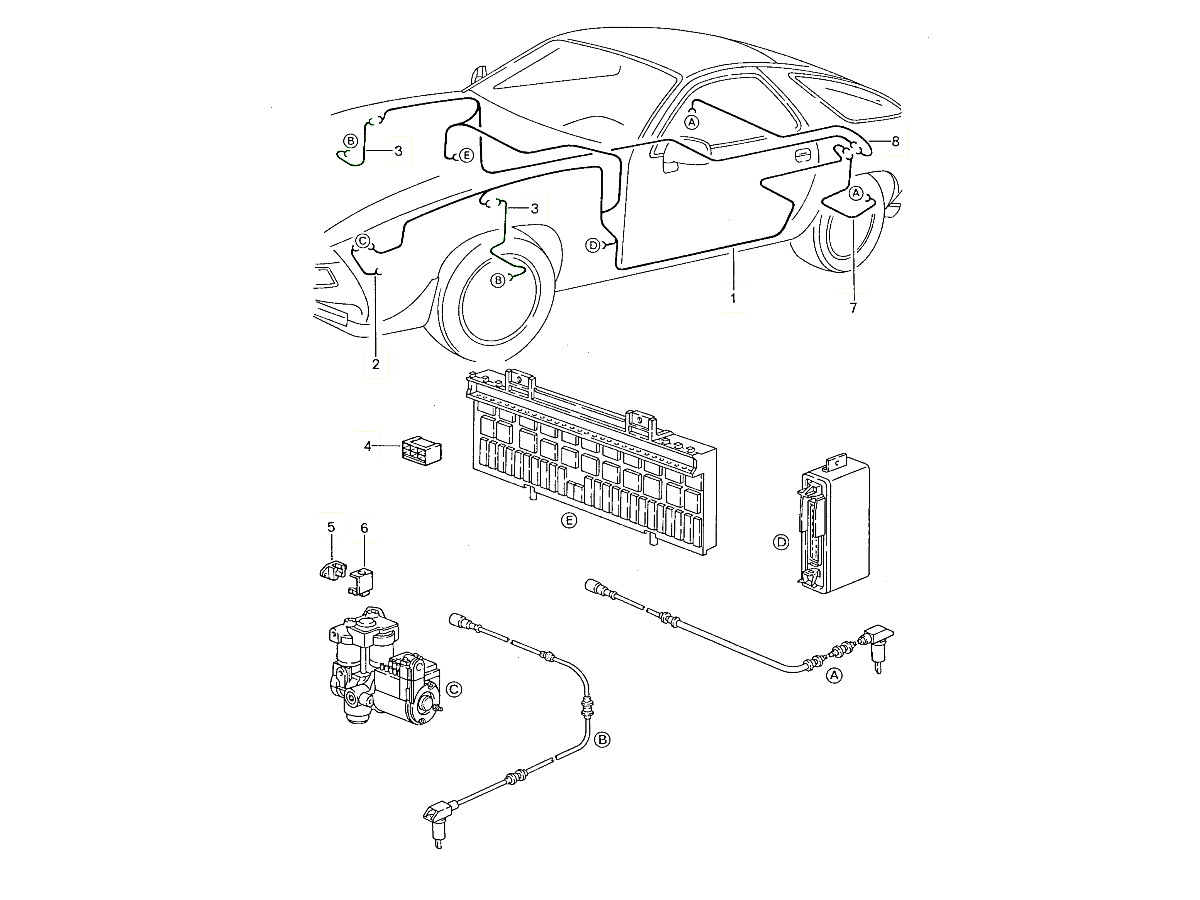

ABS - brake - RDK harness front.
Wire harness for connection ABS sensor / brake pad / rdk warning front (left or right)

Fits:
Porsche 928 1989 - 1992

2 x barrel connector with grommets and ground wire on both sides

Diagram ref no 3

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

92861240400

The product you are viewing cross references to these numbers

ABS - brake harness front.
Wire harness for connection ABS sensor / brake pad warning front (left or right)

Fits:
Porsche 928  1986 - 1988

No RDK
2 x barrel connector with grommets and ground wire on both sides

Diagram ref no 3

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

92861240300

The product you are viewing cross references to these numbers

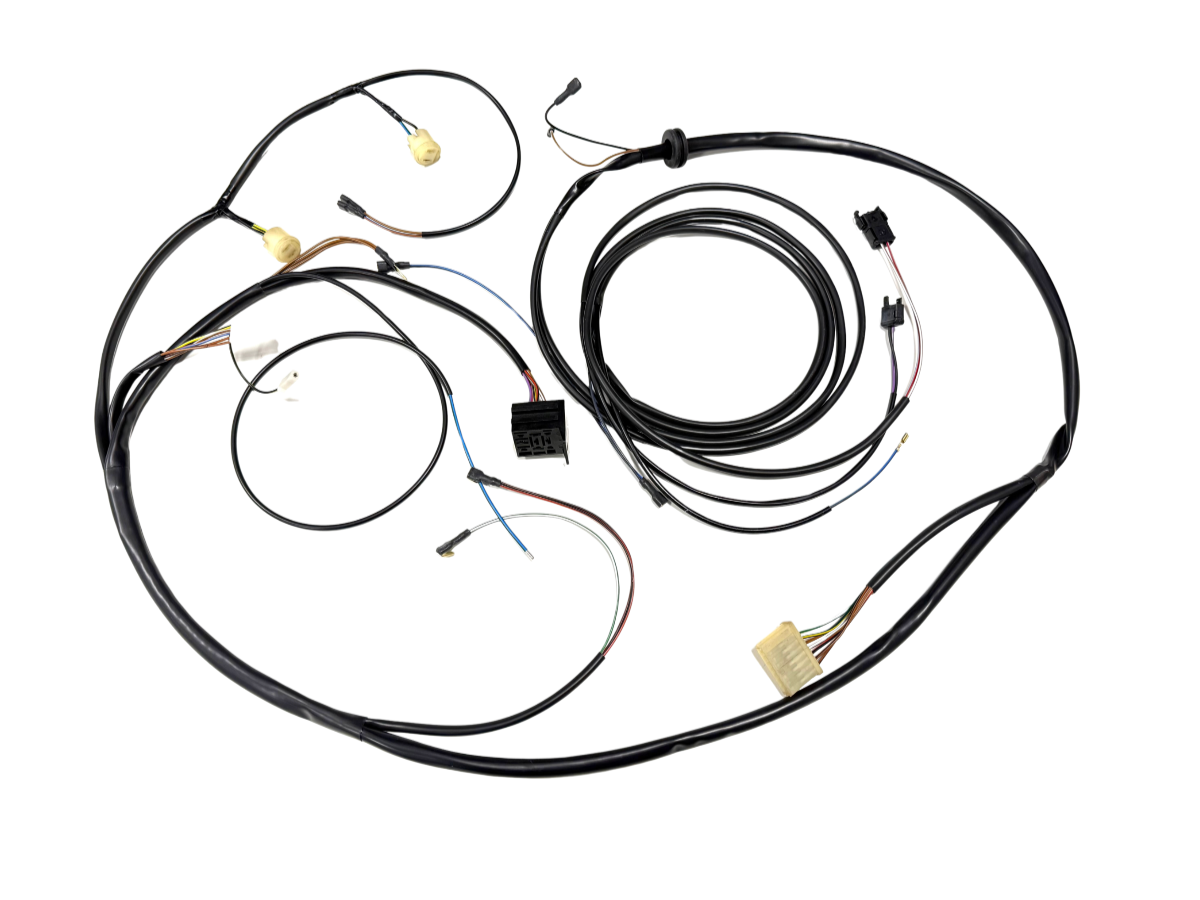

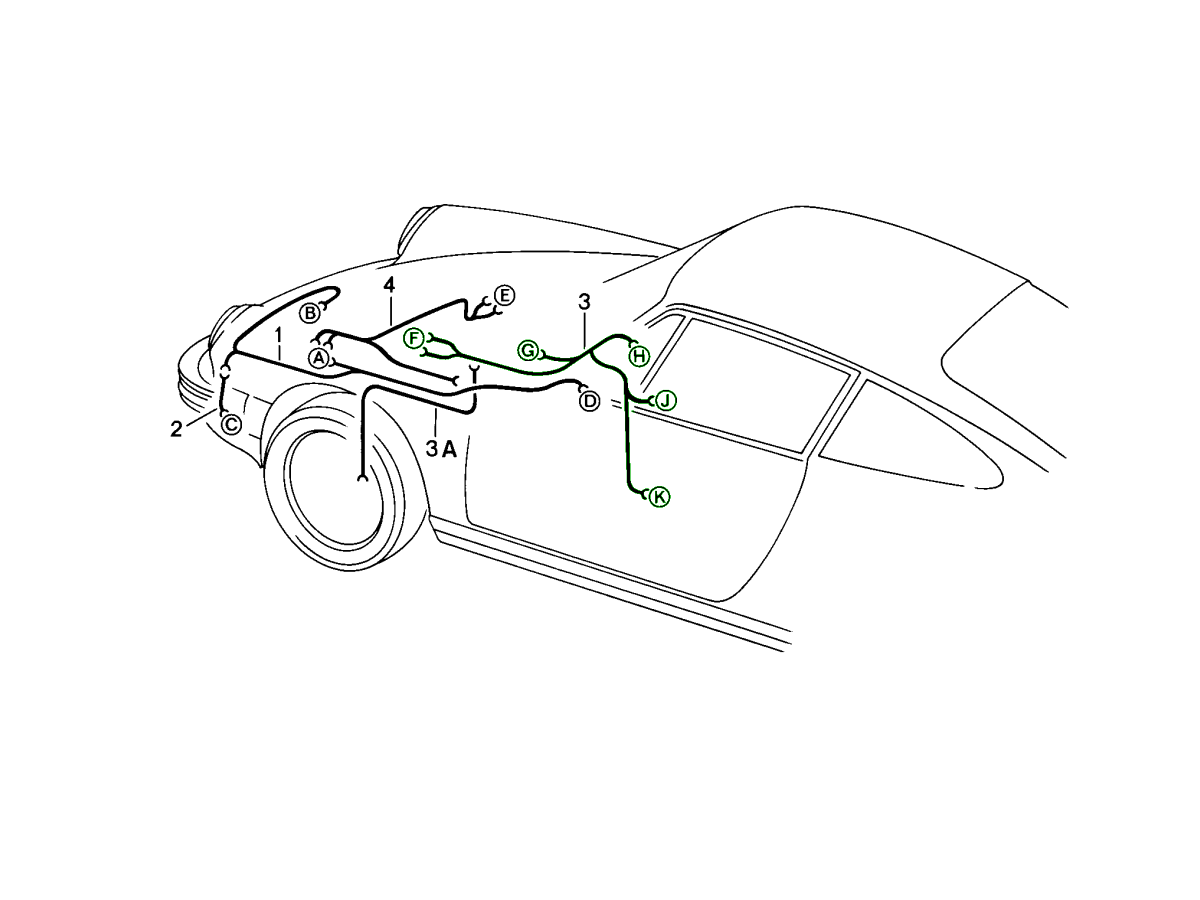

Wire harness brake light warning control panel harness, US VERSION.

Fits:
Porsche 911 1984 - 1986
USA spec.

Harness for brake and seatbelt warning control light panel * to relay socket and 2 x switch on master brake cylinder.

 * This harness requires to ship your original harness because some parts are NLA

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161204118

The product you are viewing cross references to these numbers

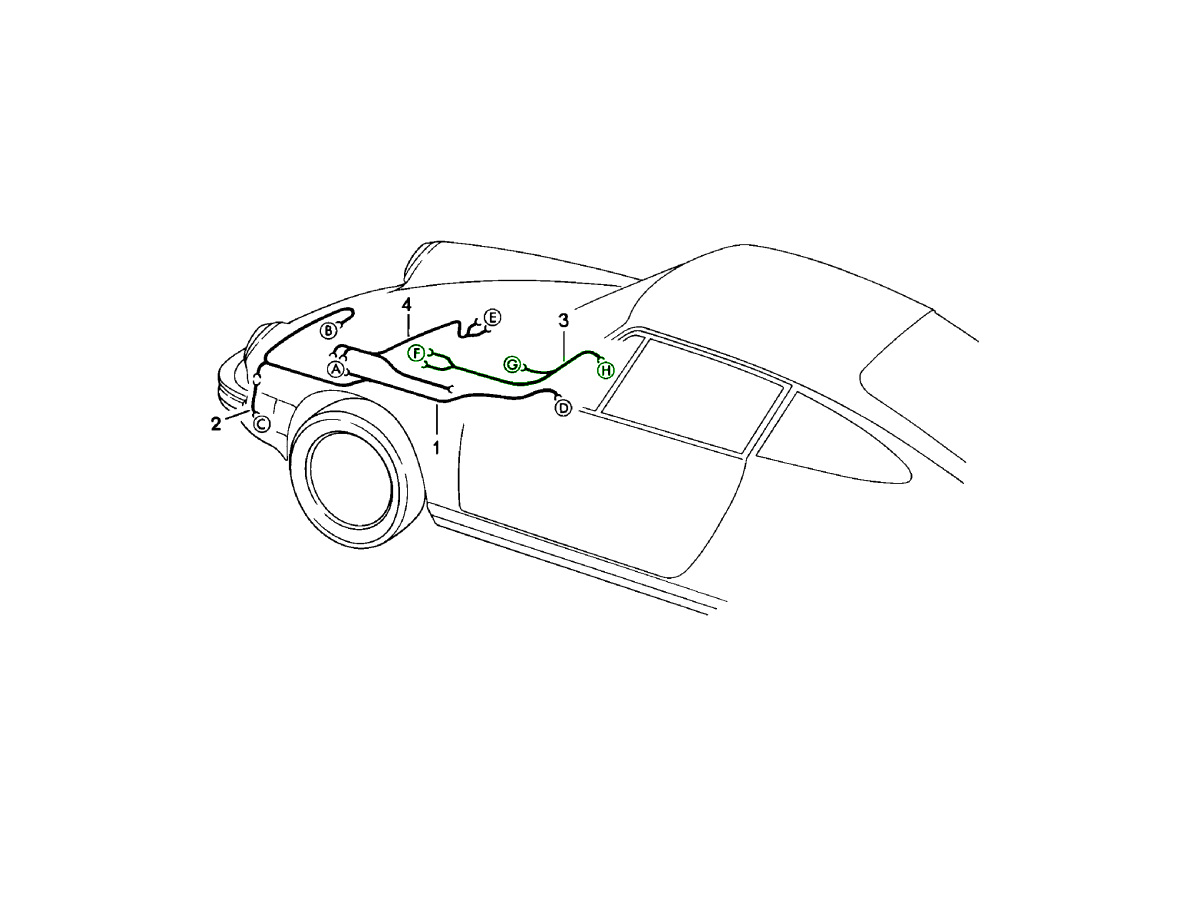

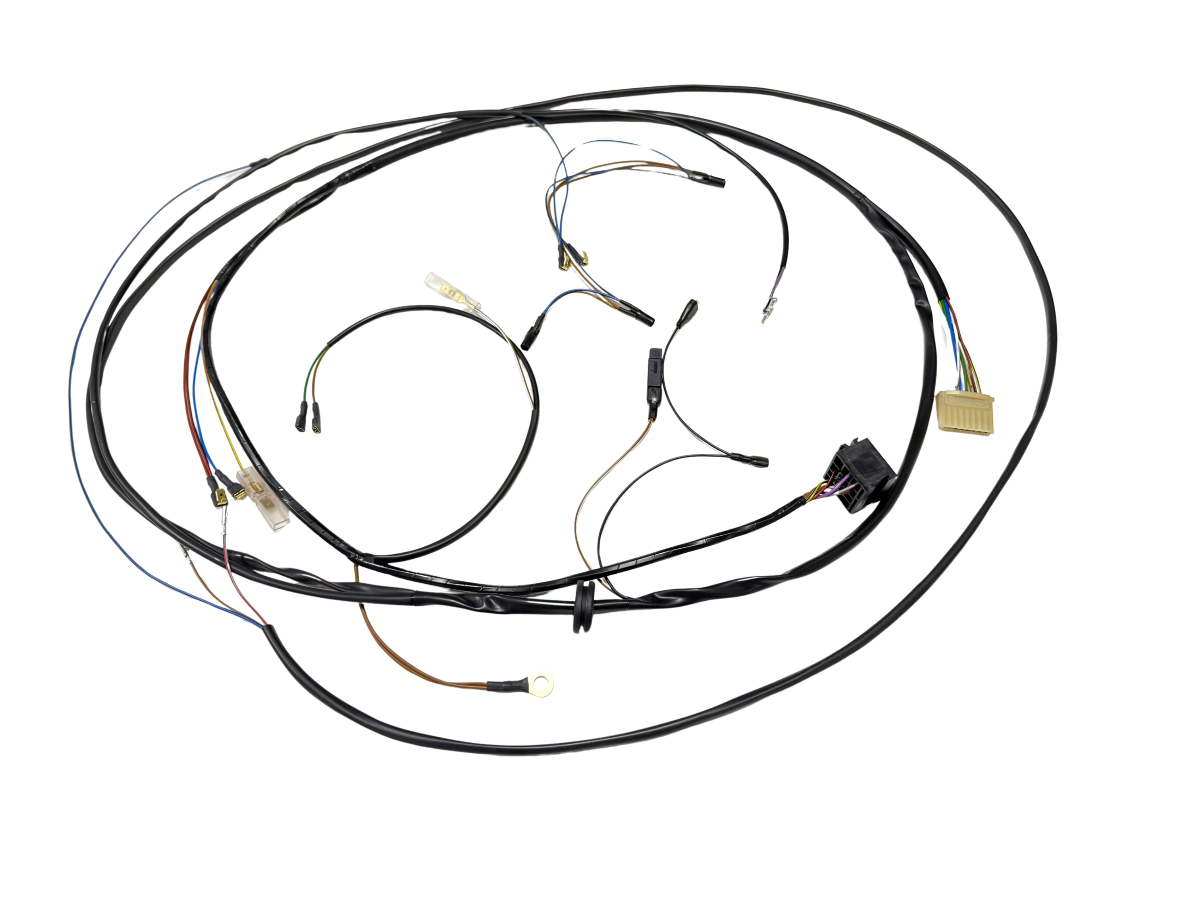

Wire harness brake light warning control panel harness,   US VERSION.

Fits:
Porsche 911 SC 1978 - 1983
USA and Canada spec.

Harness for brake and seatbelt warning control light panel to relay socket and 2 x switch on master brake cylinder.
Harness connects to tunnel harness with 2 pole connector.

 A new 8 pole PCB connector (AMP 925077) is included.

2 connectors need to be re-used from original harness (NLA).


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161204112

The product you are viewing cross references to these numbers

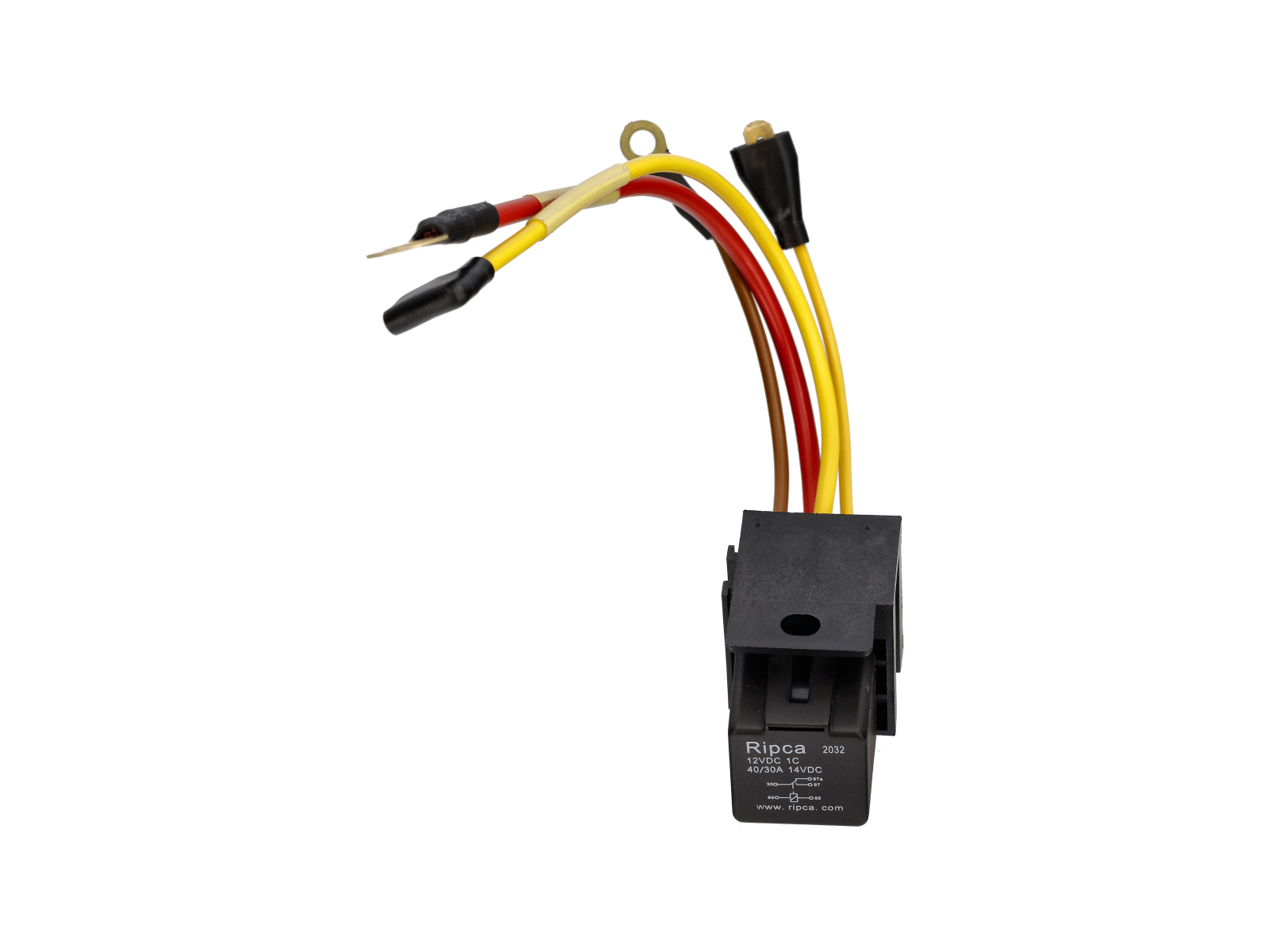

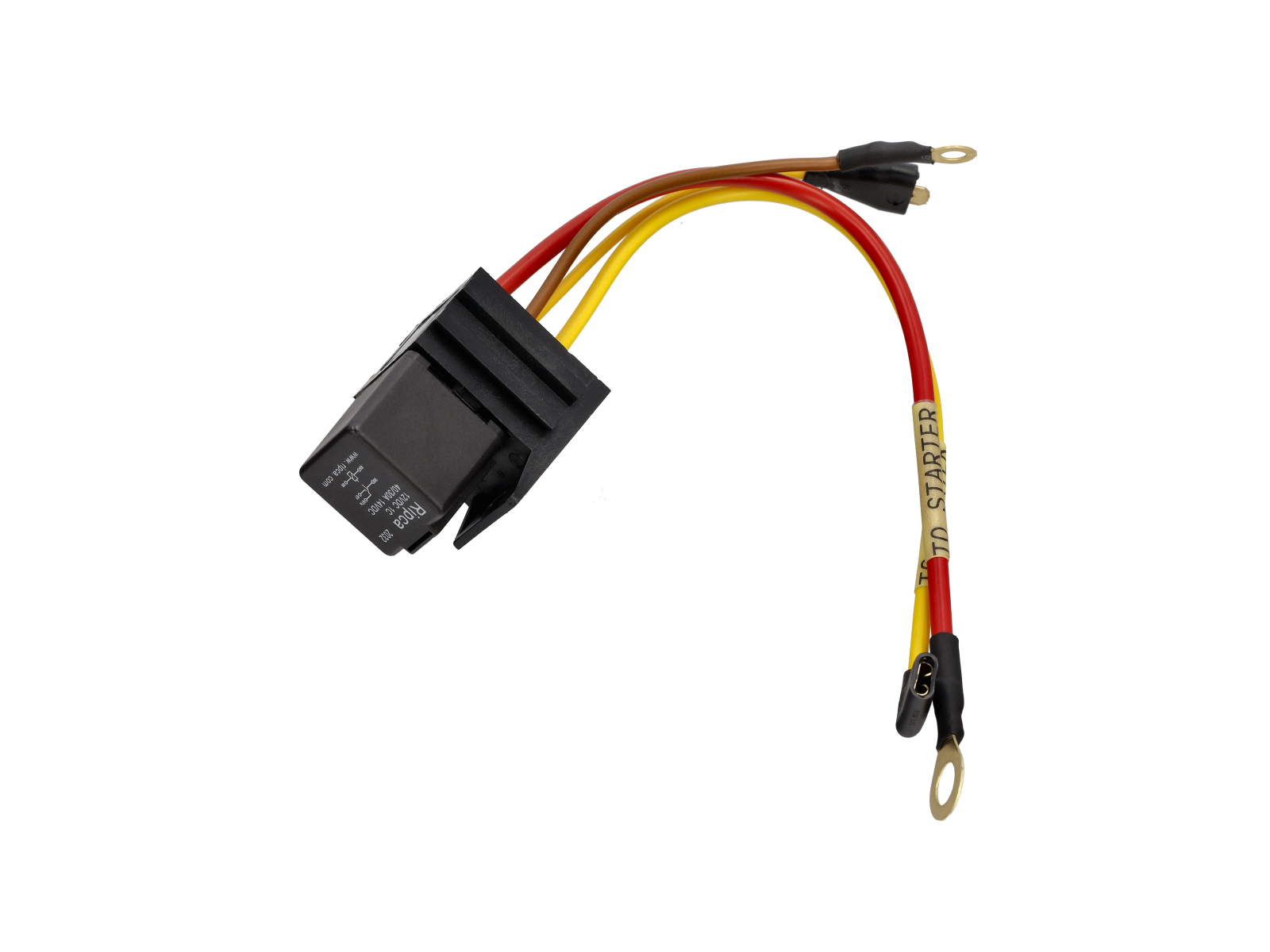

External starter motor relay.
Bypass your expensive ignition switch and install a hot start relay that will lead the current directly to the starter.
We have a 6 or 12 volt version and it works in any classic.

Fits:
Porsche 911 / 924 / 928 / 914 / 944 / 968 / 356

This relay can be placed near the starter motor and is used to limit the starting current and no longer allow it to be switched via the ignition switch.

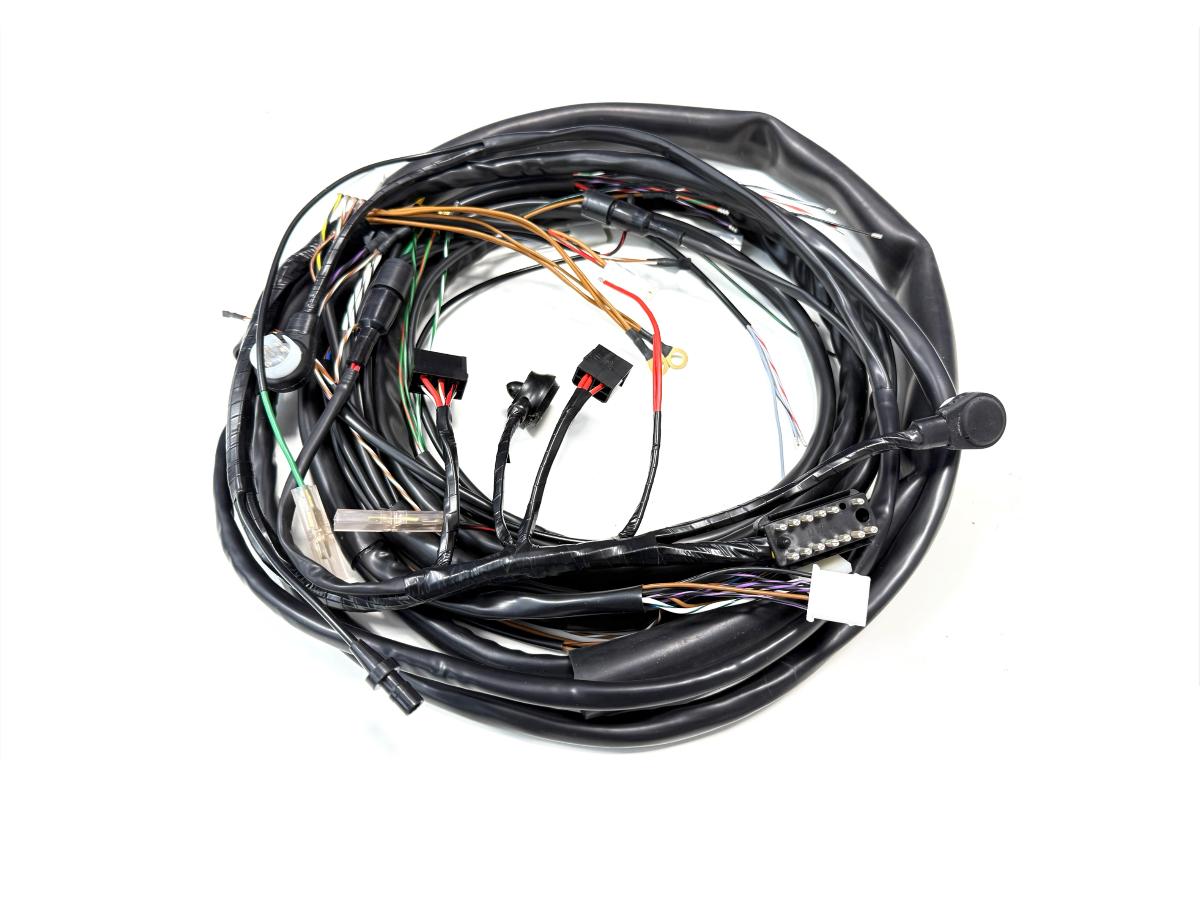

Tunnel wiring harness loom.

Fits:
Porsche 930 Turbo 1986 LHD (left hand drive)

Special order made to order parts please allow 2 – 3 weeks

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93061200109

The product you are viewing cross references to these numbers

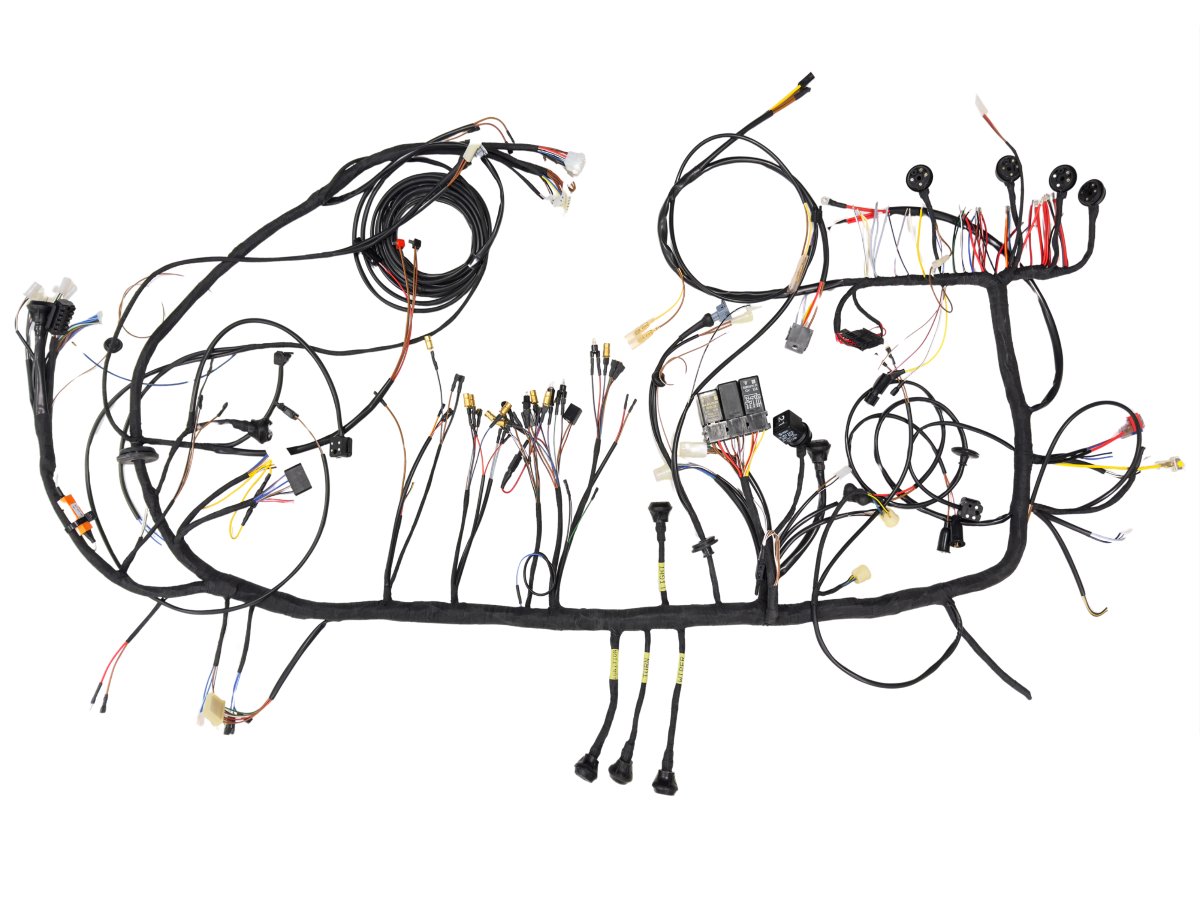

Wire harness Main (Trunk harness).

Fits:
Porsche 930 Turbo 1986 LHD (left hand drive)

Complete main harness with original colour coded wiring. Runs from front fuse box to dashboard. Harness will exactly fit like the original. Wire tube, and oil resistant tape as original. Terminals have rubber sleeves. Harness comes with detailed connection instructions.

• As original coloured wiring.
• Original neoprene terminal sleeves used, (no shrink tube!)
• Very high quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53
• Gasoline, oil, battery acid, engine coolant resistant.
• High flex sleeving ,very resistant to solvents and free of halogen, sulphur and phosphorous.

Please note: Shown fuse boxes and mounting frame are not included and need to be ordered separately.

Special order made to order parts please allow 2 – 3 weeks

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93061200202

The product you are viewing cross references to these numbers

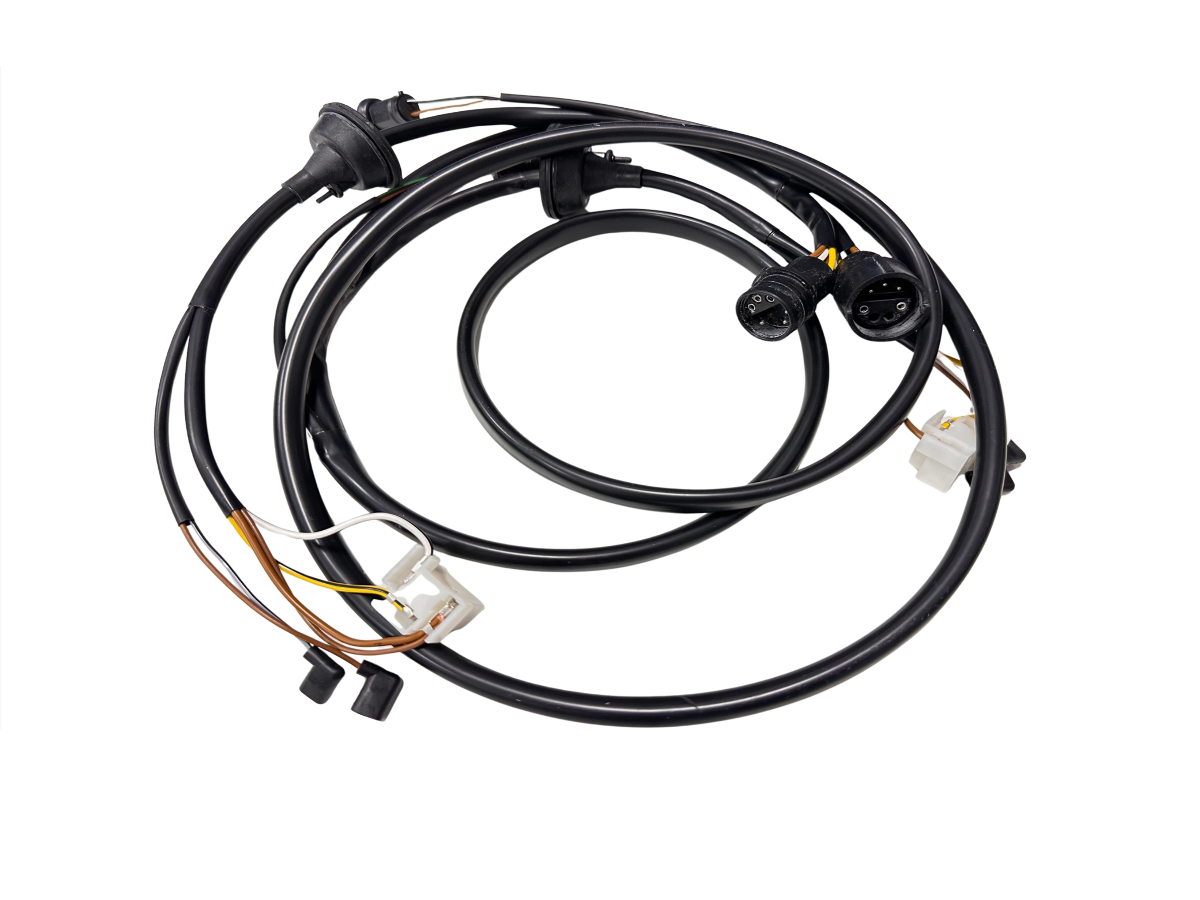

Front harness for headlight, turn signals and side marker lights 964.

Fits:
Porsche 964

• 2 x 7 pole Milspec super seal connector
• 2 x H4 connectors for headlamp
• 2 x Turnsignal lights connection
• 2 x side marker lights (including sockets)
• 2 x grommet

Plug & play harness

Comes with detailed connection diagram.
As original coloured wiring.
Original neoprene terminal sleeves used, (no shrink tube!)
Very high quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53
Gasoline, oil, battery acid, engine coolant resistant.
High flex sleeving ,very resistant to solvents and free of halogen, sulphur and phosphorous.
Handmade in Holland, concourse quality.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

96461200475

The product you are viewing cross references to these numbers

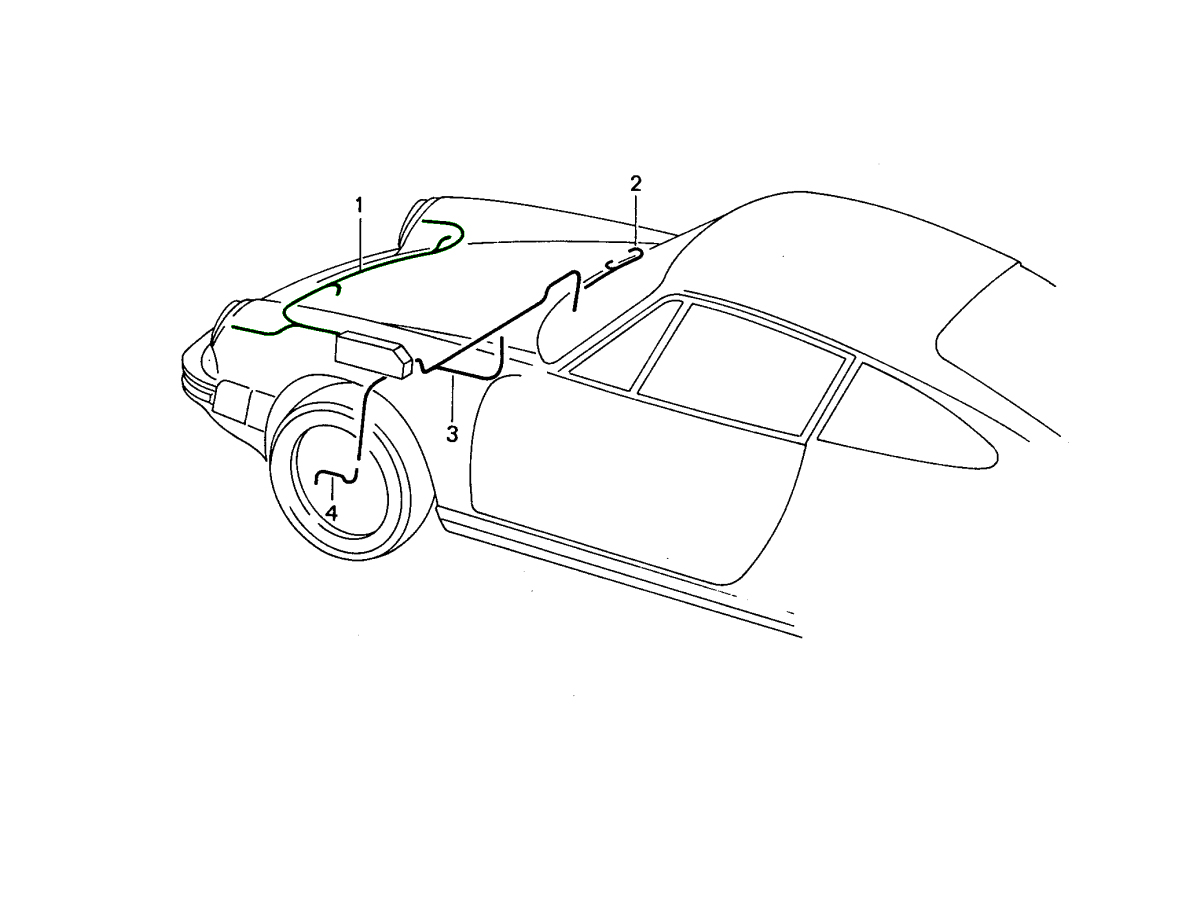

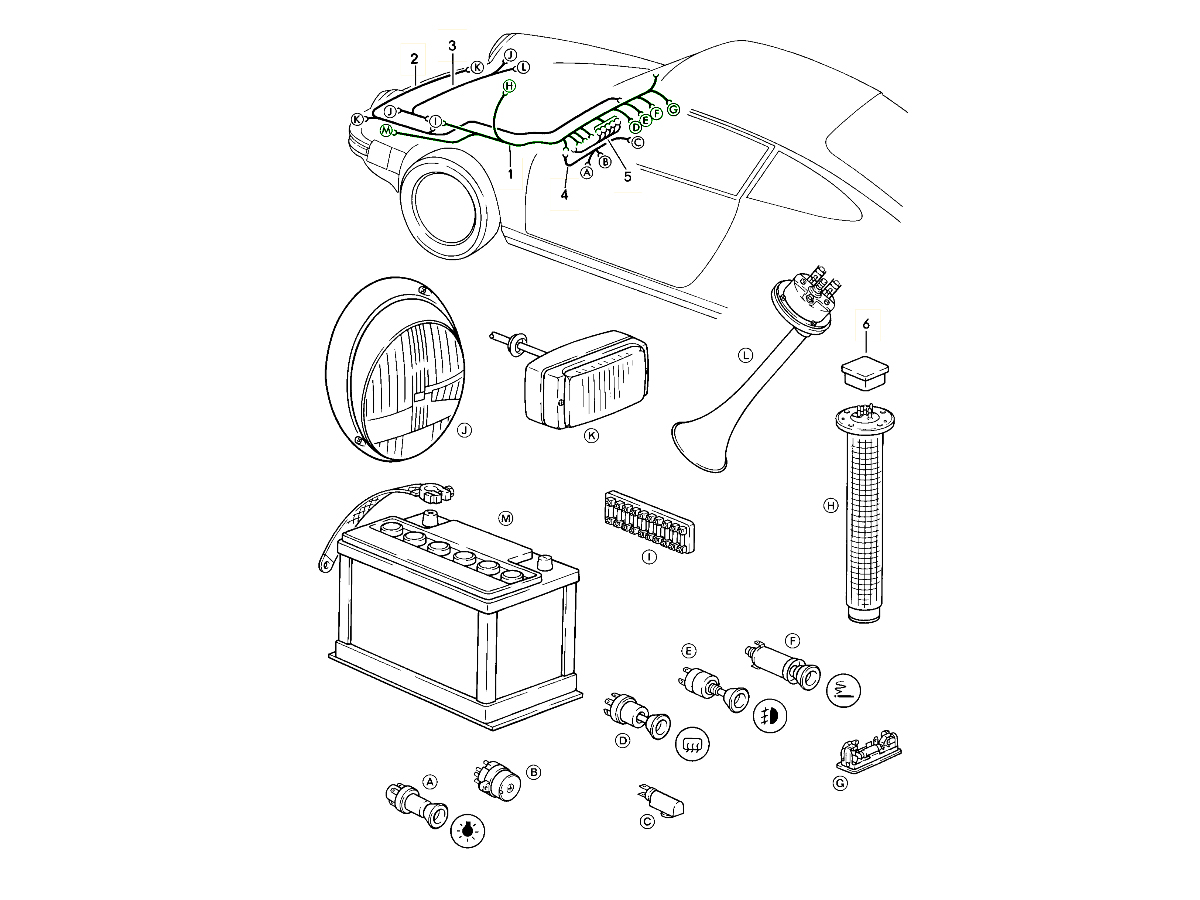

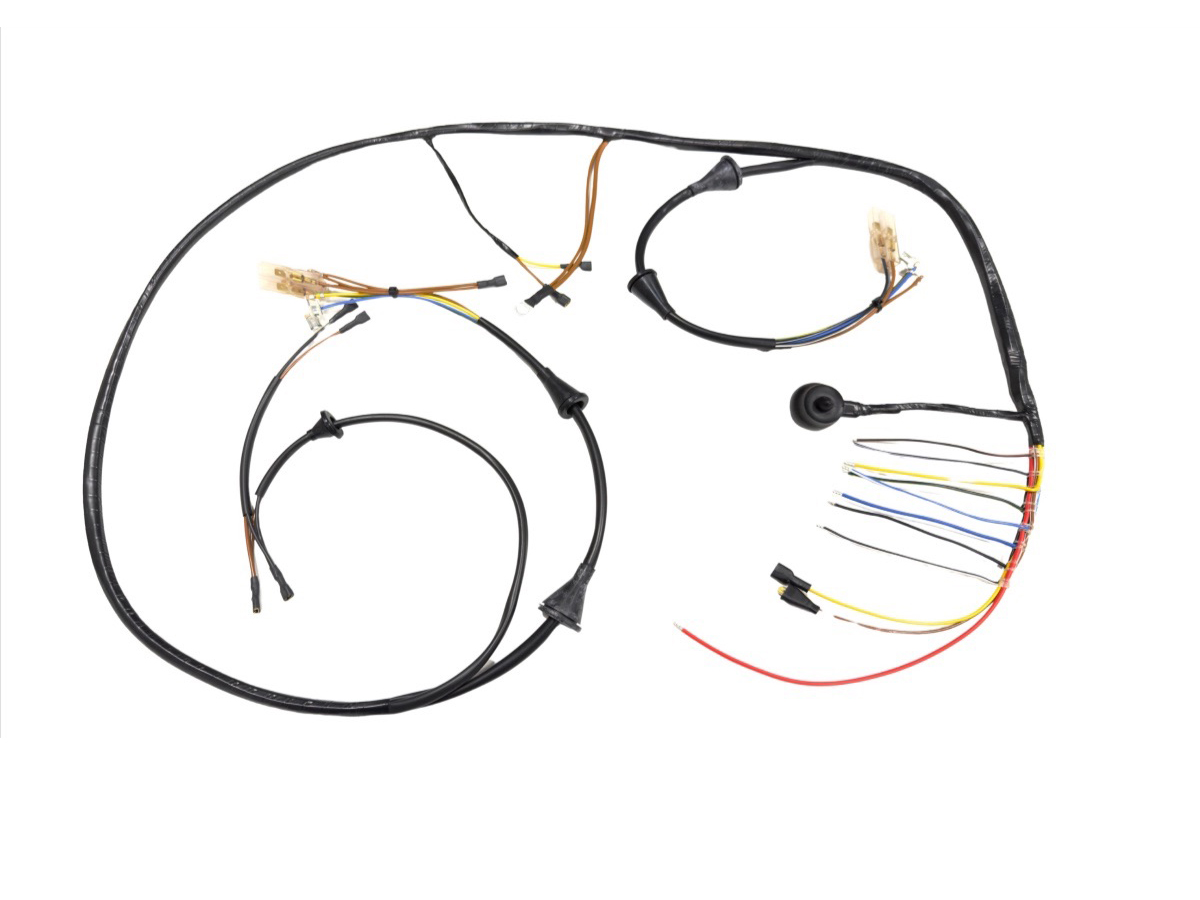

Wiring harness for headlight, front.
Fully prepared 911 1974-1986 front harness with new relay base (for horn).

Fits:
Porsche 911 1987-1989 (also US/CAN)
This fits also 1984-1986 Carrera 3.2 (ROW + US/CAN)

•   Waxed lacing wire and each wire at the right length.
•   Runs from fuse box to left and right headlight bucket.
•   Two H4 connectors included.


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161200302

The product you are viewing cross references to these numbers

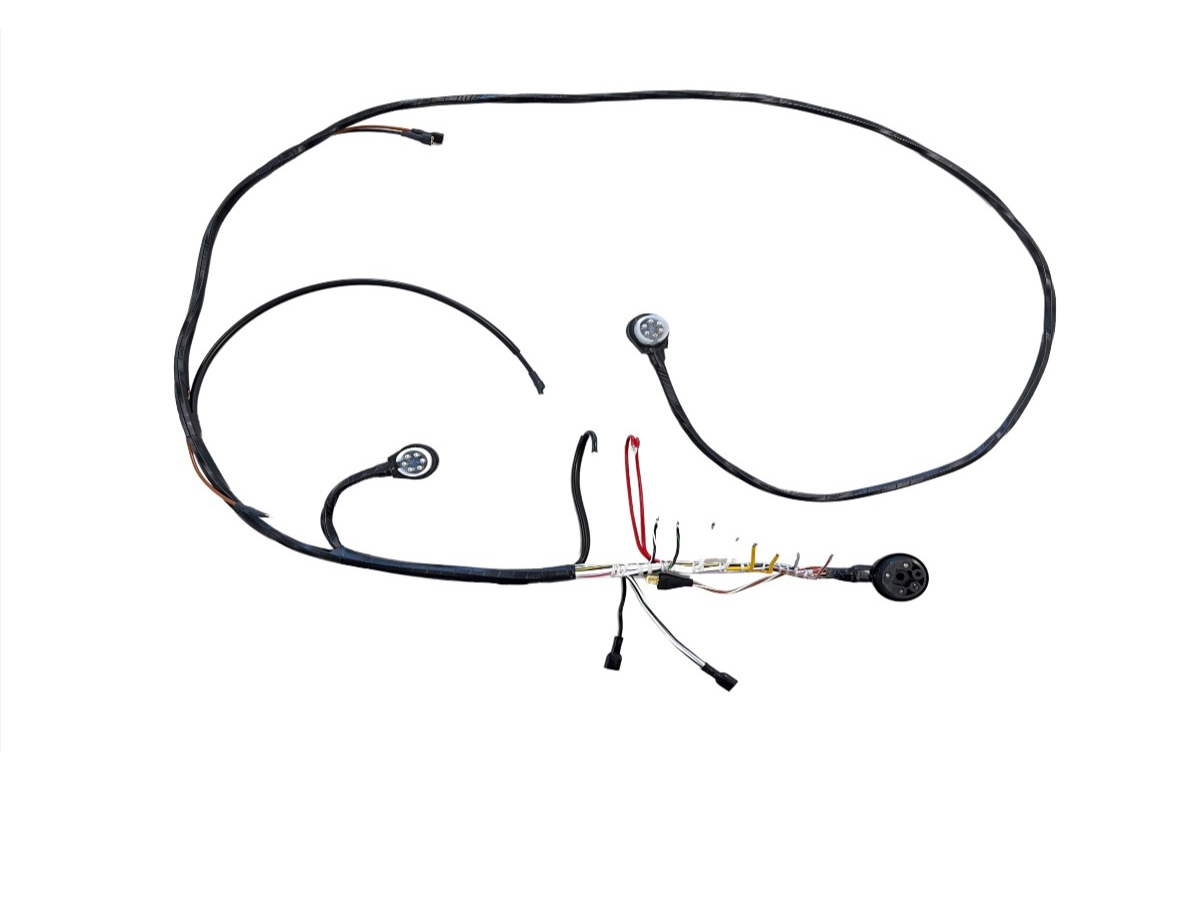

Wire harness for front.

Fits:

Porsche 911 or 912 1969

Fully prepared 911 1969 front harness with 2 x 6 pole male connector and relay base (for horn) with the only for 1969 thick positive wire.

•   Waxed lacing wire and each wire at the right length.
•   Runs from fuse box to left and right fender / left washer pump.
•   Original colour coded wiring.
•   Harness will exactly fit like the original.
•   Wire tube, and oil resistant tape as original.
•   Terminals have rubber sleeves.
•   2 new male connectors and relay socket included.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161205000

The product you are viewing cross references to these numbers

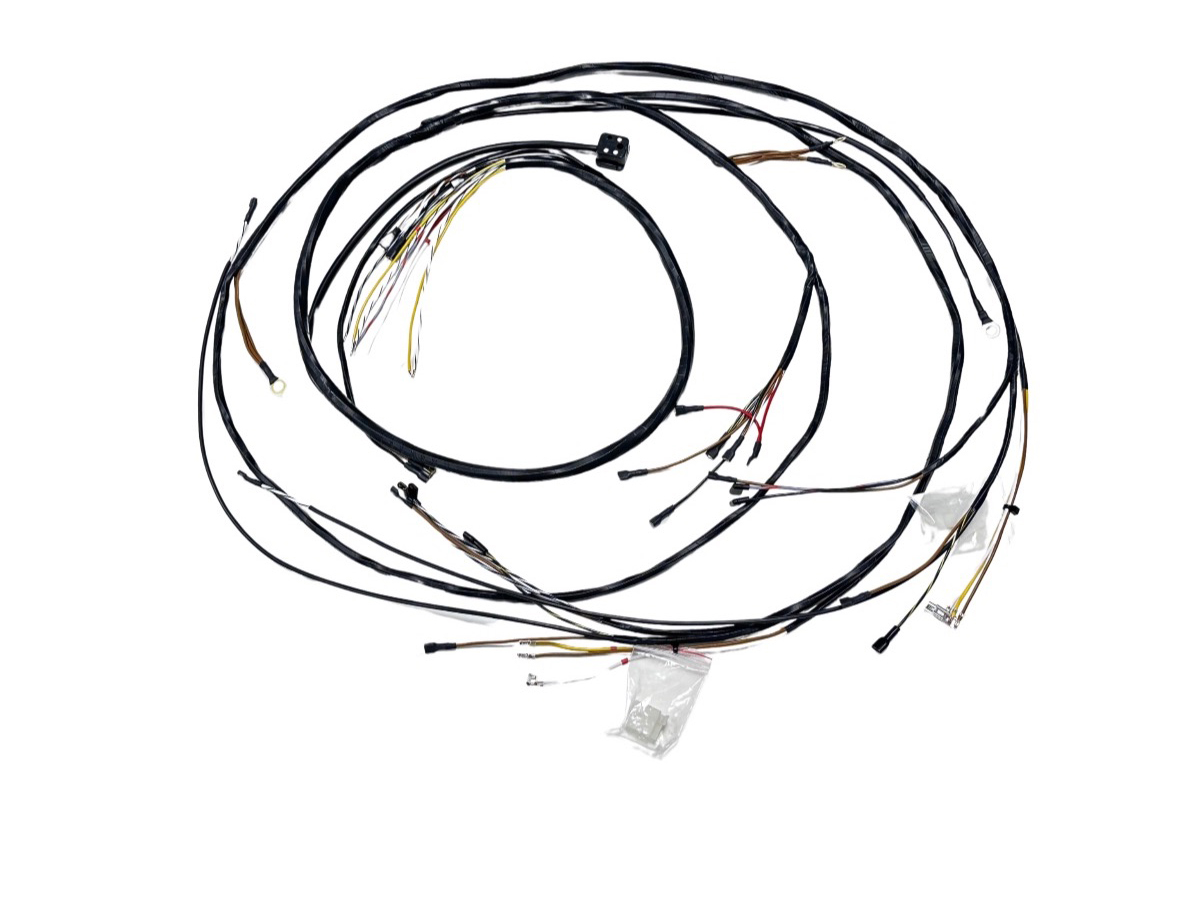

Wire harness front luggage compartment.

Fits:
Porsche 911 and 912 1966-1968 (Zuffenhausen)
* this is the taped version, only used for car's build at Zuffenhausen

Complete front harness from fuse box to front, headlights, horns, turn signal, washer pump, fog lights. Each wire at the right length with original colour coded wiring. H4 connectors included.

New 4 pole fuel connectors included.

•  As original coloured wiring.
•  Original neoprene terminal sleeves used, (no shrink tube!)
•  Very high quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53 Gasoline, oil, battery acid, engine coolant resistant.
•  High flex sleeving ,very resistant to solvents and free of halogen, sulphur and phosphorous.
•  Handmade in Holland, concourse quality.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161200101Z

The product you are viewing cross references to these numbers

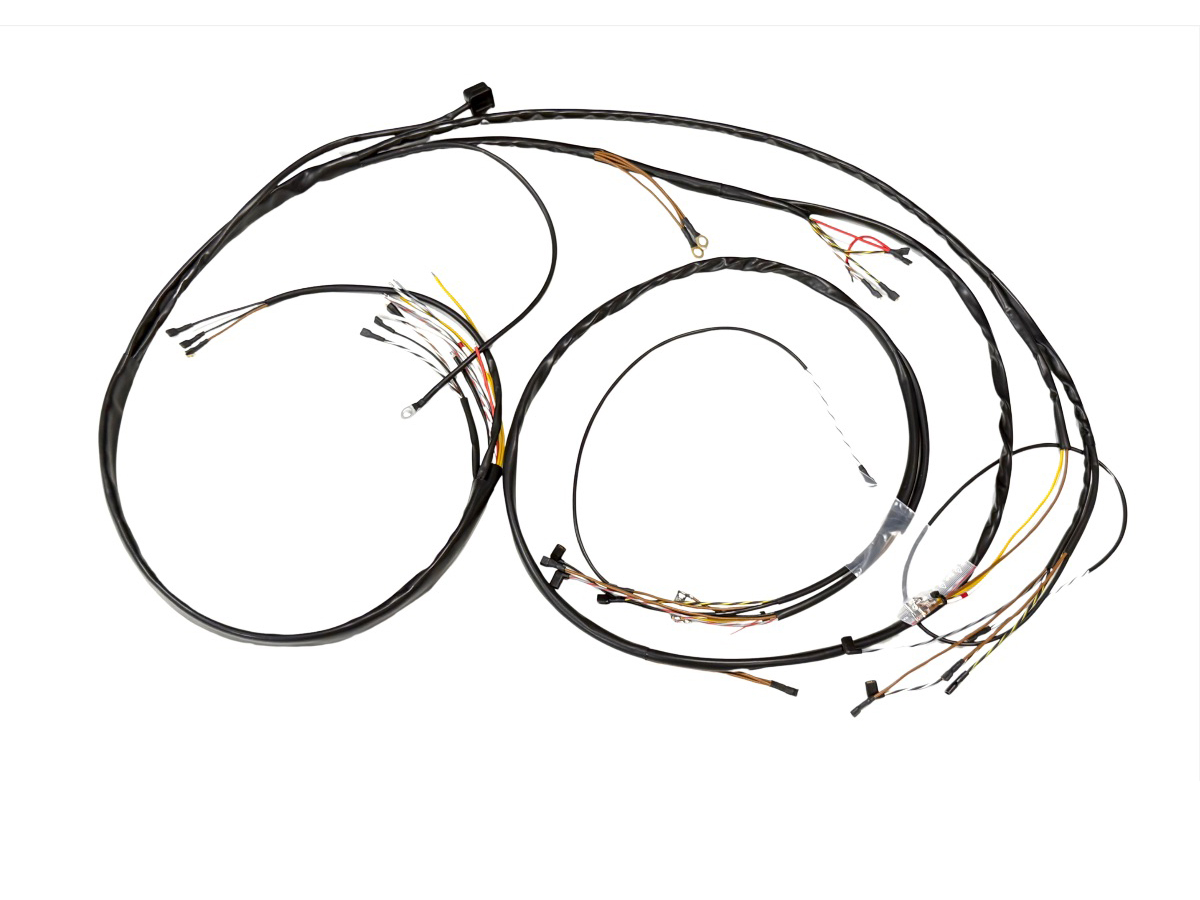

Wire harness front luggage compartment.
Complete front harness from fuse box to front, headlights, horns, turn signal, fog lights. Each wire at the right length with original colour coded wiring. H4 connectors included.

Fits:
Porsche 901- 911 and 912 1964-1965

* This is the model that fits only 1964 and 1965 911 /912 with the washer pump on the right !

 New 4 pole fuel connector included.

•  As original coloured wiring.
•  Original neoprene terminal sleeves used, (no shrink tube!)
•  Very high quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53
•  Gasoline, oil, battery acid, engine coolant resistant.
•  High flex sleeving ,very resistant to solvents and free of halogen, sulphur and phosphorous.
•  Handmade in Holland, concourse quality.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161200101A

The product you are viewing cross references to these numbers
